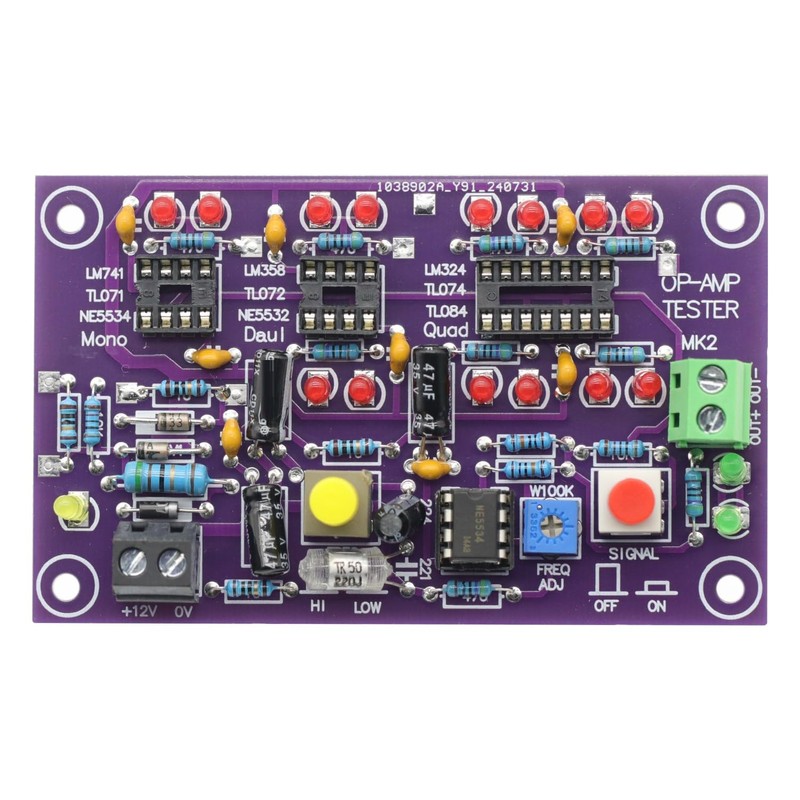

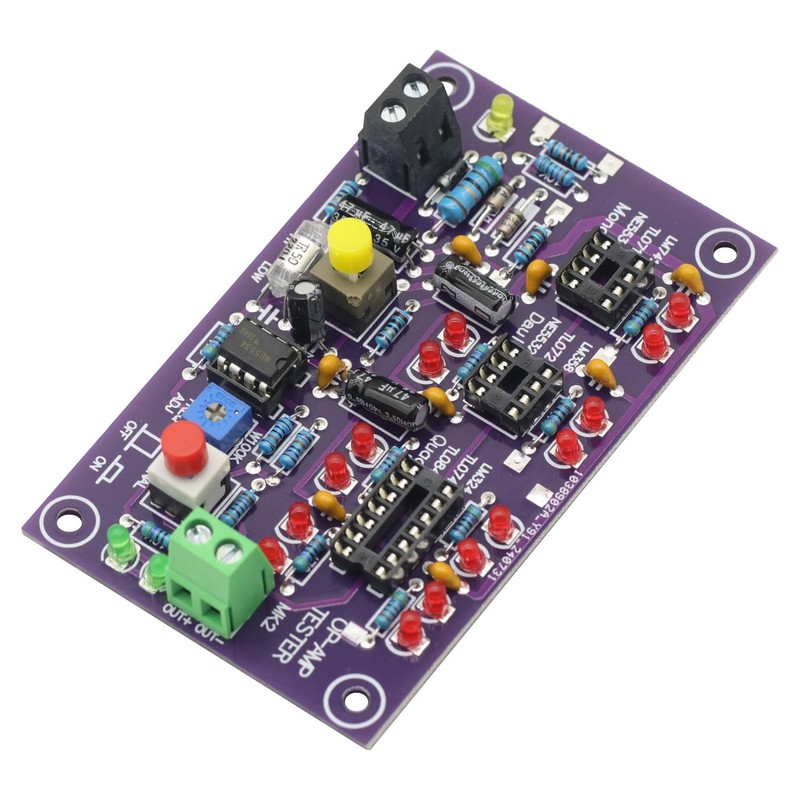

Product Overview
- 1. This operational amplifier test board can be used to test common single operational amplifier, dual operational amplifier, and quad operational amplifier chips, and distinguish between high-speed and low-speed finished boards.
- 2. This circuit board can determine whether IC can be used for amplification and also determine the conversion rate of the chip.
- 3.Equipped with LED indicator light, for high-speed operational amplifiers, they can output normally when inputting high and low frequency square wave signals, manifested as the corresponding red LED synchronized with the green LED, constantly on (200KHZ) or flashing (10Hz).
- 4.There are test terminals left on the board that can test the static current of the operational amplifier under positive and negative 5V power supply conditions. By measuring the static current, some characteristics of the operational amplifier can also be understood, and model differentiation can be made.
- 5.Supported models: Single operational amplifier models: LM741, LF356, NE5534, TL071, TL081, OP07 and other standard packaged single operational amplifiers. Dual operational amplifier models: LM358, NE5532, TL072, TL082, MC1458, RC4558, 0P275, AD827 and other standard packaged dual operational amplifiers. Four operational amplifier models: LM324, TL074, TL084, LF347, AD713, etc
| Brand: | GODIYMODULES |
|---|---|
| Manufacturer: | GODIYMODULES |
| Part Number: | S9QPGF9 |
| Isin: | ITBT3P00RTVU |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Parameter:
Power supply requirements: Voltage: 12V/DC, current above 100mA
PCB size: 9.5X5.8 cm
Supported models:
Single operational amplifier models: LM741, LF356, NE5534, TL071, TL081, OP07 and other standard packaged single operational amplifiers.
Dual operational amplifier models: LM358, NE5532, TL072, TL082, MC1458, RC4558, 0P275, AD827 and other standard packaged dual operational amplifiers.
Four operational amplifier models: LM324, TL074, TL084, LF347, AD713, etc

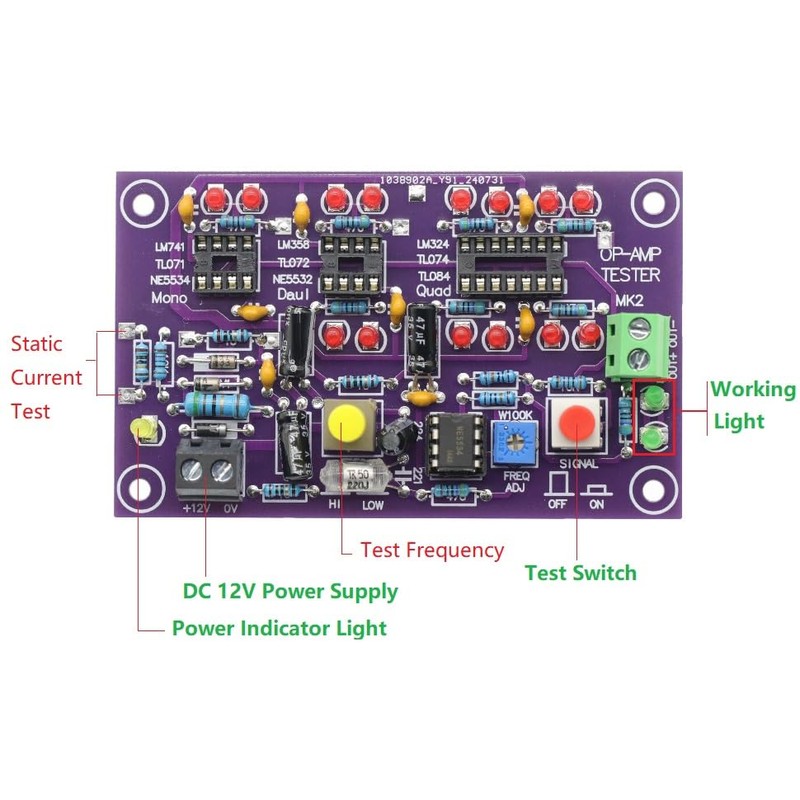

Testing precautions:
1. Only one chip can be tested at a time, and only one of the three test sockets can be used.
2. For static current testing, a DC voltmeter with a digital multimeter is required to test the voltage at both ends of 10 ohms, with I=V/10 (ma). For example, if V=15MV, the static current I=1.5 ma (at this time, there is no need to press the red switch on the right side of the figure).
3. The testing end can be connected to an oscilloscope or frequency meter, and the potentiometer can be adjusted to change the testing frequency.
Package include:
1X operational amplifier test board
