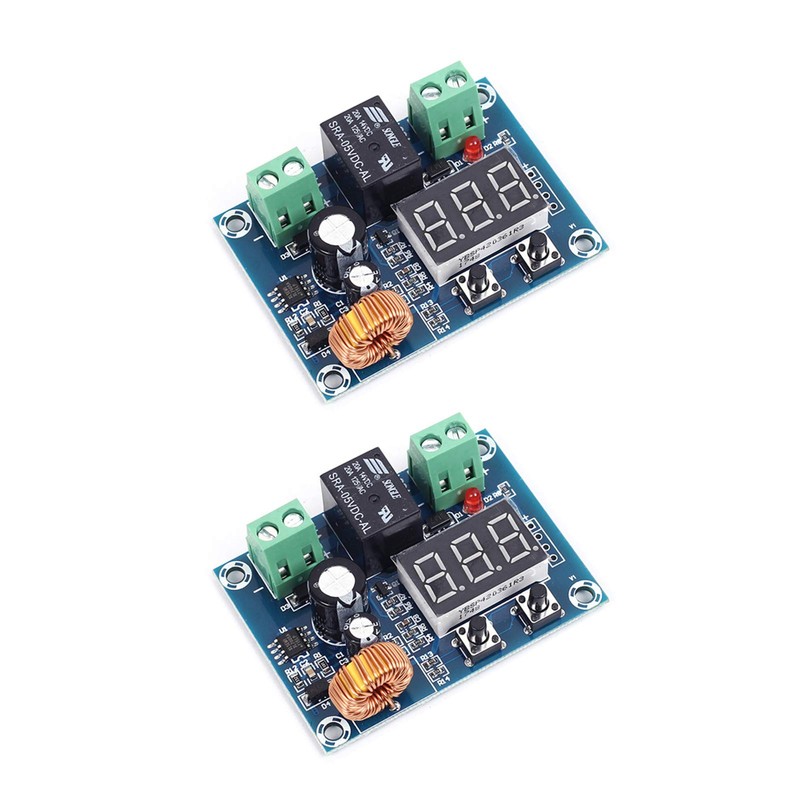

Onyehn 2pcs 12V-36V DC Voltage Protection Module Digital Low Voltage Protector Disconnect Switch Over Discharge Protection Module
Onyehn 2pcs 12V-36V DC Voltage Protection Module Digital Low Voltage Protector Disconnect Switch Over Discharge Protection Module
Product Overview

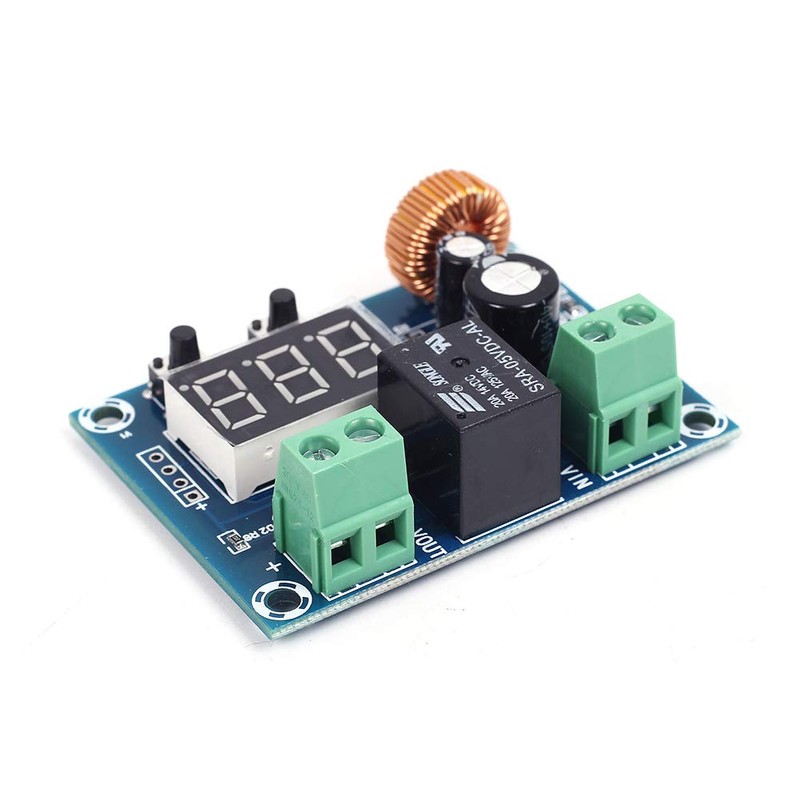

- Board Size: 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(L*W*H), Input Voltage Range: DC12-36V, Control Accuracy: 0.1V, Power Consumption: <1.5W, Maximum Amperage before Breaker Trips: 20A.(Note:Due to the limitation of the size of the PCB board, the relay size of this module is mini and the circuit lines are very thin. The current should not be too large during actual use. If the current exceeds 8A, the relay contacts may be blown and cannot be used normally.) Package Included:2x Protection Module.
- Programmable battery low voltage disconnect switch for DC12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself.Compatible Battery: lead acid, lithium ion battery, solar panel battery.Not suitable for battery packs.

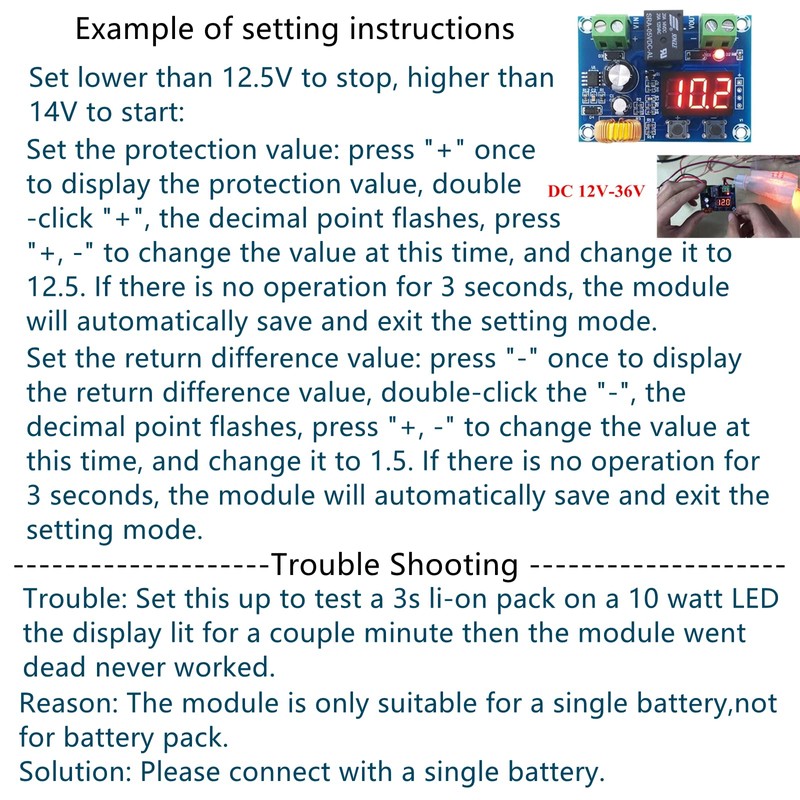

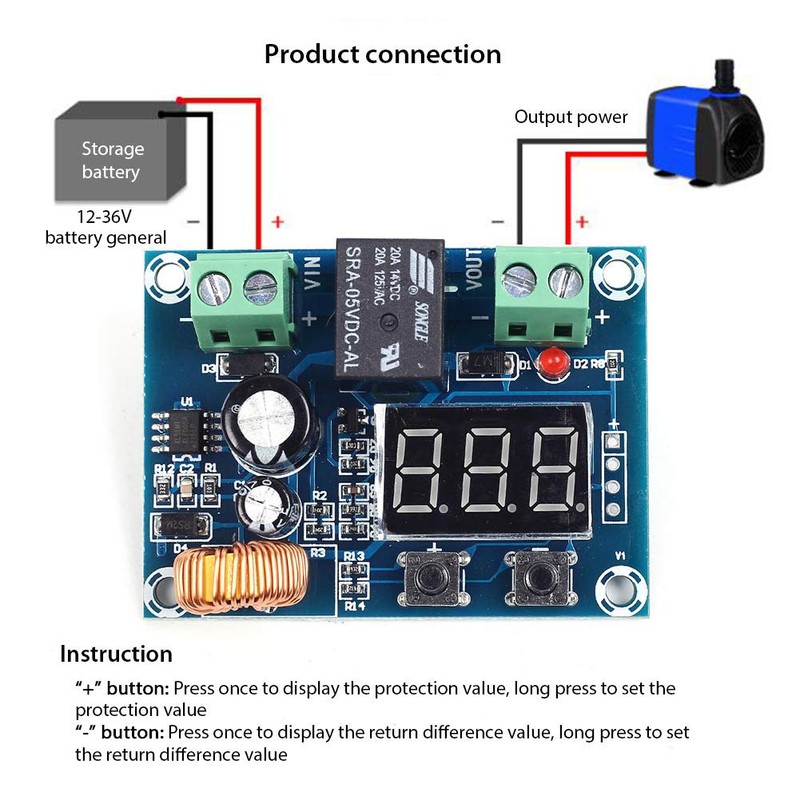

- On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation.When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. (Note:The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.)
- Reset:When the power is off, press and hold the two buttons at the same time, and then power on. At this time, the screen displays "888", indicating that the factory settings are restored.The factory-set protection value: 12V, difference value: 2V.Difference Value"is the value between the battery voltage to disconnect and the battery voltage to reconnect.
- Display is accurate, the switch module is quickly to open and close when near minimum voltage; Settings is stored non-volatile, it can keep set when power off
| Brand: | Onyehn |
|---|---|
| Manufacturer: | Onyehn |
| Part Number: | QNXM4LS |
| Material Type: | Lead |
| Product Dimensions: | 5.1 x 3.4 x 1.0 inches; 2.08 ounces |
| Isin: | IYUXB4CDOFD0 |
Guaranteed as described or your money back.
- 30-Day Money-Back Guarantee
- Secure Checkout
- Reliable Shipping & Tracking
- Responsive Customer Support
Product Overview
- Board Size: 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(L*W*H), Input Voltage Range: DC12-36V, Control Accuracy: 0.1V, Power Consumption: <1.5W, Maximum Amperage before Breaker Trips: 20A.(Note:Due to the limitation of the size of the PCB board, the relay size of this module is mini and the circuit lines are very thin. The current should not be too large during actual use. If the current exceeds 8A, the relay contacts may be blown and cannot be used normally.) Package Included:2x Protection Module.
- Programmable battery low voltage disconnect switch for DC12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself.Compatible Battery: lead acid, lithium ion battery, solar panel battery.Not suitable for battery packs.
- On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation.When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. (Note:The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.)
- Reset:When the power is off, press and hold the two buttons at the same time, and then power on. At this time, the screen displays "888", indicating that the factory settings are restored.The factory-set protection value: 12V, difference value: 2V.Difference Value"is the value between the battery voltage to disconnect and the battery voltage to reconnect.
- Display is accurate, the switch module is quickly to open and close when near minimum voltage; Settings is stored non-volatile, it can keep set when power off
| Brand: | Onyehn |
|---|---|
| Manufacturer: | Onyehn |
| Part Number: | QNXM4LS |
| Material Type: | Lead |
| Product Dimensions: | 5.1 x 3.4 x 1.0 inches; 2.08 ounces |
| Isin: | IYUXB4CDOFD0 |
1.Programmable battery low voltage disconnect switch for DC12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself.Compatible Battery: lead acid, lithium ion battery, solar panel battery.Not suitable for battery packs.
2.The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.
3.Due to the limitation of the size of the PCB board, the relay size of this module is mini and the circuit lines are very thin. The current should not be too large during actual use. If the current exceeds 8A, the relay contacts may be blown and cannot be used normally.
Package Included:

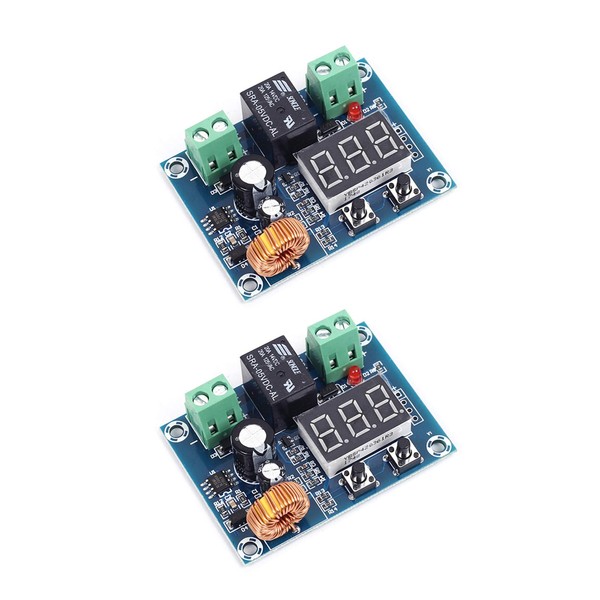

2x Protection Module.
How to use: The first time a new battery is used, the rated voltage value is close to the actual value, Judgment to stop the discharge voltage. A reasonable discharge voltage value can be obtained according to the general voltage calculation method of the battery. When the old battery is used, the actual voltage value and the rated voltage value are quite different, so you need to measure the stop voltage value in actual use.
Battery charging usually uses slow charging (the voltage and current of fast charging are relatively large, and the battery is easily damaged.) The charging voltage of slow charging is 1.2 times the rated voltage, and the charging current is adjusted to about 2/10 of the rated capacity current of the battery. For example: the charging voltage of a 6V 50Ah battery is about 7.2V, adjust the charging current to 10A.
