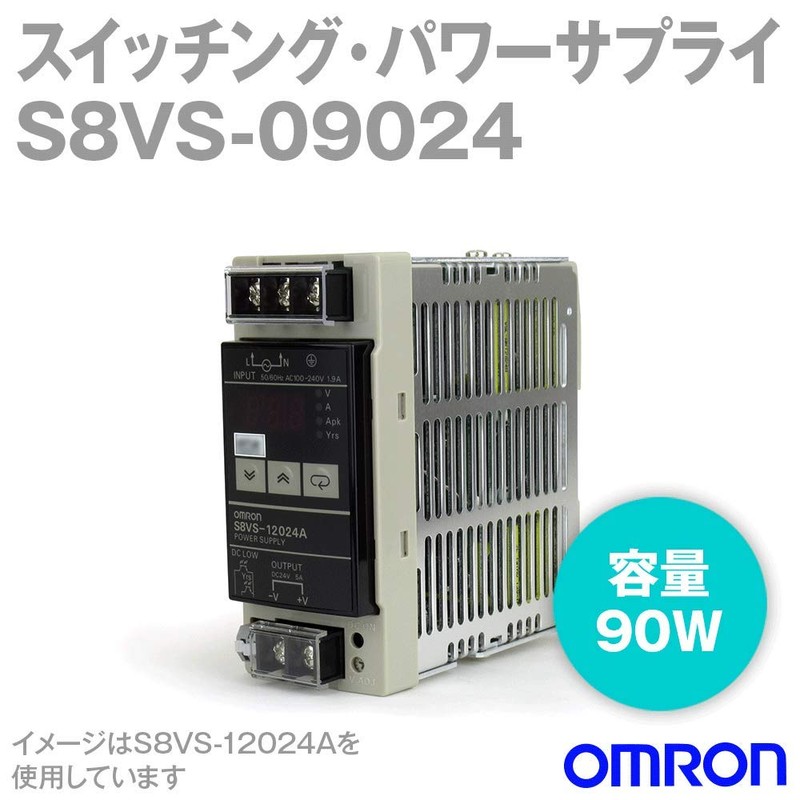

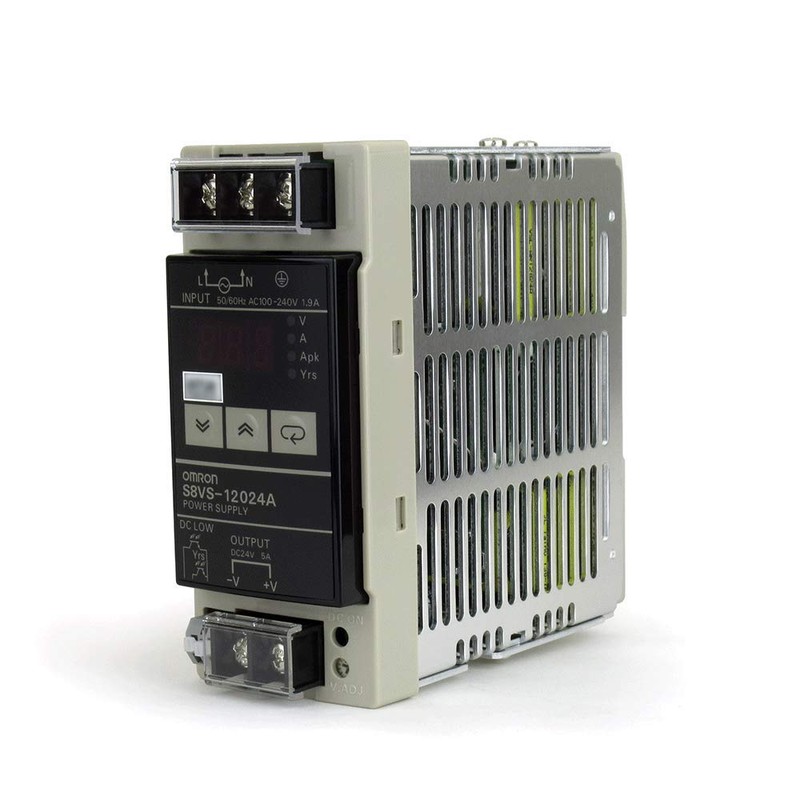

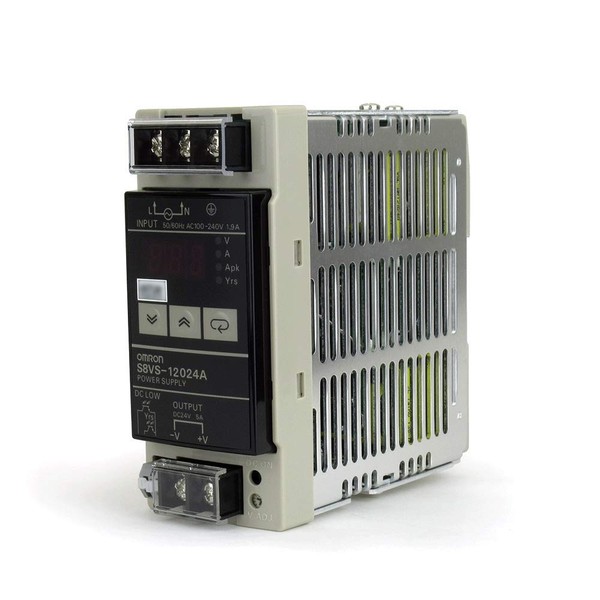

Omron (Omron) s8vs – 09024 Switching Power Supply (Screw Terminal Base) (W (V/3.75 A)) NN
$212.69
- $9.99 shipping from Japan View details
-
Arrives
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
[Capacity] 90W
[Efficiency]
83% TYP. (with AC 100V input)
84% TYP. (with AC 200V input)
[Rated Input Voltage] AC100? 240V
[Input Voltage Allowed Variation Range]
AC85? 264V
DC80? 370V
[Caution when DC input] The EC Directive and various safety standards (UL, EN, etc.) are applicable to AC100? 240V (AC85? 264V).
[Frequency] 50/60 Hz (47? 450Hz Single Phase)
[Input current]
1.9A TYP. (with AC 100V input)
1.0A TYP. (with AC200V input)
[Harmonic Current: EN61000-3-2
[Leakage current]
0.5mA or less (with AC 100V input)
1.0mA or less (with AC 200V input)
[Intrusion current]
14A TYP. (at AC 100V input (at 25°C cold start))
28A TYP. (at AC 200V input (at 25°C cold start))
[Output voltage] DC 24V
[Voltage Variable Range]
-10? +15% (with V ADJ)
(V.ADJ volume control will increase voltage over +15% of the variable voltage range. If you change the output voltage, please check the power output voltage to avoid damage the load. )
[Ripple Noise Voltage]
Less than 2% (p-p) (at rated input and output)
Less than 250 mV (at rated input and output)
[Output Characteristics (Static Input Fluctuation)] Less than 0.5% (Input AC85? 264V at 100% load)
[Output Characteristics (Static Load Variation)] Less than 1.5% (Rated Input, 0? 100% load)
[Output Characteristics (Ambient Temperature Fluctuation)] <0.05% / °C
[Output current] 3.75A
[Startup Time]
460ms TYP. (AC 100 input)
300ms TYP. (AC 200 input)
[Output Retention Time]
28ms TYP. (AC 100 input)
132ms TYP. (AC 200 input)
[Over Current Protection]
Rated output current 105? 160%
Reverse L drop-down / intermittent action type, automatic return
[Over Voltage Protection]
Rated output voltage of 115? Works 150% Shut-off
Return Method: Re-input (Off Time: 3 mins or higher)
[Overheating Protection] No
[Notification of time to replace] None
[accumulated working time output] None
[Low Voltage Detection Output] None
[Power Fail Detection Output] None
[Parallel Operation] Not possible (but can be used for backup operation, external diodes required).
[Series Operation] Yes (Connect up to 2 cars. External diode required)
[Remote Sensing] No
[Applicable Standards (UL)] Standard Number: UL Listed: UL508 (Listing) / UL UR: UL60950-1 (Recognition)
[Applicable Standards (CSA)] Standards number: cUL: CSA C22.2 No.107.1 / cUR: CSA C22.2 No.60950-1
[Applicable Standards (EN)] EN50178 / EN60950-1
[Applicable Standards (EC Directive (EMC)]
EMI: EN61204-3 Class B
Radiation Interference Electrical Field Strength: EN55011 Group 1 Class B Compliant
Noise Terminal Voltage: EN55011 Group 1 Class B Compliant, FCC Class A Compliant.
Harmonic Current: EN61000-3-2
EMS: EN61204-3 High severity levels
[Applicable Standards (VDE)] VDE0160 / VDE0805 Teil 1
[Applicable Standards (SEMI)] F47-0200 (with AC 200V input)
[Ambient Temperature Range]
When in use: -10? 140°F (60°C) (see delating curve)
Storage: -25? 65℃
(But do not freeze or condensation)
[Ambient Humidity Range]
When in use: 25? 85% RH
Storage: 25? 90% RH
(But do not freeze or condensation)
[Withstanding Voltage]
Inputs and (output bulk, alarm output summar): AC 3 kV 1 min (detection current 20 mA)
