OBDResource Tpms Relearn Tool U508 for GM Ford Chrysler Dodge Tire Pressure TPMS Reset
$96.11
- Free US shipping
-
Arrives
Product purchase notice (Very important ！！):
1.This one is for relearn TPMS , not for programming new sensor , if you replace new sensor , you need to use programming tool to program it first , then use this relearn tool to make it match the vehicles.
2.Please make sure your car can successfully enter the learning mode, if not please do not purchase, Some vehicles need to use other tools to enter the learning mode.for example, Subaru
3.The product does not support all models, please see the list of U508 Support Vehicle List， if your vehicle model and the year doesn't on our support list , please do not purchase !!!
4.There is no 9V battery inside package, you need to prepare that yourself.
When we need U508 Universal TPMS Sensor Reset Tool?
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement,sensor damage, etc. After those problems solved, TPMS needs to be reset.
● Exchanging the winter tires or Summer tires.TPMS needs to be reset.
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
Description
This item can do all function of EL50448 OTC-5 for GM, TPMS19 for Ford, function like ATEQ AT06 scanner.
Function

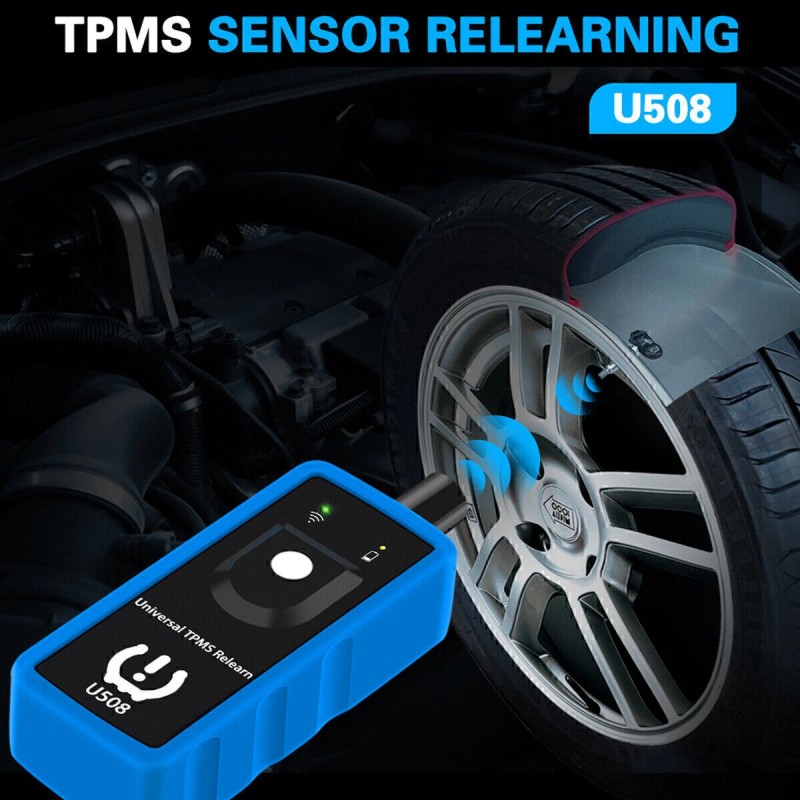

The U508 sends a RF signal to the TPMS sensor mounted to the vehicle's wheel to “wake up” the sensor. Once the tool triggers the sensor, the sensor is ready to communicate with the vehicle's ECU.
Instructions
While holding the tool next to the side wall of the tire above the sensor, press and hold the button to trigger the sensor (You can also press the tool directly against the sidewall of the tire). An orange light will illuminate on the tool.
Continue to hold the button down until successful signal transfer to the vehicle's ECU, diagnostic station or until the vehicle's horn "beeps".
Attention !!!! Some vehicles Need to Use Other Tools To Enter the Learning Mode
For example
SUBARU-1
SUB-1
**This Relearn procedure requires the use of a OBDII tool**
A properly formatted scan tool is required to learn sensor IDs when replacing sensors.
Inflate all tiresRead all sensor IDs using toolConnect tool to OBDII portReset ECU with toolIgnition OFF then ONDrive at 25 MPH for up to 10 minutes

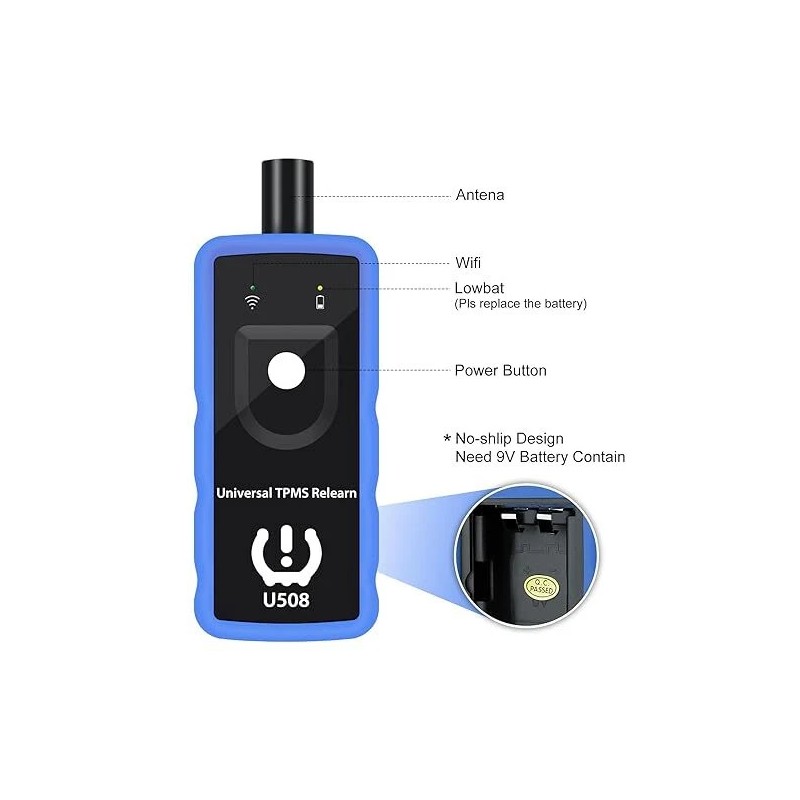

Tips for using "U508 Universal TPMS Sensor Reset Tool"
1. 9V battery shold be in good condition: New & fully charged.

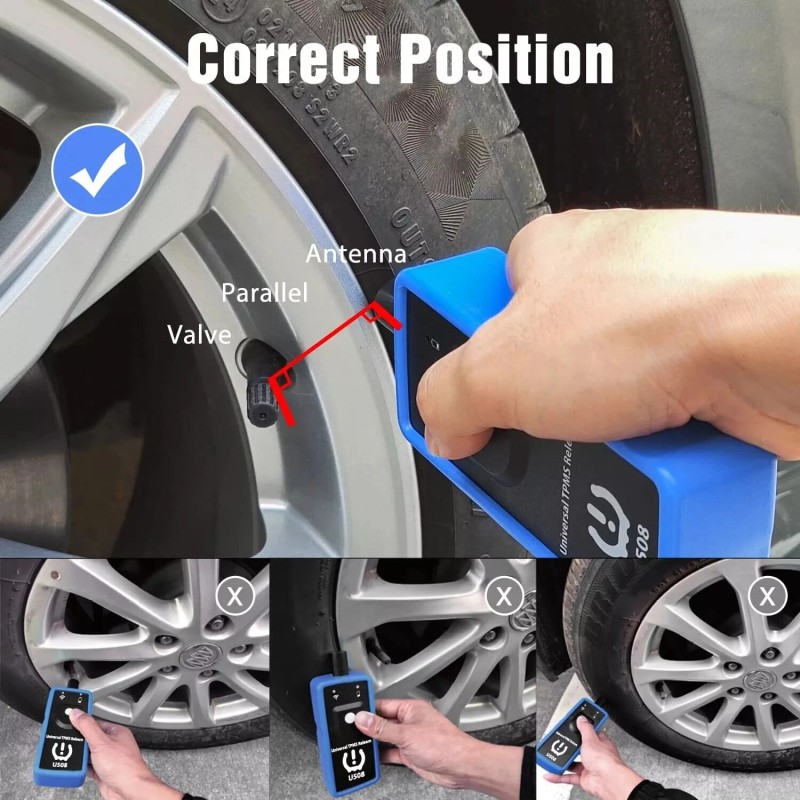

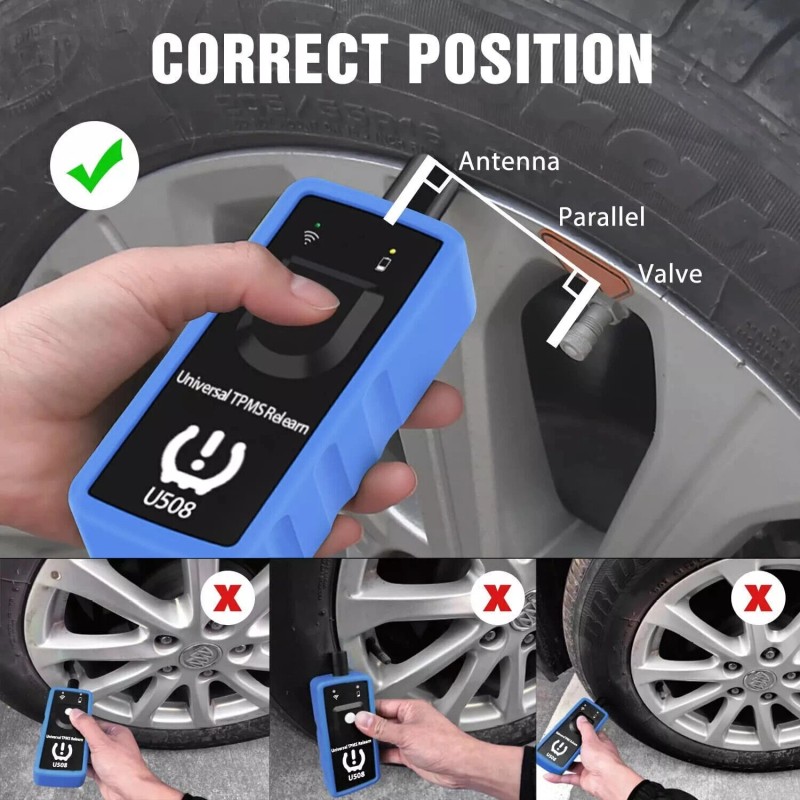

2. Make sure antenna fits in CORRECT position.
3. Do tire reset outside instead of in the garage.
4. Position of tires are also important, front tires have to be straight.
5. Sensors should be original / OEM sensors which are already well programmed.
6. Keep pressing the power button to send signal until it succeeded.
7. Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
8. Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.
Perfect Automotive Tire Pressure Monitor Sensor
【PERFECT AUTOMOTIVE TIRE PRESSURE MONITOR SENSOR】 you can be activated by Done alone within 3-5 minutes. Save time and money , much better than going to a dealer or tire storage just to reset the pressure sensor.
【SUITABLE SCOPE FOR VEHICLES】 BMW/Buick/Cadillac/Chevrolet/Chrysler/Dodge/Fiat/Ford/Genesis/GMC/Hummer/Hyundai/Infiniti/Isuzu/Lincoln/Lotus/Maserati/Mercedes/Mitsubishi/Pontiac/Ram etc.please check whether your car model can be used with U508 tool in the detailed introduction.
【TPMS RESET TOO】 U508 is a essential tool with a 315MHz or 433 MHz tire pressure monitoring system, of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.

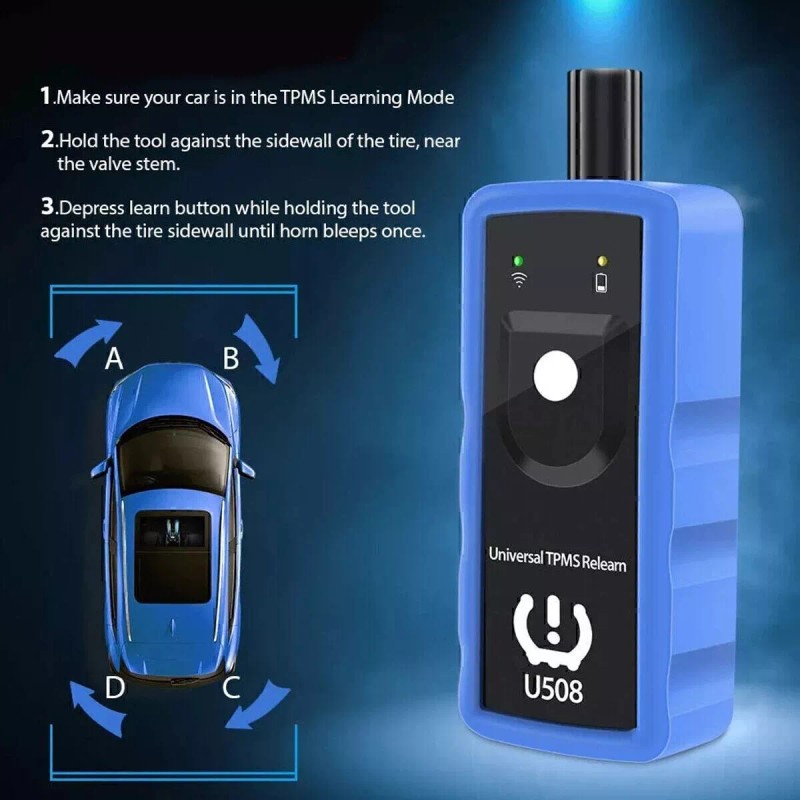

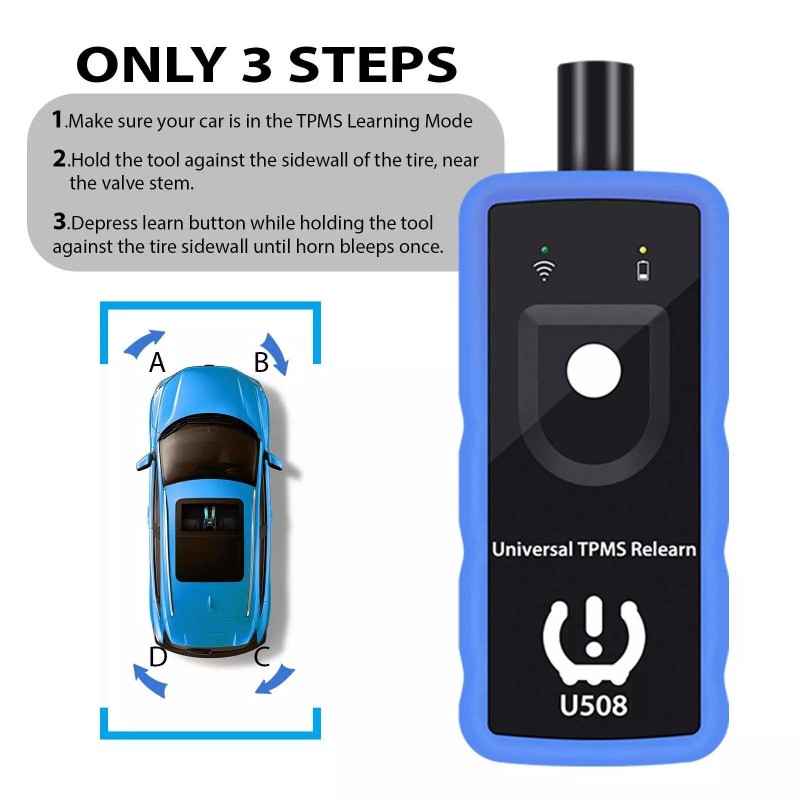

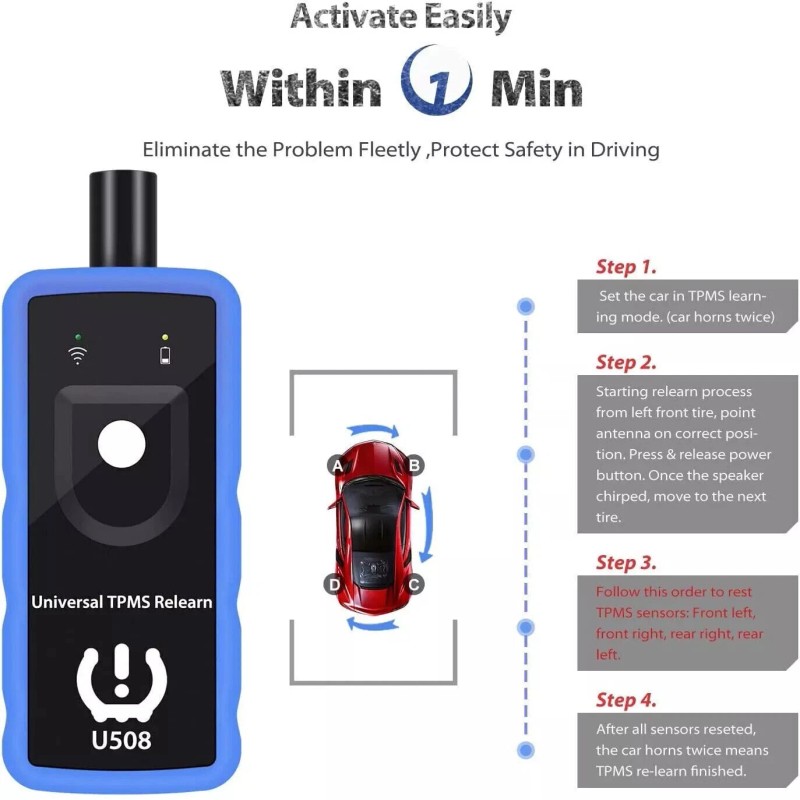

Easy To Use,Only 3 Steps:
No need install any software, only need install a 9V battery.
1. Make sure your car is in the TPMS Learning Mode.
2. Hold the tool against the sidewall of the tire, near the valve stem.
3. Depress learn button while holding the tool against the tire sidewall until horn bleeps once.
Steps to set car in TPMS Re-Learn mode:
For GM series vehicles:
1. Set the parking brake, turn the ignition switch to ON/RUN with the engine off.
2. Type A - Choose TPMS relearn mode in the dashboard setting, hold pressing the key for 5 seconds. Type B - Choose TPMS relearn mode in the dashboard setting, press and hold SET/RESET button until a double horn chirp sounds. Type C - Press the Remote Keyless Entry (RKE) transmitter's LOCK and UNLOCK buttons at the same time for 5 seconds.
3. Horn will sound twice and TPMS indicator flashes, then learning mode has been entered successfully. Start from the driver side front tire (LF).
For Ford series vehicles:
1. Set the parking brake.
2. Ensure ignition switch to OFF, press and release the brake pedal for 1 time.
3. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
4. Press and release brake pedal.
5. Turn ignition OFF position.
6. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
7. Horn will sound once and TPMS telltale will blink once train mode is initiated. If equipped with message center, it will display TRAIN LF TIRE. Start from driver side front tire (LF) .

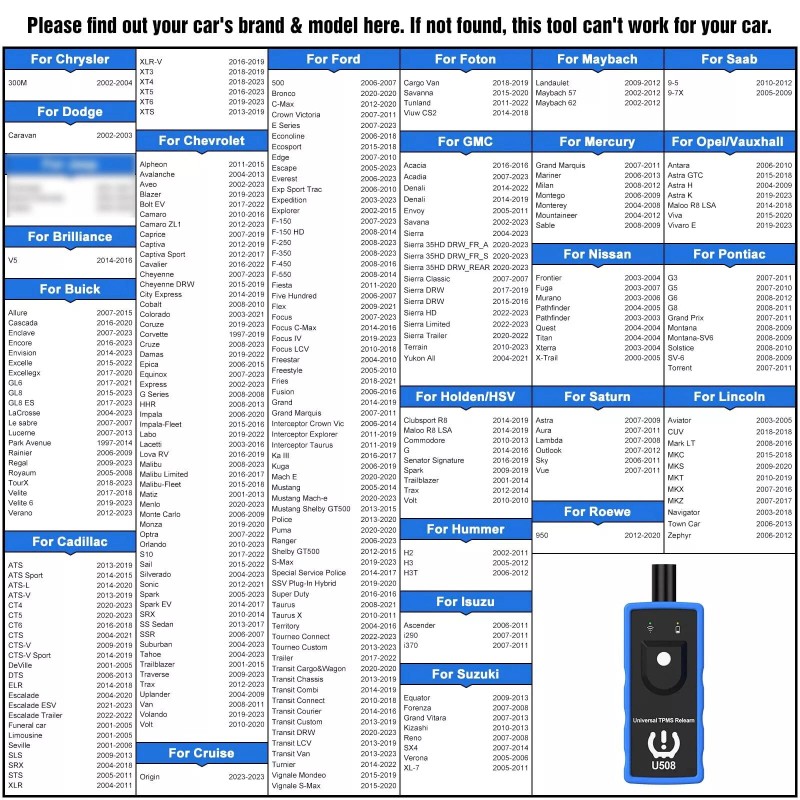

U508 Support Vehicle List :
Alfa Romeo 4C 2013-2019
Alfa Romeo MiTo 2 2013-2016
Aston Martin DBS Superlegera 2018
BMW 7 Series (G11 G12) 2016-2019
BMW M5 2018-2019
BMW X3 (G01) 2017-2019
BMW MOTORCYCLE ALL 2007-2018
Buick Allure 2007-2011
Buick Cascada 2016-2019
Buick Enclave 2008-2019
Buick Encore 2013-2019
Buick Envision 2015-2019
Buick LaCrosse 2006-2019
Buick LeSabre 2007
Buick Lucerne 2007-2011
Buick Regal 2011-2019
Buick Verano 2012-2018
Cadillac ATS 2013-2019
Cadillac CT6 2016-2019
Cadillac CTS 2008-2019
Cadillac Deville 2001-2005
Cadillac DTS 2006-2011
Cadillac ELR 2014-2016
Cadillac Escalade 2001-2006
Cadillac Escalade 2007-2019
Cadillac Seville 2001-2004
Cadillac SRX 2007-2016
Cadillac STS 2005-2008
Cadillac STS 2009-2011
Cadillac XLR 2004-2009
Cadillac XT4 2019
Cadillac XT5 2017-2019
Cadillac XTS 2013-2019
Chevrolet Avalanche 2004-2006
Chevrolet Avalanche 2007-2013
Chevrolet Aveo 2002-2011
Chevrolet Aveo 2018
Chevrolet Bolt EV 2017-2019
Chevrolet Camaro 2010-2019
Chevrolet Caprice 2011-2017
Chevrolet Captiva Sport 2012-2017
Chevrolet Cobalt 2008-2010
Chevrolet Colorado 2006-2012
Chevrolet Colorado 2015-2019
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Corvette 2005-2009
Chevrolet Corvette 2010-2019
Chevrolet Cruze 2011-2019
Chevrolet Equinox 2007-2019
Chevrolet Express Series 2007-2019
Chevrolet HHR 2008-2011
Chevrolet Impala 2006-2019
Chevrolet Malibu 2008-2019
Chevrolet Monte Carlo 2006-2007
Chevrolet Orlando 2012-2014
Chevrolet Silverado 2004-2006
Chevrolet Silverado 2007-2019
Chevrolet Sonic 2012-2019
Chevrolet Spark 2012-2019
Chevrolet SS 2014-2017
Chevrolet Suburban 2004-2006
Chevrolet Suburban 2007-2019
Chevrolet Tahoe 2004-2006
Chevrolet Tahoe 2007-2019
Chevrolet Traverse 2009-2019
Chevrolet Trax 2013-2019
Chevrolet Uplander 2008-2009
Chevrolet Volt 2010-2019
Chrysler 300 2009-2019
Chrysler 300M 2002-2004
Chrysler Concorde 2002-2004
Chrysler Crossfire 2004-2008
Chrysler Intrepid 2002-2004
Chrysler Pacifica 2004
Chrysler Prowler 2001-2002
Chrysler Town & Country 2002-2003
Chrysler Town & Country 2011-2016
Chrysler Voyager 2002-2003
Dodge C/V 2012-2016
Dodge Caravan 2002-2003
Dodge Challenger 2008-2019
Dodge Charger 2009-2019
Dodge Durango 2011-2015
Dodge Grand Caravan 2001-2003
Dodge Grand Caravan 2011-2019
Dodge Intrepid 2002-2004
Dodge Journey 2011-2019
Dodge Viper 2003-2010
Dodge Viper 2013-2018
Fiat 500 2011-2019
Fiat 500L 2014-2019
Fiat 500E 2016
Ford EcoSport 2018-2019
Ford Edge 2015-2019
Ford Expedition 2003-2006
Ford Expedition 2018
Ford Explorer 2002-2005
Ford Explorer 2016-2019
Ford Fiesta 2018-2019
Ford Focus RS 2016-2018
Ford Freestar 2004-2005
Ford F-Series 2015-2019
Ford F-Series Super Duty 2017-2019
Ford Fusion 2017-2019
Ford GT 2017-2019
Ford Mustang 2015-2019
Ford Ranger 2019
Ford Transit 2019
Freightliner Sprinter 2014-2018
Genesis G70 2018-2019
GMC Acadia 2007-2019
GMC Canyon 2007-2012
GMC Canyon 2013-2019
GMC Savana 2008-2019
GMC Sierra All 2004-2007
GMC Sierra All 2007-2019
GMC Terrain 2010-2019
GMC Yukon All 2004-2006
GMC Yukon All 2007-2019
Hummer H2 2007-2009
Hummer H3 2006-2010
Hyundai Santa Fe 2019
Hyundai Sonata 2015-2018
Hyundai Tucson 2016-2018
Infiniti QX30 2017-2018
Isuzu i-290 / i-370 2007-2011
Isuzu Rodeo 2004
Kia Stinger 2018-2019
Lincoln Aviator 2003-2005
Lincoln Continental 2017-2019
Lincoln MKC 2018-2019
Lincoln MKX 2016-2019
Lincoln MKZ 2017-2019
Lincoln Navigator 2003-2006
Lincoln Navigator 2018-2019
Lincoln Nautilus 2019
Lotus Elise 2008-2011
Lotus Evora 2010-2014
Lotus Exige 2008-2011
Maserati Ghibli 2013-2019
Maserati Quattroporte 2014-2019
Mercedes AMG GT 2016-2019
Mercedes B Class 2014-2018
Mercedes C Class 2008-2019
Mercedes CL Class 2010-2014
Mercedes CLA Class 2014-2019
Mercedes CLK Class 2006-2009
Mercedes CLS Class 2012-2018
Mercedes E Class 2010-2017
Mercedes E Class 2018-2019
Mercedes G Class 2007-2018
Mercedes GL Class 2010-2018
Mercedes GLA Class 2015-2019
Mercedes GLC Class 2016-2019
Mercedes GLE Class 2016-2019
Mercedes GLK Class 2010-2017
Mercedes GLS Class 2017-2019
Mercedes M Class 2010-2015
Mercedes Metris 2016-2018
Mercedes R Class 2010-2012
Mercedes S Class 2010-2019
Mercedes SL Class 2013-2019
Mercedes SLC Class 2017-2018
Mercedes SLK Class 2008-2018
Mercedes SLS Class 2011-2015
Mercedes Sprinter 2013-2018
Mercury Monterey 2004-2005
Mercury Mountaineer 2002-2005
Mitsubishi Eclipse 2006-2012
Mitsubishi Endeavor 2004-2011
Mitsubishi Galant 2004-2012
Mitsubishi Montero 2003-2006
Plymouth Prowler 1997-2002
Pontiac G3 2009-2010
Pontiac G5 2008-2010
Pontiac G6 2008-2010
Pontiac G8 2008-2009
Pontiac Grand Prix 2007-2008
Pontiac Montana-SV6 2008-2009
Pontiac Solstice 2008-2010
Pontiac Torrent 2007-2009
Ram Promaster 2014-2019
Ram 1500 2010-2013
Ram 1500 2019
Ram 2500 2010-2013
Ram 3500 2010-2013
Ram 3500 Dually 2010-2013
Ram 4500 2010-2013
Ram 5500 2010-2013
Retrofit SCH-BRK-4PC 2017
Retrofit SCH-WRK-4PC 2017
Retrofit SCHRFK4S 2018
Rolls Royce Cullinan 2018-2019
Rolls Royce Phantom 2017-2019
Saab 9-3 2004-2007
Saab 9-3 2008-2012
Saab 9-4X 2011
Saab 9-5 2004-2007
Saab 9-5 2008-2009
Saab 9-5 2010-2012
Saturn Astra 2008-2009
Saturn Aura 2007-2010
Saturn Outlook 2007-2010
Saturn Sky 2008-2009
Saturn Vue 2007-2010
Smart Fortwo 2008-2017
Subaru Ascent 2019
Subaru B9 Tribeca 2006-2007
Subaru Crosstrek 2015-2017
Subaru Crosstrek 2018-2019
Subaru Forester 2008-2017
Subaru Forester 2018-2019
Subaru Impreza 2008-2016
Subaru Impreza 2017-2019
Subaru Impreza WRX 2009-2017
Subaru Impreza WRX 2018-2019
Subaru Impreza WRX STI 2009-2019
Subaru Legacy 2004-2017
Subaru Legacy 2018-2019
Subaru Outback 2004-2017
Subaru Outback 2018-2019
Subaru Tribeca 2008-2014
Subaru XV Crosstrek 2013-2016
Suzuki Forenza 2007-2008
Suzuki Grand Vitara 2005-2013
Suzuki Reno 2007-2008
Suzuki SX4 2007-2013
Suzuki Verona 2005-2006
Suzuki XL-7 2005-2006
Suzuki XL-7 2007-2009
Volvo S60 2004-2009
Volvo S80 2004-2006
Volvo V70 2004-2007
Volvo XC60 2009-2010
Volvo XC70 2004-2007
Volvo XC90 2004-2014

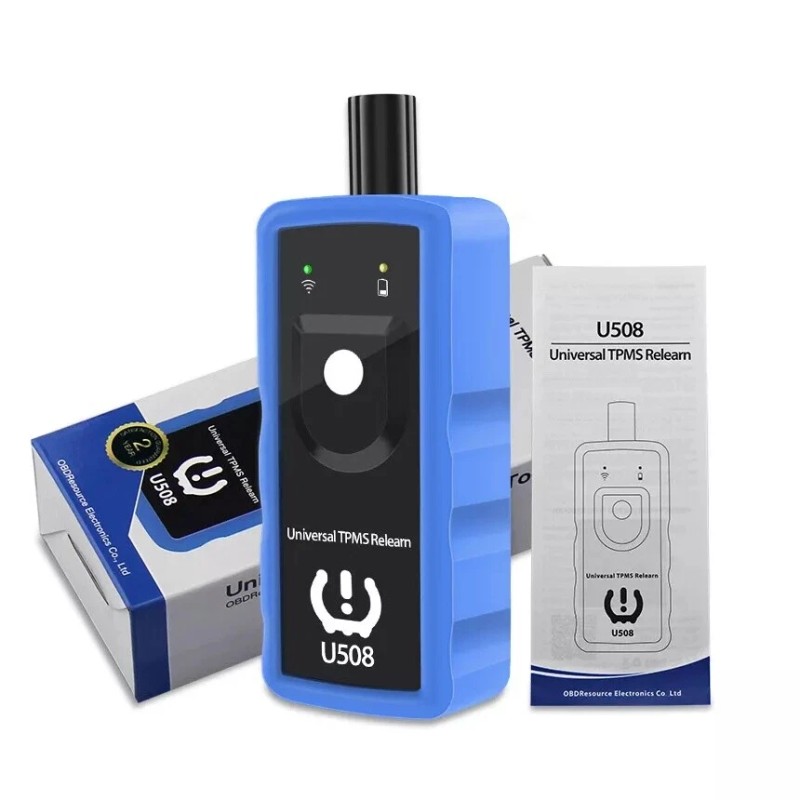

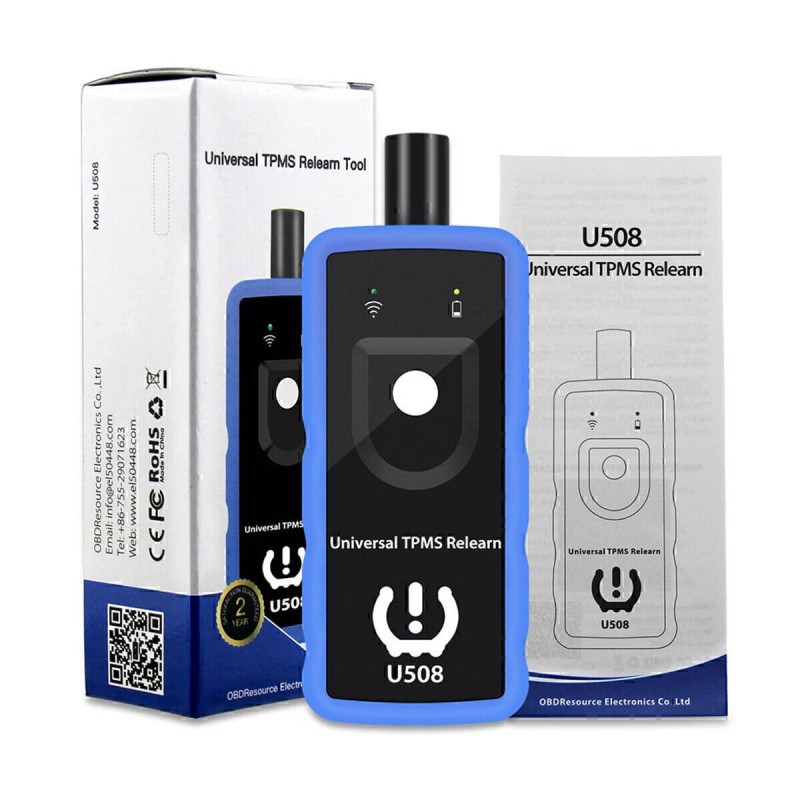

Packing List:
1pc * U508 TPMS Relearn Tool
1pc * English User Manual
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product purchase notice (Very important ！！):
1.This one is for relearn TPMS , not for programming new sensor , if you replace new sensor , you need to use programming tool to program it first , then use this relearn tool to make it match the vehicles.
2.Please make sure your car can successfully enter the learning mode, if not please do not purchase, Some vehicles need to use other tools to enter the learning mode.for example, Subaru
3.The product does not support all models, please see the list of U508 Support Vehicle List， if your vehicle model and the year doesn't on our support list , please do not purchase !!!
4.There is no 9V battery inside package, you need to prepare that yourself.
When we need U508 Universal TPMS Sensor Reset Tool?
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement,sensor damage, etc. After those problems solved, TPMS needs to be reset.
● Exchanging the winter tires or Summer tires.TPMS needs to be reset.
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
Description
This item can do all function of EL50448 OTC-5 for GM, TPMS19 for Ford, function like ATEQ AT06 scanner.
Function
The U508 sends a RF signal to the TPMS sensor mounted to the vehicle's wheel to “wake up” the sensor. Once the tool triggers the sensor, the sensor is ready to communicate with the vehicle's ECU.
Instructions
While holding the tool next to the side wall of the tire above the sensor, press and hold the button to trigger the sensor (You can also press the tool directly against the sidewall of the tire). An orange light will illuminate on the tool.
Continue to hold the button down until successful signal transfer to the vehicle's ECU, diagnostic station or until the vehicle's horn "beeps".
Attention !!!! Some vehicles Need to Use Other Tools To Enter the Learning Mode
For example
SUBARU-1
SUB-1
**This Relearn procedure requires the use of a OBDII tool**
A properly formatted scan tool is required to learn sensor IDs when replacing sensors.
Inflate all tiresRead all sensor IDs using toolConnect tool to OBDII portReset ECU with toolIgnition OFF then ONDrive at 25 MPH for up to 10 minutes
Tips for using "U508 Universal TPMS Sensor Reset Tool"
1. 9V battery shold be in good condition: New & fully charged.
2. Make sure antenna fits in CORRECT position.
3. Do tire reset outside instead of in the garage.
4. Position of tires are also important, front tires have to be straight.
5. Sensors should be original / OEM sensors which are already well programmed.
6. Keep pressing the power button to send signal until it succeeded.
7. Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
8. Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.

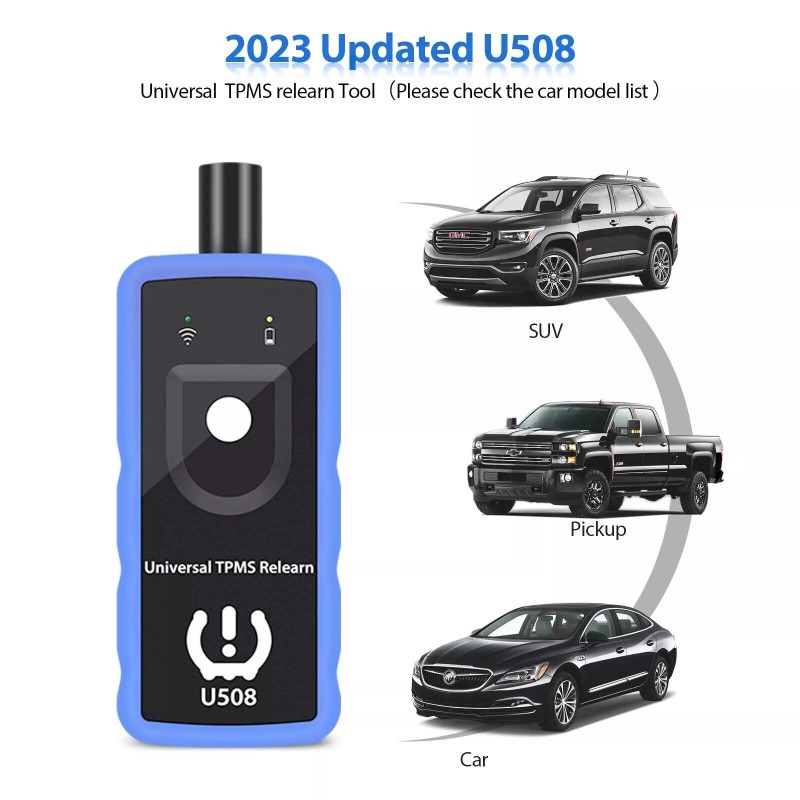

Perfect Automotive Tire Pressure Monitor Sensor
【PERFECT AUTOMOTIVE TIRE PRESSURE MONITOR SENSOR】 you can be activated by Done alone within 3-5 minutes. Save time and money , much better than going to a dealer or tire storage just to reset the pressure sensor.
【SUITABLE SCOPE FOR VEHICLES】 BMW/Buick/Cadillac/Chevrolet/Chrysler/Dodge/Fiat/Ford/Genesis/GMC/Hummer/Hyundai/Infiniti/Isuzu/Lincoln/Lotus/Maserati/Mercedes/Mitsubishi/Pontiac/Ram etc.please check whether your car model can be used with U508 tool in the detailed introduction.
【TPMS RESET TOO】 U508 is a essential tool with a 315MHz or 433 MHz tire pressure monitoring system, of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.
Easy To Use,Only 3 Steps:
No need install any software, only need install a 9V battery.
1. Make sure your car is in the TPMS Learning Mode.
2. Hold the tool against the sidewall of the tire, near the valve stem.
3. Depress learn button while holding the tool against the tire sidewall until horn bleeps once.
Steps to set car in TPMS Re-Learn mode:
For GM series vehicles:
1. Set the parking brake, turn the ignition switch to ON/RUN with the engine off.
2. Type A - Choose TPMS relearn mode in the dashboard setting, hold pressing the key for 5 seconds. Type B - Choose TPMS relearn mode in the dashboard setting, press and hold SET/RESET button until a double horn chirp sounds. Type C - Press the Remote Keyless Entry (RKE) transmitter's LOCK and UNLOCK buttons at the same time for 5 seconds.
3. Horn will sound twice and TPMS indicator flashes, then learning mode has been entered successfully. Start from the driver side front tire (LF).
For Ford series vehicles:
1. Set the parking brake.
2. Ensure ignition switch to OFF, press and release the brake pedal for 1 time.
3. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
4. Press and release brake pedal.
5. Turn ignition OFF position.
6. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
7. Horn will sound once and TPMS telltale will blink once train mode is initiated. If equipped with message center, it will display TRAIN LF TIRE. Start from driver side front tire (LF) .
U508 Support Vehicle List :
Alfa Romeo 4C 2013-2019
Alfa Romeo MiTo 2 2013-2016
Aston Martin DBS Superlegera 2018
BMW 7 Series (G11 G12) 2016-2019
BMW M5 2018-2019
BMW X3 (G01) 2017-2019
BMW MOTORCYCLE ALL 2007-2018
Buick Allure 2007-2011
Buick Cascada 2016-2019
Buick Enclave 2008-2019
Buick Encore 2013-2019
Buick Envision 2015-2019
Buick LaCrosse 2006-2019
Buick LeSabre 2007
Buick Lucerne 2007-2011
Buick Regal 2011-2019
Buick Verano 2012-2018
Cadillac ATS 2013-2019
Cadillac CT6 2016-2019
Cadillac CTS 2008-2019
Cadillac Deville 2001-2005
Cadillac DTS 2006-2011
Cadillac ELR 2014-2016
Cadillac Escalade 2001-2006
Cadillac Escalade 2007-2019
Cadillac Seville 2001-2004
Cadillac SRX 2007-2016
Cadillac STS 2005-2008
Cadillac STS 2009-2011
Cadillac XLR 2004-2009
Cadillac XT4 2019
Cadillac XT5 2017-2019
Cadillac XTS 2013-2019
Chevrolet Avalanche 2004-2006
Chevrolet Avalanche 2007-2013
Chevrolet Aveo 2002-2011
Chevrolet Aveo 2018
Chevrolet Bolt EV 2017-2019
Chevrolet Camaro 2010-2019
Chevrolet Caprice 2011-2017
Chevrolet Captiva Sport 2012-2017
Chevrolet Cobalt 2008-2010
Chevrolet Colorado 2006-2012
Chevrolet Colorado 2015-2019
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Corvette 2005-2009
Chevrolet Corvette 2010-2019
Chevrolet Cruze 2011-2019
Chevrolet Equinox 2007-2019
Chevrolet Express Series 2007-2019
Chevrolet HHR 2008-2011
Chevrolet Impala 2006-2019
Chevrolet Malibu 2008-2019
Chevrolet Monte Carlo 2006-2007
Chevrolet Orlando 2012-2014
Chevrolet Silverado 2004-2006
Chevrolet Silverado 2007-2019
Chevrolet Sonic 2012-2019
Chevrolet Spark 2012-2019
Chevrolet SS 2014-2017
Chevrolet Suburban 2004-2006
Chevrolet Suburban 2007-2019
Chevrolet Tahoe 2004-2006
Chevrolet Tahoe 2007-2019
Chevrolet Traverse 2009-2019
Chevrolet Trax 2013-2019
Chevrolet Uplander 2008-2009
Chevrolet Volt 2010-2019
Chrysler 300 2009-2019
Chrysler 300M 2002-2004
Chrysler Concorde 2002-2004
Chrysler Crossfire 2004-2008
Chrysler Intrepid 2002-2004
Chrysler Pacifica 2004
Chrysler Prowler 2001-2002
Chrysler Town & Country 2002-2003
Chrysler Town & Country 2011-2016
Chrysler Voyager 2002-2003
Dodge C/V 2012-2016
Dodge Caravan 2002-2003
Dodge Challenger 2008-2019
Dodge Charger 2009-2019
Dodge Durango 2011-2015
Dodge Grand Caravan 2001-2003
Dodge Grand Caravan 2011-2019
Dodge Intrepid 2002-2004
Dodge Journey 2011-2019
Dodge Viper 2003-2010
Dodge Viper 2013-2018
Fiat 500 2011-2019
Fiat 500L 2014-2019
Fiat 500E 2016
Ford EcoSport 2018-2019
Ford Edge 2015-2019
Ford Expedition 2003-2006
Ford Expedition 2018
Ford Explorer 2002-2005
Ford Explorer 2016-2019
Ford Fiesta 2018-2019
Ford Focus RS 2016-2018
Ford Freestar 2004-2005
Ford F-Series 2015-2019
Ford F-Series Super Duty 2017-2019
Ford Fusion 2017-2019
Ford GT 2017-2019
Ford Mustang 2015-2019
Ford Ranger 2019
Ford Transit 2019
Freightliner Sprinter 2014-2018
Genesis G70 2018-2019
GMC Acadia 2007-2019
GMC Canyon 2007-2012
GMC Canyon 2013-2019
GMC Savana 2008-2019
GMC Sierra All 2004-2007
GMC Sierra All 2007-2019
GMC Terrain 2010-2019
GMC Yukon All 2004-2006
GMC Yukon All 2007-2019
Hummer H2 2007-2009
Hummer H3 2006-2010
Hyundai Santa Fe 2019
Hyundai Sonata 2015-2018
Hyundai Tucson 2016-2018
Infiniti QX30 2017-2018
Isuzu i-290 / i-370 2007-2011
Isuzu Rodeo 2004
Kia Stinger 2018-2019
Lincoln Aviator 2003-2005
Lincoln Continental 2017-2019
Lincoln MKC 2018-2019
Lincoln MKX 2016-2019
Lincoln MKZ 2017-2019
Lincoln Navigator 2003-2006
Lincoln Navigator 2018-2019
Lincoln Nautilus 2019
Lotus Elise 2008-2011
Lotus Evora 2010-2014
Lotus Exige 2008-2011
Maserati Ghibli 2013-2019
Maserati Quattroporte 2014-2019
Mercedes AMG GT 2016-2019
Mercedes B Class 2014-2018
Mercedes C Class 2008-2019
Mercedes CL Class 2010-2014
Mercedes CLA Class 2014-2019
Mercedes CLK Class 2006-2009
Mercedes CLS Class 2012-2018
Mercedes E Class 2010-2017
Mercedes E Class 2018-2019
Mercedes G Class 2007-2018
Mercedes GL Class 2010-2018
Mercedes GLA Class 2015-2019
Mercedes GLC Class 2016-2019
Mercedes GLE Class 2016-2019
Mercedes GLK Class 2010-2017
Mercedes GLS Class 2017-2019
Mercedes M Class 2010-2015
Mercedes Metris 2016-2018
Mercedes R Class 2010-2012
Mercedes S Class 2010-2019
Mercedes SL Class 2013-2019
Mercedes SLC Class 2017-2018
Mercedes SLK Class 2008-2018
Mercedes SLS Class 2011-2015
Mercedes Sprinter 2013-2018
Mercury Monterey 2004-2005
Mercury Mountaineer 2002-2005
Mitsubishi Eclipse 2006-2012
Mitsubishi Endeavor 2004-2011
Mitsubishi Galant 2004-2012
Mitsubishi Montero 2003-2006
Plymouth Prowler 1997-2002
Pontiac G3 2009-2010
Pontiac G5 2008-2010
Pontiac G6 2008-2010
Pontiac G8 2008-2009
Pontiac Grand Prix 2007-2008
Pontiac Montana-SV6 2008-2009
Pontiac Solstice 2008-2010
Pontiac Torrent 2007-2009
Ram Promaster 2014-2019
Ram 1500 2010-2013
Ram 1500 2019
Ram 2500 2010-2013
Ram 3500 2010-2013
Ram 3500 Dually 2010-2013
Ram 4500 2010-2013
Ram 5500 2010-2013
Retrofit SCH-BRK-4PC 2017
Retrofit SCH-WRK-4PC 2017
Retrofit SCHRFK4S 2018
Rolls Royce Cullinan 2018-2019
Rolls Royce Phantom 2017-2019
Saab 9-3 2004-2007
Saab 9-3 2008-2012
Saab 9-4X 2011
Saab 9-5 2004-2007
Saab 9-5 2008-2009
Saab 9-5 2010-2012
Saturn Astra 2008-2009
Saturn Aura 2007-2010
Saturn Outlook 2007-2010
Saturn Sky 2008-2009
Saturn Vue 2007-2010
Smart Fortwo 2008-2017
Subaru Ascent 2019
Subaru B9 Tribeca 2006-2007
Subaru Crosstrek 2015-2017
Subaru Crosstrek 2018-2019
Subaru Forester 2008-2017
Subaru Forester 2018-2019
Subaru Impreza 2008-2016
Subaru Impreza 2017-2019
Subaru Impreza WRX 2009-2017
Subaru Impreza WRX 2018-2019
Subaru Impreza WRX STI 2009-2019
Subaru Legacy 2004-2017
Subaru Legacy 2018-2019
Subaru Outback 2004-2017
Subaru Outback 2018-2019
Subaru Tribeca 2008-2014
Subaru XV Crosstrek 2013-2016
Suzuki Forenza 2007-2008
Suzuki Grand Vitara 2005-2013
Suzuki Reno 2007-2008
Suzuki SX4 2007-2013
Suzuki Verona 2005-2006
Suzuki XL-7 2005-2006
Suzuki XL-7 2007-2009
Volvo S60 2004-2009
Volvo S80 2004-2006
Volvo V70 2004-2007
Volvo XC60 2009-2010
Volvo XC70 2004-2007
Volvo XC90 2004-2014
Packing List:
1pc * U508 TPMS Relearn Tool
1pc * English User Manual
Product purchase notice (Very important ！！):
1.This one is for relearn TPMS , not for programming new sensor , if you replace new sensor , you need to use programming tool to program it first , then use this relearn tool to make it match the vehicles.
2.Please make sure your car can successfully enter the learning mode, if not please do not purchase, Some vehicles need to use other tools to enter the learning mode.for example, Subaru
3.The product does not support all models, please see the list of U508 Support Vehicle List， if your vehicle model and the year doesn't on our support list , please do not purchase !!!
4.There is no 9V battery inside package, you need to prepare that yourself.
When we need U508 Universal TPMS Sensor Reset Tool?
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement,sensor damage, etc. After those problems solved, TPMS needs to be reset.
● Exchanging the winter tires or Summer tires.TPMS needs to be reset.
● Low tire pressure or leakage / replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
Description
This item can do all function of EL50448 OTC-5 for GM, TPMS19 for Ford, function like ATEQ AT06 scanner.
Function
The U508 sends a RF signal to the TPMS sensor mounted to the vehicle's wheel to “wake up” the sensor. Once the tool triggers the sensor, the sensor is ready to communicate with the vehicle's ECU.
Instructions
While holding the tool next to the side wall of the tire above the sensor, press and hold the button to trigger the sensor (You can also press the tool directly against the sidewall of the tire). An orange light will illuminate on the tool.
Continue to hold the button down until successful signal transfer to the vehicle's ECU, diagnostic station or until the vehicle's horn "beeps".
Attention !!!! Some vehicles Need to Use Other Tools To Enter the Learning Mode
For example
SUBARU-1
SUB-1
**This Relearn procedure requires the use of a OBDII tool**
A properly formatted scan tool is required to learn sensor IDs when replacing sensors.
Inflate all tiresRead all sensor IDs using toolConnect tool to OBDII portReset ECU with toolIgnition OFF then ONDrive at 25 MPH for up to 10 minutes
Tips for using "U508 Universal TPMS Sensor Reset Tool"
1. 9V battery shold be in good condition: New & fully charged.
2. Make sure antenna fits in CORRECT position.
3. Do tire reset outside instead of in the garage.
4. Position of tires are also important, front tires have to be straight.
5. Sensors should be original / OEM sensors which are already well programmed.
6. Keep pressing the power button to send signal until it succeeded.
7. Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
8. Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.
Perfect Automotive Tire Pressure Monitor Sensor
【PERFECT AUTOMOTIVE TIRE PRESSURE MONITOR SENSOR】 you can be activated by Done alone within 3-5 minutes. Save time and money , much better than going to a dealer or tire storage just to reset the pressure sensor.
【SUITABLE SCOPE FOR VEHICLES】 BMW/Buick/Cadillac/Chevrolet/Chrysler/Dodge/Fiat/Ford/Genesis/GMC/Hummer/Hyundai/Infiniti/Isuzu/Lincoln/Lotus/Maserati/Mercedes/Mitsubishi/Pontiac/Ram etc.please check whether your car model can be used with U508 tool in the detailed introduction.
【TPMS RESET TOO】 U508 is a essential tool with a 315MHz or 433 MHz tire pressure monitoring system, of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.
Easy To Use,Only 3 Steps:
No need install any software, only need install a 9V battery.
1. Make sure your car is in the TPMS Learning Mode.
2. Hold the tool against the sidewall of the tire, near the valve stem.
3. Depress learn button while holding the tool against the tire sidewall until horn bleeps once.
Steps to set car in TPMS Re-Learn mode:
For GM series vehicles:
1. Set the parking brake, turn the ignition switch to ON/RUN with the engine off.
2. Type A - Choose TPMS relearn mode in the dashboard setting, hold pressing the key for 5 seconds. Type B - Choose TPMS relearn mode in the dashboard setting, press and hold SET/RESET button until a double horn chirp sounds. Type C - Press the Remote Keyless Entry (RKE) transmitter's LOCK and UNLOCK buttons at the same time for 5 seconds.
3. Horn will sound twice and TPMS indicator flashes, then learning mode has been entered successfully. Start from the driver side front tire (LF).
For Ford series vehicles:
1. Set the parking brake.
2. Ensure ignition switch to OFF, press and release the brake pedal for 1 time.
3. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
4. Press and release brake pedal.
5. Turn ignition OFF position.
6. Cycle ignition from OFF to RUN position 3 times, ending in RUN position.
7. Horn will sound once and TPMS telltale will blink once train mode is initiated. If equipped with message center, it will display TRAIN LF TIRE. Start from driver side front tire (LF) .
U508 Support Vehicle List :
Alfa Romeo 4C 2013-2019
Alfa Romeo MiTo 2 2013-2016
Aston Martin DBS Superlegera 2018
BMW 7 Series (G11 G12) 2016-2019
BMW M5 2018-2019
BMW X3 (G01) 2017-2019
BMW MOTORCYCLE ALL 2007-2018
Buick Allure 2007-2011
Buick Cascada 2016-2019
Buick Enclave 2008-2019
Buick Encore 2013-2019
Buick Envision 2015-2019
Buick LaCrosse 2006-2019
Buick LeSabre 2007
Buick Lucerne 2007-2011
Buick Regal 2011-2019
Buick Verano 2012-2018
Cadillac ATS 2013-2019
Cadillac CT6 2016-2019
Cadillac CTS 2008-2019
Cadillac Deville 2001-2005
Cadillac DTS 2006-2011
Cadillac ELR 2014-2016
Cadillac Escalade 2001-2006
Cadillac Escalade 2007-2019
Cadillac Seville 2001-2004
Cadillac SRX 2007-2016
Cadillac STS 2005-2008
Cadillac STS 2009-2011
Cadillac XLR 2004-2009
Cadillac XT4 2019
Cadillac XT5 2017-2019
Cadillac XTS 2013-2019
Chevrolet Avalanche 2004-2006
Chevrolet Avalanche 2007-2013
Chevrolet Aveo 2002-2011
Chevrolet Aveo 2018
Chevrolet Bolt EV 2017-2019
Chevrolet Camaro 2010-2019
Chevrolet Caprice 2011-2017
Chevrolet Captiva Sport 2012-2017
Chevrolet Cobalt 2008-2010
Chevrolet Colorado 2006-2012
Chevrolet Colorado 2015-2019
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Corvette 2005-2009
Chevrolet Corvette 2010-2019
Chevrolet Cruze 2011-2019
Chevrolet Equinox 2007-2019
Chevrolet Express Series 2007-2019
Chevrolet HHR 2008-2011
Chevrolet Impala 2006-2019
Chevrolet Malibu 2008-2019
Chevrolet Monte Carlo 2006-2007
Chevrolet Orlando 2012-2014
Chevrolet Silverado 2004-2006
Chevrolet Silverado 2007-2019
Chevrolet Sonic 2012-2019
Chevrolet Spark 2012-2019
Chevrolet SS 2014-2017
Chevrolet Suburban 2004-2006
Chevrolet Suburban 2007-2019
Chevrolet Tahoe 2004-2006
Chevrolet Tahoe 2007-2019
Chevrolet Traverse 2009-2019
Chevrolet Trax 2013-2019
Chevrolet Uplander 2008-2009
Chevrolet Volt 2010-2019
Chrysler 300 2009-2019
Chrysler 300M 2002-2004
Chrysler Concorde 2002-2004
Chrysler Crossfire 2004-2008
Chrysler Intrepid 2002-2004
Chrysler Pacifica 2004
Chrysler Prowler 2001-2002
Chrysler Town & Country 2002-2003
Chrysler Town & Country 2011-2016
Chrysler Voyager 2002-2003
Dodge C/V 2012-2016
Dodge Caravan 2002-2003
Dodge Challenger 2008-2019
Dodge Charger 2009-2019
Dodge Durango 2011-2015
Dodge Grand Caravan 2001-2003
Dodge Grand Caravan 2011-2019
Dodge Intrepid 2002-2004
Dodge Journey 2011-2019
Dodge Viper 2003-2010
Dodge Viper 2013-2018
Fiat 500 2011-2019
Fiat 500L 2014-2019
Fiat 500E 2016
Ford EcoSport 2018-2019
Ford Edge 2015-2019
Ford Expedition 2003-2006
Ford Expedition 2018
Ford Explorer 2002-2005
Ford Explorer 2016-2019
Ford Fiesta 2018-2019
Ford Focus RS 2016-2018
Ford Freestar 2004-2005
Ford F-Series 2015-2019
Ford F-Series Super Duty 2017-2019
Ford Fusion 2017-2019
Ford GT 2017-2019
Ford Mustang 2015-2019
Ford Ranger 2019
Ford Transit 2019
Freightliner Sprinter 2014-2018
Genesis G70 2018-2019
GMC Acadia 2007-2019
GMC Canyon 2007-2012
GMC Canyon 2013-2019
GMC Savana 2008-2019
GMC Sierra All 2004-2007
GMC Sierra All 2007-2019
GMC Terrain 2010-2019
GMC Yukon All 2004-2006
GMC Yukon All 2007-2019
Hummer H2 2007-2009
Hummer H3 2006-2010
Hyundai Santa Fe 2019
Hyundai Sonata 2015-2018
Hyundai Tucson 2016-2018
Infiniti QX30 2017-2018
Isuzu i-290 / i-370 2007-2011
Isuzu Rodeo 2004
Kia Stinger 2018-2019
Lincoln Aviator 2003-2005
Lincoln Continental 2017-2019
Lincoln MKC 2018-2019
Lincoln MKX 2016-2019
Lincoln MKZ 2017-2019
Lincoln Navigator 2003-2006
Lincoln Navigator 2018-2019
Lincoln Nautilus 2019
Lotus Elise 2008-2011
Lotus Evora 2010-2014
Lotus Exige 2008-2011
Maserati Ghibli 2013-2019
Maserati Quattroporte 2014-2019
Mercedes AMG GT 2016-2019
Mercedes B Class 2014-2018
Mercedes C Class 2008-2019
Mercedes CL Class 2010-2014
Mercedes CLA Class 2014-2019
Mercedes CLK Class 2006-2009
Mercedes CLS Class 2012-2018
Mercedes E Class 2010-2017
Mercedes E Class 2018-2019
Mercedes G Class 2007-2018
Mercedes GL Class 2010-2018
Mercedes GLA Class 2015-2019
Mercedes GLC Class 2016-2019
Mercedes GLE Class 2016-2019
Mercedes GLK Class 2010-2017
Mercedes GLS Class 2017-2019
Mercedes M Class 2010-2015
Mercedes Metris 2016-2018
Mercedes R Class 2010-2012
Mercedes S Class 2010-2019
Mercedes SL Class 2013-2019
Mercedes SLC Class 2017-2018
Mercedes SLK Class 2008-2018
Mercedes SLS Class 2011-2015
Mercedes Sprinter 2013-2018
Mercury Monterey 2004-2005
Mercury Mountaineer 2002-2005
Mitsubishi Eclipse 2006-2012
Mitsubishi Endeavor 2004-2011
Mitsubishi Galant 2004-2012
Mitsubishi Montero 2003-2006
Plymouth Prowler 1997-2002
Pontiac G3 2009-2010
Pontiac G5 2008-2010
Pontiac G6 2008-2010
Pontiac G8 2008-2009
Pontiac Grand Prix 2007-2008
Pontiac Montana-SV6 2008-2009
Pontiac Solstice 2008-2010
Pontiac Torrent 2007-2009
Ram Promaster 2014-2019
Ram 1500 2010-2013
Ram 1500 2019
Ram 2500 2010-2013
Ram 3500 2010-2013
Ram 3500 Dually 2010-2013
Ram 4500 2010-2013
Ram 5500 2010-2013
Retrofit SCH-BRK-4PC 2017
Retrofit SCH-WRK-4PC 2017
Retrofit SCHRFK4S 2018
Rolls Royce Cullinan 2018-2019
Rolls Royce Phantom 2017-2019
Saab 9-3 2004-2007
Saab 9-3 2008-2012
Saab 9-4X 2011
Saab 9-5 2004-2007
Saab 9-5 2008-2009
Saab 9-5 2010-2012
Saturn Astra 2008-2009
Saturn Aura 2007-2010
Saturn Outlook 2007-2010
Saturn Sky 2008-2009
Saturn Vue 2007-2010
Smart Fortwo 2008-2017
Subaru Ascent 2019
Subaru B9 Tribeca 2006-2007
Subaru Crosstrek 2015-2017
Subaru Crosstrek 2018-2019
Subaru Forester 2008-2017
Subaru Forester 2018-2019
Subaru Impreza 2008-2016
Subaru Impreza 2017-2019
Subaru Impreza WRX 2009-2017
Subaru Impreza WRX 2018-2019
Subaru Impreza WRX STI 2009-2019
Subaru Legacy 2004-2017
Subaru Legacy 2018-2019
Subaru Outback 2004-2017
Subaru Outback 2018-2019
Subaru Tribeca 2008-2014
Subaru XV Crosstrek 2013-2016
Suzuki Forenza 2007-2008
Suzuki Grand Vitara 2005-2013
Suzuki Reno 2007-2008
Suzuki SX4 2007-2013
Suzuki Verona 2005-2006
Suzuki XL-7 2005-2006
Suzuki XL-7 2007-2009
Volvo S60 2004-2009
Volvo S80 2004-2006
Volvo V70 2004-2007
Volvo XC60 2009-2010
Volvo XC70 2004-2007
Volvo XC90 2004-2014
Packing List:
1pc * U508 TPMS Relearn Tool
1pc * English User Manual
- Brand: OBDResource
- Color: Blue
- Country/Region of Manufacture: China
- Custom Bundle: No
- Features: Car Tire Pressure Monitor Sensor
- Manufacturer Part Number: Does Not Apply
- Manufacturer Warranty: 1 Year
- Modified Item: No
- Non-Domestic Product: No
- OBD Interface: CAN, EOBD, OBDII
- Sensor Quantity: 4
- Supported System: TPMS
- Total Power: 9W
- Type: TPMS relearn tool
- Vehicle Type: Passenger Vehicle
- Warranty: 1 Year
- UPC: Does not apply
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
| Shipping Method | Estimated Delivery | Cost |
|---|---|---|
| Free Shipping (US) | 5–10 business days | Free, available on eligible items |
| Standard Shipping (US to US by Item) | 5–10 business days | $5.95 for the first item, $3.00 each additional |
| Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $5.95, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
| Extended Delivery (Ships from Overseas Warehouse) | 10–20 business days | $14.50 for the first item, $2.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
- Email: support@ibspot.com
- Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
- The item must be unused, in the same condition as received, and in its original packaging.
- A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
- Perishable goods (for example, food, flowers, newspapers, magazines)
- Intimate or sanitary goods
- Hazardous materials or flammable liquids/gases
- Gift cards
- Downloadable software
- Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
- Books with obvious signs of use
- Opened CDs, DVDs, software, or vinyl records
- Items not in their original condition, damaged, or missing parts not due to our error
- Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
- In-store returns are refunded to the original form of payment or issued as a gift card.
- Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
- 5–7 business days for the return to reach our Returns Center.
- An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
