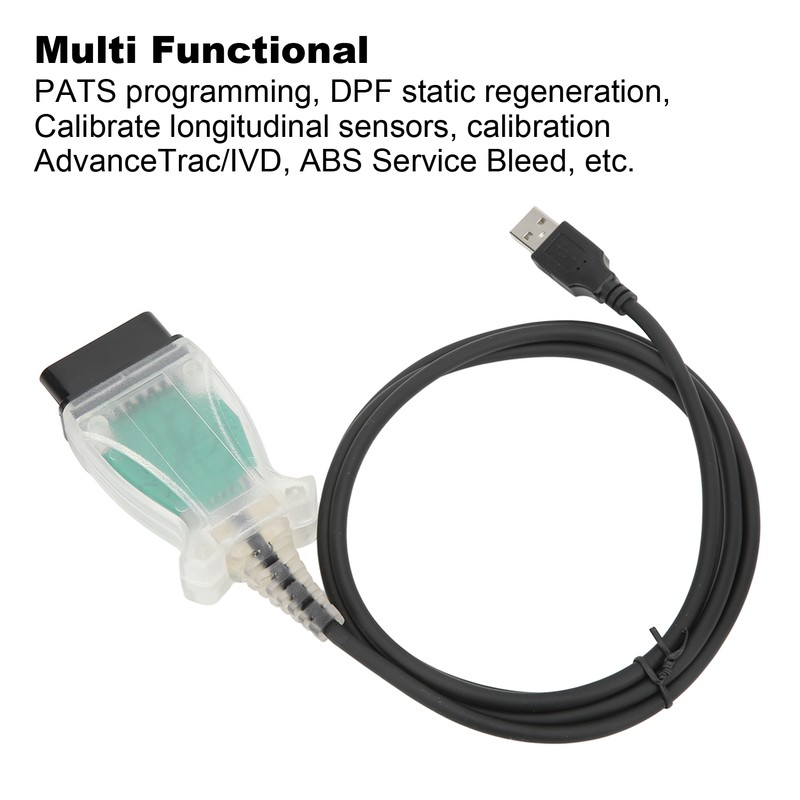

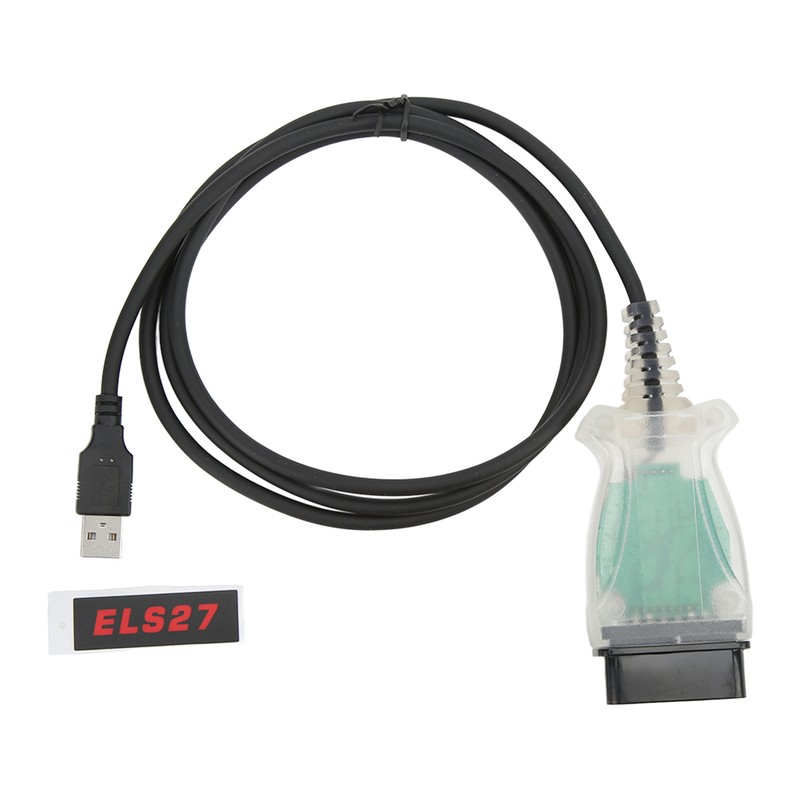

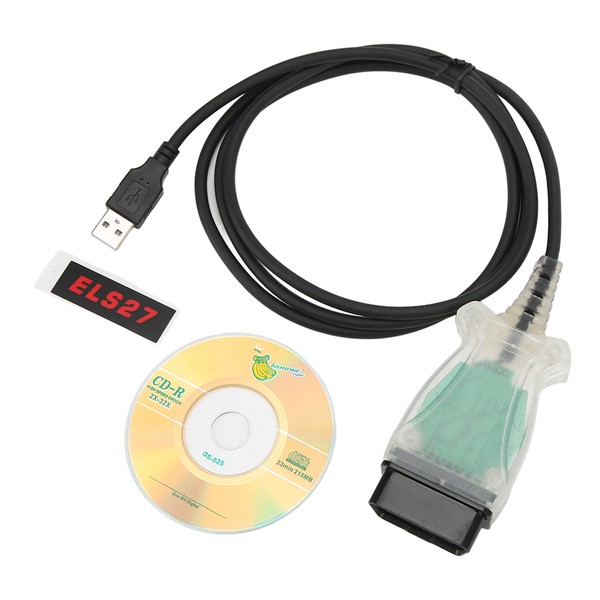

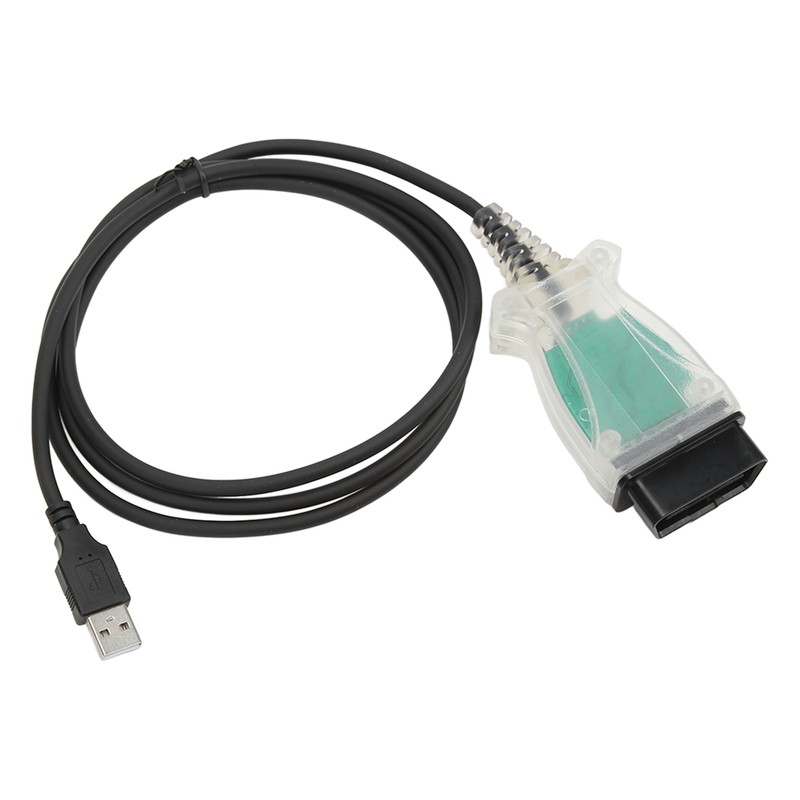

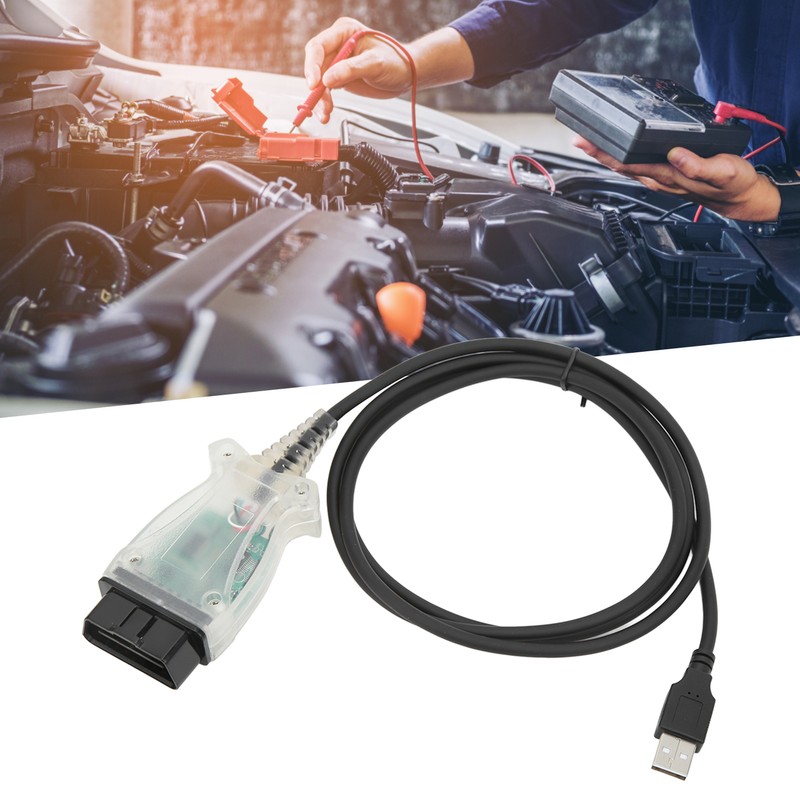

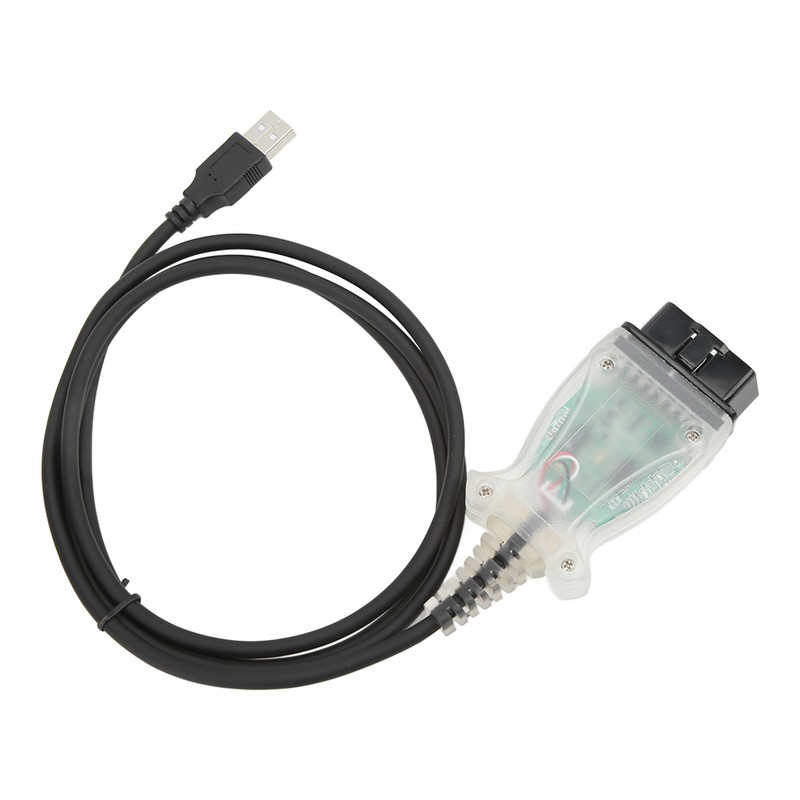

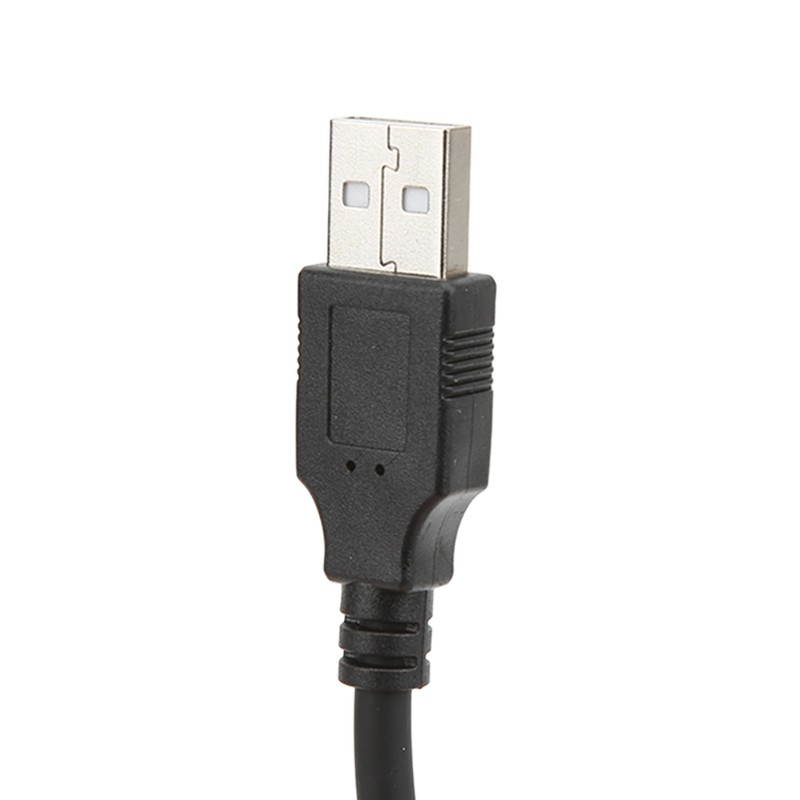

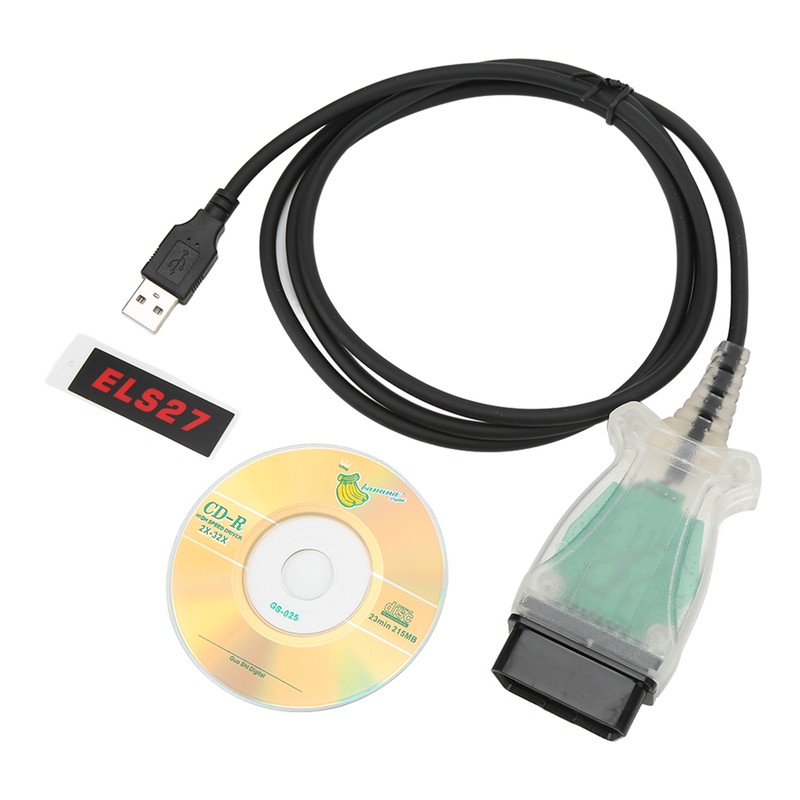

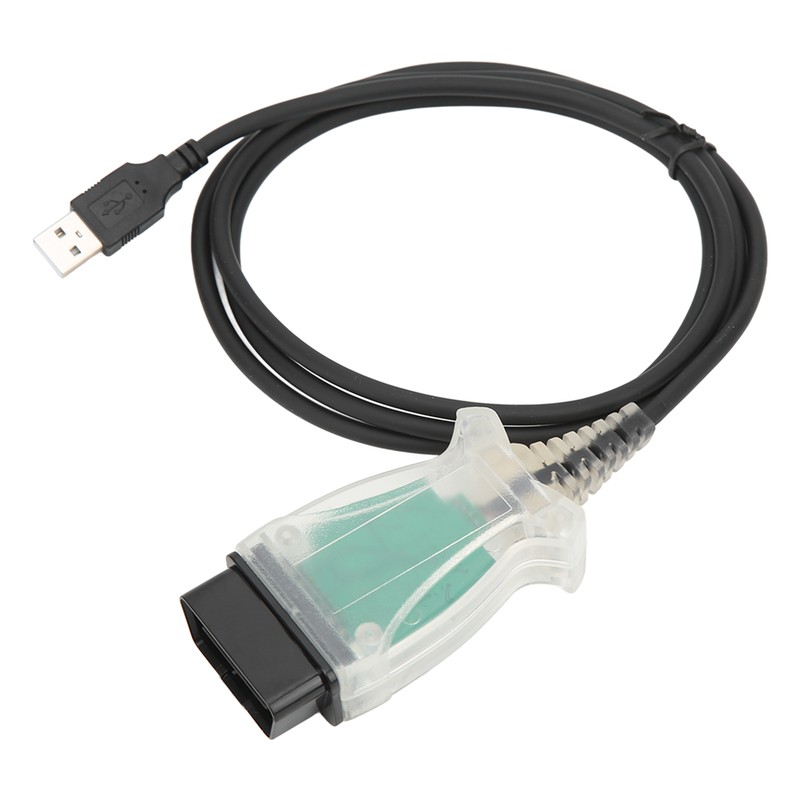

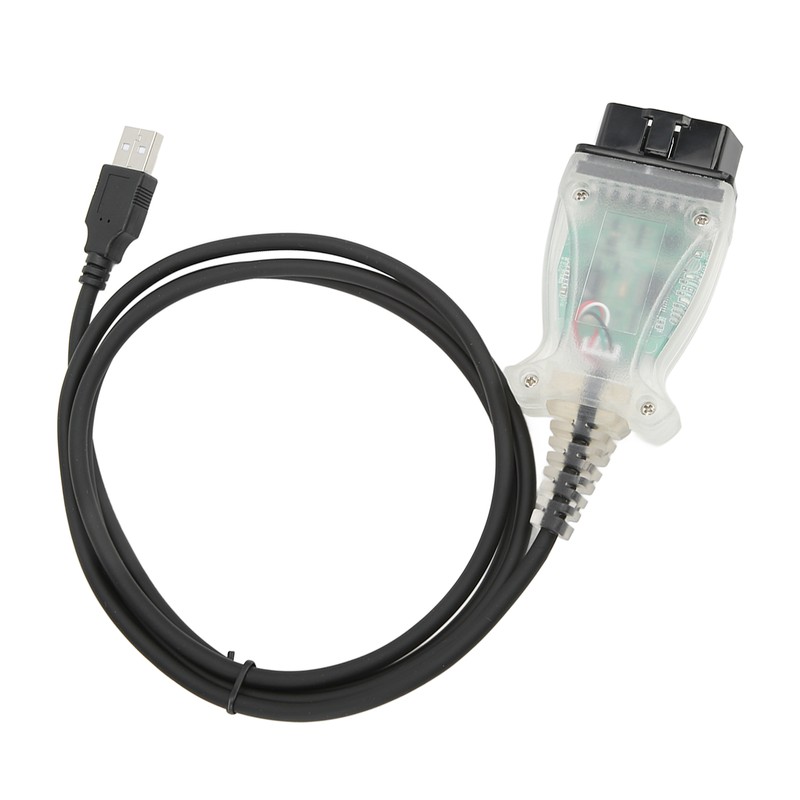

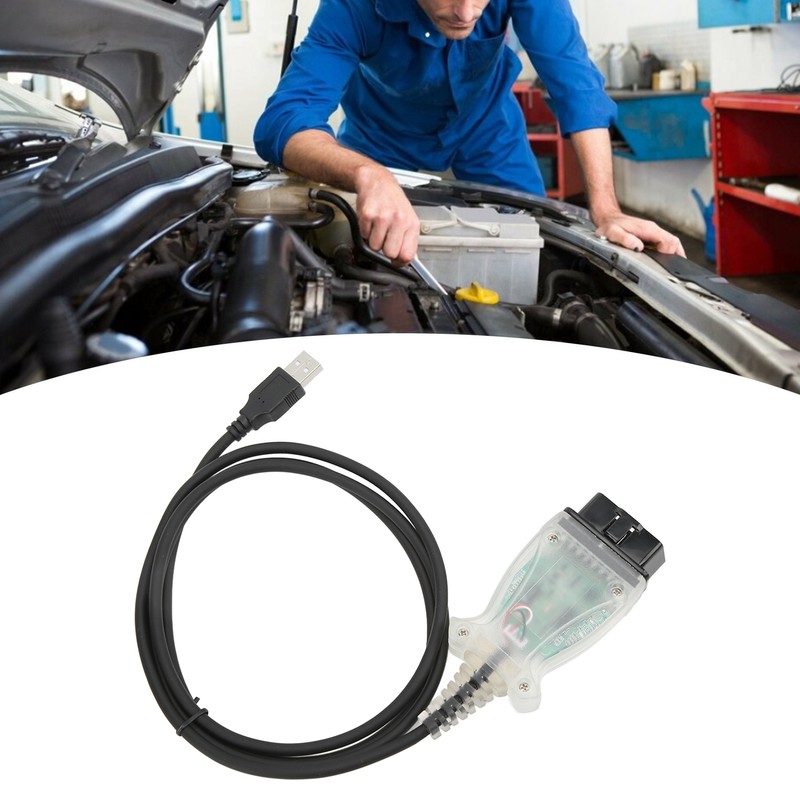

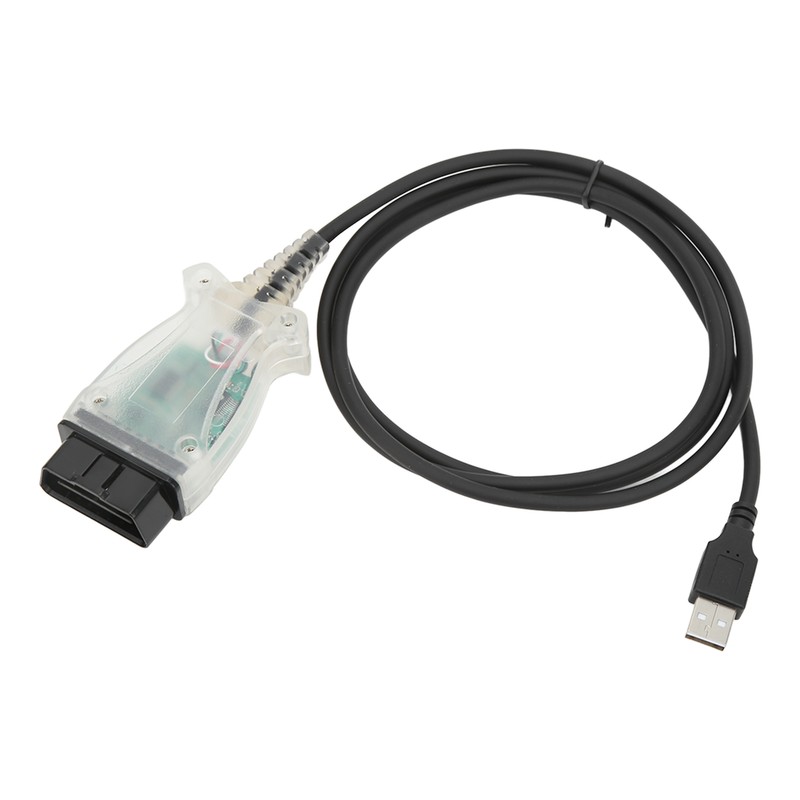

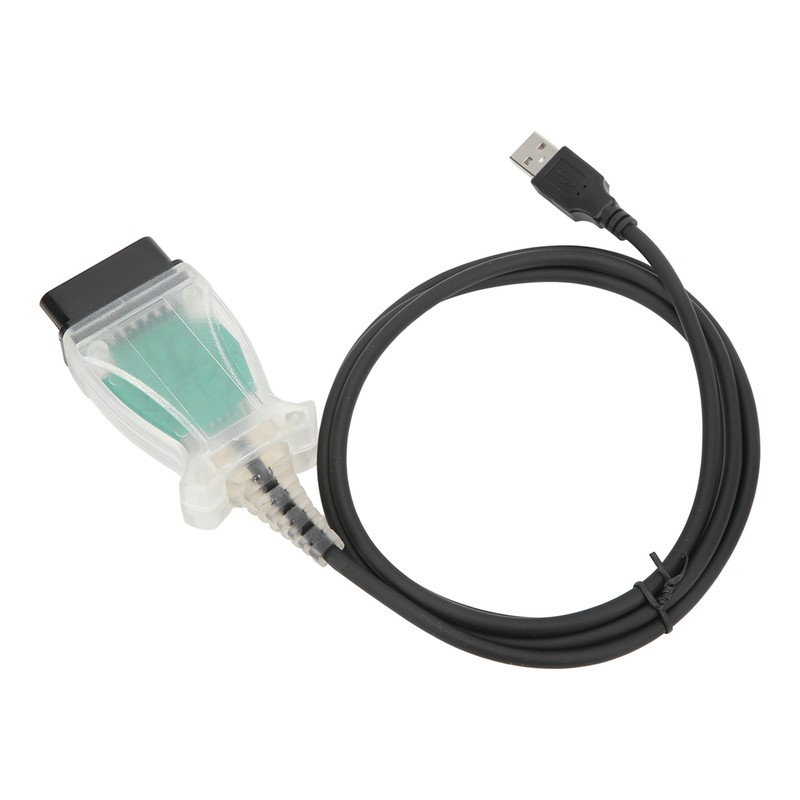

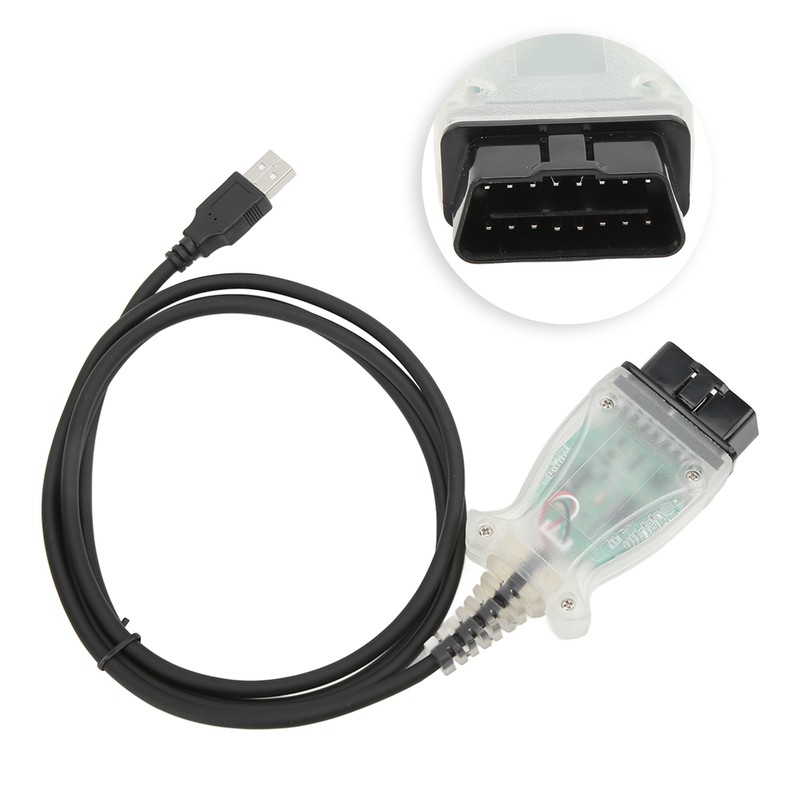

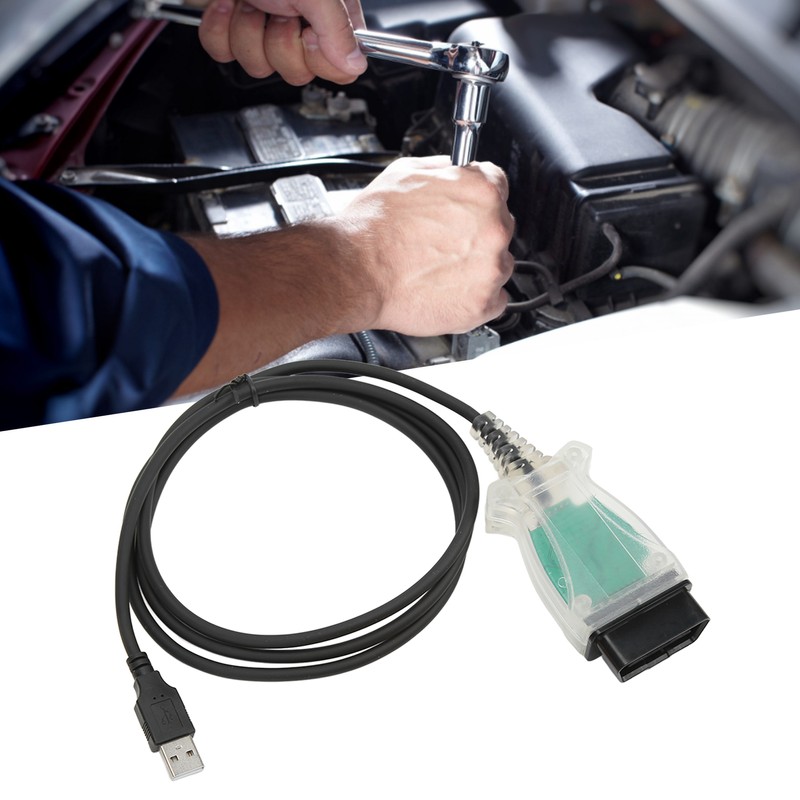

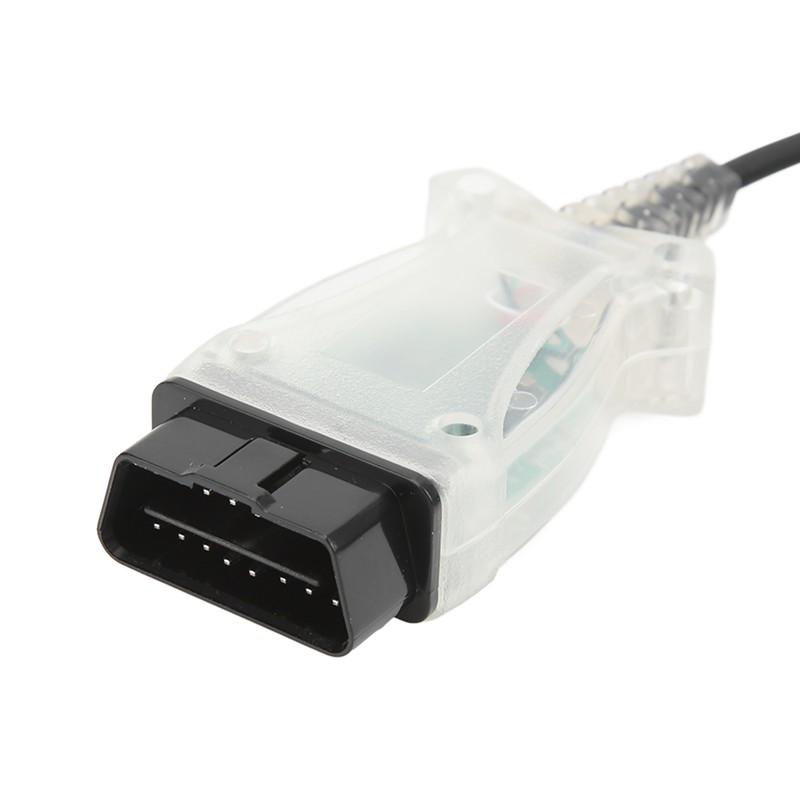

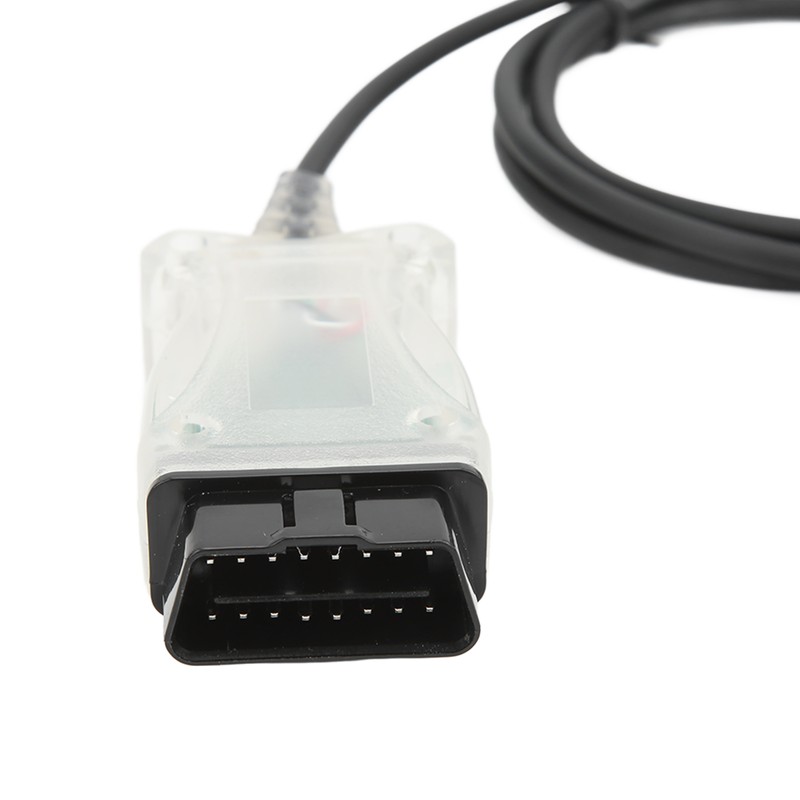

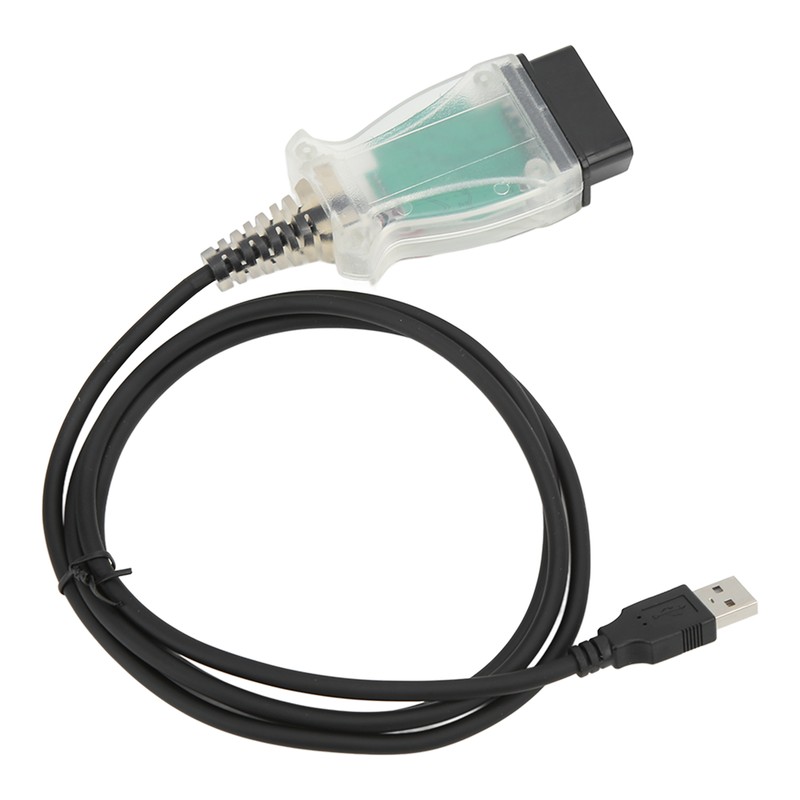

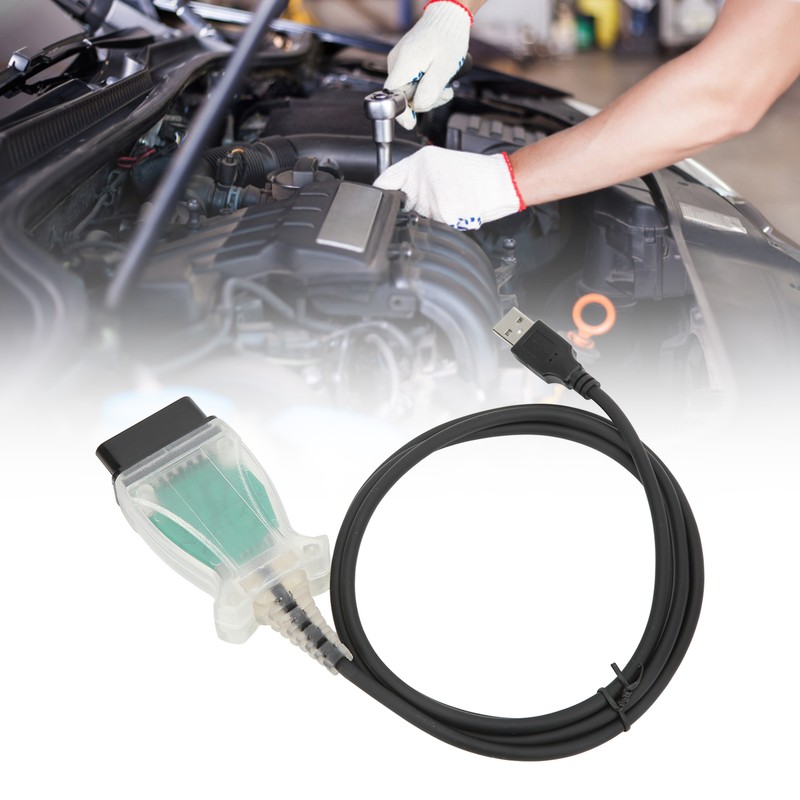

Item Type: OBD2 Diagnostic Cable
Material: ABS
Application:

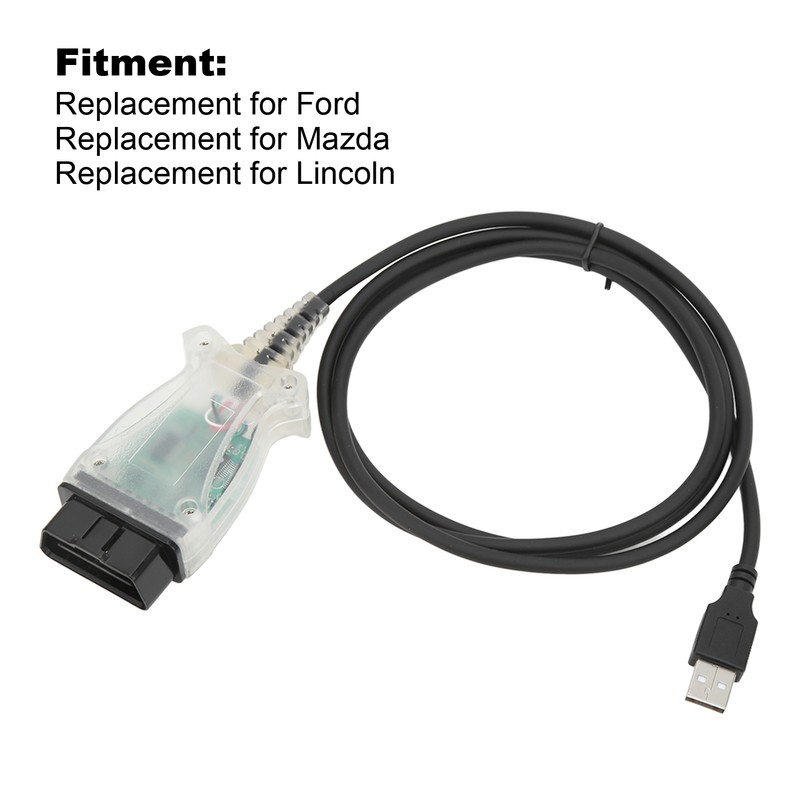

The cable is designed replacement for Ford, replacement for Mazda, replacement for Lincoln vehicles. Hence support for specific features of the manufacturer's protocol makes Work on these models more powerful than any regular OBD2 scanner.

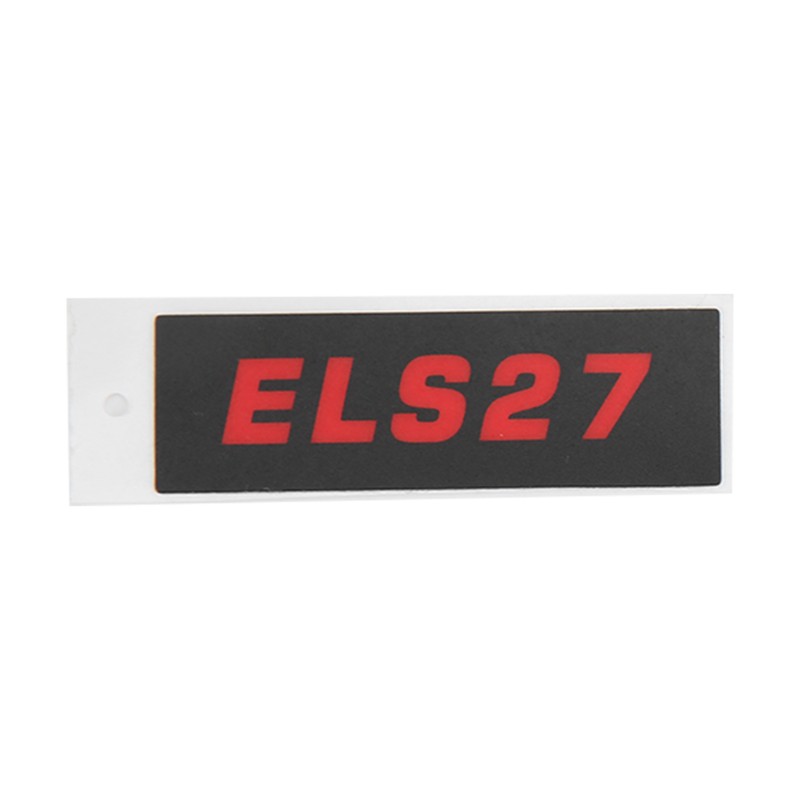

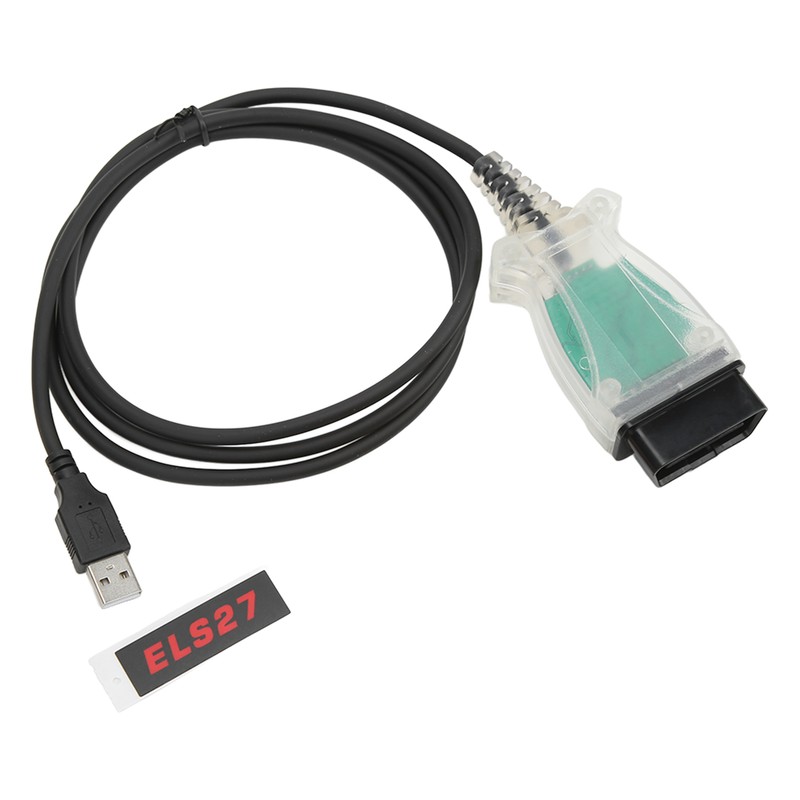

for ELS27 scanner with FT232RL chip replacement for Ford, replacement for Mazda, replacement for Lincoln vehicles
Latest Version: V2.3.7
+ Vehicle database update
+ Configuration and programming program central configuration, RCM module reset config, ABS module reset config for:
Replacement for Focus C-Max 2015 model year
+ Service function PATS programming for:
Replacement for Focus Mk1 (Platform C170) 2008-2011 model years
FReplacement for Escape 2.5/3.0 2009-2010 models
Replacement for Escape 2011-2012 model year
Replacement for Expedition EL 2009-2014 model years
Replacement for Mazda Tribute 2.5/3.0 2009-2010
Replacement for Mazda Tribute 2011-2012 model year
Replacement for Mariner 2.5/3.0 2009-2010 model years
Replacement for Mariner 2011-2012
Replacement for Lincoln Navigator/L 2009-2014 model year
+ Service program DPF static regeneration is used for:
Replacement for F-Series Super Duty (Platform P473) 6.7 Powerstroke 2011-2016 model years
+ Maintenance procedure DPF static regeneration, reset diesel particulate filter learning value, reset differential pressure sensor learning value:
Replacement for Transit 2.2 TDCi 2014-2016 model year
+ Service function Calibrate the steering angle sensor for:
Replacement for Transit 2006 model year
+ Service functions for Calibrating Lateral Acceleration Sensor, Calibrating Steering Angle Sensor for ABS ESP Module:
Replacement for C-Max 2015 model year
+ Service function for ABS ESP module Calibrate longitudinal sensors:
Replacement for Focus C-Max 2015 model year
+ The service function resets the linear rake angle learning value for:
Replacement for C-Max 2015 model year
+ Service function calibration AdvanceTrac/IVD is used for:
Replacement for Expedition 2003-2004 model years
Replacement for Explorer 2002-2003 model years
Replacement for Lincoln Aviator 4.6 4V 2003-2005
Replacement for lincoln navigator 2003-2004
Replacement for Mountainer 2002-2003 model year
+ Service function reset all adjustments for:
Replacement for Galaxy S-Max 2.0/2.3 Duratec-HE 2006-2010 model year
Replacement for Mondeo Mk4 2.0/2.3 Duratec-HE 2007-2011 model year
Replacement for Transit 2.3 Duratec-HE 2006 model year
+ Service function ABS Service Bleed for:
Replacement for Expedition 2003-2004 model years
Replacement for Explorer 2002-2003 model years
Replacement for Thunderbird 2002-2005 model years
Replacement for Lincoln Aviator 2003-2005
Replacement for Lincoln LS 2000-2006 model years
Replacement for lincoln navigator 2003-2004
Replacement for Mountainer 2002-2003 model year
Fixes and improvements to service function PATS programming for:
Replacement for F-Series Super Duty (Platform P473) 2011-2015 model years
- Missing dashboard bug on Replacement for Mazda CX-5 and some other Skyactive
- Major bug in opening Motorcraft .ab files in programming process central configuration for cars with SBL
- Major errors in CAN communication sometimes appear in programming requests to slow modules
- Error opening .fsl files with non-ASCII characters in the path using the for Windows file association mechanism (in for Windows Explorer or other shells)
- Error in service function calibration AdvanceTrac/IVD:
Replacement for Explorer 2004-2005 model years
Replacement for Explorer SportTrac 4.0 V6 2005
Replacement for Mountainer Model Years 2004-2005
- Bug in EGR reset function replacement for Focus CMax Mk2
- Replacement for Transit 2006 model year service function incorrect output of some error codes in fuel injection pump learning
What is OBD2 Diagnostic Cable
For example, OBD2 Diagnostic Cable can detect modules not visible to regular OBD2 scanners, can show you fault codes that OBD2 scanners never show, can show you PIDs not supported by any OBD2 scanners, run specific tests and service routines. In other words, OBD2 Diagnostic Cable can do things that regular OBD2 scanners cannot.
Supported Platforms:
For Windows 2000 XP Vista 7 8 8.1
Does not support wifi or bluetooth
main feature:
Detect in-vehicle network configuration
Read and reset diagnostic trouble codes from all modules (see list of supported modules)
Read the sensor data of the module
Run test diagnostics (not yet supported by for OBD2 Diagnostic Cable Lite)
Run a service program (not yet supported by for OBD2 Diagnostic Cable Lite)
Supported Vehicles:
Supported adapters:
For ELM327
J2534 pass through
CANtieCAR
OBDLink SX MX (STN11xx)
For ELS27 (STN1170)
Supported protocols and buses:
Replacement for Ford HS CAN
Replacement for FORD MS CAN (for J2534-2, for CANtieCAR, for OBDLink MX, for ELS27 or modified for ELM327 only)
Replacement for Ford SCP
Replacement for ford 9141
Support Modules:
Almost all of modules availabe through supported protocols.
Powertrain Control Module (PCM)
Anti-Lock Brake / Traction Control Module (ABS)
Hybrid Electronic Cluster (HEC)
Left High Intensity Discharge Lamp (LHID)
Right High Intensity Discharge Lamp (RHID)
Vehicle Dynamics Module (VDM)
4X4 Control Module (4X4M)
Air Conditioning Control Module (ACCM)
Audio Control Module (ACM)
Audio Control Unit (ACU)
Alternative Fuel Control Module (AFCM)
Adaptive Front Lighting System / Auto Leveling Module (AFS/ALM)
Adaptive Front Lighting System (AFS)
Auxiliary Heater Control Module (AHCM)
Audio Interface Module (AIM)
Auto Leveling Module (ALM)
Amplifier Module (AM)
Accessory Protocol Interface Module (APIM)
Automatic Ride Control (ARC)
A-STOP System (No Idling System) (A-STOP)
All Terrain Control Module (ATCM)
All Wheel Drive Module (AWD)
Battery Charger Control Module (BCCM)
Battery Control Module (BCM)
Body Control Module (BCMii)
Body Control Module / Generic Electronic Module (BCM/GEM)
Body Control Module B (BCMB)
Battery Energy Control Module (BECM)
Body Electronic Module (BEM)
Bluetooth Phone Module (BPM)
Security module (CSM)
Blind Spot Monitoring (Left) (BSML)
Blind Spot Monitoring (Right) (BSMR)
Remote Climate Control (RCC)
CCM
Circuit Deactivation Ignition Module (CDIM)
Compact Disc Player (CDP)
Instrument cluster (INST)
Column Lock Module (CLM)
Camera Module Rear (CMR)
Connectivity Master Unit (CMU)
Cellular Phone Module (CPM)
Central Timer Module (CTM)
Convergence Telematics Module (CTMii)
Digital Audio Broadcast Module (DABM)
Digital Audio Control Module C (DACMC)
DC to DC Converter Control Module (DCDC)
Driver/Dual Climate-Control Seat Module (DCSM)
Reductant Control Module (DCU)
Driver Door Control Unit (DFDM)
Drivers Door Module (DDM)
Deployable Hood System (DHS)
Driver's Seat Module (DSM)
(Audio) Digital Signal Processing Module (DSP)
Electronic Automatic Temperature Control (EATC)
Rader Brake Support (EBS)
Electronic Crash Sensor (ECS)
Electric Parking Brake (EPB)
Electronic-Controlled Power Steering (EPS)
Anti-Lock Brake / Traction Control Module (ESOF)
Front Body Control Module (F_BCM)
Fuel Additive Control Module (FACM)
Front Control/Display Interface Module (FCDIM)
Front Controls Interface Module (FCIM)
Front Display Interface Module (FDIM)
Front Distance Sensing Module (FDSM)
Transmission Control Module (TCM)
Fuel Fired Coolant Heating Module (FFH)
Passive Anti-Theft System (PATS)
Front Electronic Module (FEM)
Fuel Injection Control Module (FICM)
Fuel Indication Module (FIM)
Fuel Injection Pump (FIP)
Front Lighting Control Module (FLM)
Fuel Operated Heater (FOH)
Forward Sensing Camera (FSC)
Fire Suppression System Module (FSSM)
Folding Top Control Module (FTCM)
Generic Display Module (GDM)
Generic Electronic Module / Smart Junction Box (GEM/SJB)
Generic Electronic Module (GEM)
Generic Function Module (GFM)
Global Positioning System Module (GPSM)
Gear Shift Module (GSM)
Gateway Module A (GWM)
Headlamp Control Module (HCM)
Headlamp Control Module 2(B) (HCM2)
Headlamp Leveling Module (HD_LVL)
Instrument Cluster (IC)
HVAC Integrated Module (HIM)
Heated Steering Wheel Module (HSWM)
HUD
Heated Steering Wheel Module (HV)
Heating Ventilation Air Conditioning (HVAC)
IABM
Smart City Brake Support (ICA)
ICCM
Information Center Module (ICM)
Injector Control Unit (ICU)
Interior Lighting Control Module (ILCM)
Instrument Panel Control Module (IPC)
Intelligent Power Distribution Module (IPDM)
Image Processing Module A (IPMA)
Image Processing Module B (IPMB)
Lighting Control Module (LCM)
Left Power Sliding Door Module (LPSDM)
Liftgate / Trunk Module (LTM)
Message Center (MC)
Multifunction Steering Wheel (MFSW)
Multi-Information Display (MID)
Motor Pretensioner Module (MPM)
Navigation Controller (NAV)
Air Suspension (4WAS)
Air Conditioning (AC)
CCM
Steering Column Locking Module (SCLM)
4 Wheel Steering (WS4)
Next Generation Speed Control Module (NGSC)
Battery Control Module (OBD_BCM)
Fuel Injection Control Module (OBD_FICM)
Occupant Classification System Module (OCS)
Overhead Trip Computer (OTC)
Parking Aid Module (PAM)
Park Brake Control Module (PBM)
Passenger Climate-Control Seat Module (PCSM)
Passenger Climate-Control Seat Module 2 (rear) (PCSM2)
Passengers Door Control Unit (PDM)
Power Running Board (PRB)
Power Steering Control Module (PSCM)
Passenger Front Seat Module (PSM)
Rear Body Control Module (R_BCM)
Rear Audio Control Module (RACM)
Remote Anti-Theft / Personality Module (RAP)
Rear Air Suspension Module (RASM)
Rear Air Temperature Control (RATC)
Restraint Control Module (RCM)
Audio Rear Control Unit (RCU)
Rear Electronic Module (REM)
Remote Emergency Satellite Cellular Unit Module (RESCU)
Rear Seat Entertainment Module (RETM)
Remote Function Actuator (RFA)
Rear Gate/Trunk Module (RGTM)
Retractable Hard Top (RHT)
Rear Heating Ventilation Air Conditioning (RHVAC)
Remote Keyless Entry (RKE)
Rear Lighting Control Module A (RLCMA)
Rear Left Door Control Unit (DRDM)
Right Power Sliding Door Module (RPSDM)
Rear Right Door Control Unit (PRDM)
Tire Pressure Monitor (RTM)
Rear Vehicle Monitoring (RVM)
Steering Angle Sensor Module (SASM)
SBS/MRCC
Steering Column Control Module (SCCM)
Steering Column/Instrument Panel/Lighting (SCIL)
Seat Control Module E (SCME)
Seat Control Module G (SCMG)
Seat Control Module H (SCMH)
Selective Catalytic Reduction (SCR)
Satellite Digital Audio Receiver System (SDARS)
Steering Effort Control Module (SECM)
Secondary OBD Control Module A (SOBDM)
Secondary OBD Control Module C (SOBDMC)
Side Obstacle Detection Control Module - Left (SODL)
Side Obstacle Detection Control Module - Right (SODR)
Speech Recognition Module (SRM)
Supplemental Restraint System (SRS)
Smart Start Unit (SSU)
Trailer Brake Control Module (TBC)
Energy Management Module (EMM)
Tracking and Blocking Module (TBM)
Transfer Case Control Module (TCCM)
Telematic Control Unit Module (TCU)
Tire Pressure Monitor (TPM)
Transmission Range Control Module (TRCM)
Trailer Module (TRM)
Variable Assist Power Steering (VAPS)
Vehicle Emergency Messaging System (VEMS)
Virtual Image Cluster (VIC)
Vehicle Security Module (VSM)FO
