OBD2 Breakout Box, WOYO CTB007 12V/24V CAN Tester Box (59inch/150cm)
$153.39
- $5.99 shipping from United States View details
-
Arrives

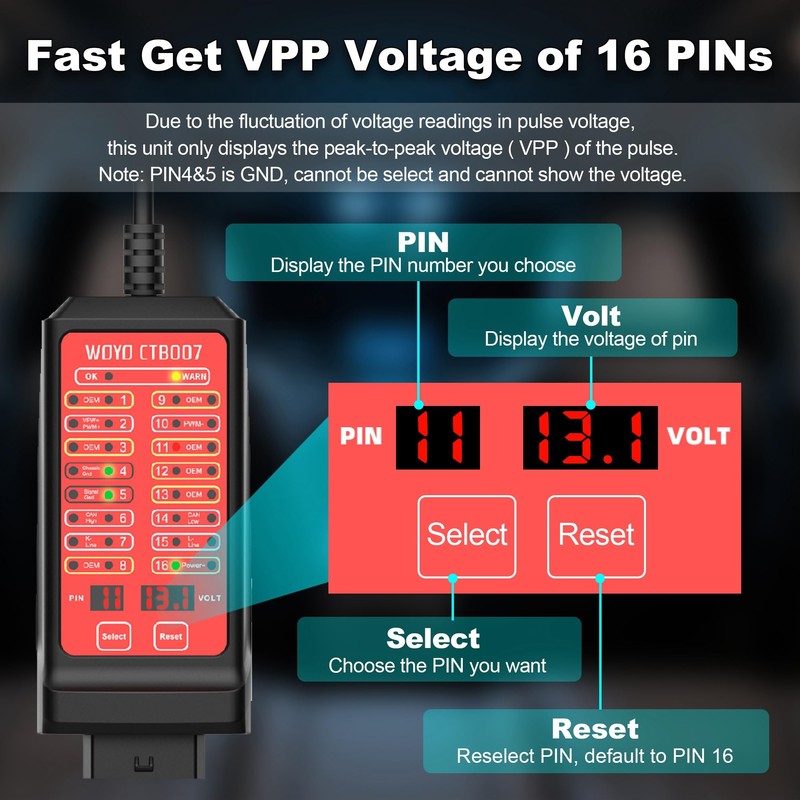

- 【Professional LED Digital VPP Voltage Display of 16 PINs】 CTB007 is a specialized automotive diagnostic tool designed for all 12V/24V vehicles equipped with OBD2 protocol interfaces, including cars, trucks, and motorcycles. It allows you to directly select different pins to read the corresponding VPP voltage of each OBD2 pin, providing instant and accurate data for efficient troubleshooting without guesswork. Also works with most oscilloscopes and multimeters.

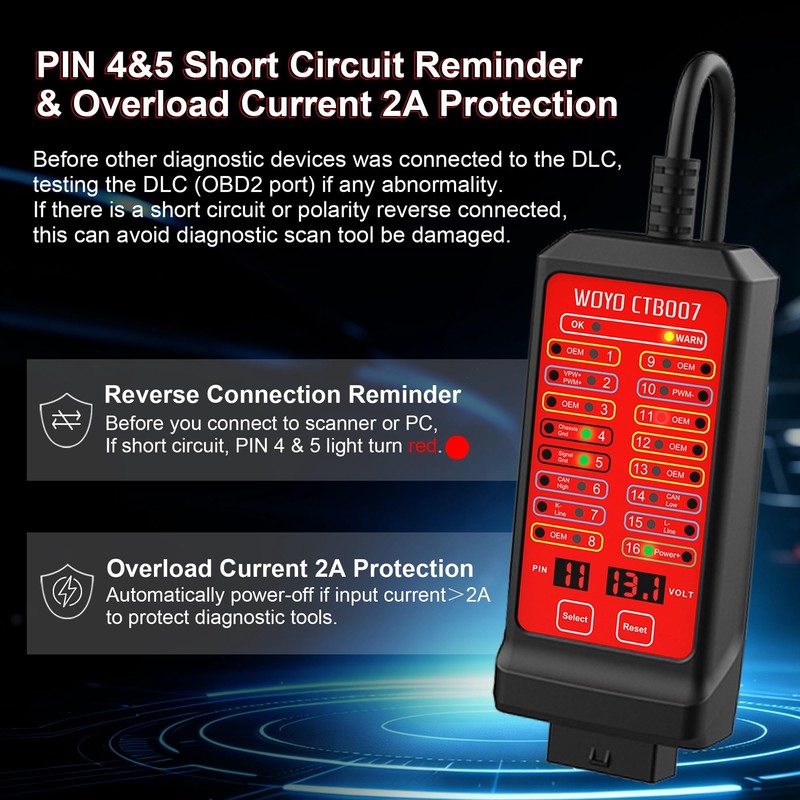

- 【Built-in Safety Protections & Pass-Through Design】 Equipped with reverse polarity protection and overload protection (up to 2A) , this WOYO CTB007 OBD2 breakout box can protect your expensive scan tools and diagnostic computers. Before other diagnostic devices was connected to the DLC, testing the DLC (OBD2 port) if any abnormality. The pure pass-through data line design ensures lower latency communication between your scanner and the vehicle, delivering reliable data every time.

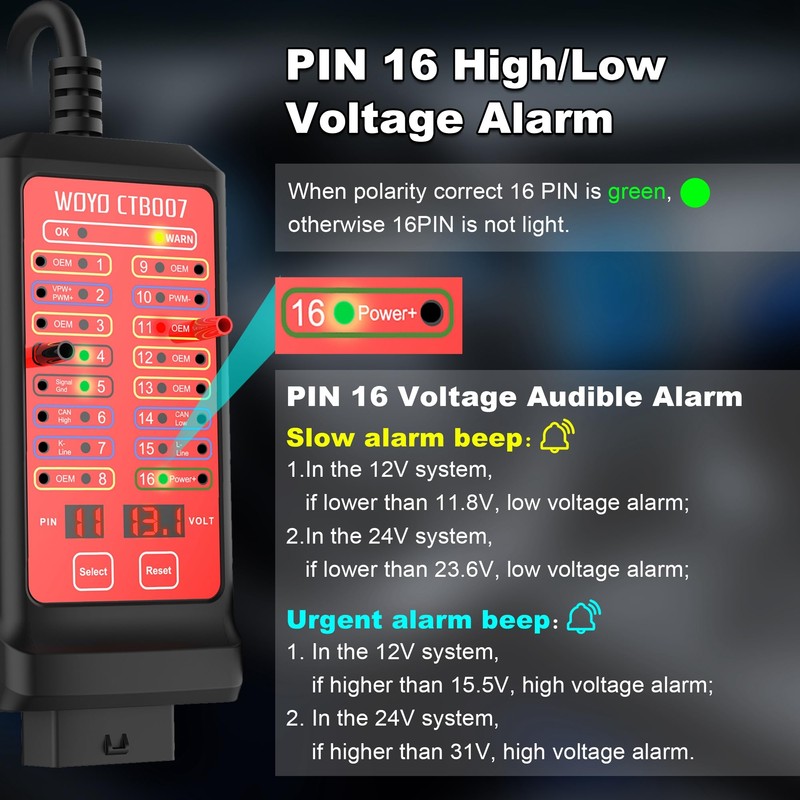

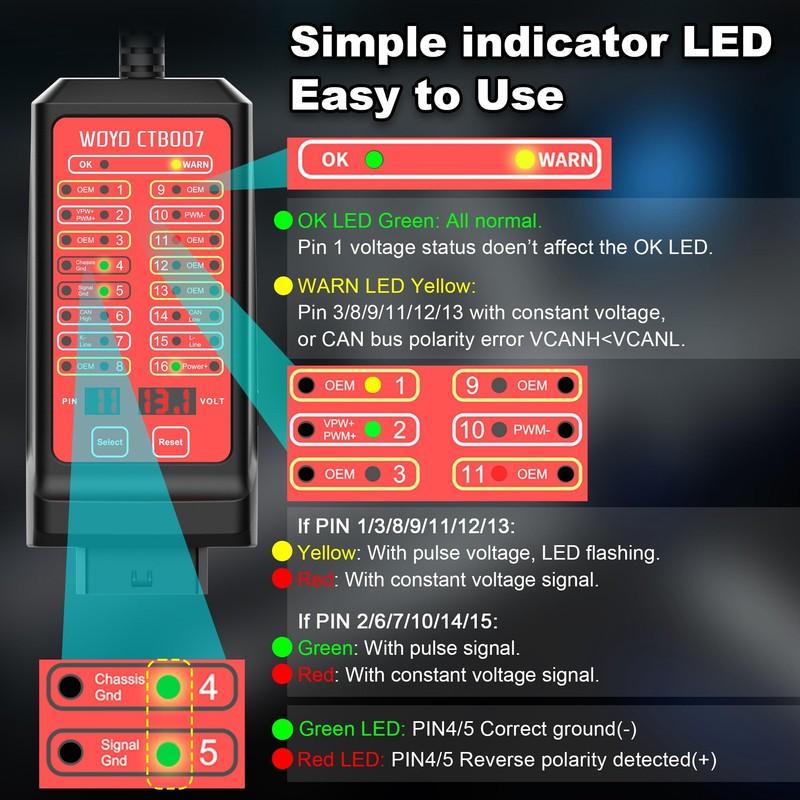

- 【Intuitive LED Indicators & High Low Voltage Audible Alarm】 The tri-color LED lights provide instant visual feedback—Green LED (Pin 4/5) confirms a proper vehicle ground, while the Green LED (Pin 16) indicates normal power supply. Additionally, the built-in buzzer alarm alerts you to high/low voltage conditions on Pin 16, making fault identification quick and effortless. A detailed user manual is included in the package, ensuring a smooth experience even for first-time users. If you need the manual in Espanol, contact us on Amazon, we will reply you in 24 hours.

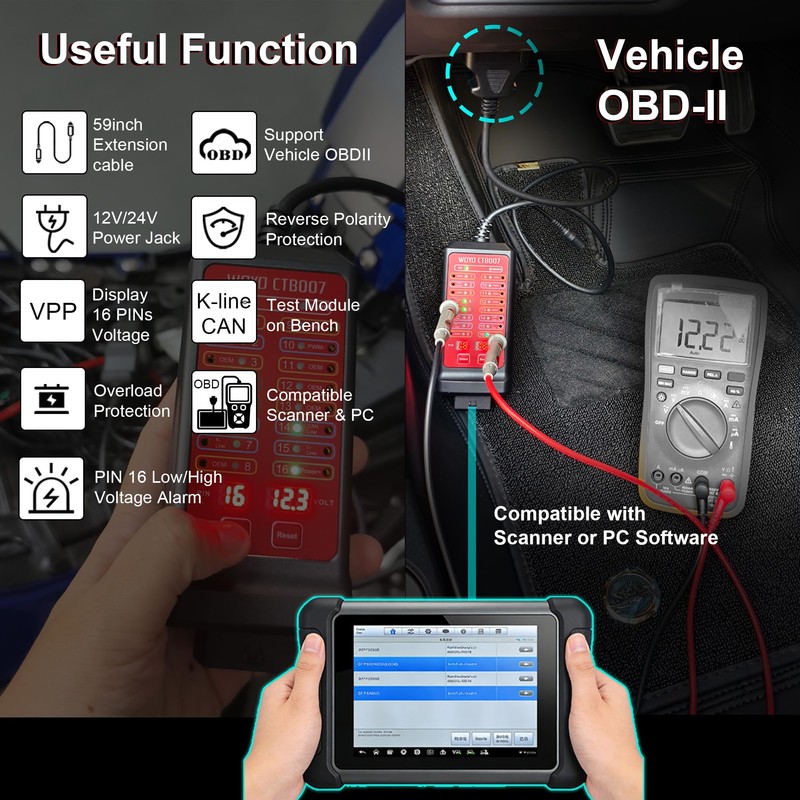

- 【Auxiliary Power Supply for ECU Data Protection】 Featuring a DC 12V-24V external power input port (5.1×2.2mm), this breakout box can supply stable backup power to the vehicle when the battery is low or during battery replacement. This prevents data loss and protects your ECU memory settings, so you won't need to reprogram the vehicle after a battery change—a must-have for professional mechanics and DIY enthusiasts alike.
- 【Offline DIY Test Platform & Multi-Protocol Support】 Go beyond basic diagnostics—CTB007 enables you to build a DIY offline test bench for automotive modules. It supports a wide range of communication protocols, including CAN-BUS, PWM, K-Line, and L-Line, making it ideal for bench-testing ECUs, immobilizers, and other electronic modules outside the vehicle. Whether you're a professional technician or a serious DIYer, this breakout box gives you the flexibility to tackle advanced diagnostic and repair projects with confidence.

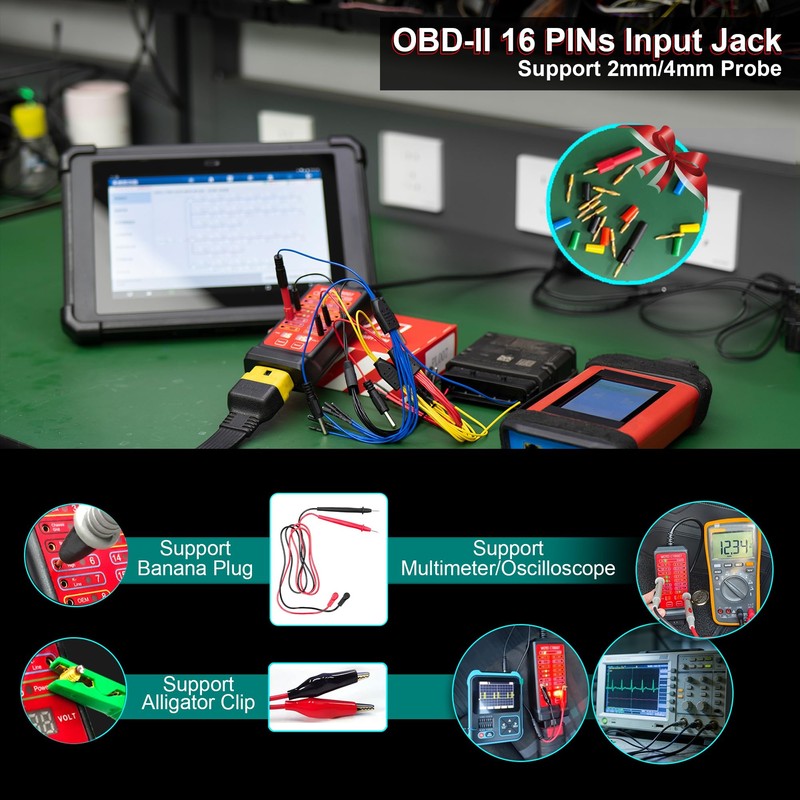

- 【Compact Design with Universal Test Probe Compatibility】 The portable and space-saving design makes CTB007 easy to carry and store. The built-in input jacks are compatible with standard 2mm multimeter or oscilloscope probes for precise measurements. To expand your testing options, we include 4mm-to-2mm adapter jacks and 10 external pin connectors for crocodile-clip style leads, ensuring seamless compatibility with a wide range of test equipment on the market.

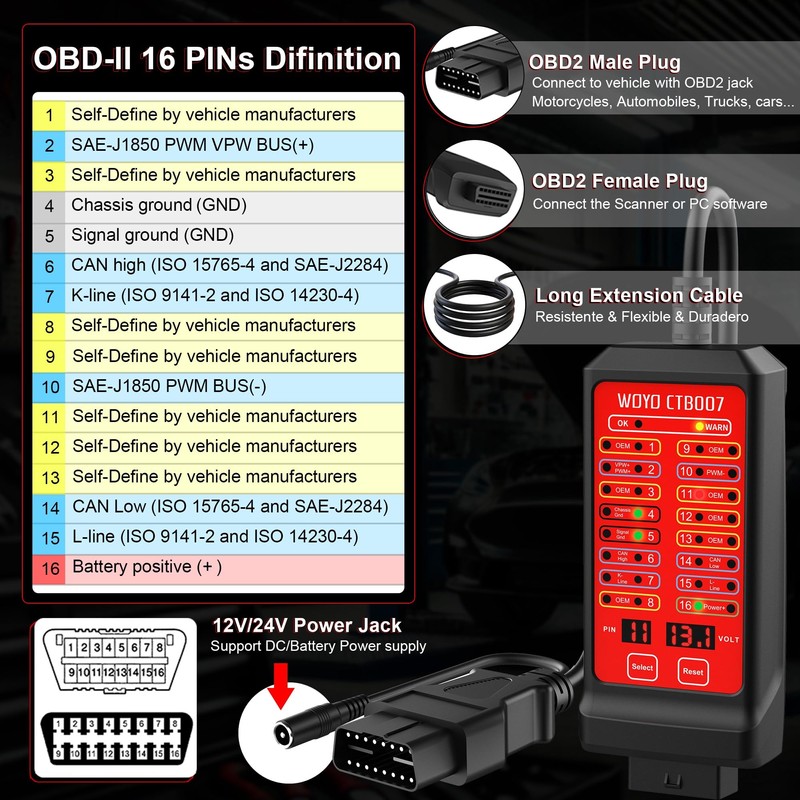

- 【Long Extension Cable for Convenient Operation】 The CTB007 pin box comes with a 70cm (27.5-inch) OBD2 extension cable, giving you the flexibility to position the breakout box comfortably outside the cramped footwell space under the steering wheel. This thoughtful design allows you to work freely and safely, whether you're using a multimeter, oscilloscope, or other diagnostic tools, without struggling in tight quarters.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Professional LED Digital VPP Voltage Display of 16 PINs】 CTB007 is a specialized automotive diagnostic tool designed for all 12V/24V vehicles equipped with OBD2 protocol interfaces, including cars, trucks, and motorcycles. It allows you to directly select different pins to read the corresponding VPP voltage of each OBD2 pin, providing instant and accurate data for efficient troubleshooting without guesswork. Also works with most oscilloscopes and multimeters.
- 【Built-in Safety Protections & Pass-Through Design】 Equipped with reverse polarity protection and overload protection (up to 2A) , this WOYO CTB007 OBD2 breakout box can protect your expensive scan tools and diagnostic computers. Before other diagnostic devices was connected to the DLC, testing the DLC (OBD2 port) if any abnormality. The pure pass-through data line design ensures lower latency communication between your scanner and the vehicle, delivering reliable data every time.
- 【Intuitive LED Indicators & High Low Voltage Audible Alarm】 The tri-color LED lights provide instant visual feedback—Green LED (Pin 4/5) confirms a proper vehicle ground, while the Green LED (Pin 16) indicates normal power supply. Additionally, the built-in buzzer alarm alerts you to high/low voltage conditions on Pin 16, making fault identification quick and effortless. A detailed user manual is included in the package, ensuring a smooth experience even for first-time users. If you need the manual in Espanol, contact us on Amazon, we will reply you in 24 hours.
- 【Auxiliary Power Supply for ECU Data Protection】 Featuring a DC 12V-24V external power input port (5.1×2.2mm), this breakout box can supply stable backup power to the vehicle when the battery is low or during battery replacement. This prevents data loss and protects your ECU memory settings, so you won't need to reprogram the vehicle after a battery change—a must-have for professional mechanics and DIY enthusiasts alike.
- 【Offline DIY Test Platform & Multi-Protocol Support】 Go beyond basic diagnostics—CTB007 enables you to build a DIY offline test bench for automotive modules. It supports a wide range of communication protocols, including CAN-BUS, PWM, K-Line, and L-Line, making it ideal for bench-testing ECUs, immobilizers, and other electronic modules outside the vehicle. Whether you're a professional technician or a serious DIYer, this breakout box gives you the flexibility to tackle advanced diagnostic and repair projects with confidence.
- 【Compact Design with Universal Test Probe Compatibility】 The portable and space-saving design makes CTB007 easy to carry and store. The built-in input jacks are compatible with standard 2mm multimeter or oscilloscope probes for precise measurements. To expand your testing options, we include 4mm-to-2mm adapter jacks and 10 external pin connectors for crocodile-clip style leads, ensuring seamless compatibility with a wide range of test equipment on the market.
- 【Long Extension Cable for Convenient Operation】 The CTB007 pin box comes with a 70cm (27.5-inch) OBD2 extension cable, giving you the flexibility to position the breakout box comfortably outside the cramped footwell space under the steering wheel. This thoughtful design allows you to work freely and safely, whether you're using a multimeter, oscilloscope, or other diagnostic tools, without struggling in tight quarters.

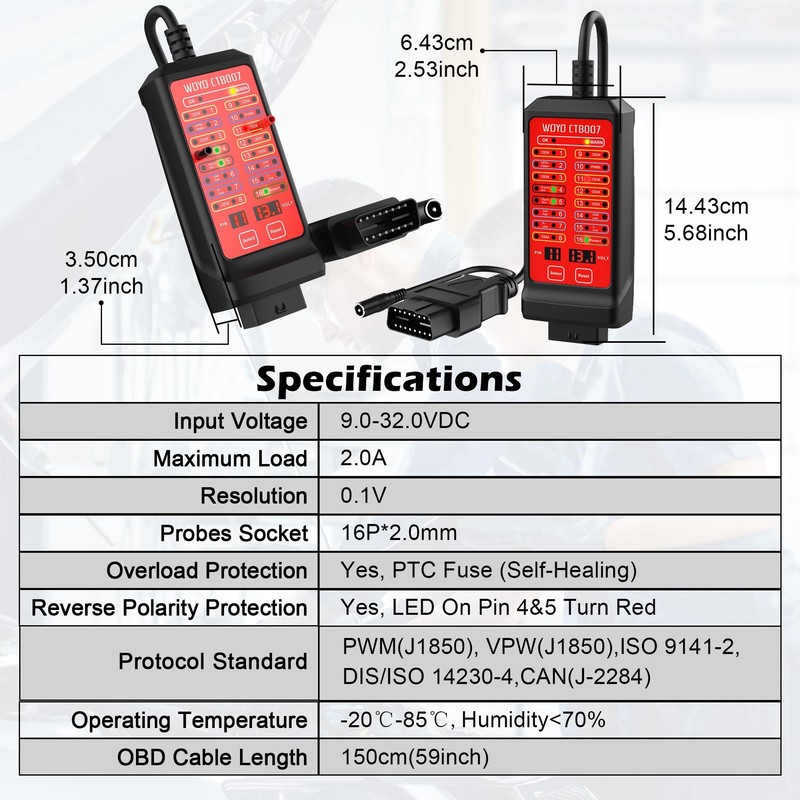

Input Voltage:9.0-32.0VDC
Maximum Load:2.0A
Resolution:0.1V
Overload Protection:Yes, PTC Fuse (Self-Healing)
Reverse Polarity Protection:Yes,LED On Pin 4&5 Turn Red
Protocol Standard:PWM(J1850)、VPW（J1850）、ISO 9141-2、DIS/ISO 14230-4、CAN(J-2284)
Operating Temperature:0℃-50℃，Humidity<70%
Banana Socket:16P*2.0mm
OBD Cable Length:70cm(27.5inch)
Description: 1.CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems, with 27inch extension cable. 2.Testing DLC (OBD 2 port) if any error before connecting connecting other diagnostic equipment to DLC, such as pin short circuit and polarity reverse connection ; 3.Real-time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter ; 4.Fastly connect 16 pins during vehicle maintenance diagnosis; 5.Monitoring input voltage of OBD 2 when burning module, high and low voltage alarm. 6.Quickly confirm which pin has problem about digital voltage or connect to Multimeter, Oscilloscope or diagnostic scanner to read the real-time data. 7. Support OBD 2 plug of Car, truck or motorcycle. If you want to test OBD, you only need to purchase the extra OBD 2 to OBD Adapter. 8. CTB007 Is for OBD2 16 PIN Digital Tester, when you couldn't read the car data about the OBD2 system, CTB007 can help you to confirm if the pin have problem on the OBD 2 plug. 9. You can connect to the PC software for VCDS or delphi diagnostic system, also can connect to the diagnostic scanner to read the real time data.
