OBD2 Breakout Box Automotive Advanced OBDII Protocol Detector with LCD Display & LED Indicator, 16-Pin CAN Breakout Box Diagnostic Tool for Power Car E.CU, Use with Scanner/Multimeter/Oscilloscope
$117.97
- $5.95 shipping from United States View details
-
Arrives

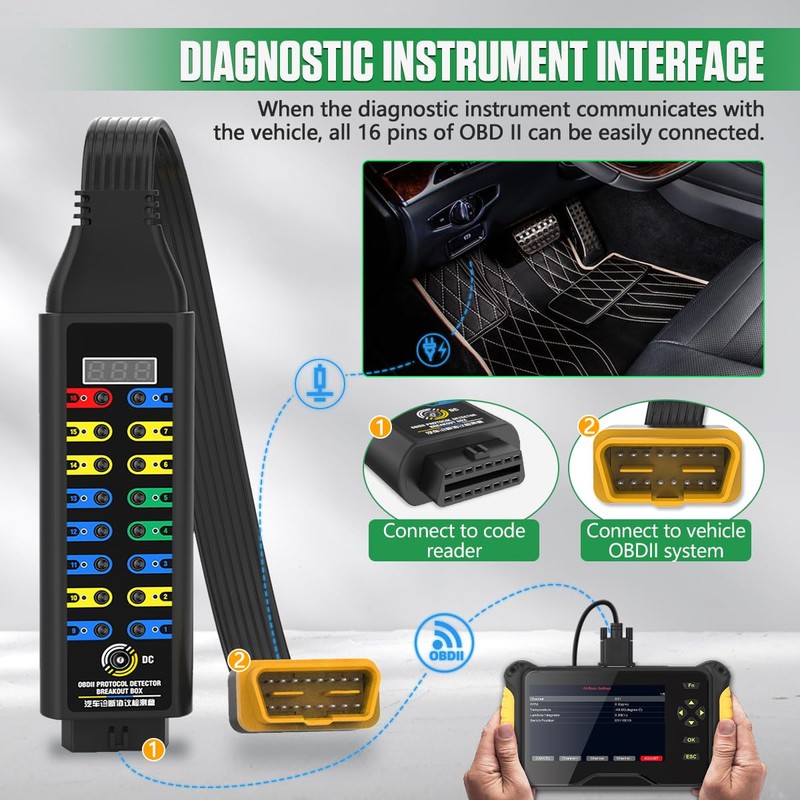

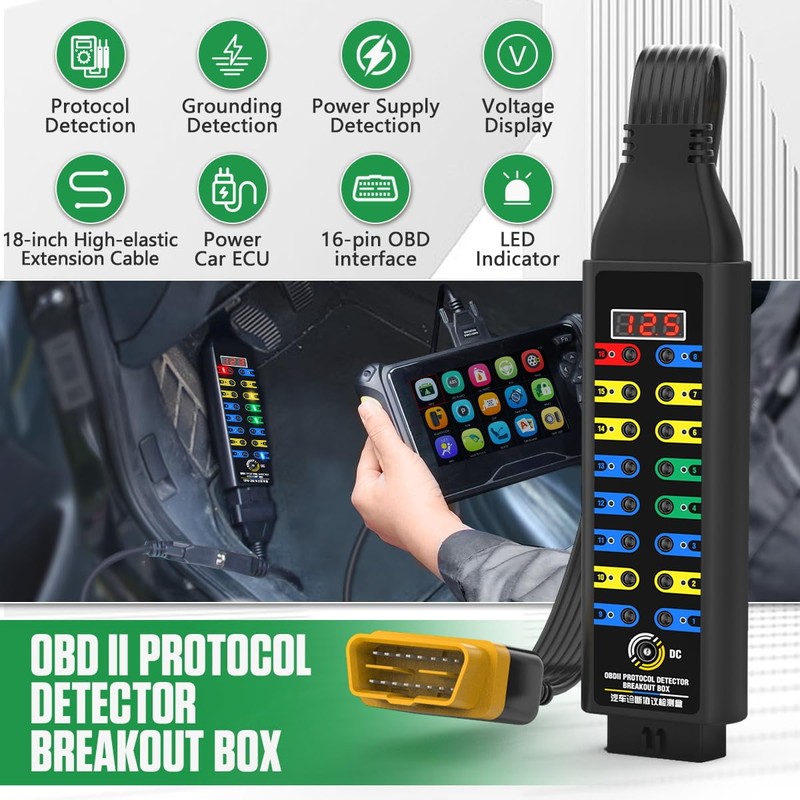

- 【Upgraded OBD2 Breakout Box】This is an OBDII protocol detector designed for diagnosing the 12V car OBDII data line. It provides easy access to the vehicle's OBDII system. The LED lights of different colors and voltage display on the OBD2 breakout box allow convenient and safe monitoring of the protocol, power, and ground signals. This breakout box automotive can be connected to an OBDII code reader, multimeter, or oscilloscope for further testing when unconfirmed signals are detected.

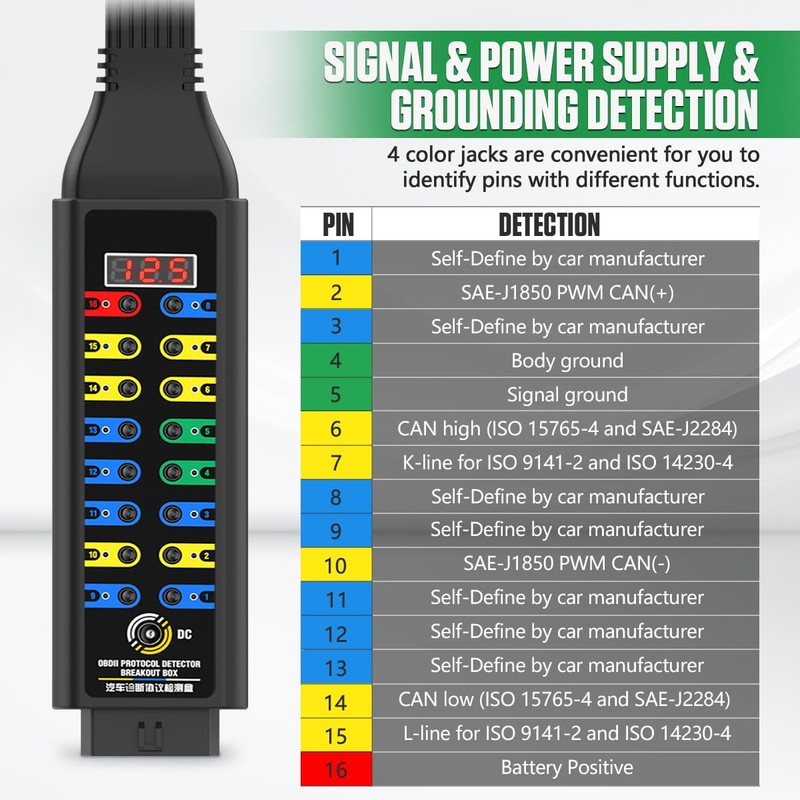

- 【OBD2 Communication/Signal & Power Supply & Grounding Detection】Breakout box automotive can help you measure whether the communication signal (such as K-line, L-line, CAN bus and PWM protocol line), power supply, and grounding of the vehicle OBDII interface are normal. CAN breakout box not only can detect 12V car signal but also can detect some of 12V diesel vehicle signal. It is perfect for people who likes diagnosing and modifying cars. Note: The breakout box is used on 8-16V vehicles.

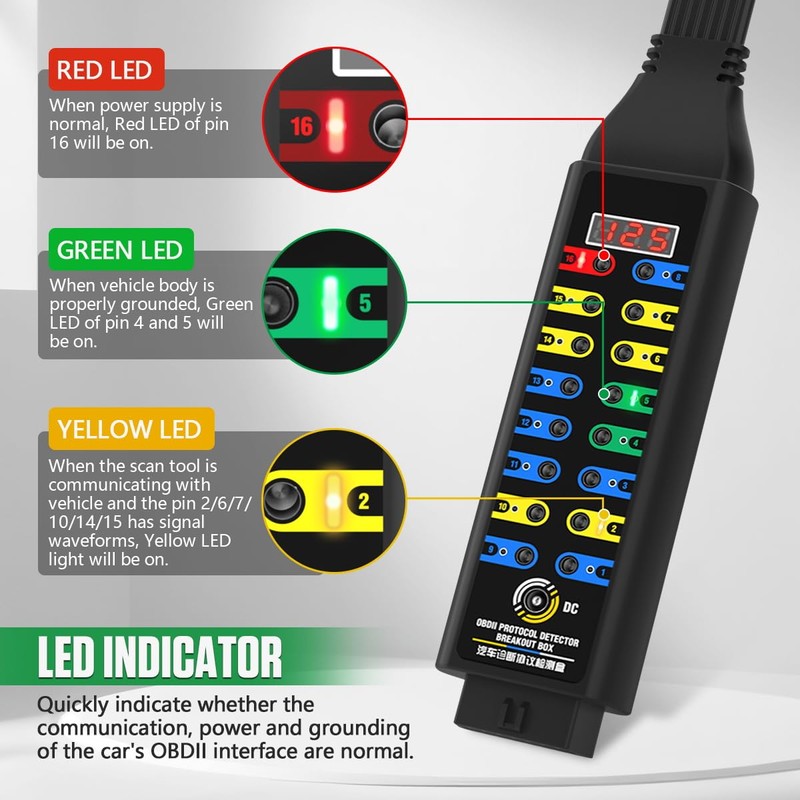

- 【3-color LED Indicator of OBDII Breakout Box】The LED lights on the OBD2 breakout box can quickly indicate whether the communication, power and grounding of the car's OBDII interface are normal. Yellow LED (Pin 2/6/7/10/14/15) lights up to indicate that the OBD2 scanner is communicating with the vehicle and the pins have signal waveforms. Green LED (Pin 4/5) lights up to indicate that car body is properly grounded. Red LED (Pin 16) lights up to indicate that the power supply is normal.

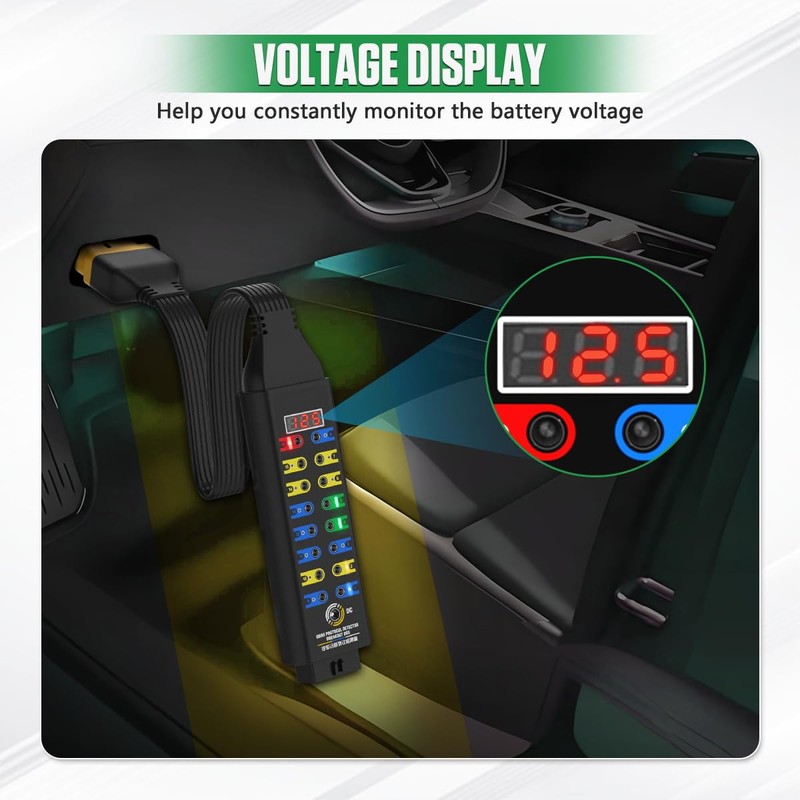

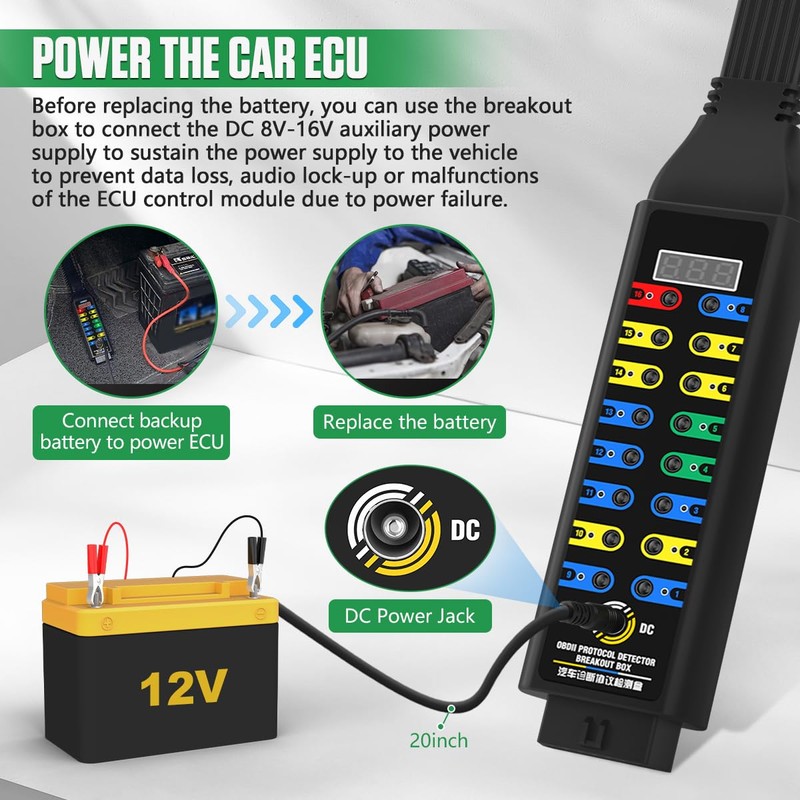

- 【Voltage Display & Power E.CU when Replacing Battery】Our OBD2 breakout box is equipped with a voltage display to help you constantly monitor the battery voltage. Breakout box also comes with a DC power jack and a 12V battery alligator clip. Before replacing the battery, you can use the breakout box automotive to connect the DC 8V-16V auxiliary power supply to sustain the power supply to the vehicle to prevent data loss, audio lock-up or malfunctions of the E.CU control module due to power failure.

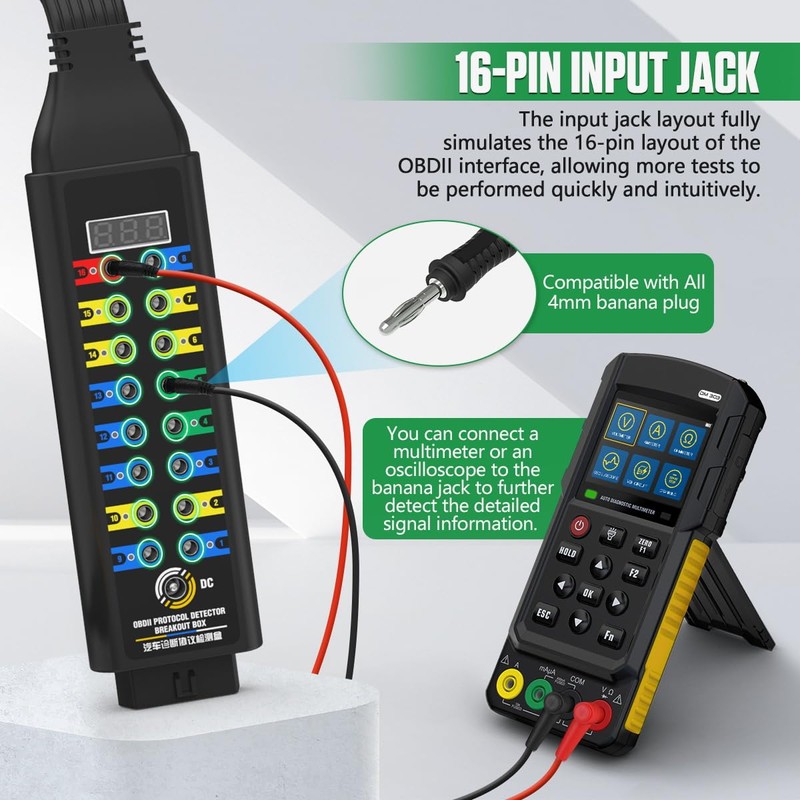

- 【16-Pin Jack Layout Design for All 4mm Banana Plug】The input jack layout of OBDII breakout box fully simulates the 16-pin layout of the OBDII interface, allowing more tests to be performed quickly and intuitively. You can easily access each of the 16 pins while OBD2 scanner communicating with vehicles.The built-in input jack can be connected to all types of 4mm banana plug. You can connect a multimeter or an oscilloscope to the banana jack to further detect the detailed signal information.

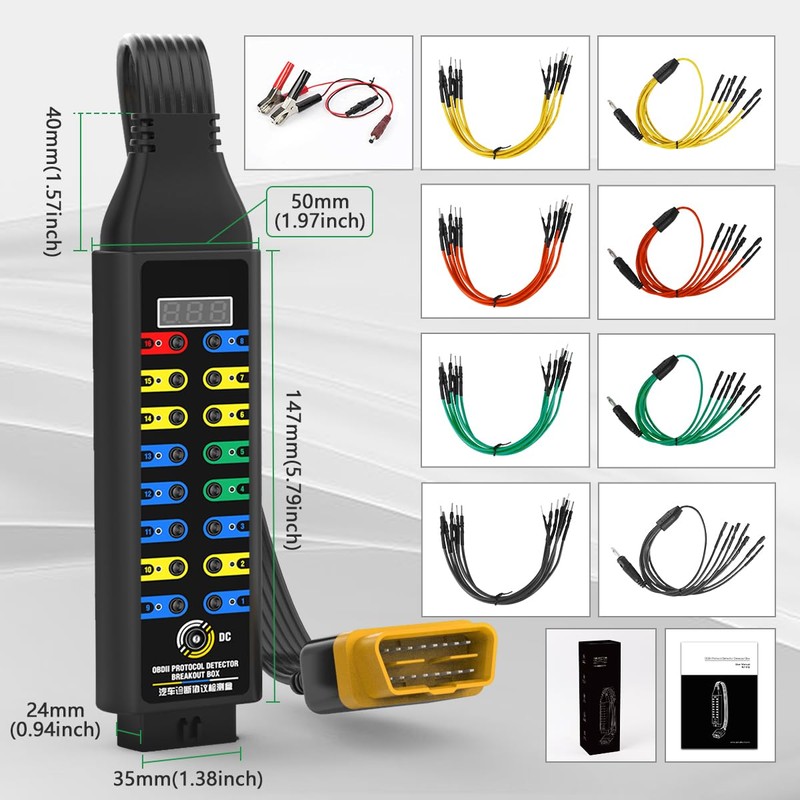

- 【High Elasticity & High Flexibility 18-inch Extension Cable & 4 Sets of Universal Jumper Wires】OBDII breakout box is equipped with a 18-inch extension cable, which is made of elastic thermoplastic TPU material with high elasticity, high strength and high flexibility. OBDII extension cable adopts multi-thread connection data technology,which makes connection faster and smoother.It also is equipped with 4 sets of universal jumper wires with different plugs in 4 colors, which can be wired flexibly.
- 【3-Year Product Service】We aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. We promise 3-year product service. If you have any questions or doubts, our professional technical team will help you solve the problem within 24 hours.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Upgraded OBD2 Breakout Box】This is an OBDII protocol detector designed for diagnosing the 12V car OBDII data line. It provides easy access to the vehicle's OBDII system. The LED lights of different colors and voltage display on the OBD2 breakout box allow convenient and safe monitoring of the protocol, power, and ground signals. This breakout box automotive can be connected to an OBDII code reader, multimeter, or oscilloscope for further testing when unconfirmed signals are detected.
- 【OBD2 Communication/Signal & Power Supply & Grounding Detection】Breakout box automotive can help you measure whether the communication signal (such as K-line, L-line, CAN bus and PWM protocol line), power supply, and grounding of the vehicle OBDII interface are normal. CAN breakout box not only can detect 12V car signal but also can detect some of 12V diesel vehicle signal. It is perfect for people who likes diagnosing and modifying cars. Note: The breakout box is used on 8-16V vehicles.
- 【3-color LED Indicator of OBDII Breakout Box】The LED lights on the OBD2 breakout box can quickly indicate whether the communication, power and grounding of the car's OBDII interface are normal. Yellow LED (Pin 2/6/7/10/14/15) lights up to indicate that the OBD2 scanner is communicating with the vehicle and the pins have signal waveforms. Green LED (Pin 4/5) lights up to indicate that car body is properly grounded. Red LED (Pin 16) lights up to indicate that the power supply is normal.
- 【Voltage Display & Power E.CU when Replacing Battery】Our OBD2 breakout box is equipped with a voltage display to help you constantly monitor the battery voltage. Breakout box also comes with a DC power jack and a 12V battery alligator clip. Before replacing the battery, you can use the breakout box automotive to connect the DC 8V-16V auxiliary power supply to sustain the power supply to the vehicle to prevent data loss, audio lock-up or malfunctions of the E.CU control module due to power failure.
- 【16-Pin Jack Layout Design for All 4mm Banana Plug】The input jack layout of OBDII breakout box fully simulates the 16-pin layout of the OBDII interface, allowing more tests to be performed quickly and intuitively. You can easily access each of the 16 pins while OBD2 scanner communicating with vehicles.The built-in input jack can be connected to all types of 4mm banana plug. You can connect a multimeter or an oscilloscope to the banana jack to further detect the detailed signal information.
- 【High Elasticity & High Flexibility 18-inch Extension Cable & 4 Sets of Universal Jumper Wires】OBDII breakout box is equipped with a 18-inch extension cable, which is made of elastic thermoplastic TPU material with high elasticity, high strength and high flexibility. OBDII extension cable adopts multi-thread connection data technology,which makes connection faster and smoother.It also is equipped with 4 sets of universal jumper wires with different plugs in 4 colors, which can be wired flexibly.
- 【3-Year Product Service】We aim at trying our best to offer you the best product and services to make you unworried before/after the purchase. We promise 3-year product service. If you have any questions or doubts, our professional technical team will help you solve the problem within 24 hours.
