Nilight SPST Multi Purpose Relay 12V 5 Prong Fuel Pump Relay 5Pack 35A/20A Ultra
$43.47
- Free US shipping
-
Arrives
5 Pack 5-Pin SPST Electrical Relays
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Low cost automotive relay with ISO 280 footprint. High rating up to 35A at 125 degree C. □Optional to be equipped with diode or resistor. □General purpose applications for automotive in power.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.
Responsible Party: Nilight
- Nominal Coil Voltage: 12 VDC
- Current Rating:35 Amps
- Contact Form: SPST
- Replace Part Number: 301-1C-C-R1-U01-12VDC
- OEM Manufacturer Part Number: D1780C, 13500126, 1550448, 19116058
- Type: 5Pin SPST Relay, Coil voltage: 12V; Current: 35A; model#301-1C-C-R1-U01-1. NO contacts switch 35A resistive load, NC contacts switch 20A resistive load. This relay will work in most vehicles as long as your original relay is 5 pin with all pin’s orientation being parallel to each other, this should work.
- Premium Quality：Made by high-grade materials to ensure superior quality and long lifespan. High Temperature withstand up to 125°C ambient. Designed to deliver trouble-free, consistent performance. General applications for automotive power supplies.

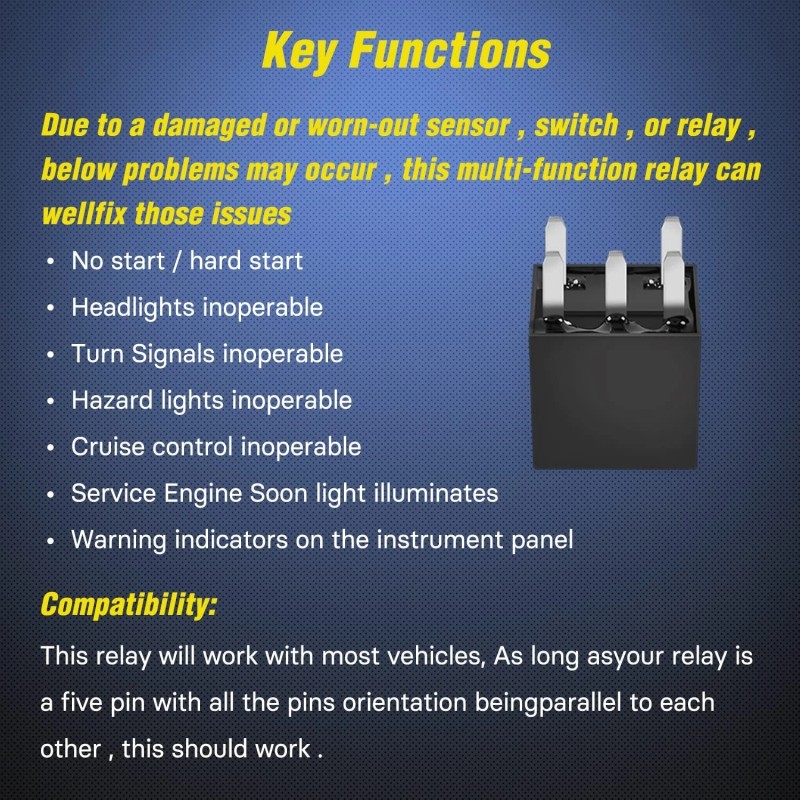

- Key Functions: Due to a damaged or worn out sensor, switch, or relay, such problems of Turn signal inoperative,hazard lights and headlights inoperative, cruise control inoperative, warning indicators on the instrument panel, service engine soon light illuminates and no start or hard start may occur, and Nilight multi-purpose relay can well fix the issues.
- Multi-Function Relay: can be Used as headlight relays to make the low beam to stay on when the high beams come on.(Personal needs). Also can be Can be used as Fuel Pump Relay, or worked well on solving windshield wipers problems.Simple fix for intermittent unlock failure of the second row doors and tailgate etc.

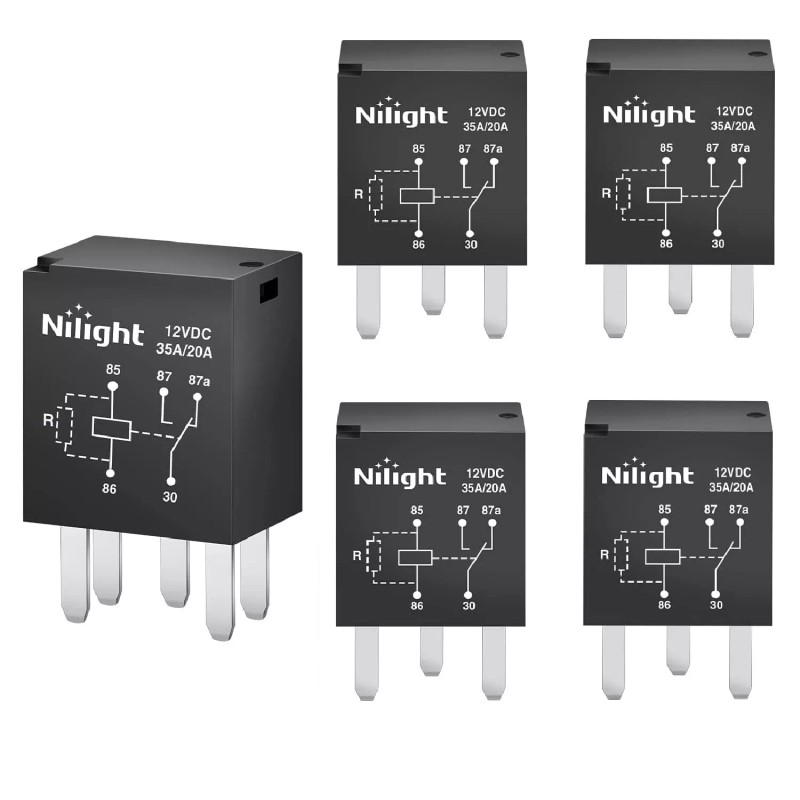

- Package Includes: 5PCS Micro Relays.
Note:
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.

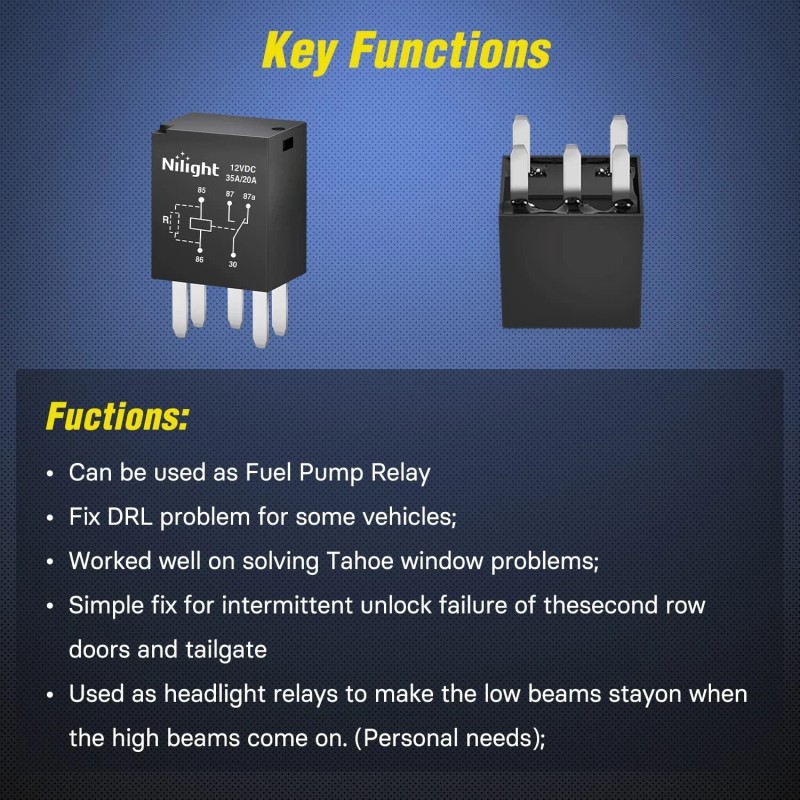

Where this relay is used?
- Fix DRL problem for some vehicles;
- Worked well on solving windshield wiper problems.
- Simple fix for intermittent unlock failure of the second-row doors and tailgate
- Used as headlight relays to make the low beams stay on when the high beams come on. (Personal needs)
- Can be used as a Fuel Pump Relay
- Solving Cruise control inoperative
- Not limited to the above issues

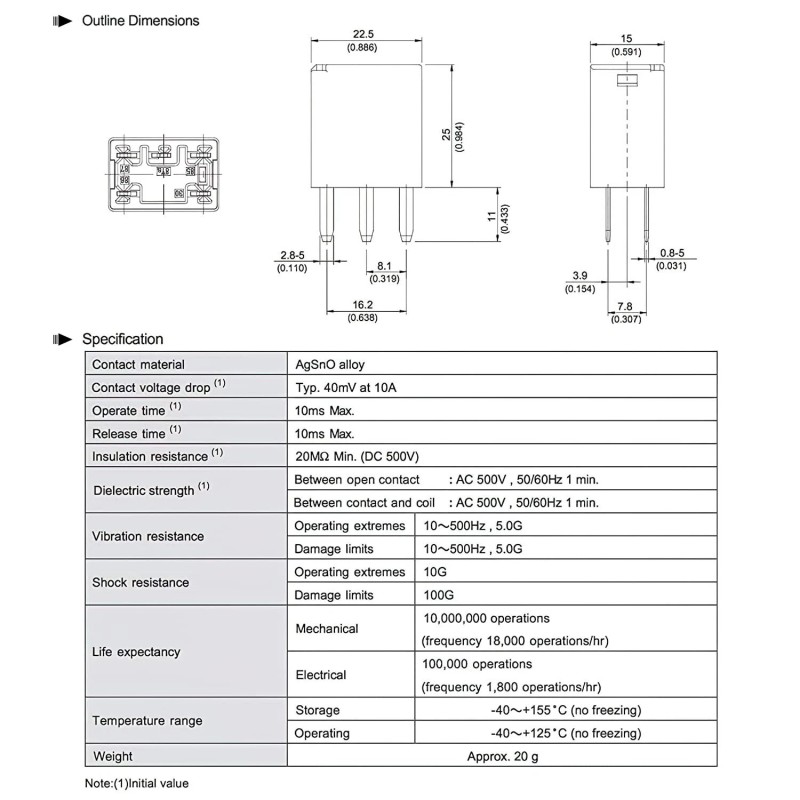

Specification
| Contact Form | 1H，1Z |
| Contact Material | AgSnO alloy |
| Contact voltage drop | Typ. 40mV at 10A |
| Max Operating Current | 35A |
| Insulation Resistance | 20MΩ Min.(DC 500V) |
| Dielectric Strength | AC 500V ,50/60Hz 1 min. |
| Ambient Temperature | -40°C~+125°C |
| Operate/Release Time | 10ms Max. |
Product Details
CompatibilityThis relay will work with most vehicles, As long as your relay is a five pin with all the pins orientator being parallel to each other, this should work. | Professional ConstructionThis 5-prong relays are SPST designed. Pin 87: Normally open contact. Pin 86: It be connected to a positive input DC 12V input. Pin 87a: Normally closed contact. Pin 85: It be connected to the ground chassis. Pin 30: Common contact. | High Quality Copper CoilThe real copper coil makes the voltage more stable and provides the loads more conductivity. Ensure superior quality and provide effective protection |
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
5 Pack 5-Pin SPST Electrical Relays
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Low cost automotive relay with ISO 280 footprint. High rating up to 35A at 125 degree C. □Optional to be equipped with diode or resistor. □General purpose applications for automotive in power.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.
Responsible Party: Nilight
- Nominal Coil Voltage: 12 VDC
- Current Rating:35 Amps
- Contact Form: SPST
- Replace Part Number: 301-1C-C-R1-U01-12VDC
- OEM Manufacturer Part Number: D1780C, 13500126, 1550448, 19116058
- Type: 5Pin SPST Relay, Coil voltage: 12V; Current: 35A; model#301-1C-C-R1-U01-1. NO contacts switch 35A resistive load, NC contacts switch 20A resistive load. This relay will work in most vehicles as long as your original relay is 5 pin with all pin’s orientation being parallel to each other, this should work.
- Premium Quality：Made by high-grade materials to ensure superior quality and long lifespan. High Temperature withstand up to 125°C ambient. Designed to deliver trouble-free, consistent performance. General applications for automotive power supplies.
- Key Functions: Due to a damaged or worn out sensor, switch, or relay, such problems of Turn signal inoperative,hazard lights and headlights inoperative, cruise control inoperative, warning indicators on the instrument panel, service engine soon light illuminates and no start or hard start may occur, and Nilight multi-purpose relay can well fix the issues.
- Multi-Function Relay: can be Used as headlight relays to make the low beam to stay on when the high beams come on.(Personal needs). Also can be Can be used as Fuel Pump Relay, or worked well on solving windshield wipers problems.Simple fix for intermittent unlock failure of the second row doors and tailgate etc.
- Package Includes: 5PCS Micro Relays.
Note:
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.
Where this relay is used?
- Fix DRL problem for some vehicles;
- Worked well on solving windshield wiper problems.
- Simple fix for intermittent unlock failure of the second-row doors and tailgate
- Used as headlight relays to make the low beams stay on when the high beams come on. (Personal needs)
- Can be used as a Fuel Pump Relay
- Solving Cruise control inoperative
- Not limited to the above issues
Specification
| Contact Form | 1H，1Z |
| Contact Material | AgSnO alloy |
| Contact voltage drop | Typ. 40mV at 10A |
| Max Operating Current | 35A |
| Insulation Resistance | 20MΩ Min.(DC 500V) |
| Dielectric Strength | AC 500V ,50/60Hz 1 min. |
| Ambient Temperature | -40°C~+125°C |
| Operate/Release Time | 10ms Max. |
Product Details
CompatibilityThis relay will work with most vehicles, As long as your relay is a five pin with all the pins orientator being parallel to each other, this should work. | Professional ConstructionThis 5-prong relays are SPST designed. Pin 87: Normally open contact. Pin 86: It be connected to a positive input DC 12V input. Pin 87a: Normally closed contact. Pin 85: It be connected to the ground chassis. Pin 30: Common contact. | High Quality Copper CoilThe real copper coil makes the voltage more stable and provides the loads more conductivity. Ensure superior quality and provide effective protection |
5 Pack 5-Pin SPST Electrical Relays
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Low cost automotive relay with ISO 280 footprint. High rating up to 35A at 125 degree C. □Optional to be equipped with diode or resistor. □General purpose applications for automotive in power.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.
Responsible Party: Nilight
- Nominal Coil Voltage: 12 VDC
- Current Rating:35 Amps
- Contact Form: SPST
- Replace Part Number: 301-1C-C-R1-U01-12VDC
- OEM Manufacturer Part Number: D1780C, 13500126, 1550448, 19116058
- Type: 5Pin SPST Relay, Coil voltage: 12V; Current: 35A; model#301-1C-C-R1-U01-1. NO contacts switch 35A resistive load, NC contacts switch 20A resistive load. This relay will work in most vehicles as long as your original relay is 5 pin with all pin’s orientation being parallel to each other, this should work.
- Premium Quality：Made by high-grade materials to ensure superior quality and long lifespan. High Temperature withstand up to 125°C ambient. Designed to deliver trouble-free, consistent performance. General applications for automotive power supplies.
- Key Functions: Due to a damaged or worn out sensor, switch, or relay, such problems of Turn signal inoperative,hazard lights and headlights inoperative, cruise control inoperative, warning indicators on the instrument panel, service engine soon light illuminates and no start or hard start may occur, and Nilight multi-purpose relay can well fix the issues.
- Multi-Function Relay: can be Used as headlight relays to make the low beam to stay on when the high beams come on.(Personal needs). Also can be Can be used as Fuel Pump Relay, or worked well on solving windshield wipers problems.Simple fix for intermittent unlock failure of the second row doors and tailgate etc.
- Package Includes: 5PCS Micro Relays.
Note:
This relay will work in most vehicles as long as your original relay is 5 pin with all pin's orientations being parallel to each other, this should work.
Please do not buy if your relay is not 5 prongs or the pins' position is different from ours.
Where this relay is used?
- Fix DRL problem for some vehicles;
- Worked well on solving windshield wiper problems.
- Simple fix for intermittent unlock failure of the second-row doors and tailgate
- Used as headlight relays to make the low beams stay on when the high beams come on. (Personal needs)
- Can be used as a Fuel Pump Relay
- Solving Cruise control inoperative
- Not limited to the above issues
Specification
| Contact Form | 1H，1Z |
| Contact Material | AgSnO alloy |
| Contact voltage drop | Typ. 40mV at 10A |
| Max Operating Current | 35A |
| Insulation Resistance | 20MΩ Min.(DC 500V) |
| Dielectric Strength | AC 500V ,50/60Hz 1 min. |
| Ambient Temperature | -40°C~+125°C |
| Operate/Release Time | 10ms Max. |
Product Details
|
|
|
|---|---|---|
CompatibilityThis relay will work with most vehicles, As long as your relay is a five pin with all the pins orientator being parallel to each other, this should work. | Professional ConstructionThis 5-prong relays are SPST designed. Pin 87: Normally open contact. Pin 86: It be connected to a positive input DC 12V input. Pin 87a: Normally closed contact. Pin 85: It be connected to the ground chassis. Pin 30: Common contact. | High Quality Copper CoilThe real copper coil makes the voltage more stable and provides the loads more conductivity. Ensure superior quality and provide effective protection |
- Manufacturer Part Number: 50077D
- Current Rating: 35 Amps
- Contact Type: Normally Open
- Specification Met: ISO 14001
- Mounting Type: Plug In Mount
- Brand: Nilight
- Manufacturer Warranty: 2 Years
- Coil Voltage: 12 Volts
- Contact Material: Brass
- Connector Type: Quick Connect
- Maximum Switching Current: 20 Amps
- Country/Region of Manufacture: China
- Contact Current Rating: 35 Amps
- UPC: 840323900133
