Nicelux 90 Degree Corner 4 Pin L Shape Connector for 10mm RGB LED Strip Light Non-waterproof IP20(10 PCS)
$24.14
- $5.99 shipping from United States View details
-
Arrives
- WIDE APPLICATION: For IP20 non-waterproof and REAL SILICON coating waterproof IP54/IP65 (NOT for PU and epoxy cover), applicable to 120 LEDs/Meter of ws2813 addresable and normal SMD5050 and SMD3528 RGB tape light,applicable to normal 3M back tape and thick VHB red foam back tape. Support both screw and tape fixing,clear cover allow firt SMD to go through in case first SMD go into connector

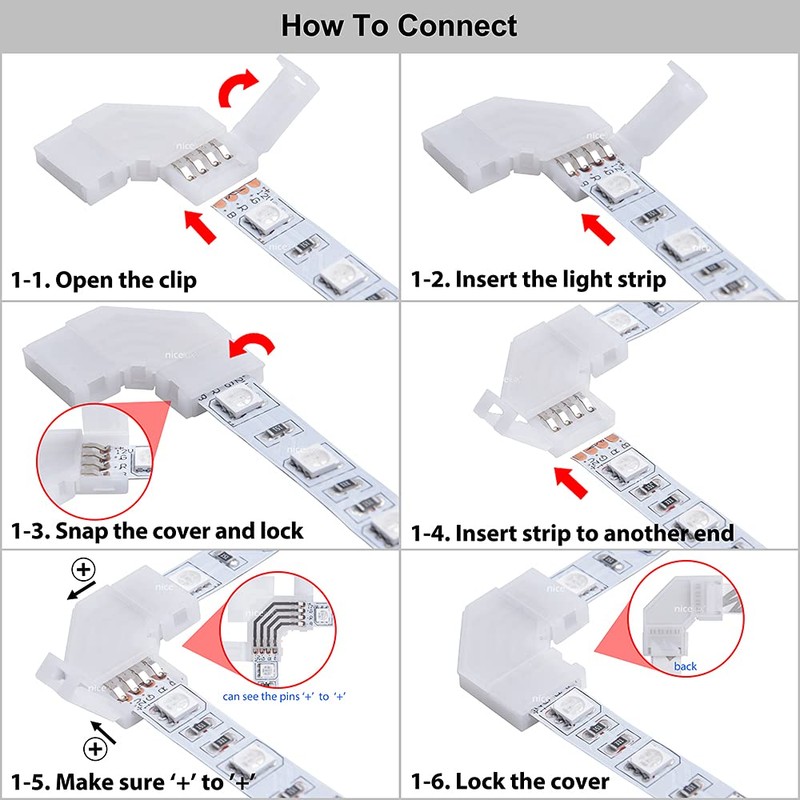

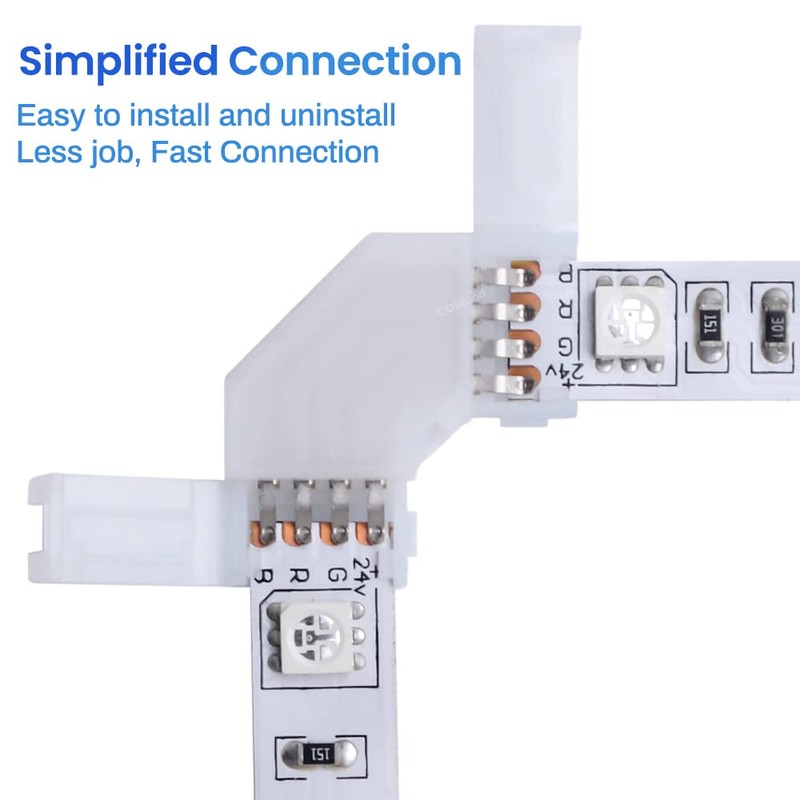

- EASY TO CONNECT: You can use it to effeciently conenct non-waterproof and REAL SILICON coating strip light at 90 degree corner. Just push light strip into housing and snap down to make connection. The operation is easy, convenient and time saving, no any soldering is needed

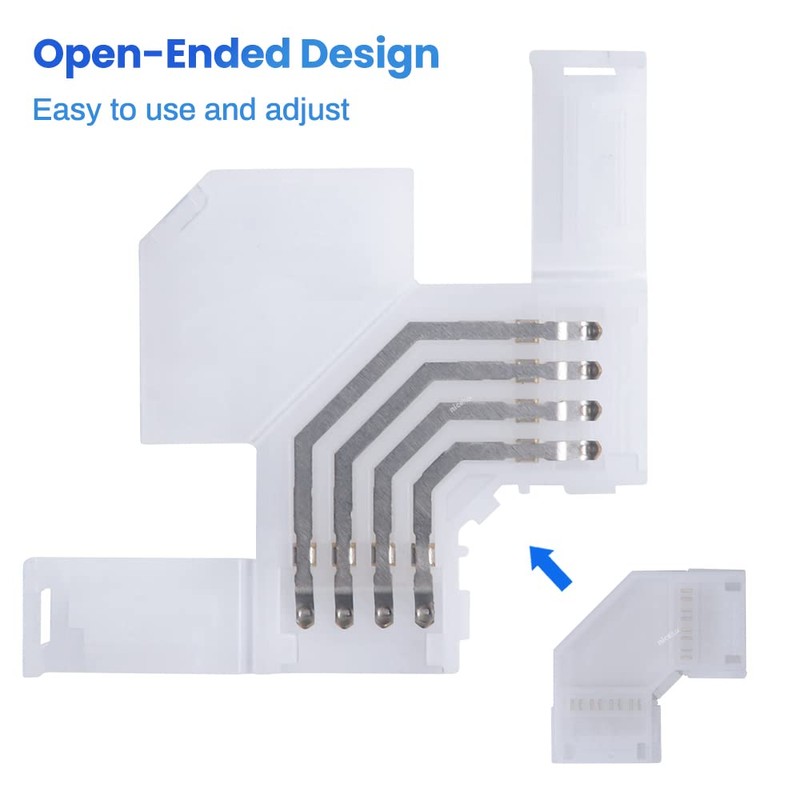

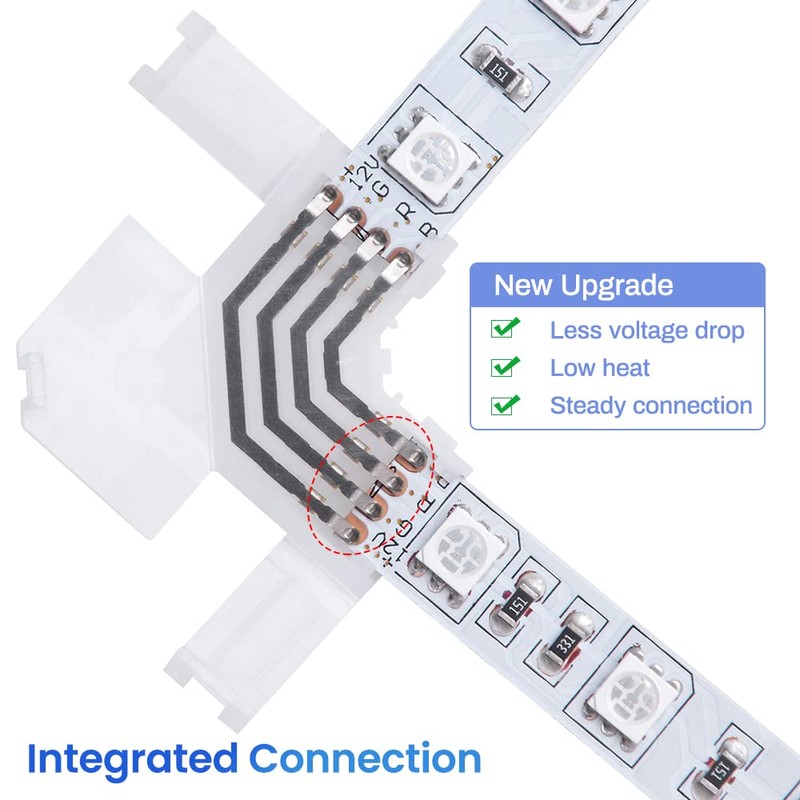

- SECURE CONNECTION:Unlik common L shapes connector sets in market that are assembled from 3 different parts, this is a real L shape RGB strip light connector made as ONE connector. By pierce to contact technology, the conductor penatrate pcb from strip light's back side supplying power to the light and fixing it firmly. Further more the strong polycarbonate housing can lock and fix strip light avoiding it to move out of connector
- DURABLE AND POWERFULL: Use real and anti-oxidation copper,the connector can support up to 5A current with low heat produce operating at DC3~24V. The flame retardant housing makes this connector saver in case fire flame, it will not fire up
- COMPACT DESIGN: Best for angle connection, smaller than other common 4 pin L connector in market
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- WIDE APPLICATION: For IP20 non-waterproof and REAL SILICON coating waterproof IP54/IP65 (NOT for PU and epoxy cover), applicable to 120 LEDs/Meter of ws2813 addresable and normal SMD5050 and SMD3528 RGB tape light,applicable to normal 3M back tape and thick VHB red foam back tape. Support both screw and tape fixing,clear cover allow firt SMD to go through in case first SMD go into connector
- EASY TO CONNECT: You can use it to effeciently conenct non-waterproof and REAL SILICON coating strip light at 90 degree corner. Just push light strip into housing and snap down to make connection. The operation is easy, convenient and time saving, no any soldering is needed
- SECURE CONNECTION:Unlik common L shapes connector sets in market that are assembled from 3 different parts, this is a real L shape RGB strip light connector made as ONE connector. By pierce to contact technology, the conductor penatrate pcb from strip light's back side supplying power to the light and fixing it firmly. Further more the strong polycarbonate housing can lock and fix strip light avoiding it to move out of connector
- DURABLE AND POWERFULL: Use real and anti-oxidation copper,the connector can support up to 5A current with low heat produce operating at DC3~24V. The flame retardant housing makes this connector saver in case fire flame, it will not fire up
- COMPACT DESIGN: Best for angle connection, smaller than other common 4 pin L connector in market
Brand 90 degree L shape board-to-board rgb strip light connector designed for IP20 non-waterproof and IP65/54 REAL SILICON coating strip light.
But it don't work with PU and Epoxy coating strip light
Application
To connect rgb strip light used for
- Computer monitor and TV back lighting
- Computer and appliance lighting
- Furniture lighting
- Ceiling lighting
- Mirror lighting
and more...
Package Include

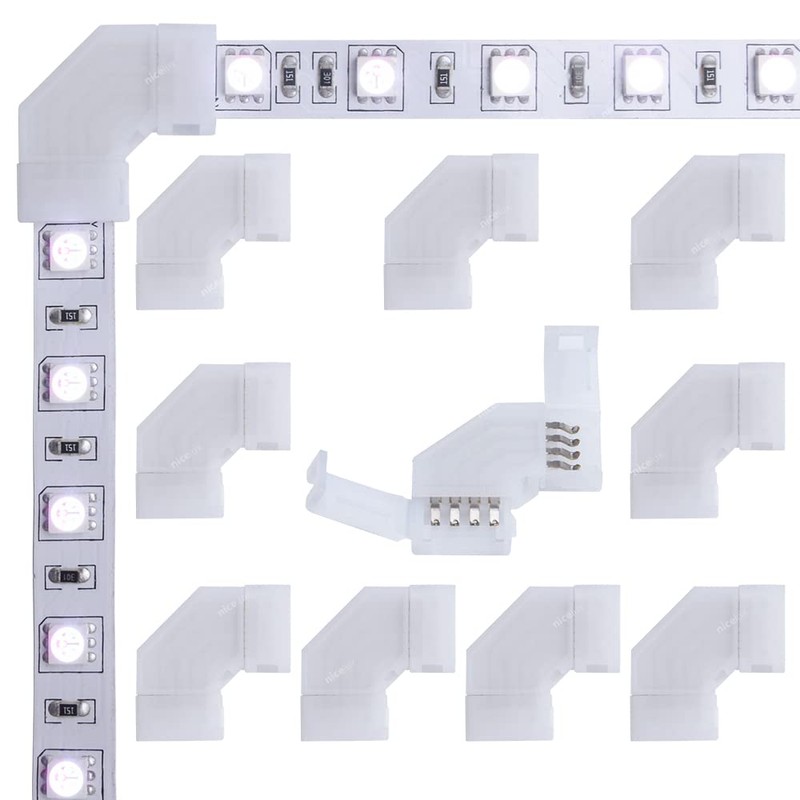

10 PCS: L connector 4 pin for RGB IP20 Non-waterproof strip light.
Tools Needed to connect
A pliers only
Technical Data
- Working Voltage: DC3V~24V
- Max Current of Pin: 5A
- Pin Quantity: 4 pin

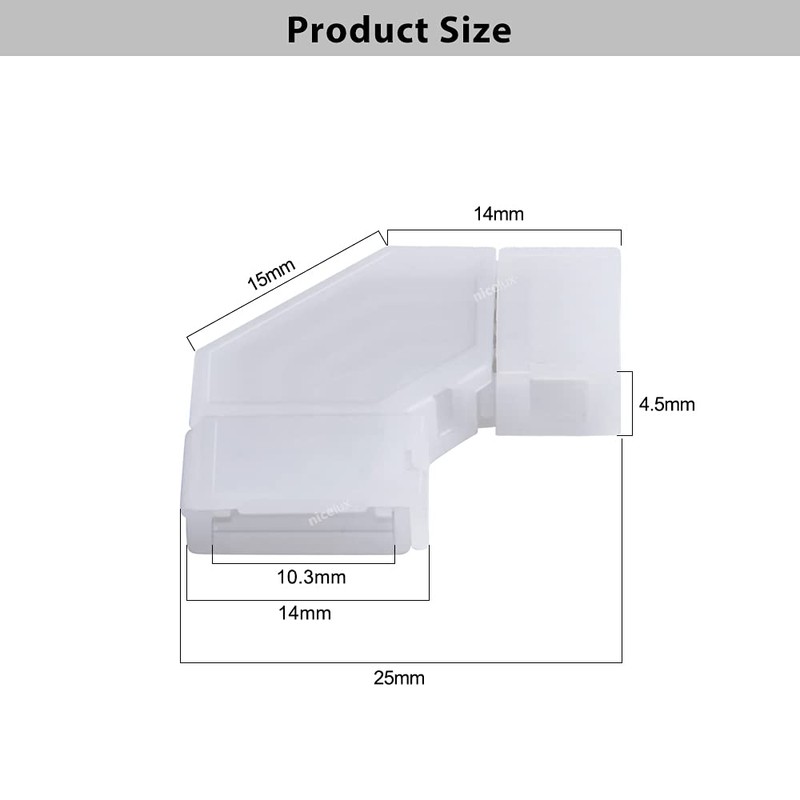

- Workable Strip Light Width: 10mm
- Workable PCB Thickness:0.2~0.35 mm
- Types: Strip to Strip 90 Degree
- Heat Resistance: 105℃
- Working Ambient TEMP.: -20~50℃
