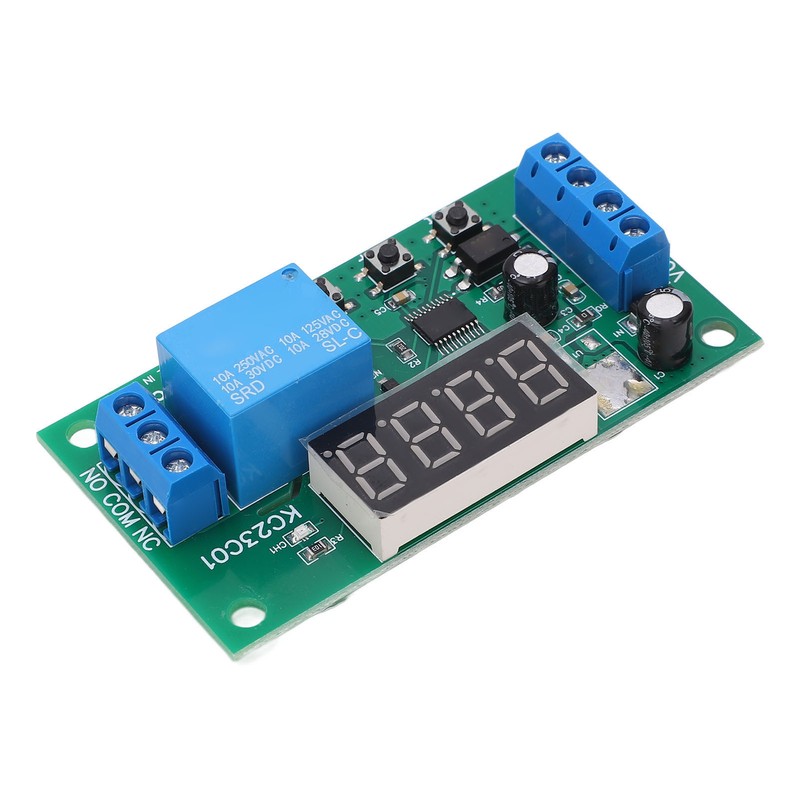

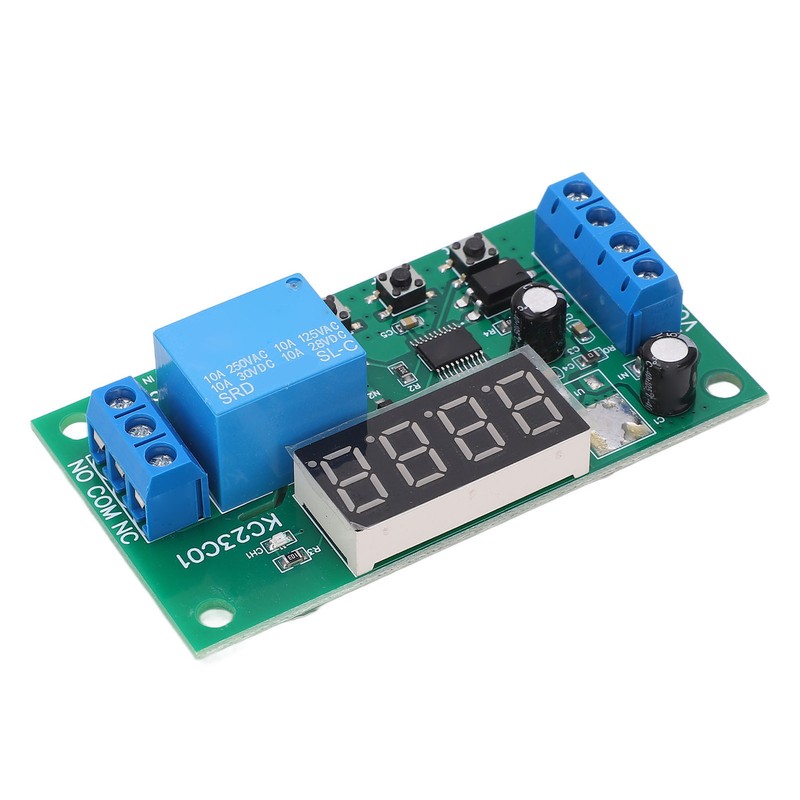

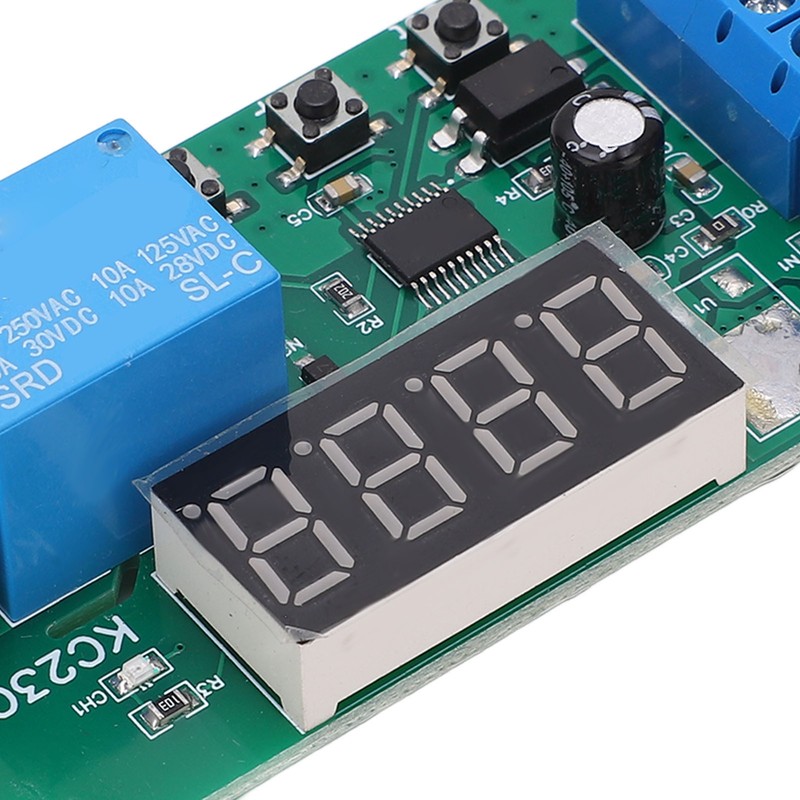

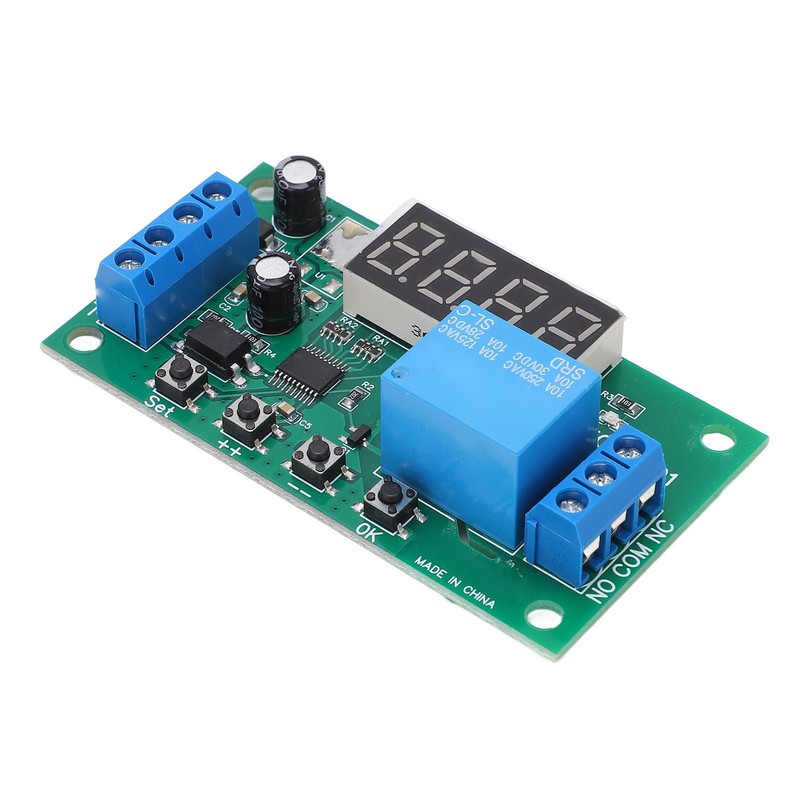

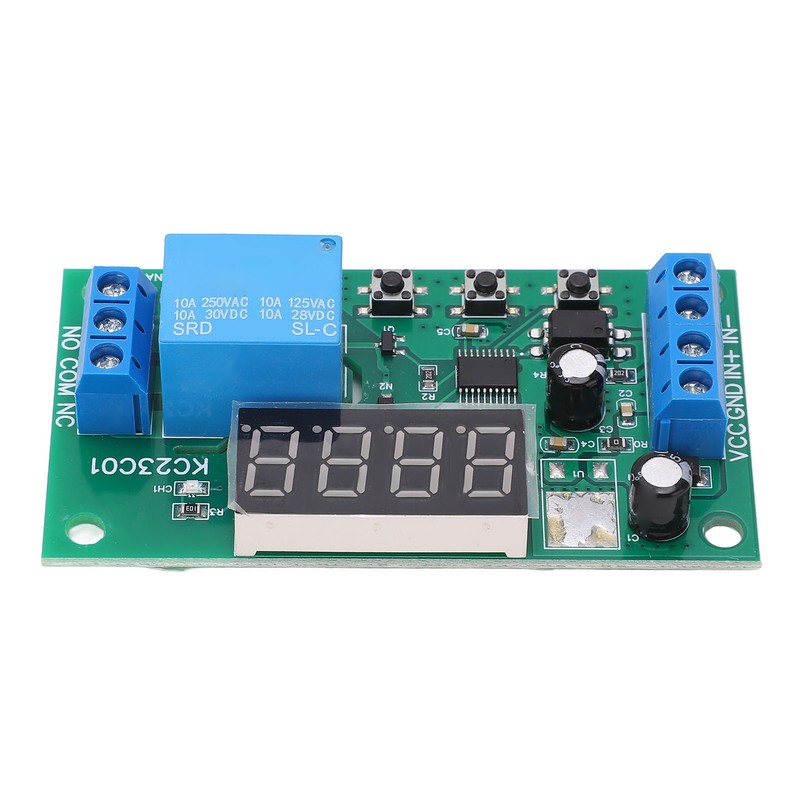

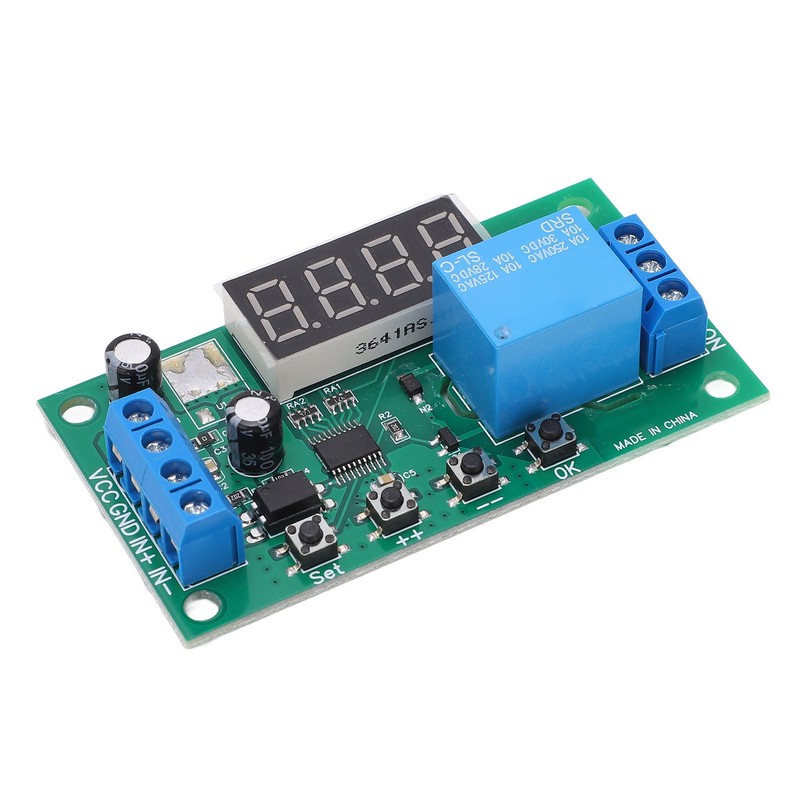

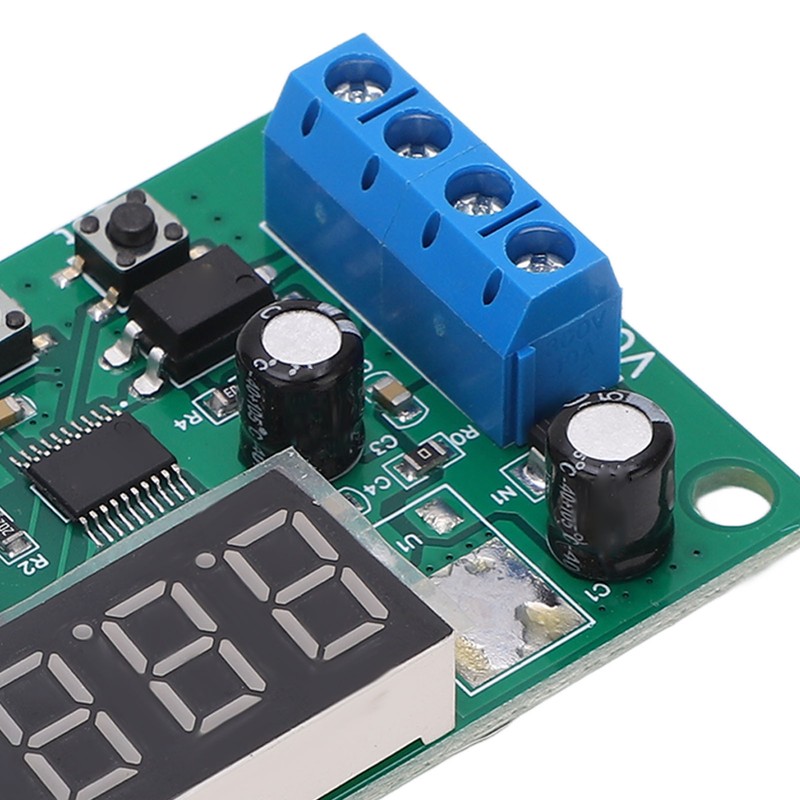

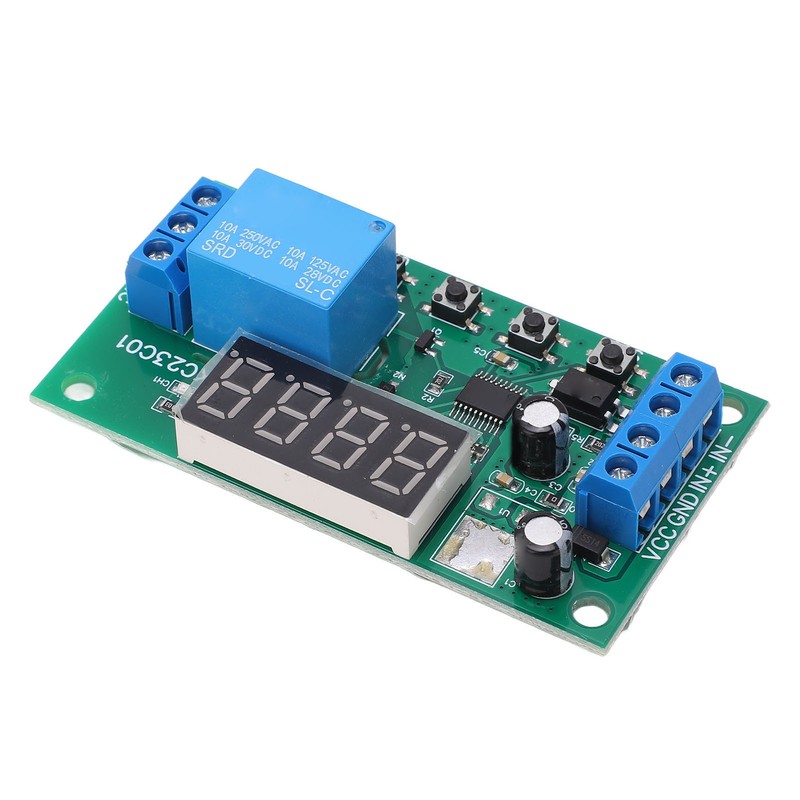

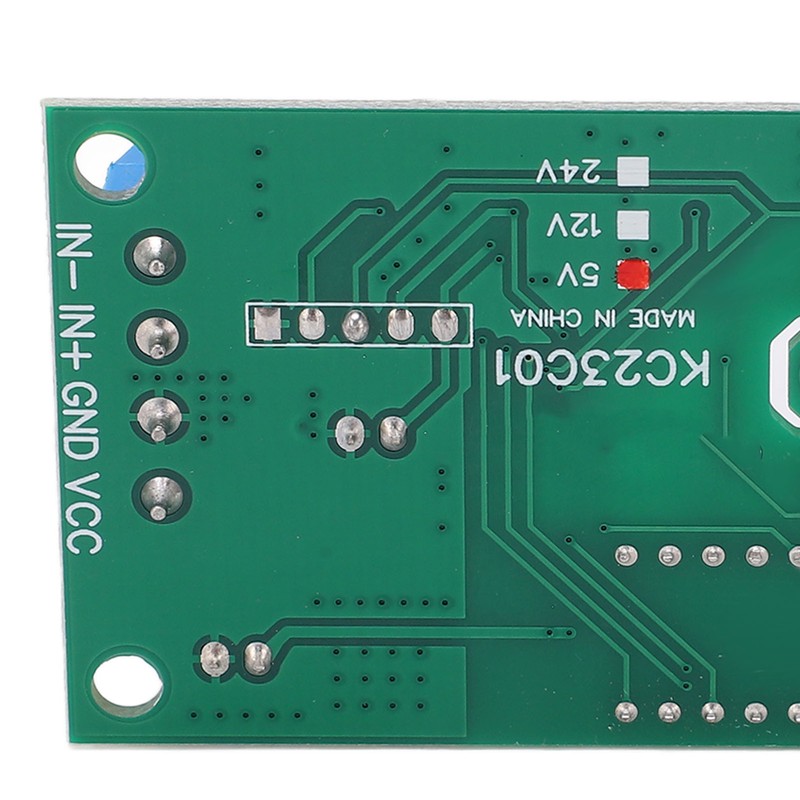

Multifunctional Pulse Counter Relay Board 0.1S to 9999999.9s 0.01s Accuracy 1 Channel Relay Module 5V
$18.15
- $9.99 shipping from United States View details
-
Arrives

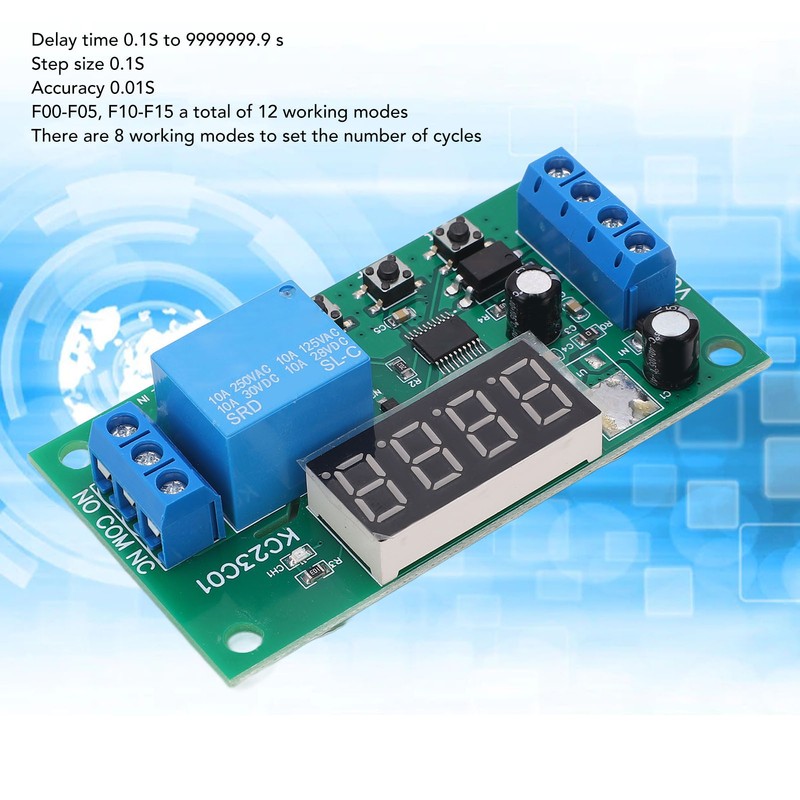

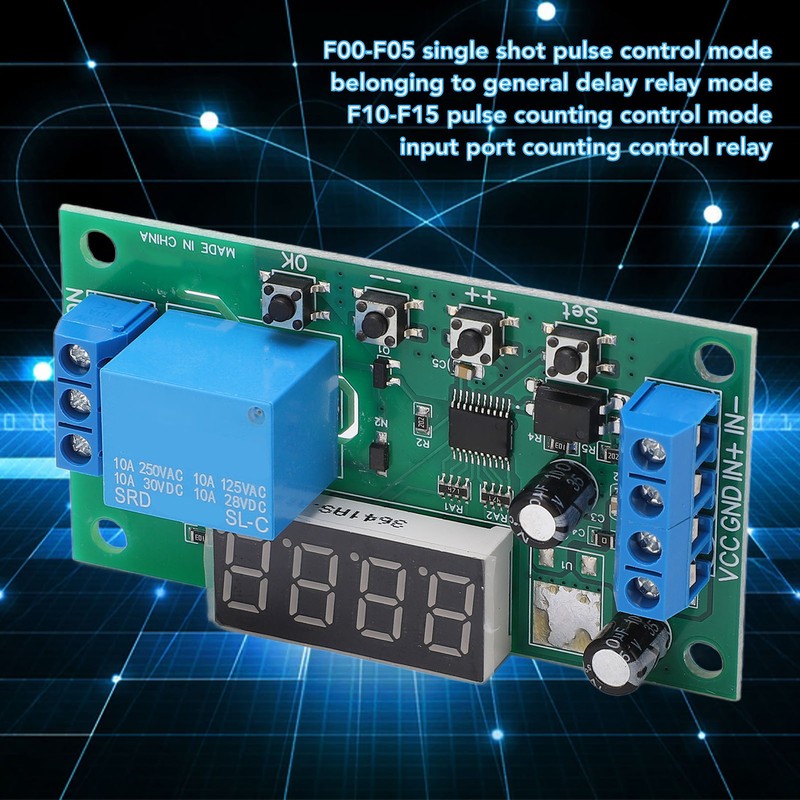

1、Main Function: This board can achieve delay time 0.1S to 9999999.9 s, step size 0.1S, and accuracy 0.01S. 2、12 Working Modes: F00‑F05, F10‑F15 a total of 12 working modes, there are 8 working modes to set the number of cycles. 3、3 Statuses: There are 3 statuses can be set for this board, working status, power saving status, setting status. 4、Easy to Install: Comes with a compact size and a light weight as well, the easy installation can be quickly completed. 5、Ideal Replacement: Adopts advanced technology and quality, a perfect replacement for your old or broken battery board.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Main Function: This board can achieve delay time 0.1S to 9999999.9 s, step size 0.1S, and accuracy 0.01S. 2、12 Working Modes: F00‑F05, F10‑F15 a total of 12 working modes, there are 8 working modes to set the number of cycles. 3、3 Statuses: There are 3 statuses can be set for this board, working status, power saving status, setting status. 4、Easy to Install: Comes with a compact size and a light weight as well, the easy installation can be quickly completed. 5、Ideal Replacement: Adopts advanced technology and quality, a perfect replacement for your old or broken battery board.
1、Main Function: This board can achieve delay time 0.1S to 9999999.9 s, step size 0.1S, and accuracy 0.01S. 2、12 Working Modes: F00‑F05, F10‑F15 a total of 12 working modes, there are 8 working modes to set the number of cycles. 3、3 Statuses: There are 3 statuses can be set for this board, working status, power saving status, setting status. 4、Easy to Install: Comes with a compact size and a light weight as well, the easy installation can be quickly completed. 5、Ideal Replacement: Adopts advanced technology and quality, a perfect replacement for your old or broken battery board.
More Information
Item Type: Control Board
Material: PCB
Working Current:
Digital Tube OFF (Power Saving State): Relay OFF 6MA, Relay ON 35MA
Digital Tube ON (Working State): Relay OFF 29MA, Relay ON 56MA
Three States: Working State, Power Saving State, Setting State

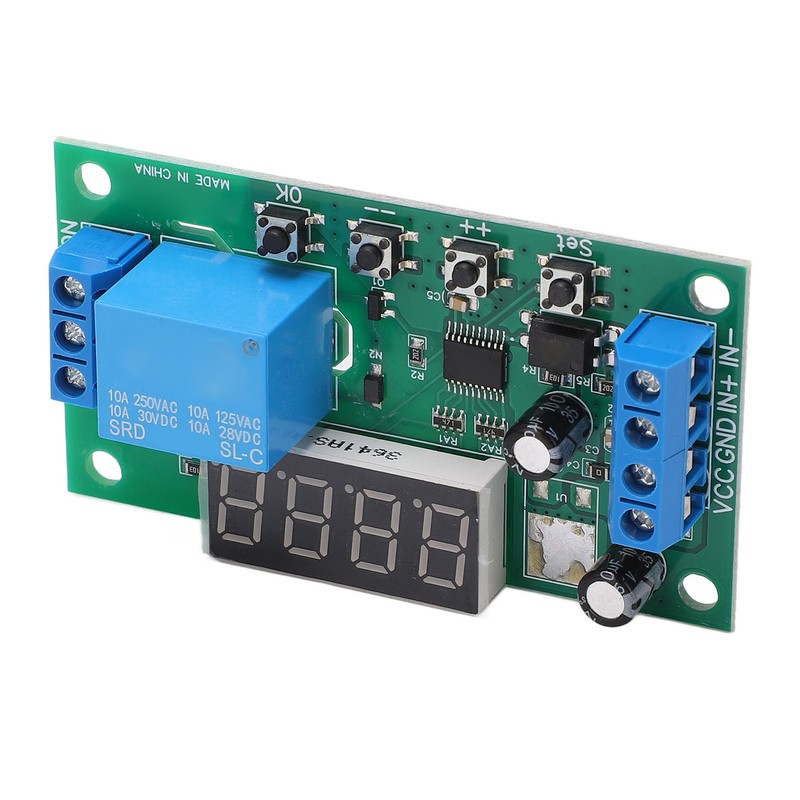

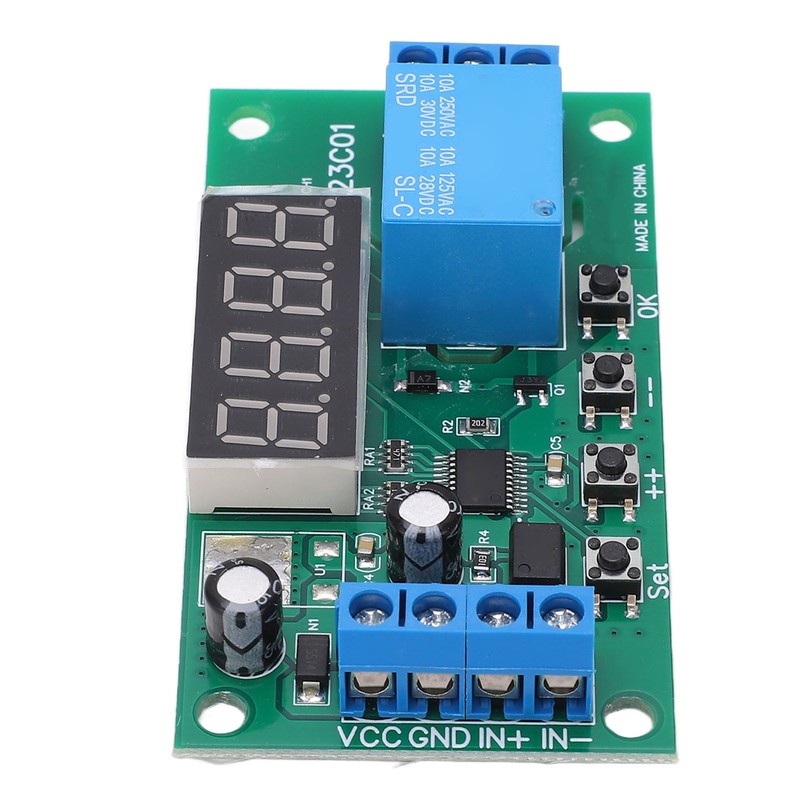

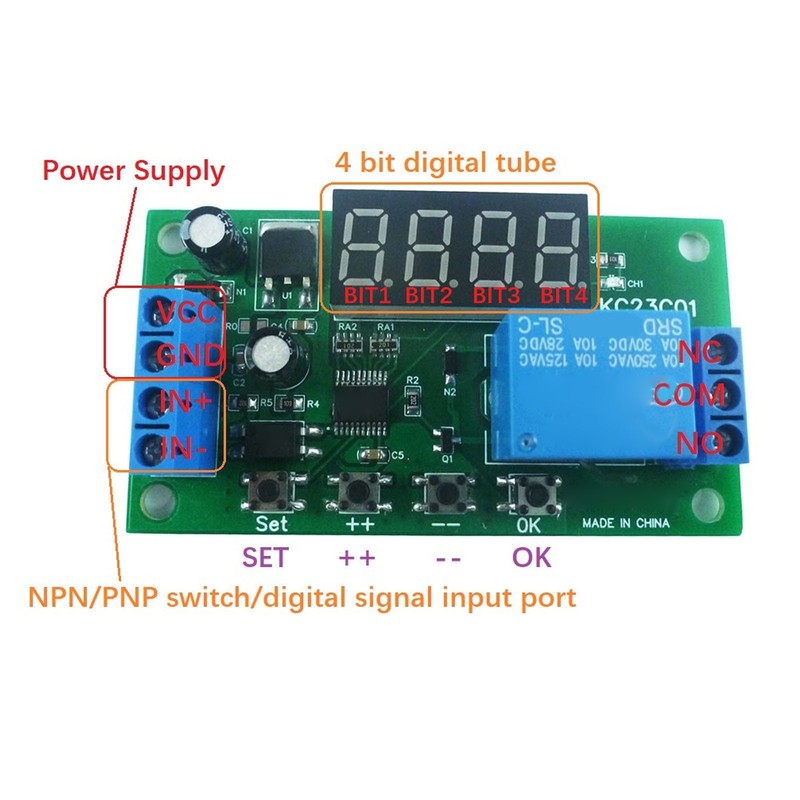

Input Port: Optocoupler isolation input, compatible with NPN, PNP input (5-24V switch signal)

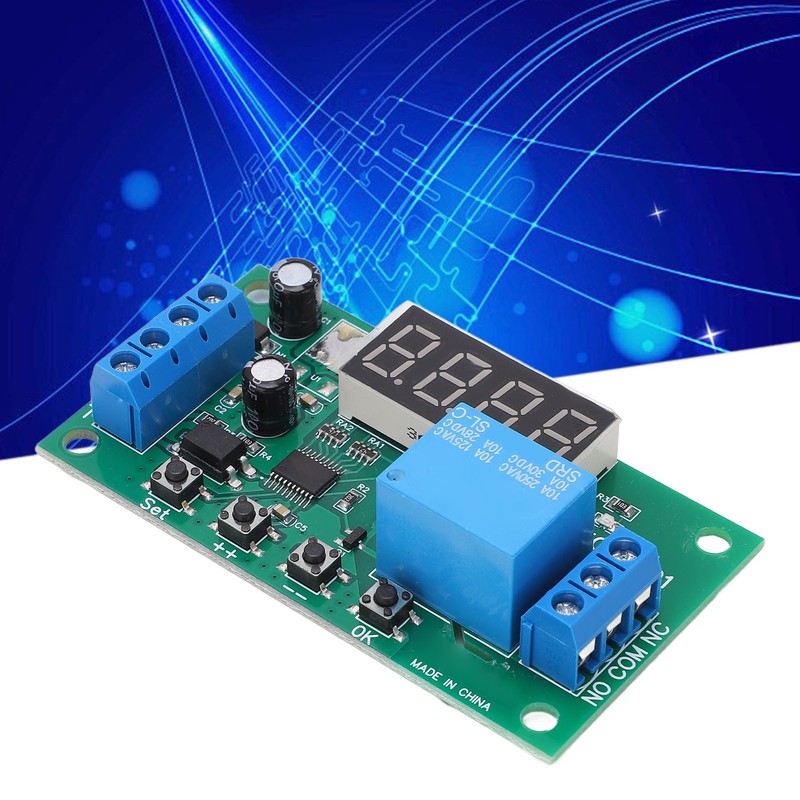

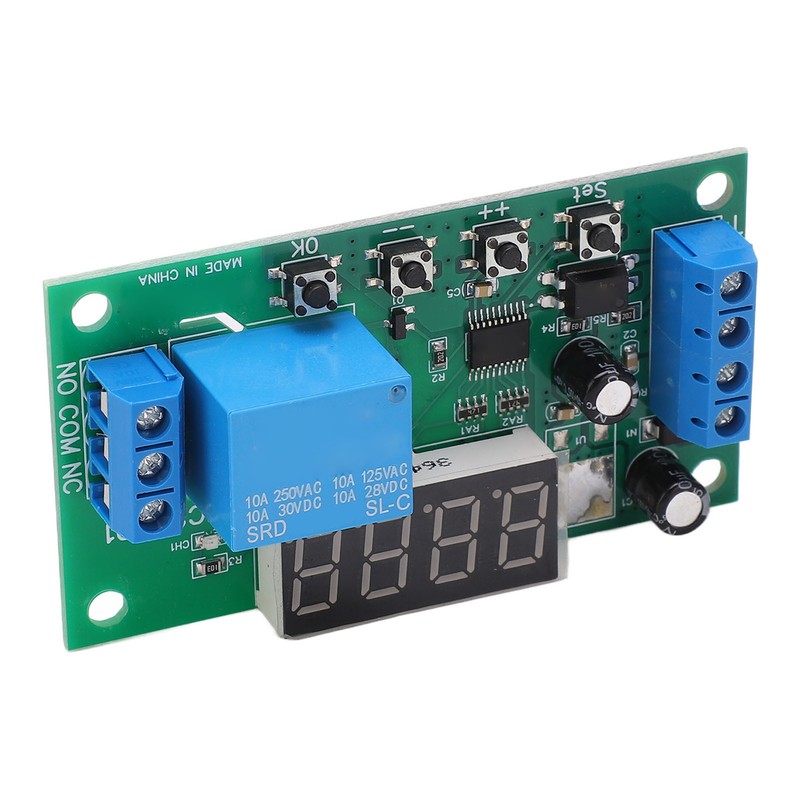

Output port: 10A relay NO COM NC three ports

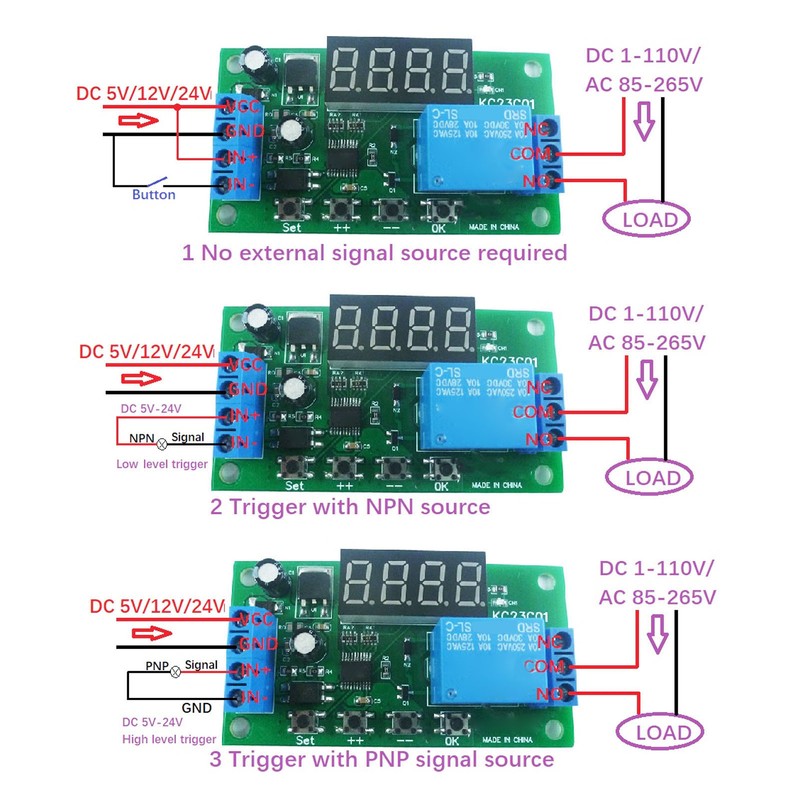

There are three wiring methods for the trigger signal input terminal:
1 No external signal source required
2 Trigger with NPN signal source
3 Trigger with PNP source
Working status: power on working status, F00-F05 mode displays the remaining time, F10-F15 mode displays the remaining time and pulse count value.
Note: When the remaining time is greater than four digits, short press the "OK" key to scroll and display the remaining time once.
Setting status: short press ''SET'' key to enter setting status, then short press ''SET'' to switch parameters, short press ''++'', ''--'' to modify parameters. Short press the "OK" key to save the parameters and exit the setting state.
Note: After setting the parameters, it must be powered on again.
Query status: without modifying the parameter setting status, short press the "SET" button to enter the query status, then press "SET" to switch parameters, and short press the "OK" button to exit the query status
Power saving state: The working state of the digital tube is off. In this state, the digital tube does not display, and other functions work normally. Press and hold the "OK" button for 5 seconds to enter the power saving state, and long press the "OK" button for 5 seconds to exit the power saving state.
1 In the power saving state, you can still enter the setting and query state, and automatically enter the power-saving state after 20 seconds of no key operation.
2 After turning it on again, the digital tube displays for 20 seconds, how to turn off the digital tube.
Factory setting: Press and hold the "++" and "--" keys at the same time for 3 seconds to restore the factory settings and turn off the display of the digital tube. Run with default parameters after reboot.
Note: After setting the parameters, it must be powered on again.
Exception handling:
1 If you encounter inexplicable problems, please power on again (this is because there is no restart after setting parameters)
2 If the problem still cannot be solved after powering on again, please long press the ''++'' and "--" keys at the same time for 3 seconds to restore the factory settings. then reboot
