Multifunction Time Relay Module 10A, IGEYAPA Adjustable Delay Timer Switch, 0.1s-10 Days Wide Time Range Delay AC230V Factory Automation Time Relay Universal Voltage DIN Rail GTR-6 M2 AC230V
$54.25
- $5.95 shipping from United States View details
-
Arrives
- TEN SPECIAL FUNCTION & APPLICATION: GRT6-M2 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, with a rated operating voltage of AC230V (50-60Hz), rated current of 10A. Output contact: 2SPDT (2NO2NC). This 230V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of lighting, heating, motors, machines, etc

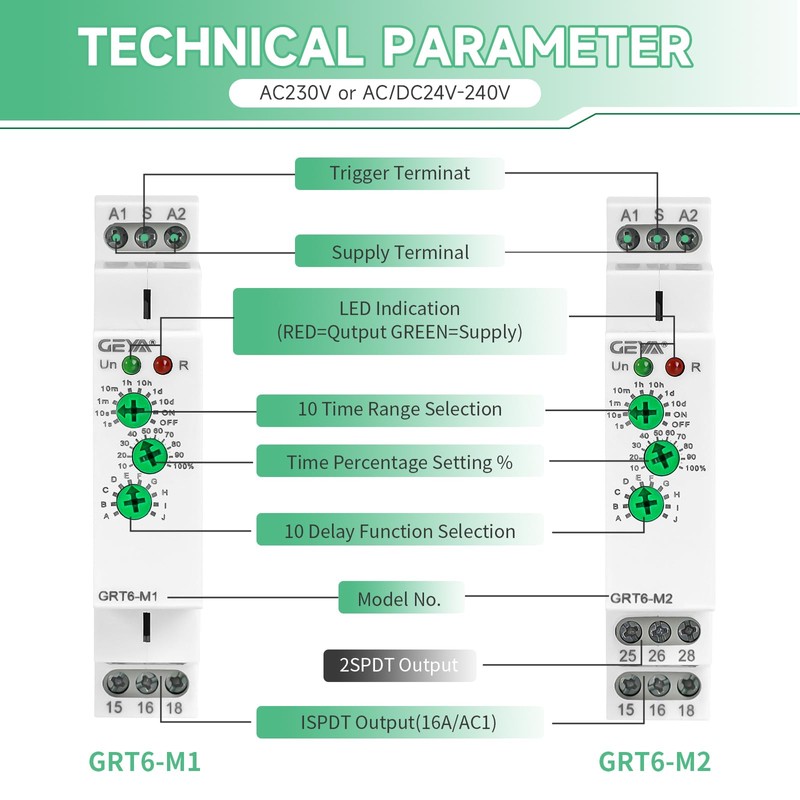

- INDICATOR BUTTON: The working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos
- Model of IGEYAPA GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-S： Asymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
- Designed time relay: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.9 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
- WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product, ensure you have no worries when shopping. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- TEN SPECIAL FUNCTION & APPLICATION: GRT6-M2 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, with a rated operating voltage of AC230V (50-60Hz), rated current of 10A. Output contact: 2SPDT (2NO2NC). This 230V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of lighting, heating, motors, machines, etc
- INDICATOR BUTTON: The working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos
- Model of IGEYAPA GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-S： Asymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
- Designed time relay: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.9 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
- WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product, ensure you have no worries when shopping. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
IGEYAPA Multifunction Time Relay Relay Module 10A Adjustable Delay Timer Switch , 0.1s-10 Days Wide Range Delay AC/DC 24V Factory Automation Time Relay Universal Voltage DIN Rail (GRT6 M2 AC 230V)
GRT6-M2 Delay Time Relay, Timer Relay Delay Off Multifunctional Time Delay Relay, On Off Timing Relay with 10 Functions DIN Rail Mount AC DC 2300V
10A Multifunctional Delay Time Relay 10 Function Choices 2 Output Control Relay with DIN Rail Mount
6A Multifunction Time Relay 10 Function Choices 2 Output Control Relay
Multifunction Timer Relay with 10 Funcitons, 10A 2SPDT Time Delay Relay
GRT6-M2 Delay Time Relay, Timer Relay Delay Off Multifunctional Time Delay Relay, On Off Timing Relay with 10 Functions DIN Rail Mount
Time Relay DIN Rail 35mm Cycle Delay Timer Relay Switch for Industrial Control
1.FUNCTION& APPLICATION: factory automation multifunctional timer relay, preset machine start time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide operating voltage of 230V (50-60Hz), and a rated current of 10A. Output contact: 2SPDT (2NO2NC). This 24V timer delay on relay can be used in industrial equipment, lighting, manufacturing industries to precisely control the delay time for changing lighting, heating, motors, machines, etc.
2.INDICATOR BUTTON: grt6 m2 ac 230v the working status of the time delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator is on (indicates the start of work), the red LED indicator is off (indicates the stop of work). Refer to the detailed technical parameters:

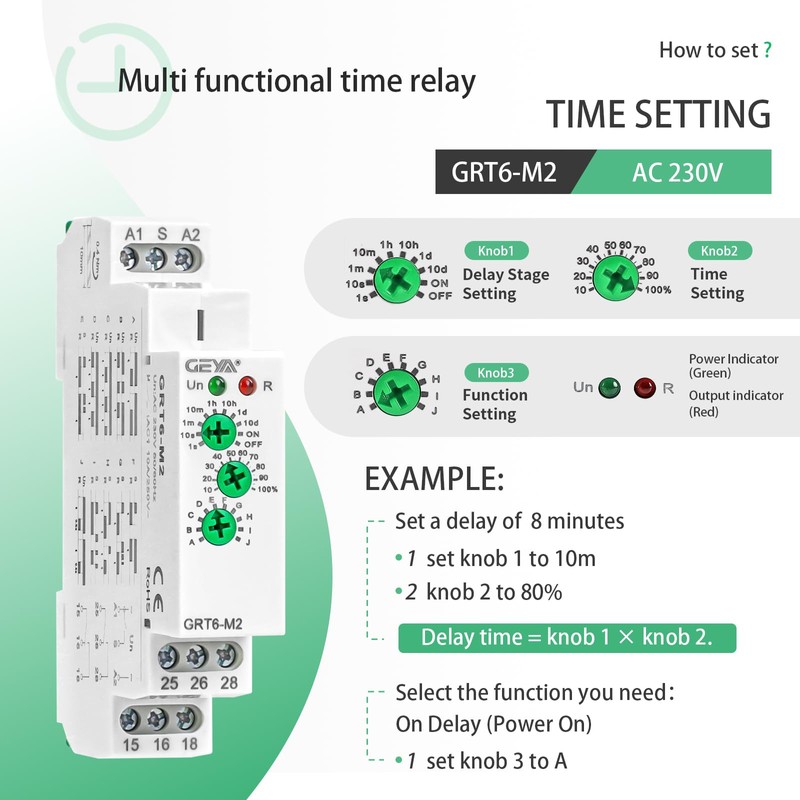

a. Select the function you need, such as A, power on delay
b. Select the time you need, for example: set the delay for 5 minutes
c. Adjust the time range knob to 10m
d. Turn the percentage knob to 50%
3. CHOICE MATERIALS: GRT6M multi-function delay time controller module is made of industrial-grade plastic, and the internal wires use copper wires, which are in line with UL, CE, CB, RoHS standards, flame retardant, and the relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in a humid environment to protect your expensive equipment

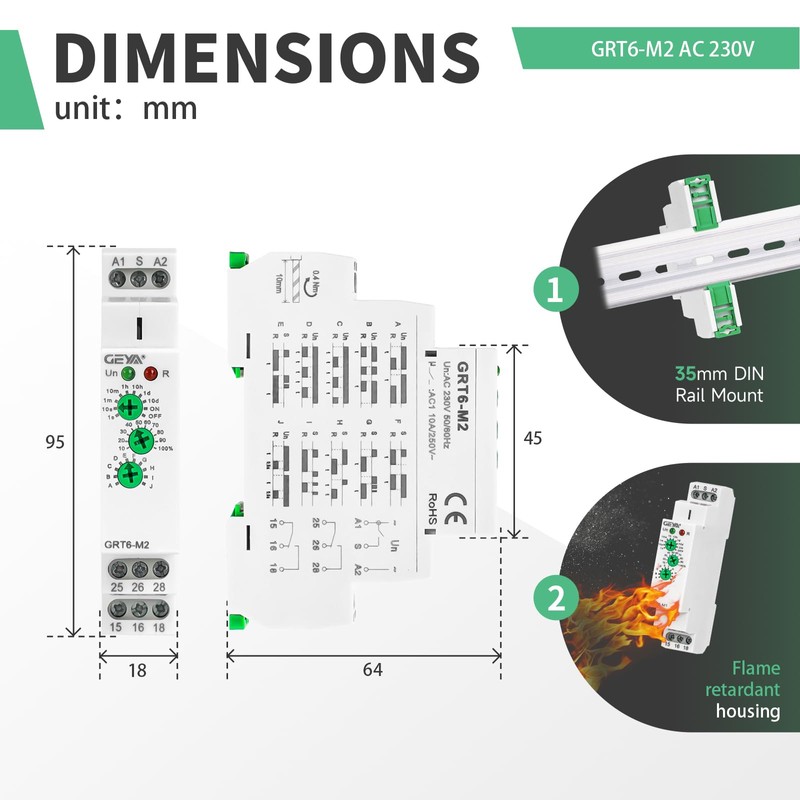

4.COMPACT AND EASY TO INSTALL: The multifunctional electric timer relay for DIN rail 24v-240v delay timer relay measures 2.66" x 3.66" x 0.9", 2.3 oz, mounted on 35mm DIN rail, easy to install, portable and compact, save space
5. WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
Time Relay GRT6-M Multifunctional Delay Time Relay with 10 Functions DIN Rail Mount

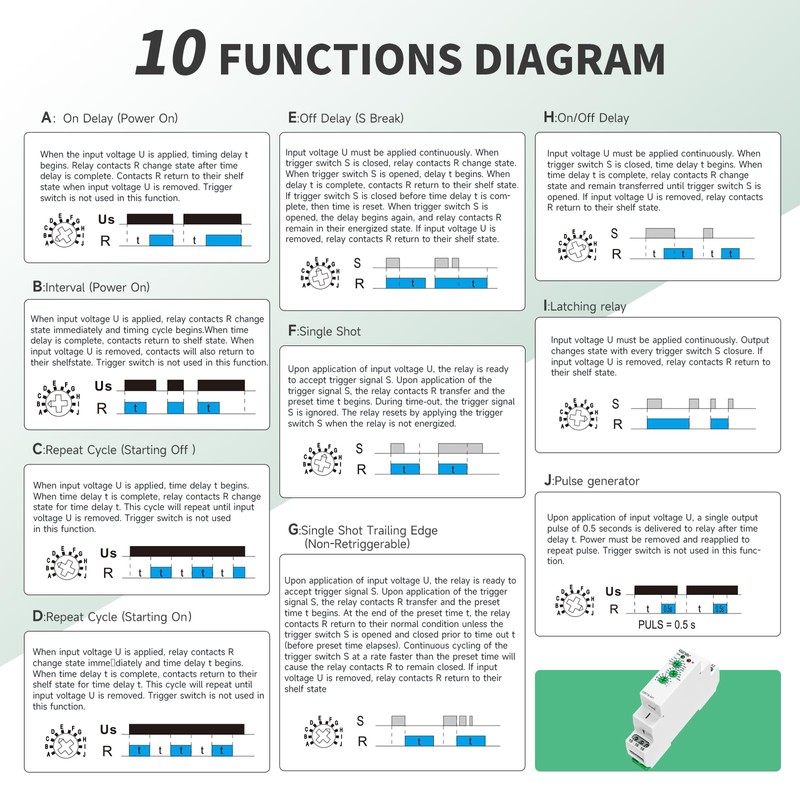

Special 10 Functions:5 time functions are controlled by the power supply voltage, 4 time functions are controlled by the control input, and 1 latch relay function.
Instructions:Comfortable and well-arranged function and time-range setting by rotary switches.
Time range:The time scale is 0.1s-10 days, divided into 10 ranges.
Relay Status:Its working status is indicated by the LED indicator.
Product Size:Ultra-small size, only 10mm width, 35mm rail mounting.
relay
24v relay
interval timer
delay
smart relay
time delay relay
timer relay
relay module
delay timer relay
delay time relay
din rail
multi-function delay time controller module
multi-function relay
multifunction time relay
