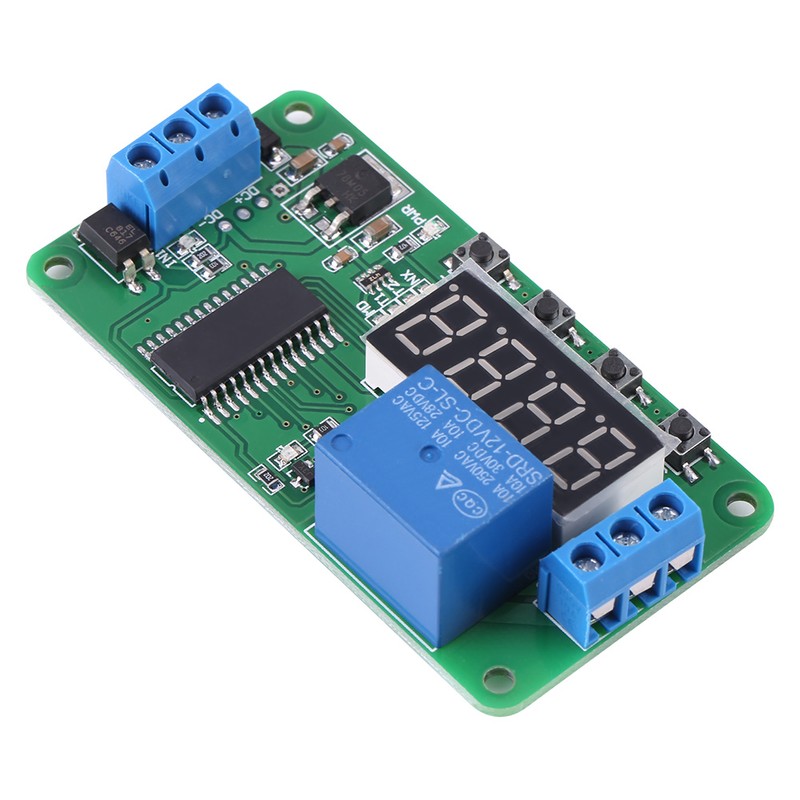

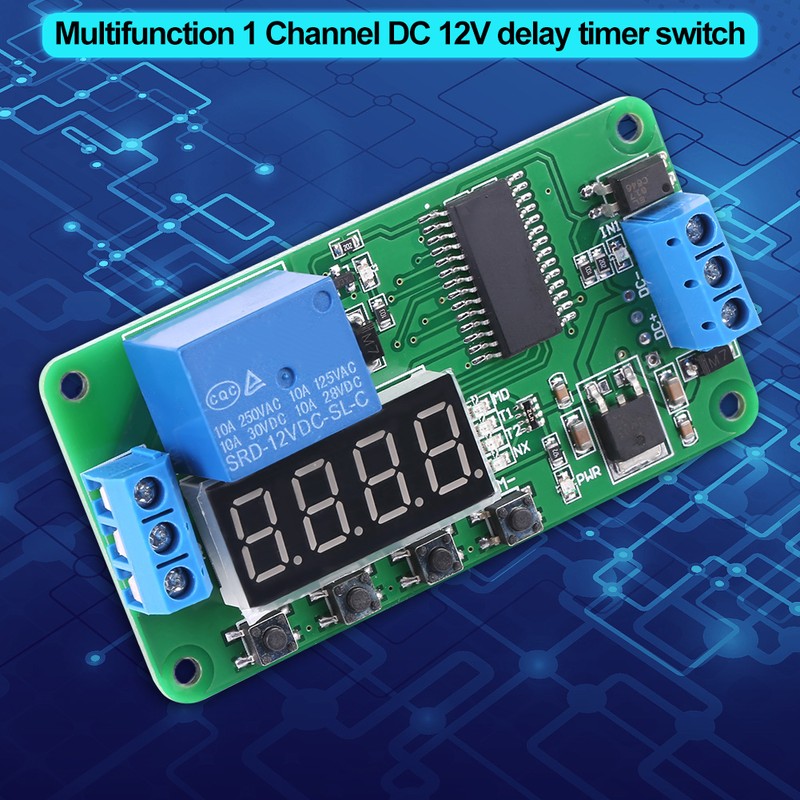

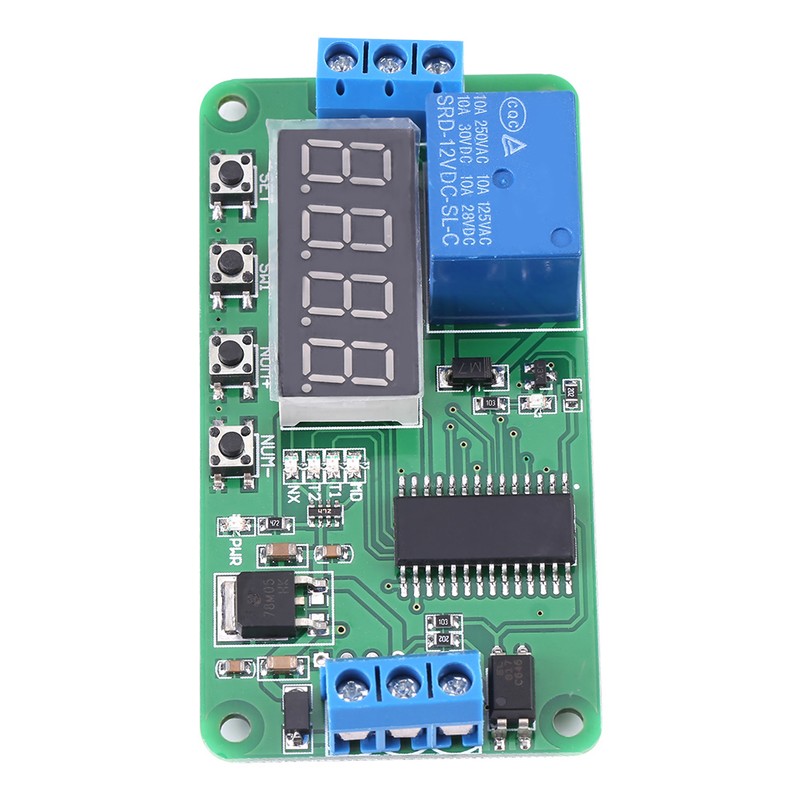

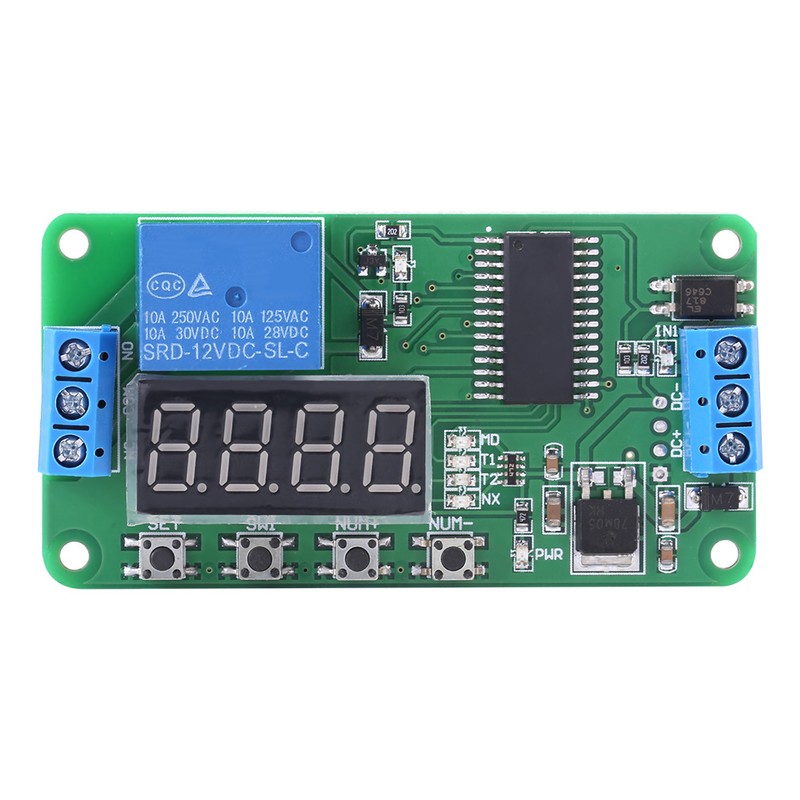

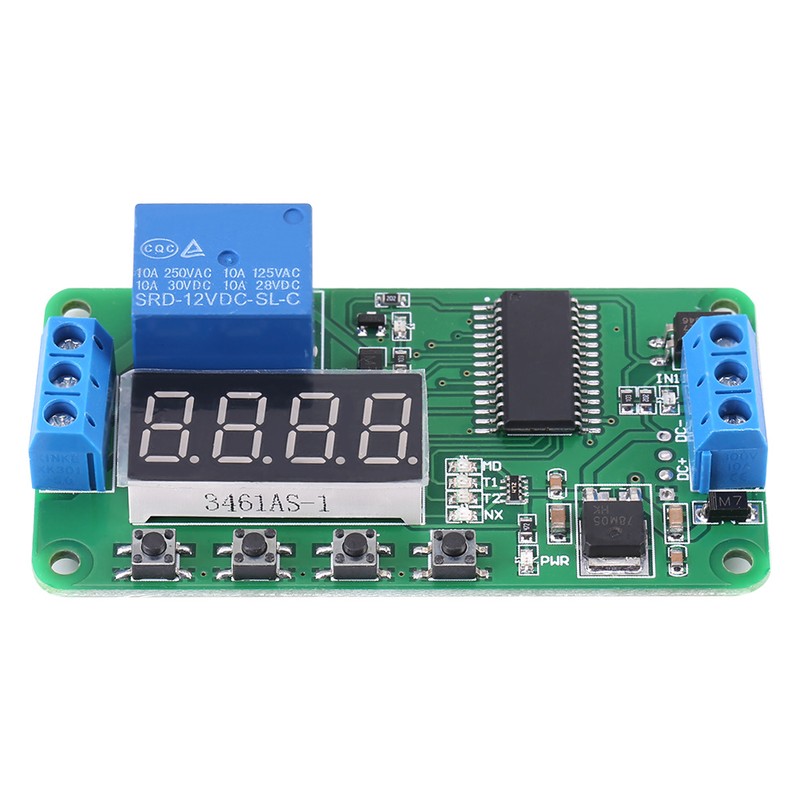

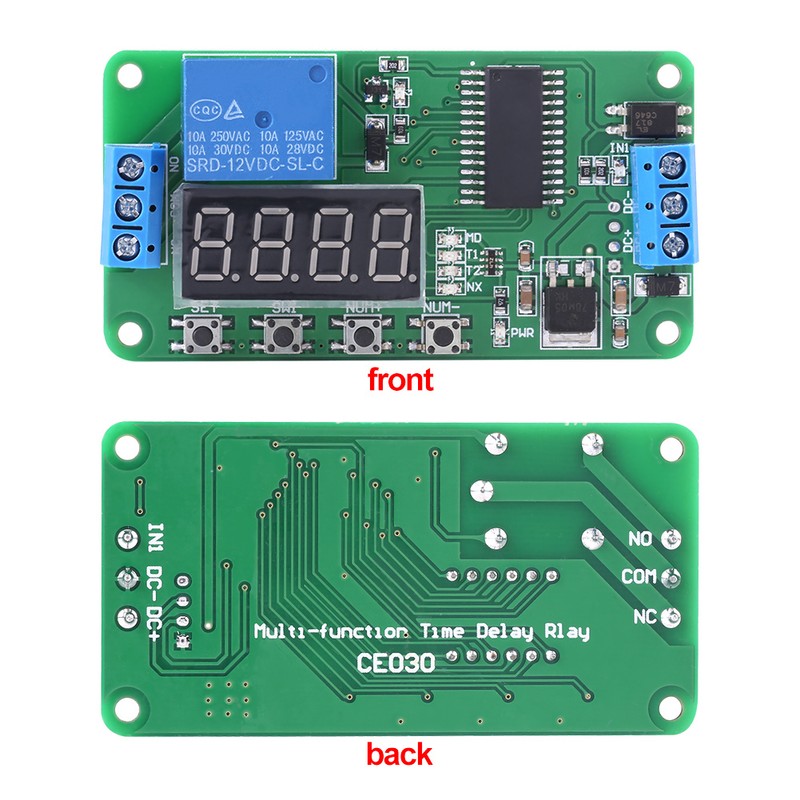

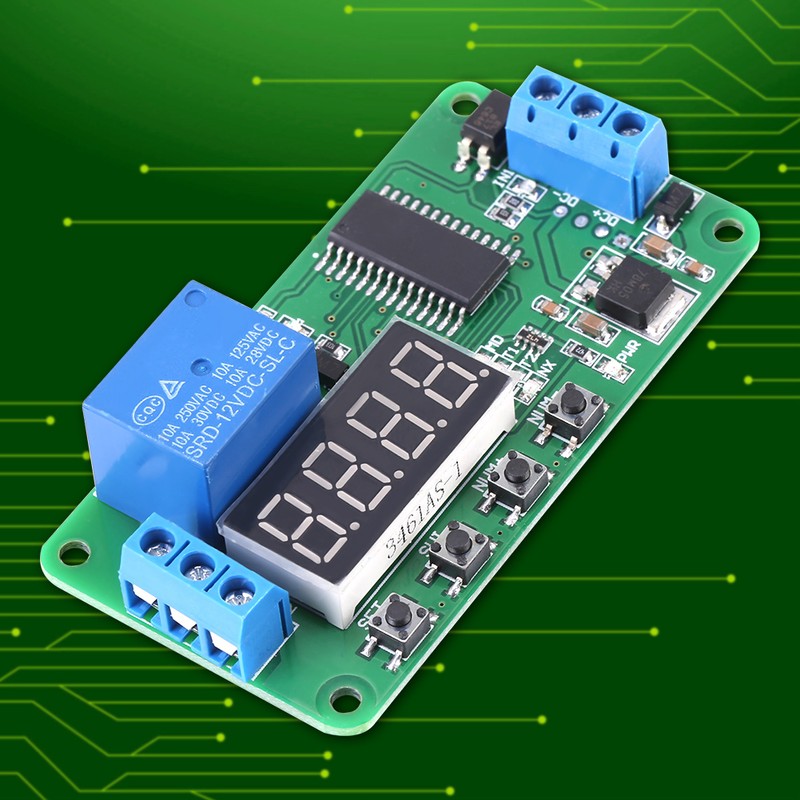

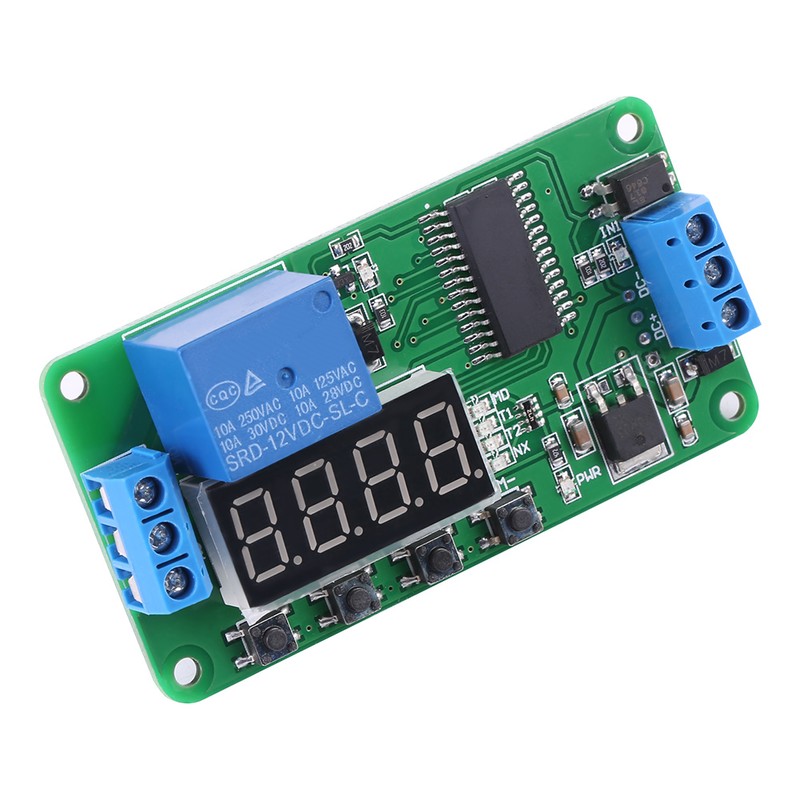

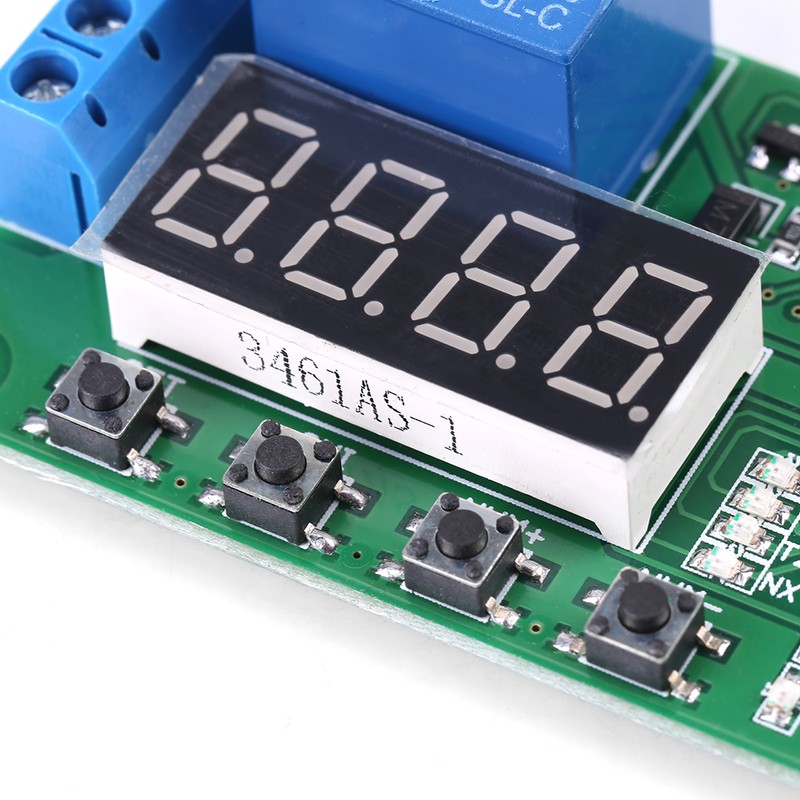

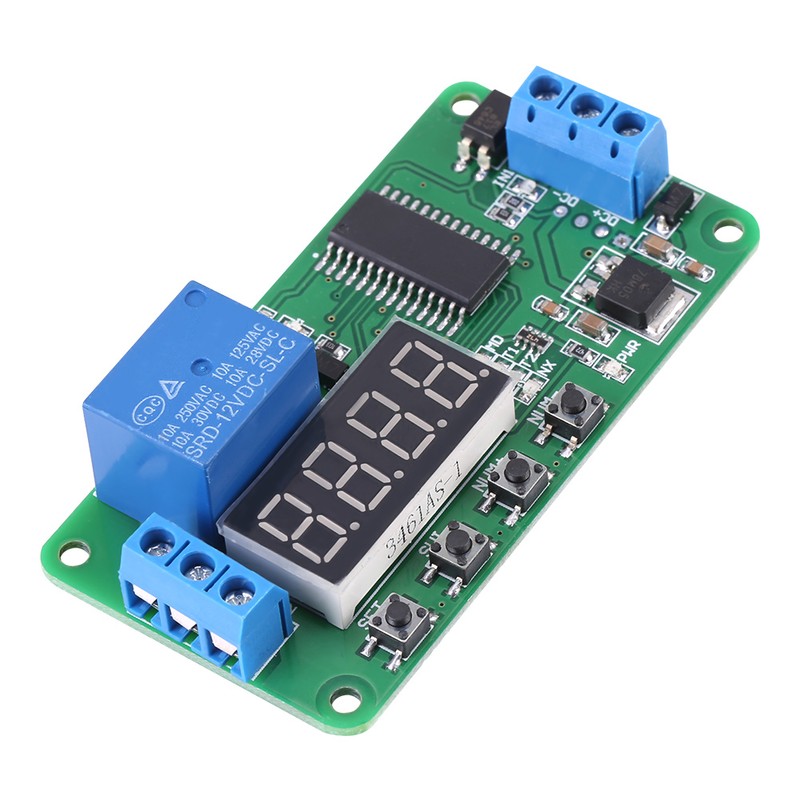

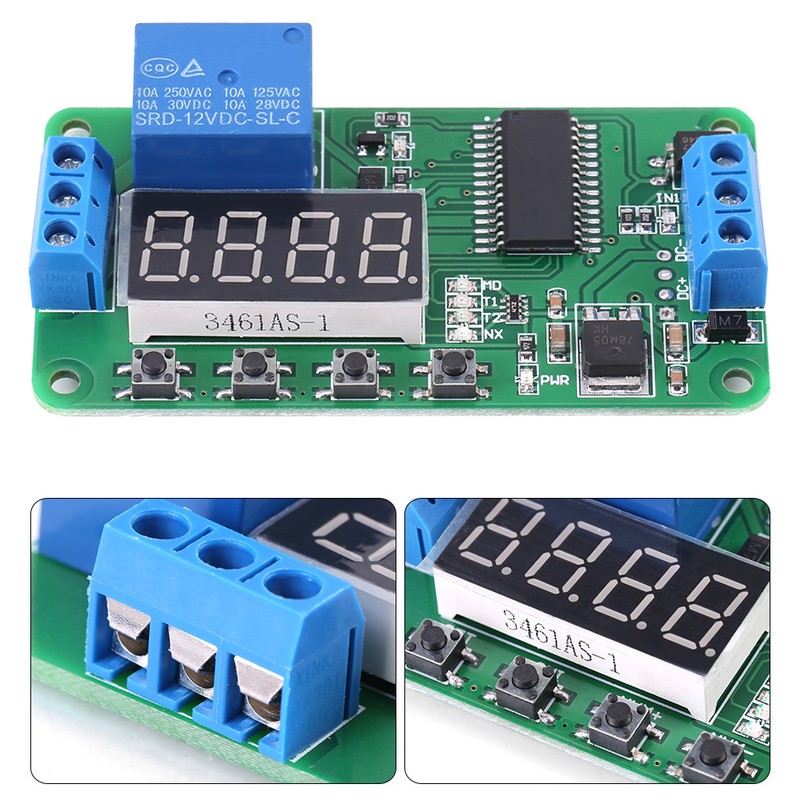

Multifunction 1 Channel DC 12V Delay Relay Controller LED Timer Switch Module Board PLC
$18.56
- $9.99 shipping from United States View details
-
Arrives
1、Reversed polarity protection makes the module not damaged by the wrong connection of power supply. 2、Automatic power saving function, the module will not consume much power. 3、Lower level trigger relay, widely application for power control. 4、High voltage resistance module has the stable performance for using. 5、All the setting options can be saved automatically, not easy to lose the content.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Reversed polarity protection makes the module not damaged by the wrong connection of power supply. 2、Automatic power saving function, the module will not consume much power. 3、Lower level trigger relay, widely application for power control. 4、High voltage resistance module has the stable performance for using. 5、All the setting options can be saved automatically, not easy to lose the content.
1、Reversed polarity protection makes the module not damaged by the wrong connection of power supply. 2、Automatic power saving function, the module will not consume much power. 3、Lower level trigger relay, widely application for power control. 4、High voltage resistance module has the stable performance for using. 5、All the setting options can be saved automatically, not easy to lose the content.
More Information
Features:
- Reversed polarity protection makes the module not damaged by the wrong connection of power supply.
- Automatic power saving function, the module will not consume much power.
- Lower level trigger relay, widely application for power control.
Specifications:
Operation current: <70mA(12V), <40mA(static), <12mA(close)
Operation temperature: -20℃~60℃
Max. load ability:

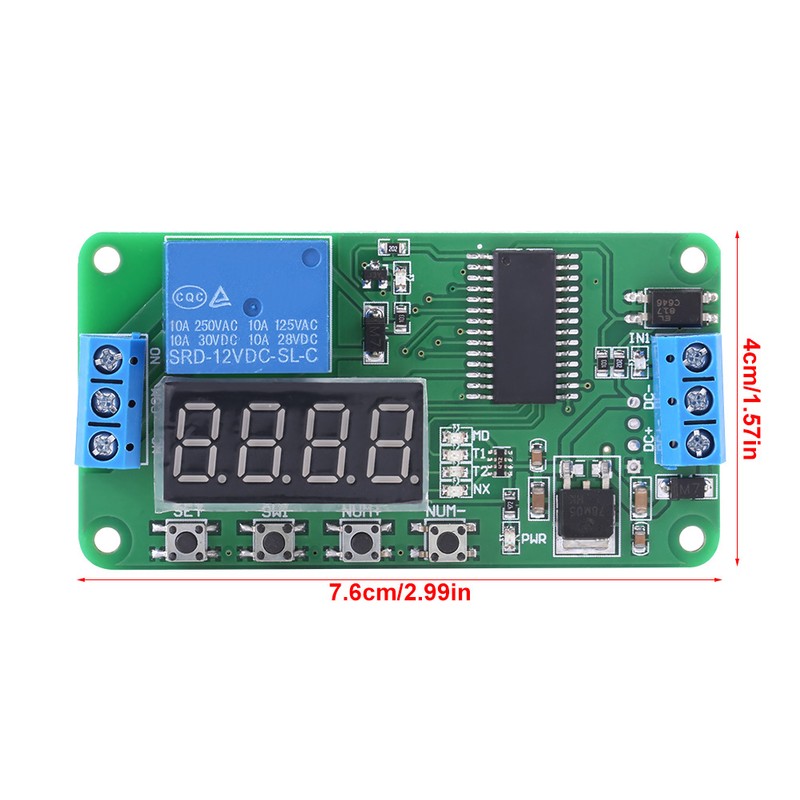

Size: Approx. 7.6 x 4cm / 2.9 x 1.5inch
Weight: 31g
Note: Please contact us for instruction.
Function 1:
Timing Pull-in: after power on, when arrived the setting time T 1, the relay pull-in, and the T 1 can be adjustable between 0.1 second - 270 hours,
give IN1 interface a low pulse signal, repeat the above function.
Function 2:
Timing Disconnect: after power on the relay pull-in, when arrived the setting time T 1, the relay disconnect, and the T 1 can be adjustable between 0.1 second - 270 hours,
give IN1 interface a low pulse signal, repeat the above function.
Function 3:
Timing Pull-in Then Disconnect: after power on, the relay do not pull-in, when arrived the setting time T 1 relay pull-in; when arrived the setting time T 2 relay disconnect, and the T 1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal, repeat the above function.
Function 4:
Timing Disconnect Then Pull-in: after power on, the relay immediately pull-in, when arrived the setting time T 1 relay disconnect; when arrived the setting time T 2 relay pull-in, and the T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal, repeat the above function.
Function 5:
Unlimited Cycle Timing Mode A: after power on, the relay don't pull-in, when arrived the setting time T1 relay pull-in; when arrived the setting time T 2 relay disconnect, then repeat the above status, and the T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal, repeat the above function.
Function 6:
Unlimited Cycle Timing Mode B: after power on, the relay immediately pull-in, when arrived the setting time T1 relay disconnect; when arrived the setting time T 2 relay pull-in, then repeat the above status, and the T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal, repeat the above function.
Function 7:
Limited Cycle Timing Mode A: after power on, the relay do not pull-in, when arrived the setting time T1 relay pull-in; when arrived the setting time T 2 relay disconnect, then repeat the above status "NX" times, the T1 and T 2 can be adjustable between 0.1 second -9999 seconds, the cycle times "NX" can be adjustable between 1-9999, give IN1 interface a low pulse signal, repeat the above function.
Function 8:
Limited Cycle Timing Mode B: after power on, the relay immediately pull-in, when arrived the setting time T1 relay disconnect; when arrived the setting time T 2 relay pull-in, then repeat the above status "NX" times, the T1 and T 2 can be adjustable between 0.1 second -9999 seconds, the cycle times "NX" can be adjustable between 1-9999, give IN1 interface a low pulse signal, repeat the above function.
Function 9:
Self-locking Mode: give IN1 interface a low pulse signal, the relay pull-in, again give a low pulse signal, the relay disconnect.
Function 10:
Trigger Mode: contain delay off function, the relay does not operate after power on, give IN1 interface a low pulse signal, the relay pull-in immediately, when the IN1 pulse signal disappeared, the relay still pull-in, when arrived the setting time T1 relay disconnect, the T1 can be adjustable between 0 second-270 hours.
Remark: in this function, if T1 is 0 second, give IN1 connector a low pulse signal, the relay pull-in, when the low pulse signal disappeared, the relay immediately disconnect.
Function 11:
Trigger timing pull-in: the relay does not operate after power on, give IN1 connector a low pulse signal, when arrived the setting time T1, the relay pull-in ,T1 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal again, repeat the above function one time.
Function 12:
Trigger timing disconnect: the relay does not operate after power on, give IN1 interface a low pulse signal, the relay pull-in, when arrived the timing time T1, the relay disconnect, T1 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal again, repeat the above function one time.
Function 13:
Trigger timing pull-in and then disconnect: the relay does not operate after power on, give IN1 interface a low pulse signal, when arrived the timing time T1, the relay pull-in, when arrived the timing time T 2, the relay disconnect, timing time T1 and T 2 can be adjustable between 0.1 second -270 hours, give IN1 interface a low pulse signal again, repeat the above function one time.
Function 14:
Trigger timing disconnect and then pull-in: the relay does not operate after power on, give IN1 interface a low pulse signal, the relay pull-in immediately, when arrived the setting time T1, the relay disconnect, when arrived the timing time T 2, the relay pull-in, timing time T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal again, repeat the above function.
Function 15:
Unlimited Cycle Timing Mode A: the relay does not operate after power on, give IN1 connector a low pulse signal, when arrived the timing time T1, the relay pull-in, when arrived the timing time T 2, the relay disconnect, then repeat the above status, T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal again, repeat the above function.
Function 16:
Unlimited Cycle Timing Mode B: the relay does not operate after power on, give IN1 interface a low pulse signal, the relay pull-in immediately, when arrived the timing time T1, the relay disconnect, when arrived the timing time T 2, the relay pull-in, then repeat the above status, T1 and T 2 can be adjustable between 0.1 second - 270 hours, give IN1 interface a low pulse signal again, repeat the above function.
Function 17:
Limited Cycle Timing Mode A: the relay does not operate after power on, give IN1 interface a low pulse signal, when arrived the timing time T1, the relay pull-in, when arrived the timing time T 2, the relay disconnect, then repeat the above status "NX" times, the T1 and T 2 can be adjustable between 0.1 second -9999 seconds, the cycle times "NX" can be adjustable between 1-9999, give IN1 interface a low pulse signal again, repeat the above function.
Function 18:
Limited Cycle Timing Mode B: the relay does not operate after power on, give IN1 interface a low pulse signal, the relay pull-in immediately, when arrived the timing time T1, the relay disconnect, when arrived the timing time T 2, the relay pull-in, then repeat the above status "NX" times, the T1 and T 2 can be adjustable between 0.1 second -9999 seconds, the cycle times "NX" can be adjustable between 1-9999, give IN1 interface a low pulse signal again, repeat the above function.
Package Included:
1 x Time Delay Relay
