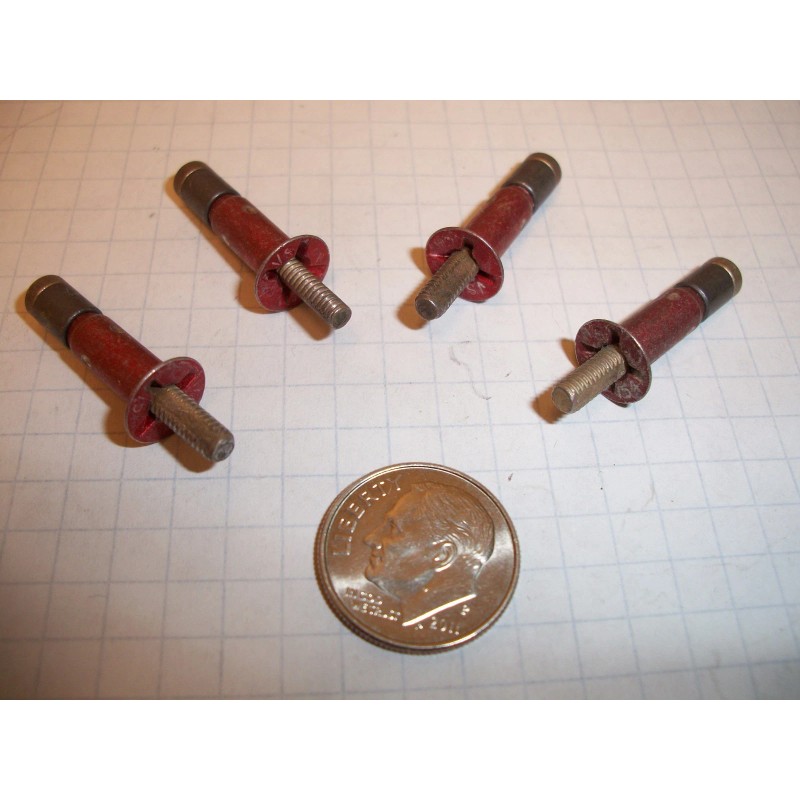

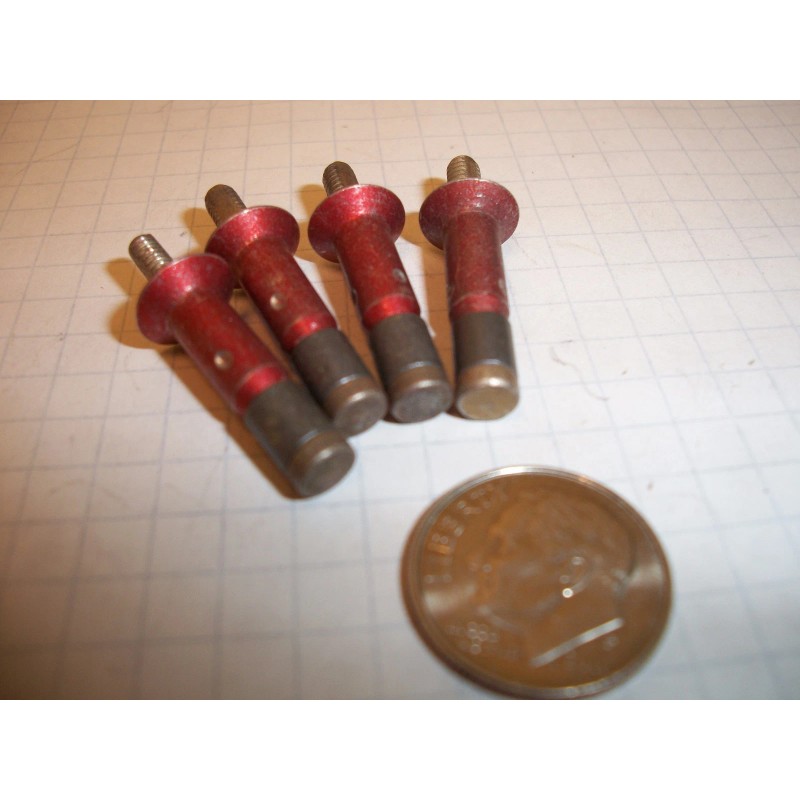

Monogram Aerospace Fasteners 4 Blind Rivets. Aircraft. military grade.

$47.67

  • Free US shipping
  • Arrives

15B8.0514

Specs
NAMEITEM NAMERIVET,BLIND
AASKHEAD STYLEFLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)
AAZESHANK DIAMETER0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
AAZFSHANK STYLETHREADED SELF-PLUGGING SHANK W/SLEEVE
AAZGHEAD MAJOR DIAMETER0.342 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
ABAFEXPANSION DEVICETHREADED STEM
ABAJLUBRICATIONCETYL ALCOHOL OR DRY FILM
ANEEGRIP LENGTH0.407 NOMINAL MILS AND 0.469 NOMINAL CENTIMETERS
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM BOLT AND 53.0 ROCKWELL C MAXIMUM BOLT
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM NUT AND 53.0 ROCKWELL C MAXIMUM NUT
CRSQCOUNTERSINK ANGLE99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
FEATSPECIAL FEATURESCOLOR NUT RED
MATTMATERIALSTEEL COMP H11 BOLT
MATTMATERIALSTEEL COMP H11 NUT
MATTMATERIALNICKEL ALLOY X-750 SLEEVE
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE BOLT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE NUT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 5667 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE OR AMS 5582 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE
SFTTSURFACE TREATMENTCADMIUM BOLT AND CHROMATE BOLT
SFTTSURFACE TREATMENTCADMIUM NUT AND CHROMATE NUT
SFTTSURFACE TREATMENTCADMIUM SLEEVE
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE BOLT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE BOLT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE NUT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE NUT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE

Isin:
I33ELSOXMYEA

$47.67

  • Free US shipping
  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Monogram Aerospace Fasteners 4 Blind Rivets. Aircraft. military grade.

Monogram Aerospace Fasteners 4 Blind Rivets. Aircraft. military grade.

$47.67

15B8.0514

Specs
NAMEITEM NAMERIVET,BLIND
AASKHEAD STYLEFLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)
AAZESHANK DIAMETER0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
AAZFSHANK STYLETHREADED SELF-PLUGGING SHANK W/SLEEVE
AAZGHEAD MAJOR DIAMETER0.342 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
ABAFEXPANSION DEVICETHREADED STEM
ABAJLUBRICATIONCETYL ALCOHOL OR DRY FILM
ANEEGRIP LENGTH0.407 NOMINAL MILS AND 0.469 NOMINAL CENTIMETERS
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM BOLT AND 53.0 ROCKWELL C MAXIMUM BOLT
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM NUT AND 53.0 ROCKWELL C MAXIMUM NUT
CRSQCOUNTERSINK ANGLE99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
FEATSPECIAL FEATURESCOLOR NUT RED
MATTMATERIALSTEEL COMP H11 BOLT
MATTMATERIALSTEEL COMP H11 NUT
MATTMATERIALNICKEL ALLOY X-750 SLEEVE
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE BOLT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE NUT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 5667 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE OR AMS 5582 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE
SFTTSURFACE TREATMENTCADMIUM BOLT AND CHROMATE BOLT
SFTTSURFACE TREATMENTCADMIUM NUT AND CHROMATE NUT
SFTTSURFACE TREATMENTCADMIUM SLEEVE
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE BOLT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE BOLT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE NUT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE NUT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE

Isin:
I33ELSOXMYEA

15B8.0514



Specs

NAMEITEM NAMERIVET,BLIND
AASKHEAD STYLEFLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER)
AAZESHANK DIAMETER0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
AAZFSHANK STYLETHREADED SELF-PLUGGING SHANK W/SLEEVE
AAZGHEAD MAJOR DIAMETER0.342 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
ABAFEXPANSION DEVICETHREADED STEM
ABAJLUBRICATIONCETYL ALCOHOL OR DRY FILM
ANEEGRIP LENGTH0.407 NOMINAL MILS AND 0.469 NOMINAL CENTIMETERS
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM BOLT AND 53.0 ROCKWELL C MAXIMUM BOLT
CQFMHARDNESS RATING48.0 ROCKWELL C MINIMUM NUT AND 53.0 ROCKWELL C MAXIMUM NUT
CRSQCOUNTERSINK ANGLE99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
FEATSPECIAL FEATURESCOLOR NUT RED
MATTMATERIALSTEEL COMP H11 BOLT
MATTMATERIALSTEEL COMP H11 NUT
MATTMATERIALNICKEL ALLOY X-750 SLEEVE
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE BOLT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 6487 ASSN STD SINGLE MATERIAL RESPONSE NUT
MDCLMATERIAL DOCUMENT AND CLASSIFICATIONAMS 5667 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE OR AMS 5582 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE
SFTTSURFACE TREATMENTCADMIUM BOLT AND CHROMATE BOLT
SFTTSURFACE TREATMENTCADMIUM NUT AND CHROMATE NUT
SFTTSURFACE TREATMENTCADMIUM SLEEVE
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE BOLT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE BOLT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONNAS 672 ASSN STD 1ST TREATMENT RESPONSE NUT AND QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE NUT
STDCSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE
  • Brand: Monogram Aerospace Fasteners
  • Manufacturer Part Number: PLT154-6-7 5320000623230 5320-00-062-3230
  • UPC: Does not apply
