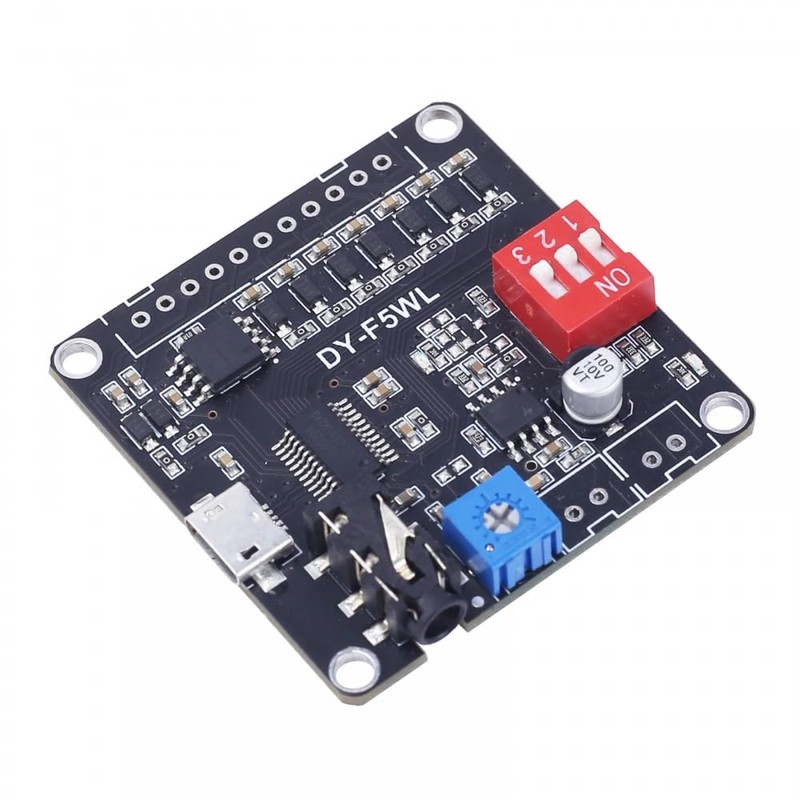

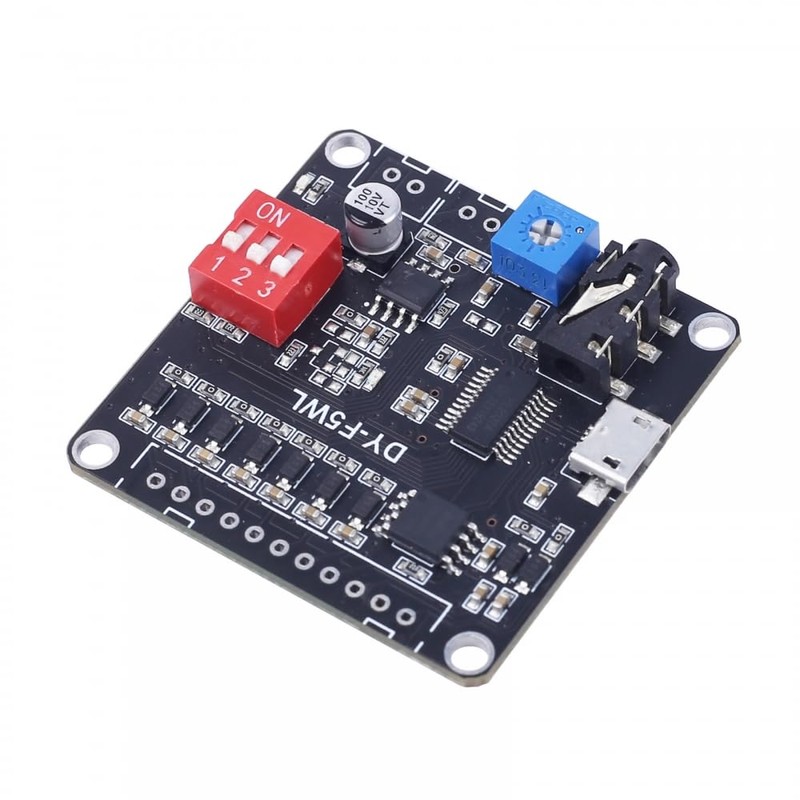

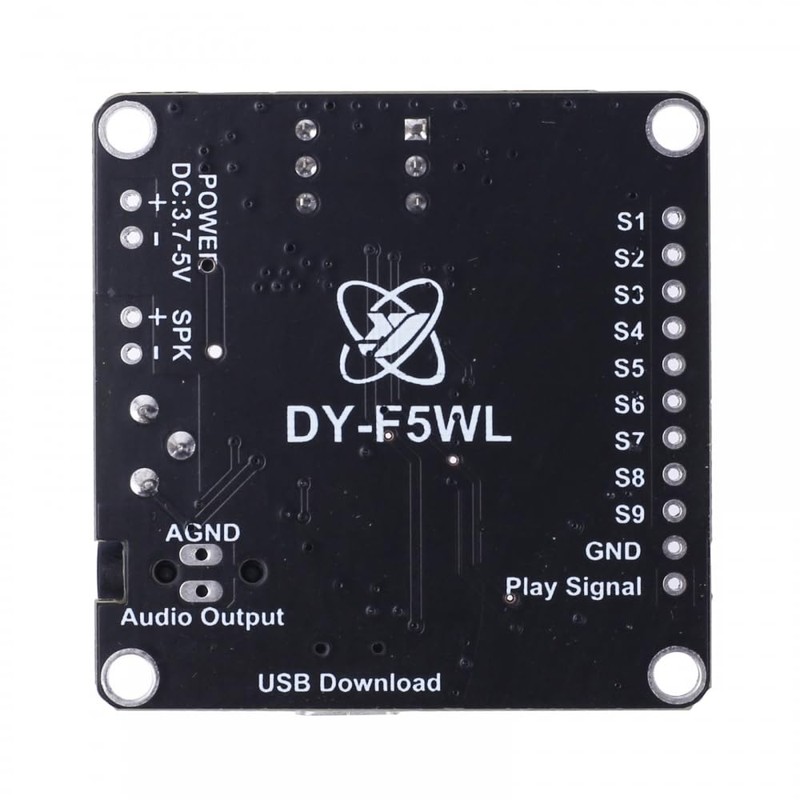

Mono Voice Playback Modules, DY-F5WL DC 3.7V/5V 5W Mono Voice Playback Module 9CH Music Power Digital Amplifier 32Mbit Flash MP3 WAV UART Controller for Arduino
$44.26
- $9.99 shipping from Germany View details
-
Arrives
- DY-F5WL is a DC 3.7V-5V 5W mono voice playback module that can trigger playback through 9 input signals. It is a 1-to-1 player with segmented trigger control that supports MP3 and WAV decoding formats.
- It is a low-level trigger; 3.7V-5VDC wide voltage power supply, 4-8 ohm speaker with direct drive, maximum output power 5W; It has a built-in 32 MB flash memory (4 MByte) and is connected to the computer via a USB data cable to replace audio files.
- It can control the volume and connect externally with warning lights; multiple triggering working modes can be set, suitable for different scenarios and applications.
- Application in inter-cut trigger mode, where background music is stored in the root directory and insert music must be placed in the "CHABO" folder. In other playback mode, the "CHABO" folder is not required.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We offer you customer service until you are satisfied.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- DY-F5WL is a DC 3.7V-5V 5W mono voice playback module that can trigger playback through 9 input signals. It is a 1-to-1 player with segmented trigger control that supports MP3 and WAV decoding formats.
- It is a low-level trigger; 3.7V-5VDC wide voltage power supply, 4-8 ohm speaker with direct drive, maximum output power 5W; It has a built-in 32 MB flash memory (4 MByte) and is connected to the computer via a USB data cable to replace audio files.
- It can control the volume and connect externally with warning lights; multiple triggering working modes can be set, suitable for different scenarios and applications.
- Application in inter-cut trigger mode, where background music is stored in the root directory and insert music must be placed in the "CHABO" folder. In other playback mode, the "CHABO" folder is not required.
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We offer you customer service until you are satisfied.
Features:

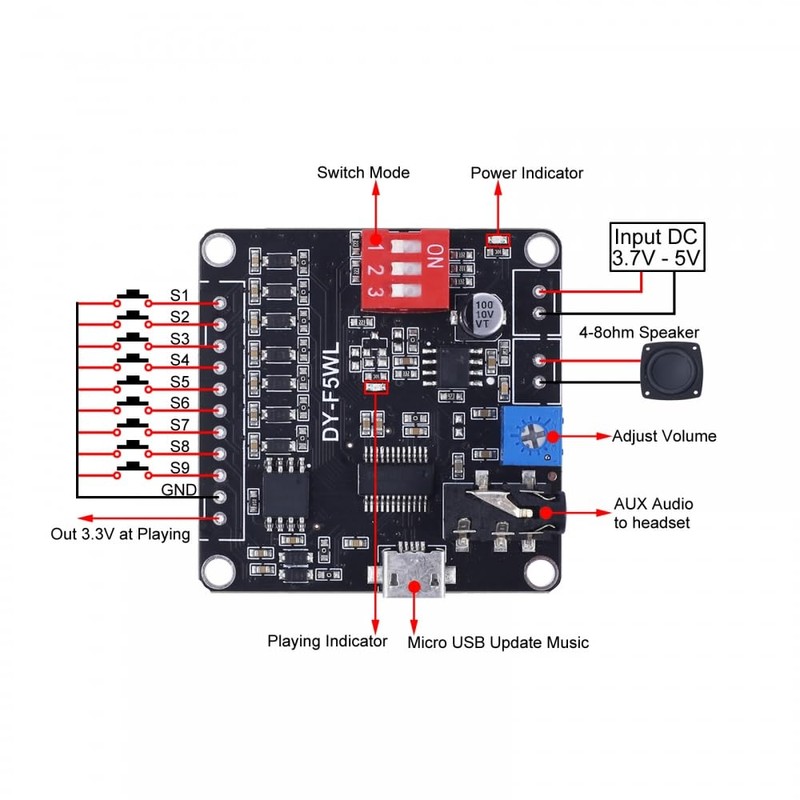

9-channel one-to-one trigger interface that triggers up to 9 music tracks
Low level trigger version and direct use of GND as trigger signal
Supports MP3 and WAV decoding formats as well as audio file sampling rates up to 48 kHz
Audio files can be replaced by connecting the computer to a USB data cable
Equipped with a 5W Class D power amplifier, it can directly drive speakers with 4-8 ohms and 1W-5W

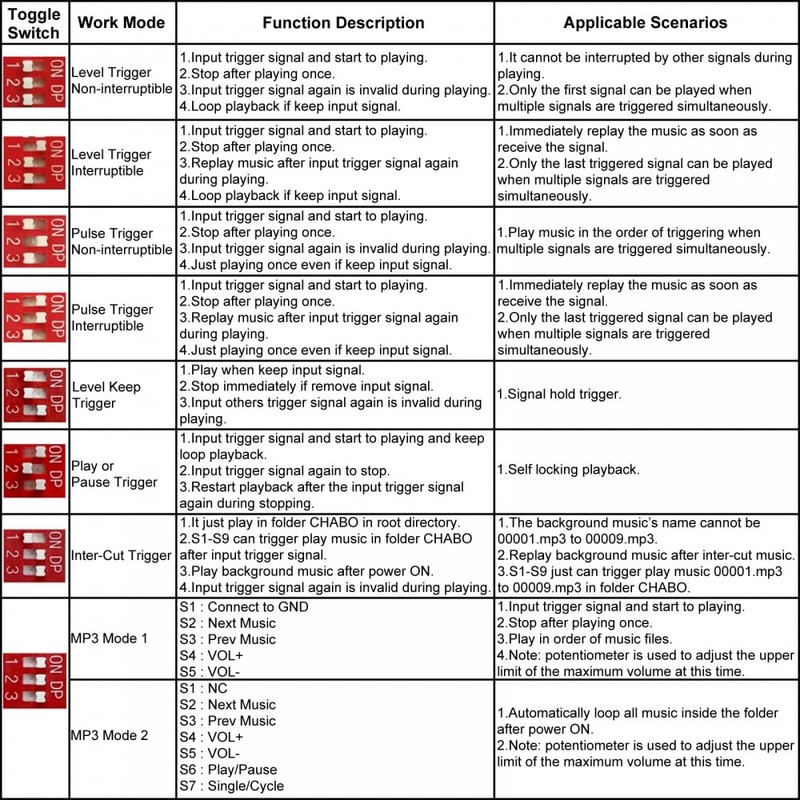

DIP switch is set with 8 trigger working modes
Potentiometer controls the volume.
Parameters:
1.Working voltage: DC 3.7V-5V
2. Working mode: 9 types
3. File format: MP3, WAV.
4. Speaker power: 1W-5W.
5. Output impedance: 4 ohm-8 ohms
6. Memory: 32 Mbit (4 MByte) flash.
7. Audio output: active output.
8. Adjust volume: yes.
9. Trigger signal: low-level signal (NPN).
10. Working temperature: -20℃~85℃.
11. Workplace humidity: 5% to 95% RH

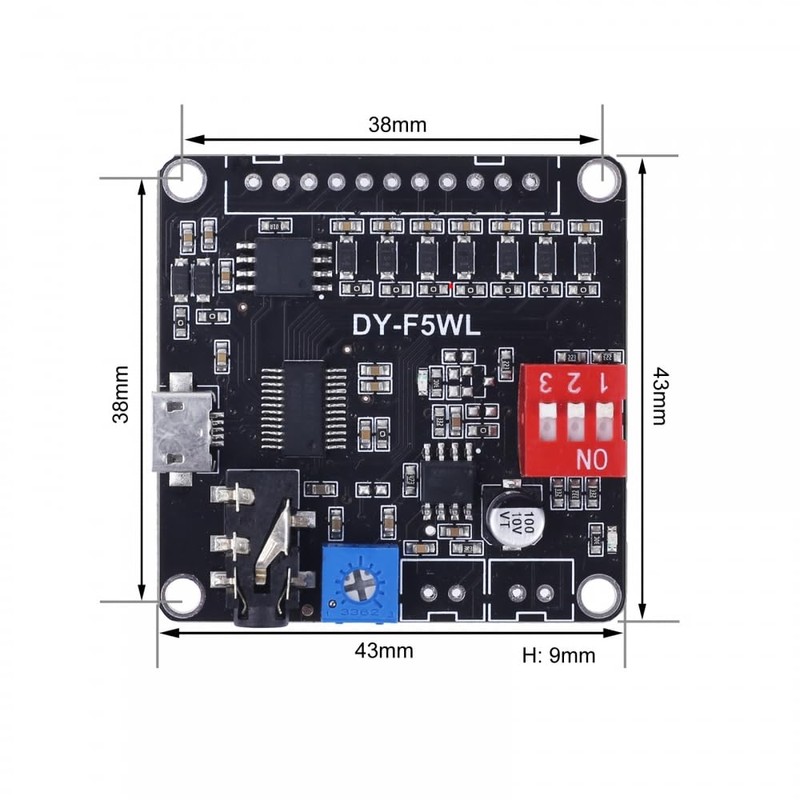

12. Module size: 43 x 43 x 9 mm.
Note:
1. After switching the mode, the power supply must be restarted.
2. Please use a USB data cable, not a USB power cable, otherwise the computer will not recognise it.
3. The name of the music file must be a 5 digit number, for example: 00001.mp3 ~ 00009.mp3
Application:
1. Speaker Modified/Repaired/Replaced
2. Amplifier equipment for training/activity locations, etc.
4. music festival party
5. Family entertainment and leisure.
6. Games and cinema.
7. home theater
8. Safety system.
KTV Vocal Room
background music for home
Package:
1 x DY-F5WL 5W mono voice playback module.
