Molex 4-Pin F-150 HID Headlight Retrofit DIY Connector Kit Ford 8U2Z 14S411-TA

Brand: Molex
Welcome, ResourceRiver Introducing our new60 DAYSReturn Policy

Molex-  Brings together innovation and technology to deliver electronic solutions to customers worldwide. With a presence in more than 40 countries, Molex offers a full suite of solutions and services for many markets, including data communications, consumer electronics, industrial, automotive, commercial vehicle and medica

MolexMX150™ Sealed System Receptacle and Plug Housing w/ Terminals

Click Image to Enlarger

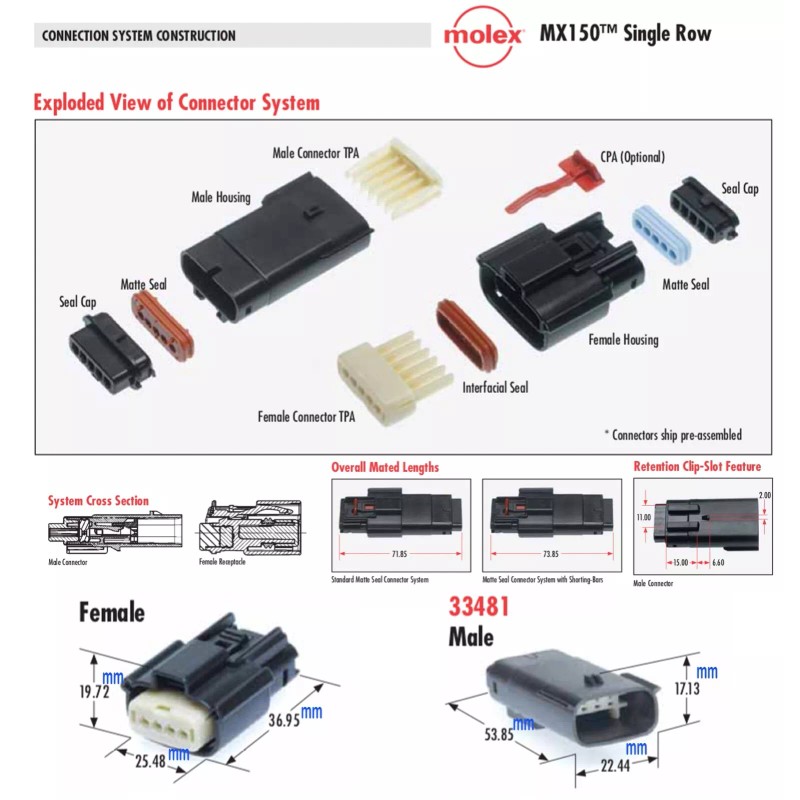

Overview: Molex MX150 Sealed Connector System features pre-assembled, fully-submersible MX150 high-performance connectors with a reduced package size. Molex MX150 Sealed Connectors are ideal for SAE- and ISO-style wire in single- and dual-row configurations up to 22.0A supporting both signal and power applications for on-engine automotive to off-road construction equipment applications.    Based on the 1.50mm ISO blade-type terminal system, the MX150 Connector System consists of matte- and cable-sealed connectors, receptacles and terminals. Available in tin, gold or silver contact finishes, the MX150 system provides cost savings by eliminating the need to purchase, handle and crimp individual wire seals. The single silicone-based seal in the plug and receptacle has individual wire openings and a seal cap to protect, securely retain, and provide strain relief. Integral terminal position assurance (TPA) and optional connector position assurance (CPA) components eliminate time-consuming and costly assembly operations. Many of these products employ ring-seal technology to meet IP6K7 and IP6K9K sealing requirements.

Product HighLight:

  • Environmentally sealed to IP67
  • Integrated mat wire seal
  • Integrated interface seal and terminal position assurance (TPA)
  • Simple crimp-and-poke application
  • Field serviceable contact removal system
  • Tactile and audible mating feedback

Feature Receptacle and Plug Housing

  • Environmentally sealed to IP67 Integrated mat wire seal Integrated interface seal and
  • terminal position assurance (TPA) Optional connector position assurance (CPA)
  • Simple crimp-and-poke applicationField serviceable contact removal system
  • Tactile and audible mating feedback

Electrical

  • Dielectric Withstanding Voltage: 2200V AC min.
  • Insulation Resistance:1000 Megohms
  • Voltage: 600V

Mechanical

  • Mating force: 75N max.
  • Unmating force: 75N max.

Physical

  • Housing: SPS Glass-Filled Crystalline Polymer
  • Operating Temperature:-40 to +125°C

Reference Information

  • UL File No.: E152602 Designed In: Inches
  • Mates With: 19419, 19429

Terminals Tech information

  • Crimp or Compression Style Terminals
  • Made out of High Performance Alloy (HPA)
  • Tin Plating Mating
  • Durability (Mate Cycling Max) 25
  • 9.0A Current - Maximum per Contact
  • 600V Voltage - Maximum
  • Wire Insulation Diameter2.54mm Max
  • Wire Size accepted
  • Low Halogen Terminals

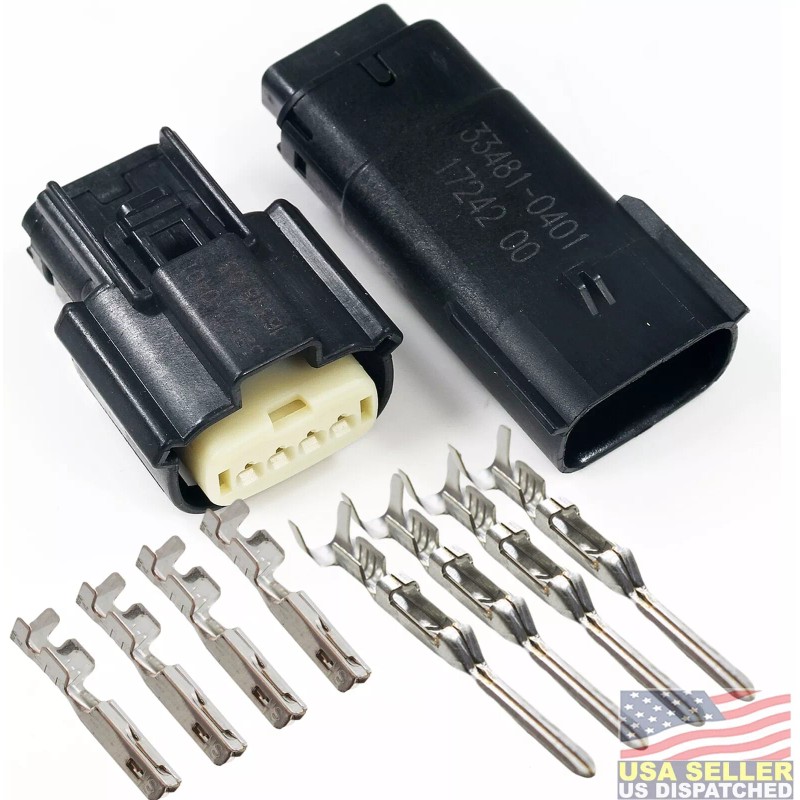

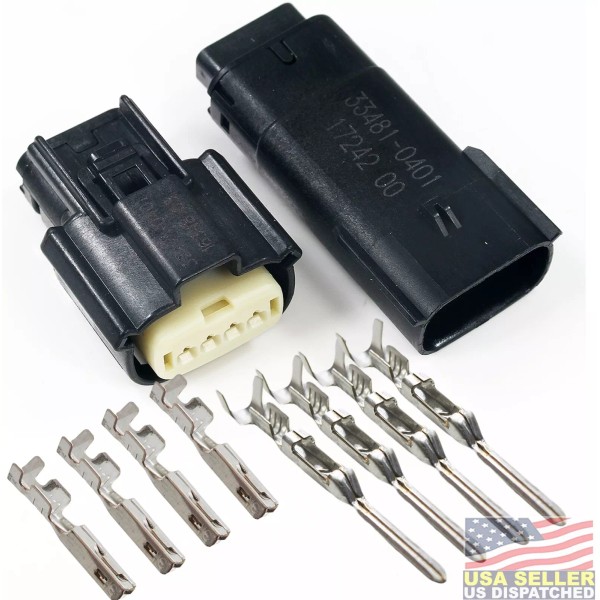

Pro Kit Contents:
  • Qty: 1 -Molex, 4-Circuits
  • Qty: 1- Molex, 4-Circuits  Receptacles.
  • Qty: 4 - Molex, Male Crimp Pins Low-Halogen (Strip Packaging)
  • Qty: 4 - Molex, Female Crimp Sockets Low-Halogen (Strip Packaging)

What's Low Halogen Terminals:

  • Bromine less than 900 ppm per homogeneous material
  • Chlorine less than 900 ppm per homogeneous material
  • The sum of Bromine and Chlorine less than 1500 ppm per homogeneous material
Benefits Strip/Reel Terminals:

Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you while on your project.

Tech Specification Terminals:

Material - Metal High Performance Alloy (HPA)
Material - Plating Mating Tin
Material - Plating Termination Tin
Plating min - Mating 0.508µm
Plating min - Termination 0.508µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 2.54 mm
Wire Size AWG 16, 18, 20
Brand: Molex
Isin: IBKUCM9T88VI

$33.90

$34.23
1% off
  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Molex 4-Pin F-150 HID Headlight Retrofit  DIY Connector Kit Ford 8U2Z 14S411-TA

Molex 4-Pin F-150 HID Headlight Retrofit DIY Connector Kit Ford 8U2Z 14S411-TA

$33.90 $34.23 (1% off)

Welcome, ResourceRiver Introducing our new60 DAYSReturn Policy

Molex-  Brings together innovation and technology to deliver electronic solutions to customers worldwide. With a presence in more than 40 countries, Molex offers a full suite of solutions and services for many markets, including data communications, consumer electronics, industrial, automotive, commercial vehicle and medica

MolexMX150™ Sealed System Receptacle and Plug Housing w/ Terminals

Click Image to Enlarger

Overview: Molex MX150 Sealed Connector System features pre-assembled, fully-submersible MX150 high-performance connectors with a reduced package size. Molex MX150 Sealed Connectors are ideal for SAE- and ISO-style wire in single- and dual-row configurations up to 22.0A supporting both signal and power applications for on-engine automotive to off-road construction equipment applications.    Based on the 1.50mm ISO blade-type terminal system, the MX150 Connector System consists of matte- and cable-sealed connectors, receptacles and terminals. Available in tin, gold or silver contact finishes, the MX150 system provides cost savings by eliminating the need to purchase, handle and crimp individual wire seals. The single silicone-based seal in the plug and receptacle has individual wire openings and a seal cap to protect, securely retain, and provide strain relief. Integral terminal position assurance (TPA) and optional connector position assurance (CPA) components eliminate time-consuming and costly assembly operations. Many of these products employ ring-seal technology to meet IP6K7 and IP6K9K sealing requirements.

Product HighLight:

  • Environmentally sealed to IP67
  • Integrated mat wire seal
  • Integrated interface seal and terminal position assurance (TPA)
  • Simple crimp-and-poke application
  • Field serviceable contact removal system
  • Tactile and audible mating feedback

Feature Receptacle and Plug Housing

  • Environmentally sealed to IP67 Integrated mat wire seal Integrated interface seal and
  • terminal position assurance (TPA) Optional connector position assurance (CPA)
  • Simple crimp-and-poke applicationField serviceable contact removal system
  • Tactile and audible mating feedback

Electrical

  • Dielectric Withstanding Voltage: 2200V AC min.
  • Insulation Resistance:1000 Megohms
  • Voltage: 600V

Mechanical

  • Mating force: 75N max.
  • Unmating force: 75N max.

Physical

  • Housing: SPS Glass-Filled Crystalline Polymer
  • Operating Temperature:-40 to +125°C

Reference Information

  • UL File No.: E152602 Designed In: Inches
  • Mates With: 19419, 19429

Terminals Tech information

  • Crimp or Compression Style Terminals
  • Made out of High Performance Alloy (HPA)
  • Tin Plating Mating
  • Durability (Mate Cycling Max) 25
  • 9.0A Current - Maximum per Contact
  • 600V Voltage - Maximum
  • Wire Insulation Diameter2.54mm Max
  • Wire Size accepted
  • Low Halogen Terminals
Pro Kit Contents:
  • Qty: 1 -Molex, 4-Circuits
  • Qty: 1- Molex, 4-Circuits  Receptacles.
  • Qty: 4 - Molex, Male Crimp Pins Low-Halogen (Strip Packaging)
  • Qty: 4 - Molex, Female Crimp Sockets Low-Halogen (Strip Packaging)

What's Low Halogen Terminals:

  • Bromine less than 900 ppm per homogeneous material
  • Chlorine less than 900 ppm per homogeneous material
  • The sum of Bromine and Chlorine less than 1500 ppm per homogeneous material
Benefits Strip/Reel Terminals:

Strip/Reel Packaging Contacts have an easier time handling the terminals while they are attached to the strip. Whenever yours hand are steady or not then maybe this will make things easier for you while on your project.

Tech Specification Terminals:

Material - Metal High Performance Alloy (HPA)
Material - Plating Mating Tin
Material - Plating Termination Tin
Plating min - Mating 0.508µm
Plating min - Termination 0.508µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 2.54 mm
Wire Size AWG 16, 18, 20



Item Specifics



  • Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...
  • Gender: Male & Female with Terminals
  • Number of Ports: 4
  • Modified Item: No
  • Custom Bundle: No
  • Number of Pins: 4
  • Model: MX150™
  • Minimum Operating Temperature (Actual): -40°C
  • Standards/Compliance: EU RoHS
  • Wire Insulation Diameter: 2.54mm max.
  • Pitch: 3.5mm
  • Maximum Operating Temperature (Actual): +125°C
  • IP Rating: IP6K7 and IP6K9K
  • Non-Domestic Product: No
  • Contact Material: High Performance Alloy (HPA)
  • MPN: MX150™ (4 Pin)
  • Brand: Molex
  • Termination Type: Crimp
