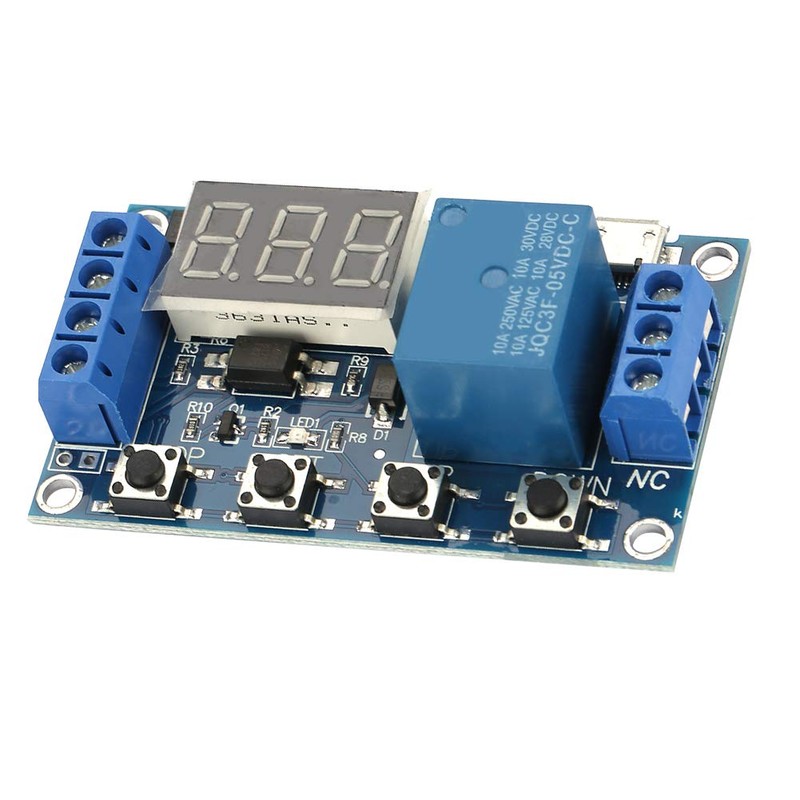

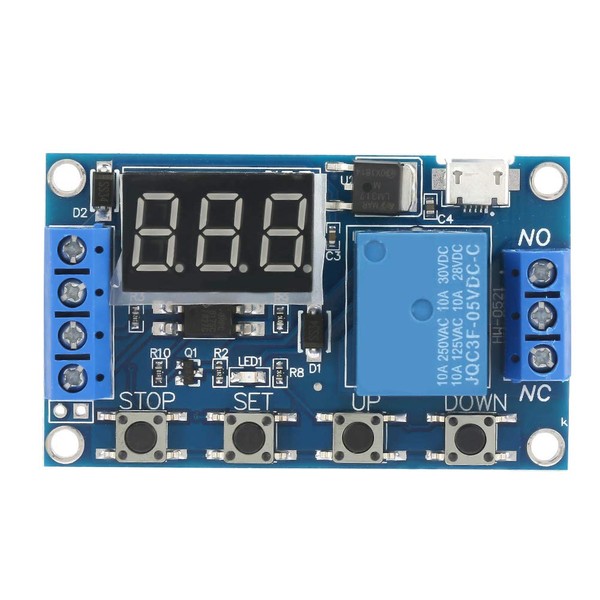

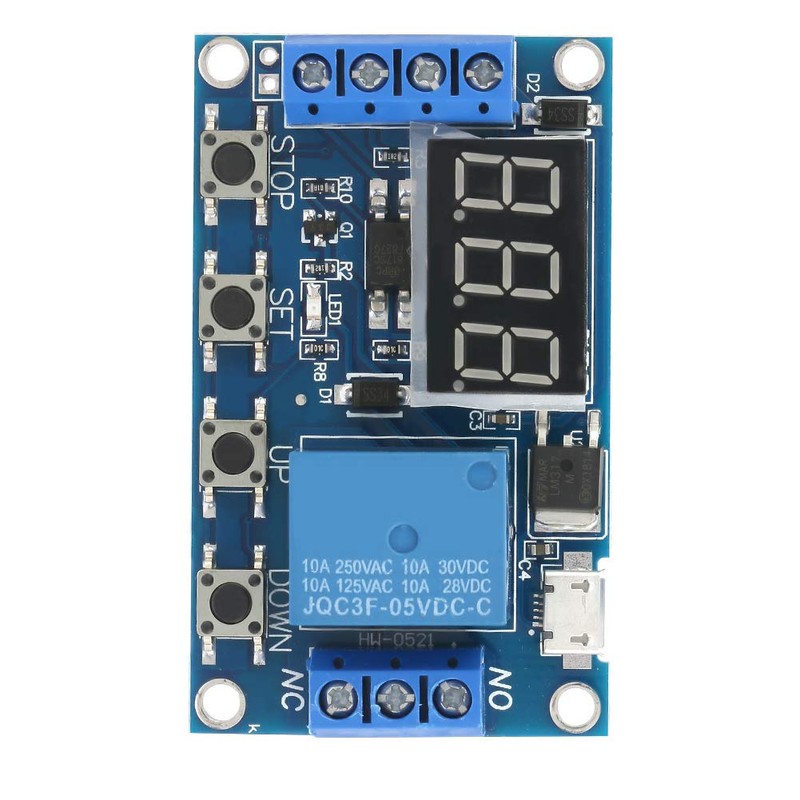

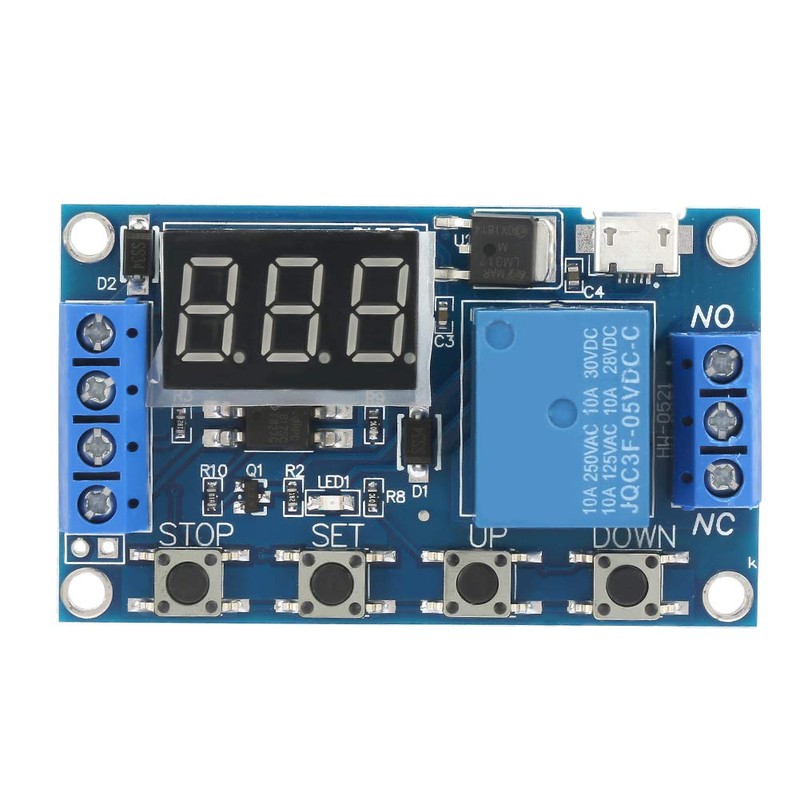

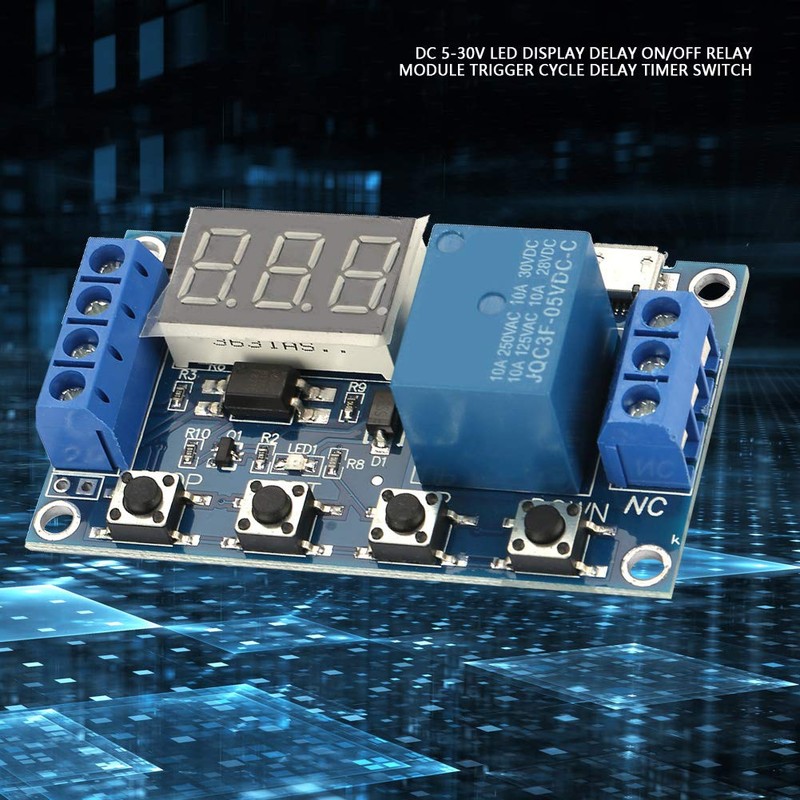

Módulo de relé de Temporizador DC 5-30V Pantalla LED Retardo de Encendido Apagado Módulo de relé Trigger Cycle Delay Timer Switch
$26.22
- $9.99 shipping from Mexico View details
-
Arrives
- Se pueden configurar varios parámetros OP, CL y LOP, que son independientes entre sí y se guardan por separado.
- Cómo configurar los parámetros - 1 1. Primero determine el modo de operación deseado.2. El módulo está encendido, la pantalla en el modo de trabajo actual.
- Parámetros La capacidad de salida del producto es DC 30V5A, AC 220V5A, la corriente estática es de 20mA, la vida del producto es más de 100.000 veces, la temperatura de trabajo es de-40 ~ 85 ℃ y la corriente de trabajo es de 50mA.
- ESTABILIDAD DE SALIDA DE VOLTAJE Amplio voltaje de suministro, admite fuente de alimentación Micro USB 5.0V
- de calidad: como vendedor profesional, siempre nos atenemos a productos y servicios de . Cada producto ha pasado la inspección de calidad antes de salir de fábrica. Confirma si el producto es adecuado antes de comprar.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Se pueden configurar varios parámetros OP, CL y LOP, que son independientes entre sí y se guardan por separado.
- Cómo configurar los parámetros - 1 1. Primero determine el modo de operación deseado.2. El módulo está encendido, la pantalla en el modo de trabajo actual.
- Parámetros La capacidad de salida del producto es DC 30V5A, AC 220V5A, la corriente estática es de 20mA, la vida del producto es más de 100.000 veces, la temperatura de trabajo es de-40 ~ 85 ℃ y la corriente de trabajo es de 50mA.
- ESTABILIDAD DE SALIDA DE VOLTAJE Amplio voltaje de suministro, admite fuente de alimentación Micro USB 5.0V
- de calidad: como vendedor profesional, siempre nos atenemos a productos y servicios de . Cada producto ha pasado la inspección de calidad antes de salir de fábrica. Confirma si el producto es adecuado antes de comprar.

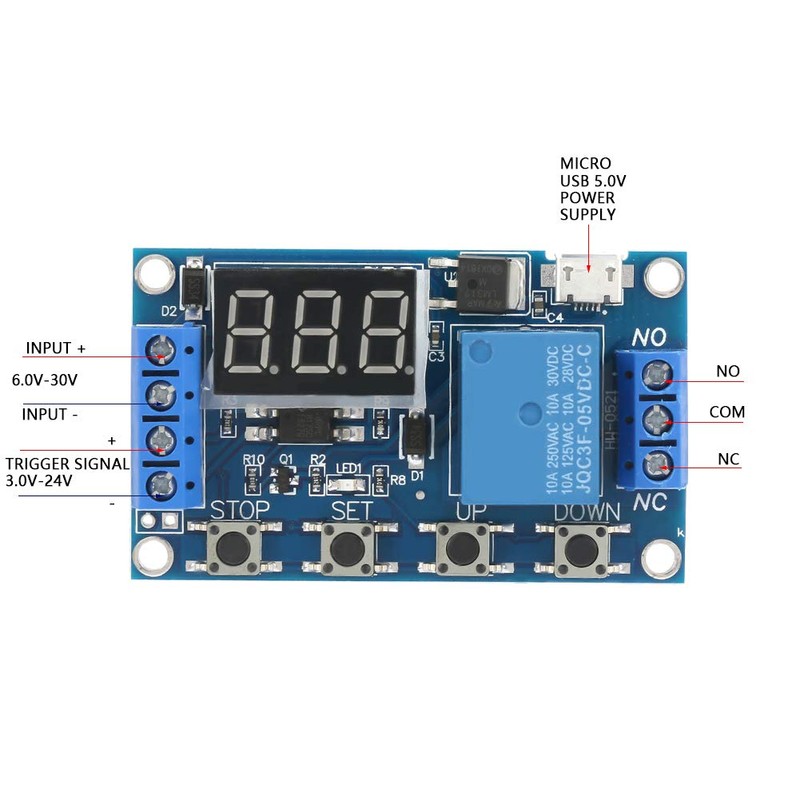

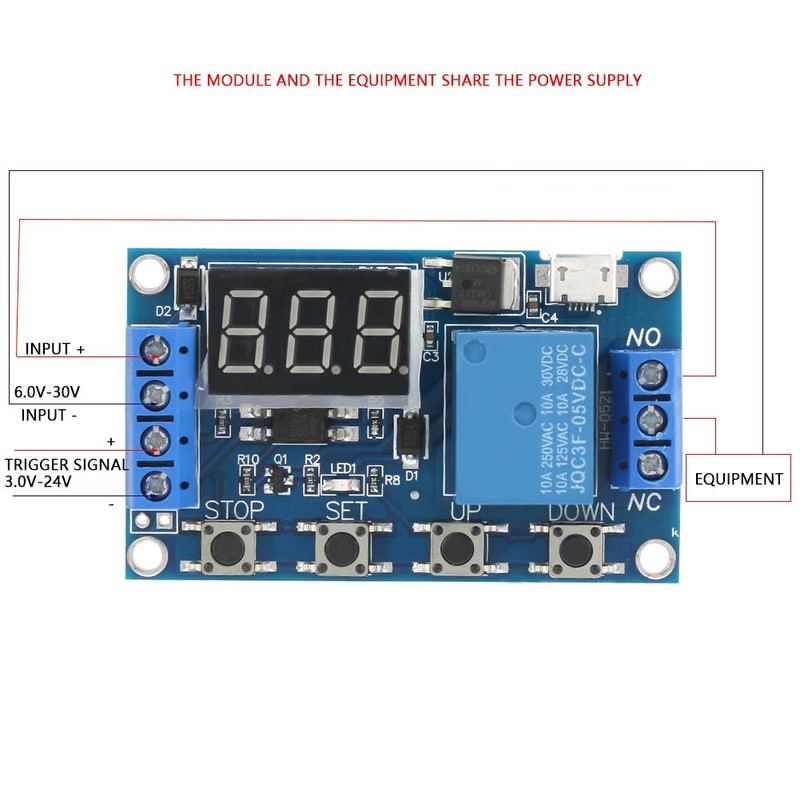

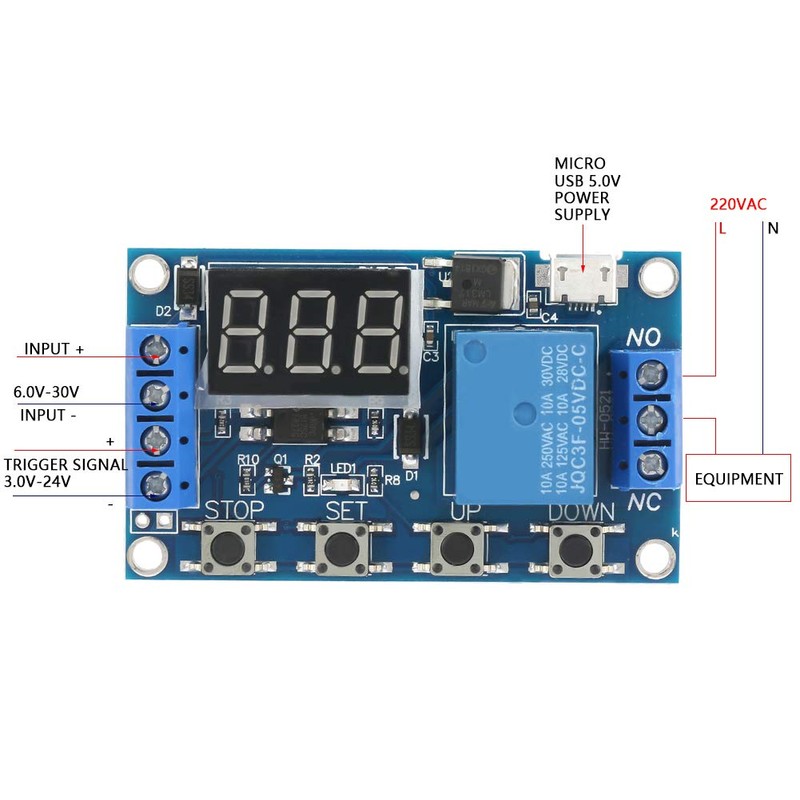

Voltaje de alimentación: CC 6-30 V, compatible con fuente de alimentación micro USB de 5,0 V

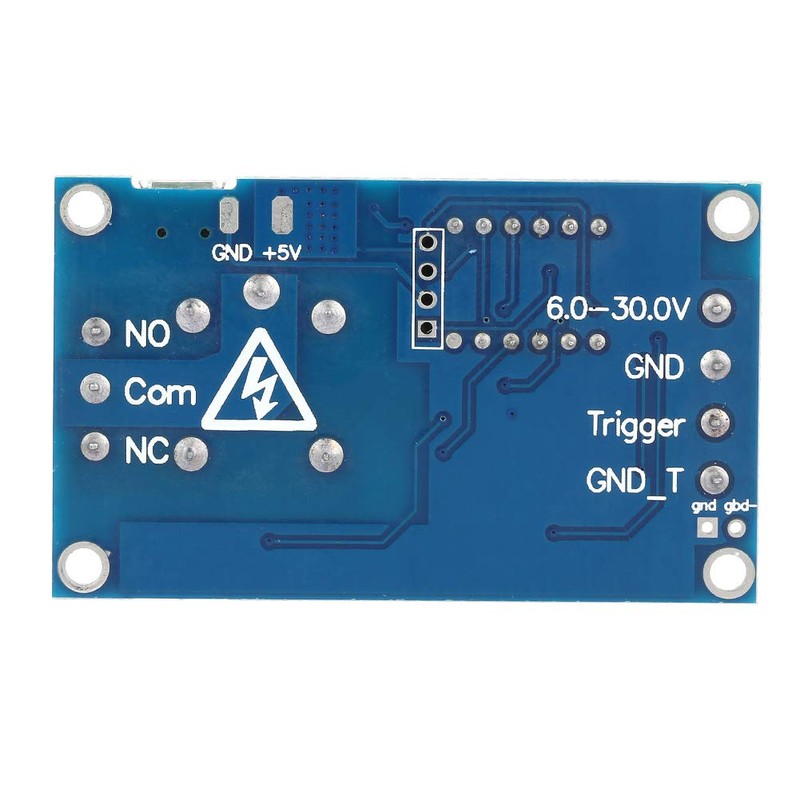

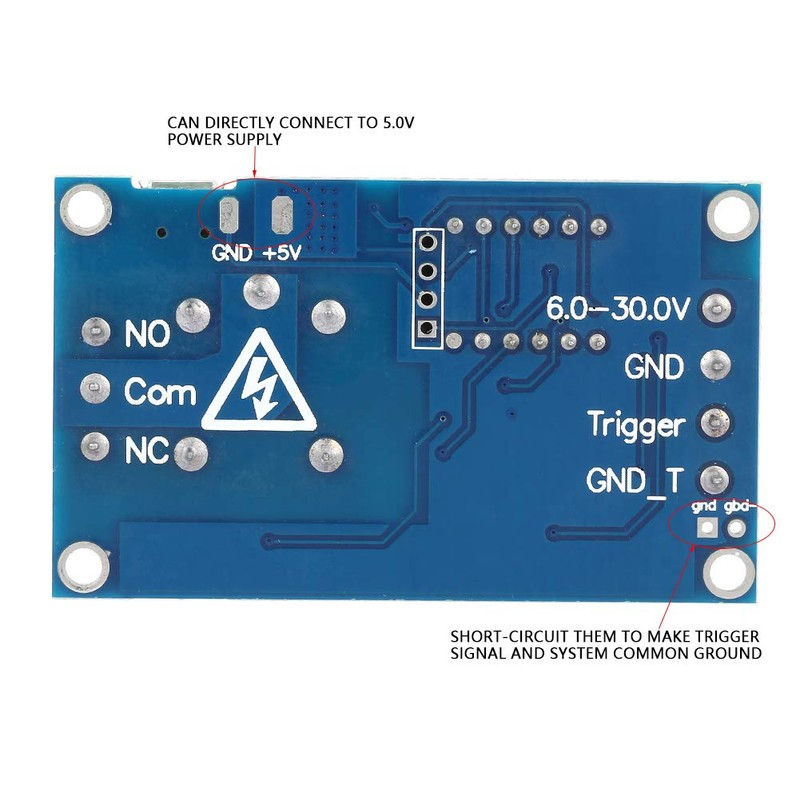

Señal de activación: nivel alto (3,0 V-24 V) (la señal y el no utilizan el mismo puerto GND)
Capacidad de salida: DC 30V/5A, AC 220V/5A
Corriente estática: 20mA
Corriente de trabajo: 50mA
Vida: >100,000 veces
Temperatura de trabajo : -40~85 ℃
Tamaño: 6,2*3,8*1,7 cm / 2,44*1,5*0,67 om
Peso: aprox. 27g
Instrucciones:
1. Modo de trabajo:
P1: después de que se activa la señal, el relé se abre durante el tiempo OP y luego se desconecta; en el tiempo OP, de la siguiente manera:
P1.1: la señal se activa de nuevo, no es válida
P1.2: la señal se activa de nuevo, reinicie el tiempo
P1.3: Dar activación Señal, el relé se cierra durante el tiempo CL, luego se abre durante el tiempo OP; después de terminar el tiempo, desconecte el relé;
P3.1: la señal de activación, el relé se abre durante el tiempo OP, luego se cierra por tiempo CL, luego los ciclos de operación; si vuelve a dar la señal de activación durante el ciclo, el relé se abre, detiene el cronometraje; se pueden configurar los tiempos de los ciclos (LOP).
P3.2: No se requiere señal de activación después del encendido, el relé se abre durante el tiempo OP, luego se cierra durante el tiempo CL, luego los ciclos de operación; Se pueden configurar los tiempos de ciclo (LOP).
P-4: función de retención de señal: si hay una señal de activación, el tiempo se borra, el relé permanece encendido; cuando la señal desaparece, después del tiempo OP, el relé está apagado; si se activa otra señal durante el cronometraje, el cronometraje se borrará.
2. Cómo configurar el rango de tiempo:
Después de configurar el valor del parámetro en la interfaz de selección de modo, presione brevemente el botón STOP para configurar el rango de tiempo;
XXX. - intervalo de tiempo: de 1
