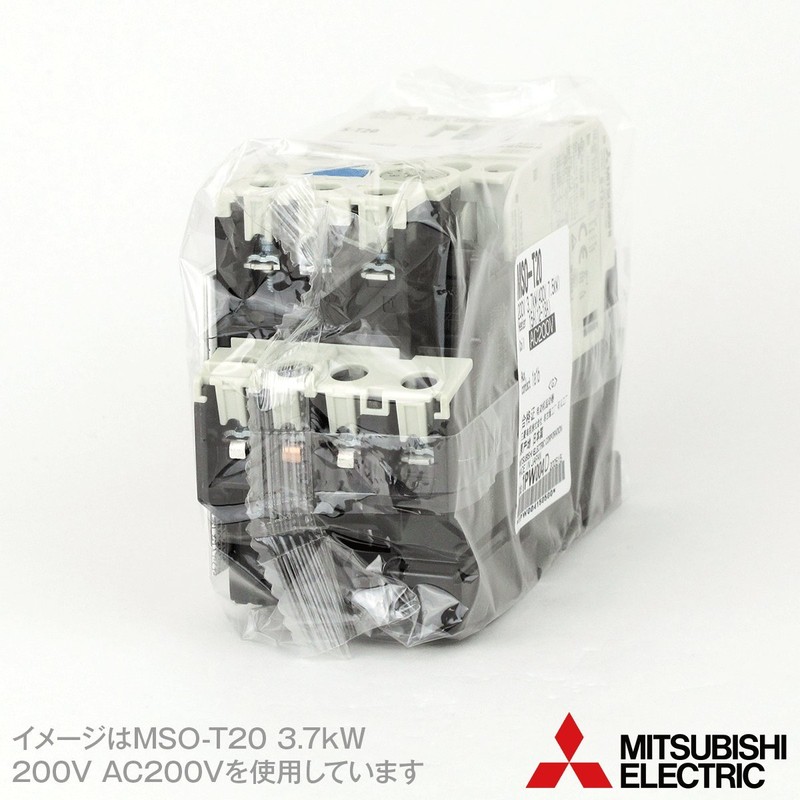

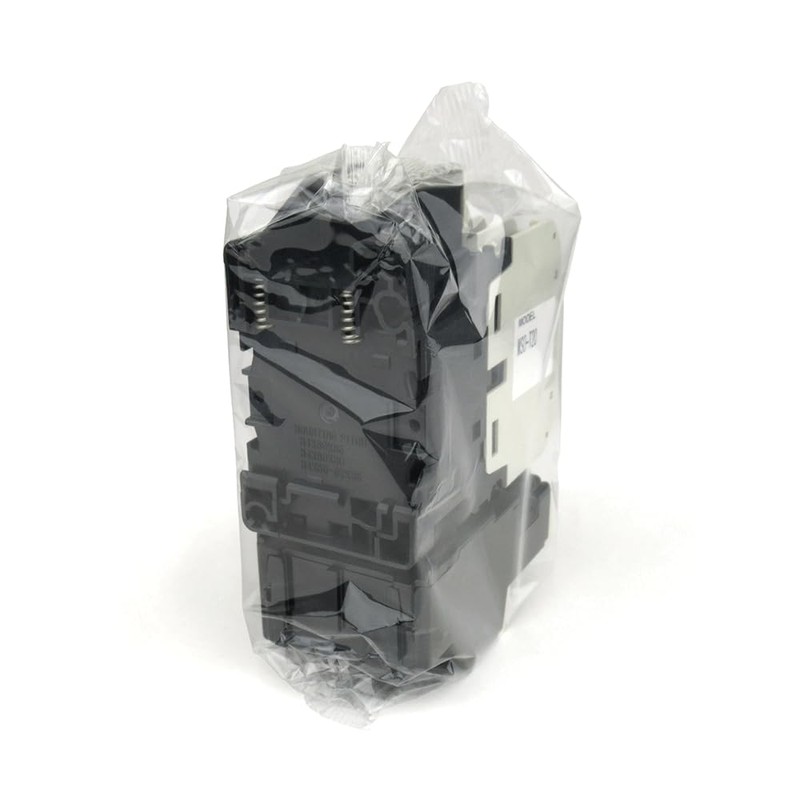

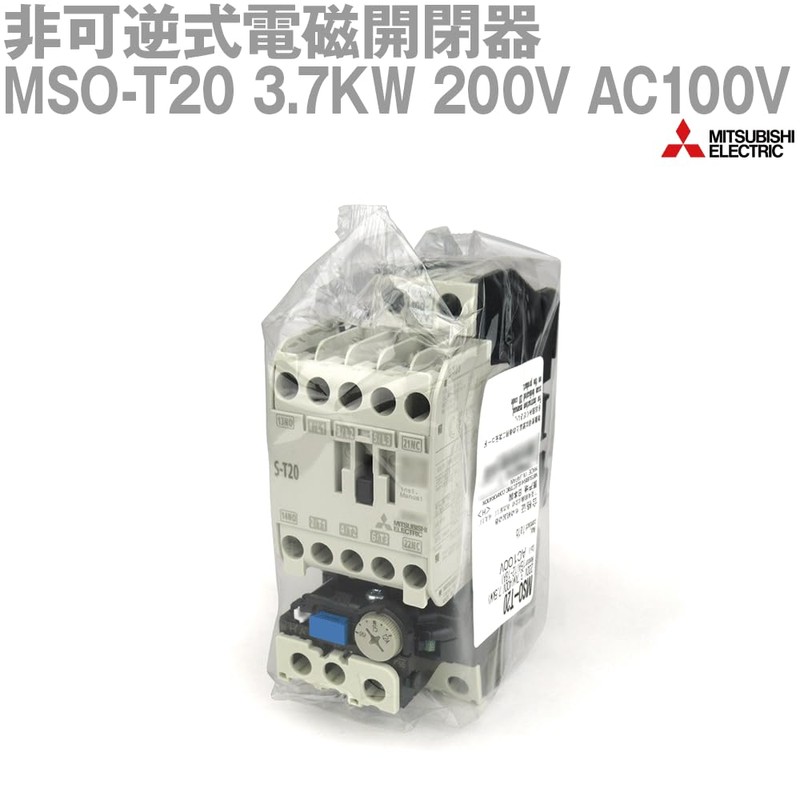

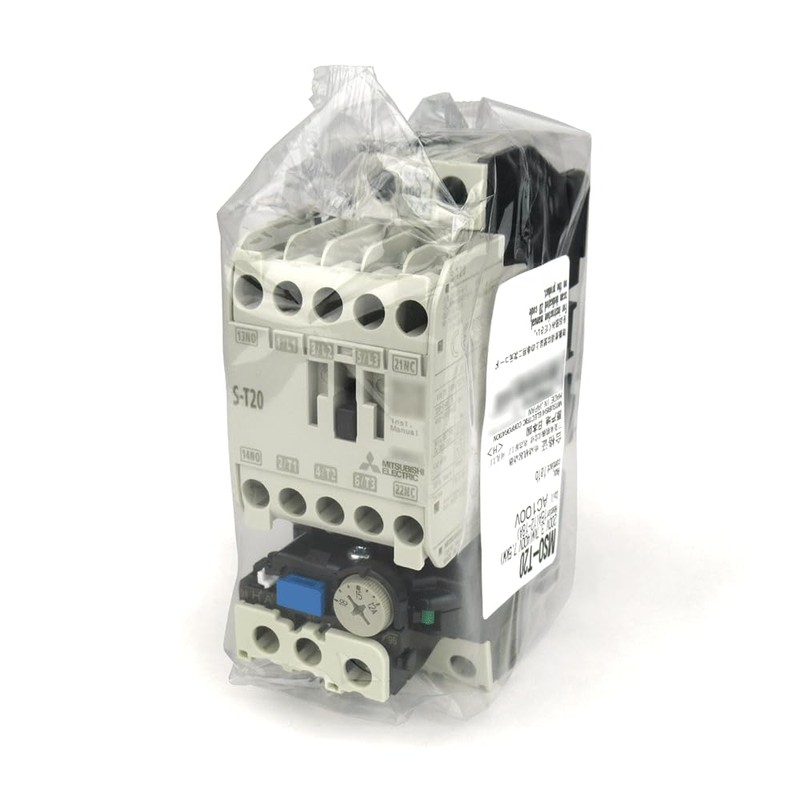

Mitsubishi Electric MSO-T20 3.7 kW 200 V AC 100 V 1a1b Non-reversible Electromagnetic Switch (Main Circuit Voltage 200V) (Operating Voltage AC 100V) (Auxiliary Contact 1a1b) (Screw, DIN Rail Mount) NN
$147.94
- $12.99 shipping from Japan View details
-
Arrives
- Main circuit voltage: 200 V
- Operating Coil Nominal Voltage AC 100V
- The smaller electromagnetic contactor makes the electromagnetic opener smaller at many ratings. We realize the smaller version of the customer.
- By equipping standard terminal covers, you will reduce the hassle of designating your own name and arranging options, saving inventory and cost down on the cover. Of course, it also improves the safety of the charging part.
- Suitable for motor overload and restraint protection.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Main circuit voltage: 200 V
- Operating Coil Nominal Voltage AC 100V
- The smaller electromagnetic contactor makes the electromagnetic opener smaller at many ratings. We realize the smaller version of the customer.
- By equipping standard terminal covers, you will reduce the hassle of designating your own name and arranging options, saving inventory and cost down on the cover. Of course, it also improves the safety of the charging part.
- Suitable for motor overload and restraint protection.
[Model Number] MSO-T20 3.7kW 200V AC100V
Motor Capacity: 3.7 kW
[Standard three-phase motor voltage] 200V
Operating Coil Voltage: AC 100V
[Auxiliary contact] 1a1b
Type: Electromagnetic closure.
[Product (electromagnetic switcher)] Non-reversible electromagnetic closure
[Series] MS-T
Model Name: MSO-T20
[Reversible Driving] Impossible (Non-Reversible)
[Rated Capacity [kW].
Three-phase cage motor (AC-3 grade).
AC 200 - 220 V 3.7
AC 380-440V 7.5
AC 500 - 550 V 7.5
Three-phase cage motor (AC-4 grade).
AC 200 - 220 V 3.7
AC 380 - 440 V 5.5
AC 500 - 550 V 5.5
[Rated working current [A].
Three-phase cage motor (AC-3 grade).
AC 200 - 220 V 18
AC 380 - 440 V 18
AC 500 - 550 V 17
Three-phase cage motor (AC-4 grade).
AC 200 - 220 V 18
AC 380-440V 13.
AC 500 - 550 V 10
[Main Contact]
Open heat dissipation current (A)
A contact: 20
Contact Configuration 3a
[Auxiliary Contacts]
Rated working current [A] (AC 15)
AC 110V 6.
AC 220 V 3.
Rated Current [A] (DC-13)
DC 24V 3.
DC 110 V 0.6
Open heat dissipation current (A) 10
Contact Configuration
Standard (special): 1a1b (2a/2b)
[Performance]
Closed Current Capacity [A] (AC-3 Grade)
AC 220 V 180
AC 440 V 180
Shut-off Current Capacity [A] (AC-3 grade).
AC 220 V 144
AC 440 V 144
Mechanical Durability [1,000]
Electrical Durability [100%]
AC-3 Grade 200
Opening and closing frequency [times/hour] 1800
[Operation Coil]
Operating Voltage Type: AC
Features
Instant input [VA] 47
Continuous Input (VA) 7
Power consumption: W 2.2
Thermal Relay Specifications: 2 elements included (overload and restraint protection).
[Surge Absorption for Operation Coil] None
[Terminal Cover]
Standard terminal covers included
No wiring streamlined terminal function
[Product Installation Method] Screws, DIN rails
Note 1: The rated current is the maximum current that satisfies the performance of the rated working voltage.
Note 2 The input of the operation coil, the power consumption is the average value when the 220V 60Hz is applied to the AC 200V coil.
Note 3: The number of closed/shut off current capacity can be opened and closed 50 times each (JIS C8201-4-1).
Note 4 Please refer to the manufacturer's catalog for rating and performance without mentioned above.
Note 5 Please refer to the manufacturer's catalog for application to domestic and international standards.
