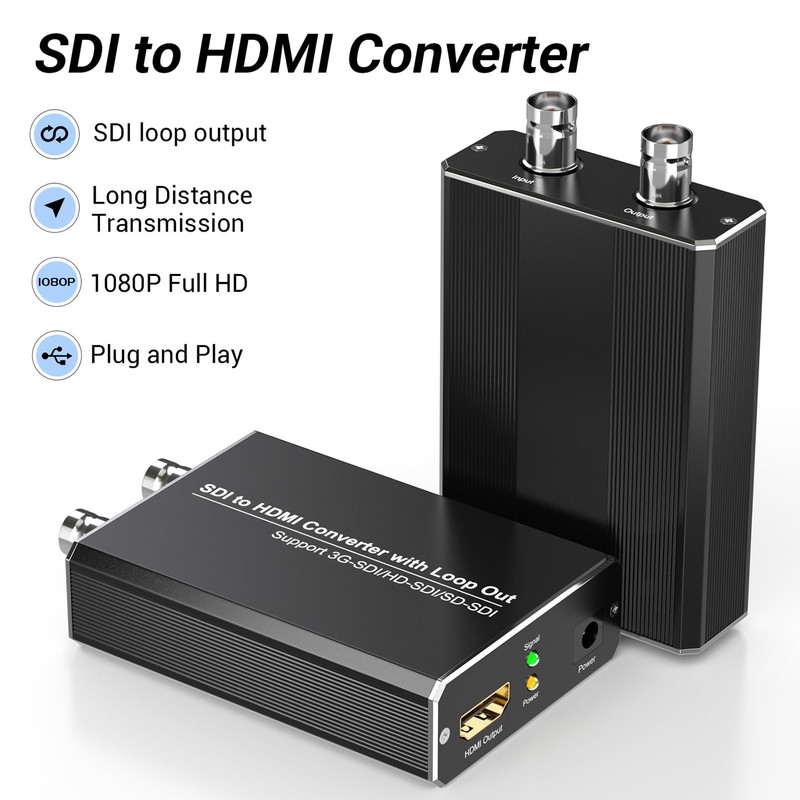

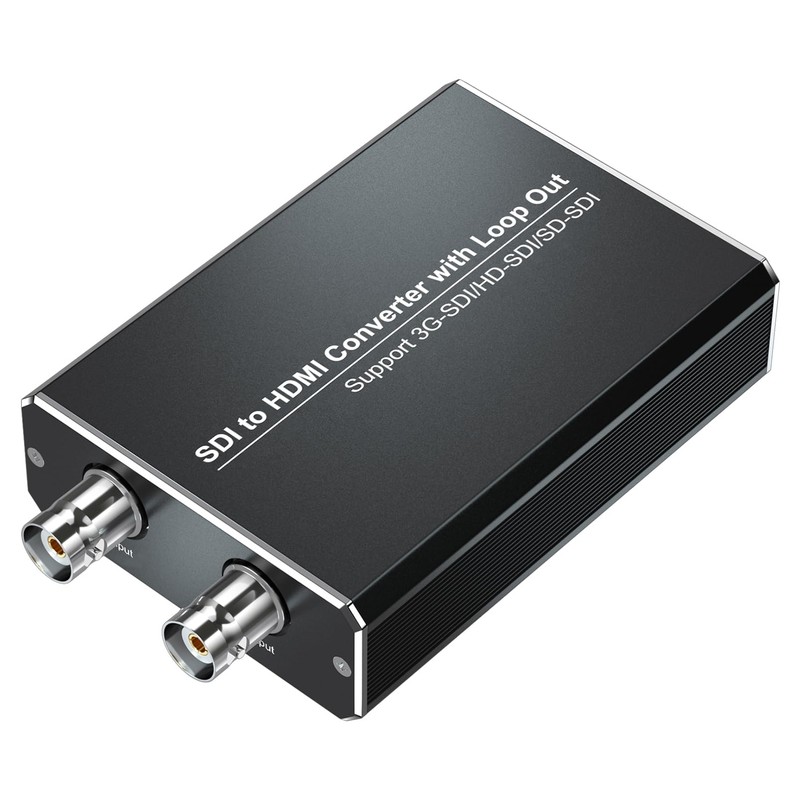

MISOTT SDI to HDMI Converter with SDI Loop-Out, 1080P SDI to HDMI Adapter, SDI to HDMI Compatible with 3G-SDI/HD-SDI/SD-SDI
$127.33
-
Arrives
- SDI to HDMI: This SDI to HDMI adapter is designed for converting 3G-SDI/HD-SDI/SD-SDI signals into HDMI signals for display on HDMI screens, automatic format recognition and synchronous audio and video display.

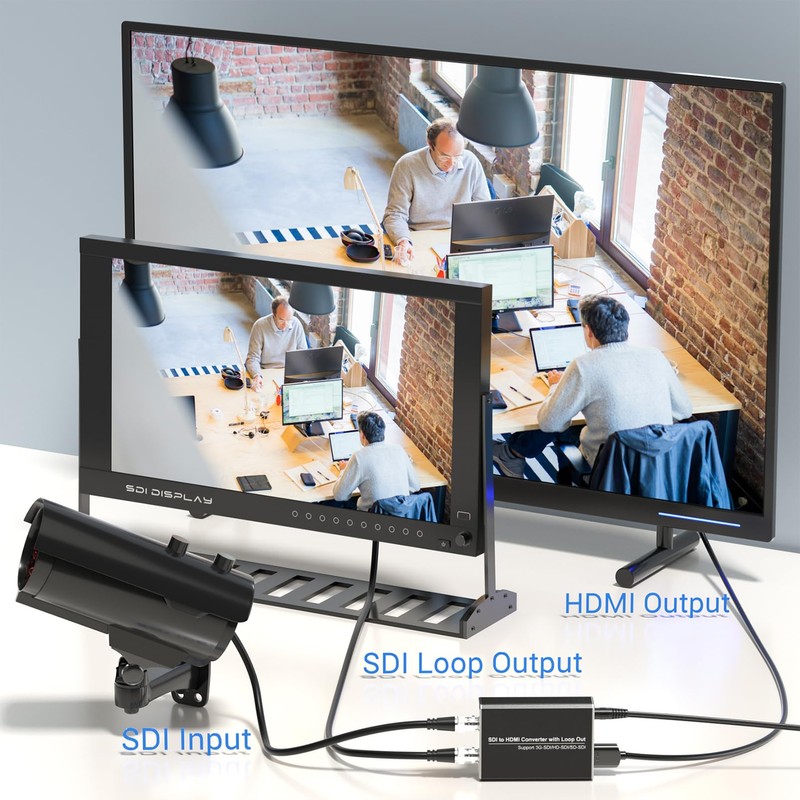

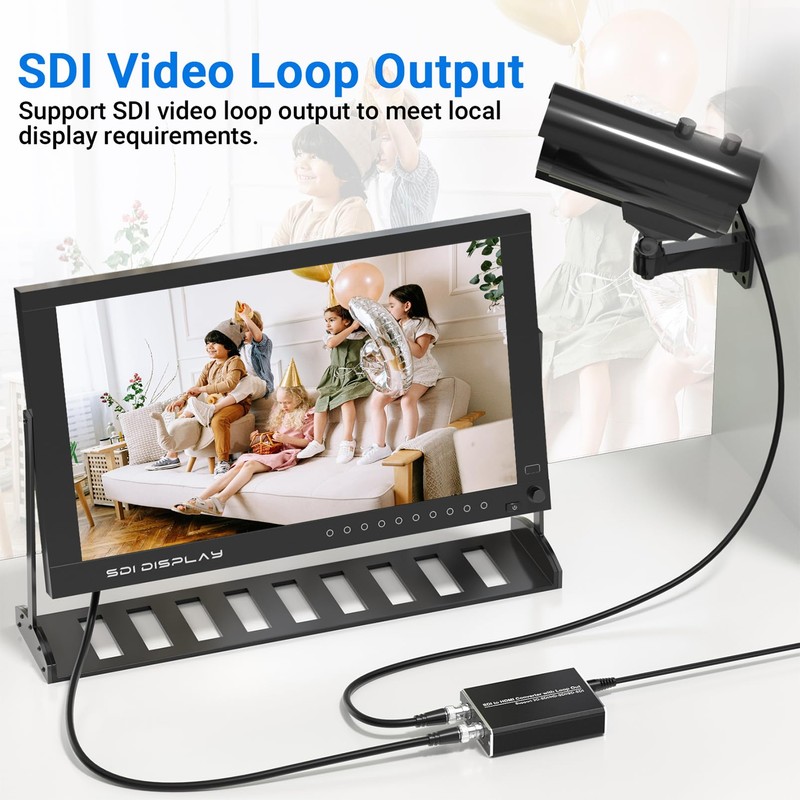

- With SDI loop out: this SDI to HDMI converter supports SDI loop-out for local display.
- Remote transmission: It can convert SDI signals into HDMI signals and transmit over long distances up to 300 feet (3G-SDI)/500 feet (HD-SDI)/1000 feet (SD-SDI). SDI loop-out cable length up to 300 feet.
- 【Compatible with 3G-SDI/HD-SDI/SD-SDI】 SDI Signals Compatible With:3G-SDI - 1080P @ 60/59.94/50Hz (SMPTE 425M, Level A); HD-SDI - 1080i @ 60/59.94/50Hz, 720P @ 60/59.94/59.94/50 Hz; SD-SDI - NTSC at 59.94Hz, PAL at 50Hz Bit rates: 2.97 Gbit/s, 2.967 Gbit/s, 1.485 Gbit/s, 1.4835 Gbit/s, 270 Mbit/s
- Compact and easy to use: aluminium housing, excellent heat dissipation. Simple and easy to use. No drivers required, just plug and play.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- SDI to HDMI: This SDI to HDMI adapter is designed for converting 3G-SDI/HD-SDI/SD-SDI signals into HDMI signals for display on HDMI screens, automatic format recognition and synchronous audio and video display.
- With SDI loop out: this SDI to HDMI converter supports SDI loop-out for local display.
- Remote transmission: It can convert SDI signals into HDMI signals and transmit over long distances up to 300 feet (3G-SDI)/500 feet (HD-SDI)/1000 feet (SD-SDI). SDI loop-out cable length up to 300 feet.
- 【Compatible with 3G-SDI/HD-SDI/SD-SDI】 SDI Signals Compatible With:3G-SDI - 1080P @ 60/59.94/50Hz (SMPTE 425M, Level A); HD-SDI - 1080i @ 60/59.94/50Hz, 720P @ 60/59.94/59.94/50 Hz; SD-SDI - NTSC at 59.94Hz, PAL at 50Hz Bit rates: 2.97 Gbit/s, 2.967 Gbit/s, 1.485 Gbit/s, 1.4835 Gbit/s, 270 Mbit/s
- Compact and easy to use: aluminium housing, excellent heat dissipation. Simple and easy to use. No drivers required, just plug and play.
1. One-way conversion, only converts SDI to HDMI, does not support HDMI to SDI.
2. Only support SDI signal, does not support RF, CVBS, AHD, TVI, CVI.
3. Does not support 6G/12G SDI.
4. When used with ATEM, please set ATEM to 720P@60Hz.

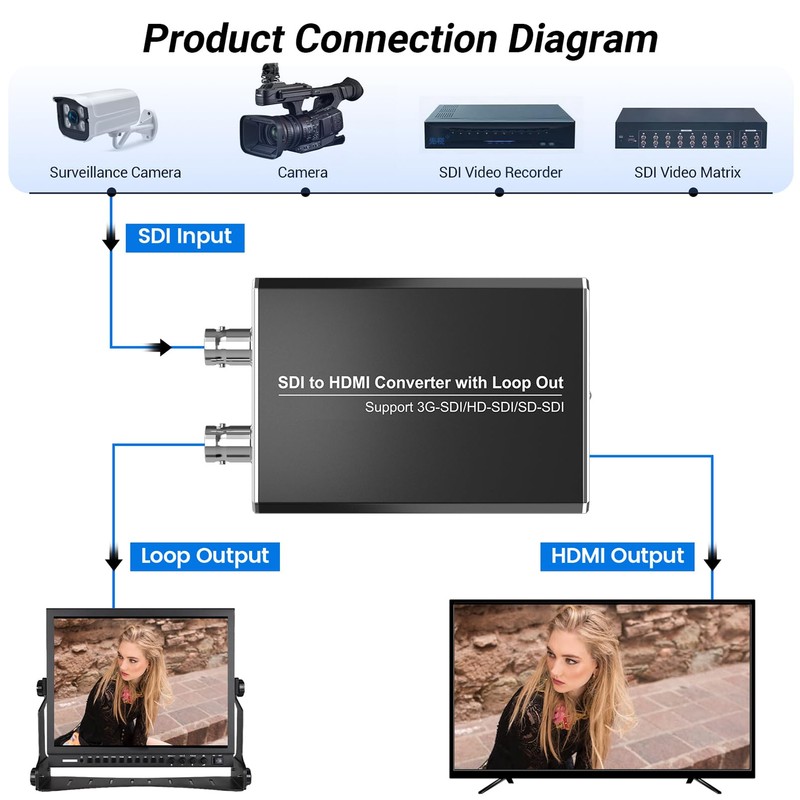

This SDI to HDMI converter is designed to convert 3G-SDI/HD-SDI/SD-SDI signals to HDMI to display on HDMI screens.
Our SDI to HDMI adapter supports SDI loop-out for local display.

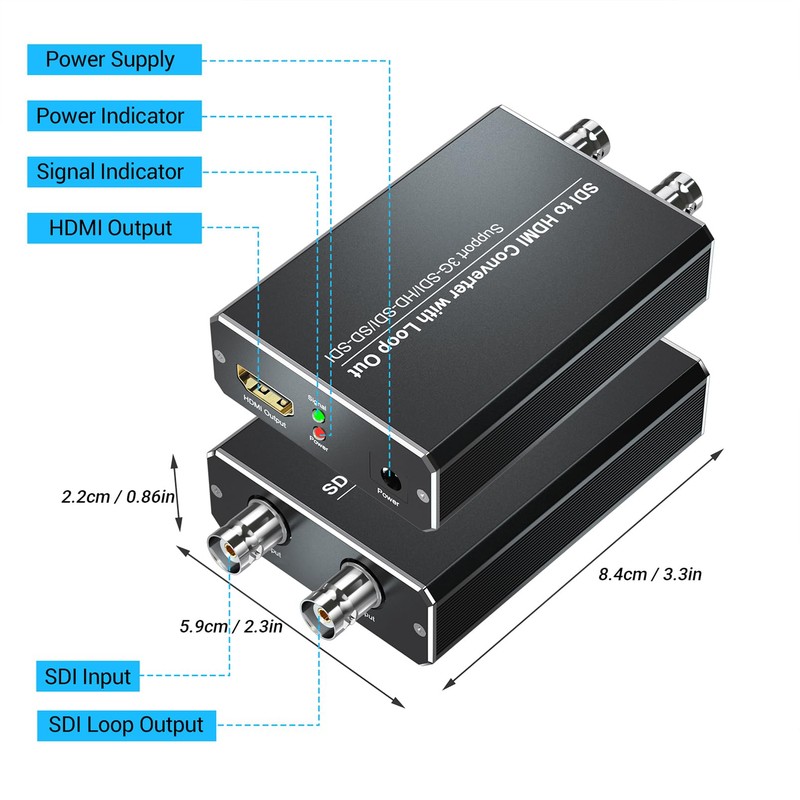

Specifications:
1. Input: 1 x SDI.
2. Output: 1 x HDMI Type A + 1 x SDI Loop Out
3. SDI signal format: SDI-SDI/HD-SDI/3G-SDI
4. SDI input resolutions: 480i, 576i, 720P@30Hz/50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/25Hz/30Hz/50Hz/60Hz
5. HDMI output resolutions: 720P@50Hz/60Hz, 1080i@50Hz/60Hz, 1080p@24Hz/ 25Hz/30Hz/ 50Hz/60Hz
6. Audio input signal: SDI embedded
7. SDI data rates: 270 Mbps, 1.485 Gbps, 2.97 Gbps
8. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
9. Power supply: 5V/1A.
10. Supports multiple cascaded

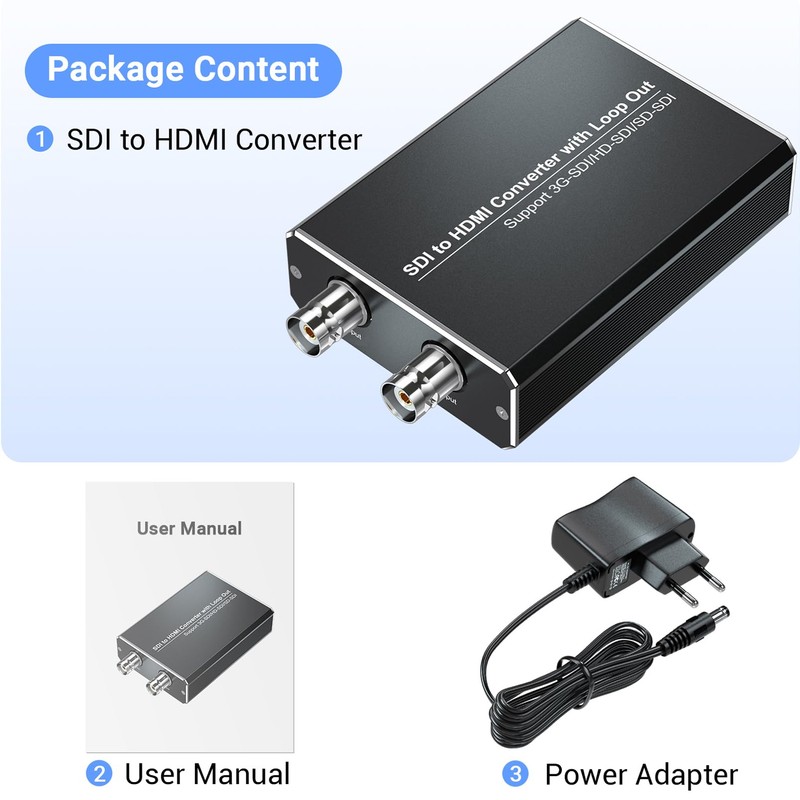

Package list:
1 x SDI to HDMI converter.
1 x power supply.
1 x user manual (English language not guaranteed).
