Micro Servo Motor Kit Binghe 6 Pieces 9G Micro Servo Motor Mini Micro Servo Motor RC Servo RC 9G Micro Servo for Small RC Helicopter/Helicopter/RC Plane Compatible with Arduino
$41.96
-
Arrives
- Cost-effective design: Equipped with a standard micro motor, the 9G servo is one of the most cost-effective servos on the market, perfect for price-conscious model building enthusiasts.
- Versatile applications: servo motor specially developed for small RC planes, RC helicopters, RC planes, drones and helicopters; servo RC not recommended for large fixed wing or electric helicopters.
- Easy to adjust: the micro servo easy operation with fast response time (0.3 seconds/60 degrees), easy to adjust for stable and reliable performance.
- Durable gears: the plastic gear offers a torque of 1.6 kg/cm (4.8 V) and servo motor ensures stable performance on different models.
- High reliability: the micro servo is designed for stability and works at temperatures of 0-55 degrees. This servo offers both 180 degree rotation (90 degrees on each side) and a continuous 360 degree rotation function.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Cost-effective design: Equipped with a standard micro motor, the 9G servo is one of the most cost-effective servos on the market, perfect for price-conscious model building enthusiasts.
- Versatile applications: servo motor specially developed for small RC planes, RC helicopters, RC planes, drones and helicopters; servo RC not recommended for large fixed wing or electric helicopters.
- Easy to adjust: the micro servo easy operation with fast response time (0.3 seconds/60 degrees), easy to adjust for stable and reliable performance.
- Durable gears: the plastic gear offers a torque of 1.6 kg/cm (4.8 V) and servo motor ensures stable performance on different models.
- High reliability: the micro servo is designed for stability and works at temperatures of 0-55 degrees. This servo offers both 180 degree rotation (90 degrees on each side) and a continuous 360 degree rotation function.
Description:
The 9G servo is a lightweight miniature servo commonly used in fixed wings, helicopter models and other small RC devices that require precise control.
9G micro servo motor for RC robots, robot arm, helicopter plane, car, boat remote controls and ardu&ino experiments.
180 degree servo motor control specification:
Control: change the pulse width.
Amplifier type: analogue control.
Operating distance: l120°±10° (900 → 2100 μsec).
Left/clockwise rotation angle deviation: ≤ 6°.
Centring deviation: ≤ 1°.
Neutral position: 1500 μsec.
Dead zone width: 7 μsec.
Direction of rotation: counterclockwise (900 - 2100μsec).
Pulse width range: 900 - 2100 μsec.
Maximum travel distance: about 120° (900 - 2100 μsec).
Specification:
Type: Micro Servo.
Material: plastic.
Quantity: 6 pieces.
Idle speed: 0.12 sec/60 degrees (4.8 V); 0.13 sec/60 degrees (6.0 V).
Locking torque: 1.98 kg-cm (4.8 V).
Operating temperature: -30~+60 degrees Celsius.
Dead zone setting: 4 microseconds.
Operating voltage: 3.5 V ~ 6 V.

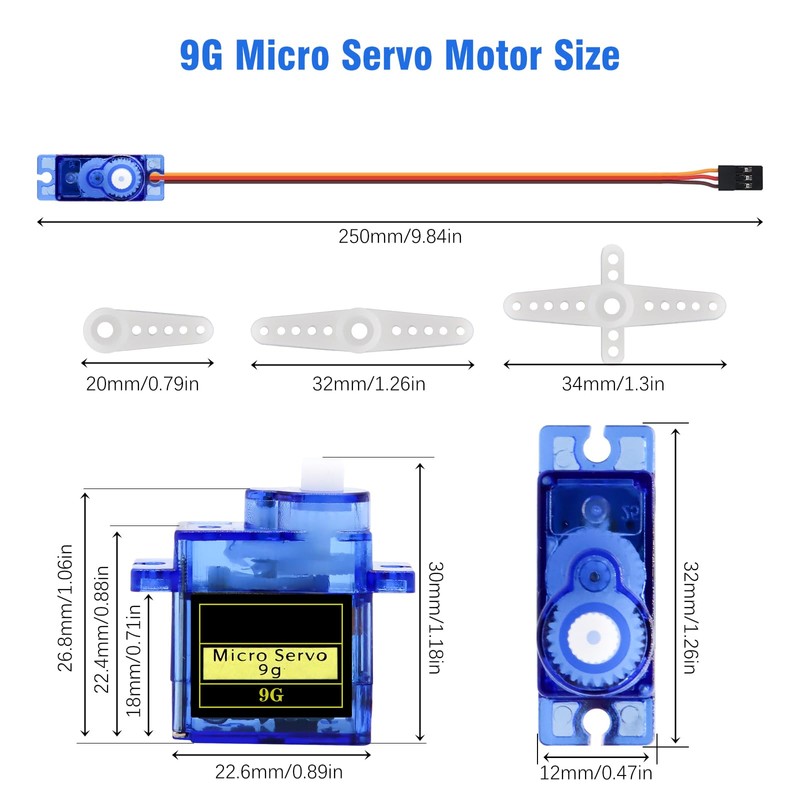

Item size: 2.3*2.2*1.1cm/0.9*0.9*0.4inch(L*W*H)
Cable length: 24 cm/9.4 inches.
Net weight: 11.6 g / 0.4 oz.
Servo Troubleshooting:

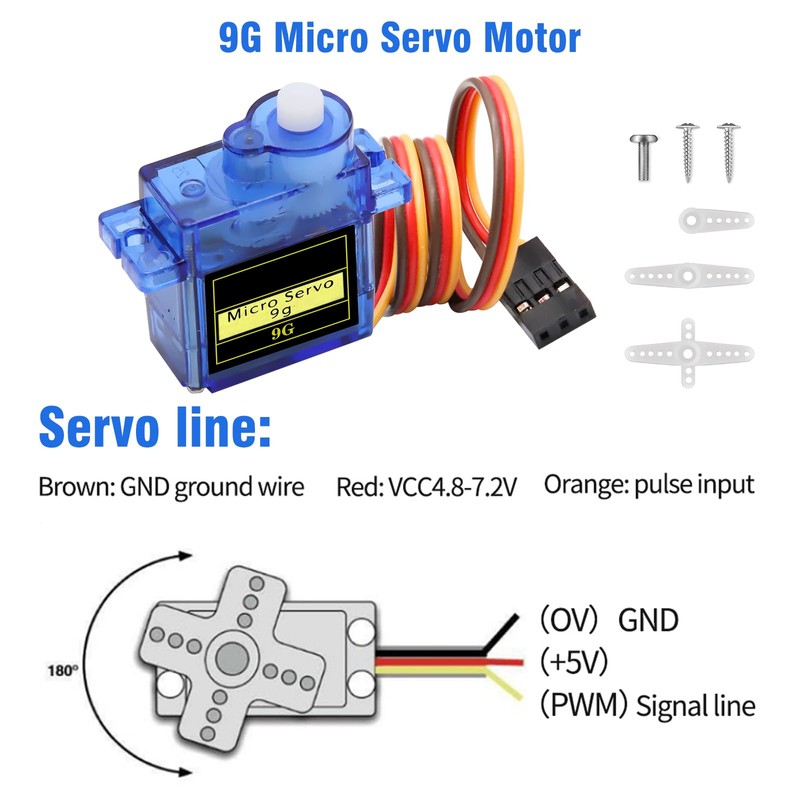

1. Once connected, control the rotation angle of the servo by sending PWM signals.

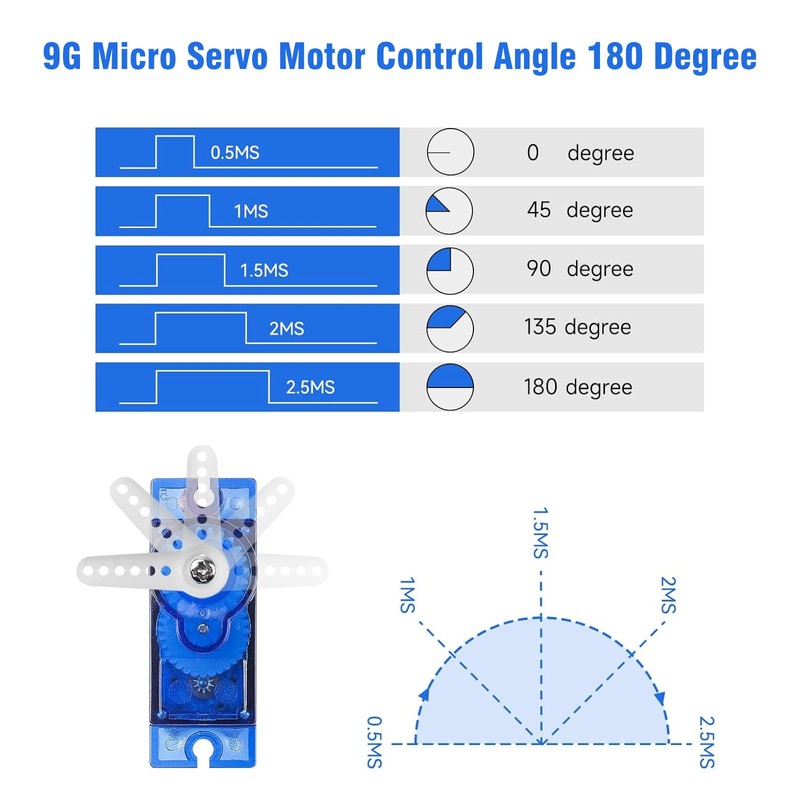

2. Normally a pulse width of 500us corresponds to 0 degrees, 1500us 90 degrees and 2500us 180 degrees.
3. Pay attention to the accuracy of the pulse width to avoid exceeding the operating angle of the servo.
Package:

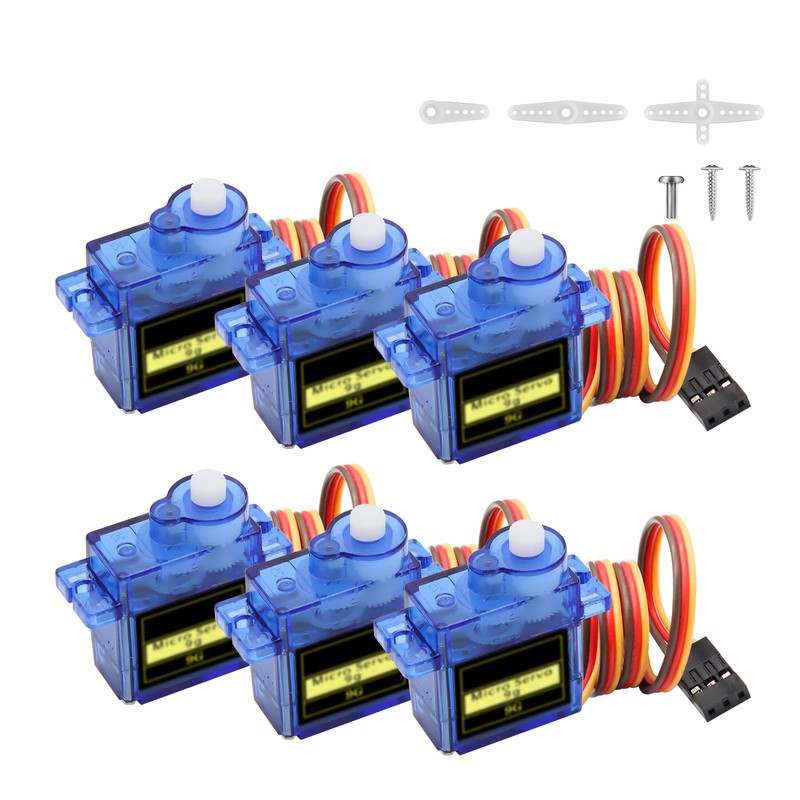

6 x micro servo motor kit.
6 x servo arms.
6 x screws kit.
