Micro Electric Linear Actuator with Controller, 2" Stroke Mini Motion Actuator 12V DC, 64N/14.4lb, Speed 0.6inch/s, w/Mounting Brackets, Rocker Switches, for Robotic Sofa TV Table Cabinet Window
$93.99
- $5.95 shipping from United States View details
-
Arrives
- Linear Actuator With Rocker Switch Kit - 64N Small electric actuator powered by 12 volts DC are mini actuator which create motion in a straight line, suitable for small and medium-sized loads, with mounting brackets, rocker switches, you can easy mounting it and manually control the extend and retract of the push.

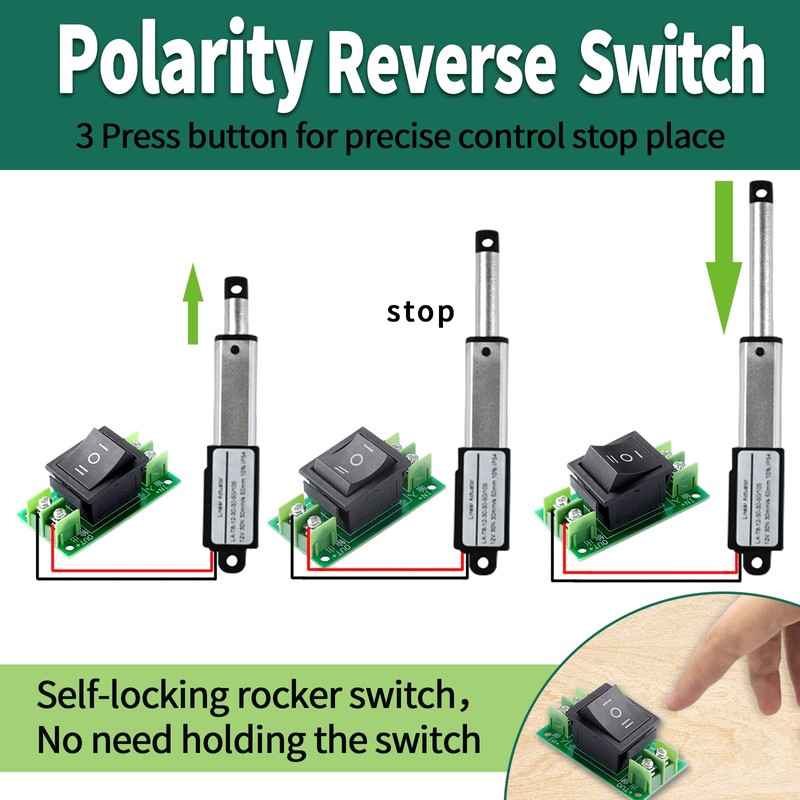

- Hold On Position You Want - Reverse polarity rocker push switch with ON/Off/ON 3 operation press button, it will in locked state, compare with momentary switch, do not need you hold the switch button all the time. Press “Off” button you can turn off power to the motor and stop position as you wish, More flexible and secure when you close window or pigeon cage.

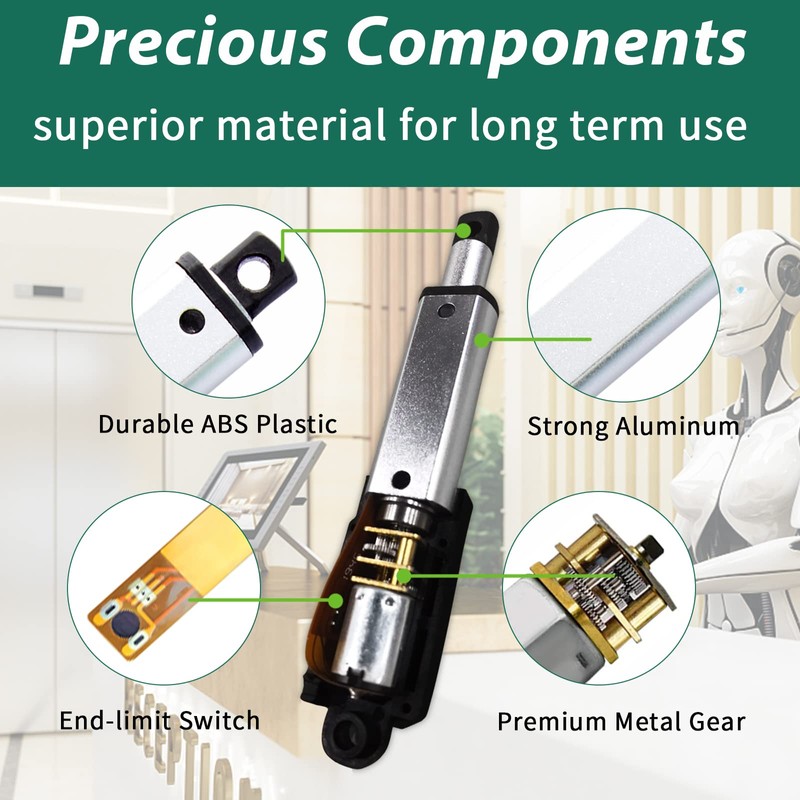

- Strong and Durable Linear Actuator - Built-in high quality aluminum gear and over-voltage protect, well constructed for long-term use. It come with end limit switch that will automatically stop when the device reaches the end of stroke, Ensure the motor won't burn out
- Multi-Applications - 2" Stroke small linear actuators fit tight space requirement project, a great pushers used in applications such as agricultural machines and equipment, medical devices, home automation, cabinet door, robot’s gripper, deck chair, window opener, linear servo, solar tracker, extend and retract the cylinder

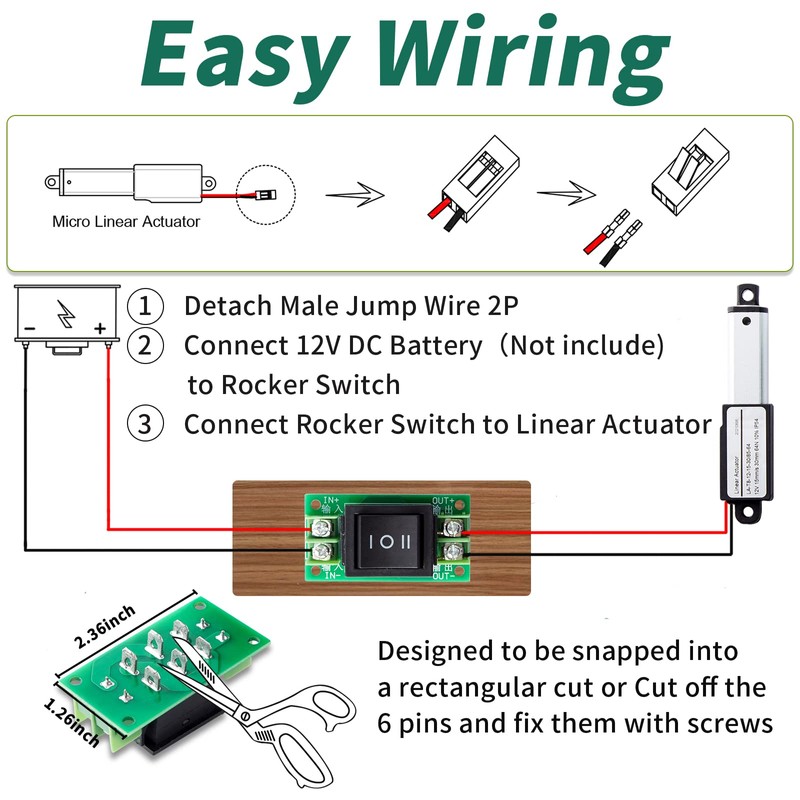

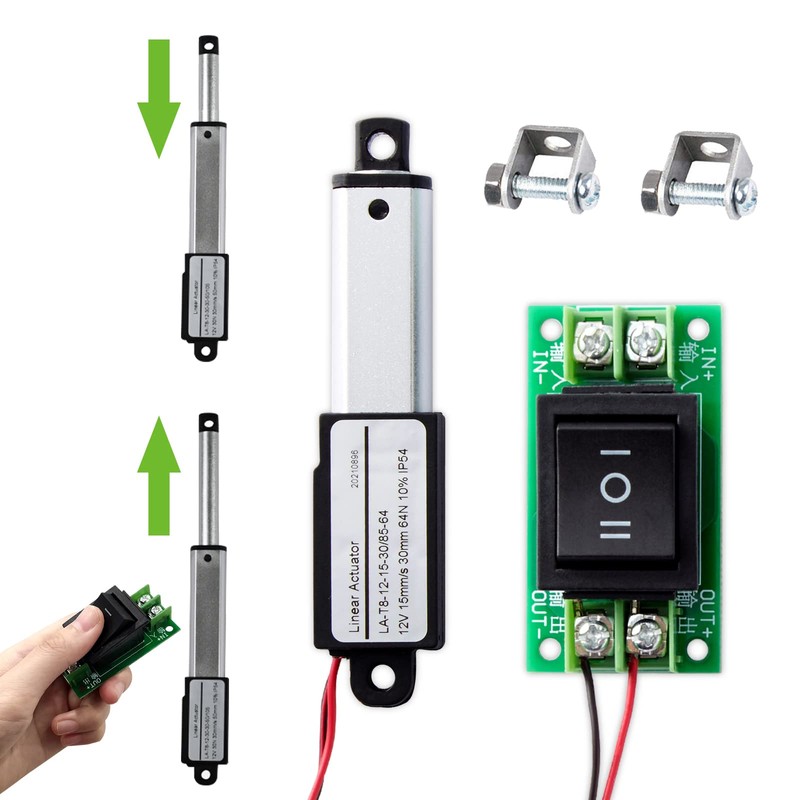

- Easy to Mounting - Package come with 2pcs mounting bracket and rocker switch with copper clad laminate, make you convenient to installation. Just wire up the red wire to positive and black wire to negative, Press on switch to control your actuator, work like a charm!
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Linear Actuator With Rocker Switch Kit - 64N Small electric actuator powered by 12 volts DC are mini actuator which create motion in a straight line, suitable for small and medium-sized loads, with mounting brackets, rocker switches, you can easy mounting it and manually control the extend and retract of the push.
- Hold On Position You Want - Reverse polarity rocker push switch with ON/Off/ON 3 operation press button, it will in locked state, compare with momentary switch, do not need you hold the switch button all the time. Press “Off” button you can turn off power to the motor and stop position as you wish, More flexible and secure when you close window or pigeon cage.
- Strong and Durable Linear Actuator - Built-in high quality aluminum gear and over-voltage protect, well constructed for long-term use. It come with end limit switch that will automatically stop when the device reaches the end of stroke, Ensure the motor won't burn out
- Multi-Applications - 2" Stroke small linear actuators fit tight space requirement project, a great pushers used in applications such as agricultural machines and equipment, medical devices, home automation, cabinet door, robot’s gripper, deck chair, window opener, linear servo, solar tracker, extend and retract the cylinder
- Easy to Mounting - Package come with 2pcs mounting bracket and rocker switch with copper clad laminate, make you convenient to installation. Just wire up the red wire to positive and black wire to negative, Press on switch to control your actuator, work like a charm!

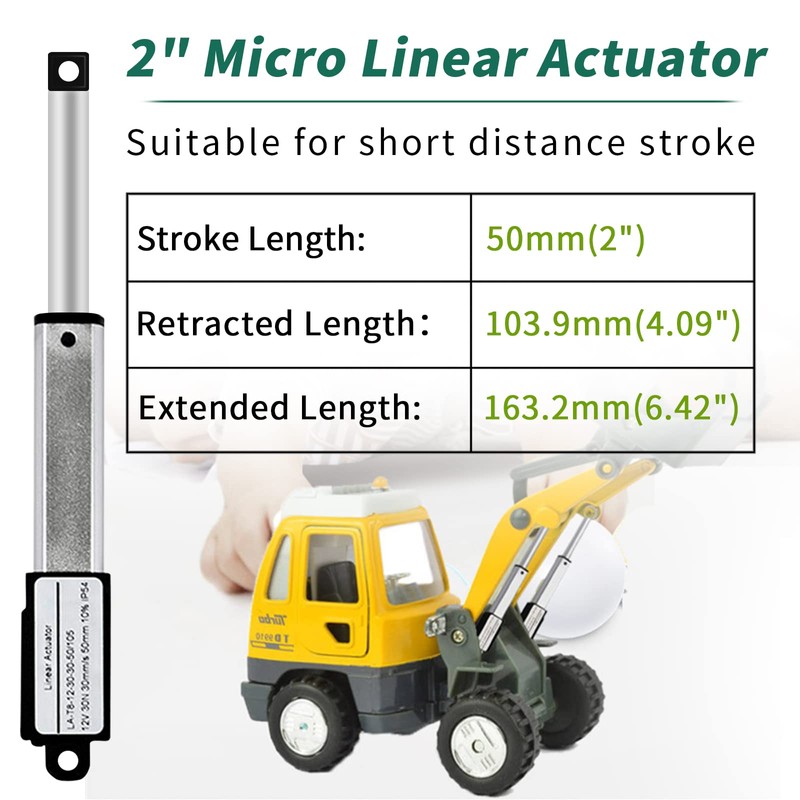

Stroke Length: 2”
Retracted Length = 103.9mm(4.09")
Extended Length = 163.2mm(6.42“)
Rated Load: 64N( 14.4 lbs)
Travel Speed: 15mm/s( 0.59 inches/sec)
Input Voltage: DC 12V
Package Weight: 3.5 oz
Duty Circle: 10%
Noise Level: db<55 (A)
Color: Black and Silver
Certification: CE-RoHS UL
Switch Control Material: Quality ABS
Outer Tube Material: Iron
Protect Feature: Waterproof
Protection Rating: IP54
Limit Switch: Built in, Factory Preset
Condition: 100% Brand New
● Stroke means the movement length of linear actuator.

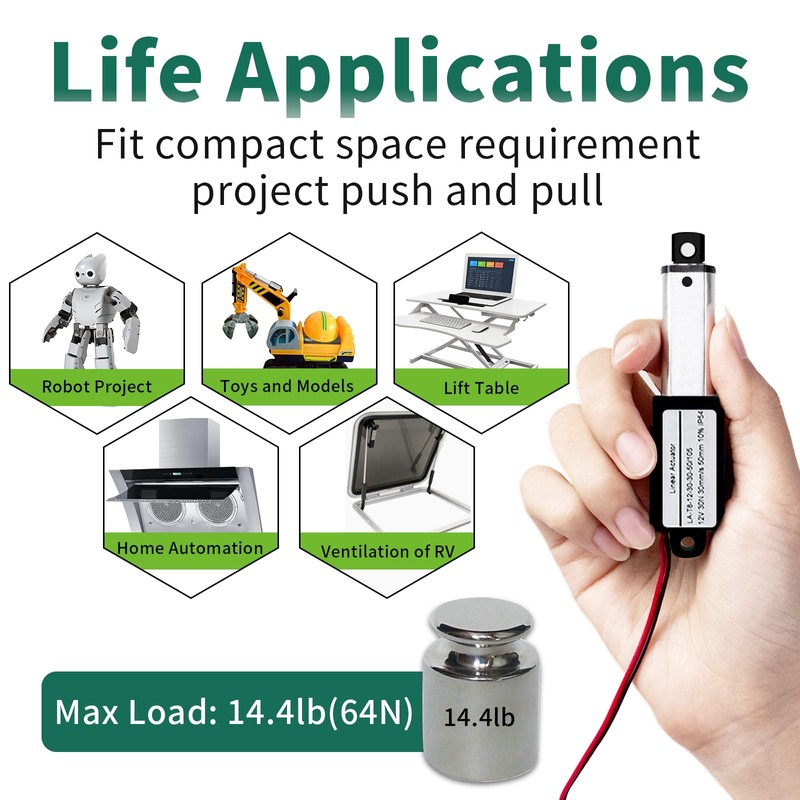

WIDE APPLICATIONS
Medical Care, Healthy Office, Smart Home, Industry Field
- Automotive
- Medical Devices
- Engineering Industry
- Massage sofa
- Recliner
- TV lifter
- Lifting table
- Electric window opener
And more
