MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90

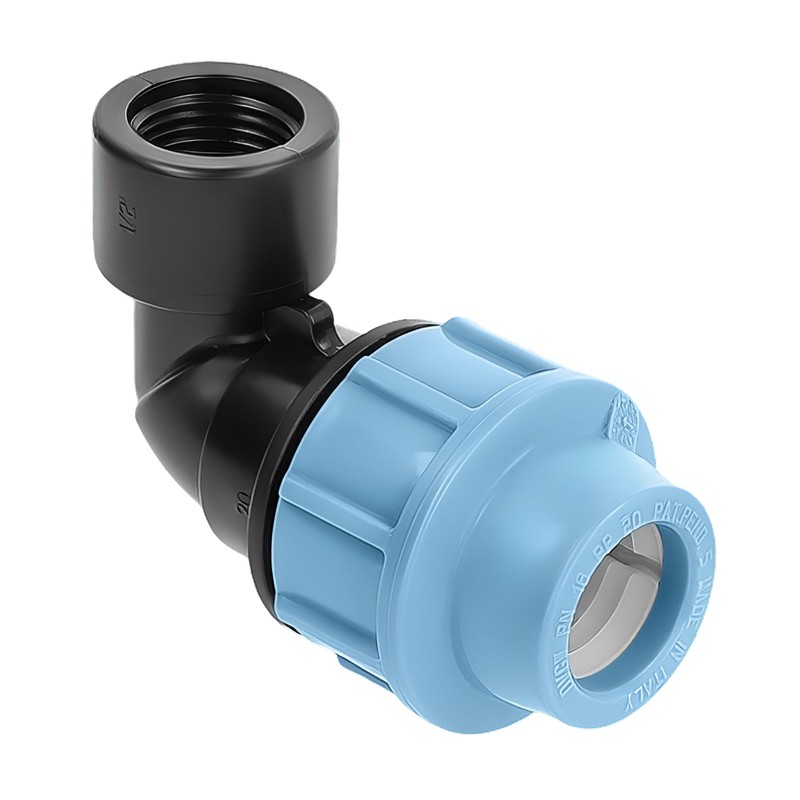

MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90 Degree 1/2" Female 20 mm Adaptor

$36.12

  • ✅ BSP THREAD: Please note that all thread dimensions are listed in accordance with the British Standard Pipe (BSP) and are different from the typical Imperial unit, for example, the 3/4" BSP thread reacts to the imperial 1". If you are unsure, refer to the BSP measurement chart or a plumber.
  • ✅ TECHNICAL SPECIFICATIONS: It can withstand working pressure up to 16 bar. The max. Working temperature when connecting to PE pipes is up to 45°C. The fitting has 20mm female x 1/2" BSP female thread.
  • Safe and durable materials: the MDPE pipe 20 mm angle adapter has the hygiene certificate BK / W / 0735/01/2018. TZW Karlsruhe exam KR 099/17 from 12 July 2017 and MO 134/15 from 2 December 2015. The product complies with PN-EN 10226-1:2006 and PN-EN ISO 228-1:2005 standards. DVGW certificate DW-8616AU2045
  • ✅ FOR COLD WATER SYSTEMS: The adapter is designed for indoor and outdoor installations of plastic pipe water systems. It will quickly and easily connect water pipe or hose. The product allows the connection of PP water pipes with other material threaded pipes e.g. steel pipes, other galvanised connections, brass.
  • ✅ FOR IRRIGATION SYSTEMS: The adapter fitting can be installed with garden pipe or garden hose in agricultural irrigation systems. It helps to create routes with hoses for garden irrigation systems. With the MDPE fittings you can water any part of your garden. The plumbing fittings are UV resistant.

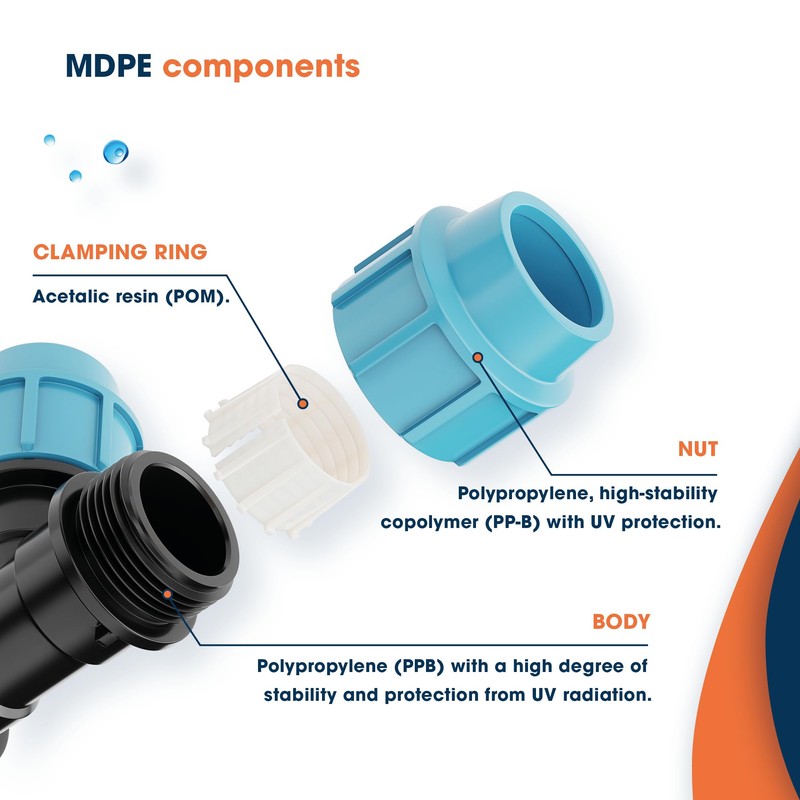

  • ✅ CONSTRUCTION: A black body made of PPB, a blue nut made of PPB, an O-ring seal made of NBR rubber, a black blocking bush made of PPB and a white acetal resin (POM) clamping ring. The fittings have compression ends.

Size:
1/2" F x 20 mm
Color:
Black
Manufacturer:
BFG
Part Number:
NGKVZTY
Material Type:
Plastic
Isin:
IHOTFVG1GMOV

$36.12

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90 Degree 1/2" Female 20 mm Adaptor

MDPE PE Water Pipe Elbow Plastic Compression Reducer Fitting 90 Degree 1/2" F...

$36.12

  • ✅ BSP THREAD: Please note that all thread dimensions are listed in accordance with the British Standard Pipe (BSP) and are different from the typical Imperial unit, for example, the 3/4" BSP thread reacts to the imperial 1". If you are unsure, refer to the BSP measurement chart or a plumber.
  • ✅ TECHNICAL SPECIFICATIONS: It can withstand working pressure up to 16 bar. The max. Working temperature when connecting to PE pipes is up to 45°C. The fitting has 20mm female x 1/2" BSP female thread.
  • Safe and durable materials: the MDPE pipe 20 mm angle adapter has the hygiene certificate BK / W / 0735/01/2018. TZW Karlsruhe exam KR 099/17 from 12 July 2017 and MO 134/15 from 2 December 2015. The product complies with PN-EN 10226-1:2006 and PN-EN ISO 228-1:2005 standards. DVGW certificate DW-8616AU2045
  • ✅ FOR COLD WATER SYSTEMS: The adapter is designed for indoor and outdoor installations of plastic pipe water systems. It will quickly and easily connect water pipe or hose. The product allows the connection of PP water pipes with other material threaded pipes e.g. steel pipes, other galvanised connections, brass.
  • ✅ FOR IRRIGATION SYSTEMS: The adapter fitting can be installed with garden pipe or garden hose in agricultural irrigation systems. It helps to create routes with hoses for garden irrigation systems. With the MDPE fittings you can water any part of your garden. The plumbing fittings are UV resistant.
  • ✅ CONSTRUCTION: A black body made of PPB, a blue nut made of PPB, an O-ring seal made of NBR rubber, a black blocking bush made of PPB and a white acetal resin (POM) clamping ring. The fittings have compression ends.

Size:
1/2" F x 20 mm
Color:
Black
Manufacturer:
BFG
Part Number:
NGKVZTY
Material Type:
Plastic
Isin:
IHOTFVG1GMOV

HYDROBIL Specialized in all types of water and gas systems. Here we have the 20mm MDPE pipe elbow adapter connection for your indoor and outdoor water supply systems. The MDPE pipe 20mm elbow is made for plastic pipe or PE pipe and connects easily to them that clamp tightly together with its acetal resin nut insert. This elbow water pipe connector ensures its proper sealing with an innovative system of NBR rubber O-rings pressed through PPB socket and locked with the nut that you can tighten with a special wrench for MDPE fittings. Apart from being used in plumbing fittings, the 20mm MDPE Pipe Elbow Adapter is one of the greatest garden accessories you can use to improve your garden water pipe systems. With its UV resistance, you are free to create an irrigation system that stays in place and works for you in any weather. You don't need to put it in the garden storage if the sky is clear for too long. An elbow shape of these plastic pipe MDPE fittings is also helpful for creating routes where irrigation pipes reach any part of your property or simply connect the outdoor system to a threaded pipe of the water pipe. In addition to plastic pipes, you can also use this bow as a hose connector. If you act as a garden hose connector, you can reach difficult places with your advanced water systems with our product. This durable and versatile 20mm MDPE pipe connector is a solid choice for any professional plumber as well as any person looking to enhance their home or garden.
