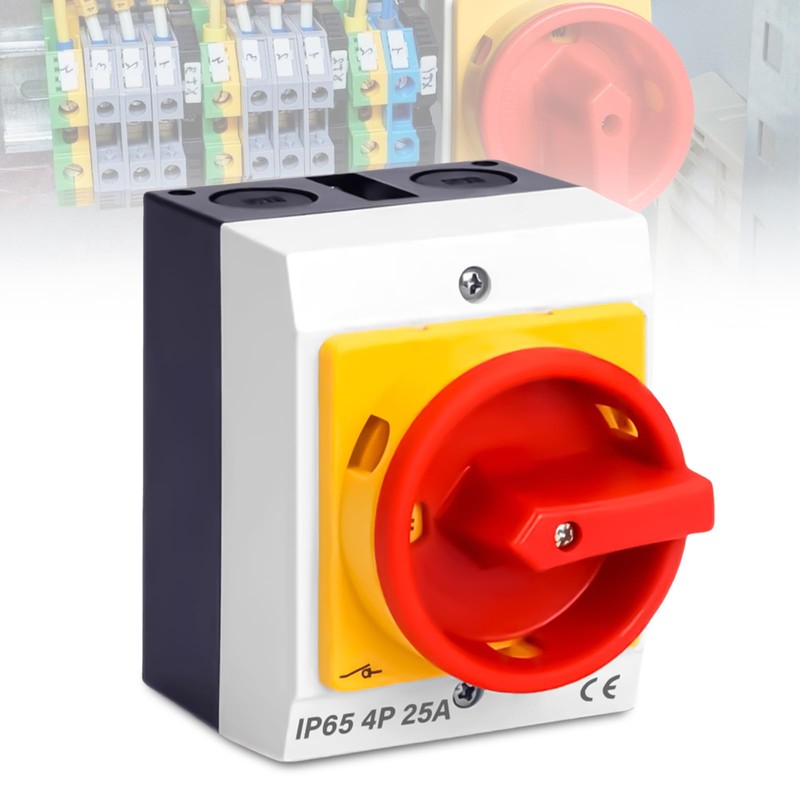

Main Switch Circuit Breaker 25A: 4-Pin Main Switch in Housing, IP65 Main Switch with Plastic Housing, Rotary Switch for Connecting Switches and Disconnecting Small Circuits
$45.02
- $9.99 shipping from Germany View details
-
Arrives

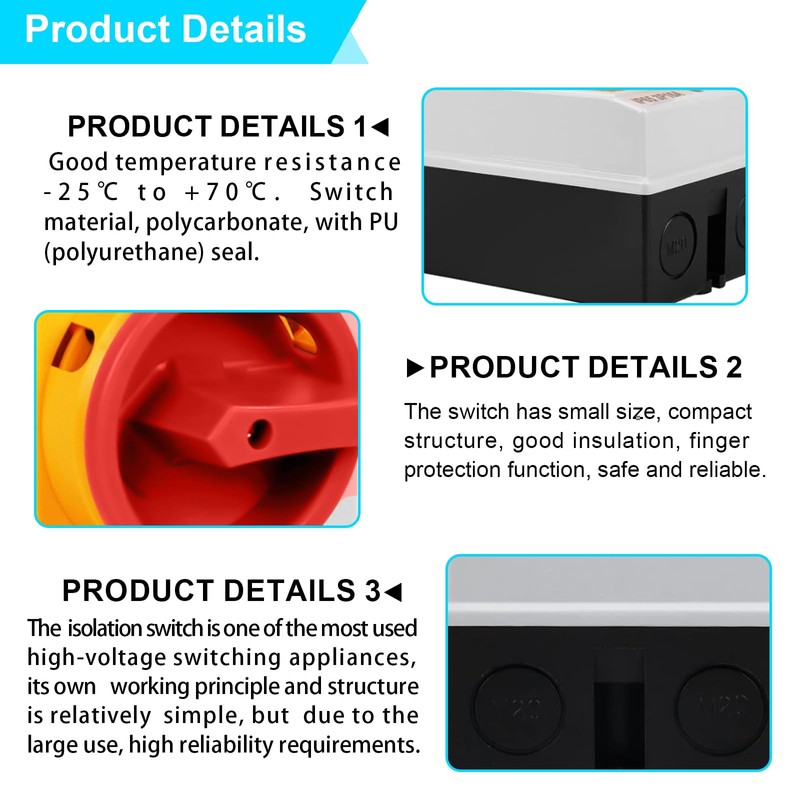

- Material: the main circuit breaker 25 A is made of a robust polycarbonate and is perfect for outdoor use. It has a protection class of IP 65. The switch is equipped with padlock locks for a maximum of 3 locks and can therefore guarantee a safe shutdown. The temperature resistance is -25°C ~ +70°C. Flexible cable routing is made possible by the pre-embossing on the housing.
- Protection class: IP65 front side, rated current: 25 A, connection: 4-pin, rated operating voltage: 230 - 440 V.

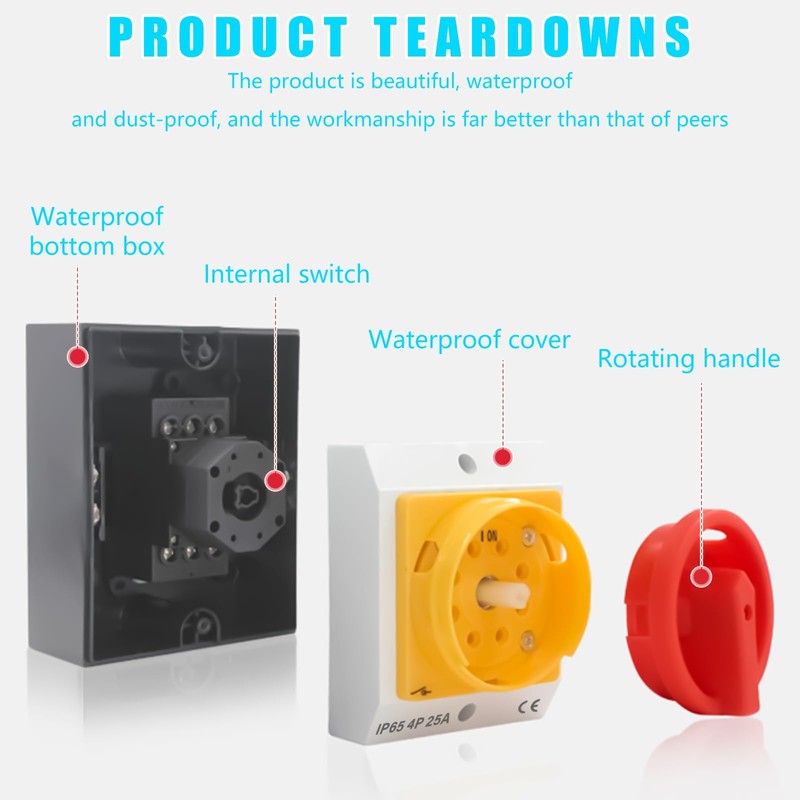

- High-quality construction: the 4-pin main switch main switch and emergency stop switch provides a clear display with clear "0" and "I" position markings. 25A main switch circuit breaker. Each component has been designed for maximum reliability and long-lasting performance, which allows the switch to be used as both a main and repair switch.
- Optimal safety features: main switch circuit breaker equipped with a contact separation thanks to forced opening contacts and without undervoltage trigger, this switch ensures maximum safety in any application. Main switch: the M4 connection screws and cable inputs M20/25 are carefully prepared and facilitate installation.

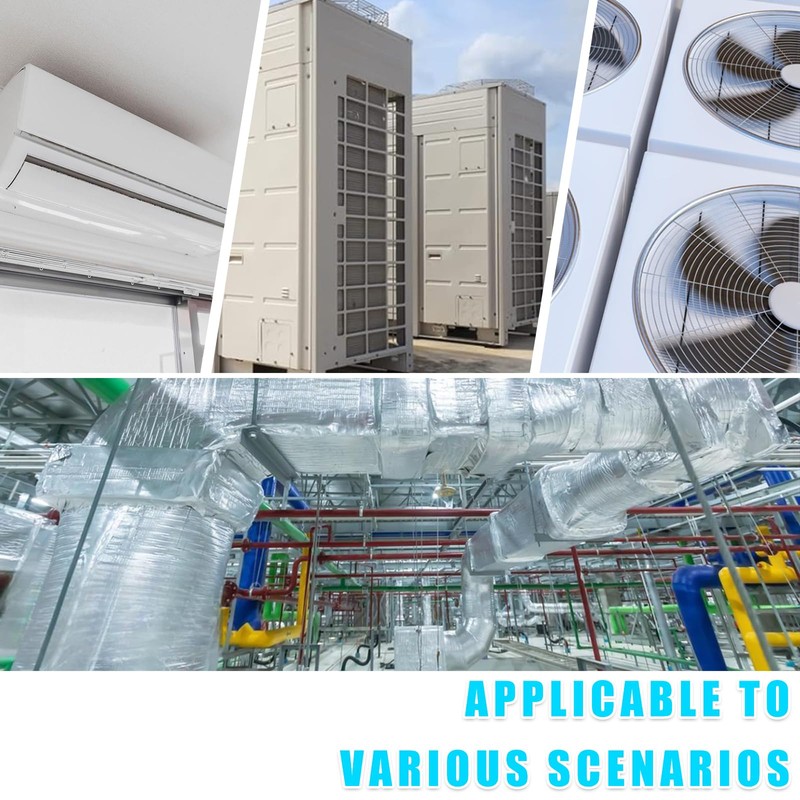

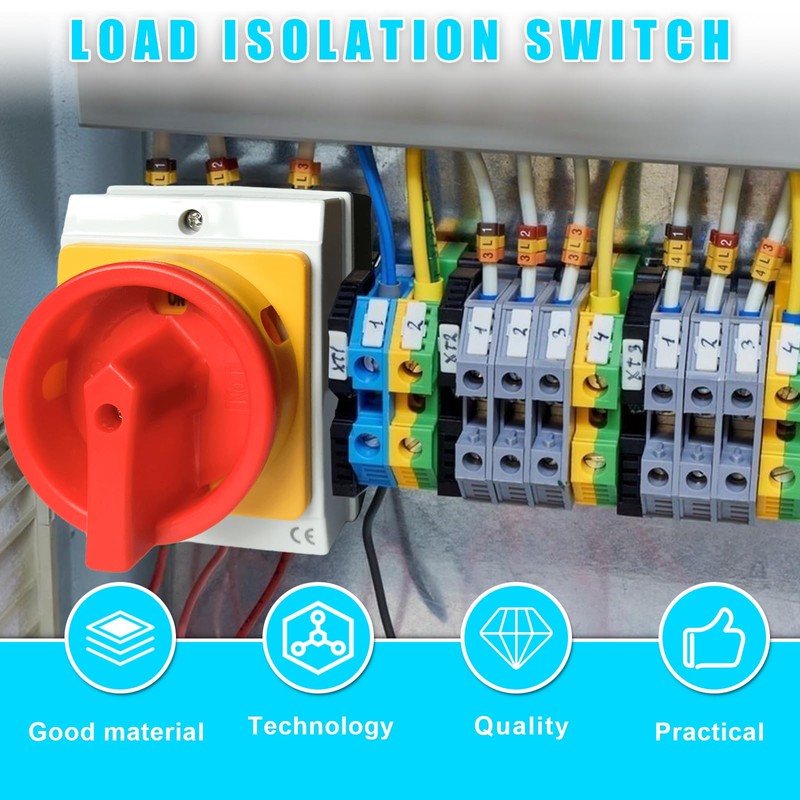

- Widely used: the main circuit breaker is used as the main switch of ventilation units, air conditioners and water pumps, solar energy systems and can also directly control AC motors with small capacity.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Material: the main circuit breaker 25 A is made of a robust polycarbonate and is perfect for outdoor use. It has a protection class of IP 65. The switch is equipped with padlock locks for a maximum of 3 locks and can therefore guarantee a safe shutdown. The temperature resistance is -25°C ~ +70°C. Flexible cable routing is made possible by the pre-embossing on the housing.
- Protection class: IP65 front side, rated current: 25 A, connection: 4-pin, rated operating voltage: 230 - 440 V.
- High-quality construction: the 4-pin main switch main switch and emergency stop switch provides a clear display with clear "0" and "I" position markings. 25A main switch circuit breaker. Each component has been designed for maximum reliability and long-lasting performance, which allows the switch to be used as both a main and repair switch.
- Optimal safety features: main switch circuit breaker equipped with a contact separation thanks to forced opening contacts and without undervoltage trigger, this switch ensures maximum safety in any application. Main switch: the M4 connection screws and cable inputs M20/25 are carefully prepared and facilitate installation.
- Widely used: the main circuit breaker is used as the main switch of ventilation units, air conditioners and water pumps, solar energy systems and can also directly control AC motors with small capacity.
High manufacturing quality.
Thanks to the different pre-embossing for cable glands on several housing sides, the cable guide for the main switches can be very flexible.
Protection class of IP 65.

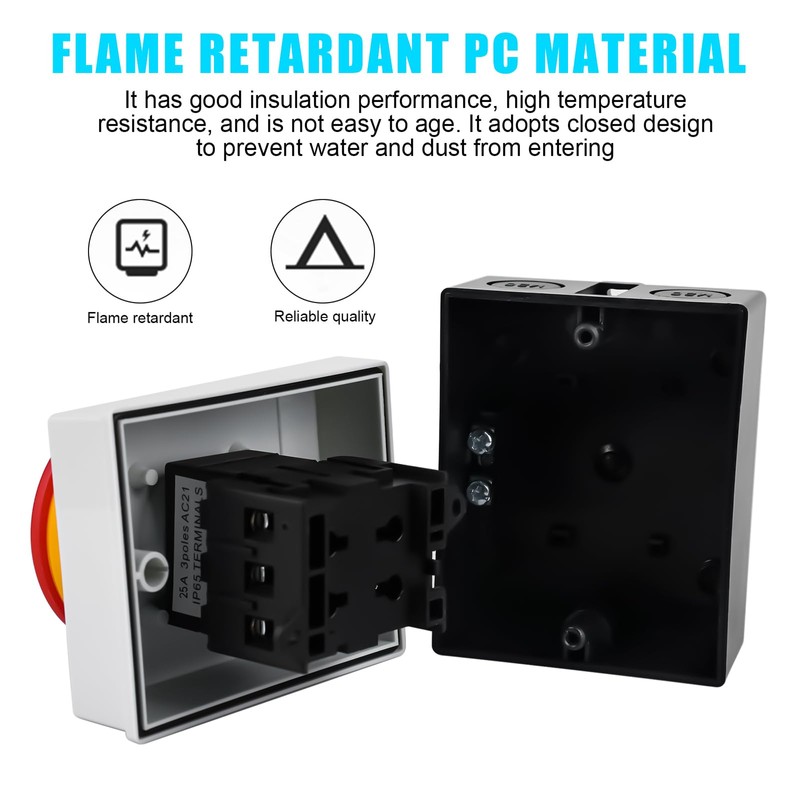

The housing switch is made of a robust polycarbonate and is perfect for outdoor use. It has a protection class of IP 65.
The following standards apply:
The main switch is mainly used in 50Hz AC circuits, rated operating voltage below 440V and rated current up to 100A.
Specifications:
Rated current: 25 A.
AC current: 50 Hz.
Rated working voltage: 440 V.
Temperature resistance: -25°C to +70°C.
Product size: 13 x 11 x 11 cm.
Weight: 350 g.
Package includes:
1 x 25 A main switch circuit breaker.
Friendly tips:
1. If you have any questions, ask us this request. We will reply to them within 24 hours.
