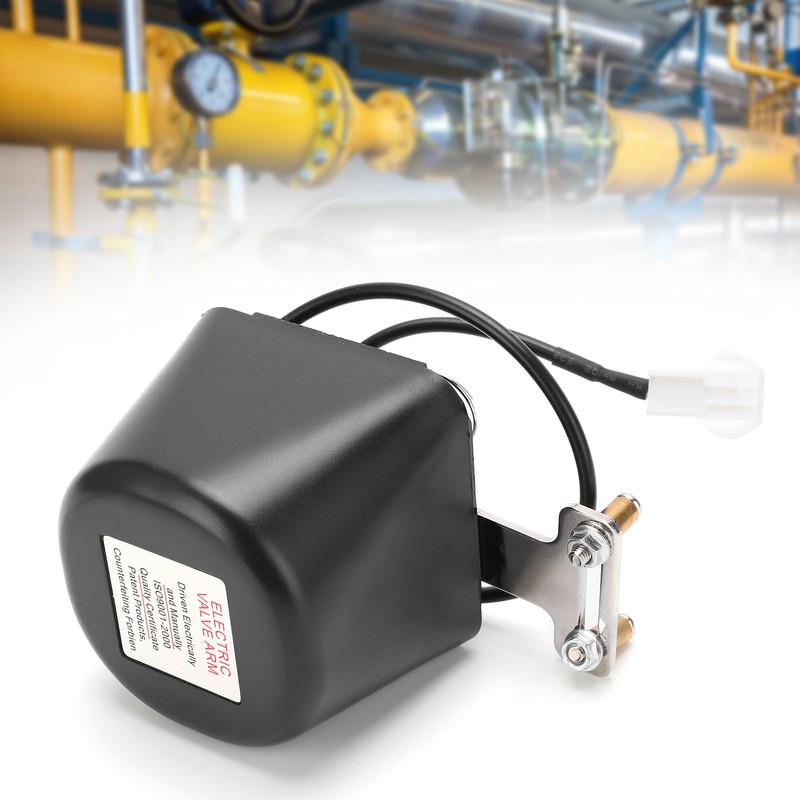

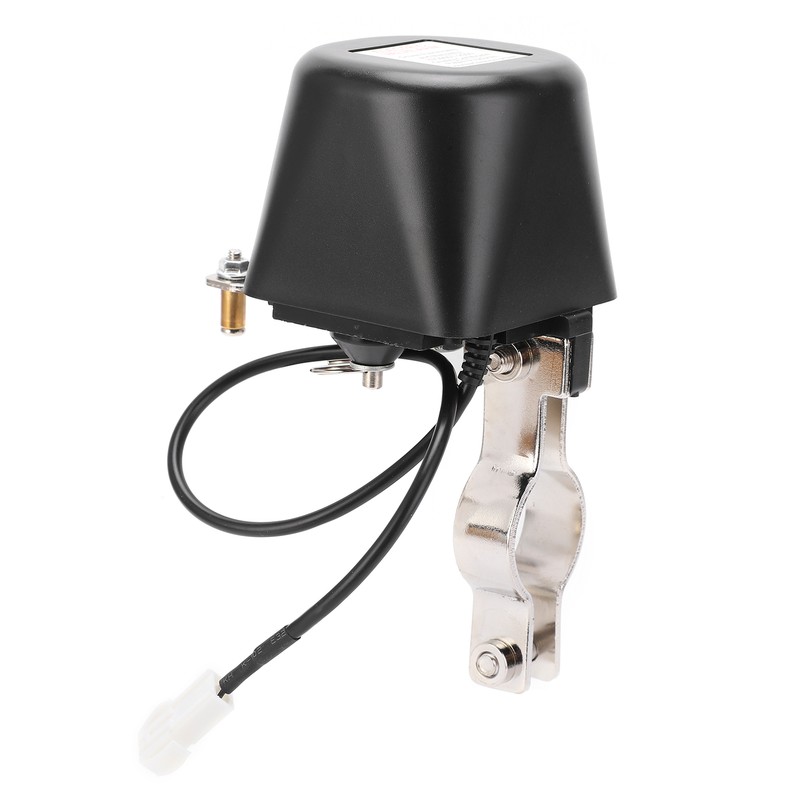

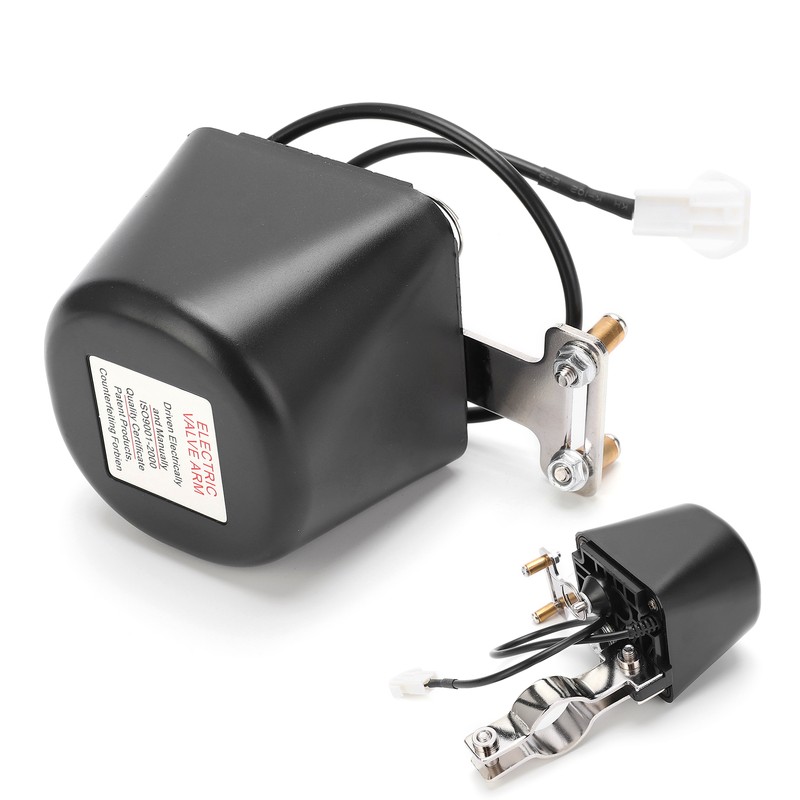

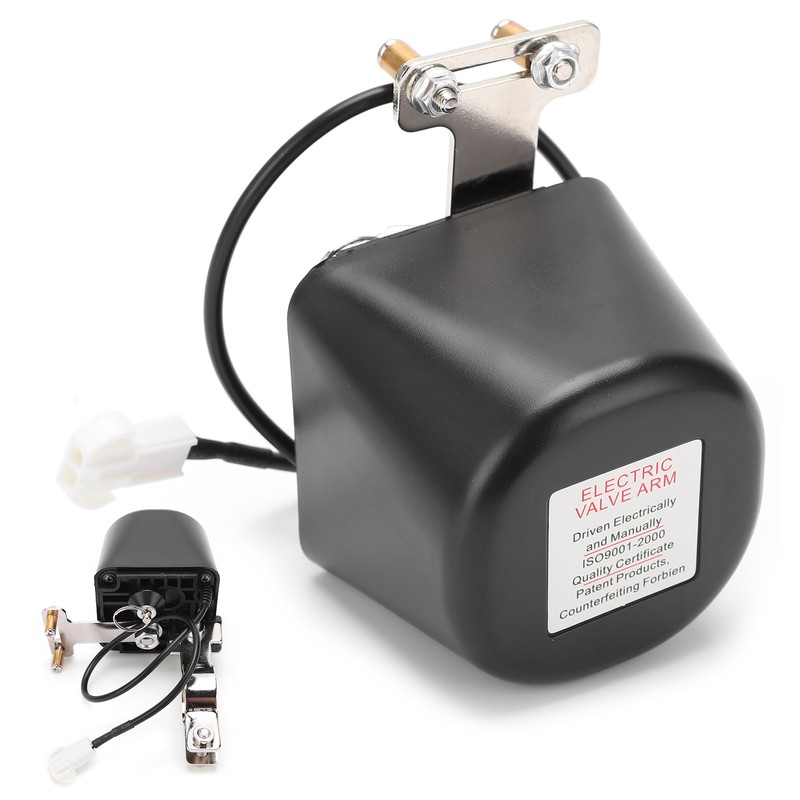

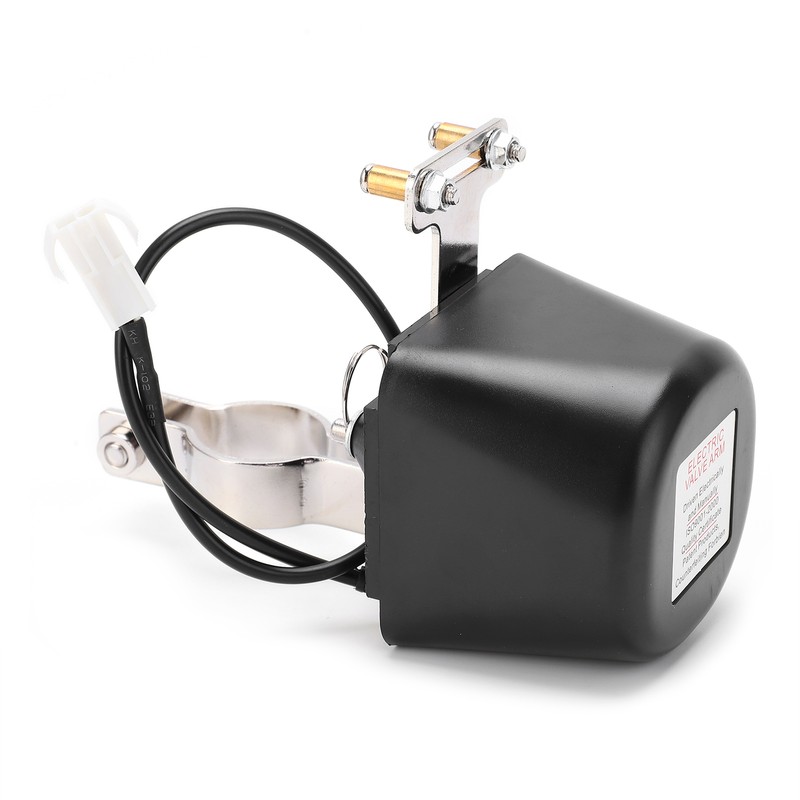

Magnetic Valve Manipulator Gas Shutoff AntiElectromagnetic Interference Manual Switching
Magnetic Valve Manipulator Gas Shutoff AntiElectromagnetic Interference Manual Switching
Magnetic Valve Manipulator Gas Shutoff AntiElectromagnetic Interference Manual Switching
Product Overview

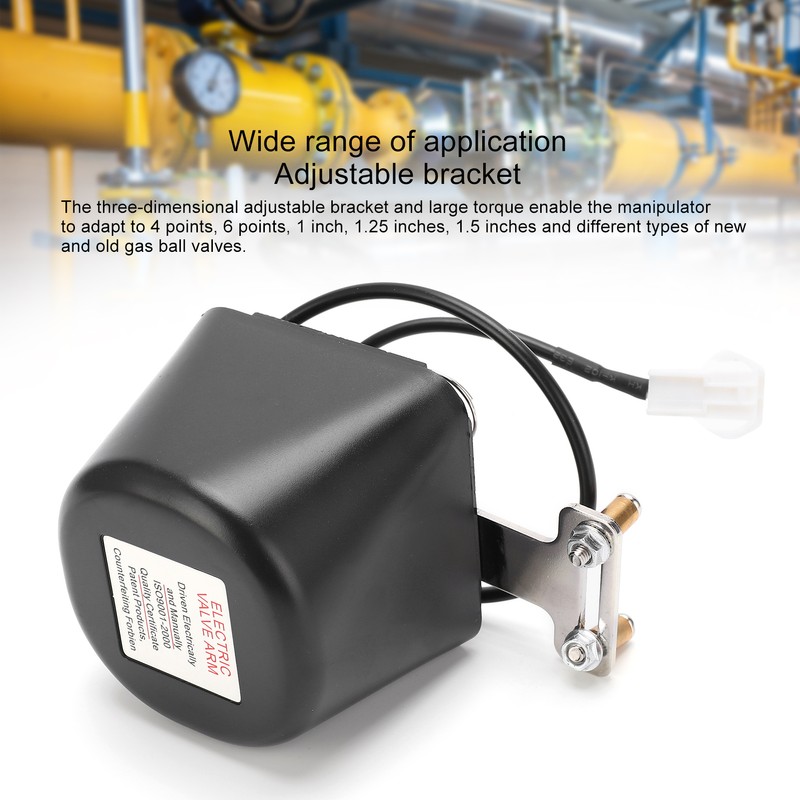

1、The three‑dimensional adjustable bracket and large torque enable the manipulator to adapt to 1/2in, 3/4in, 1in, 1.25in, 1.5in and different types of new and old gas ball valves. 2、Used for pipeline gas ball valves, needless to change the original design of gas pipelines, both new and old gas pipelines are applicable, also, installation and maintenance can also be done without company's help. 3、Our manipulator anti‑solenoid valve is fully equipped. We will provide you with a special ball valve for gas cylinders for automatic control of bottled gas. 4、When the gas leakage alarms, the main valve for entering the house is automatically closed quickly and reliably, and the gas source is completely cut off, which is highly safe. 5、Support electric and manual compatible. The manipulator can automatically switch and push button electric switch, and the valve can be manually switched on and off during power failure or maintenance, which is safe and convenient.
| Isin: | IA2HDZ2VEJTC |
|---|
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
1、The three‑dimensional adjustable bracket and large torque enable the manipulator to adapt to 1/2in, 3/4in, 1in, 1.25in, 1.5in and different types of new and old gas ball valves. 2、Used for pipeline gas ball valves, needless to change the original design of gas pipelines, both new and old gas pipelines are applicable, also, installation and maintenance can also be done without company's help. 3、Our manipulator anti‑solenoid valve is fully equipped. We will provide you with a special ball valve for gas cylinders for automatic control of bottled gas. 4、When the gas leakage alarms, the main valve for entering the house is automatically closed quickly and reliably, and the gas source is completely cut off, which is highly safe. 5、Support electric and manual compatible. The manipulator can automatically switch and push button electric switch, and the valve can be manually switched on and off during power failure or maintenance, which is safe and convenient.
| Isin: | IA2HDZ2VEJTC |
|---|
1、The three‑dimensional adjustable bracket and large torque enable the manipulator to adapt to 1/2in, 3/4in, 1in, 1.25in, 1.5in and different types of new and old gas ball valves. 2、Used for pipeline gas ball valves, needless to change the original design of gas pipelines, both new and old gas pipelines are applicable, also, installation and maintenance can also be done without company's help. 3、Our manipulator anti‑solenoid valve is fully equipped. We will provide you with a special ball valve for gas cylinders for automatic control of bottled gas. 4、When the gas leakage alarms, the main valve for entering the house is automatically closed quickly and reliably, and the gas source is completely cut off, which is highly safe. 5、Support electric and manual compatible. The manipulator can automatically switch and push button electric switch, and the valve can be manually switched on and off during power failure or maintenance, which is safe and convenient.
More Information
Item Type: Magnetic Valve
Material: Alloy Steel
Working Temperature: -10-50℃
Humidity: <95%
Rated Current: 100mA
Rated Power: 1.2W
Valve Pressure: 1.6MPa
Valve Specifications: 1/2in, 3/4in, 1in, 1.25in, 1.5in
Automatic Valve Closing Time: 6-20 Seconds
Electric Valve Opening Time: 6-20 Seconds
Insulation Resistance: >20m Ω
Withstand Voltage: DC600V

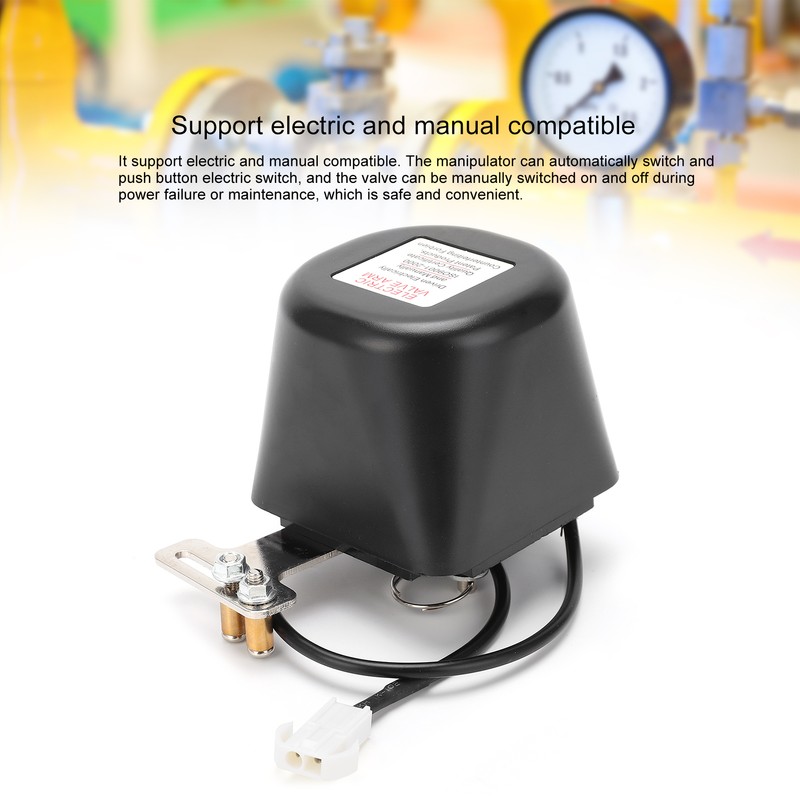

Feature: Anti-radio Interference, with Automatic and Manual Switching Clutch
Installation Guide:

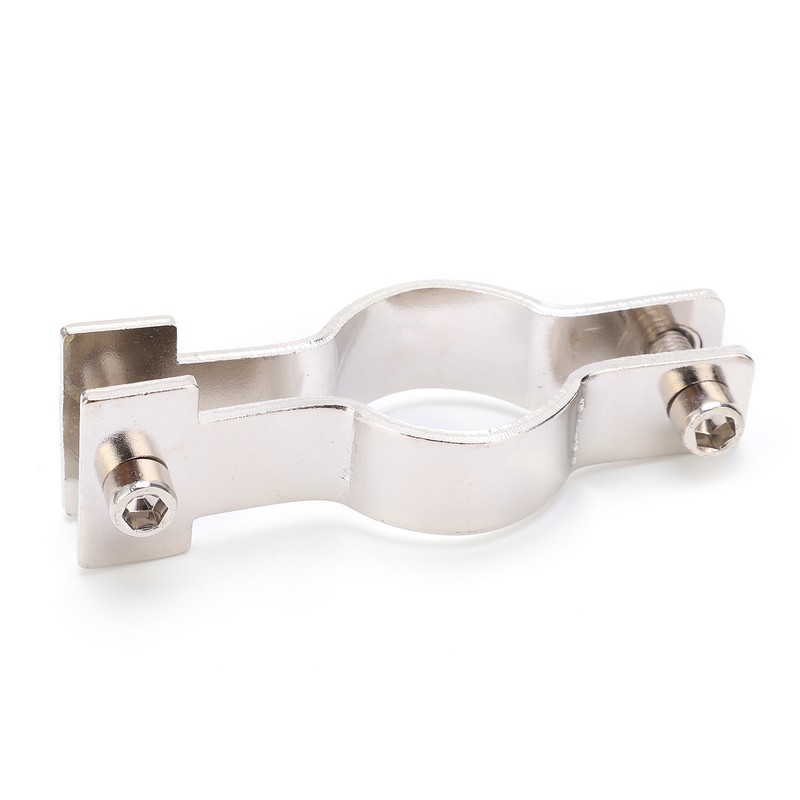

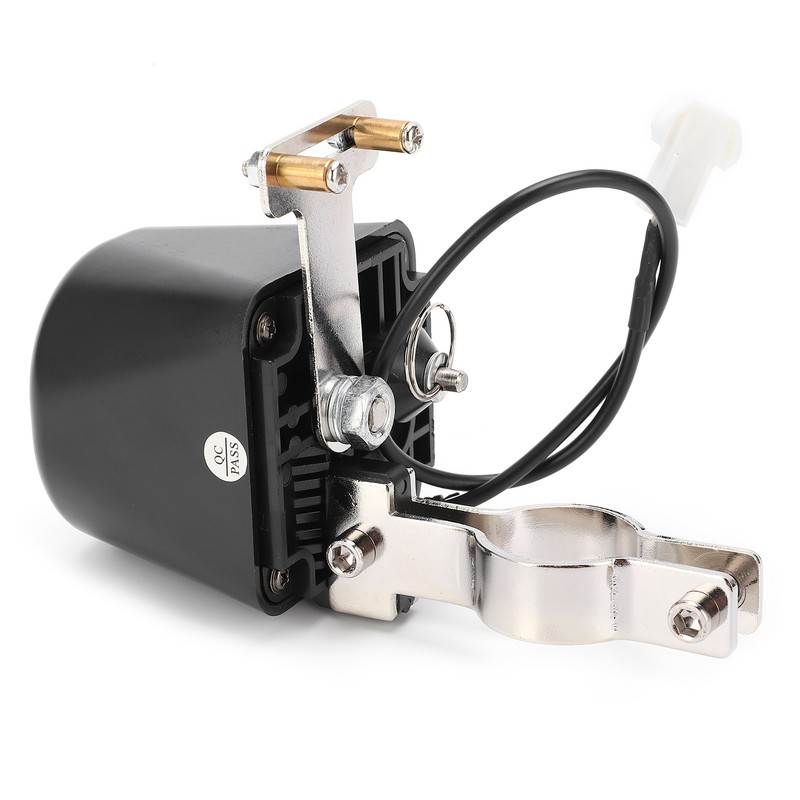

1.For pipeline gas users, the main ball valve in the original household should be designed and installed in a position that is convenient for manual switch operation. The valve control manipulator should be installed on the original household gas ball valve. The half-circle of the two brackets clamps the 60,000 or 80,000 on the end of the valve without the handle. The two long handles of the bracket clamp the mounting ears of the manipulator. Pay attention to the screw The long handle end of the bracket of the hole should be clamped on the side of the mounting ear with the guide bar, and two M6 x 16 hexagon bolts are screwed into the screw holes at both ends of the bracket, and the two brackets are preliminarily installed. Do not tighten the bolts yet: Hold the two arm screws symmetrically on both sides of the valve handle, use a cross screwdriver and a 7# wrench to tighten the 2 x M4 nuts; at this time, pay attention to adjust the three-dimensional position of the bracket to make the manipulator output shaft and the center line of the valve shaft as coaxial as possible Wire; Use 10# fork wrench or box wrench, preferably a socket wrench to tighten two M6 x 16 hexagonal bolts. The manipulator shell should not be close to the wall, and should be installed at least one palm thickness (20mm) away from the wall. The current lead of the manipulator is connected to the current output lead of the gas alarm, the red is connected to the "+" pole, and the black is connected to the "－" pole.
2. Bottle gas users should unscrew the original pressure reducing valve, and install the manipulator with a special ball valve for the steel cylinder between the original steel cylinder angle valve and the pressure reducing valve.
