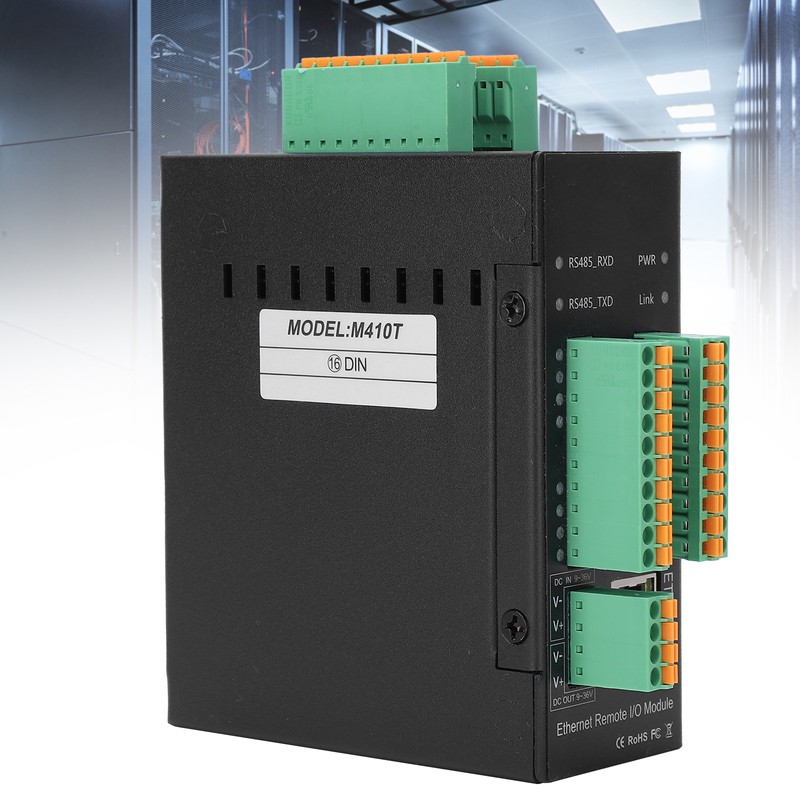

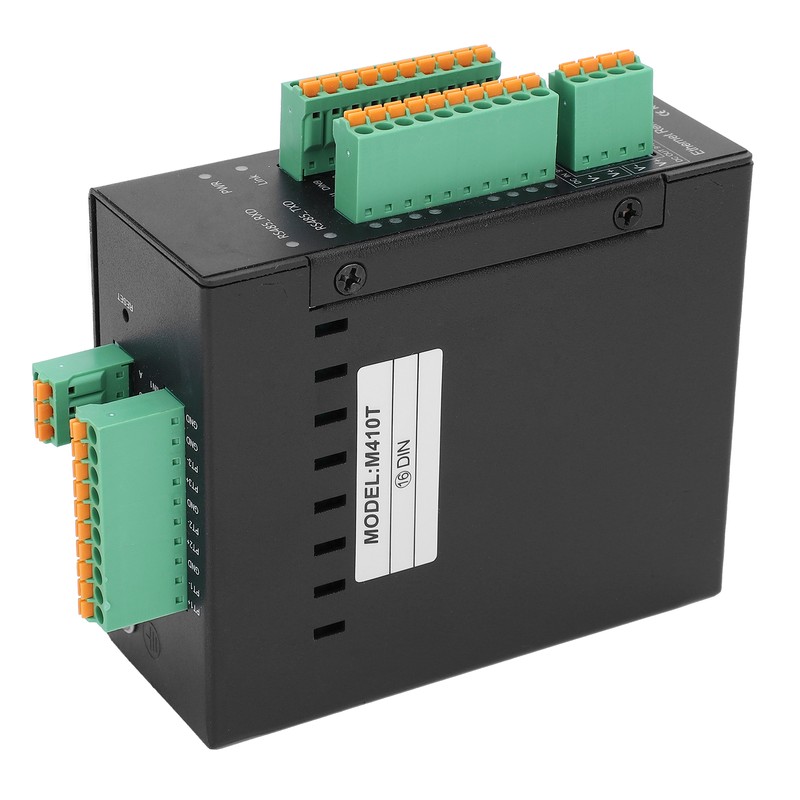

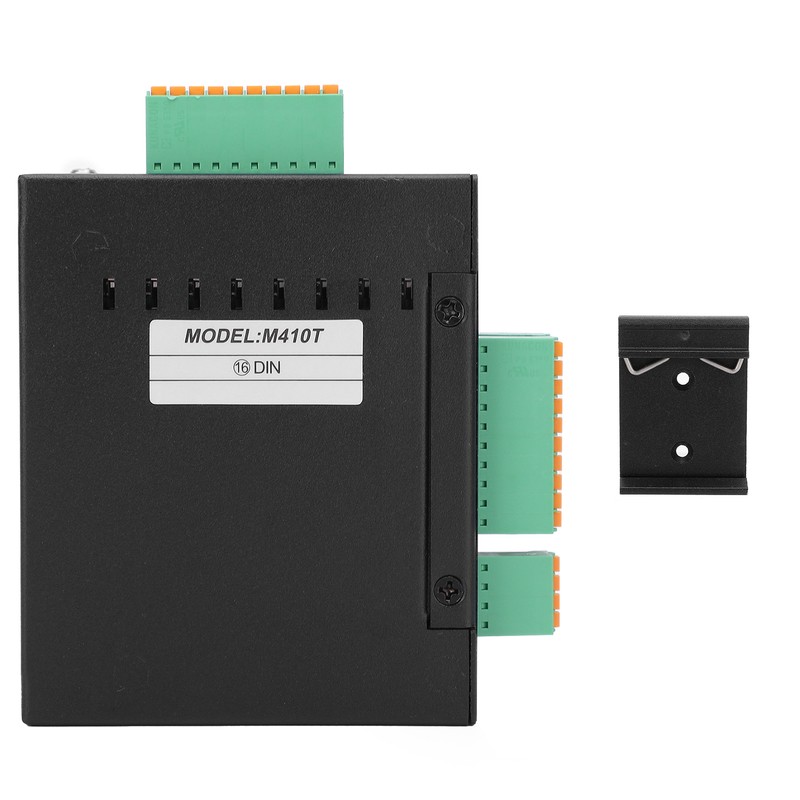

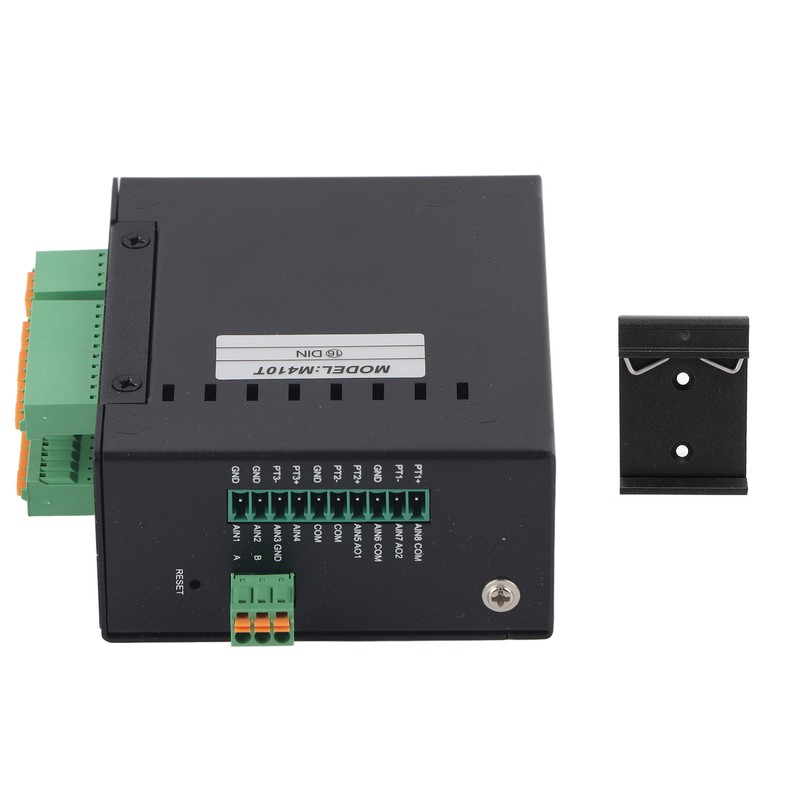

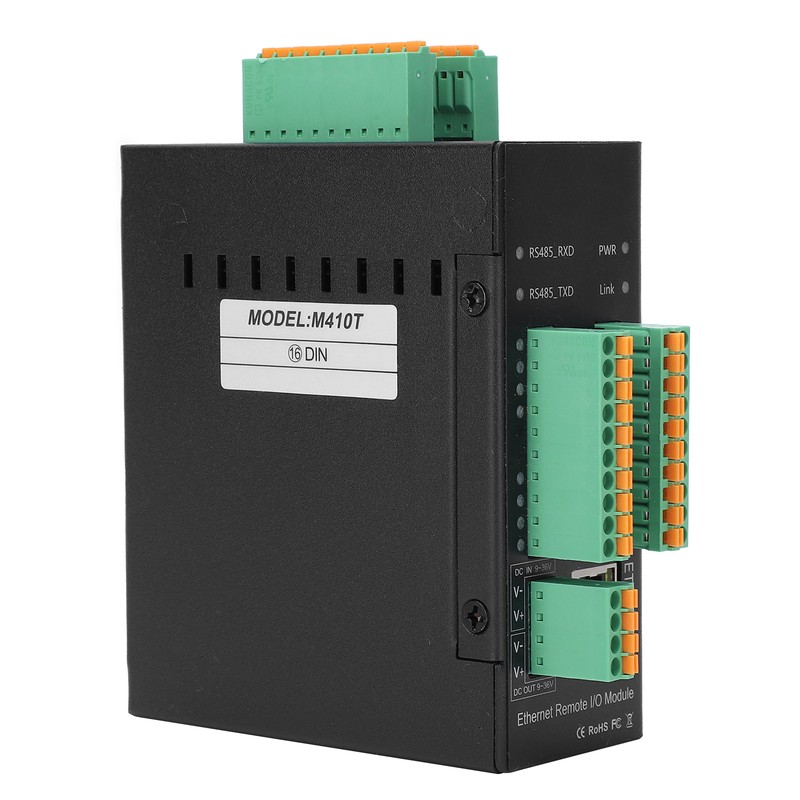

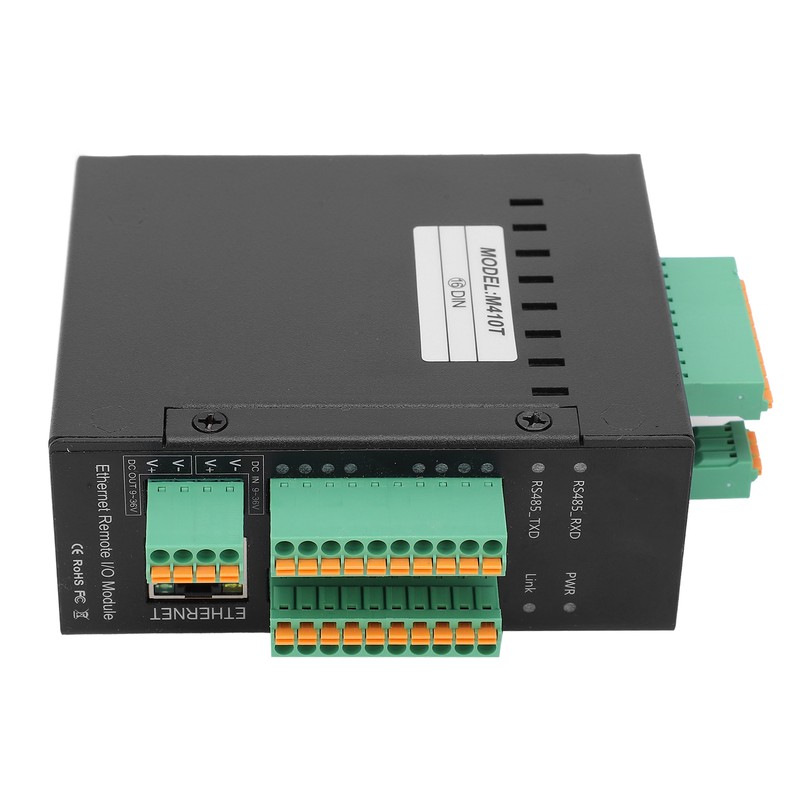

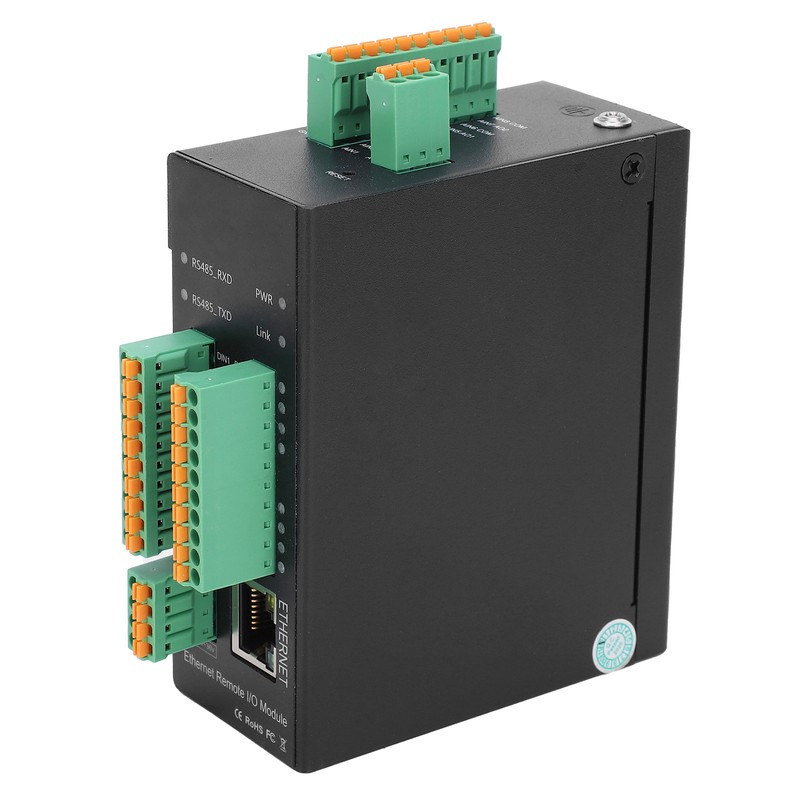

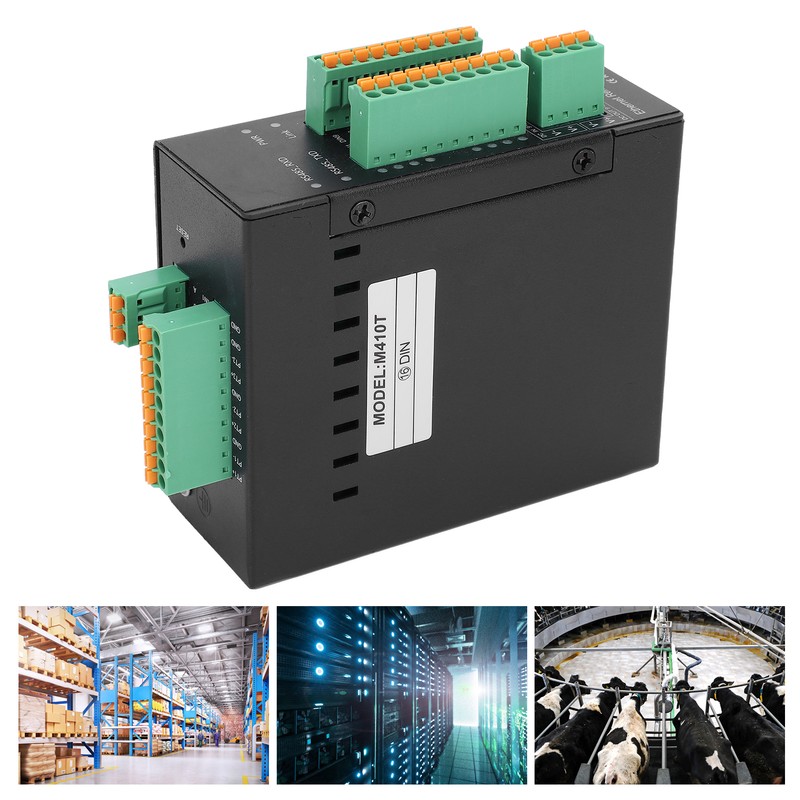

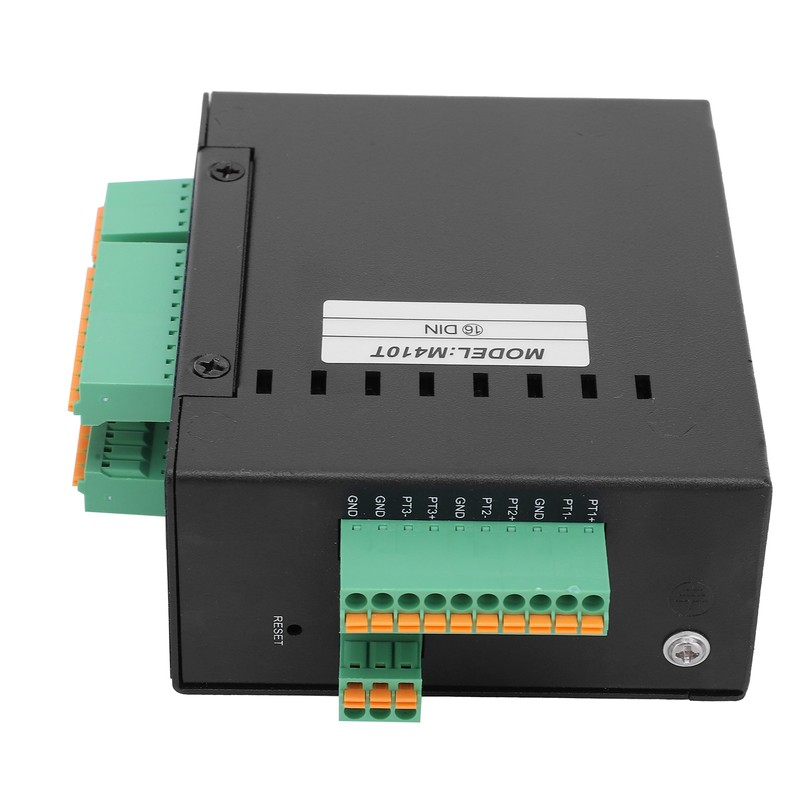

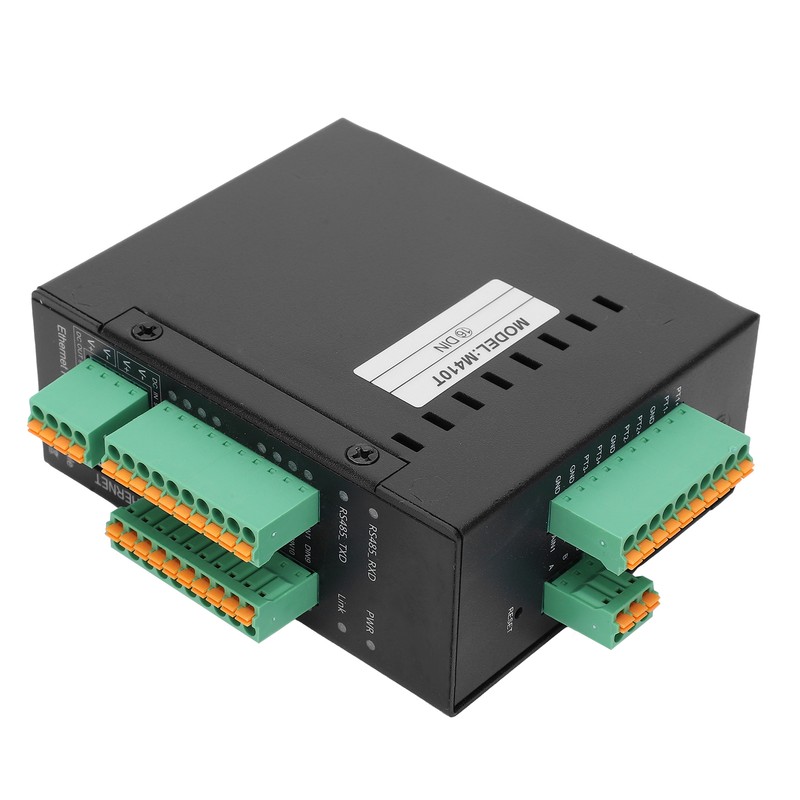

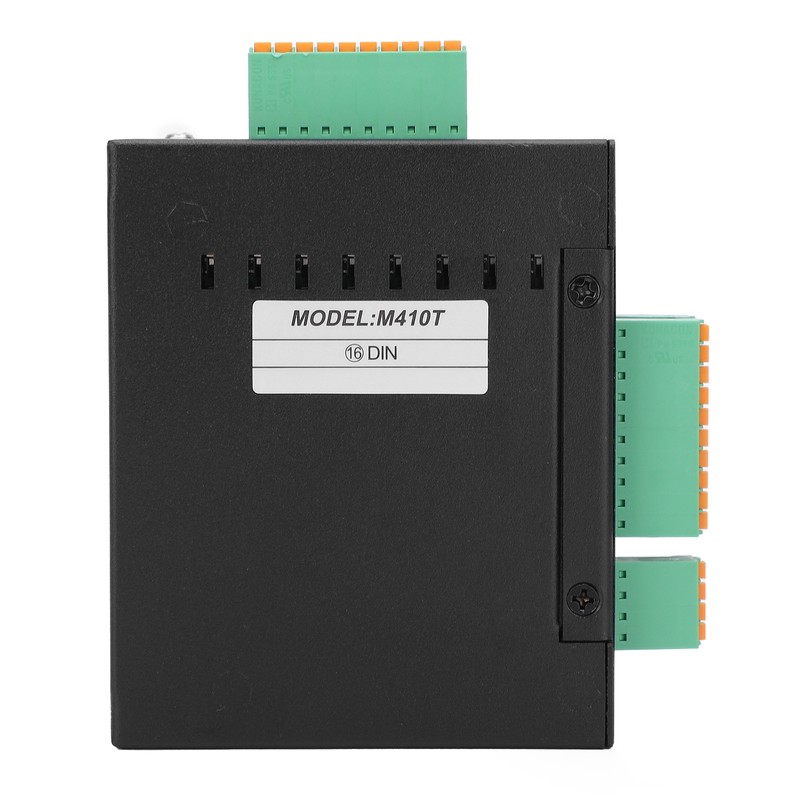

M410T Industrial Ethernet Remote IO Modules Data Acquisition TCP Ethernet Port RS485 16DIN
$154.31
- $9.99 shipping from United States View details
-
Arrives

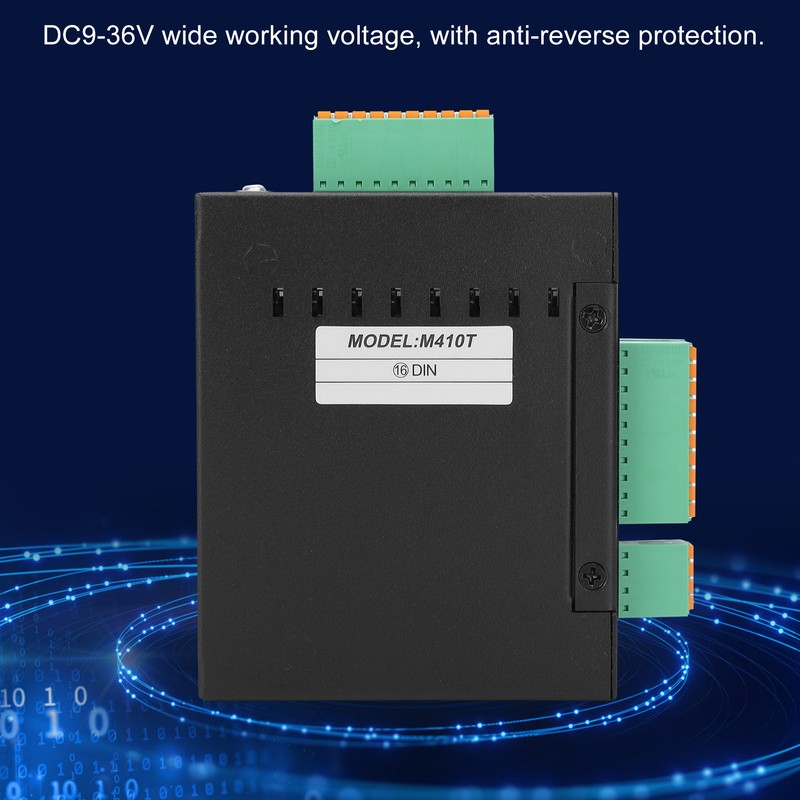

1、DC9‑36V wide working voltage, and with anti‑reverse protection function. It adopts industrial‑grade 32‑bit chip, built‑in watchdog, and has perfect anti‑thunder protection and anti‑interference measures to ensure reliability. 2、1 isolated 10/100M adaptive Ethernet interface with 15KV ESD protection. 1‑way DC power supply is output to other devices on site, reducing the difficulty and cost of on‑site wiring. 1 RS485 communication interface, supporting standard RTU protocol for expansion. 3、Support 16‑channel digital input (DIN). Support DIN2‑DIN12 as a low‑speed pulse counter, you can set the anti‑shake time 1‑2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz. 4、Optocoupler isolation digital input, support wet contact input (dry contact is not supported), the first channel can be used as pulse counting, support high‑speed pulse and low‑speed pulse mode, the default is that the maximum high‑speed pulse frequency is 700KHz, and the maximum low‑speed pulse frequency is 10KHz. 5、It can be managed and configured through the LAN connection configuration software, which is easy to operate and maintain. With LED to indicate working status, with reset button to reset, easy to install and debug on site. 6、It adopts metal shell, IP30 protection grade, metal shell and system safety isolation, especially suitable for industrial control field applications. Small size, support wall‑mounted installation or DIN35mm industrial rail installation. 7、It is widely used in various industrial automated production, security monitoring systems, automated measurement and control systems. Users can use different I/O modules and expand the function through RTU, flexibly combine them into different I/O combination requirements, and provide users with a complete solution.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、DC9‑36V wide working voltage, and with anti‑reverse protection function. It adopts industrial‑grade 32‑bit chip, built‑in watchdog, and has perfect anti‑thunder protection and anti‑interference measures to ensure reliability. 2、1 isolated 10/100M adaptive Ethernet interface with 15KV ESD protection. 1‑way DC power supply is output to other devices on site, reducing the difficulty and cost of on‑site wiring. 1 RS485 communication interface, supporting standard RTU protocol for expansion. 3、Support 16‑channel digital input (DIN). Support DIN2‑DIN12 as a low‑speed pulse counter, you can set the anti‑shake time 1‑2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz. 4、Optocoupler isolation digital input, support wet contact input (dry contact is not supported), the first channel can be used as pulse counting, support high‑speed pulse and low‑speed pulse mode, the default is that the maximum high‑speed pulse frequency is 700KHz, and the maximum low‑speed pulse frequency is 10KHz. 5、It can be managed and configured through the LAN connection configuration software, which is easy to operate and maintain. With LED to indicate working status, with reset button to reset, easy to install and debug on site. 6、It adopts metal shell, IP30 protection grade, metal shell and system safety isolation, especially suitable for industrial control field applications. Small size, support wall‑mounted installation or DIN35mm industrial rail installation. 7、It is widely used in various industrial automated production, security monitoring systems, automated measurement and control systems. Users can use different I/O modules and expand the function through RTU, flexibly combine them into different I/O combination requirements, and provide users with a complete solution.
1、DC9‑36V wide working voltage, and with anti‑reverse protection function. It adopts industrial‑grade 32‑bit chip, built‑in watchdog, and has perfect anti‑thunder protection and anti‑interference measures to ensure reliability. 2、1 isolated 10/100M adaptive Ethernet interface with 15KV ESD protection. 1‑way DC power supply is output to other devices on site, reducing the difficulty and cost of on‑site wiring. 1 RS485 communication interface, supporting standard RTU protocol for expansion. 3、Support 16‑channel digital input (DIN). Support DIN2‑DIN12 as a low‑speed pulse counter, you can set the anti‑shake time 1‑2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz. 4、Optocoupler isolation digital input, support wet contact input (dry contact is not supported), the first channel can be used as pulse counting, support high‑speed pulse and low‑speed pulse mode, the default is that the maximum high‑speed pulse frequency is 700KHz, and the maximum low‑speed pulse frequency is 10KHz. 5、It can be managed and configured through the LAN connection configuration software, which is easy to operate and maintain. With LED to indicate working status, with reset button to reset, easy to install and debug on site. 6、It adopts metal shell, IP30 protection grade, metal shell and system safety isolation, especially suitable for industrial control field applications. Small size, support wall‑mounted installation or DIN35mm industrial rail installation. 7、It is widely used in various industrial automated production, security monitoring systems, automated measurement and control systems. Users can use different I/O modules and expand the function through RTU, flexibly combine them into different I/O combination requirements, and provide users with a complete solution.
More Information
Item Type: Ethernet Remote IO Module
Material: Metal
Size(LxWxH): Approx. 82 x 40 x 99mm/3.2 x 1.6 x 3.9in
Typical Applications: Intelligent agricultural temperature and humidity data collection and monitoring; intelligent breeding temperature and humidity data collection and monitoring; temperature and humidity data collection and monitoring in warehouses and libraries; data collection and monitoring of weather station information; cold storage, fruit and vegetable storage rooms , industrial computer rooms, transformer cabinets and other temperature monitoring; other occasion where monitoring points are scattered; data transmission of solar monitoring systems, data collection and transmission of charging piles; data transmission of ATM, POS, electricity meters, PLC, DAQ and other equipment; smart grid data collection and control; Intelligent traffic data collection and control; Industrial automation data collection and control; Environmental protection data collection and control
Power Supply:
Power Consumption: Typical standby power consumption: ≤ 2W
Power Output: 1 channel
Output Current: 1500mA at 12V (maximum)
Power Protection: Anti-reverse connection, ESD air: 15KV, surge: 4KV
Ethernet:
Ethernet Port Specifications: 1 x RJ45, 10M/100Mbps
Network port protection: ESD contact: 8KV, surge: 4KV (10/1000us)
Protocol: RTU, TCP, MQTT
Serial Port:

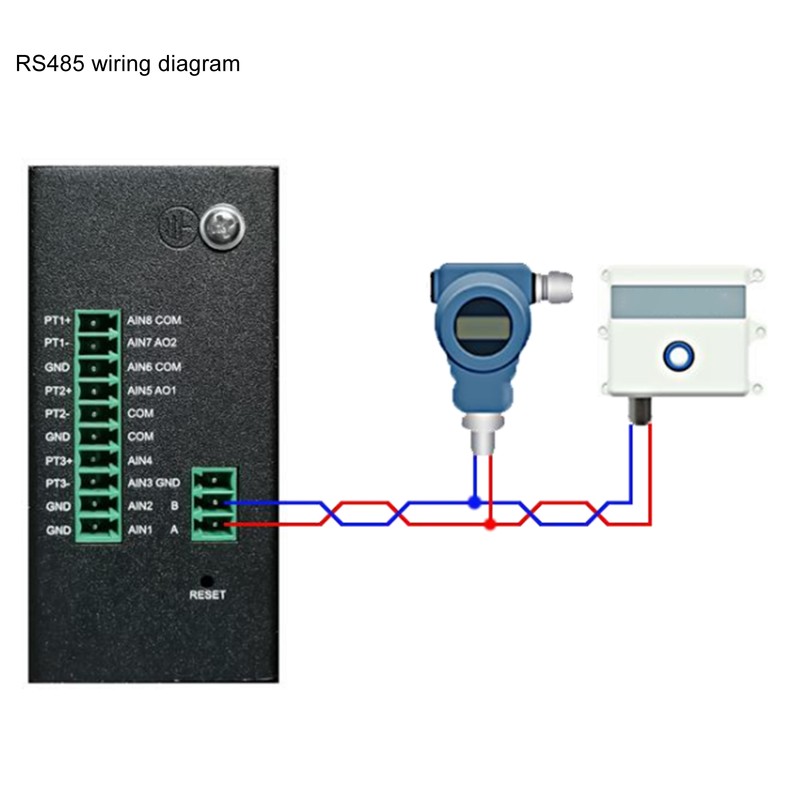

Number of Serial Ports: 1 x RS485
Serial Port Baud Rate: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bits: 7, 8
Check Digit: None, Even, Odd
Stop Bits: 0.5, 1, 1.5, 2
Protocol: RTU (slave), RTU (master)
Serial Port Protection: ESD contact: 8KV surge: 4KV (8/20us)
Digital Input:
Quantity: 16 channels

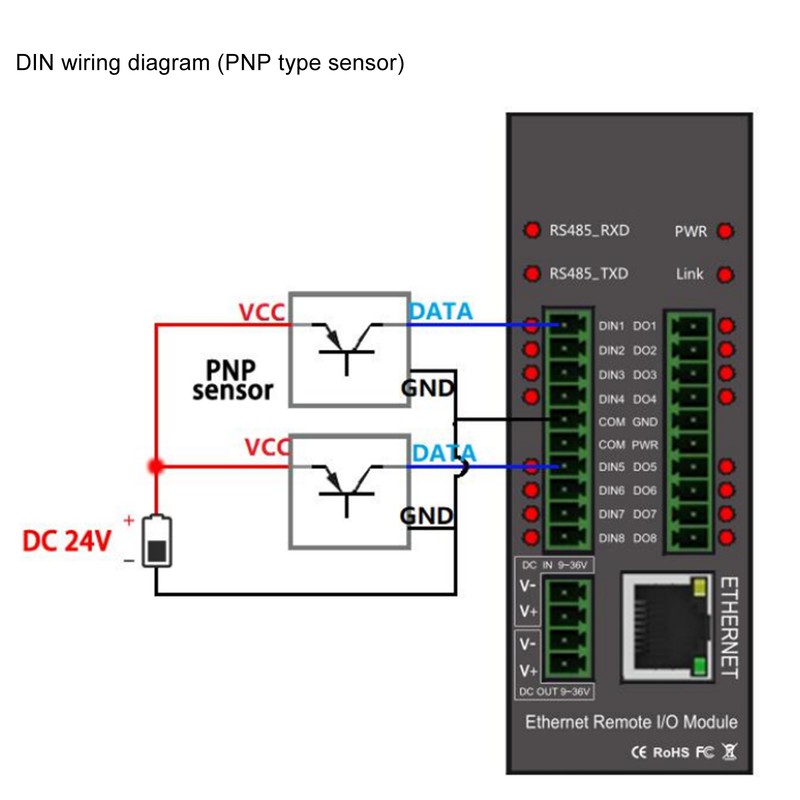

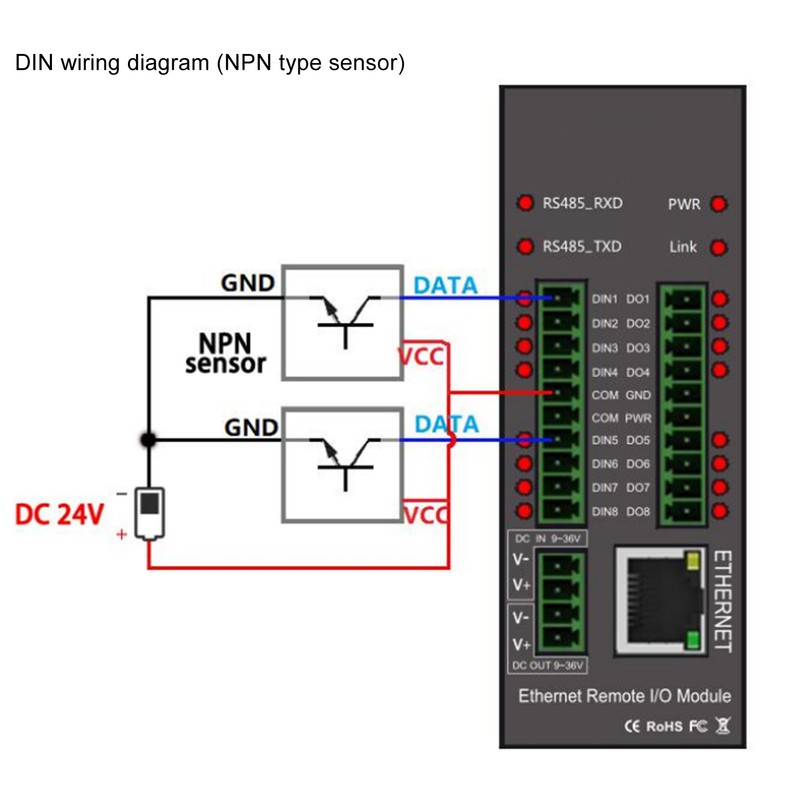

Input Type: Wet contact (dry contact is not supported), wet contact supports both NPN type sensor and PNP type sensor
Wet Contact: Closed: 10-30VDC, open: 0-3VDC
Support DIN2-DIN12 as a Low-Speed Pulse Counter: the anti-shake time can be set to 1-2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz.
Isolation Protection: 2KVrms
Sampling Rate: 100Hz
Software Parameters:
Network Protocol: IPV4, TCP/UDP, DNS, RTU, TCP, MQT
Protocol Conversion: Support TCP and RTU protocol conversion
Support RTU to MQTT and TCP to MQTT

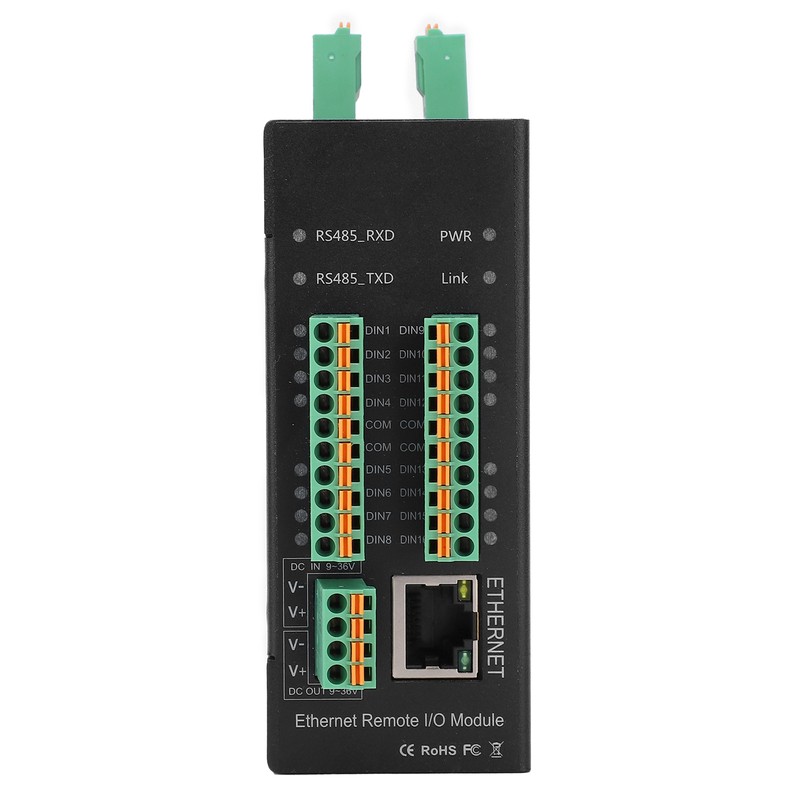

Indicator Light: Power supply, Link, RS485_RXD, RS485_TXD, IO port status

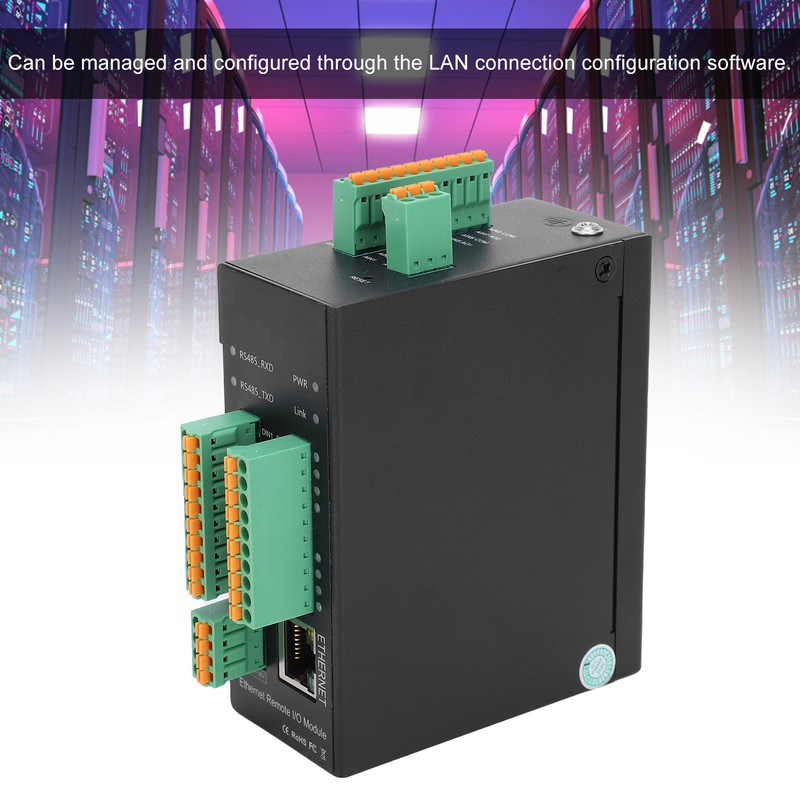

User Configuration: PC software configuration, support WIN XP, WIN 7, WIN 8 and WIN 10
Mapping Data for Boolean: 300, 16 bits: 300
Registration Package: Support custom registration package
How to Use:
1. Connect with routers, switches, HUBs and other interconnection switching equipment through straight-through cables, or connect with PCs and other terminal equipment through crossover cables, and make sure that the device and the computer are in the same local area network;
2. Connect the 9-36VDC power supply to the power terminal of the device, the PWR light is on, and the device will complete the initialization operation within a few seconds;
3. On the PC, open the configuration software, click "Device Search" to find the device, double-click the found device, and enter the password to log in (the default password is 1234). After the password is verified, you can set the parameters.
Note: If the first connection is to connect to a PC through a crossover cable, the device IP will be 192.168.1.110, and you need to change the computer IP to 192.168.1.* to find the device.
