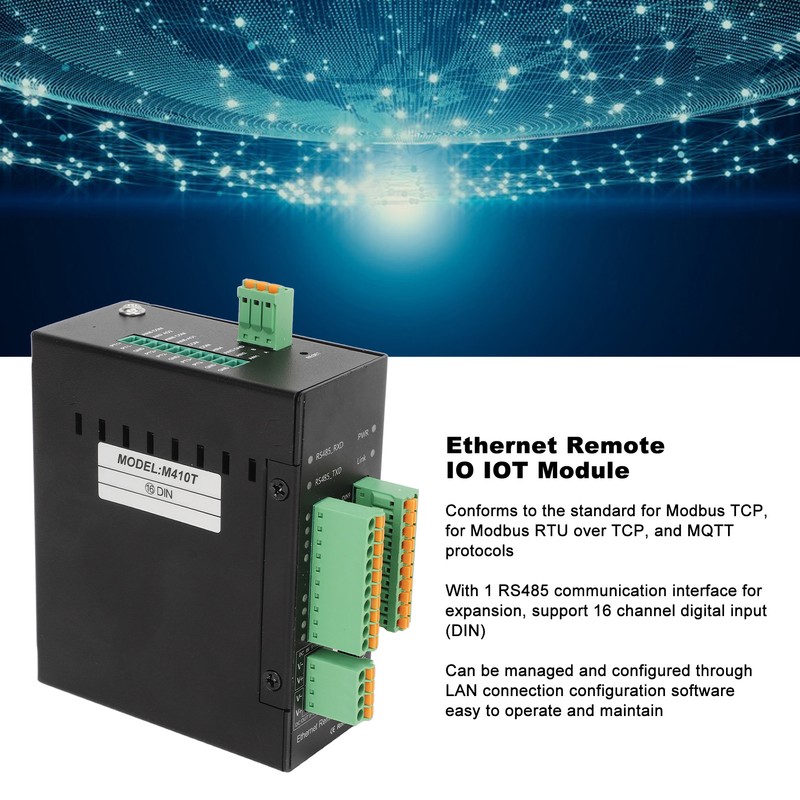

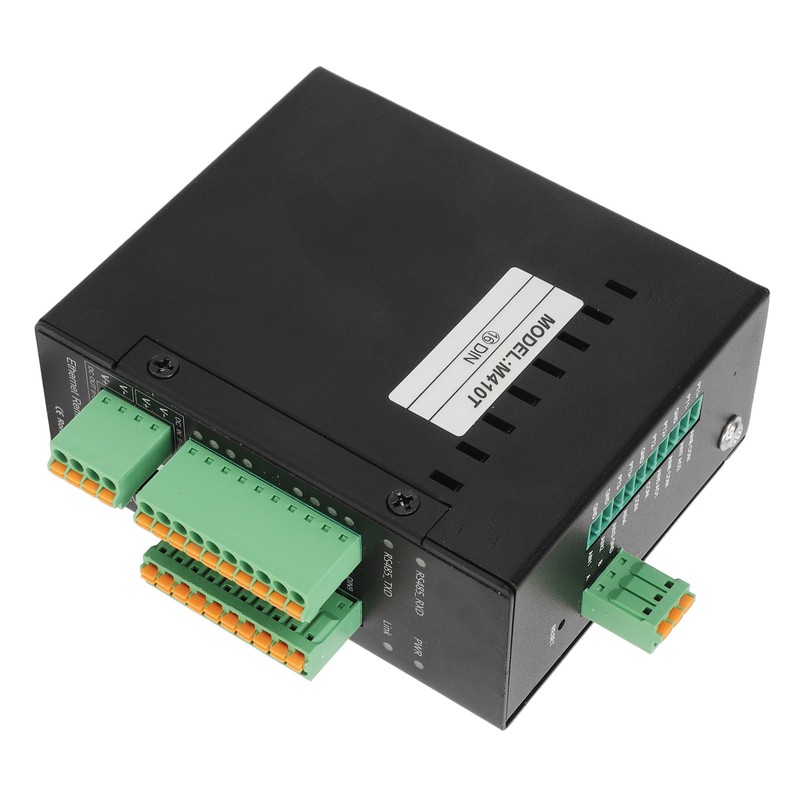

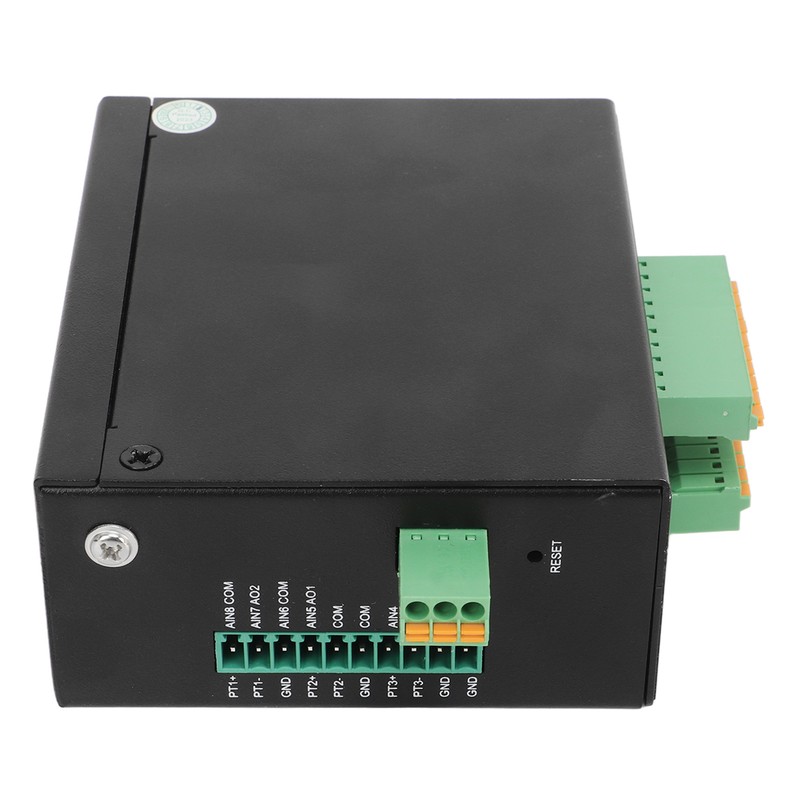

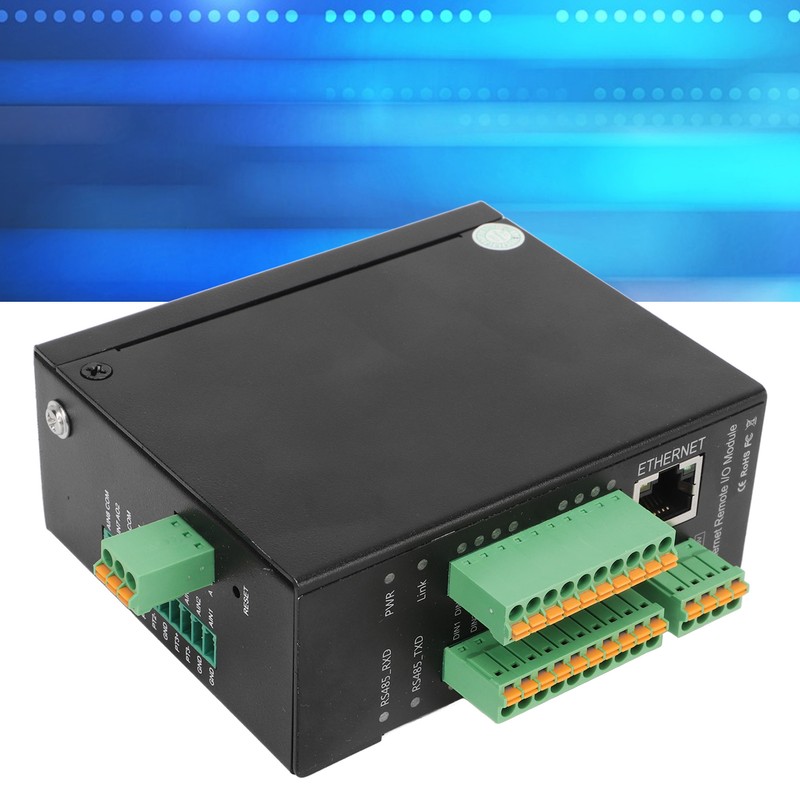

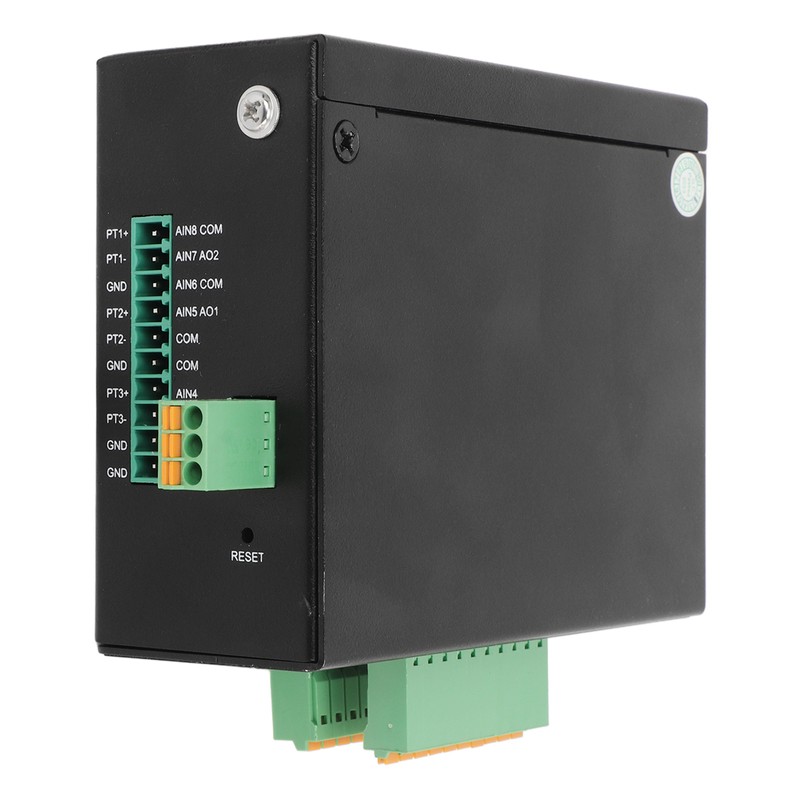

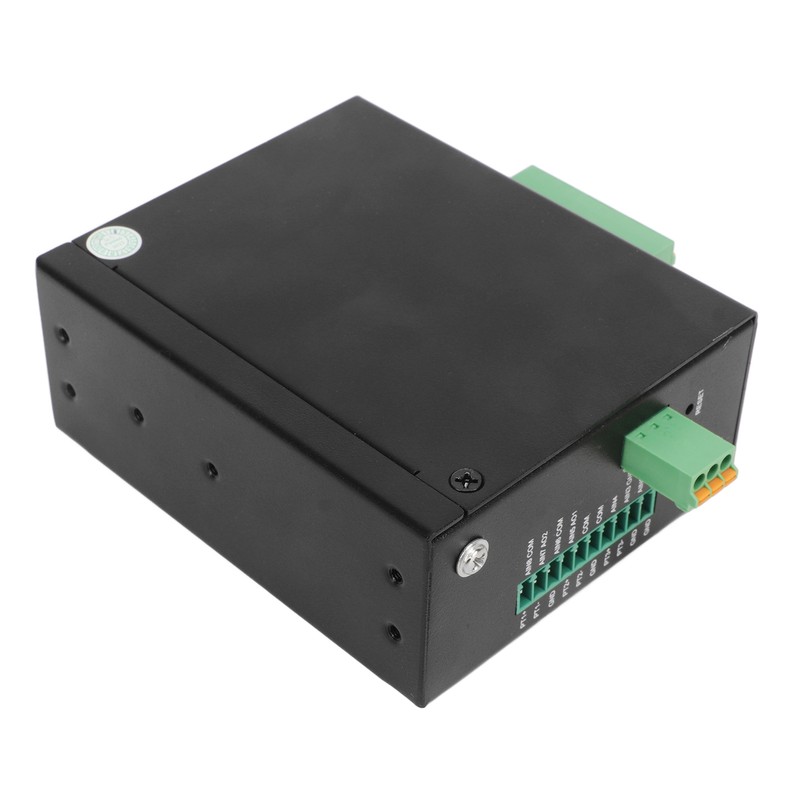

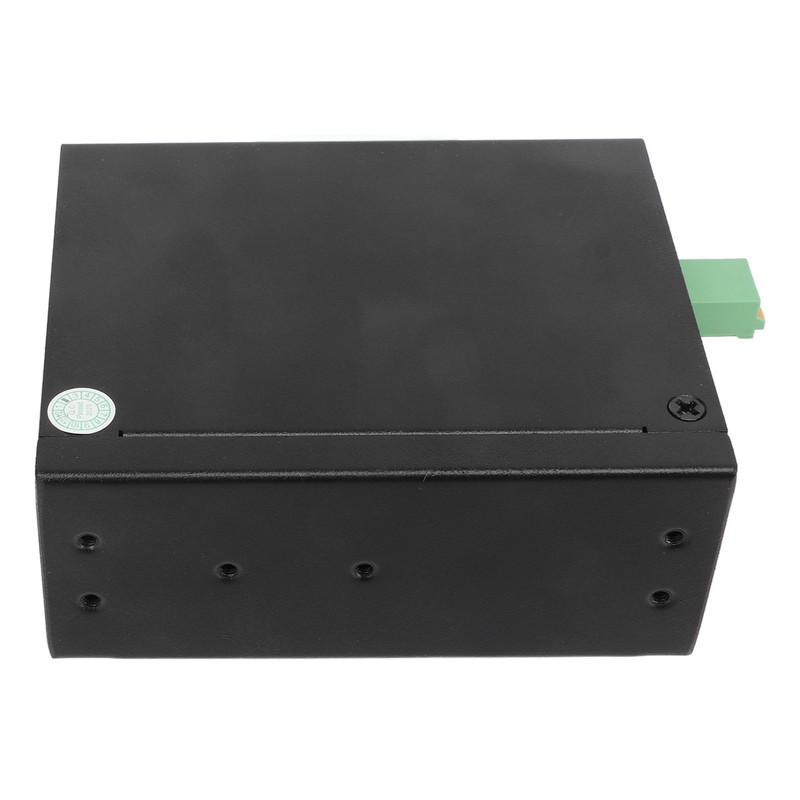

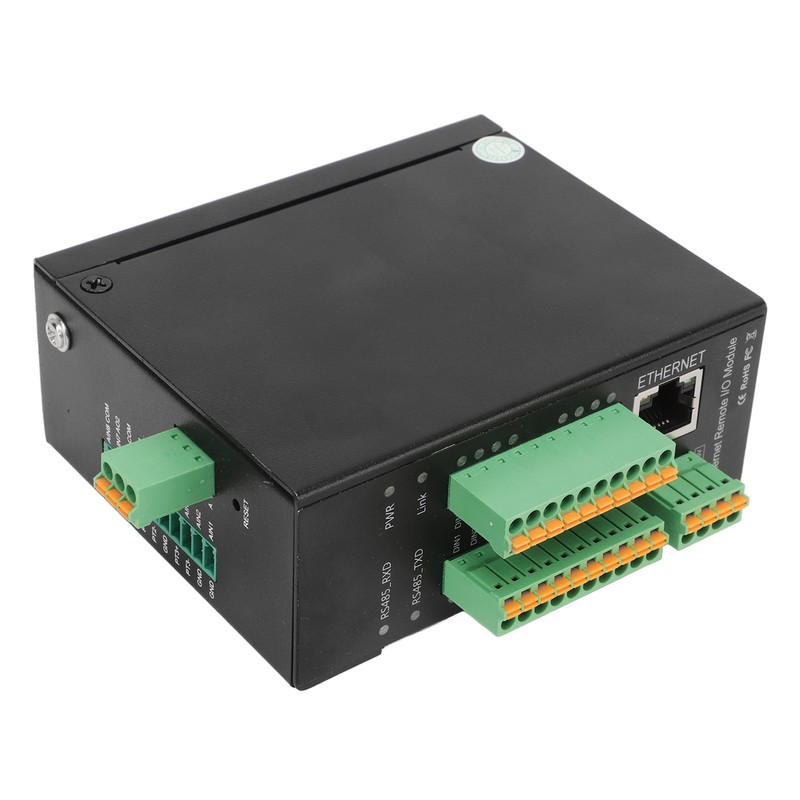

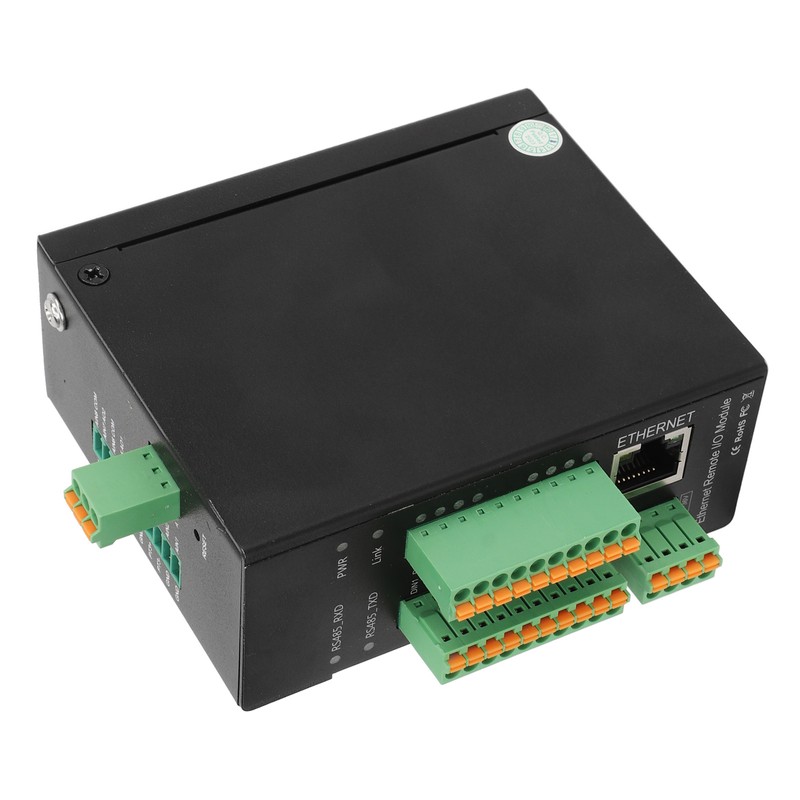

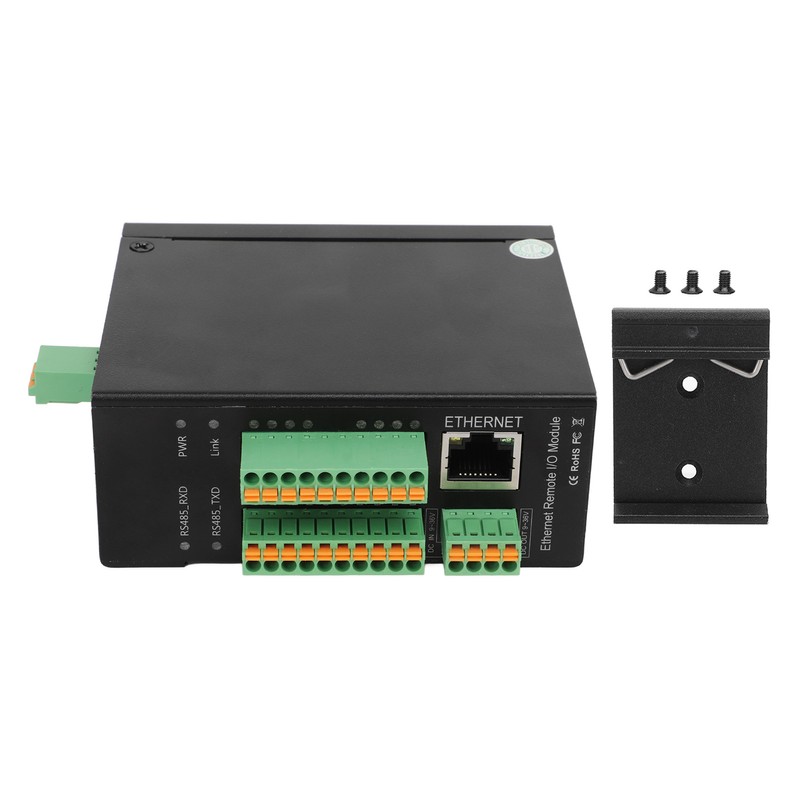

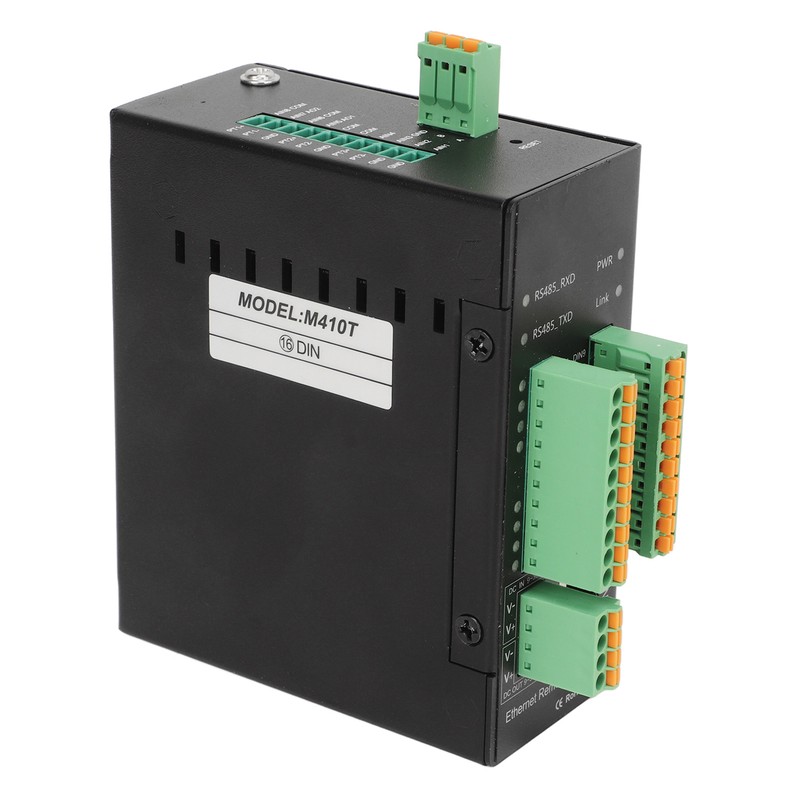

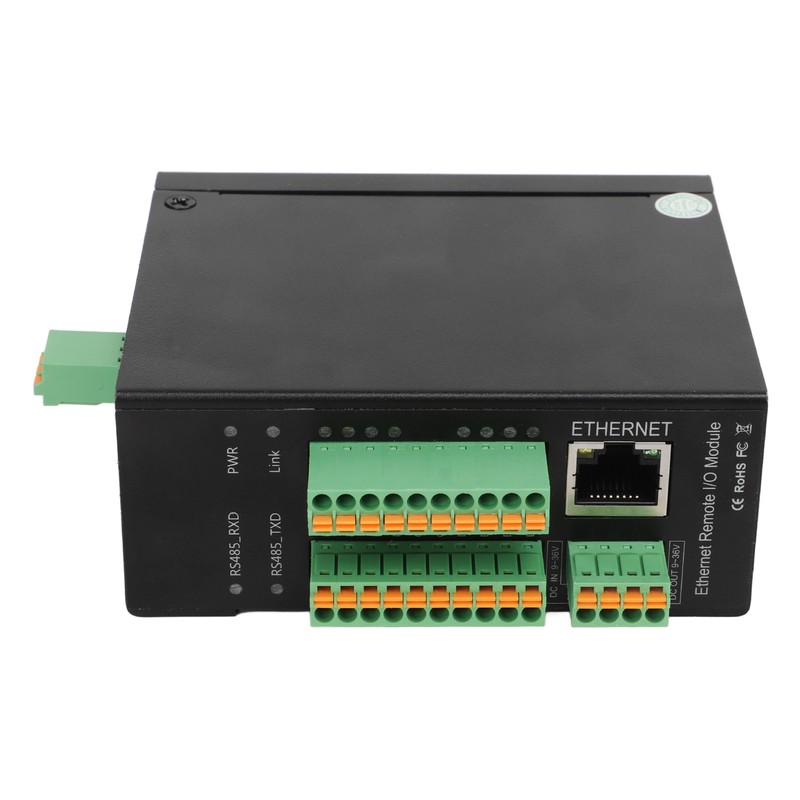

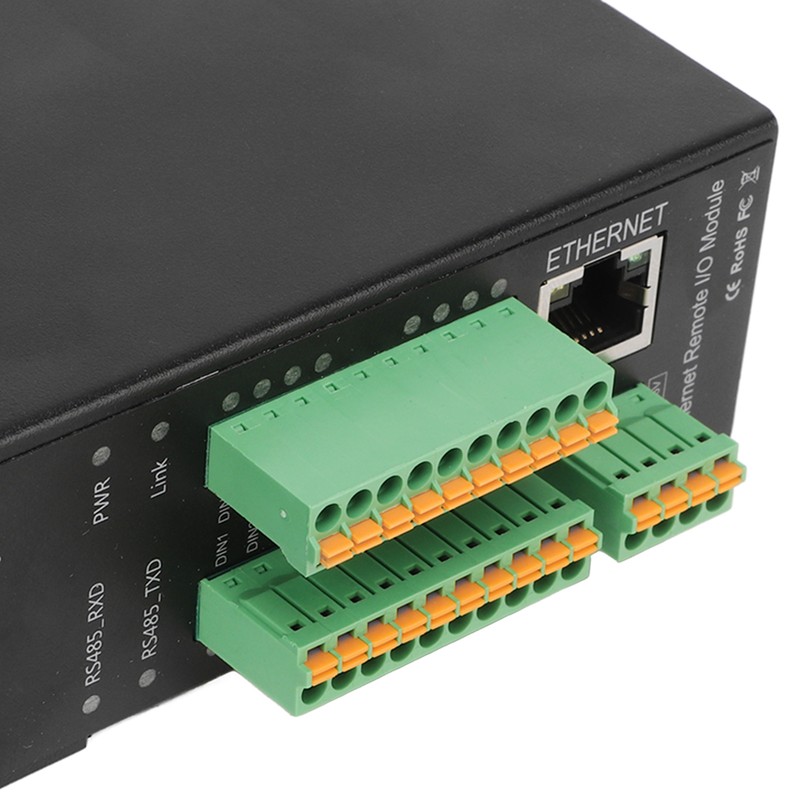

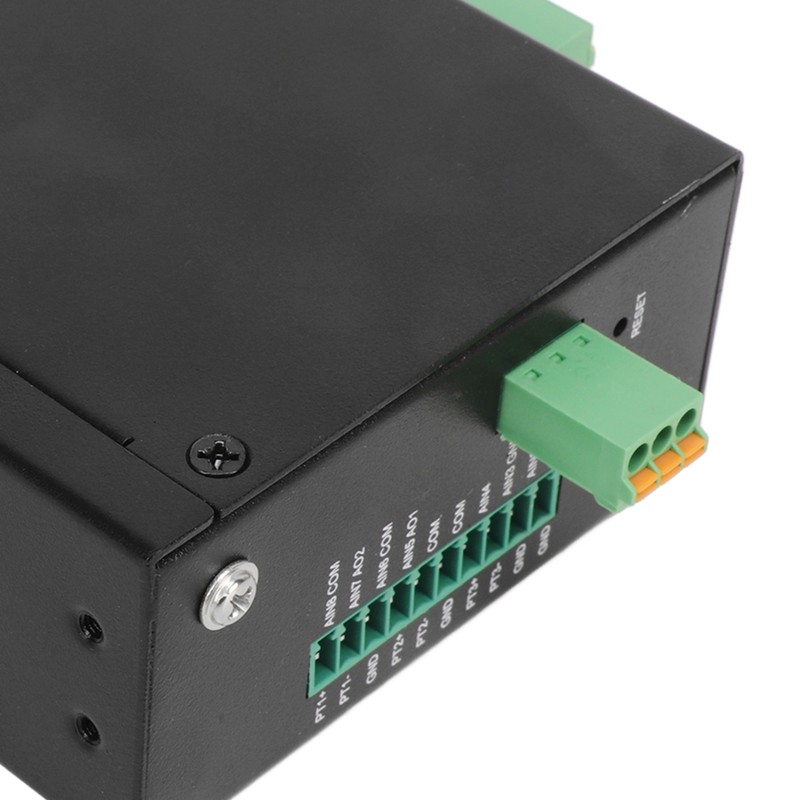

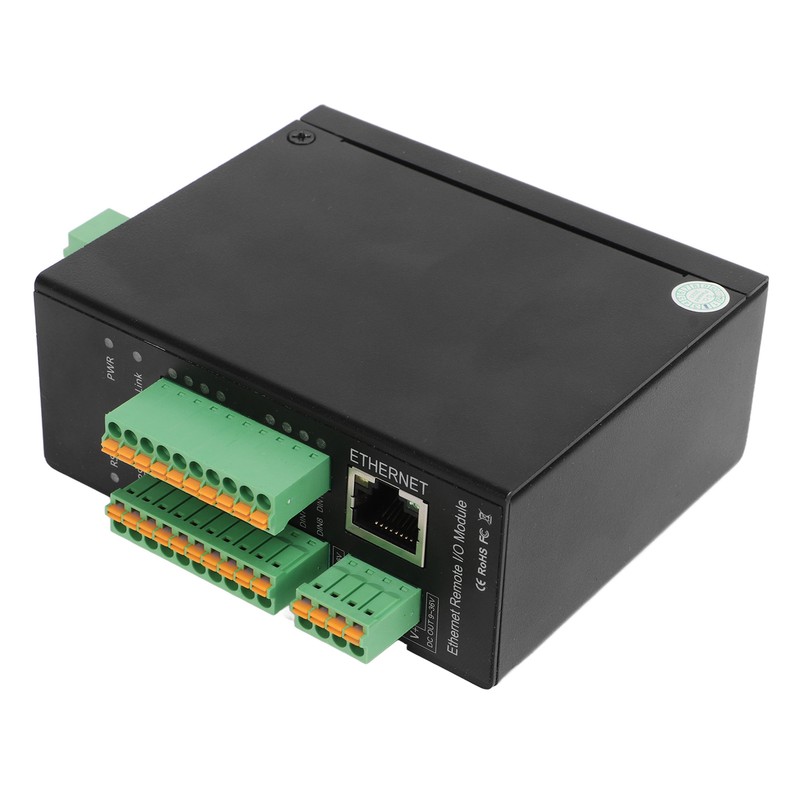

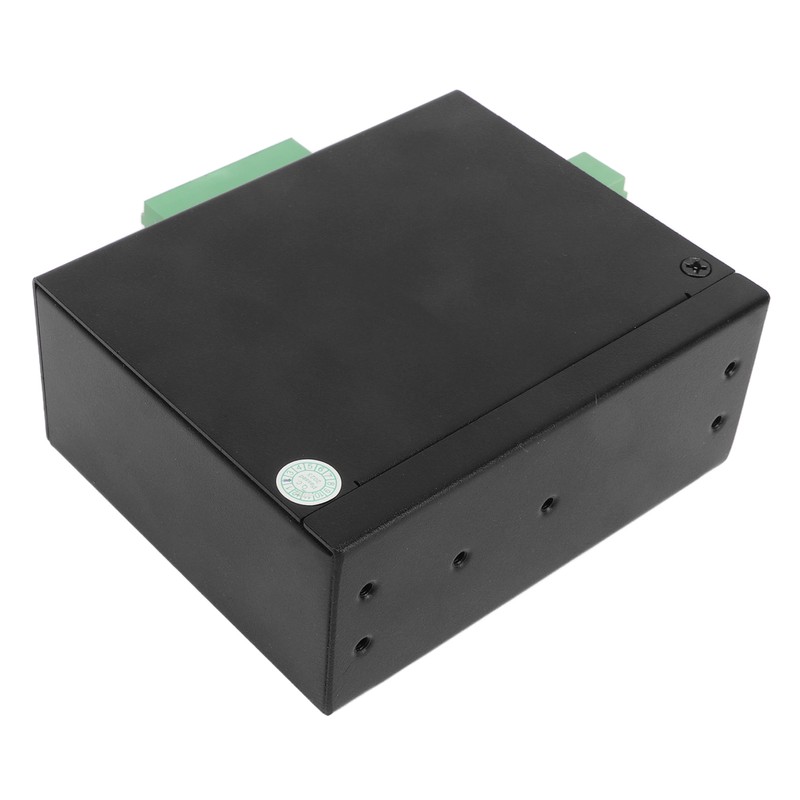

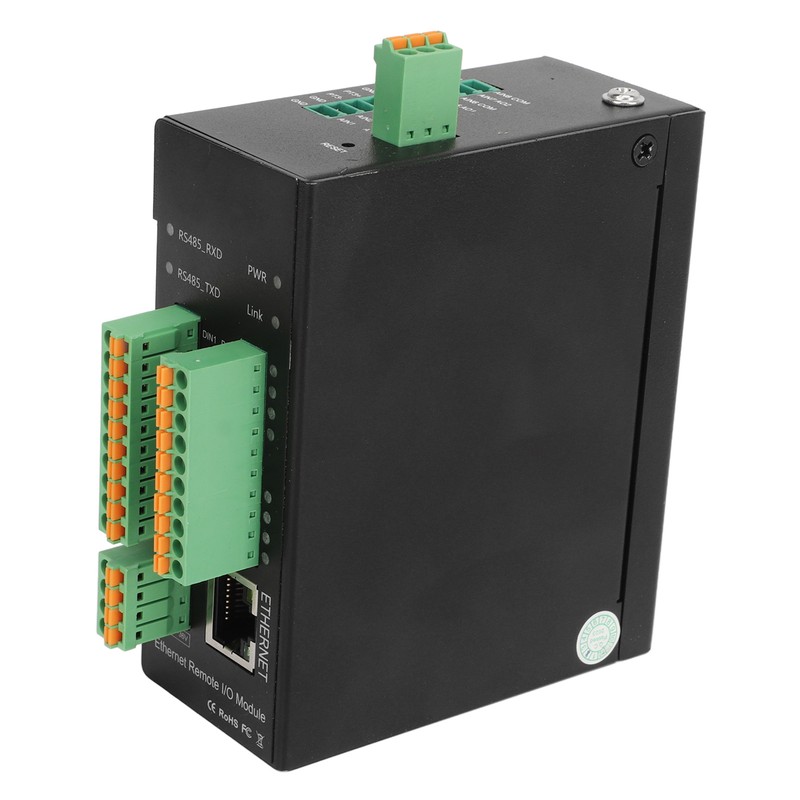

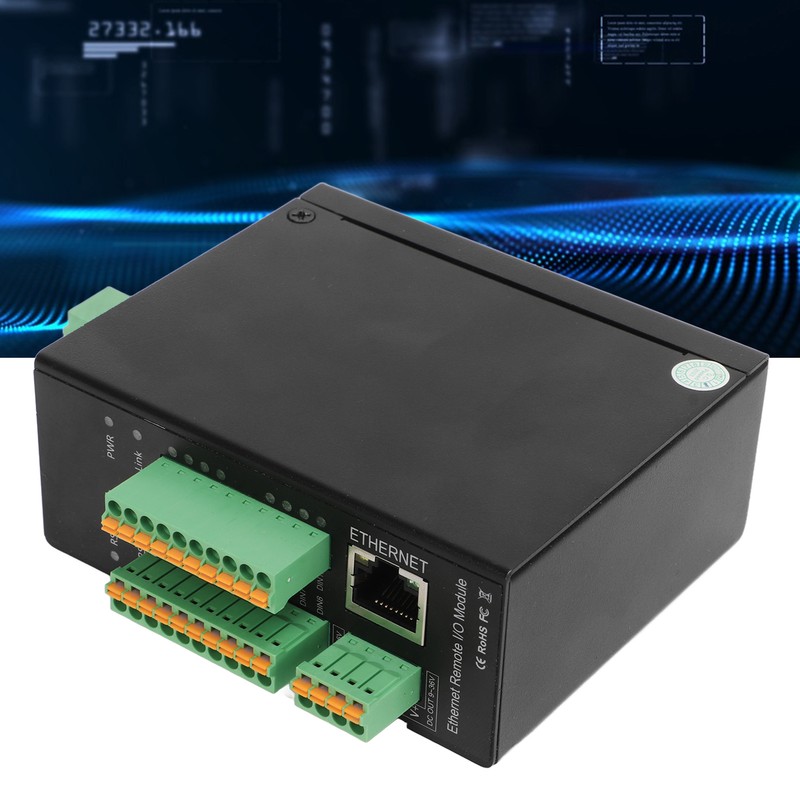

M410T Ethernet Remote IO IOT Module TCP Data Acquisition Module Collector for Industrial Security Monitor Measurement Control Systems
$190.08
- $14.50 shipping from United States View details
-
Arrives

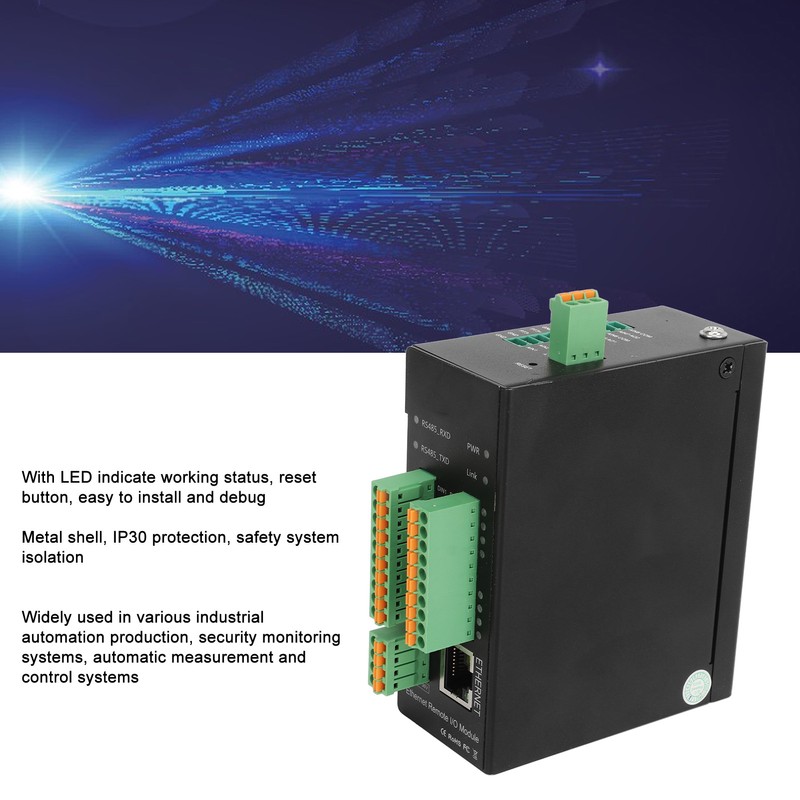

1、Supported Protocols: The communication protocol conforms to the standard for for Modbus TCP, for Modbus RTU over TCP, and MQTT protocols. 2、Interface: With 1 RS485 communication interface, conform to the standard for Modbus RTU protocol, used for expansion, support 16 channel digital input (DIN). 3、Function: The industrial remote Ethernet I/O data acquisition module can be managed and configured through LAN connection configuration software, which is easy to operate and maintain. 4、Unique Design: With LED indicate working status, reset button, easy to install and debug, metal shell, IP30 protection, safety system isolation, suitable for industrial control field. 5、Wide Applications: Widely used in various industrial automation production, security monitoring systems, automatic measurement and control systems.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Supported Protocols: The communication protocol conforms to the standard for for Modbus TCP, for Modbus RTU over TCP, and MQTT protocols. 2、Interface: With 1 RS485 communication interface, conform to the standard for Modbus RTU protocol, used for expansion, support 16 channel digital input (DIN). 3、Function: The industrial remote Ethernet I/O data acquisition module can be managed and configured through LAN connection configuration software, which is easy to operate and maintain. 4、Unique Design: With LED indicate working status, reset button, easy to install and debug, metal shell, IP30 protection, safety system isolation, suitable for industrial control field. 5、Wide Applications: Widely used in various industrial automation production, security monitoring systems, automatic measurement and control systems.
1、Supported Protocols: The communication protocol conforms to the standard for for Modbus TCP, for Modbus RTU over TCP, and MQTT protocols. 2、Interface: With 1 RS485 communication interface, conform to the standard for Modbus RTU protocol, used for expansion, support 16 channel digital input (DIN). 3、Function: The industrial remote Ethernet I/O data acquisition module can be managed and configured through LAN connection configuration software, which is easy to operate and maintain. 4、Unique Design: With LED indicate working status, reset button, easy to install and debug, metal shell, IP30 protection, safety system isolation, suitable for industrial control field. 5、Wide Applications: Widely used in various industrial automation production, security monitoring systems, automatic measurement and control systems.
More Information
Item Type: Ethernet Remote IO IOT Module
Material: Metal
Interface: Ethernet portx1, RS485x1, DINx16
Power Output: DCx1
Analog: 4-20mA
Power
Input Voltage: Does not support AO output: 9~36VDC, Support AO output: 24~36VDC
Power Consumption: Typical standby power consumption: ≤ 2W
Power Output Channel
Output Current: 1500mA at 12V (maximum)
Power Protection: Anti reverse polarity, ESD air: 15KV, surge: 4KV
Ethernet
Network Port Specifications: 1 x RJ45, 10M/100Mbps
Network Port Protection: ESD contact: 8KV, surge: 4KV (10/1000us)
Protocols: for Modbus RTU, for Modbus TCP, MQTT
Serial Port
Number of Serial Oorts: 1 x RS485
Serial Port Baud Rate: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bits: 7, 8
Check Digit: None, even, odd
Stop Bits: 0.5, 1, 1.5, 2
Protocol: for Modbus RTU (slave), for Modbus RTU (master)
Serial Port Protection: ESD contact: 8KV Surge: 4KV (8/20us)

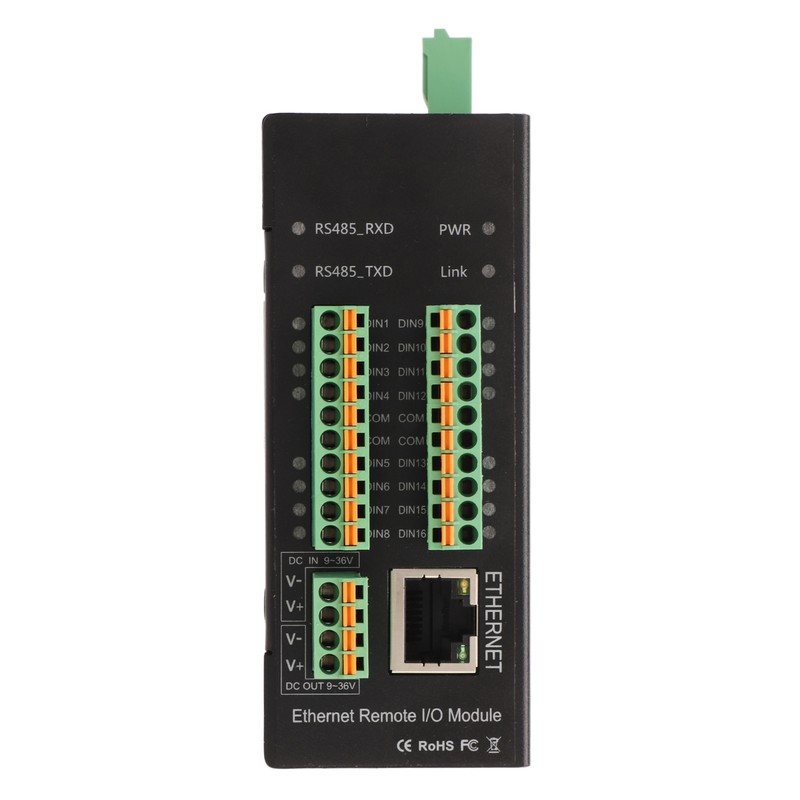

Digital Input
Quantity: 16 channels
Input Type: Wet contact (dry contact not supported), wet contact supports both NPN type sensors and PNP type sensors
Wet Contact: Closed: 10-30VDC, disconnected: 0-3VDC
Support DIN2-DIN12 as a low speed pulse counter: the anti shake time can be set 1~2000ms, the default is 1ms, and the corresponding pulse frequency is up to 1KHz.
Isolation protection: 2KVrms
Sample Rate: 100Hz
Applications:
Intelligent agricultural temperature and humidity data collection and monitoring;
Intelligent breeding temperature and humidity data collection and monitoring;
Temperature and humidity data collection and monitoring in warehousing and libraries;
Data collection and monitoring of meteorological station information;
Temperature monitoring of cold storage, fruit and vegetable storage room, industrial computer room, substation cabinet, etc.;
Other occasions where monitoring points are scattered;
Data transmission of solar monitoring system, data collection and transmission of charging pile;
Data transmission of ATM, POS, meter, PLC, DAQ and other equipment;
Smart grid data acquisition and control;
Intelligent traffic data acquisition and control;
Industrial automation data acquisition and control;
Environmental protection data acquisition and control
