LX-16A Serial Bus Servo Dual Bearing with Metal Horn & Bracket, Full Metal Gear Steering Servo for RC Robot Arm DIY, High Torque Servo 17KG.CM 6V - 19.5KG.CM 7.4V, Control Angle 240°
LX-16A Serial Bus Servo Dual Bearing with Metal Horn & Bracket, Full Metal Gear Steering Servo for RC Robot Arm DIY, High Torque Servo 17KG.CM 6V - 19.5KG.CM 7.4V, Control Angle 240°
LX-16A Serial Bus Servo Dual Bearing with Metal Horn & Bracket, Full Metal Gear Steering Servo for RC Robot Arm DIY, High Torque Servo 17KG.CM 6V - 19.5KG.CM 7.4V, Control Angle 240°
- 17kg large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials
- Real-time feedback of position, temperature, voltage. The top of the servo has a warning light, and the indicator will flash if the internal of servo is abnormal
- Full metal gear. it's better for accuracy, service life has been greatly increased. Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing(support role)
- Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots

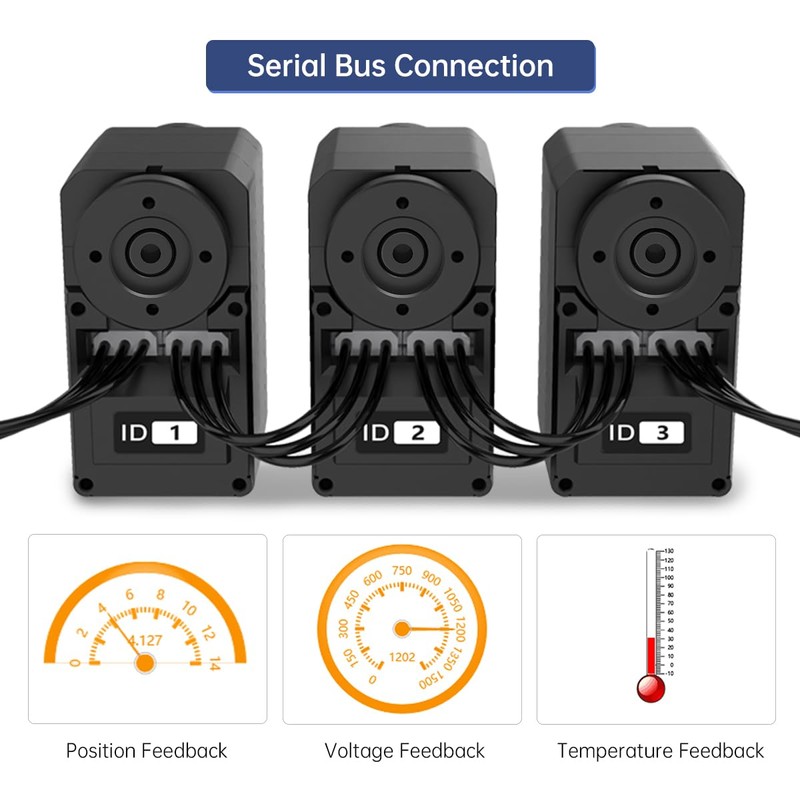

- The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
Brand: | LewanSoul |
---|---|
Size: | LX-16A with Bracket |
Color: | Lx-16a With Brackets |
Manufacturer: | Hiwonder |
Part Number: | unknown |
Product Dimensions: | 1.8 x 1.0 x 1.4 inches; 4.0 ounces |
Isin: | IQY9BSEETTQP |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
LX-16A Bus Servo use our private serial protocol, so you must use our TTL/USB debug board(compatible for Arduino) to control bus servo, otherwise you cannot do anything with the bus servo.
The debug board required to purchase separately from our store. (no matter how many servos you control, you only need a debug board)
Features:
Each servo can set the ID number for the identification of the servo, the ID defaults to 1.
240 degree rotation. Controllable angle range from 0 to 240 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off.
Dual ball bearing: one is the driving shaft, one is the assistant shaft(support role)
Specifications:
Weight: 52g(1.8oz)
Dimension: 1.78*0.97*1.38inch
Speed: 0.18sec/60°@6V; 0.16sec/60°@7.4V
Servo accuracy: 0.24°
Torque: 15 kg/cm (208 oz/in) @6.6V; 17 kg/cm (236 oz/in) @7.4V
Servo ID: 0~253
Storage users' parameter setting after power off: support
Control method: serial command
Communication baud rate: 115200
Package Contents:
1 x Bus servo
2 x Servo Horn
1 x Main Screw
1 x Deputy Screw
15 x M2*4 Self-Tapping Screw
1 x 20cm(7.87inch) Servo Wire
1 x Service Card
Note:
1, Please access the link in the service card to get all informations(contain user manual, testing software, pc software, communication protocol, video tutorials)
2, Please ignore the website on the label of product.
3, Please refer to the torque parameter in our "Product Description"(it's accurate).
Please be sure to avoid locked-rotor when using servo, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out.
