LT 2-Ring Piston LTP-A Diameter 40.97 for Simson S51, KR51/2 Schwalbe, SR50
LT 2-Ring Piston LTP-A Diameter 40.97 for Simson S51, KR51/2 Schwalbe, SR50
LT 2-Ring Piston LTP-A Diameter 40.97 for Simson S51, KR51/2 Schwalbe, SR50
Product Overview
- Extremely lightweight - the lightest pistons for Simson on the market
- Extremely durable - stability thanks to inner geometry and alloy
- Very wide piston shirt at the inlet - good piston guidance even with wide inlet channels
- Clamp-free - precise piston geometry for air-cooled cylinders
- Rattle free - high-quality steel rings in precisely manufactured piston ring grooves
| Brand: | LangTuning |
|---|---|
| Size: | W 11.10 cm x L 7.00 cm x H 5.30 cm |
| Color: | Nicht Zutreffend |
| Manufacturer: | LangTuning |
| Part Number: | FJWJL78 |
| Material Type: | Material: |
| Isin: | IBDZORMZKXYE |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Extremely lightweight - the lightest pistons for Simson on the market
- Extremely durable - stability thanks to inner geometry and alloy
- Very wide piston shirt at the inlet - good piston guidance even with wide inlet channels
- Clamp-free - precise piston geometry for air-cooled cylinders
- Rattle free - high-quality steel rings in precisely manufactured piston ring grooves
| Brand: | LangTuning |
|---|---|
| Size: | W 11.10 cm x L 7.00 cm x H 5.30 cm |
| Color: | Nicht Zutreffend |
| Manufacturer: | LangTuning |
| Part Number: | FJWJL78 |
| Material Type: | Material: |
| Isin: | IBDZORMZKXYE |

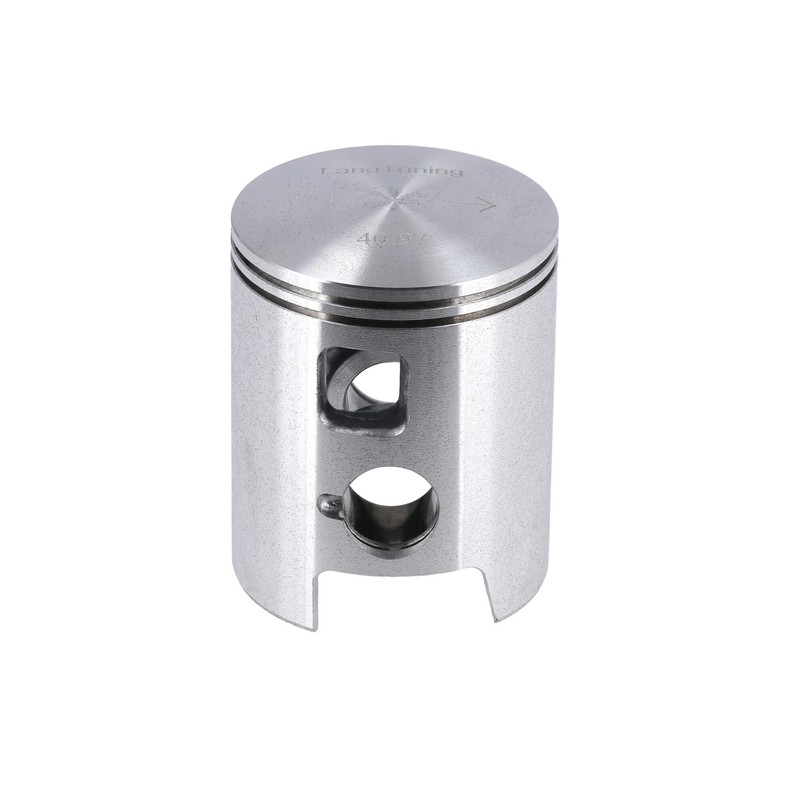

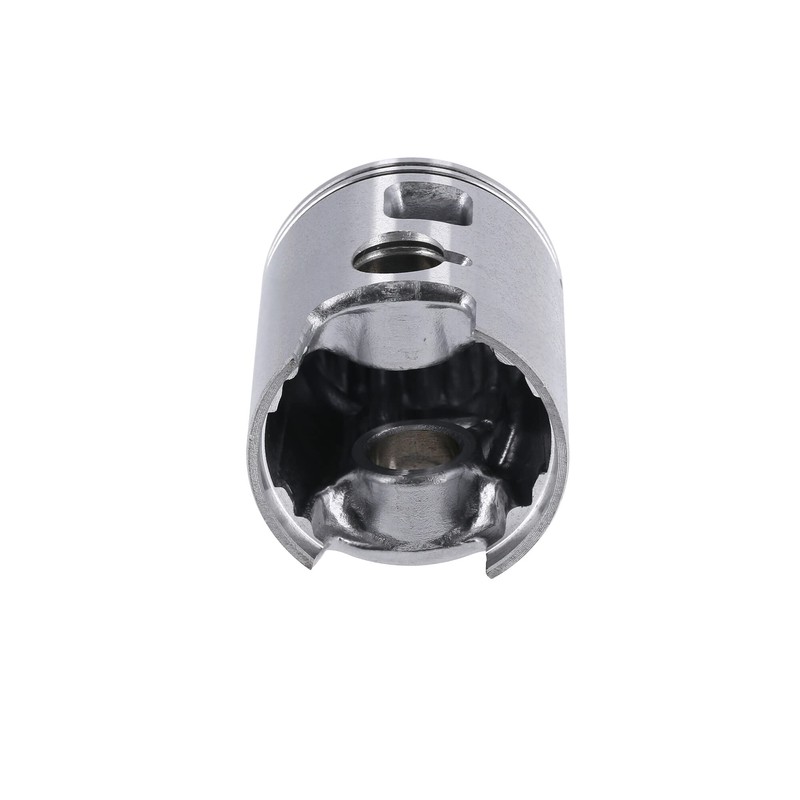

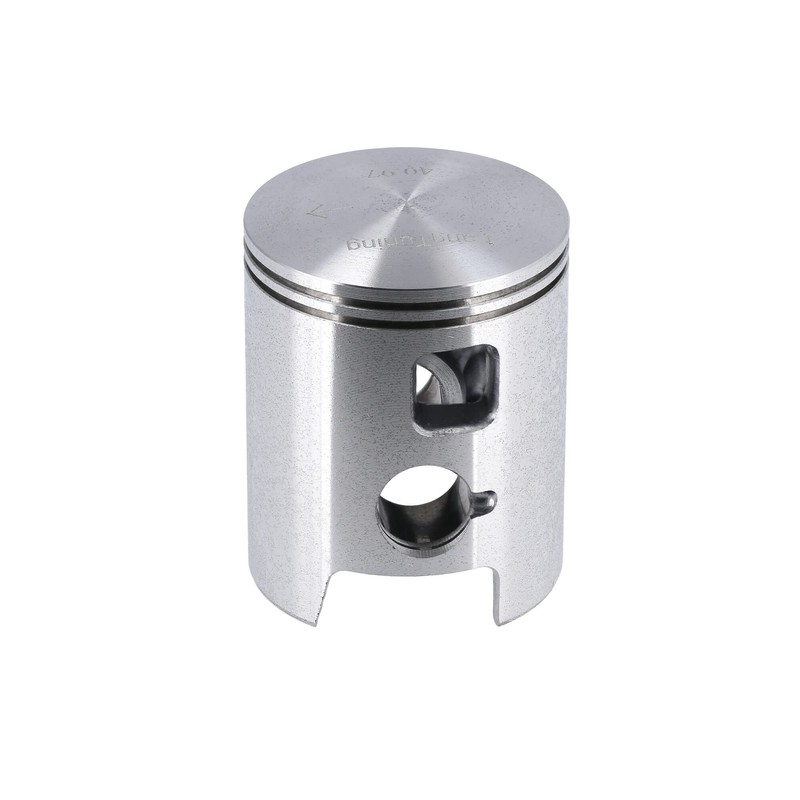

LangTuning LTP-A piston 40.97 mm.
The LTP-A pistons are completely redesigned and optimised in all points directly for Simson cylinders.
- Extremely light.
- The lightest pistons for Simson on the market.
- Extremely durable: the inner geometry of the piston and the alloy ensure stability.
- Very wide piston shirt at the inlet: good piston guidance even with very wide inlet channels.
- With piston window: thanks to the window, better cooling of the piston head and additional filling of the overflow
- Clamp-free: very precise piston geometry specially adapted to the thermal expansion for air-cooled cylinders
- Rattle free: high-quality 1 mm steel rings in precisely manufactured piston ring grooves.
- LTP-A 2-ring piston for series and sports cylinders.
- LTP-A 1-ring piston for tuning and racing cylinders.
geometry
- A diameter: 40.97 mm.
- B length: 50 mm (as original Simson S51 and co.)
- C compression dimensions: 31 mm (as original Simson S51 and co.)
- D ring strike distance: 2 mm.
- E ring impact distance: 2 mm.
- F distance running surfaces: 15.5 mm (suitable for 1 mm thrust washers).
- G diameter piston pin: 12 mm.
- H width piston shirt inlet: 37 mm
- I width piston shirt outlet: 31 mm.
Piston weight (basic dimension): only 69 g.
Weight piston including bolts, rings, clips (basic dimension): only 88 g.

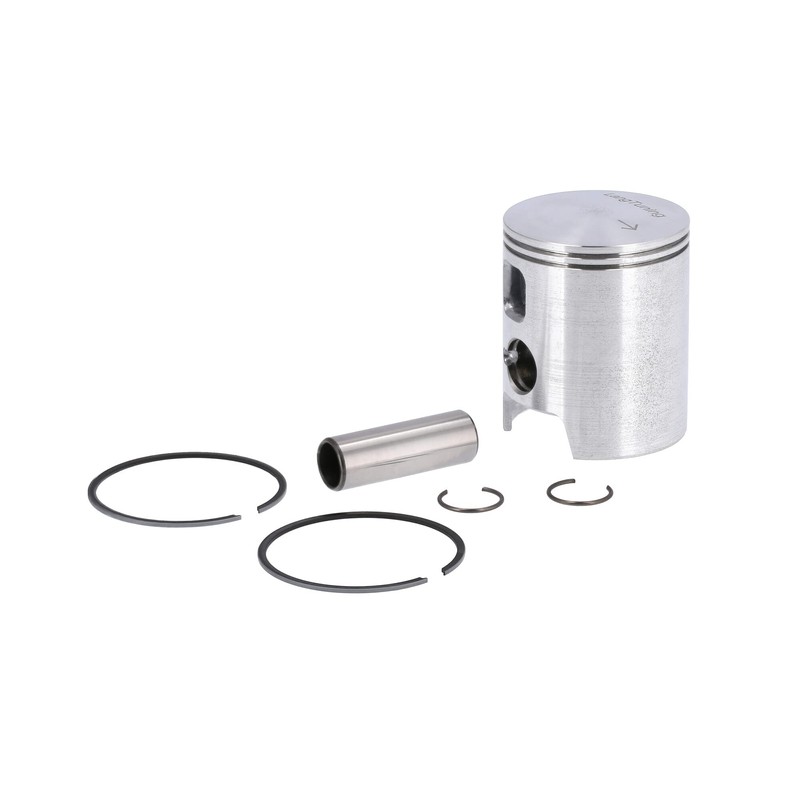

Box contents:
- LTP-A piston
- Piston pins.
- Piston rings.
- Piston clips.
Note:
LT KnowHow
LangTuning constructed the LTP-A pistons from the ground up. Usually in the Simson market, only the outer geometry such as length, diameter etc. are transmitted to the manufacturer and the manufacturer produces a piston shape. These moulds usually have a high material thickness and therefore the piston is correspondingly heavy.
LangTuning goes new ground with the construction of the LTP-A pistons.
Of course, this is significantly more elaborate and requires appropriate experience.
But this means that the piston weight is on average 10% lower than usual pistons in the quality price segment and around 20% lower than cheap series pistons.
At the same time, depending on the size, the pistons could be reinforced by a corresponding strut design, so that they are not only lighter, but also more stable.
The LTP-A pistons are optimised for slot-controlled Simson cylinders. Thanks to an extra wide inlet shirt, very wide inlet channels for tuning cylinders are also possible. At the same time, the LTP-A pistons are also suitable for series cylinders and can be used without any problems. The plunger windows are placed so that there is no short circuit to the inlet or secondary outlets.
The LTP-A pistons are completely redesigned and optimised in all points directly for Simson cylinders.
- Extremely light.
- The lightest pistons for Simson on the market.
- Extremely durable: the inner geometry of the piston and the alloy ensure stability.
- Very wide piston shirt at the inlet: good piston guidance even with very wide inlet channels.
- With piston window: thanks to the window, better cooling of the piston head and additional filling of the overflow
- Clamp-free: very precise piston geometry specially adapted to the thermal expansion for air-cooled cylinders
- Rattle free: high-quality 1 mm steel rings in precisely manufactured piston ring grooves.
- LTP-A 2-ring piston for series and sports cylinders.
- LTP-A 1-ring piston for tuning and racing cylinders.
geometry
- A diameter: 40.97 mm.
- B length: 50 mm (as original Simson S51 and co.)
- C compression dimensions: 31 mm (as original Simson S51 and co.)
- D ring strike distance: 2 mm.
- E ring impact distance: 2 mm.
- F distance running surfaces: 15.5 mm (suitable for 1 mm thrust washers).
- G diameter piston pin: 12 mm.
- H width piston shirt inlet: 37 mm
- I width piston shirt outlet: 31 mm.
Piston weight (basic dimension): only 69 g.
Weight piston including bolts, rings, clips (basic dimension): only 88 g.
Box contents:
- LTP-A piston
- Piston pins.
- Piston rings.
- Piston clips.
Note:
LT KnowHow
LangTuning constructed the LTP-A pistons from the ground up. Usually in the Simson market, only the outer geometry such as length, diameter etc. are transmitted to the manufacturer and the manufacturer produces a piston shape. These moulds usually have a high material thickness and therefore the piston is correspondingly heavy.
LangTuning goes new ground with the construction of the LTP-A pistons.
Of course, this is significantly more elaborate and requires appropriate experience.
But this means that the piston weight is on average 10% lower than usual pistons in the quality price segment and around 20% lower than cheap series pistons.
At the same time, depending on the size, the pistons could be reinforced by a corresponding strut design, so that they are not only lighter, but also more stable.
The LTP-A pistons are optimised for slot-controlled Simson cylinders. Thanks to an extra wide inlet shirt, very wide inlet channels for tuning cylinders are also possible. At the same time, the LTP-A pistons are also suitable for series cylinders and can be used without any problems. The plunger windows are placed so that there is no short circuit to the inlet or secondary outlets.
