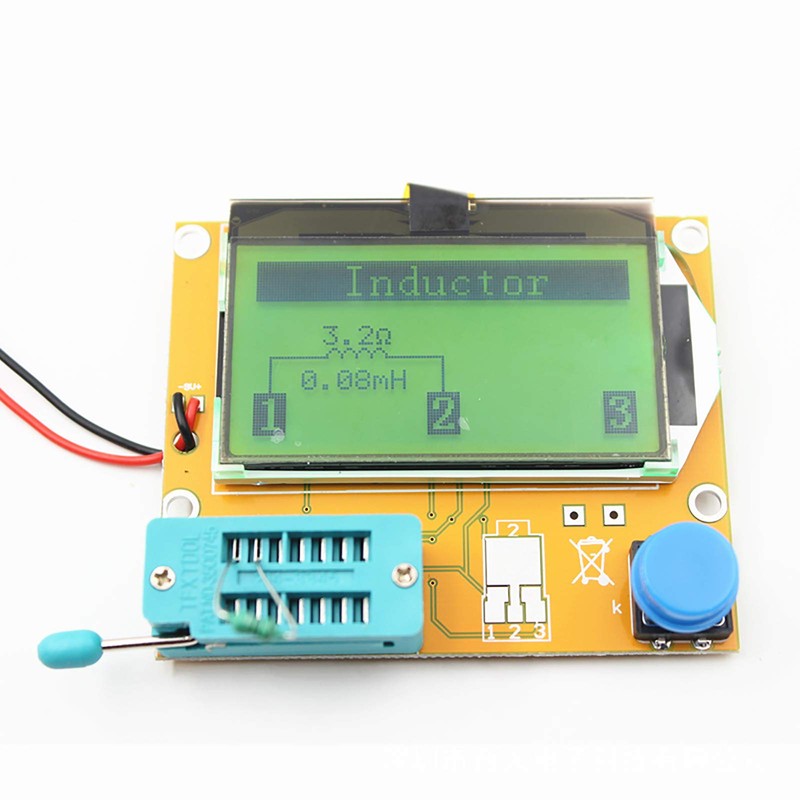

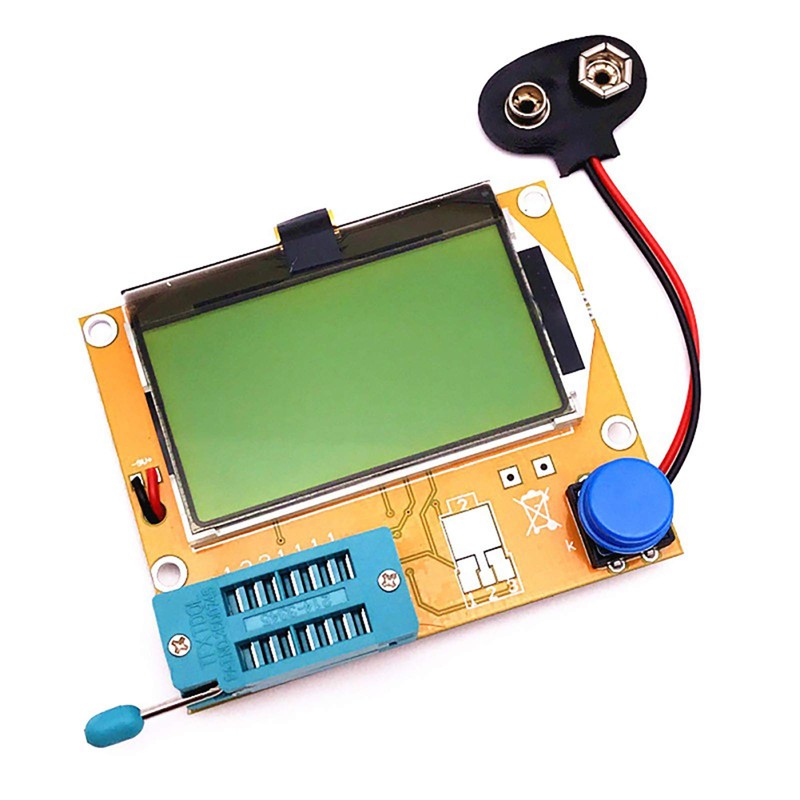

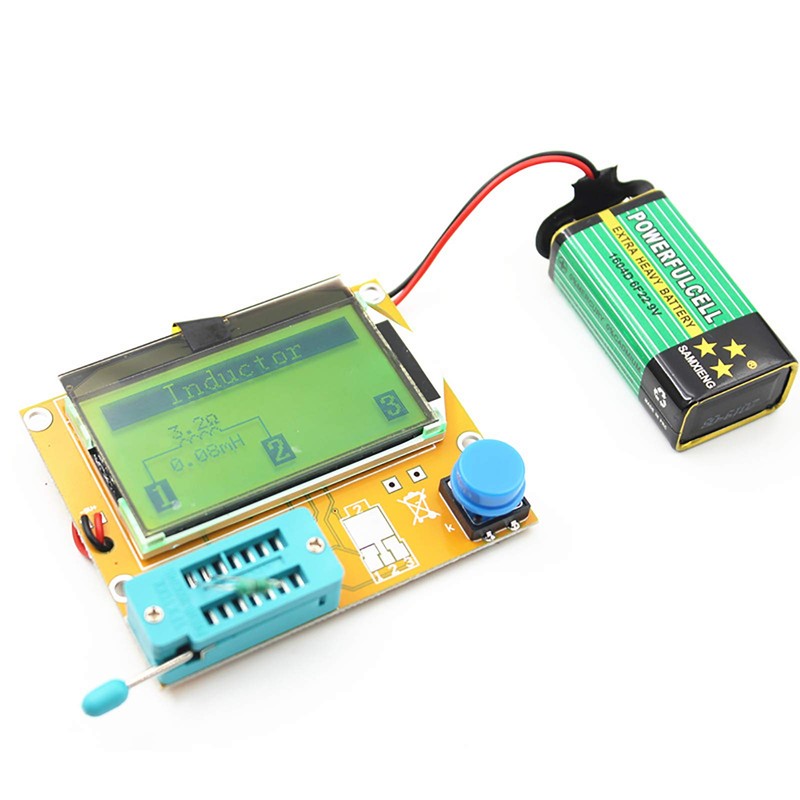

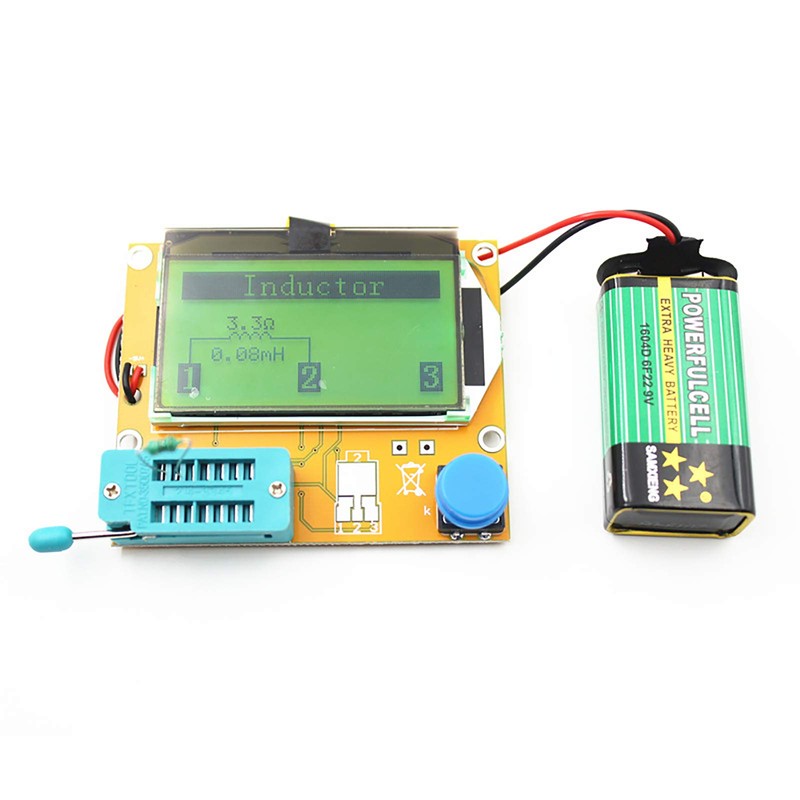

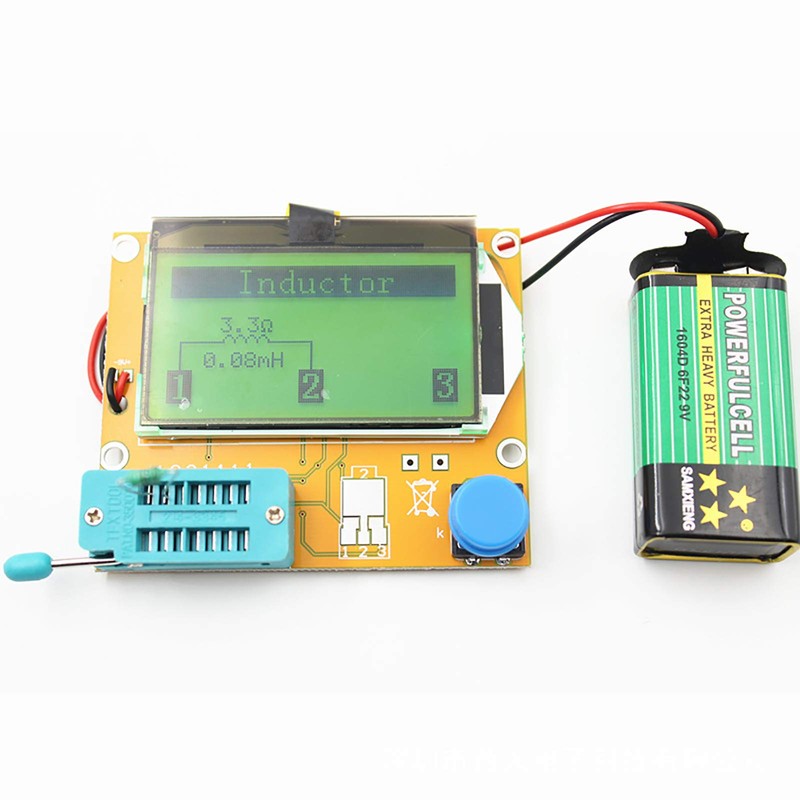

LCR-T4 ESR Meter Transistor Tester, Multifunction Diode Triode Capacitor ESR Meter MOS PNP/NPN M328 with LCD Display 12864
$48.33
-
Arrives
- Test ranges include: inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR, resistance, adjustable potentiometer.
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
- 12864 liquid crystal display with green backlight, can display measured data and graphics. Resistance :0.1 ohm resolution, maximum 50M ohm. Capacitor :25pf -100,000 uf. Inductors : 0.01mh-20H.
- Automatic test the pin of a component, measure the gate and gate capacitance of the MOSFET threshold voltage, and display on the LCD.
- Automatic shutdown function can avoid unnecessary waste, only 2mA when stand by and 20nA shutdown curren, save battery (9V battery not include) energy.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Test ranges include: inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR, resistance, adjustable potentiometer.
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.

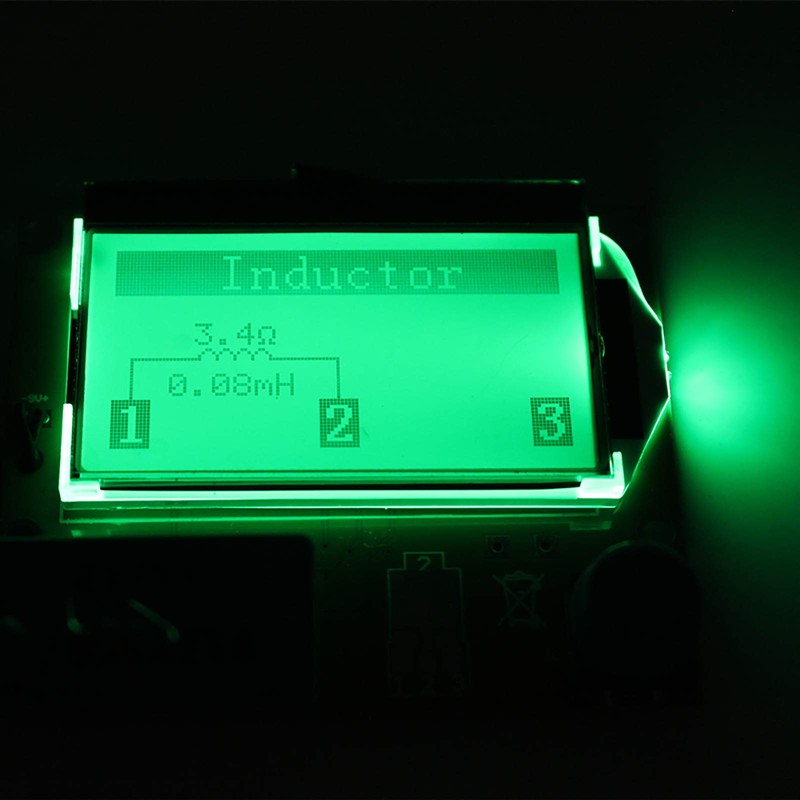

- 12864 liquid crystal display with green backlight, can display measured data and graphics. Resistance :0.1 ohm resolution, maximum 50M ohm. Capacitor :25pf -100,000 uf. Inductors : 0.01mh-20H.
- Automatic test the pin of a component, measure the gate and gate capacitance of the MOSFET threshold voltage, and display on the LCD.
- Automatic shutdown function can avoid unnecessary waste, only 2mA when stand by and 20nA shutdown curren, save battery (9V battery not include) energy.
1,Automatic identification components pin arrangement.
2,LED is detected as a diode forward voltage higher. Combo of the LED is identified as two diodes.
3,Automatically detect NPN, PNP bipolar transistors, N -channel and P -channel MOS FET, JFET, diodes, two diodes, thyristors small power unidirectional and bidirectional thyristor.
4,Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin, it can measure the collector or emitter junction reverse capacitance .18 can be obtained with a single measurement rectifier bridge connection.
5,Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
6,Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistor.
7,Can detect bipolar transistors and MOS transistors protection diode.
8,Measuring the gate MOS FET threshold voltage and the gate capacitance.
9,Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4. Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin.
10,Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.
11,Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
12.2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms.
13,Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
