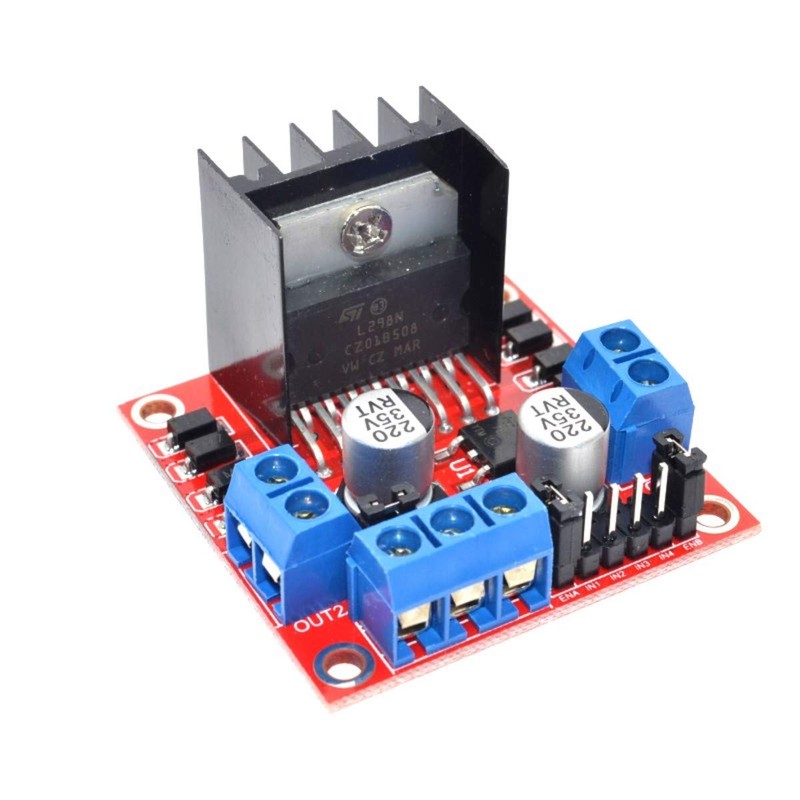

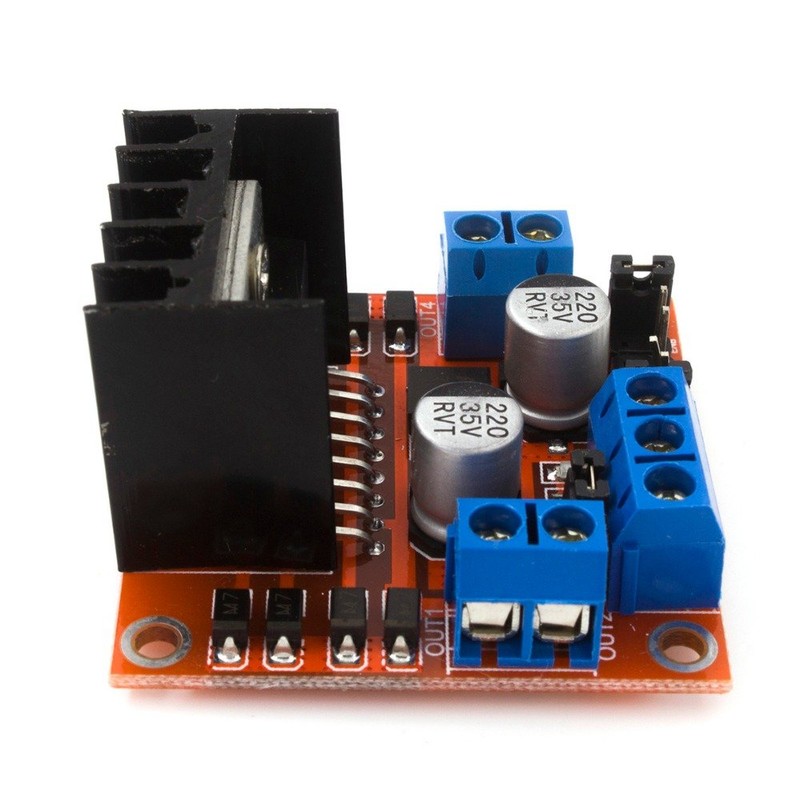

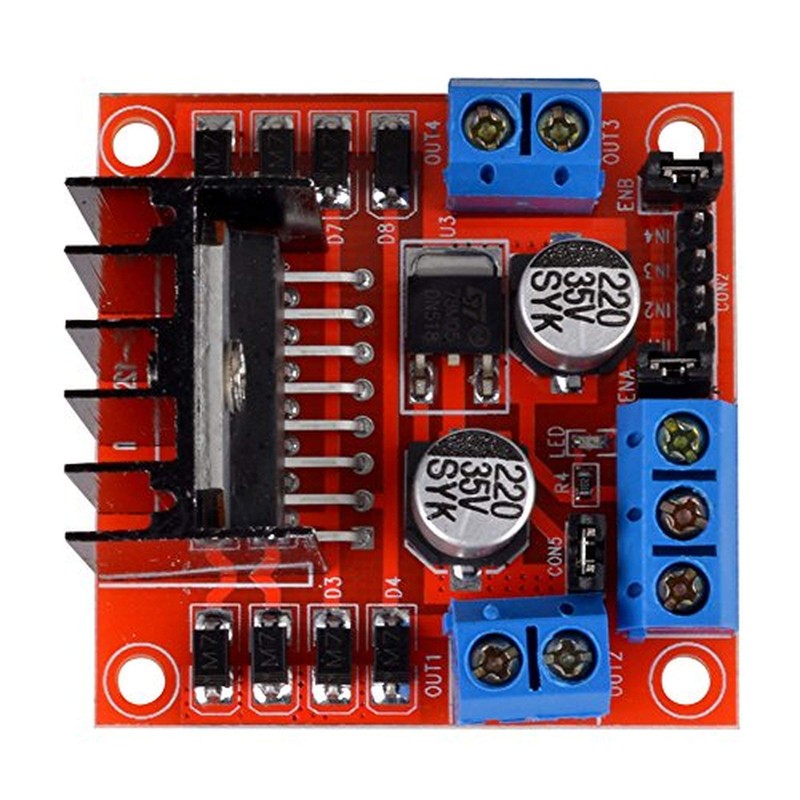

Envistia L298N Dual H Bridge PWM Stepper Motor Drive Controller Board Module (Pack of 2)
$16.88
- Free US shipping
-
Arrives
- Dual-channel L298N H-bridge driver can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors
- Accepts standard TTL logic level inputs to drive inductive loads such as relays, solenoids, DC and stepping motors from 5V to 35V
- Uses large-capacity filter capacitors and diodes with freewheeling protection function to increase reliability

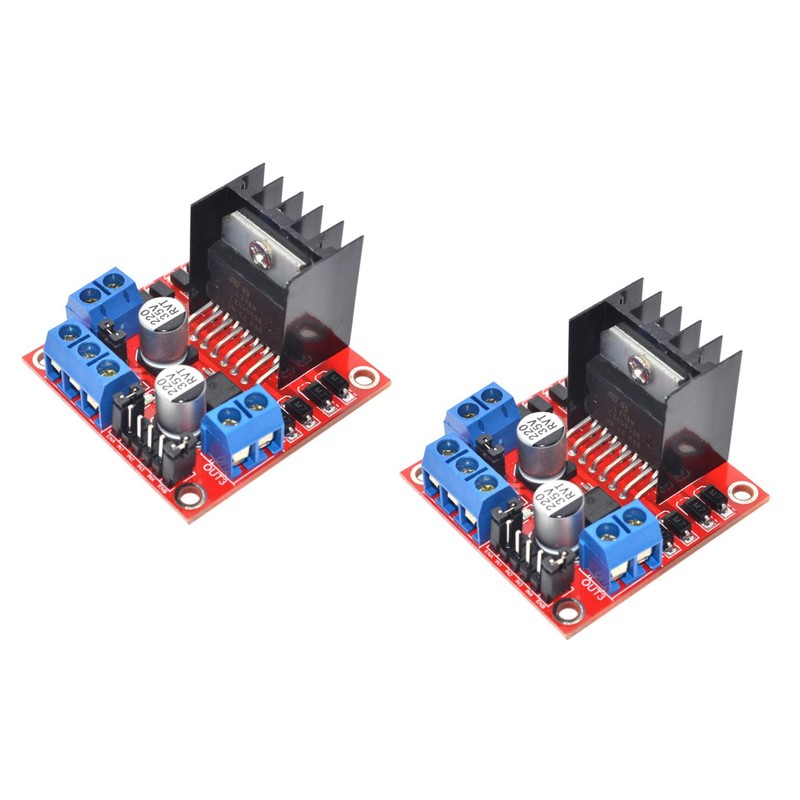

- Package of 2 drivers
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Dual-channel L298N H-bridge driver can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors
- Accepts standard TTL logic level inputs to drive inductive loads such as relays, solenoids, DC and stepping motors from 5V to 35V
- Uses large-capacity filter capacitors and diodes with freewheeling protection function to increase reliability
- Package of 2 drivers
It can easily control the DC motor speed and direction, and can also control 2-phase stepper motors. It can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays using Pulse Width Modulation (PWM) control.
Two enable inputs are provided to enable or disable the device independently of the input signals.
The motor direction is controlled by sending a HIGH or LOW signal to the drive for each motor (or channel). For example for motor A, a HIGH to IN1 and a LOW to IN2 will cause it to turn in one direction, and a LOW and HIGH will cause it to turn in the other direction.

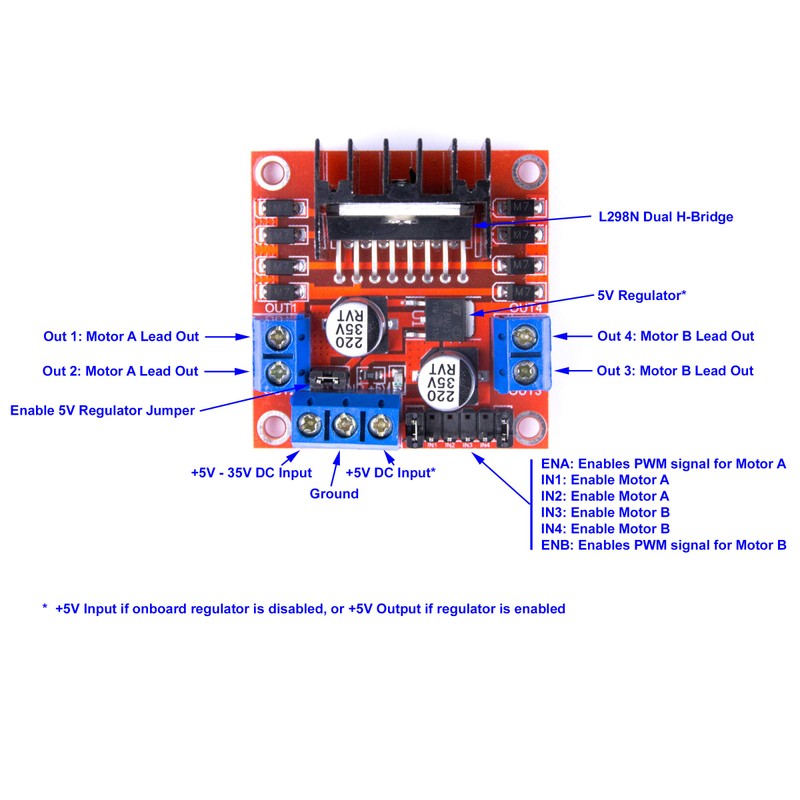

The module includes an onboard 5V regulator. When enabled by the jumper, the 5V is provided as an output on the power connector, and can be used as a 5V DC supply for your other circuit components. (When enabled, the module input voltage must be at least 6V). When disabled, a separate 5V input provides in order to control the logic level circuitry of this module.
**Controller Parameters:**
* Driver chip: L298N dual H-bridge driver * Drive Voltage: +5V to +35V (Input voltage must be at least 6V when internal 5V regulator is enabled) * Drive peak current Io: 2A / Bridge * Logic power supply range Vss : +4V to +5.5V DC (Not required when internal regulator is enabled. When enabled, the 5V is available as an output on the power connector * Control signal input voltage range: 4.5-5.5V high 0V low * Maximum power consumption: 20W * Storage temperature: -25 ~ +130 C * Dimensions (approx): 43mm x 43mm x 27mm LxWxH (1.7" x 1.7" x 1.1") * Weight: 26g
