L-298N Motor Drive Controller Board Module Dual H Bridge DC Step Module, QIQIAZI Mini Stepper Motor Drive Controller Board Module for Arduino (Pack of 5)
$33.76
- $9.99 shipping from Germany View details
-
Arrives
- Reliable motor control: The 298 motor control module uses a dual H bridge architecture to efficiently control DC motors. It has a powerful main chip with high drive power, low heat generation and strong anti-interference ability.
- 【Parameters】Operating mode: dual H bridge driver; drive voltage: 5V-24V; drive current: max. 2A per single bridge - perfect for robot projects, DIY automation and applications with variable power requirements.

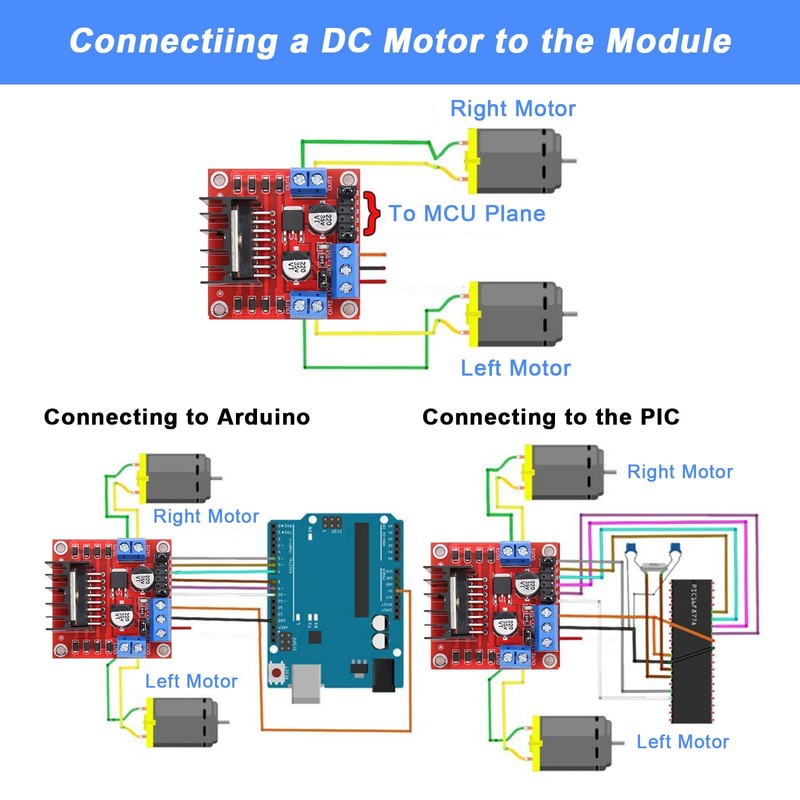

- Two-channel operation: stepper motor driver with dual H bridge DC stepper module can control two motors at the same time, ideal for building remote controlled vehicles, robot arms. Compatible with Arduino and Raspberry Pi
- 【Built-in Protection Functions】Equipped with a powerful filter capacity, freewheeling diodes and built-in protection against over-voltage, over-current and overheating - for stable and safe use.
- Built-in voltage regulator: the motor bridge integrated 78M05 regulator draws current from the drive power, but at voltages above 12 V, it is recommended to use an external 5 V power source.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Reliable motor control: The 298 motor control module uses a dual H bridge architecture to efficiently control DC motors. It has a powerful main chip with high drive power, low heat generation and strong anti-interference ability.
- 【Parameters】Operating mode: dual H bridge driver; drive voltage: 5V-24V; drive current: max. 2A per single bridge - perfect for robot projects, DIY automation and applications with variable power requirements.
- Two-channel operation: stepper motor driver with dual H bridge DC stepper module can control two motors at the same time, ideal for building remote controlled vehicles, robot arms. Compatible with Arduino and Raspberry Pi
- 【Built-in Protection Functions】Equipped with a powerful filter capacity, freewheeling diodes and built-in protection against over-voltage, over-current and overheating - for stable and safe use.
- Built-in voltage regulator: the motor bridge integrated 78M05 regulator draws current from the drive power, but at voltages above 12 V, it is recommended to use an external 5 V power source.
Specification:
Name: Dual H Bridge Motor Driver Module
Operating mode: H-bridge driver (dual).
Logic voltage: 5 V.
Operating voltage: 5V-24V
Logic Current: 0mA-36mA
Drive current: 2A (max. single bridge).
Storage temperature: -20 °C to +135 °C.
Maximum power: 25 W.
Weight: 30g

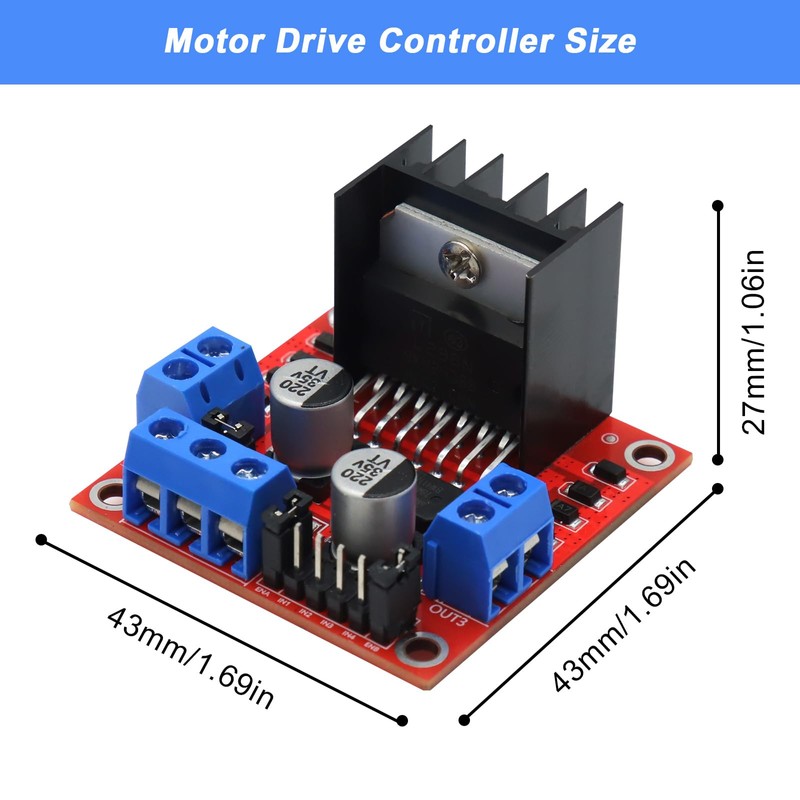

Size: 43 x 43 x 27mm
Note:

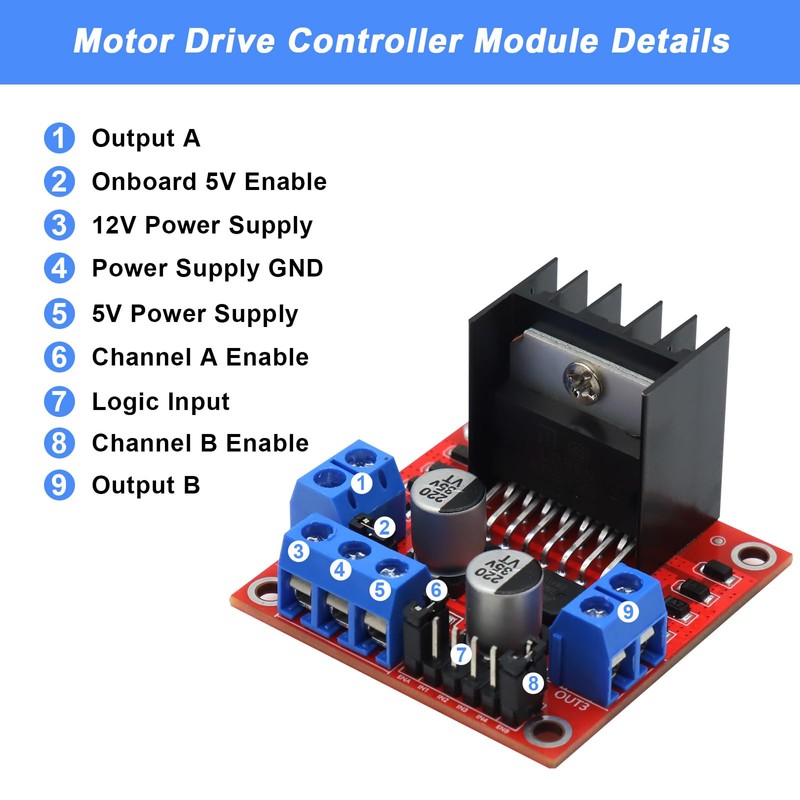

1. General Application If your driver is 7V-12V, you can activate the built-in 5V logic supply. When using the built-in 5V power supply, the +5V power supply in the interface does not output input voltage, but can take 5V voltage for external use.
2. Unconventional application of high voltage drives If the drive voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with a rated voltage of 18V, the jumper cap must be pulled out with activated 5V output voltage on board, and then outside the 5V output port 5V voltage to the internal logic voltage voltage supply 298 connect.

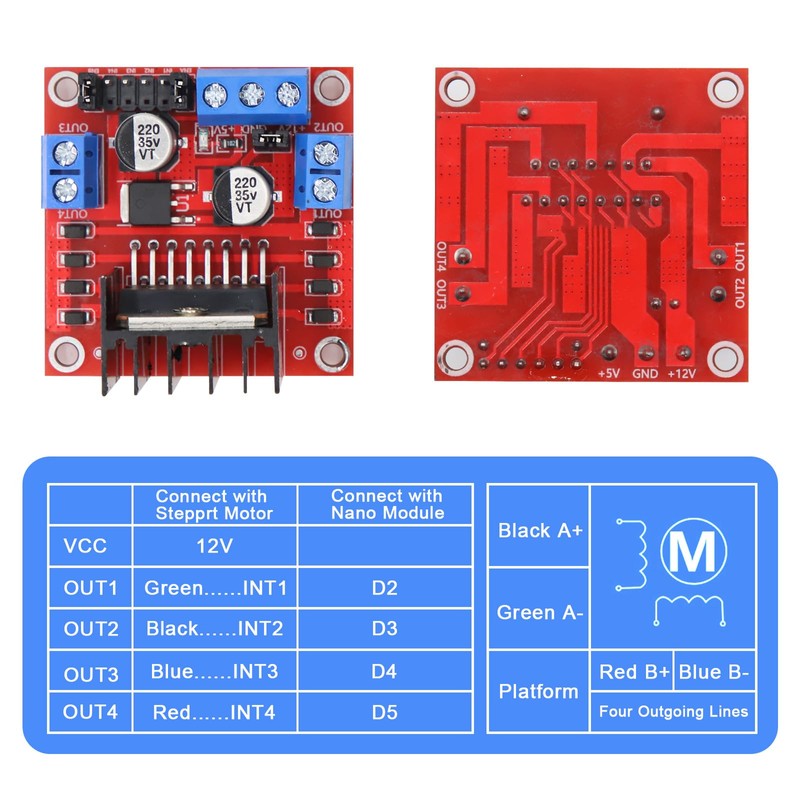

3. When ENA IN1 is activated, IN2 controls OUT1 OUT2.
4. When ENB is activated, IN3 IN4 OUT3 OUT4 controls
Package includes:

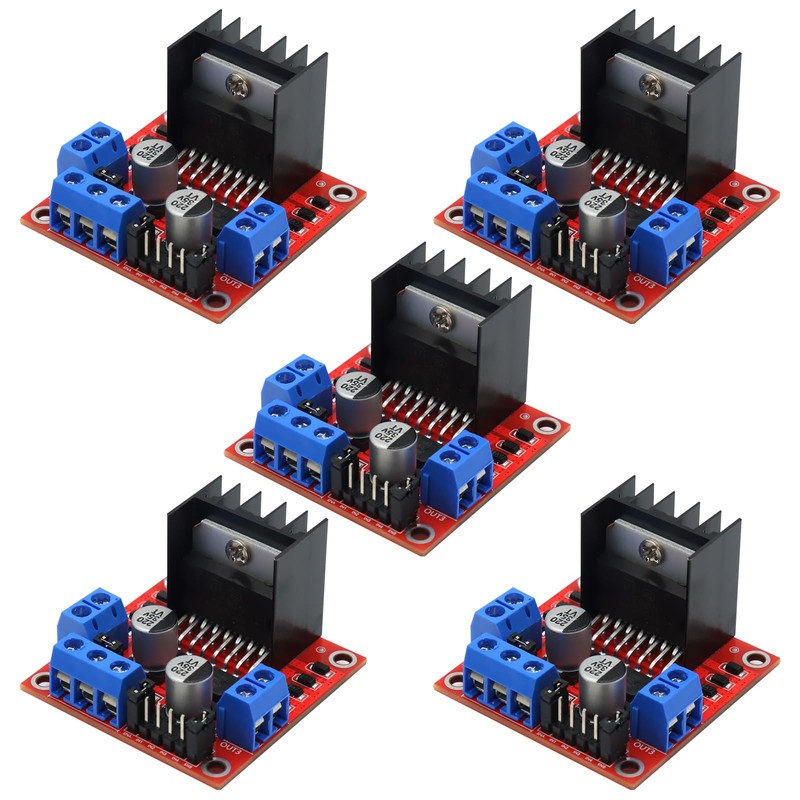

5 x Engine Control Board Module
