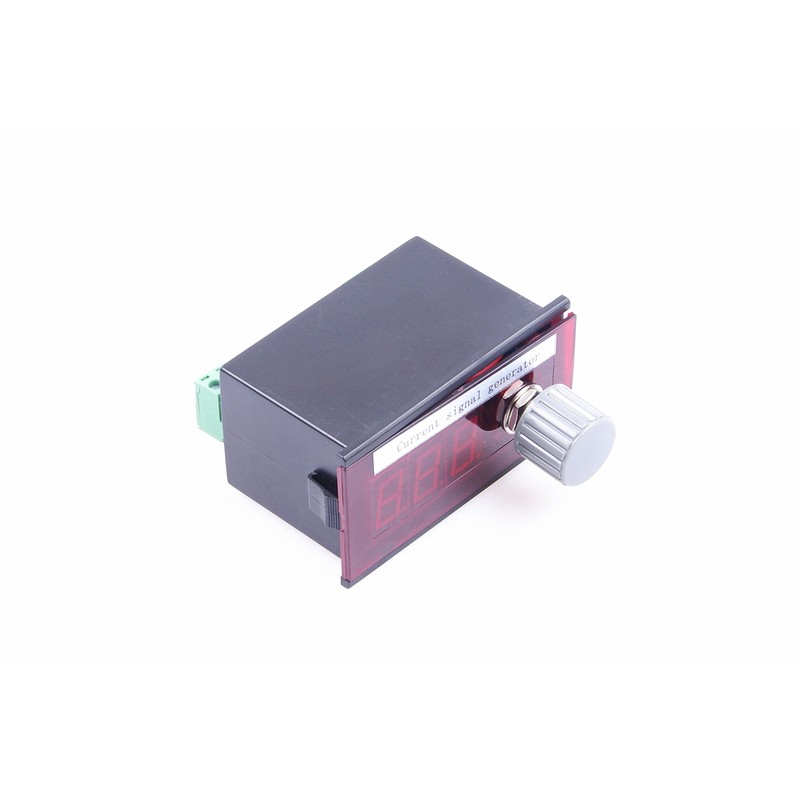

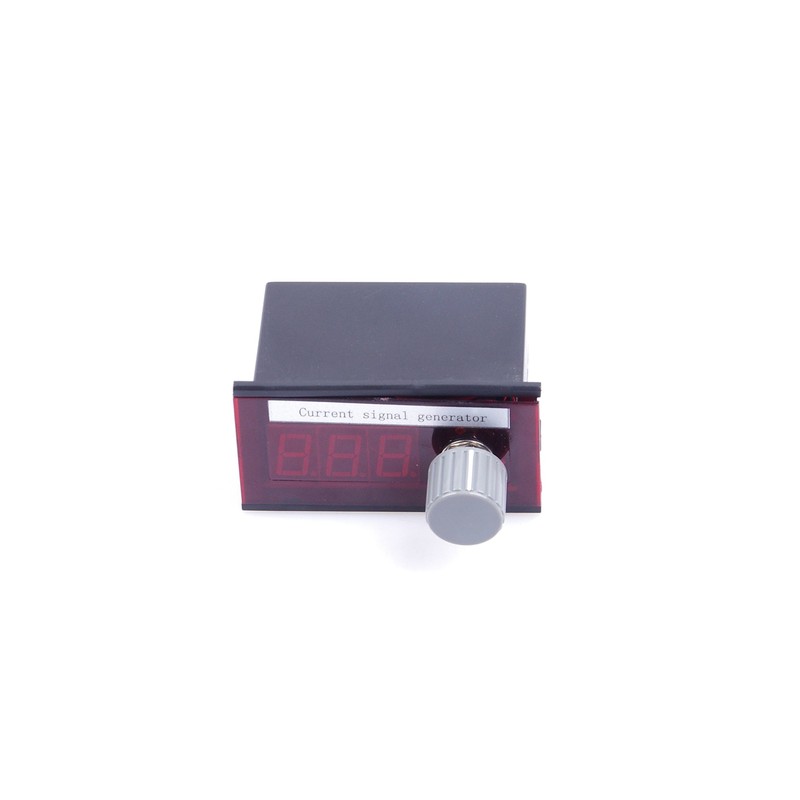

KNACRO 4-20mA Signal Generator, DC 7-30V Constant Current Source, Stable Signal Source with 0.01mA Adjustable Potentiometer, Voltage, Current LED Display
Product Overview
- Access to power to send 4-20MA industry standard constant current source control signal output, the number shows the output current mA, the accuracy of a decimal point. Within the design of a variety of protection circuit, the output signal is pure, the whole Machine performance is stable and reliable

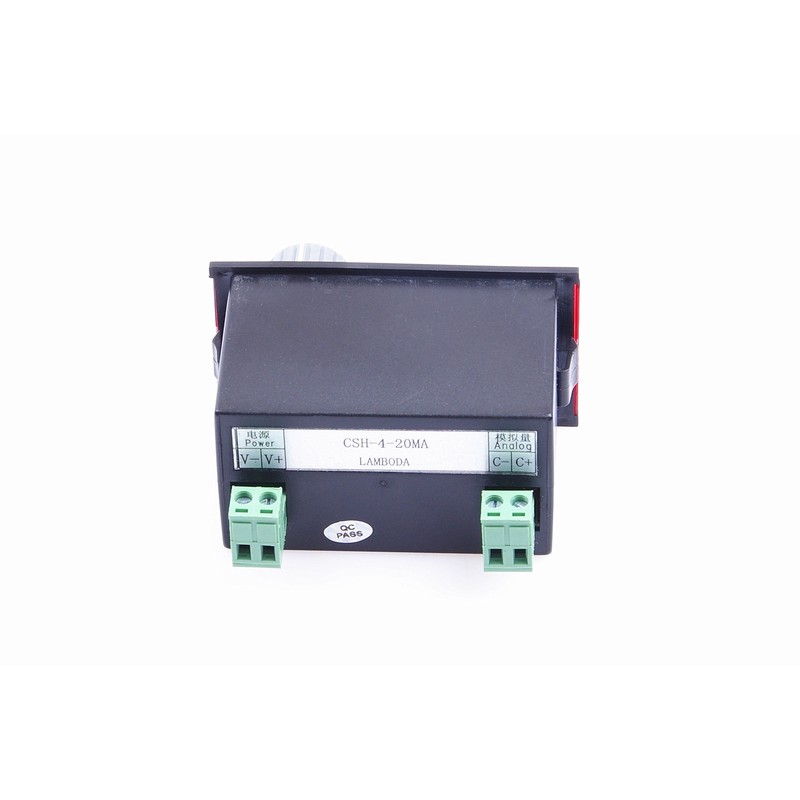

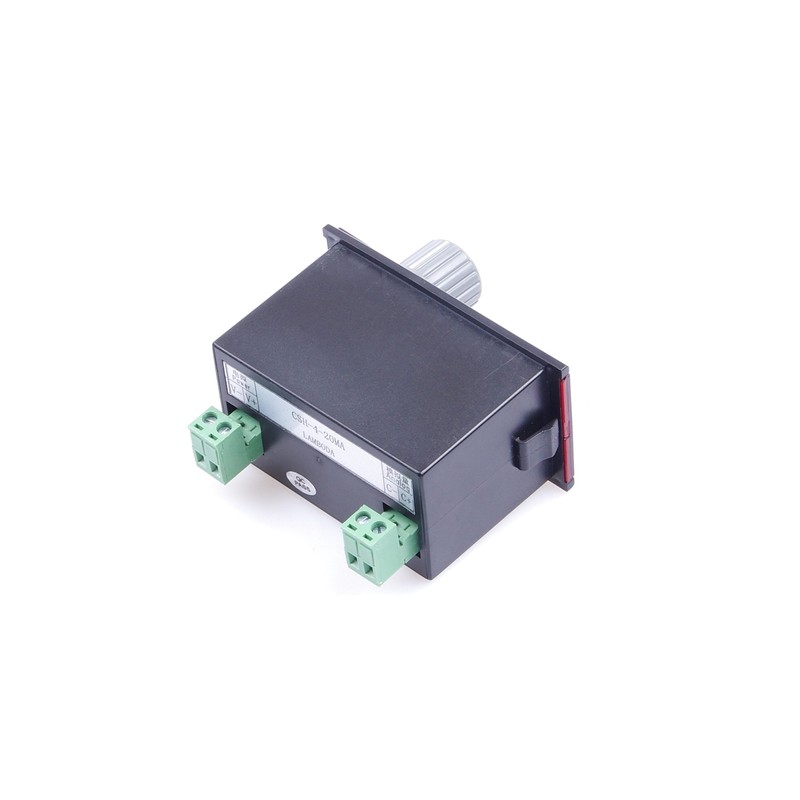

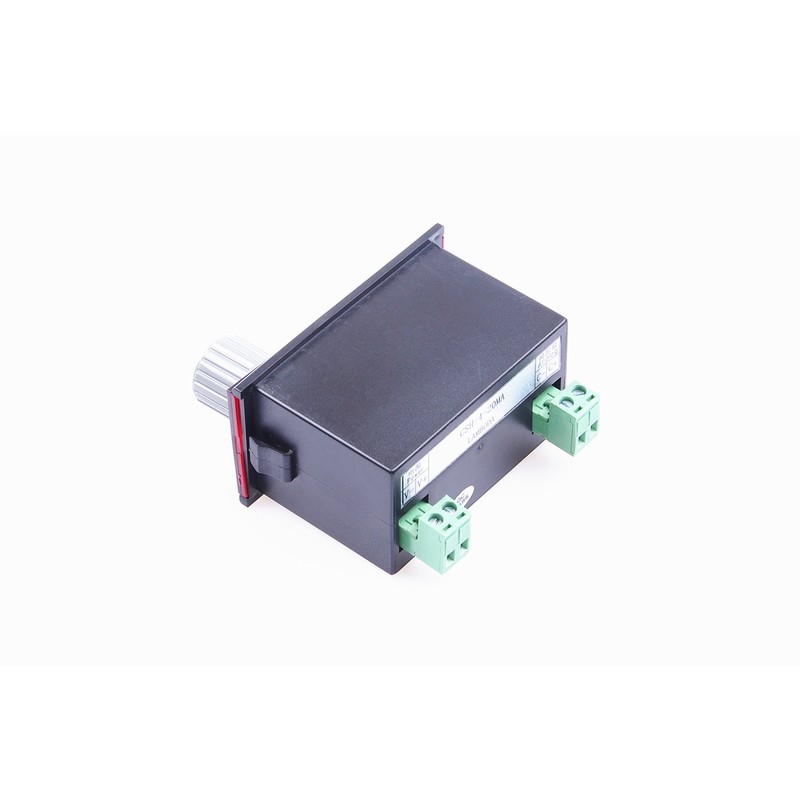

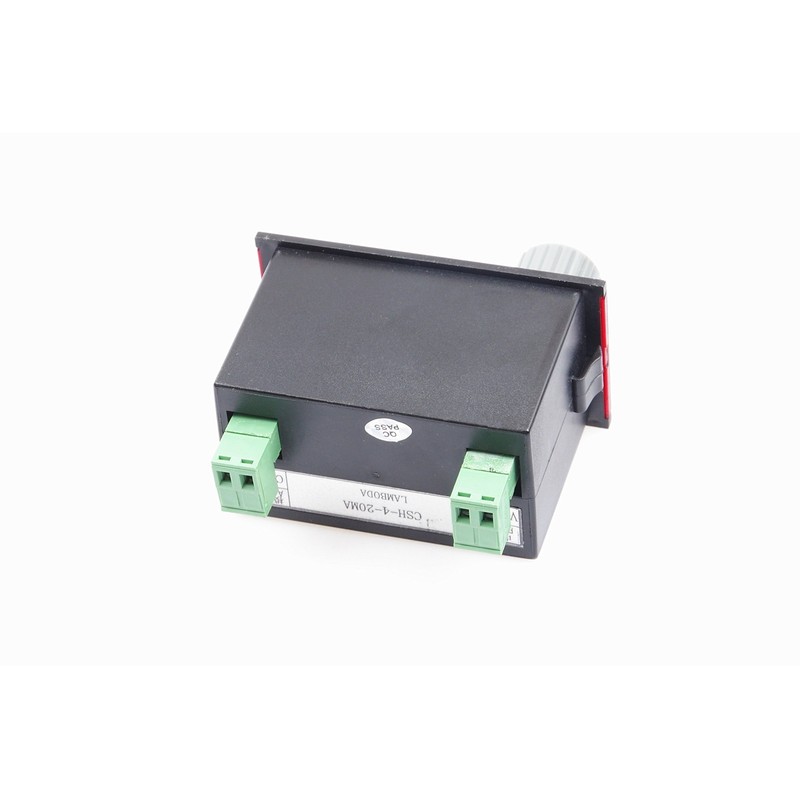

- Wiring easy maintenance, the use of two 5.08MM pitch male and female socket wiring. Screw terminals than the conventional screw only easier to maintain and wiring. The middle of the safety interval bits reserved for safer
- Use long life, high wear-resistant multi-turn wire potentiometer, high precision.
- Power input to prevent the reverse protection, self-recovery fuse protection. Signal output lightning protection ESD electrostatic protection, anti-jamming protection. Standard header shell, easy installation.
- Widely used in: inverter control, PLC debugging, valve regulation, instrumentation testing, LED testing, analog transmitter output, signal generator, etc .. Table shell, easy installation
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Overview
- Access to power to send 4-20MA industry standard constant current source control signal output, the number shows the output current mA, the accuracy of a decimal point. Within the design of a variety of protection circuit, the output signal is pure, the whole Machine performance is stable and reliable
- Wiring easy maintenance, the use of two 5.08MM pitch male and female socket wiring. Screw terminals than the conventional screw only easier to maintain and wiring. The middle of the safety interval bits reserved for safer
- Use long life, high wear-resistant multi-turn wire potentiometer, high precision.
- Power input to prevent the reverse protection, self-recovery fuse protection. Signal output lightning protection ESD electrostatic protection, anti-jamming protection. Standard header shell, easy installation.
- Widely used in: inverter control, PLC debugging, valve regulation, instrumentation testing, LED testing, analog transmitter output, signal generator, etc .. Table shell, easy installation
Supply current To ensure the stability of the system, the power supply terminal of the product must have a current output capability of at least 150MA.
Output ripple : <30MV.
The highest output voltage: input supply voltage -0.9V.
The minimum output voltage: 0V (equivalent to two output lines direct short-circuit state)
Constant current average reaction time: real-time feedback control, fast.
The minimum static power consumption: 1.728W (72MA / 24V,) output vacant
Maximum working output power consumption: 2.16W (90MA / 24V) maximum output.
Output current limit adjustment range: 3.3MA-21MA.
Output current regulation control accuracy 0.1MA.
Temperature offset accuracy: 3%
Humidity drift accuracy: 2%

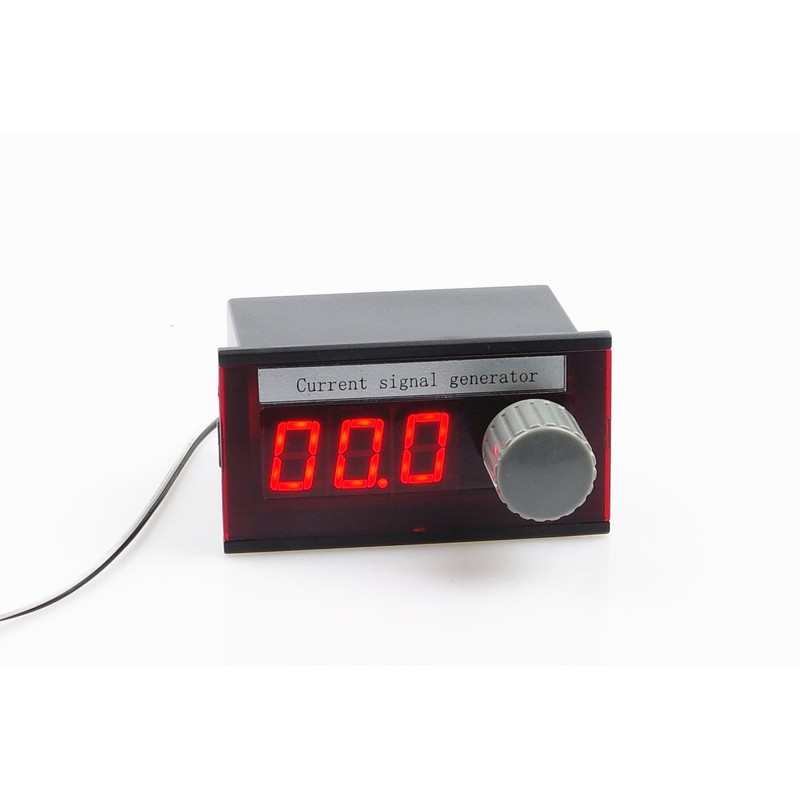

Use 0.56 inches of high-brightness long-life digital display to ensure long-range, strong light display.
Head shell dimensions: length 79MM * high 43MM * thick 48MM (+12 MM +25MM knob knob.)
Chassis installation hole size: 76 * 39MM
Shell color: gray
Color film window Specifications: dark purple 65 * 20MM
Digital size: 0.56 inches digital tube
Net weight of 85G.
