KIT 호환 KIT KT7244 아날로그 멀티미터 전류/저항/버저 포함 Compatibility KIT KT7244 Analog Multimeter Current/Resistance/Buzzer Included [01 KT7244]
$63.32
- $12.99 shipping from South Korea View details
-
Arrives

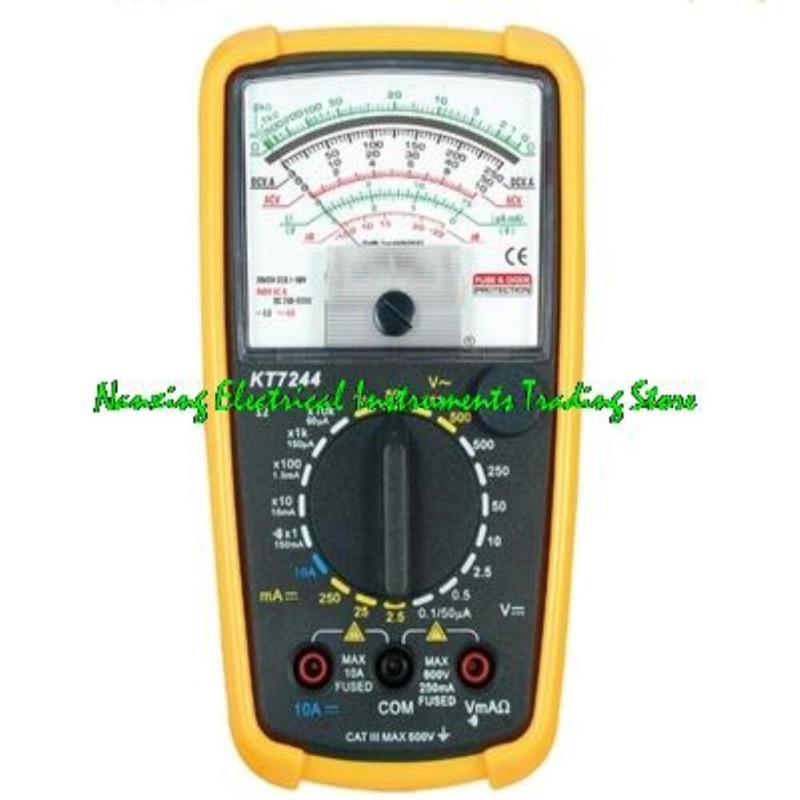

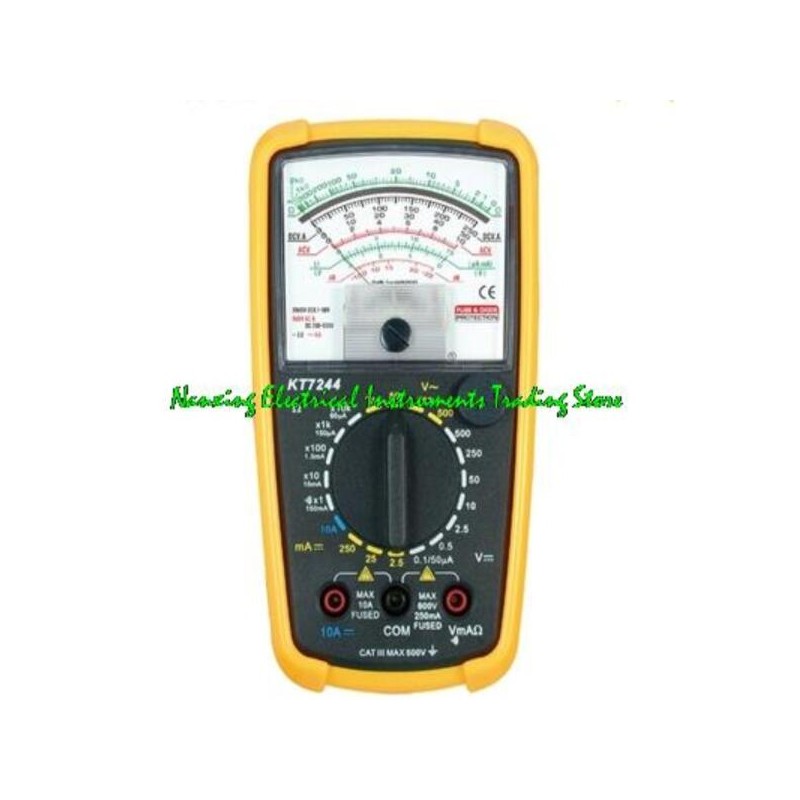

KT7244 Analog Multimeter
This analog multimeter is designed to measure current, resistance, and includes a buzzer. It is a reliable and accurate tool for electrical measurements.
Product Highlights:
- Measures current, resistance, and includes a buzzer
- Battery included
- Manual range selection for precise measurements
- No high-density chemical substances used
Specifications:
| Name | KT7244 Analog Multimeter |
| Battery Included | Yes |
| DC Voltage | KT7244 |
| Origin | China |
| Operation Mode | Manual Range |
상품 기본정보
| 이름: NoEnName Null | 배터리 포함: 예 | DC 전압: KT7244 |
| 원산지: 중국 | 작동 모드: 수동 범위 | 고농도 화학 물질: 없음 |
| DIY 용품: 전기 | AC 전압: KT7244 | 디스플레이 유형: 포인터 디스플레이 |
| 저항 측정 범위: 2k / 20k / 200k / 2M / 20M | 인증: 아무도 | 모델 번호: KT7244 |
| 작동 온도: 0 - 40 ℃ |
-

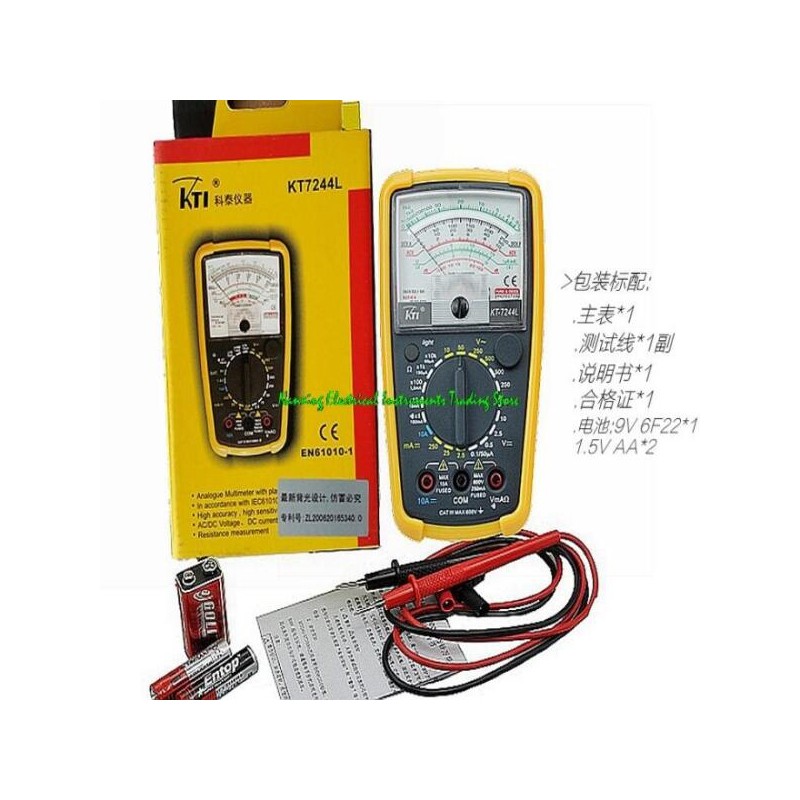

KT7244 포인터 멀티미터
-

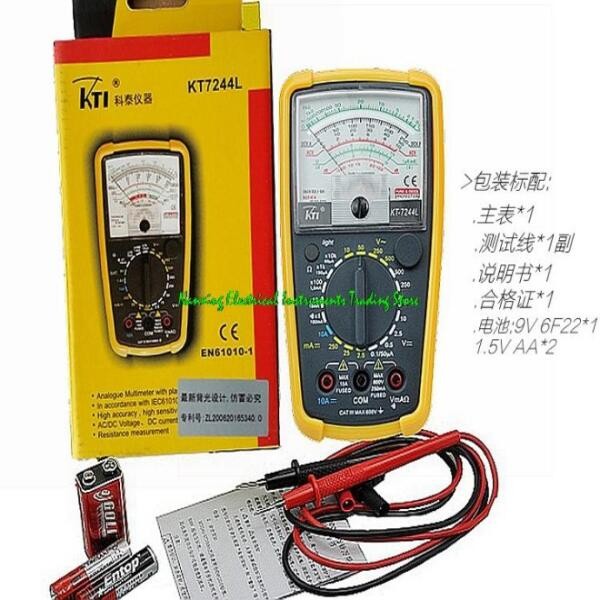

KT7244L (백라이트) 포인터 멀티미터
포인터 멀티미터의 백라이트 기능 실용신안 특허
약한 조명 환경에서는 백라이트가 켜지고 포인터 눈금이 한눈에 명확해집니다.
단시간에 조명으로 사용 가능
전형적인 유럽미국 디자인 안전 표준 CAT III 600V
6가지 기능 20가지 범위
AC/DC 전압은 0500V까지 측정 가능
DC 전류는 010A를 측정할 수 있습니다.
저항 측정은 020MΩ을 측정할 수 있습니다.
연속성 테스트다이오드 테스트
입력 임피던스 20KΩ/VDC 9KΩ/VAC
액세서리에는 1.5V9V 배터리 외장 테스트 리드 설명서 컬러 박스가 포함됩니다.제품 매개변수
매개변수
DC 전압 0.1/0.5/2.5/10/50/250/500V (±3.0% f.s)
AC 전압 10/50/250/500V (±4.0% f.s)
DC 전류 0.05m/2.5m/25m/250m/10A(±3.0% f.s)
저항 2K/20K/200K/2M/20MΩ (전체 호의 ±3.0%)
0-30Ω 부저음 연속성 테스트
dB 테스트 -1056(0dB 1mW/600Ω)
작동 온도 040℃ (32104oF) 습도 80%
제품 크기 162x86x36mm
순함량은 배터리 포함 약 320g입니다.
국제 안전 표준 EN61010-1 CAT III 600V를 준수합니다. 사용 지침
KT7244/KT7244L은 고감도 멀티미터입니다.
사용 전 주의사항을 잘 읽어보시고 안전상의 주의사항을 자세히 읽어보시기 바랍니다.
백라이트 기능은 미터의 전력 소비를 증가시키며 조명이 15초 후에 자동으로 꺼집니다.
KT7244 Analog Multimeter
This analog multimeter is designed to measure current, resistance, and includes a buzzer. It is a reliable and accurate tool for electrical measurements.
Product Highlights:
- Measures current, resistance, and includes a buzzer
- Battery included
- Manual range selection for precise measurements
- No high-density chemical substances used
Specifications:
| Name | KT7244 Analog Multimeter |
| Battery Included | Yes |
| DC Voltage | KT7244 |
| Origin | China |
| Operation Mode | Manual Range |
상품 기본정보
| 이름: NoEnName Null | 배터리 포함: 예 | DC 전압: KT7244 |
| 원산지: 중국 | 작동 모드: 수동 범위 | 고농도 화학 물질: 없음 |
| DIY 용품: 전기 | AC 전압: KT7244 | 디스플레이 유형: 포인터 디스플레이 |
| 저항 측정 범위: 2k / 20k / 200k / 2M / 20M | 인증: 아무도 | 모델 번호: KT7244 |
| 작동 온도: 0 - 40 ℃ |
-
KT7244 포인터 멀티미터
-
KT7244L (백라이트) 포인터 멀티미터
포인터 멀티미터의 백라이트 기능 실용신안 특허
약한 조명 환경에서는 백라이트가 켜지고 포인터 눈금이 한눈에 명확해집니다.
단시간에 조명으로 사용 가능
전형적인 유럽미국 디자인 안전 표준 CAT III 600V
6가지 기능 20가지 범위
AC/DC 전압은 0500V까지 측정 가능
DC 전류는 010A를 측정할 수 있습니다.
저항 측정은 020MΩ을 측정할 수 있습니다.
연속성 테스트다이오드 테스트
입력 임피던스 20KΩ/VDC 9KΩ/VAC
액세서리에는 1.5V9V 배터리 외장 테스트 리드 설명서 컬러 박스가 포함됩니다.제품 매개변수
매개변수
DC 전압 0.1/0.5/2.5/10/50/250/500V (±3.0% f.s)
AC 전압 10/50/250/500V (±4.0% f.s)
DC 전류 0.05m/2.5m/25m/250m/10A(±3.0% f.s)
저항 2K/20K/200K/2M/20MΩ (전체 호의 ±3.0%)
0-30Ω 부저음 연속성 테스트
dB 테스트 -1056(0dB 1mW/600Ω)
작동 온도 040℃ (32104oF) 습도 80%
제품 크기 162x86x36mm
순함량은 배터리 포함 약 320g입니다.
국제 안전 표준 EN61010-1 CAT III 600V를 준수합니다. 사용 지침
KT7244/KT7244L은 고감도 멀티미터입니다.
사용 전 주의사항을 잘 읽어보시고 안전상의 주의사항을 자세히 읽어보시기 바랍니다.
백라이트 기능은 미터의 전력 소비를 증가시키며 조명이 15초 후에 자동으로 꺼집니다.
KT7244 Analog Multimeter
This analog multimeter is designed to measure current, resistance, and includes a buzzer. It is a reliable and accurate tool for electrical measurements.
Product Highlights:
- Measures current, resistance, and includes a buzzer
- Battery included
- Manual range selection for precise measurements
- No high-density chemical substances used
Specifications:
| Name | KT7244 Analog Multimeter |
| Battery Included | Yes |
| DC Voltage | KT7244 |
| Origin | China |
| Operation Mode | Manual Range |
상품 기본정보
| 이름: NoEnName Null | 배터리 포함: 예 | DC 전압: KT7244 |
| 원산지: 중국 | 작동 모드: 수동 범위 | 고농도 화학 물질: 없음 |
| DIY 용품: 전기 | AC 전압: KT7244 | 디스플레이 유형: 포인터 디스플레이 |
| 저항 측정 범위: 2k / 20k / 200k / 2M / 20M | 인증: 아무도 | 모델 번호: KT7244 |
| 작동 온도: 0 - 40 ℃ |




-
KT7244 포인터 멀티미터
-
KT7244L (백라이트) 포인터 멀티미터
포인터 멀티미터의 백라이트 기능 실용신안 특허
약한 조명 환경에서는 백라이트가 켜지고 포인터 눈금이 한눈에 명확해집니다.
단시간에 조명으로 사용 가능
전형적인 유럽미국 디자인 안전 표준 CAT III 600V
6가지 기능 20가지 범위
AC/DC 전압은 0500V까지 측정 가능
DC 전류는 010A를 측정할 수 있습니다.
저항 측정은 020MΩ을 측정할 수 있습니다.
연속성 테스트다이오드 테스트
입력 임피던스 20KΩ/VDC 9KΩ/VAC
액세서리에는 1.5V9V 배터리 외장 테스트 리드 설명서 컬러 박스가 포함됩니다.제품 매개변수
매개변수
DC 전압 0.1/0.5/2.5/10/50/250/500V (±3.0% f.s)
AC 전압 10/50/250/500V (±4.0% f.s)
DC 전류 0.05m/2.5m/25m/250m/10A(±3.0% f.s)
저항 2K/20K/200K/2M/20MΩ (전체 호의 ±3.0%)
0-30Ω 부저음 연속성 테스트
dB 테스트 -1056(0dB 1mW/600Ω)
작동 온도 040℃ (32104oF) 습도 80%
제품 크기 162x86x36mm
순함량은 배터리 포함 약 320g입니다.
국제 안전 표준 EN61010-1 CAT III 600V를 준수합니다. 사용 지침
KT7244/KT7244L은 고감도 멀티미터입니다.
사용 전 주의사항을 잘 읽어보시고 안전상의 주의사항을 자세히 읽어보시기 바랍니다.
백라이트 기능은 미터의 전력 소비를 증가시키며 조명이 15초 후에 자동으로 꺼집니다.
