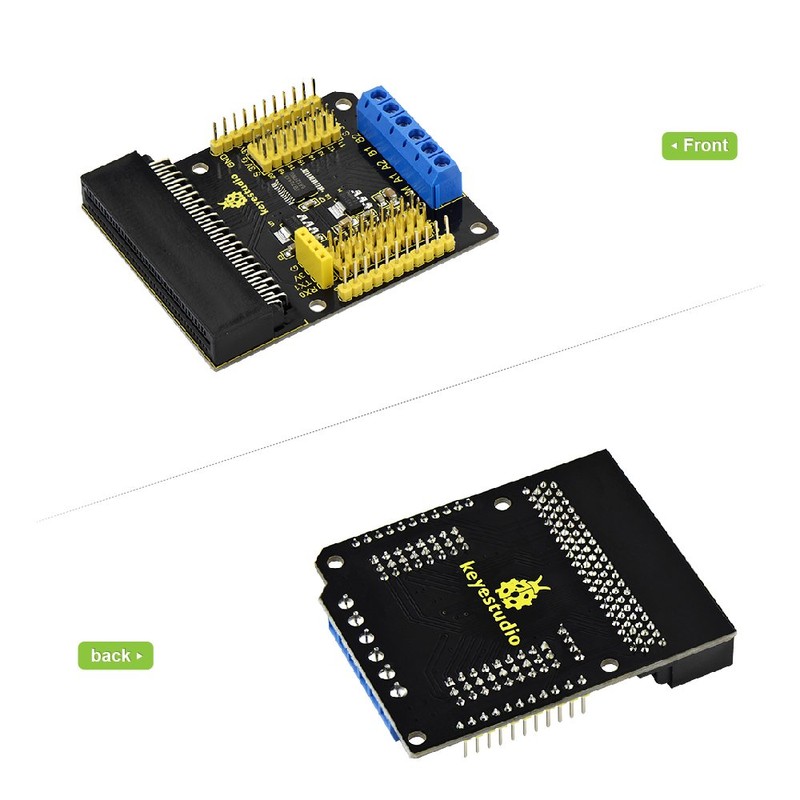

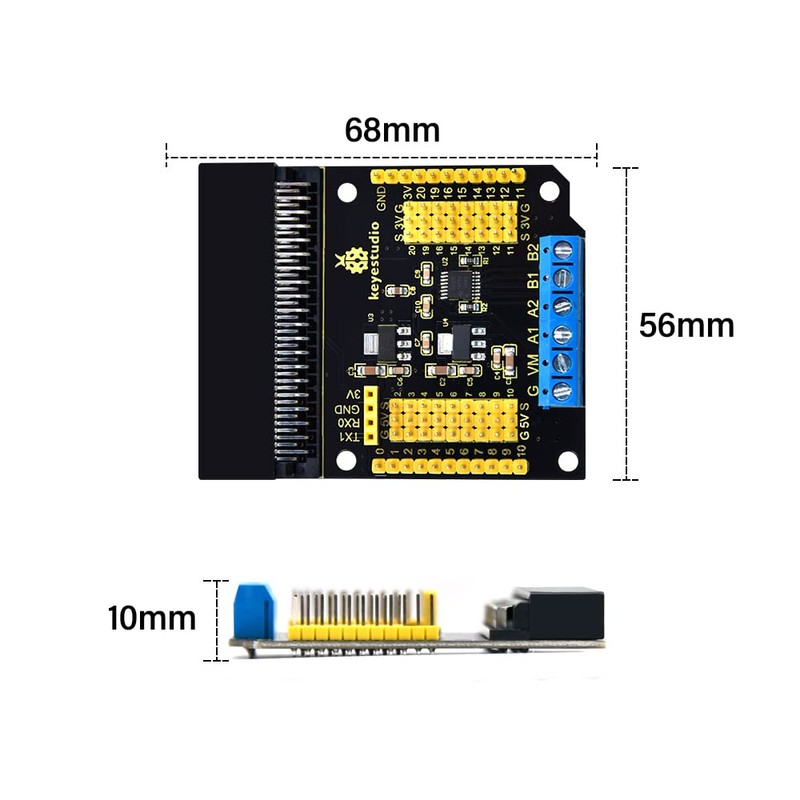

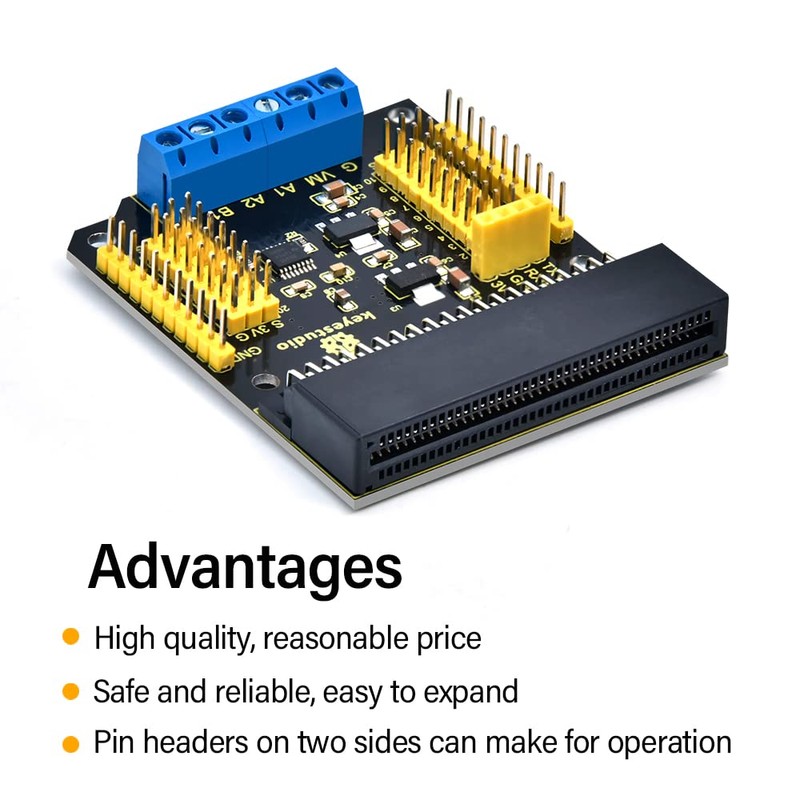

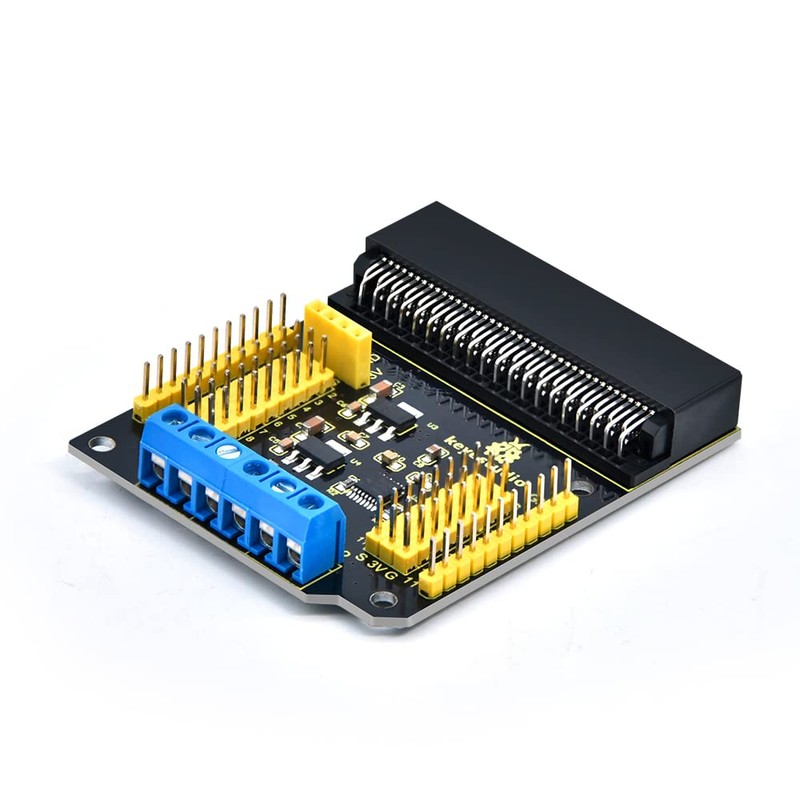

KEYESTUDIO Microbit Motor Driver HAT Breakout Board DRV8833 for BBC Micro bit with Edge Connector
$29.94
- $5.95 shipping from United States View details
-
Arrives
- Specially researched and developed this motor driver breakout board to facilitate the micro bit to drive DC motor.
- Four motor control modes: Forward/Reverse /Brake /Stop. Access to 3Pin headers connection.
- Integrated with 3.3V and 5V voltage-regulator chip. Comes with a serial communication port for BT module.
- EXCELLENT QUALITY: solder is very clean, everything is aligned nicely, all boards are well packed after function, voltage, current testing, and protected in a beautiful box.
- Up to FCC and CE Standard: made from environmentally friendly components and materials, as well as environmentally friendly production technology, it is really safe.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Specially researched and developed this motor driver breakout board to facilitate the micro bit to drive DC motor.
- Four motor control modes: Forward/Reverse /Brake /Stop. Access to 3Pin headers connection.
- Integrated with 3.3V and 5V voltage-regulator chip. Comes with a serial communication port for BT module.
- EXCELLENT QUALITY: solder is very clean, everything is aligned nicely, all boards are well packed after function, voltage, current testing, and protected in a beautiful box.
- Up to FCC and CE Standard: made from environmentally friendly components and materials, as well as environmentally friendly production technology, it is really safe.

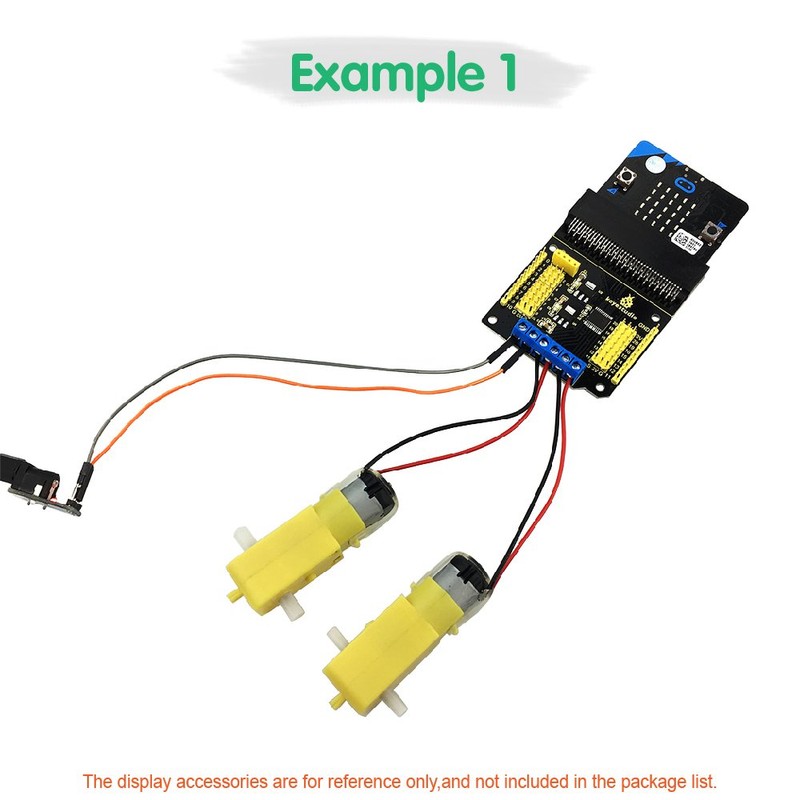

In order to facilitate the micro bit to drive DC motor, we specially developed this breakout board.
It uses a DRV8833CPWP chip which outputs the maximum 700mA current
There are 4 motor control modes: Forward / Reverse / Brake / Stop. And PWM supporting frequency is up to 100 kHz.

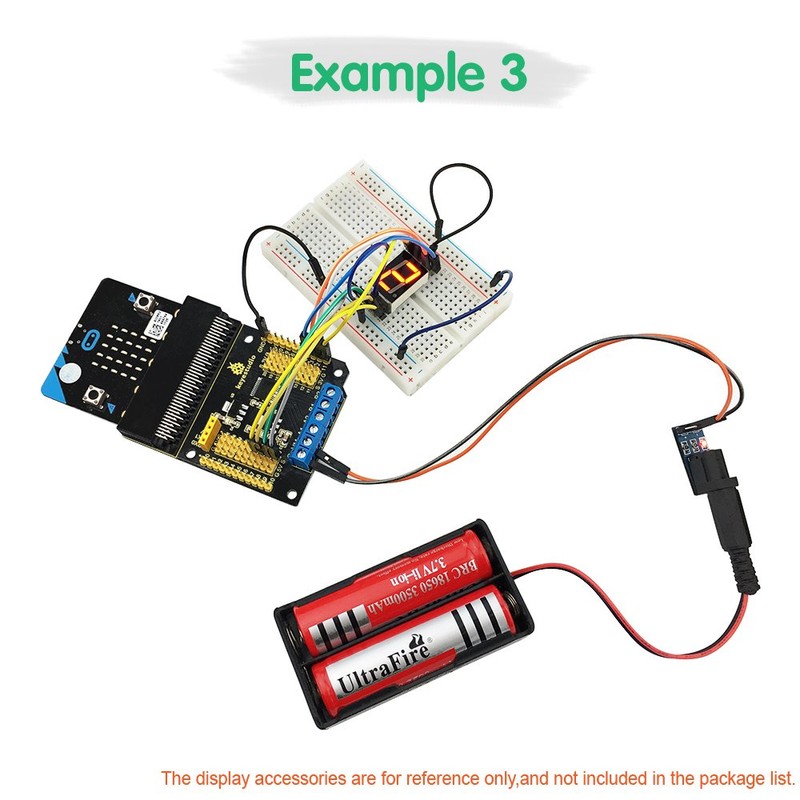

For wiring, the board breaks out all the pins with the 3PIN interface, so you can connect other sensors to the board using 3pin wire.
At the same time, a 3.3V and 5V voltage-regulated chip is integrated into the breakout board, which leads to a 3.3V and 5V power output interface.
The board also comes with a serial communication port to facilitate the connection of BT module.
Details display, wiring diagram and test code are offered on keyestudio wiki page.
Parameters
Input Voltage：DC 5-10.8V
Drive Partial Working Current：≤700mA
Features
Four motor control modes: Forward/Reverse /Brake /Stop.
Access to 3Pin headers connection
Integrated with 3.3V and 5V voltage-regulator chip
Comes with serial port communication pins
Packaging List

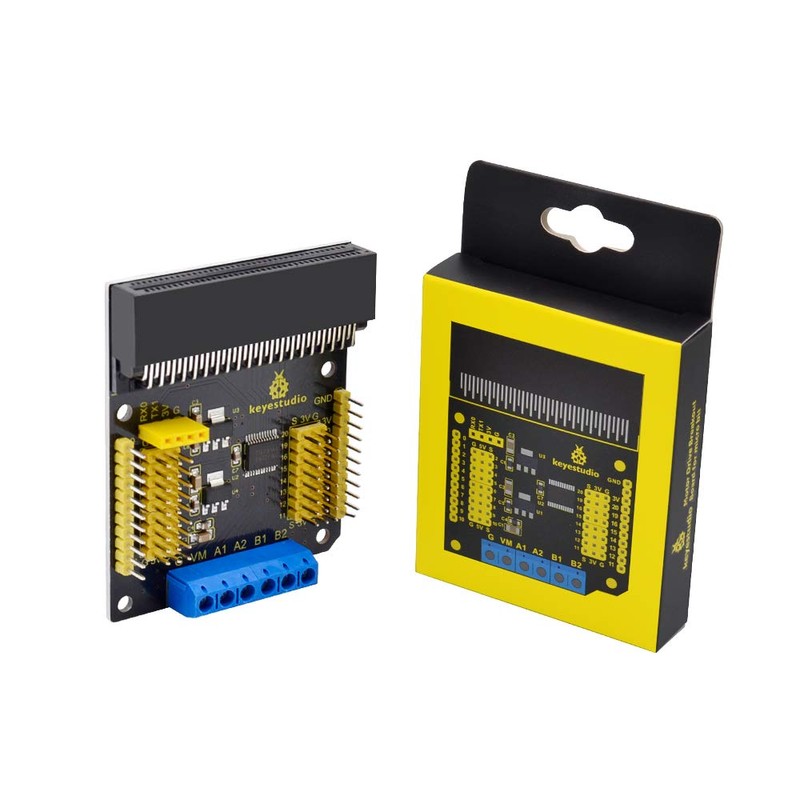

1 * KEYESTUDIO Motor Drive Breakout Board
