KAWISH OBD2 Breakout Box Auto OBDII Protocol Detector 16-Pin CAN Bus Test Breakout Box with LCD Display for OBDII Protocol Communication Detection/ECU Tool
$155.72
- $5.95 shipping from United States View details
-
Arrives

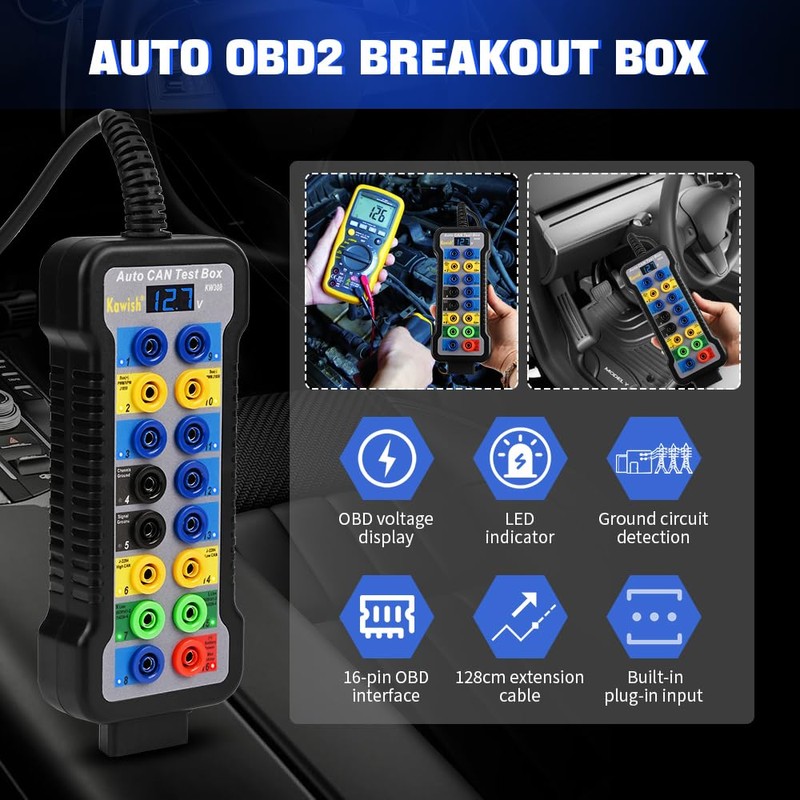

- 【Auto OBD2 Breakout Box】 This is an Breakout Box OBDII Protocol Detector for the car OBDII diagnostic link connector, which provides easy access to the OBDII connector so that after connecting the automotive OBDII system, the different color LEDs on the OBD2 junction box can monitor the protocol, power and ground signals conveniently and safely, good helps detect if the problem is with the vehicle's ECU or decoder.

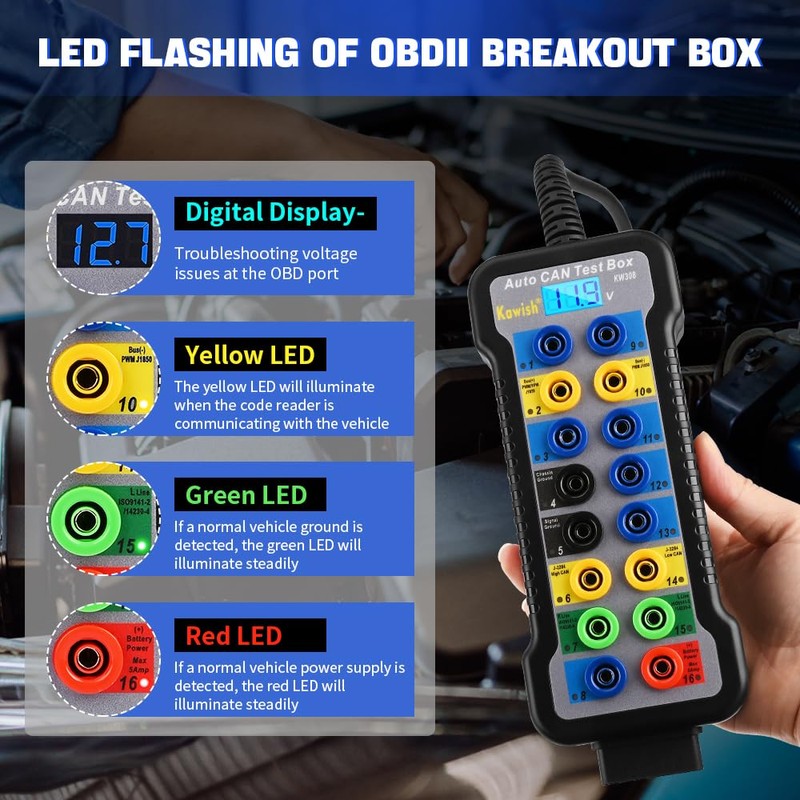

- 【LED flashing of OBDII Breakout Box】 LEDs provide a quick indication of OBDII Protocol Detect power or ground issues. When the code reader is communicating with the vehicle, the yellow LED (pin 2/6/7/10/14/15) lights up with a signal waveform. If a normal car ground is detected, the green LED (pin 4/5) will be on solid. If it is detected that the car power supply is normal, the red LED (Pin16) will be always on.

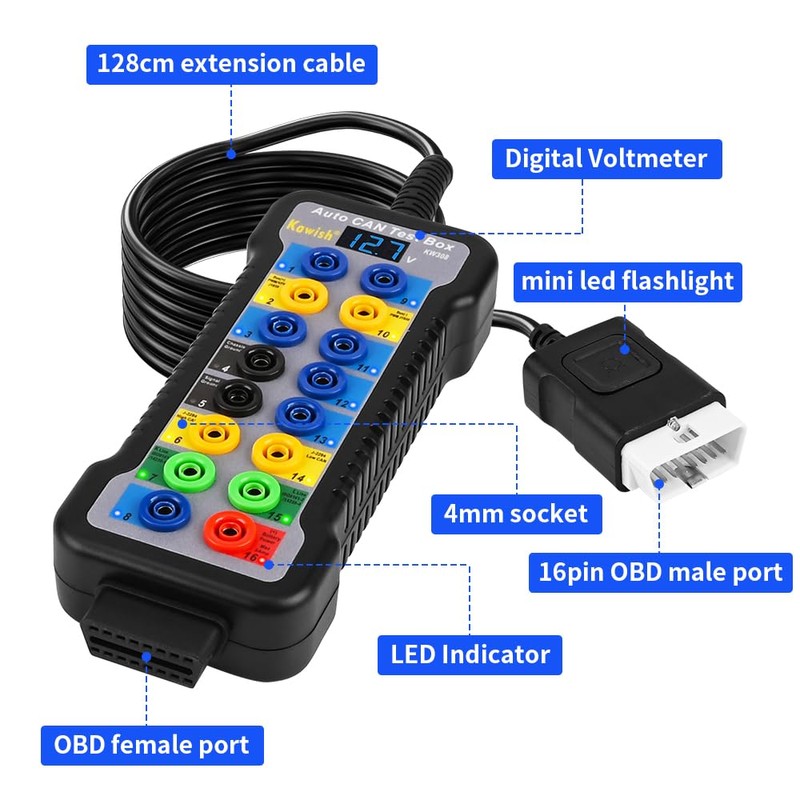

- 【Digital display and 16-pin interface design】 Auto 16 pin dlc breakout box an LED display design is added to first eliminate the voltage problem of the OBD port and easily determine whether the cable and the car OBD port are connected correctly. The port is designed with a 16-pin interface, when the OBD2 scanner communicates with the vehicle, it can easily connect all 16 pins of the OBDII junction box for more tests quickly and intuitively.

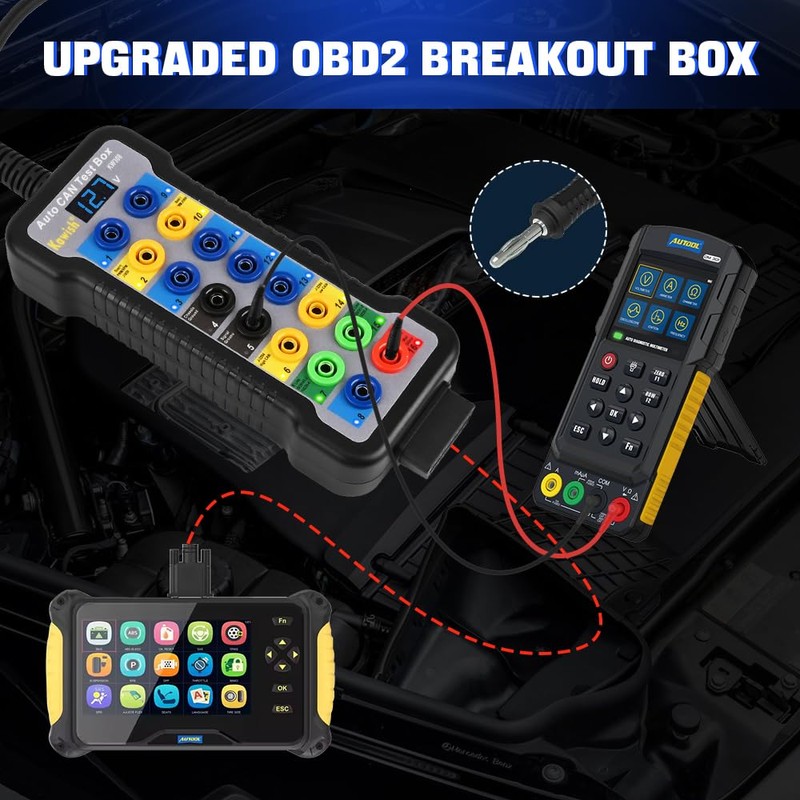

- 【4mm banana plug & 128cm extension cord】 The OTC Can test box has a safety banana socket that accepts all types of 4mm banana plugs. You can connect a multimeter or oscilloscope to the banana socket to detect the detailed signal information of the corresponding lit port. The cable length of the obd ii breakout testing box is 128cm, which makes device connection more convenient and you don't have to operate in a narrow space in the car.

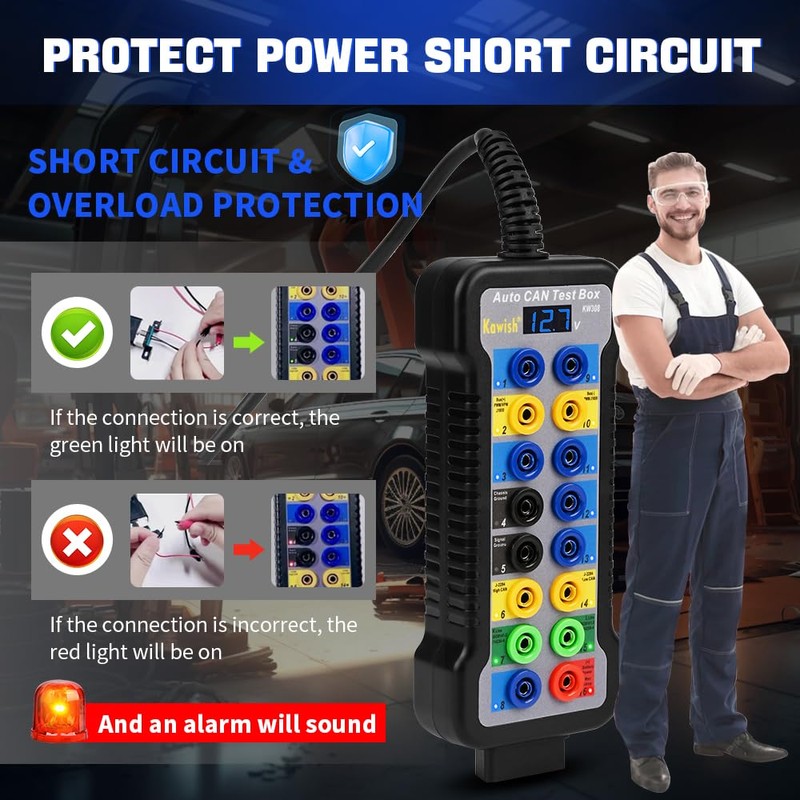

- 【Strong safety performance】 This Auto ECU Breakout Box can prevent the power supply from being reversed, and the KW308 will sound an alarm when reversed connection occurs. It can protect the diagnostic tool from damage such as power short circuit. The product comes with a small flashlight to help plug the OBD port into the car when the light is low. (Do not jumper pins together without understanding the circuits. )

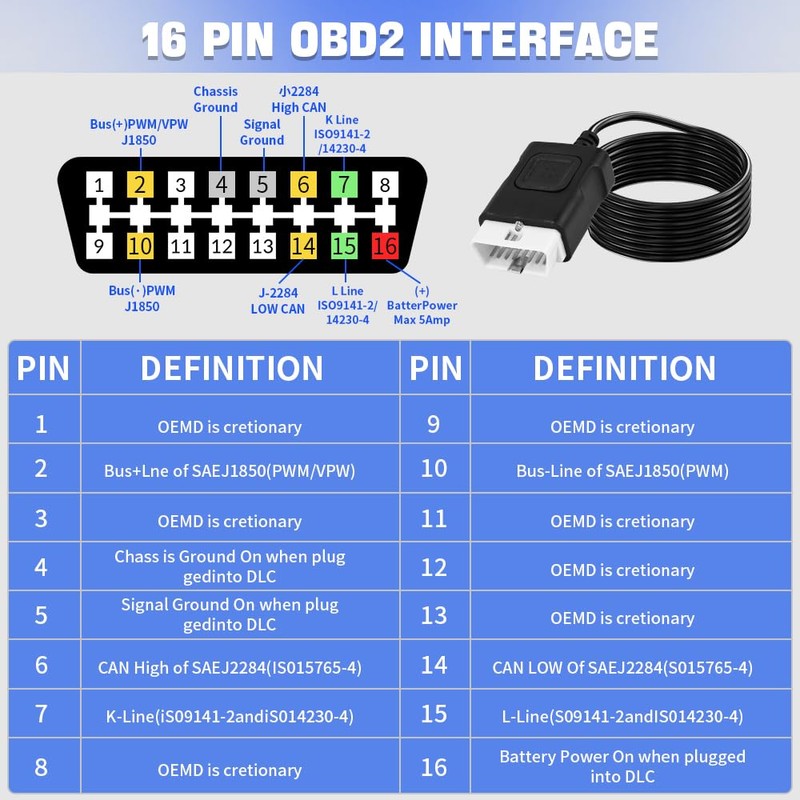

- 【OBD2 Communication/Signal&Power Supply & Grounding Detection】 Automotive OBD2 breakout box can detect PWM (J1850) VPW (J1850) ISO 9141-2, DIS/ISO 14230-4 (12V automotive and 24V diesel) CAN bus (J-2284) (SAEJ1939) power signal and ground signal, OBDII protocol The breakout box can also be connected to a multimeter or oscilloscope for further testing should an unidentified signal be detected. OBDII Junction Box is perfect for diagnosing and retrofitting your car or truck.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【Auto OBD2 Breakout Box】 This is an Breakout Box OBDII Protocol Detector for the car OBDII diagnostic link connector, which provides easy access to the OBDII connector so that after connecting the automotive OBDII system, the different color LEDs on the OBD2 junction box can monitor the protocol, power and ground signals conveniently and safely, good helps detect if the problem is with the vehicle's ECU or decoder.
- 【LED flashing of OBDII Breakout Box】 LEDs provide a quick indication of OBDII Protocol Detect power or ground issues. When the code reader is communicating with the vehicle, the yellow LED (pin 2/6/7/10/14/15) lights up with a signal waveform. If a normal car ground is detected, the green LED (pin 4/5) will be on solid. If it is detected that the car power supply is normal, the red LED (Pin16) will be always on.
- 【Digital display and 16-pin interface design】 Auto 16 pin dlc breakout box an LED display design is added to first eliminate the voltage problem of the OBD port and easily determine whether the cable and the car OBD port are connected correctly. The port is designed with a 16-pin interface, when the OBD2 scanner communicates with the vehicle, it can easily connect all 16 pins of the OBDII junction box for more tests quickly and intuitively.
- 【4mm banana plug & 128cm extension cord】 The OTC Can test box has a safety banana socket that accepts all types of 4mm banana plugs. You can connect a multimeter or oscilloscope to the banana socket to detect the detailed signal information of the corresponding lit port. The cable length of the obd ii breakout testing box is 128cm, which makes device connection more convenient and you don't have to operate in a narrow space in the car.
- 【Strong safety performance】 This Auto ECU Breakout Box can prevent the power supply from being reversed, and the KW308 will sound an alarm when reversed connection occurs. It can protect the diagnostic tool from damage such as power short circuit. The product comes with a small flashlight to help plug the OBD port into the car when the light is low. (Do not jumper pins together without understanding the circuits. )
- 【OBD2 Communication/Signal&Power Supply & Grounding Detection】 Automotive OBD2 breakout box can detect PWM (J1850) VPW (J1850) ISO 9141-2, DIS/ISO 14230-4 (12V automotive and 24V diesel) CAN bus (J-2284) (SAEJ1939) power signal and ground signal, OBDII protocol The breakout box can also be connected to a multimeter or oscilloscope for further testing should an unidentified signal be detected. OBDII Junction Box is perfect for diagnosing and retrofitting your car or truck.
Main Functions:

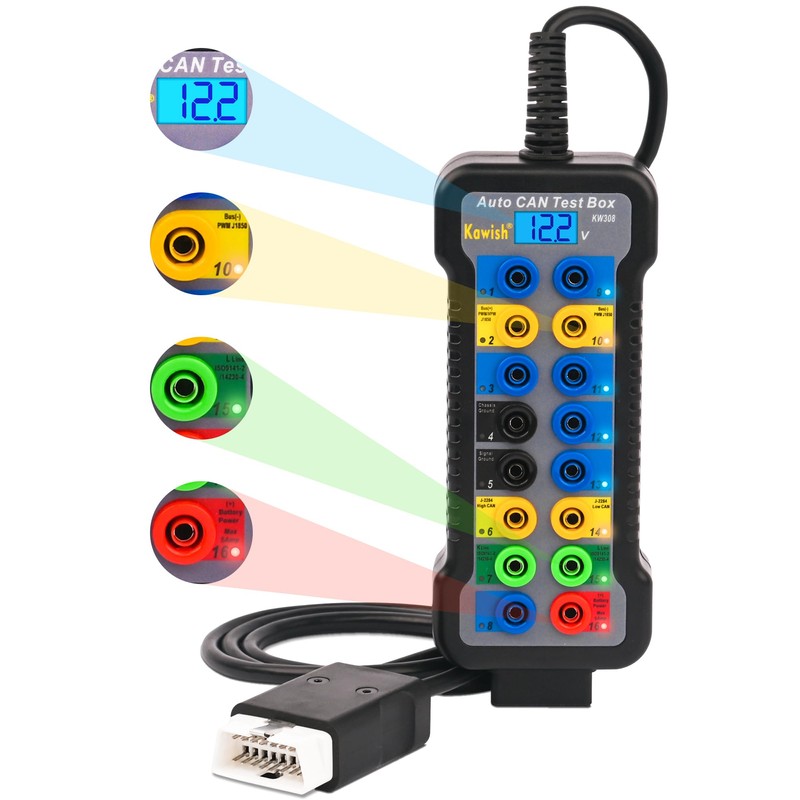

1. OBD Signal Detection: 16 LED lights detect OBD signal. Pins show LEDs on signal detection, blinking LEDs for ECU activity, LEDs can detect PWM (J1850) VPW (J1850) ISO 9141-2, DIS/ISO 14230-4 (12V Automotive and 24V Diesel) CAN bus ( J-2284) (SAEJ1939) Power signal and ground signal.
2. OBD2 male to female extension cable:
1.5 meters in length, can be connected between the diagnostic link connector (DLC) and the scan tool.
3. All OBD signal breakouts with 4mm banana jacks:
16 high-quality 4mm banana jacks breakout all OBD signals, convenient for tdetail more multimeters or oscilloscopes for detailed signal analysis.
4. Battery voltage monitor:
3-digit blue LED (resolution: 0.1 V) voltmeter can continuously digitally display the voltage, and the measuring range is 8-30V. So the box can not only detect car signals, but also some diesel signals, such as K line L line and CAN bus diesel engine (SAEJ1939)
5. OBD connector flashlight function:
OBD male connector has a flashlight function And button, flashlight will be very useful when operating in the dark
Commodity parameters
1. Working voltage: DC 8v-30v
2. Maximum load: up to 5.0 amps

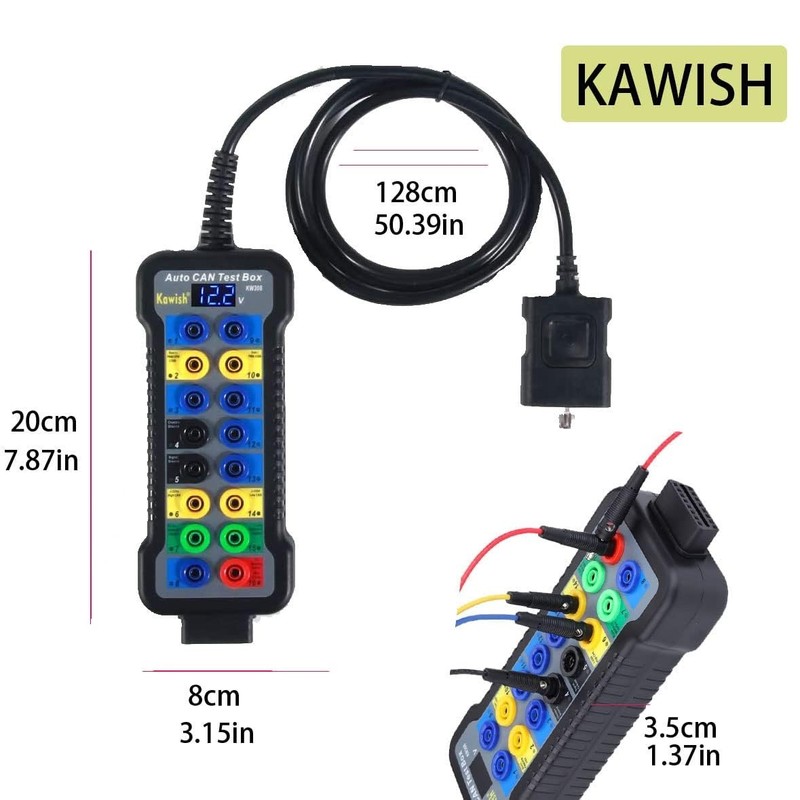

3. OBD cable length: 1.5 m
