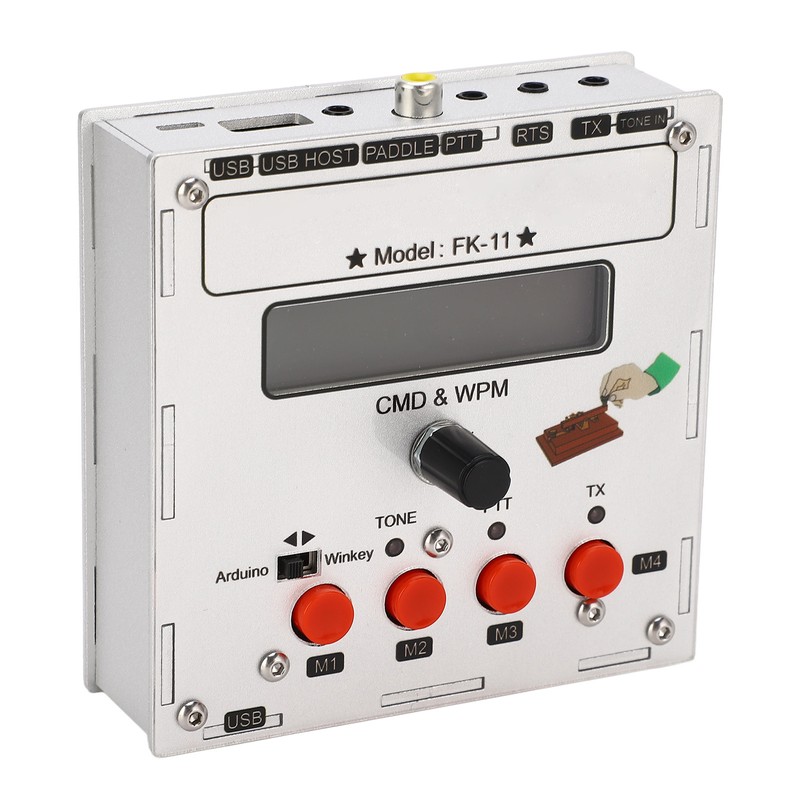

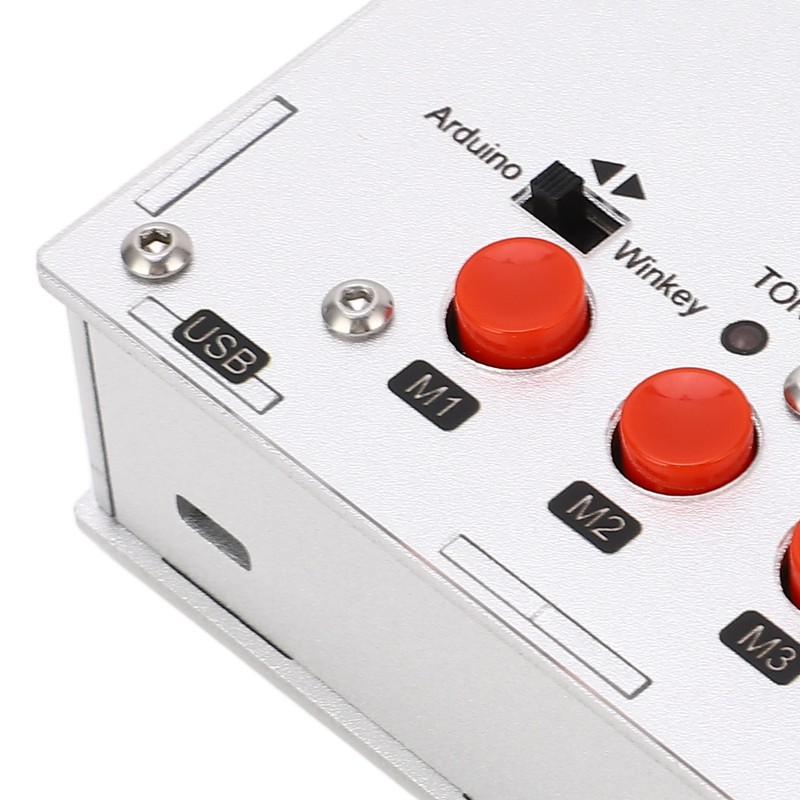

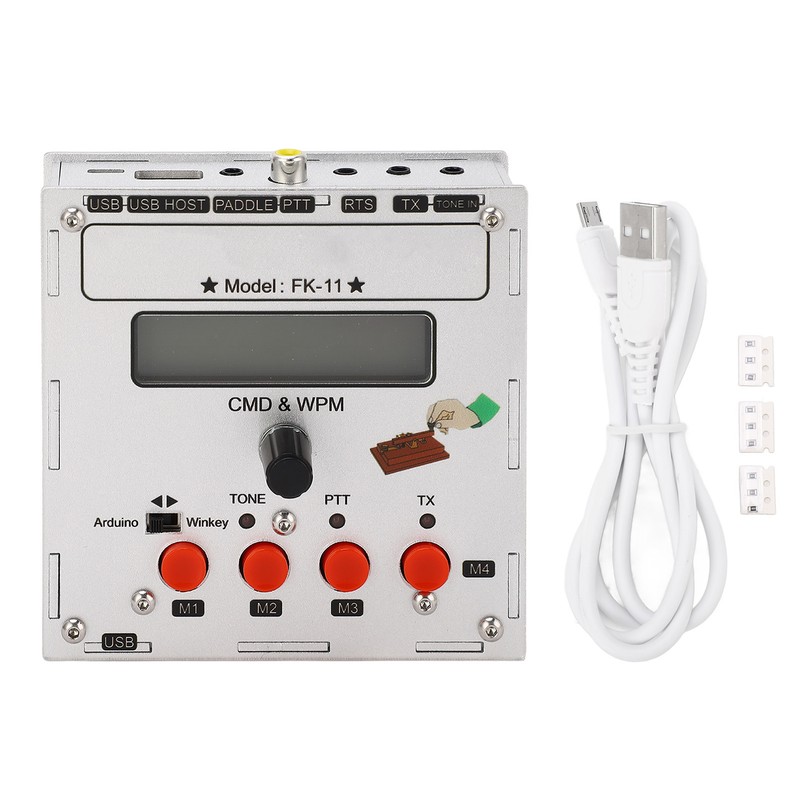

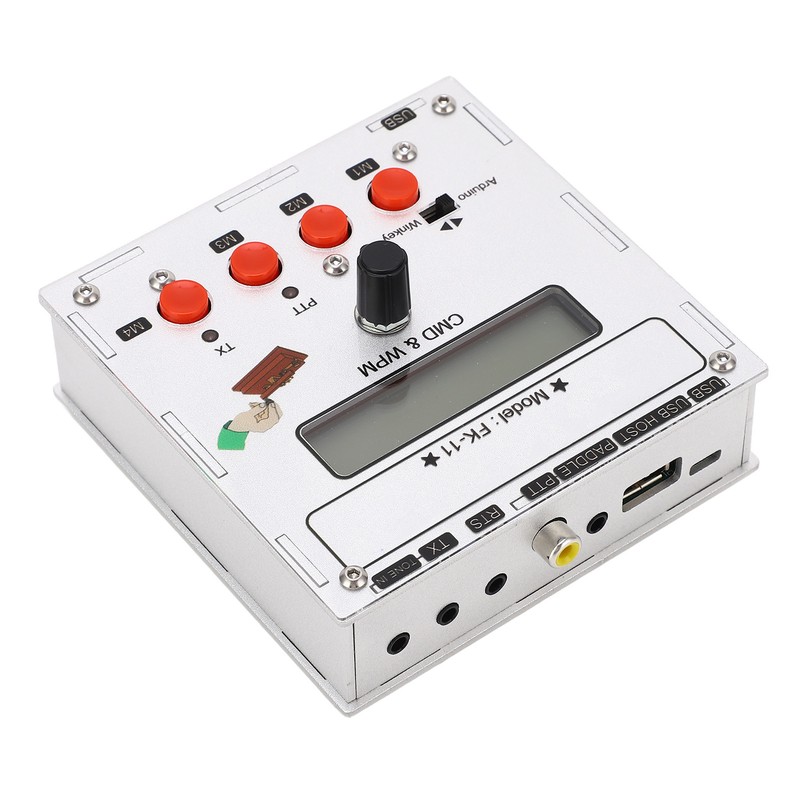

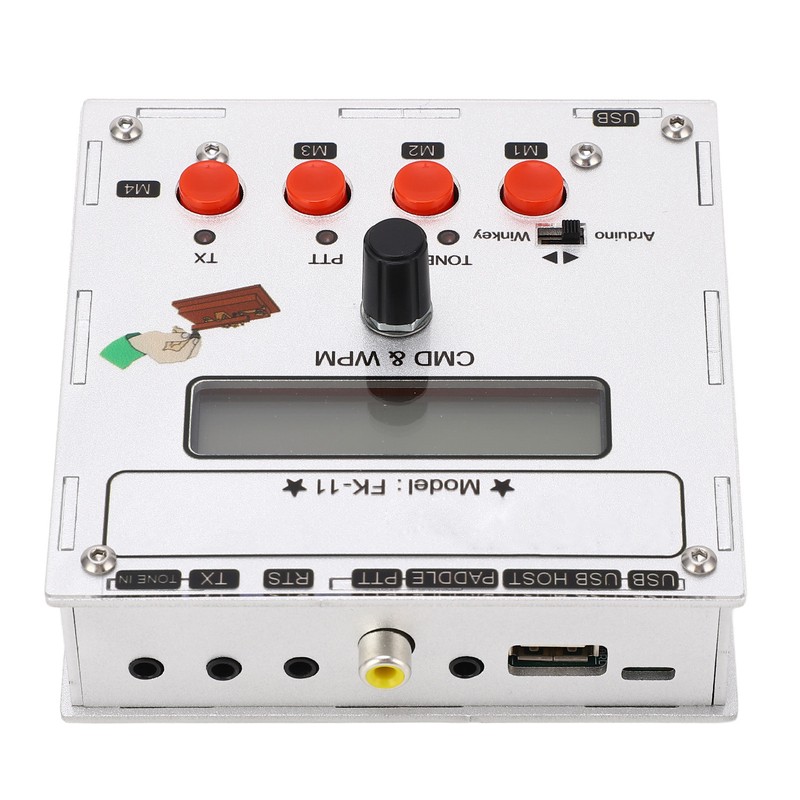

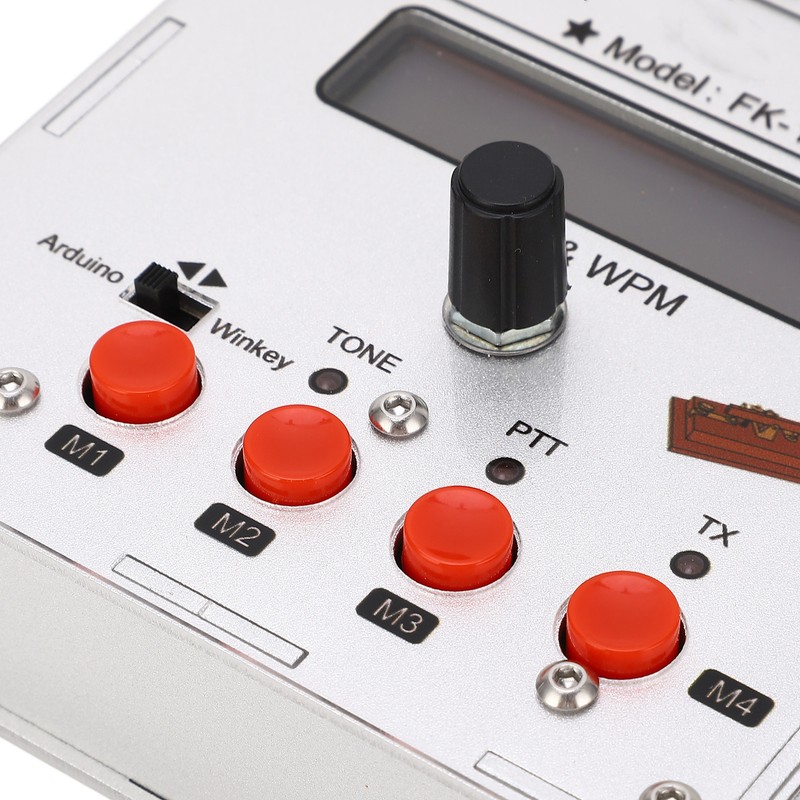

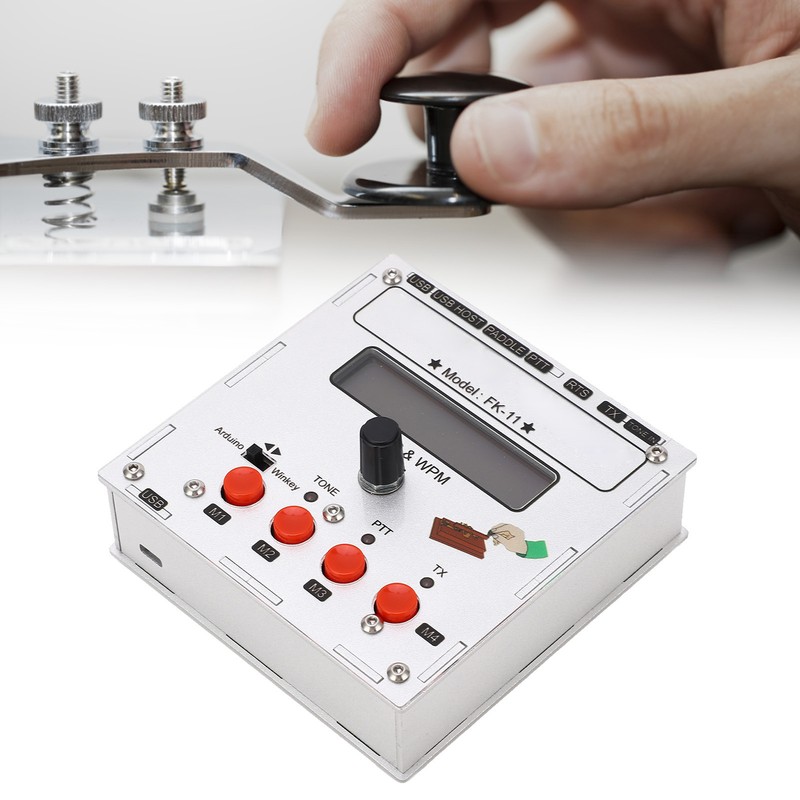

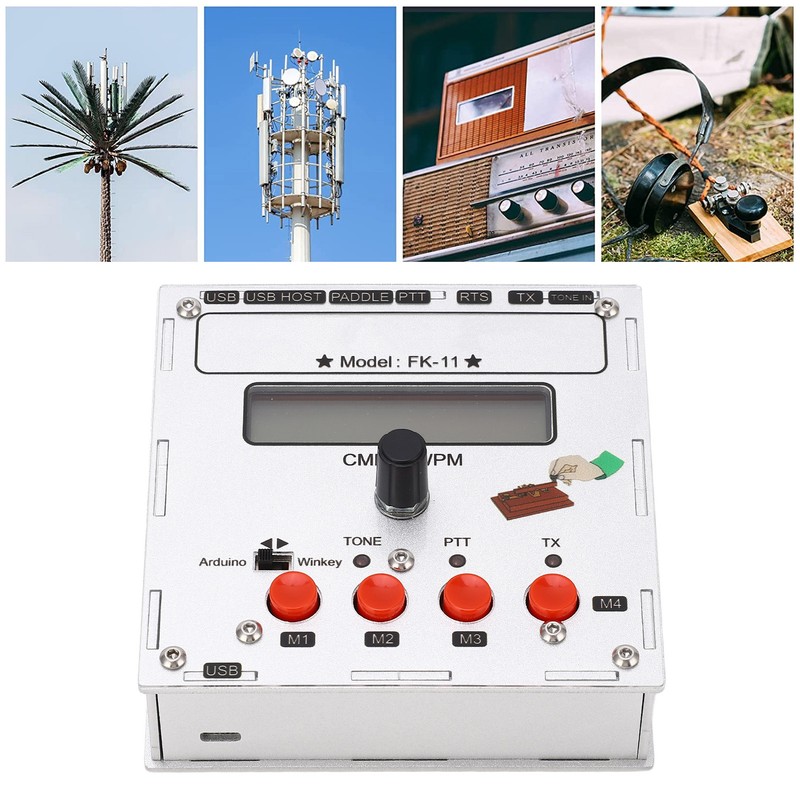

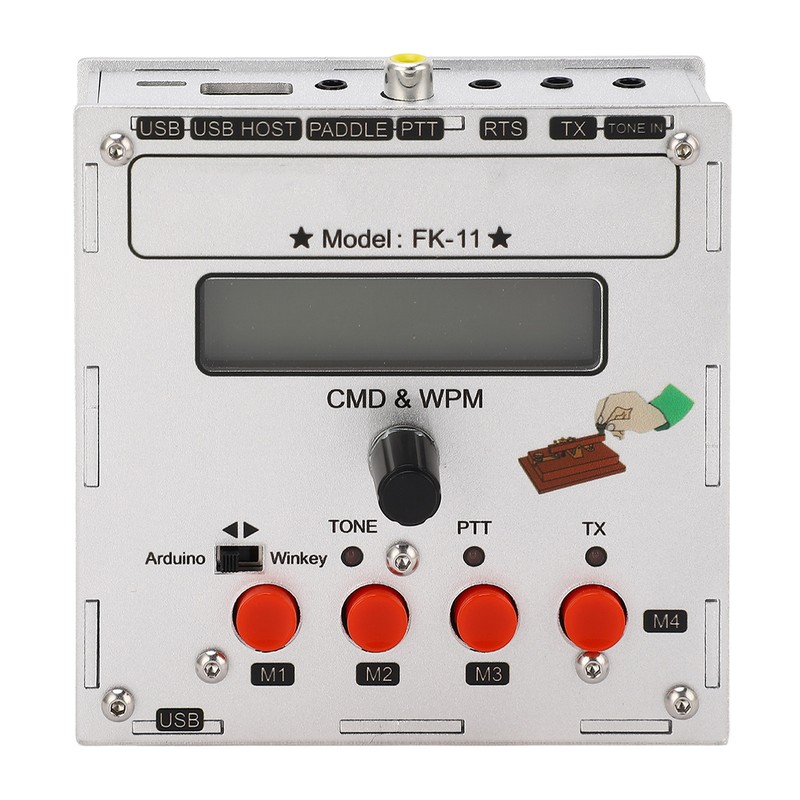

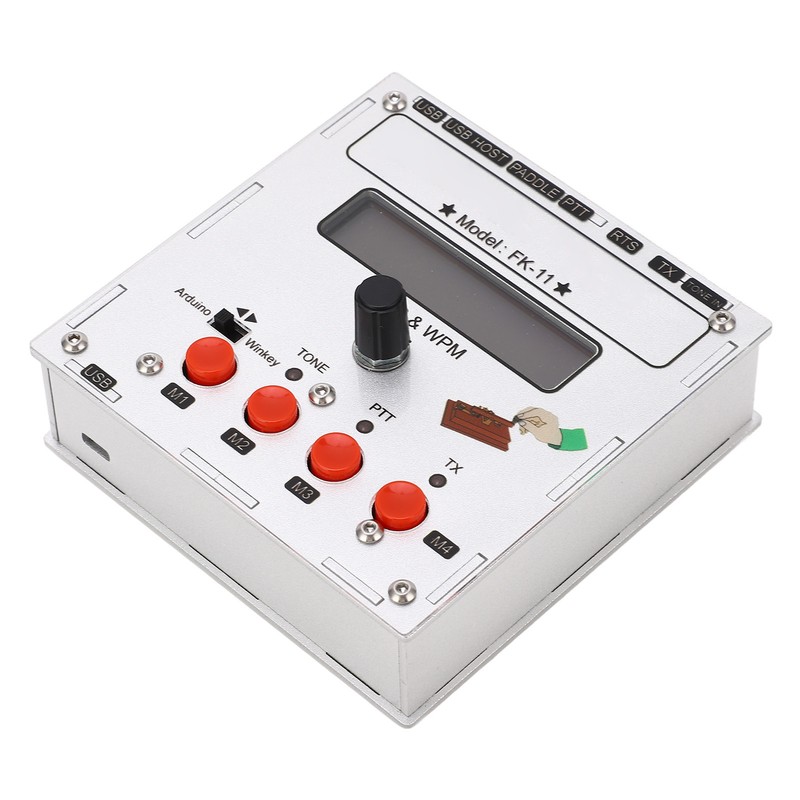

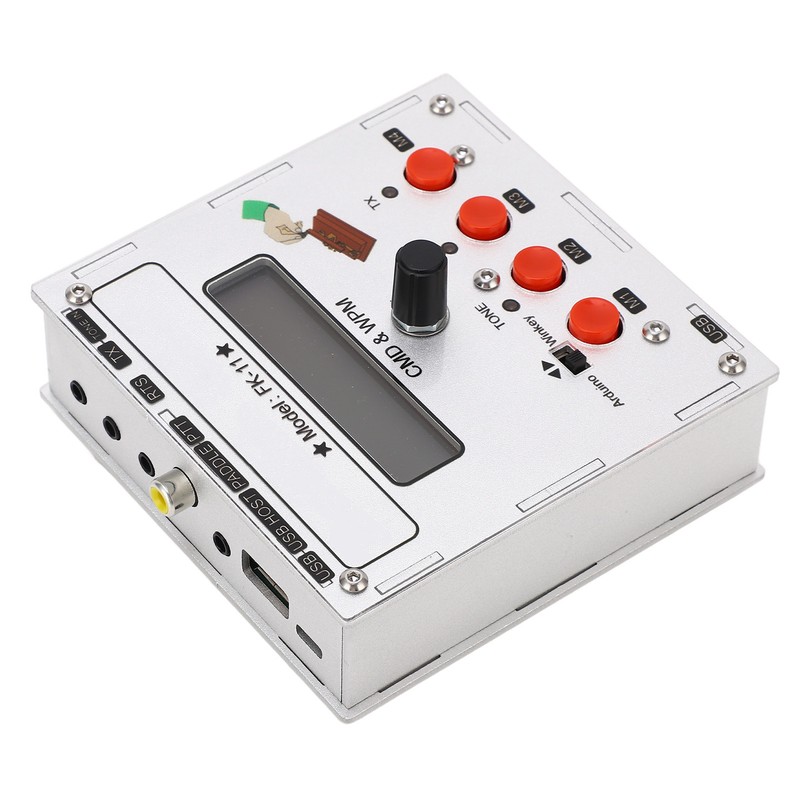

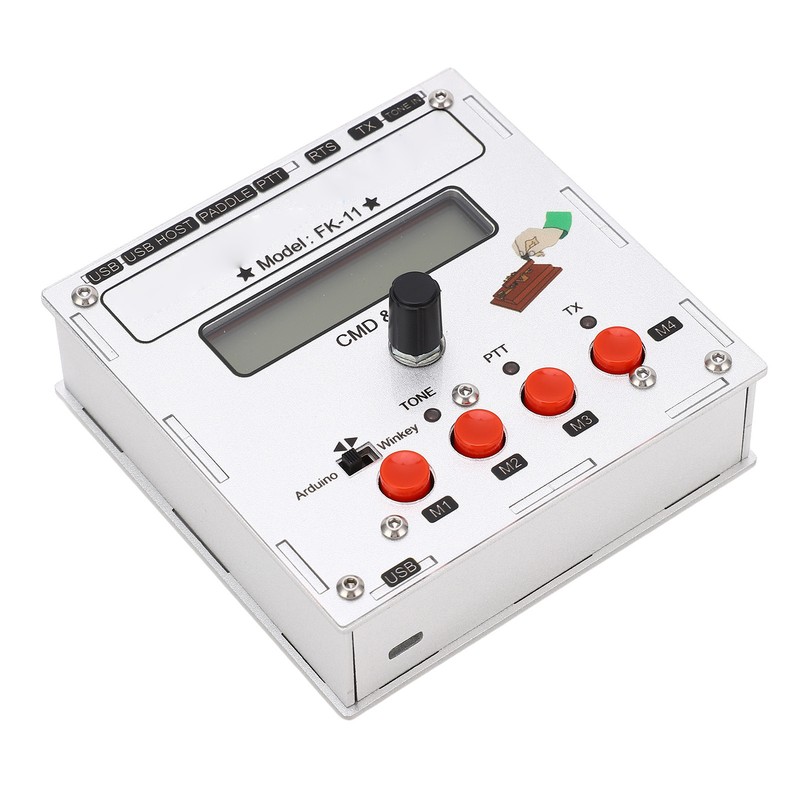

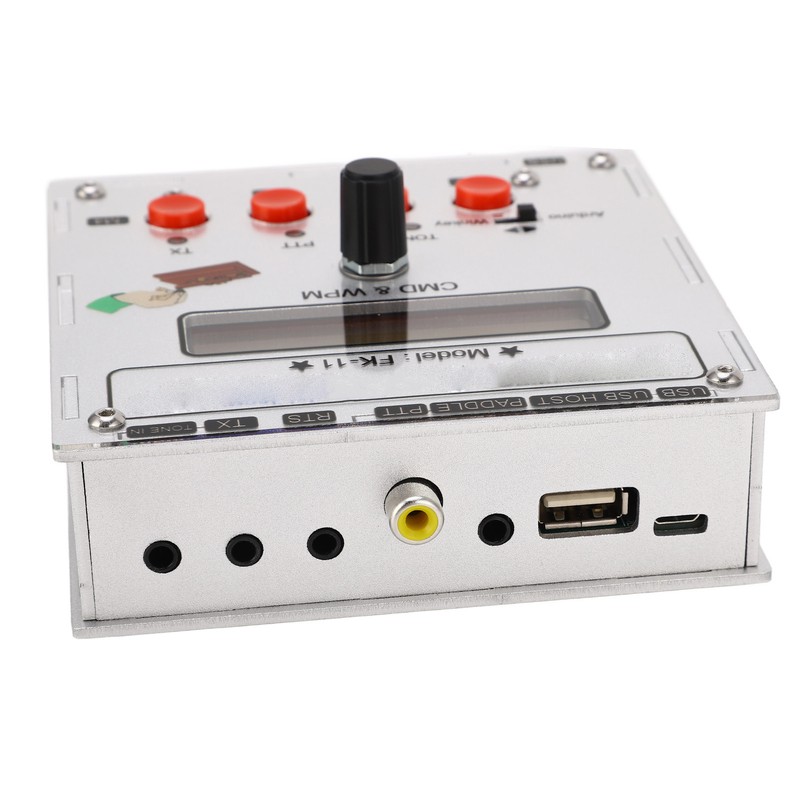

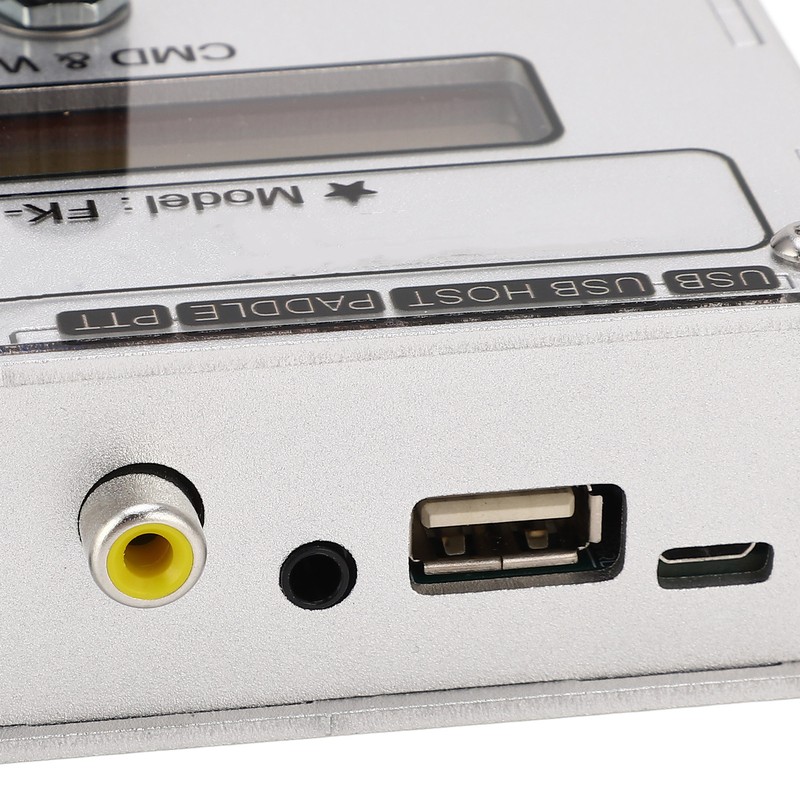

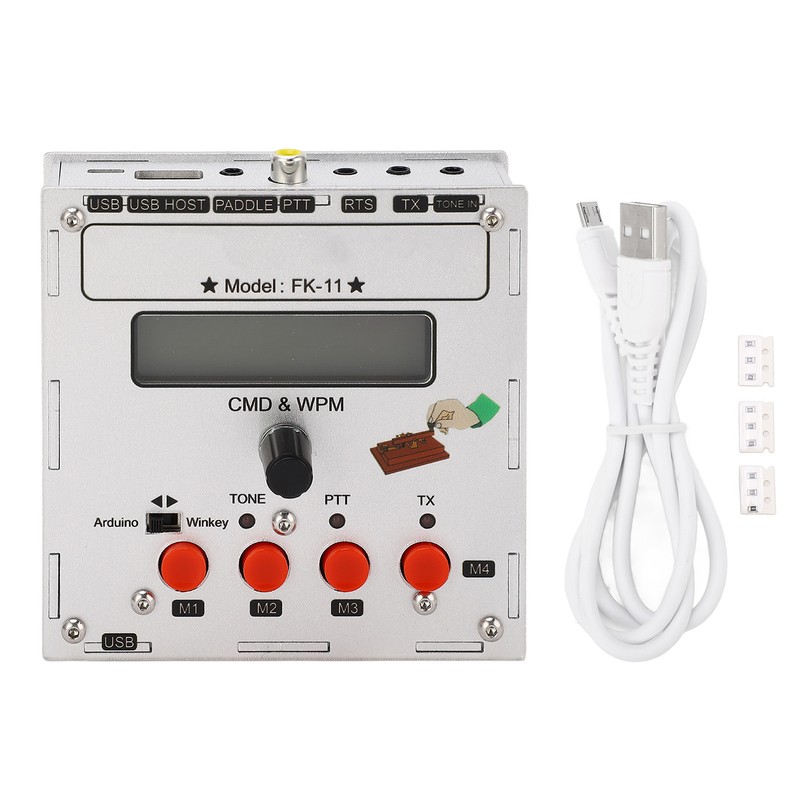

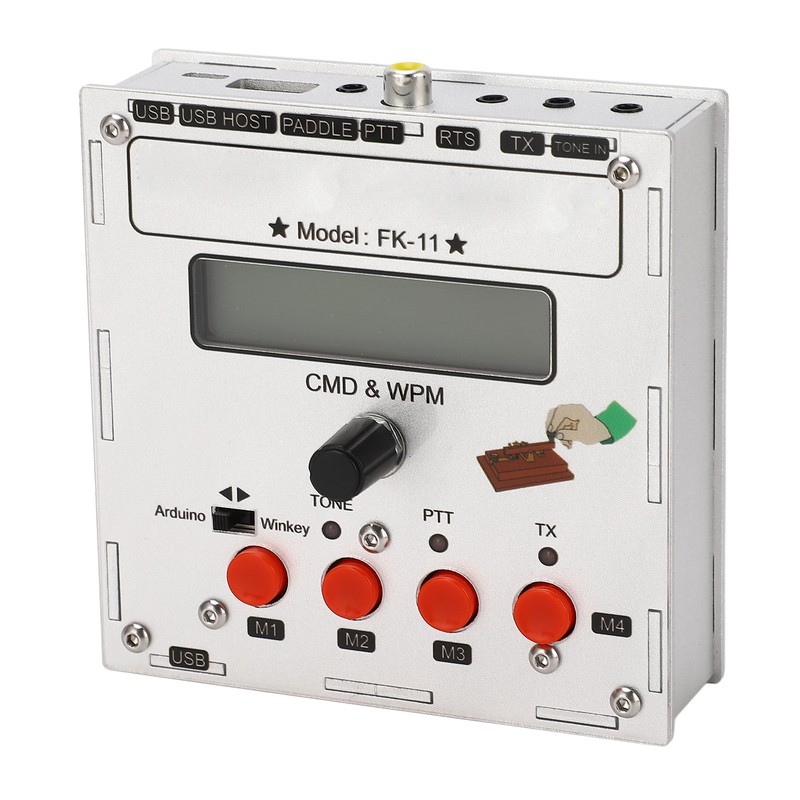

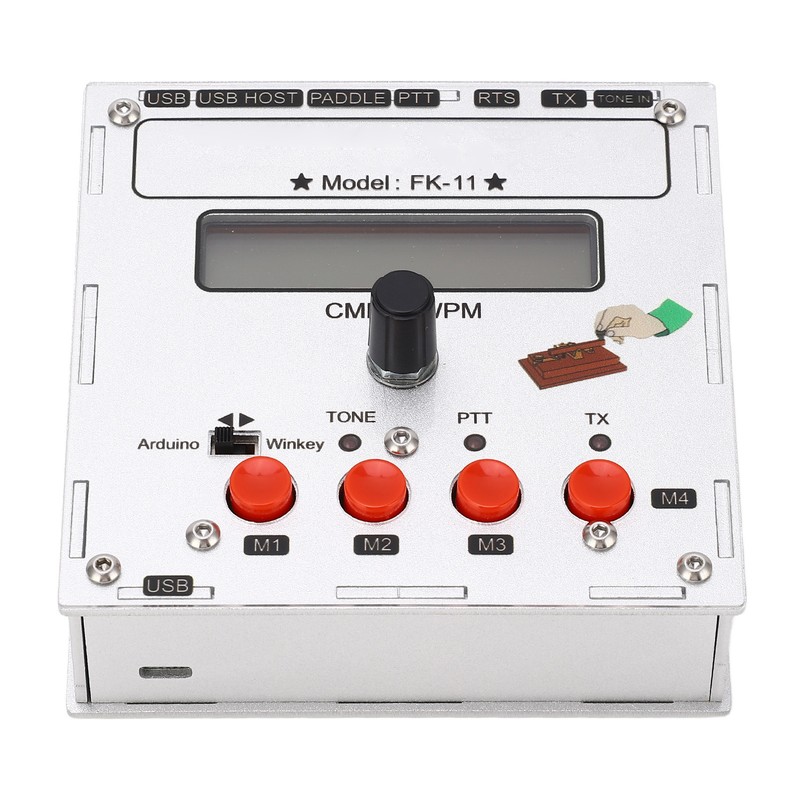

K3NG Keyer Open Source CW Morse Code Aluminum Alloy K3NG Keyer for LCD Display Keyboard
$163.17
- $9.99 shipping from United States View details
-
Arrives
1、PRODUCT INTRODUCTION: This is an open source CW (Morse code) keyer, which has many functions and flexibility. 2、OPEN SOURCE CODE: Code comes from K3NG, which is an open source code, so you can completely customize the code to meet your needs, or learn from or find coding ideas for other projects. 3、UPGRADE VERSION: The PCB has been redesigned, which can be installed in a compact aluminum housing, and the code has been trimmed to adapt to the functions of AVR for mega 2560. 4、MULTI USE: For K3NG Keyer integrates almost all features and functions of for K3NG's code, such as LCD display, USB keyboard, rotary encoder and CW decoder. 5、STANDBY IO: There are some standby IO on the pcb, which can be reserved for new features and functions.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、PRODUCT INTRODUCTION: This is an open source CW (Morse code) keyer, which has many functions and flexibility. 2、OPEN SOURCE CODE: Code comes from K3NG, which is an open source code, so you can completely customize the code to meet your needs, or learn from or find coding ideas for other projects. 3、UPGRADE VERSION: The PCB has been redesigned, which can be installed in a compact aluminum housing, and the code has been trimmed to adapt to the functions of AVR for mega 2560. 4、MULTI USE: For K3NG Keyer integrates almost all features and functions of for K3NG's code, such as LCD display, USB keyboard, rotary encoder and CW decoder. 5、STANDBY IO: There are some standby IO on the pcb, which can be reserved for new features and functions.
1、PRODUCT INTRODUCTION: This is an open source CW (Morse code) keyer, which has many functions and flexibility. 2、OPEN SOURCE CODE: Code comes from K3NG, which is an open source code, so you can completely customize the code to meet your needs, or learn from or find coding ideas for other projects. 3、UPGRADE VERSION: The PCB has been redesigned, which can be installed in a compact aluminum housing, and the code has been trimmed to adapt to the functions of AVR for mega 2560. 4、MULTI USE: For K3NG Keyer integrates almost all features and functions of for K3NG's code, such as LCD display, USB keyboard, rotary encoder and CW decoder. 5、STANDBY IO: There are some standby IO on the pcb, which can be reserved for new features and functions.
More Information
Item Type: K3NG Keyer
Material: Aluminum Alloy
Report Item, Suspicious Activity:

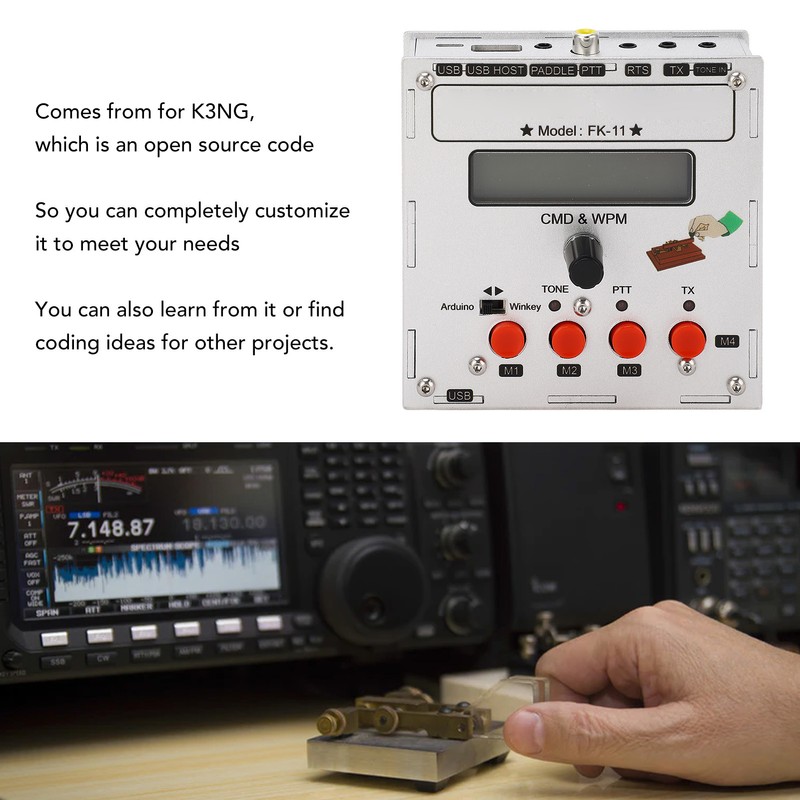

This is an open source based CW (Morse Code) keyer with a lot of features and flexibility, rivaling other commercial keyers which often cost significantly more. The for code comes from for K3NG, and it’s an open source code so you can fully customize it to fit your needs and also perhaps learn from it or find coding ideas for other projects. We redesigned the PCB, which could be fit into a compact aluminum enclosure, and trimmed the code so as to fit the features of AVR for mega 2560. The Funtronics K3NG Keyer integrates nearly all of the features and functions of the K3NG’s code, such as LCD display, USB keyboard, rotary encoder and CW decoder etc. Moreover, there are some spare IOs left on the pcb, which could be left for the feature new features and functions.
Features:
CW speed adjustable from 1 to 999 WPM

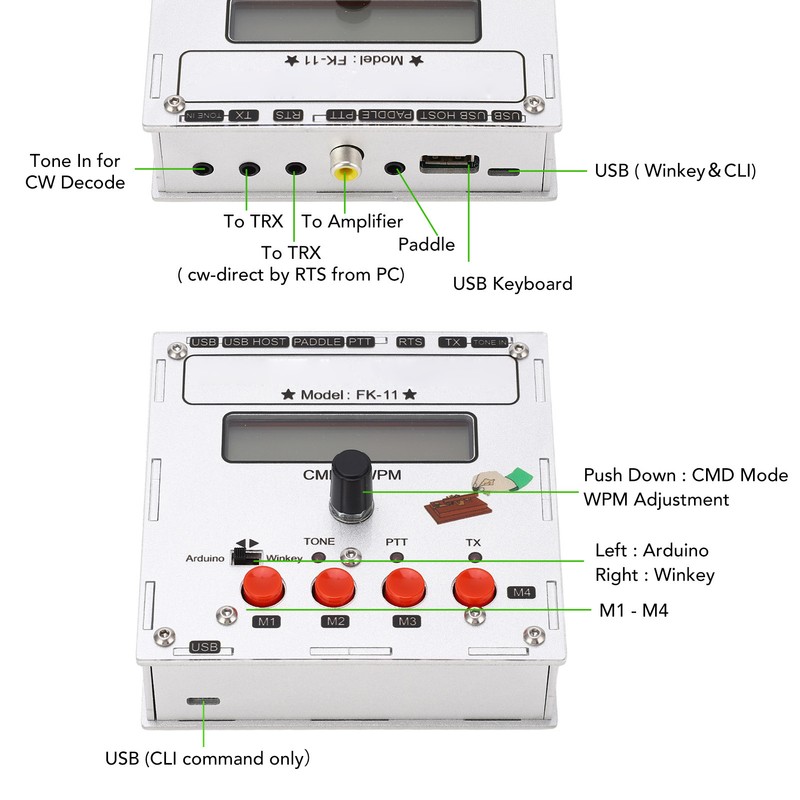

Programming and interfacing via USB port (command line interface)
USB Keyboard Interface for CW keyboard operation without a computer
Logging and Contest Program Interfacing via K1EL Winkey 1.0 and 2.0 interface protocol emulation
PTT outputs with configurable lead, tail, and hang times

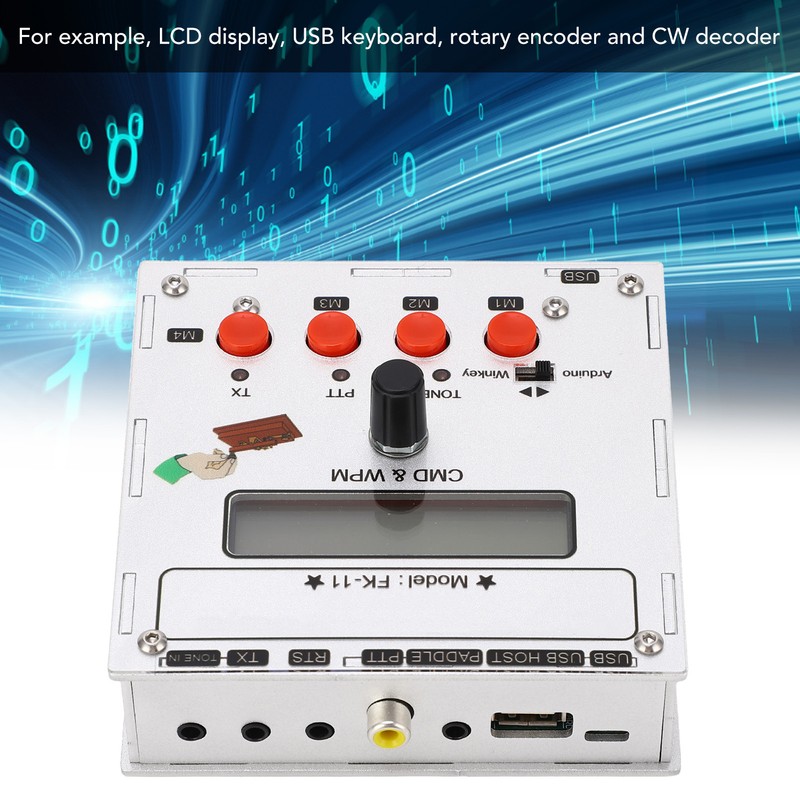

1602 LCD Display
3 memories with macros
Serial numbers
CW keyboard (via a terminal server program like Putty or the serial program)
Speed potentiometer (optional, speed also adjustable with commands)
QRSS and HSCW
Beacon, Fox mode
Iambic A and B
Straight key support
Ultimatic mode
Bug mode
CMOS Super Keyer Iambic B Timing
Paddle reverse
Hellschreiber mode (keyboard sending, memory macro, beacon)
Farnsworth Timing
Adjustable frequency sidetone
Sidetone disable, sidetone high, low output for keying outboard sound oscillator
Command mode for using the paddle to change settings, program memories, etc.
Keying Compensation
Dah to Dit Ratio adjustment
Weighting
Callsign receive practice
Send practice
Memory stacking
Dead Operator Watchdog
Autospace
Wordspace Adjustment
Pre configured and Custom Prosigns
Non volatile storage of most settings
Modular code design allowing selection of features and easy code modification
Non English Character Support
CW Receive Decoder
Rotary Encoder Speed Control
Sleep Mode
USB Mouse Support
Alphabet Sending Practice
QLF, Messy Straight Key Emulation
Web Interface (UNDER DEVELOPMENT)
Winkey Emulation:
The for K3NG keyer supports winkey 1.0 and 2.0 emulation, and it is compatible with many contest and logging softwares. The following functions are currently implemented in the emulation:
Currently the following functions are implemented:
CW Sending (of course)
Pause
Key Down
Unbuffered and Buffer Speed Setting
Iambic A and B, Bug Mode Settings
Ultimatic in normal, dit priority, and dah priority modes
Farnsworth
Pointer Operations
Backspace
Sidetone Frequency Settings (Winkey 1, 2, and custom frequencies)
Paddle Reverse
Paddle Watchdog
Keying Compensation
Dit to Dah Ratio
Contest Wordspace
Autospace
PTT Lead, Tail, and Hang Time
Speed Pot Setup and Query
First Extension
Software Paddle
Weighting
HSCW
Serial Echoback
Prosigns
Dual transmitter keying lines
Paddle Only Sidetone
Memory button reporting
Standalone Message Sending
