Jieoto Tower Crane Self-Powered Wind Speed Sensor Display Instrument No Power Anemometer
$69.34
-
Arrives

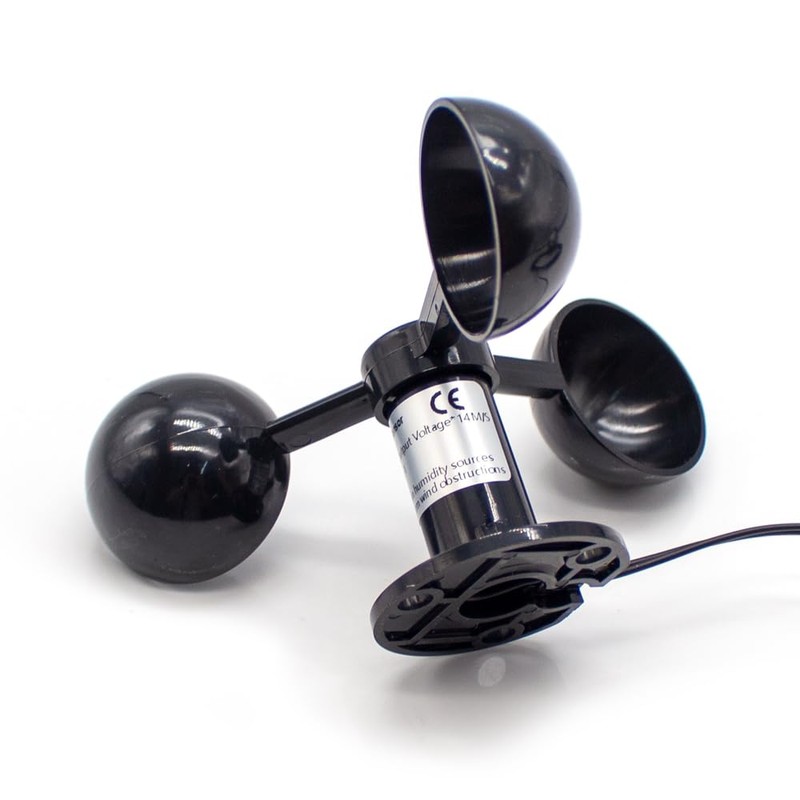

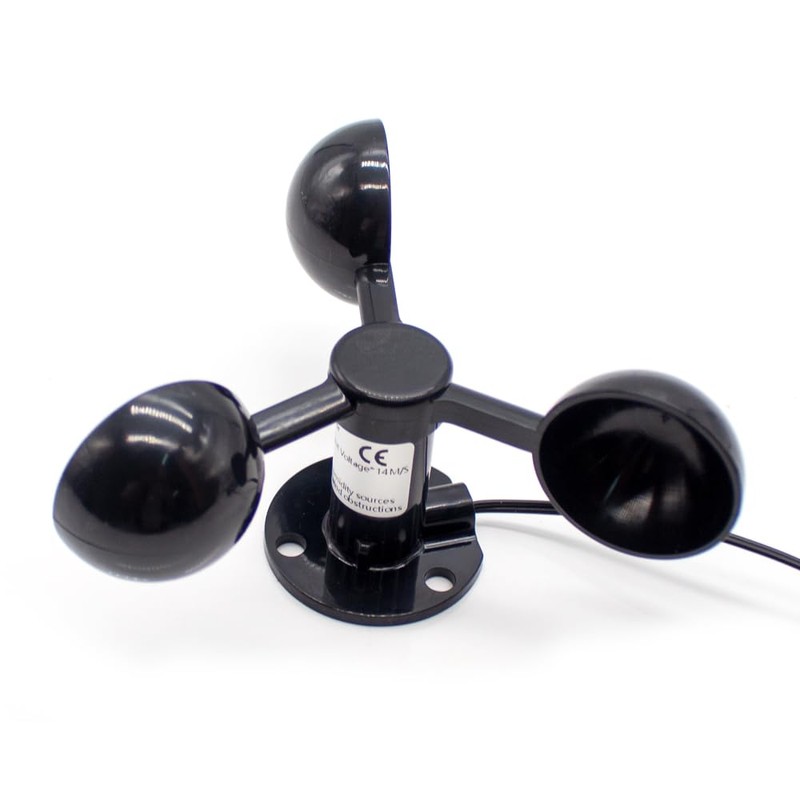

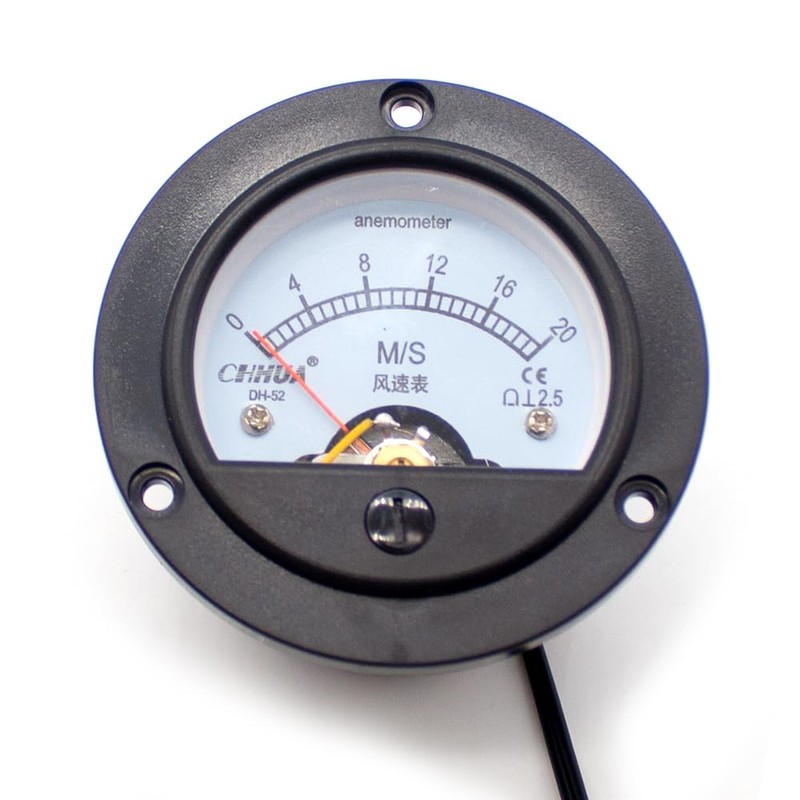

- This anemometer incorporates a specially customized generated wind speed sensor and a pointer type meter head. Its operating principle is that if there is a horizontal flow of wind within the environment, the wind cup special structure generates a constant rotation and generates a voltage proportionate to the rotational speed by driving the built-in sensor. When this signal is connected to a specially customized guided meter, the voltage changes will be displayed
- The maximum allowed ambient wind speed of this anemometer is 75 km/h. In environments exceeding this wind speed, the meter head may be damaged beyond the measurement range
- This sensor operates spontaneously and does not require a power source. When the wind rotates, a voltage signal is generated and displayed on the meter head
- This wind speed sensor is a simple structure with average precision, suitable for ambient wind speed reference only, not suitable for weather forecast level applications
- The wind speed sensor should be installed horizontally so that water does not accumulate and it is easy to detect ambient wind speed. The wind speed sensor has a rainproof function, but it cannot withstand rain water intrusion. The length of the signal output line is about 3 meters, if you need to extend it, you can connect it according to the corresponding color. The height of the wind sensor is about 2.6 inches (6.5 cm), and the rotation diameter is about 5.5 inches (14 cm)
- Base components are made of ABS injection molding technology, chassis diameter 46MM It is fixed with 3 holes: 0.7 inch (18 mm) radius distributed at 120 degrees, and 0.2 inch (6 mm) diameter. Can be fixed with 3 M5 or M6 bolts The generator sensor is fixed to the base, the signal line is 2 cores and the default length is about 3 meters. The signal line is a double parallel line and the black with white stripe indicates the signal voltage, and the pure black indicates GND
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- This anemometer incorporates a specially customized generated wind speed sensor and a pointer type meter head. Its operating principle is that if there is a horizontal flow of wind within the environment, the wind cup special structure generates a constant rotation and generates a voltage proportionate to the rotational speed by driving the built-in sensor. When this signal is connected to a specially customized guided meter, the voltage changes will be displayed
- The maximum allowed ambient wind speed of this anemometer is 75 km/h. In environments exceeding this wind speed, the meter head may be damaged beyond the measurement range
- This sensor operates spontaneously and does not require a power source. When the wind rotates, a voltage signal is generated and displayed on the meter head
- This wind speed sensor is a simple structure with average precision, suitable for ambient wind speed reference only, not suitable for weather forecast level applications
- The wind speed sensor should be installed horizontally so that water does not accumulate and it is easy to detect ambient wind speed. The wind speed sensor has a rainproof function, but it cannot withstand rain water intrusion. The length of the signal output line is about 3 meters, if you need to extend it, you can connect it according to the corresponding color. The height of the wind sensor is about 2.6 inches (6.5 cm), and the rotation diameter is about 5.5 inches (14 cm)
- Base components are made of ABS injection molding technology, chassis diameter 46MM It is fixed with 3 holes: 0.7 inch (18 mm) radius distributed at 120 degrees, and 0.2 inch (6 mm) diameter. Can be fixed with 3 M5 or M6 bolts The generator sensor is fixed to the base, the signal line is 2 cores and the default length is about 3 meters. The signal line is a double parallel line and the black with white stripe indicates the signal voltage, and the pure black indicates GND
Description:
This anemometer incorporates a specially customized generated wind speed sensor and a pointer type meter head. Its operating principle is that if there is a horizontal flow of wind within the environment, the wind cup special structure generates a constant rotation and generates a voltage proportionate to the rotational speed by driving the built-in sensor. When this signal is connected to a specially customized guided meter, the voltage changes will be displayed.
The maximum allowed ambient wind speed of this anemometer is 75 km/h. In environments exceeding this wind speed, the meter head may be damaged beyond the measurement range.
This sensor operates spontaneously and does not require a power source. When the wind rotates, a voltage signal is generated and displayed on the meter head.
This wind speed sensor is a simple structure with average precision, suitable for ambient wind speed reference only, not suitable for weather forecast level applications.
The wind speed sensor should be installed horizontally so that water does not accumulate and it is easy to detect ambient wind speed. The wind speed sensor has a rainproof function, but it cannot withstand the infiltration of rain water. The length of the signal output line is about 3 meters, if you need to extend it, you can connect it according to the corresponding color. The height of the wind sensor is about 2.6 inches (6.5 cm), and the rotation diameter is about 5.5 inches (14 cm).

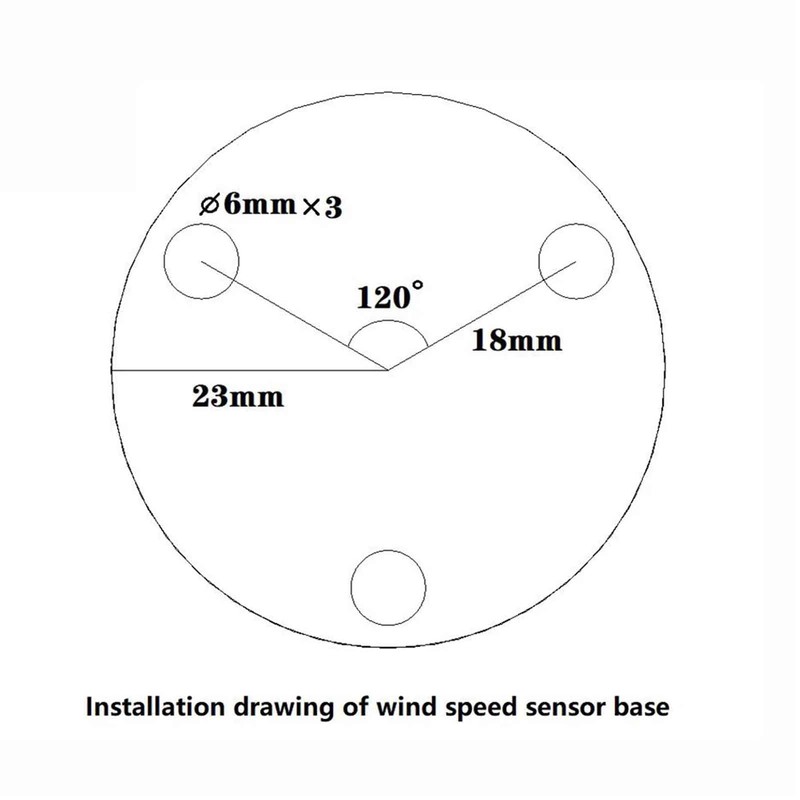

Base components are made of ABS injection molding technology, chassis diameter 46MM It is fixed with 3 holes: 0.7 inch (18 mm) radius distributed at 120 degrees, and 0.2 inch (6 mm) diameter. Can be fixed with 3 M5 or M6 bolts The generator sensor is fixed to the base, the signal line is 2 cores and the default length is about 3 meters. The signal line is a double parallel line and the black with white stripe indicates the signal voltage, and the pure black indicates GND.
Specifications:
Product Name: Tower Crane Home-generated Wind Speed Sensor
Cable length: 3M
Sensor Base Diameter: 46MM
Fixing screw size: 6MM
Packing size: 155x138x70MM
Net Weight: 135G
Package Weight: about 200g
How to use:

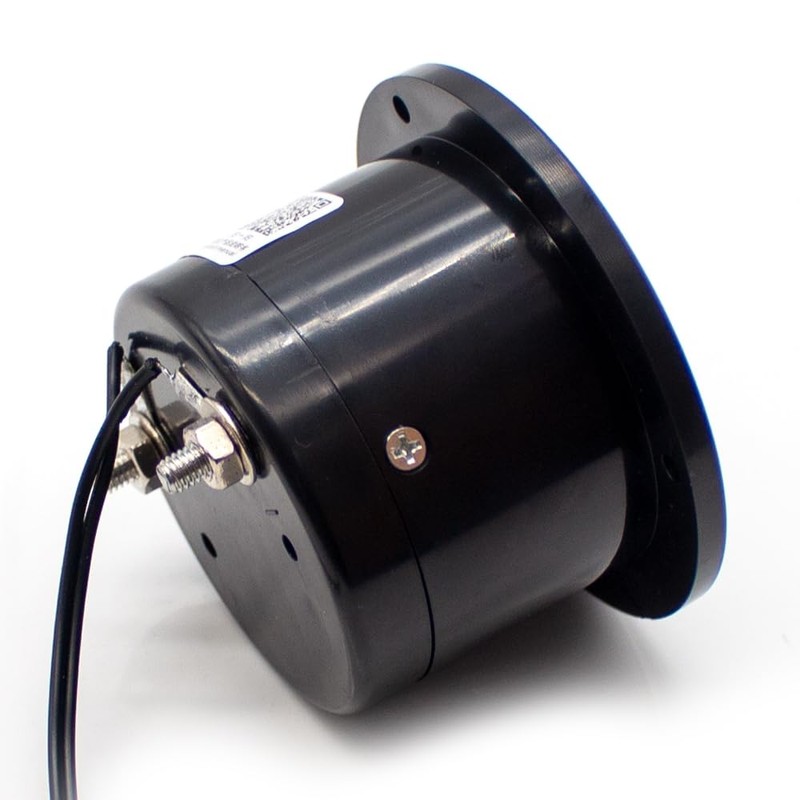

Connect the wind sensor signal line to the rear terminal of the device, blank black line - symbol, black line with white stripe to the other post. Please use the wind speed sensor and meter and connection wire.
Package Included:

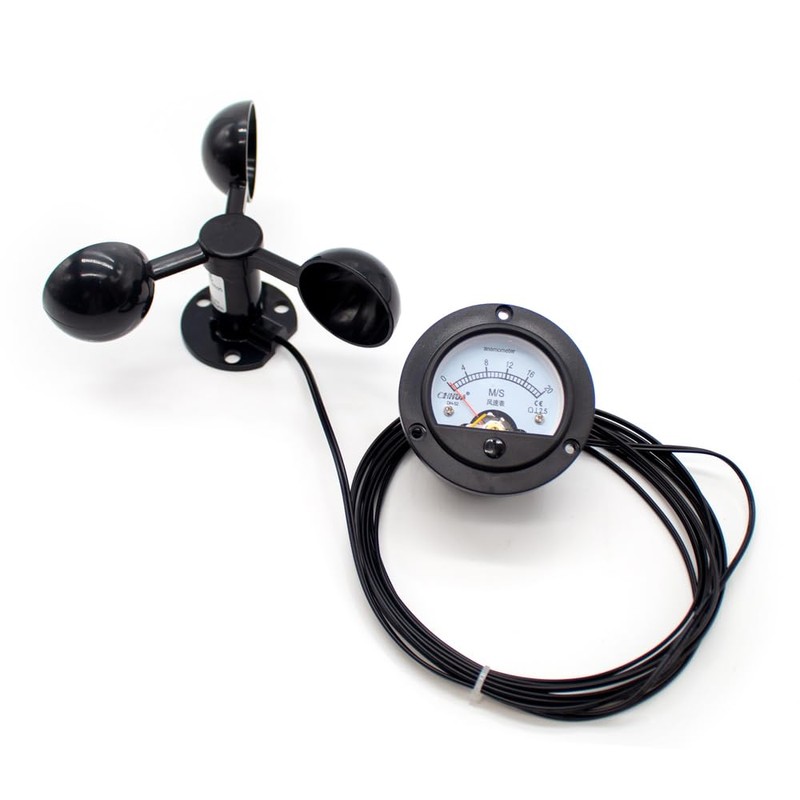

1 x Wind Speed Sensor
1 x Display Device
