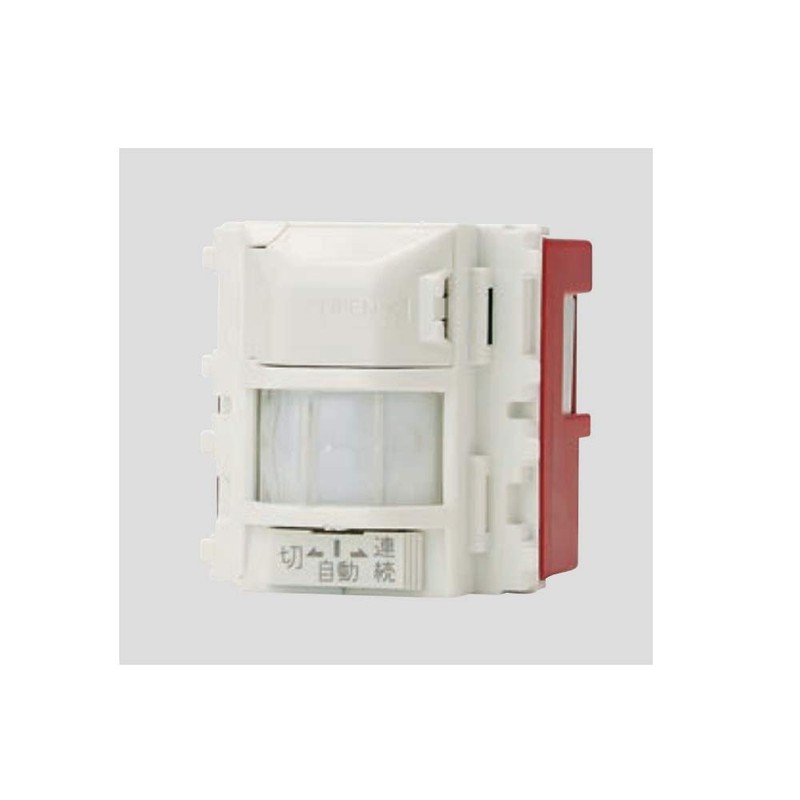

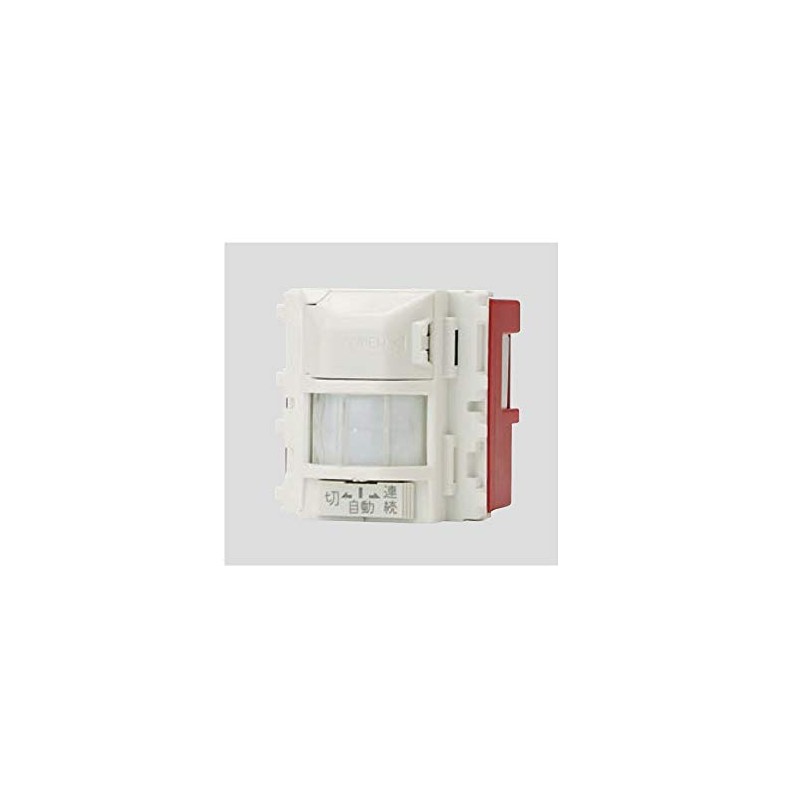

JEC-BN-PAS-3 PW J・Wide Series Wall Embedded Thermal Sensor Switch, 2 Wire, Brightness Sensor, 2A, 100 V, AC, Pure White
$132.27
- $9.99 shipping from Japan View details
-
Arrives
- Rating: 2A/100V AC50/60Hz
- Power consumption when off: Approx. 0.02 W; Operating brightness: [dark] approx. 30 lux [bright] approx. 100 lux [cut] regardless of brightness, 3 levels switching
- Operating retention time: Approximately 10, 30 seconds, 1, 3, 5, 10, 15, 20, 30 minutes, 9 levels switching system: Triac control output, LED lighting compatible 6 - 100 W (but within 10 lights) Minimum rated input current of 0.1A or more
- The heat-sensitive sensor switch will detect and operate at temperatures above 3 degrees Celsius in the detection area. When the load is turned on, the operating time will be extended by only the set time
- [Handling Precautions] There may be cases where the detection motion is not activated, or the detection sensitivity is dull, but it is not a malfunction. 1. When people are stationary; 2. If the difference between the human body and surrounding temperature is within 3 degrees Celsius (3 degrees Celsius), such as in midsummer day; when the breaker is turned on, it will be unstable for about 40 seconds due to the initial state of the heat sensitive sensor. It will then be normal when it can be detected. Detection surface will decrease if the detection surface is contaminated. If it gets dirty, please wipe it off with a soft cloth. *Do not use chemical sugar powder, thinner, or detergent
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Rating: 2A/100V AC50/60Hz
- Power consumption when off: Approx. 0.02 W; Operating brightness: [dark] approx. 30 lux [bright] approx. 100 lux [cut] regardless of brightness, 3 levels switching
- Operating retention time: Approximately 10, 30 seconds, 1, 3, 5, 10, 15, 20, 30 minutes, 9 levels switching system: Triac control output, LED lighting compatible 6 - 100 W (but within 10 lights) Minimum rated input current of 0.1A or more
- The heat-sensitive sensor switch will detect and operate at temperatures above 3 degrees Celsius in the detection area. When the load is turned on, the operating time will be extended by only the set time
- [Handling Precautions] There may be cases where the detection motion is not activated, or the detection sensitivity is dull, but it is not a malfunction. 1. When people are stationary; 2. If the difference between the human body and surrounding temperature is within 3 degrees Celsius (3 degrees Celsius), such as in midsummer day; when the breaker is turned on, it will be unstable for about 40 seconds due to the initial state of the heat sensitive sensor. It will then be normal when it can be detected. Detection surface will decrease if the detection surface is contaminated. If it gets dirty, please wipe it off with a soft cloth. *Do not use chemical sugar powder, thinner, or detergent
This sensor detects heat emitted by people and animals, and automatically turns on and off.
There are also other products in combination with plates and rotary switches.
Manufacturer: JIMBO / Shinkboelectric
Series Name: J Wide Series Thermal Sensor Switch
This product requires installation by an electrician.
General consumers who do not qualify for installation and replacement work is not legal
Please use incandescent lamps under 100 W per light. When the bulb is out of power, the internal components may interfere with a large current.
If you use a low dose (20 W/30 W) glow type and electronic start high-power fluorescent light (GH/EH), you may hear a rattling sound from the lighting fixture or switch. This is not an abnormal. Low power factor is recommended.
Due to the principle of operation, slight current will flow to the load even when standby. LED bulbs and some CFL lamps may cause weak light or inset light due to standby current.
Cannot be combined with dimmer or down lance.
Cannot be used with HID lamps (high intensity discharge lamps).
Cannot be used with special lighting fixtures built in electronic circuits.
(Built-in lighting fixture with delay timer, dimming function, wall switch, short on/off operation and switching on and off, remote control function)
In LED lighting, the slow start (it does not turn on immediately after detection, and it will not turn on automatically) may not be able to be used.
Fluorescent bulbs will shorten lamp life if frequently turned on/off.
(Fluorescent bulbs with glow, rapid, bulb, inverter, and compact inverter types may significantly shorten lamp life. However, fluorescent lights that can flash frequently.
Use Incandescent light where frequently turns on and off
In addition, please set the brightness sensor switch to "dark" and the operation retention time switch (longer than 15 minutes) to reduce the frequency of light on or off when using fluorescent lights.
Precautions for Installation Locations:
Do not install in the following locations:
1. Where heating and cooling equipment such as air conditioners and stoves enter the detection range
2. Close to cooking equipment such as stoves, and places under hot air and steam.
3. Location where incandescent lamps and lighting fixtures are nearby (within 1m from the fixture)
4. Location under indirect light due to reflections
5.Where swinging or moving objects are placed
(where there are effects of shadows, leaves and leaves caused by swinging curtains and curtains)
6. Locations that are exposed to direct sunlight and car headlights
Electric noise such as strong radios may enter the case may work.
Keep your wireless phone as far as possible.
If there is a shielding (include clear glass), the hidden person cannot be detected.
If you install it in high places or people still place it may not detect children or turn off the lights. Please understand the detection area and motion before determining the installation location.
