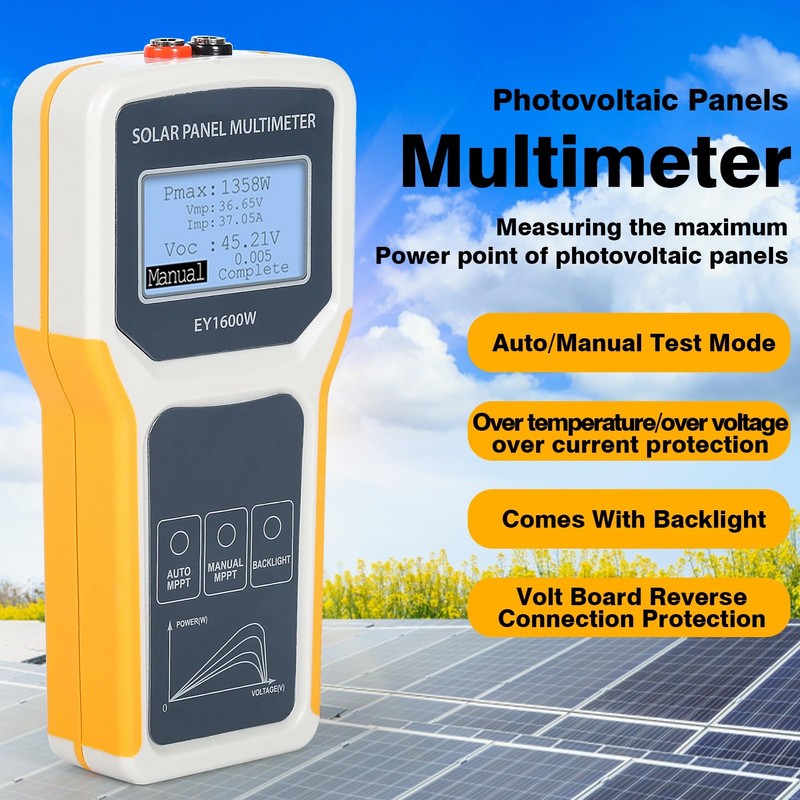

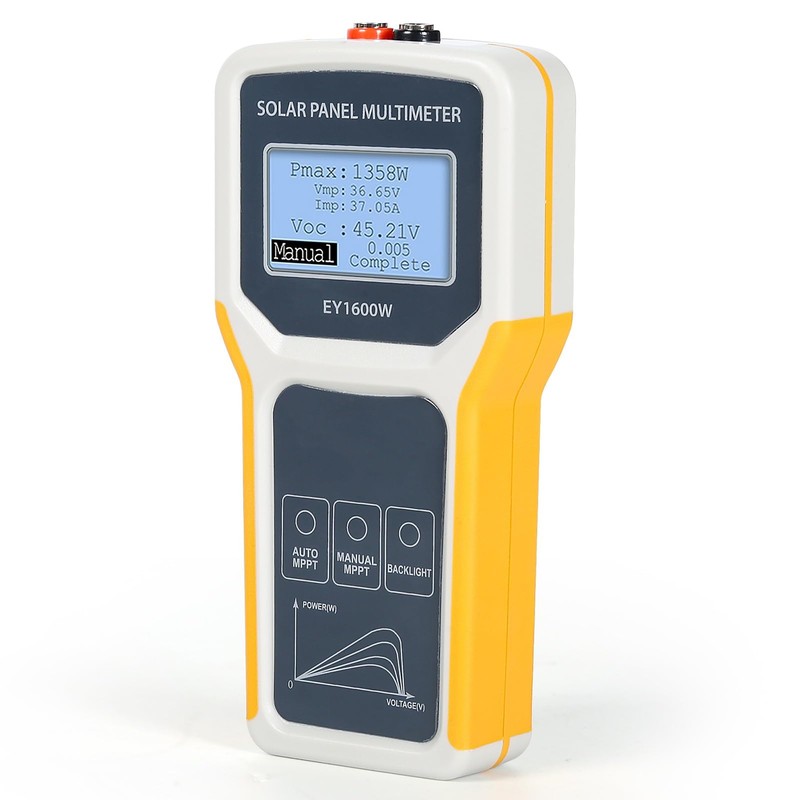

Jadeshay Solar Panel Multimeter, EY1600W LCD Display Photovoltaic Panel Multimeter Solar Panel MPPT Tester Maximum Power Point Power Meter
Jadeshay Solar Panel Multimeter, EY1600W LCD Display Photovoltaic Panel Multimeter Solar Panel MPPT Tester Maximum Power Point Power Meter
Product Overview
- MPPT Photovoltaic Panel Multimeter: This is an EY1600W photovoltaic panel multimeter with LCD display that doubles the maximum test performance. You can use it to test every single 5-1600W solar panel or parallel solar module combination (Note: Due to the series connection of solar panels, the current may exceed 60A, so the combination of series connection and over 60A cannot be tested.)
- Main use: Our photovoltaic solar panel tester is designed to detect the voltage, current and performance of the solar panel and evaluate whether your solar photovoltaic power generation is running well; and use our solar tools to detect quality differences between different brands of PV modules or find the best angle or space for placing solar modules.

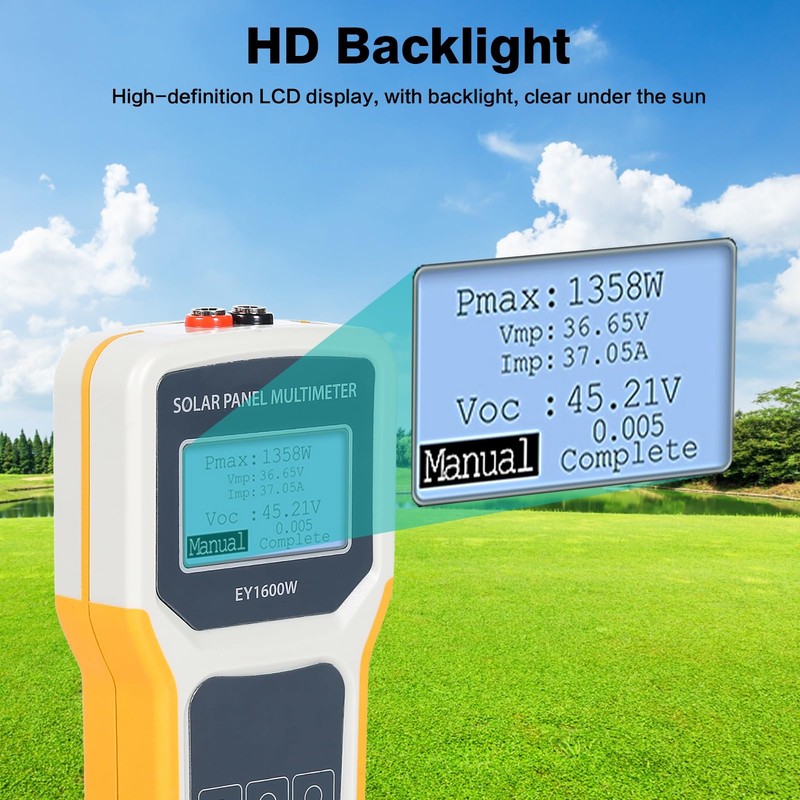

- LCD display: MPPT tester with LCD screen, which is easy to read even in sunlight. And the fully automatic VOC voltage can be read in any mode. Suitable for portable solar panels, foldable solar panels, solar photovoltaic panels, car/boat solar panels, roof solar panels and more.
- No battery required: this solar panel tester does not require batteries. Simply connect the cable to the solar panel and it works. It has two sufficiently long MC4 connection cables and two crocodile clip cables.
- Multiple safety protection functions: Our photovoltaic panel multimeter has multiple protection functions such as overvoltage protection, over-temperature protection and over-current protection to ensure safe working for users. (It is important that the total power of the panel does not exceed 1600W)
| Brand: | Jadeshay |
|---|---|
| Manufacturer: | Jadeshay |
| Part Number: | JJFKBC5 |
| Isin: | IHMLC51CZAP0 |
Guaranteed as described or your money back.
- 30-Day Money-Back Guarantee
- Secure Checkout
- Reliable Shipping & Tracking
- Responsive Customer Support
Product Overview
- MPPT Photovoltaic Panel Multimeter: This is an EY1600W photovoltaic panel multimeter with LCD display that doubles the maximum test performance. You can use it to test every single 5-1600W solar panel or parallel solar module combination (Note: Due to the series connection of solar panels, the current may exceed 60A, so the combination of series connection and over 60A cannot be tested.)
- Main use: Our photovoltaic solar panel tester is designed to detect the voltage, current and performance of the solar panel and evaluate whether your solar photovoltaic power generation is running well; and use our solar tools to detect quality differences between different brands of PV modules or find the best angle or space for placing solar modules.
- LCD display: MPPT tester with LCD screen, which is easy to read even in sunlight. And the fully automatic VOC voltage can be read in any mode. Suitable for portable solar panels, foldable solar panels, solar photovoltaic panels, car/boat solar panels, roof solar panels and more.
- No battery required: this solar panel tester does not require batteries. Simply connect the cable to the solar panel and it works. It has two sufficiently long MC4 connection cables and two crocodile clip cables.
- Multiple safety protection functions: Our photovoltaic panel multimeter has multiple protection functions such as overvoltage protection, over-temperature protection and over-current protection to ensure safe working for users. (It is important that the total power of the panel does not exceed 1600W)
| Brand: | Jadeshay |
|---|---|
| Manufacturer: | Jadeshay |
| Part Number: | JJFKBC5 |
| Isin: | IHMLC51CZAP0 |
Our photovoltaic module multimeter is designed to detect the voltage, current and power of solar panels and evaluate whether your photovoltaic power generation is running well. And use our solar tools to detect quality differences between different brands of PV modules or find the best angle or place for placing solar panels.

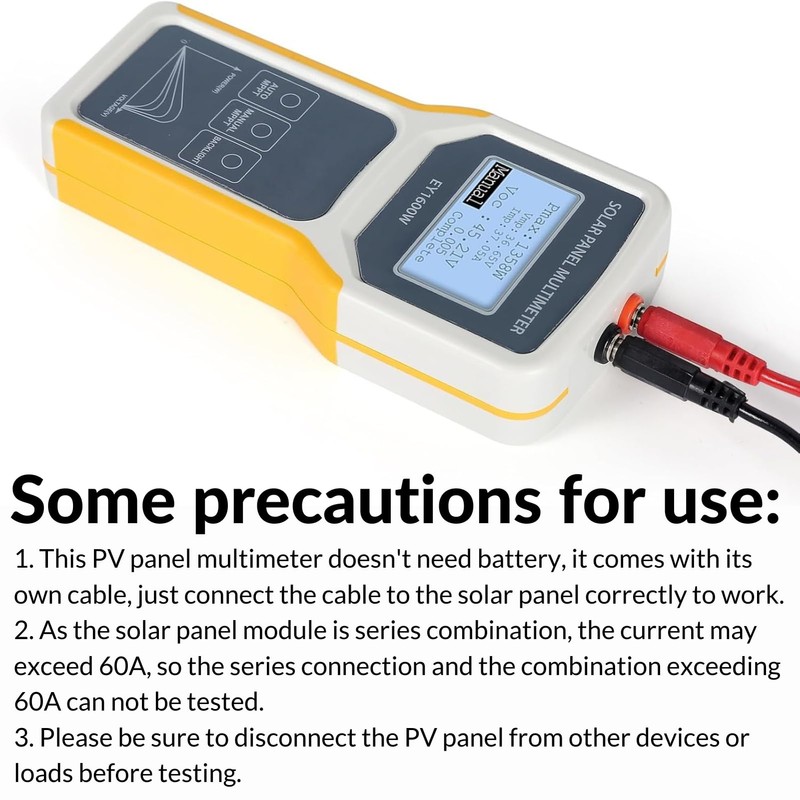

Note: Make sure to disconnect the photovoltaic panel from other equipment or loads before testing.
Specifications:
Product Name: Photovoltaic Panel Multimeter
Model: EY-1600W.
Measuring power range: 5-1600W
Measuring voltage range: 12-60V DC
Measuring current range: 0-60A.
Display mode: LCD liquid crystal display.
Power supply mode: photovoltaic panel power supply
Packing method: EVA tool bag packaging
Usage objects: photovoltaic panel manufacturers, photovoltaic panel operators, photovoltaic panel installers, photovoltaic panel users, photovoltaic enthusiasts, etc.
Product Features:

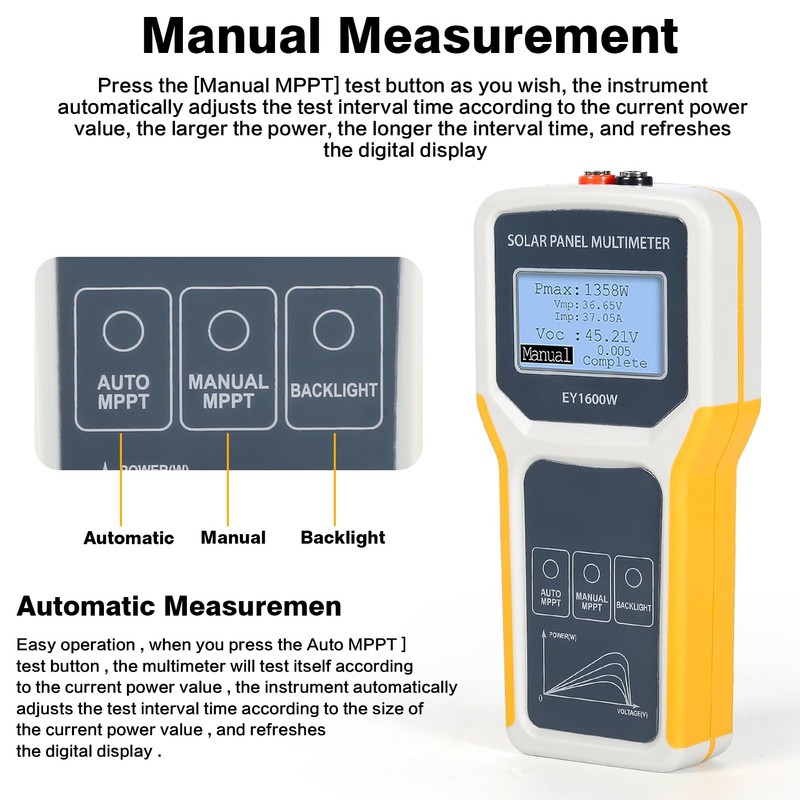

1. Automatic MPPT detection.
2. Manual MPPT detection.

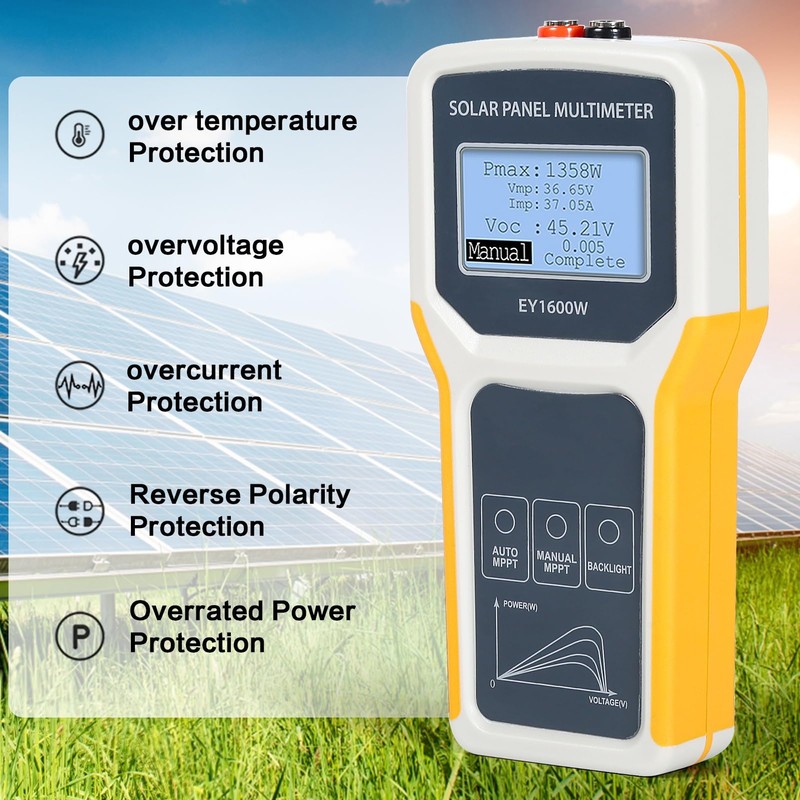

3. Over voltage, over temperature and over current protection.
4. Reverse polarity protection for photovoltaic modules.
5. Overnomination protection.
6. No additional power supply required

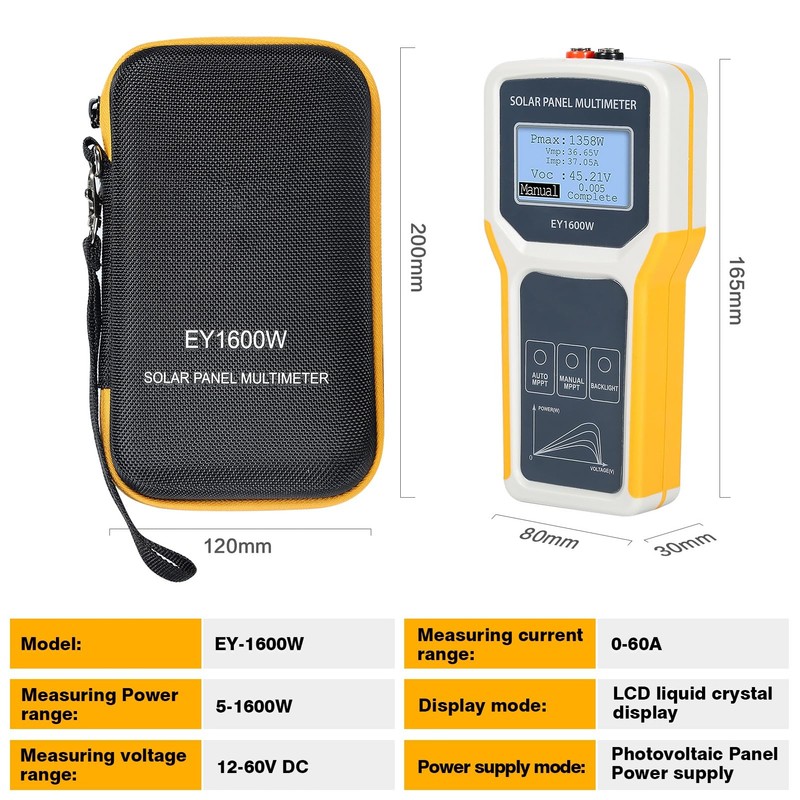

Product size: 16.5 x 8 x 3 cm.
Product weight: 176 g.
Notes:
Due to the different monitor and light effect, the actual colour of the item may be slightly different from the colour shown in the pictures.
Please allow for a 1-3 cm margin of error due to manual measurement. Thank you for your understanding.

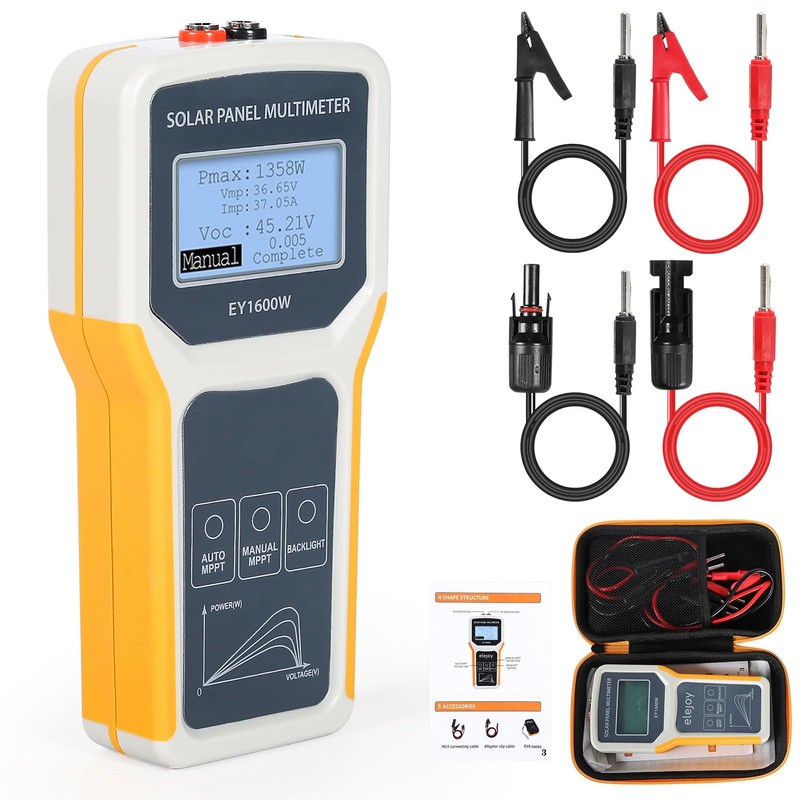

Packing list:
1 x photovoltaic panel multimeter.
2 x MC4 connection cables.
2 x crocodile clip cables.
1 x EVA tool kit.
1 x user manual
