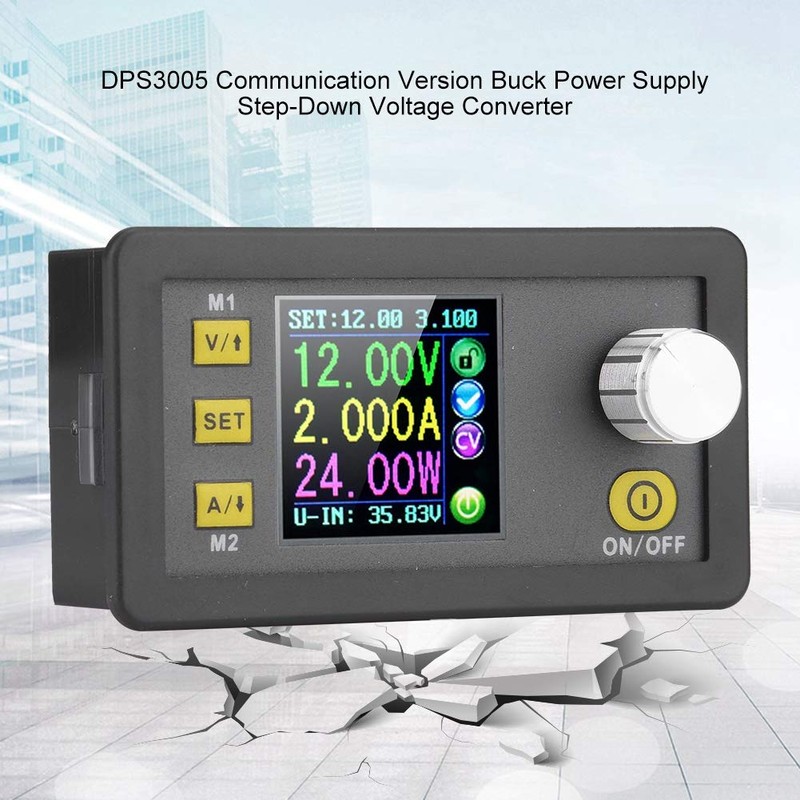

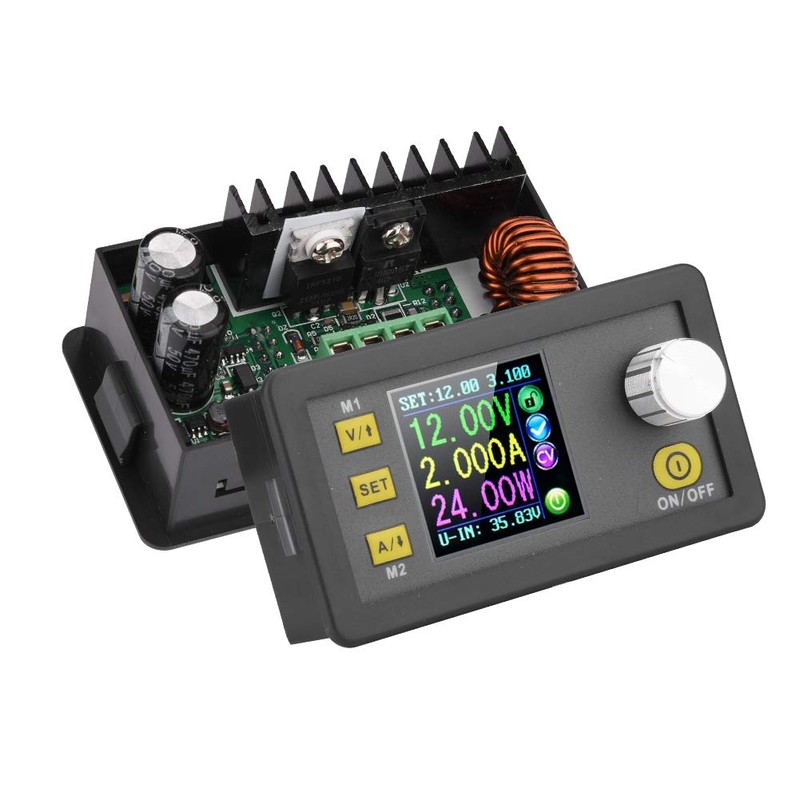

Jadeshay DC DC Converter Step Down Converter DC 6-40V Voltage Regulator Adjustable Power Supply Down Voltage Converter for Power Supply, DPS3005-USB-BT, USB and Bluetooth Connection
$106.54
- $14.50 shipping from Germany View details
-
Arrives
- Multifunctional: a professional programmable control power supply module with constant voltage and constant current, which integrates analogue integration and digital control functions. This module has a power down memory function and can store 10 sets of preset values. And it also has the function of quickly withdrawing two sets of stored values.

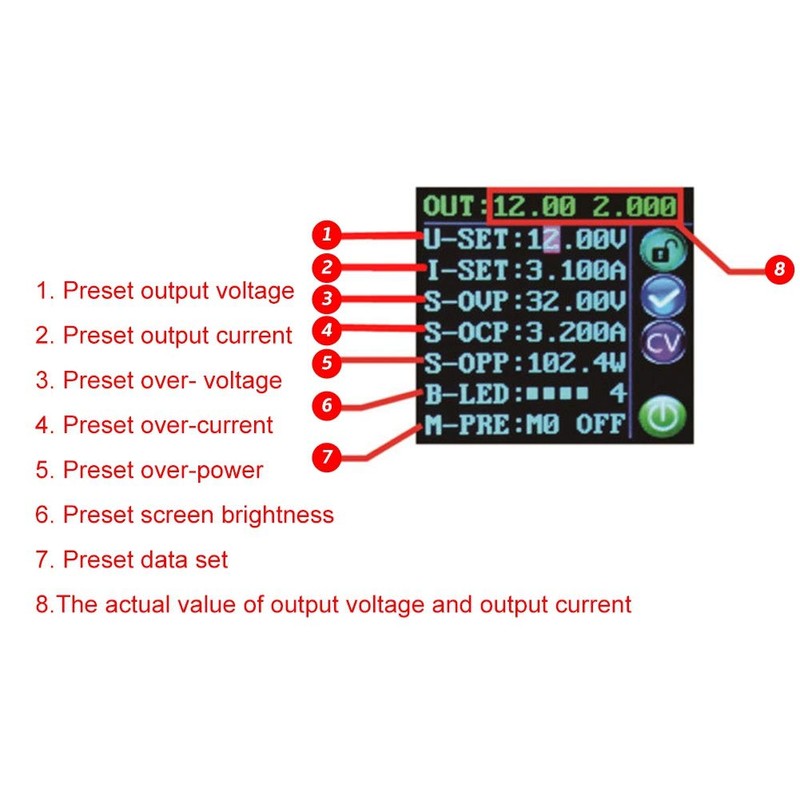

- Efficient: high precision and sensitivity, the power module can extract the required voltage or current easier and faster. The LCD screen on the module can check the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.

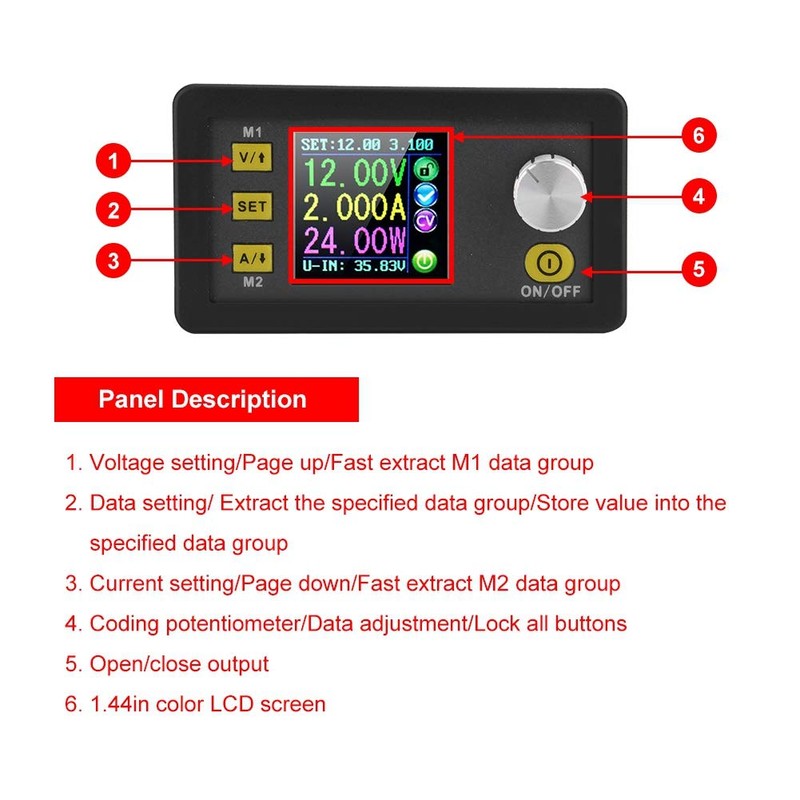

- 【USE】: IN+: input positive, IN-: input negative; OUT+: output positive, OUT-: output negative, press the ON/OFF button to turn the output on or off at each interface, the module is easy to use, with a lock button that greatly improves safe sex.
- 【Maintenance】: the input voltage range is DC 6-40V, and 40V is the limit voltage; the input must be DC supply, this module has reverse polarity protection and short circuit protection at the output, but please connect it strictly according to the wiring instructions. When you connect power to the output, burn the module.
- 【INTUITIVE】: In the reminder range of the output status, you can see whether the output is on or not, the status of constant voltage and current, whether the output is normal, whether the button is locked and the currently used data group. In the setting data interface, you can adjust the surge value, over-current value, overpower value, data setting and LCD brightness.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Multifunctional: a professional programmable control power supply module with constant voltage and constant current, which integrates analogue integration and digital control functions. This module has a power down memory function and can store 10 sets of preset values. And it also has the function of quickly withdrawing two sets of stored values.
- Efficient: high precision and sensitivity, the power module can extract the required voltage or current easier and faster. The LCD screen on the module can check the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.
- 【USE】: IN+: input positive, IN-: input negative; OUT+: output positive, OUT-: output negative, press the ON/OFF button to turn the output on or off at each interface, the module is easy to use, with a lock button that greatly improves safe sex.
- 【Maintenance】: the input voltage range is DC 6-40V, and 40V is the limit voltage; the input must be DC supply, this module has reverse polarity protection and short circuit protection at the output, but please connect it strictly according to the wiring instructions. When you connect power to the output, burn the module.
- 【INTUITIVE】: In the reminder range of the output status, you can see whether the output is on or not, the status of constant voltage and current, whether the output is normal, whether the button is locked and the currently used data group. In the setting data interface, you can adjust the surge value, over-current value, overpower value, data setting and LCD brightness.
Note:
1. This is DPS3005/DPS5005 communication version, there is a communication interface on the back.
2. USB + Bluetooth means: DPS3005/DPS5005+ USB communication card + Bluetooth communication card.
A: We have the file for the upper computer installation and software, you can contact us.
B: Upper computer installation, connection by USB and Bluetooth video: you can go to RD Tech YouTube channel to check
3. DPS3005/DPS5005 have the same functions, only the technical parameters are different, for example, voltage, current, etc.
Very important:
1. Before purchasing this product, please download the upper computer software and test, if it fits your computer, you can buy.
2. The upper computer only supports Win7 and above.
Specification:
Model (optional) DPS3005 DPS5005
Input voltage: 6.00-40.00V 6.00-55.00V.
Output voltage: 0V-32.00V 0V-50.00V.
Output current: 0-5,000 A, 0-5,000 A.
Output power: 0-160.0 W, 0-250.0 W.
Voltage resolution: 0.01 V, 0.01 V.
Current resolution: 0.001 A, 0.001 A.

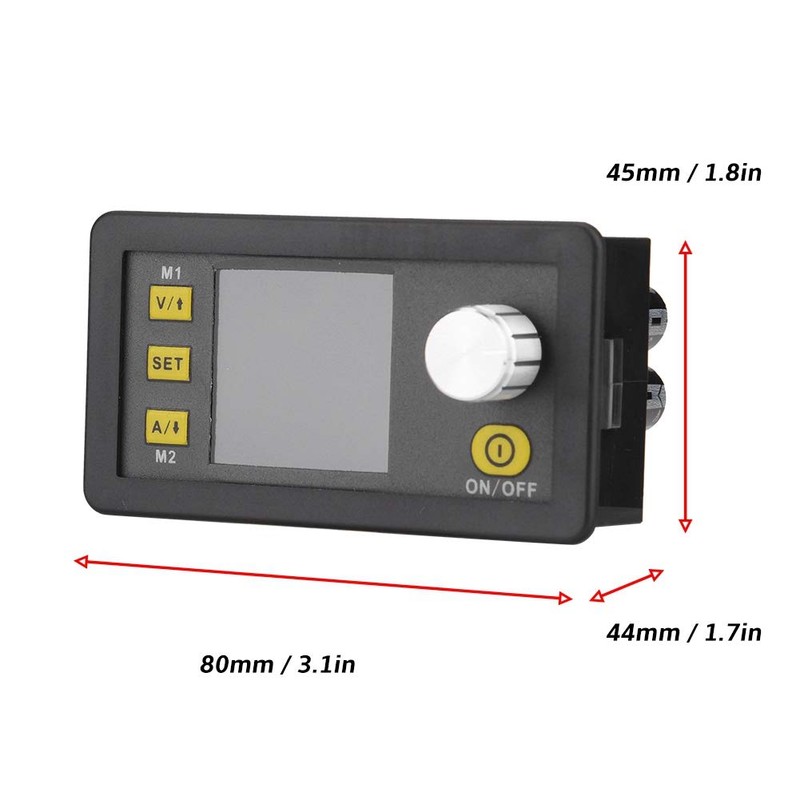

Size 80*44*45mm/3.1*1.7*1.8in
Weight: approx. 138 g / 4.9 oz.

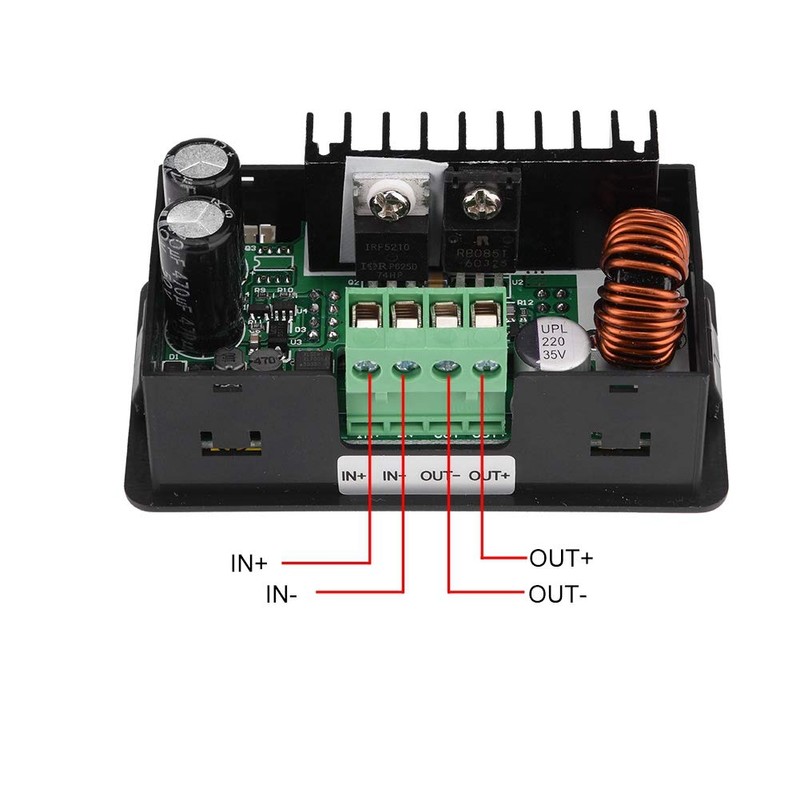

Connector Description
IN+: input positive, IN-: input negative:
Out+: output positive, OUT-: output negative.
Note: the input voltage range is DC 6-40V and 40V is the limit voltage; please leave a room for use. Otherwise, it will be burned. The input voltage must be DC, not AC 220V, otherwise it will also be burned. Although this module has reverse polarity protection and short circuit protection on the output, you should follow the connection description exactly when connecting. When you connect the supply voltage to the output, the module will burn out.

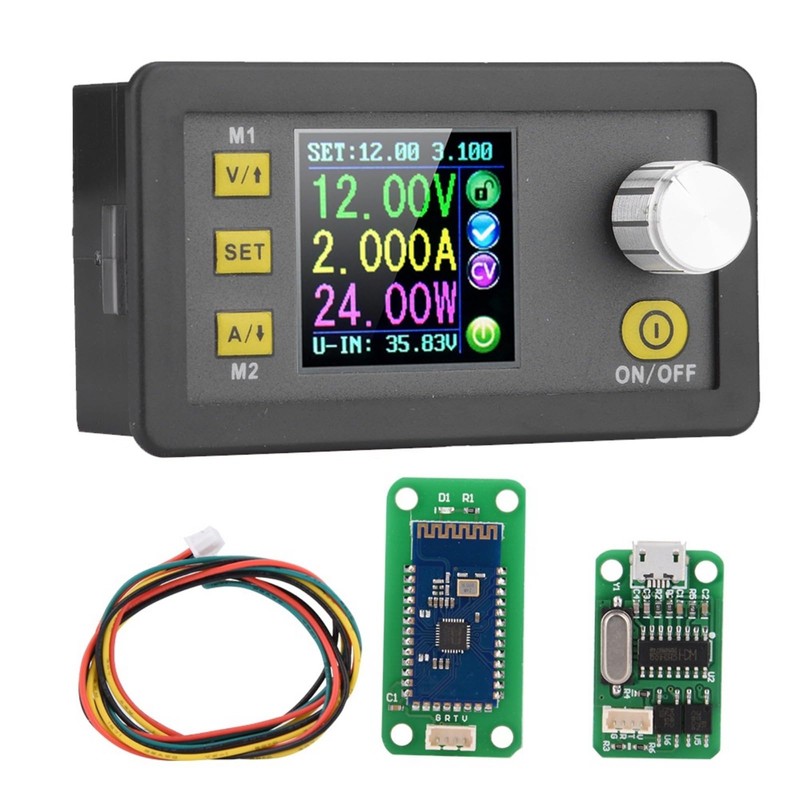

Package list:
1 x step-down module.
1 x Blueteeth-board
1 x USB board.
1 x communication cable.
