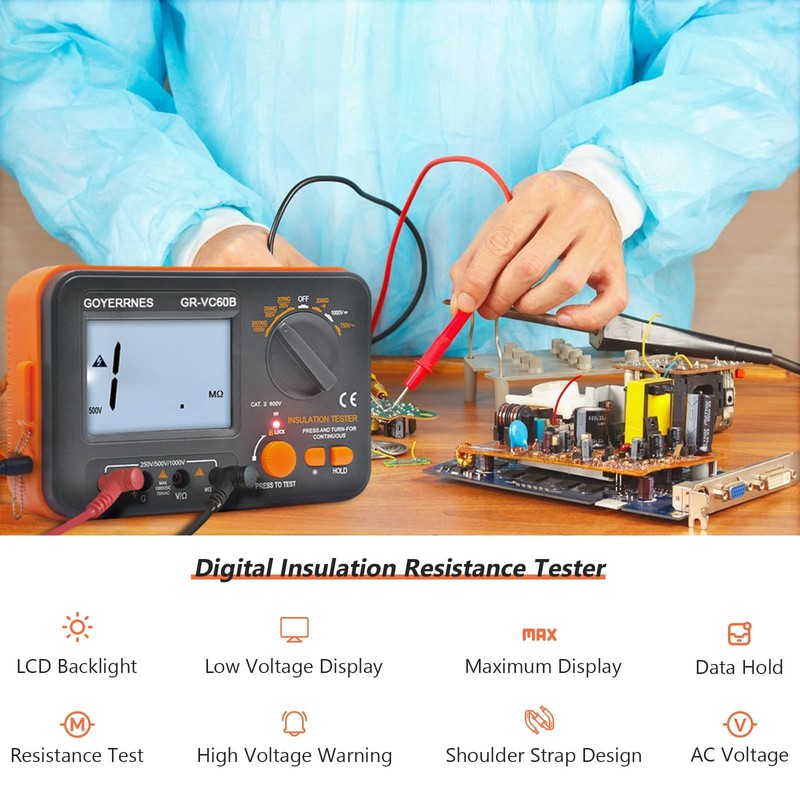

Insulation Resistance Tester Digital Ohm Meter Megohmmeter GR-VC60B+ DCV Megohm Meter Voltage Tester 250/500/1000V, ACV Megohm 750V with 1999 Count Large LCD Display, Data Hold, Backlight
$126.74
- $9.99 shipping from United Kingdom View details
-
Arrives
- High Precision Resistance Meter: This VC60B+ insulation resistance tester is a professional instrument for testing the grounding resistance of electrical equipment. When measuring DC voltage, the accuracy is: ±(0.5% of reading + 6) ; When measuring AC voltage, the accuracy is: ±(1.0% of reading + 6); for resistance and on-off measurement, the measurement accuracy is: ±(0.8% of reading + 6). The resolution is 1V.
- Multiple Measurement Modes: GR-VC60B+ resistance meter has multiple gears to choose from, and also provides manual measurement and continuous measurement modes, you can choose your most suitable measurement range and measurement mode. It can also be used for AC and DC voltage measurement and continuity measurement.
- Easy to Use: With its user-friendly interface, you will be able to operate it like a pro in no time.This resistance meter has a large digital LCD and meter backlight, as long as you press the "HOLD" key, you can keep the data, so that you can use it clearly in a dark environment. Press the backlight button to switch on or turn off the backlight. Stable performance,LED light indicator,auto power off, low battery indication and terminal of 9V DC adapter (adapter not included).
- Wide Application: The resistance meter tester is small in size and easy to carry. It is suitable for measuring the grounding resistance of various equipment in stores, postal services, railways, roommates, chemical industry, communications, mining and other departments. Insulation tester is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
- Wide Application: The resistance meter tester is small in size and easy to carry. It is suitable for measuring the grounding resistance of various equipment in stores, postal services, railways, roommates, chemical industry, communications, mining and other departments. Insulation tester is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- High Precision Resistance Meter: This VC60B+ insulation resistance tester is a professional instrument for testing the grounding resistance of electrical equipment. When measuring DC voltage, the accuracy is: ±(0.5% of reading + 6) ; When measuring AC voltage, the accuracy is: ±(1.0% of reading + 6); for resistance and on-off measurement, the measurement accuracy is: ±(0.8% of reading + 6). The resolution is 1V.
- Multiple Measurement Modes: GR-VC60B+ resistance meter has multiple gears to choose from, and also provides manual measurement and continuous measurement modes, you can choose your most suitable measurement range and measurement mode. It can also be used for AC and DC voltage measurement and continuity measurement.
- Easy to Use: With its user-friendly interface, you will be able to operate it like a pro in no time.This resistance meter has a large digital LCD and meter backlight, as long as you press the "HOLD" key, you can keep the data, so that you can use it clearly in a dark environment. Press the backlight button to switch on or turn off the backlight. Stable performance,LED light indicator,auto power off, low battery indication and terminal of 9V DC adapter (adapter not included).
- Wide Application: The resistance meter tester is small in size and easy to carry. It is suitable for measuring the grounding resistance of various equipment in stores, postal services, railways, roommates, chemical industry, communications, mining and other departments. Insulation tester is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
- Wide Application: The resistance meter tester is small in size and easy to carry. It is suitable for measuring the grounding resistance of various equipment in stores, postal services, railways, roommates, chemical industry, communications, mining and other departments. Insulation tester is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
Describe:
A high precision resistance meter is an essential tool for anyone working with electronics. Whether you are a technician or an engineer, this resistance meter is designed to provide you with accurate and reliable resistance measurements. With multiple measurement modes, an easy-to-use design, and a wide range of applications, this resistance meter is the perfect addition to your tool kit.

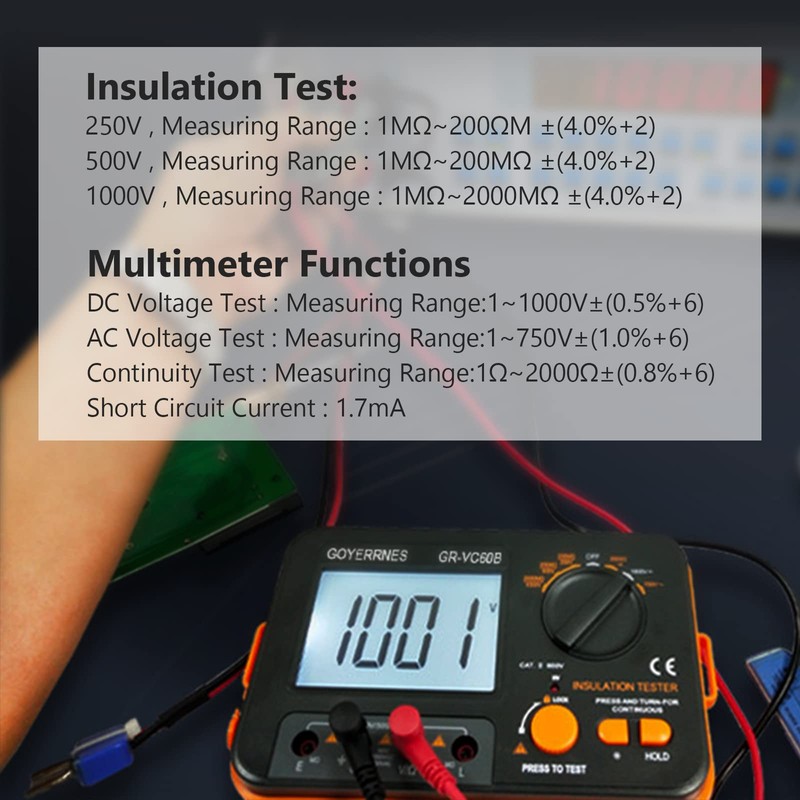

Insulation Test:
Output Voltage:250V ,Measuring Range:1MΩ~200ΩM ±(4.0%+2)
Output Voltage:500V ,Measuring Range:1MΩ~200MΩ ±(4.0%+2)
Output Voltage:1000V ,Measuring Range:1MΩ~2000MΩ ±(4.0%+2)
Multimeter Functions
DC Voltage Test :Measuring Range:1~1000V±(0.5%+6)
AC Voltage Test:Measuring Range:1~750V±(1.0%+6)
Continuity Test:Measuring Range:1Ω~2000Ω±(0.8%+6)
Short Circuit Current:1.7mA
General Parameter
Brand :GOYERRNES
Model :GR-VC60B+
Power Supply :6 x 1.5V AA Batteries ( included)

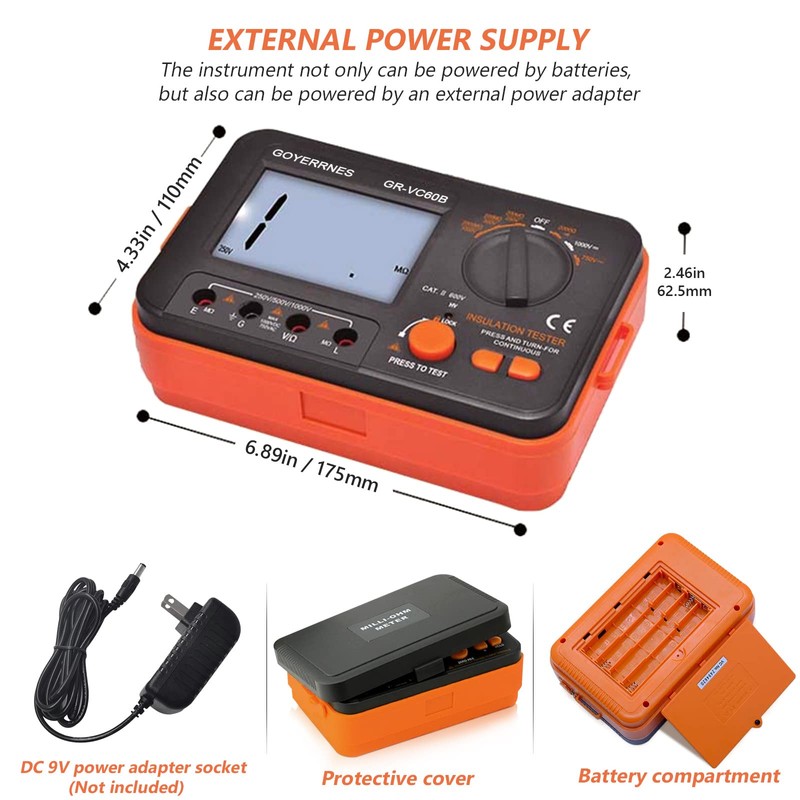

Item Size :175*110*62.5mm / 6.89*4.33*2.46in
Weight Approx.:580g(including battery)

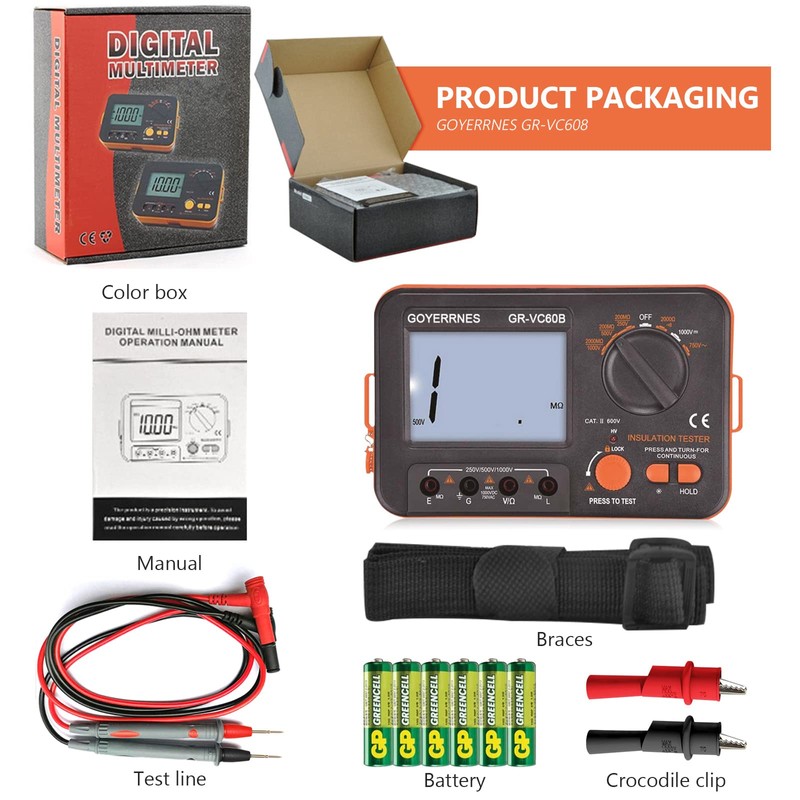

list:
- 2*10A Test Lead
- 2*Alligator Clips
- 6*AAA Battery (1.5V)
- 1*Instruction Manual
- 1* Product Certificate
- 1* Strap
