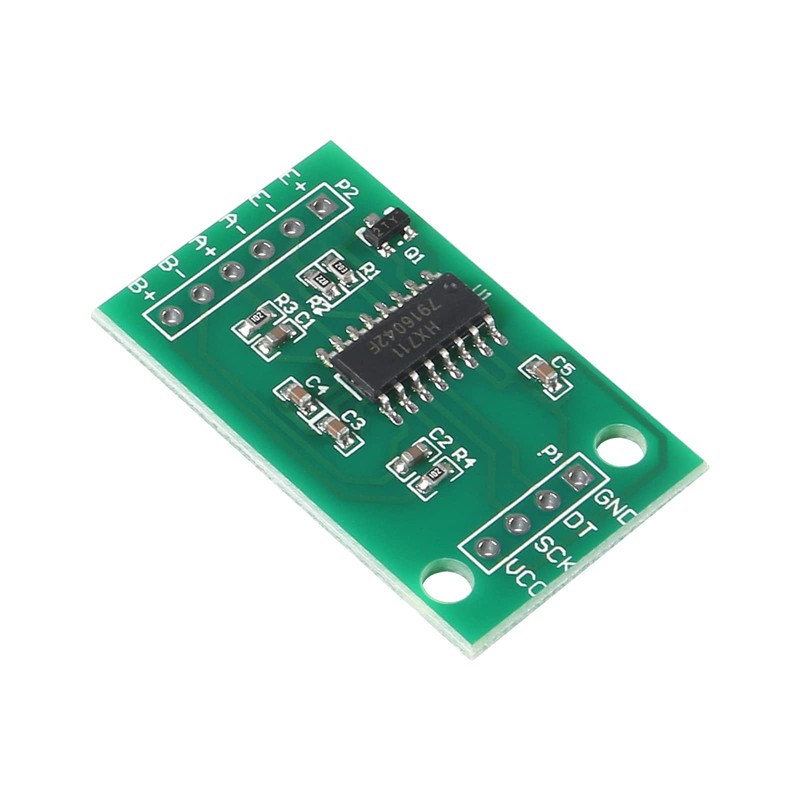

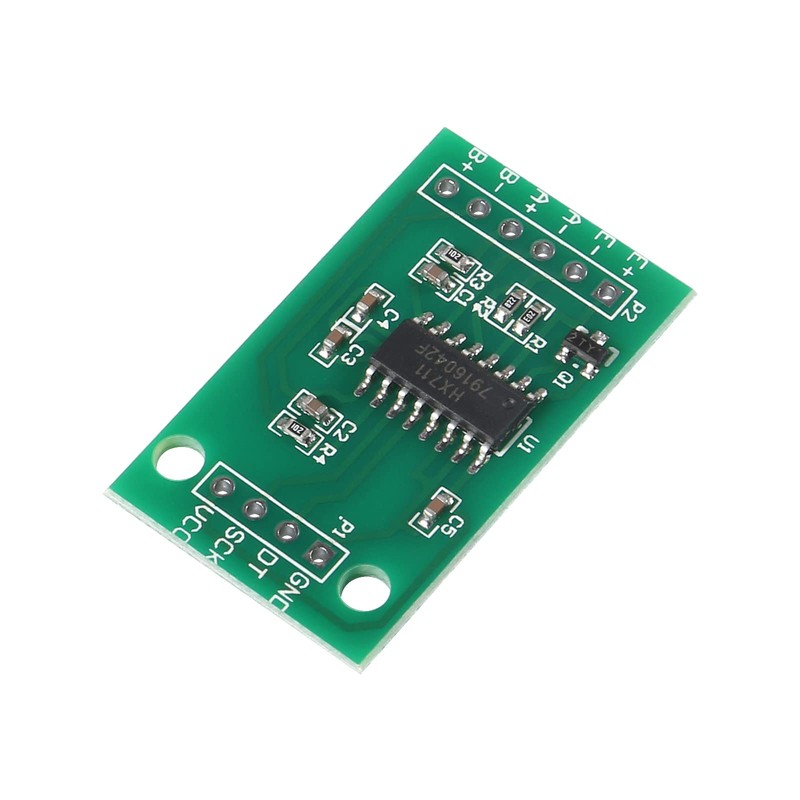

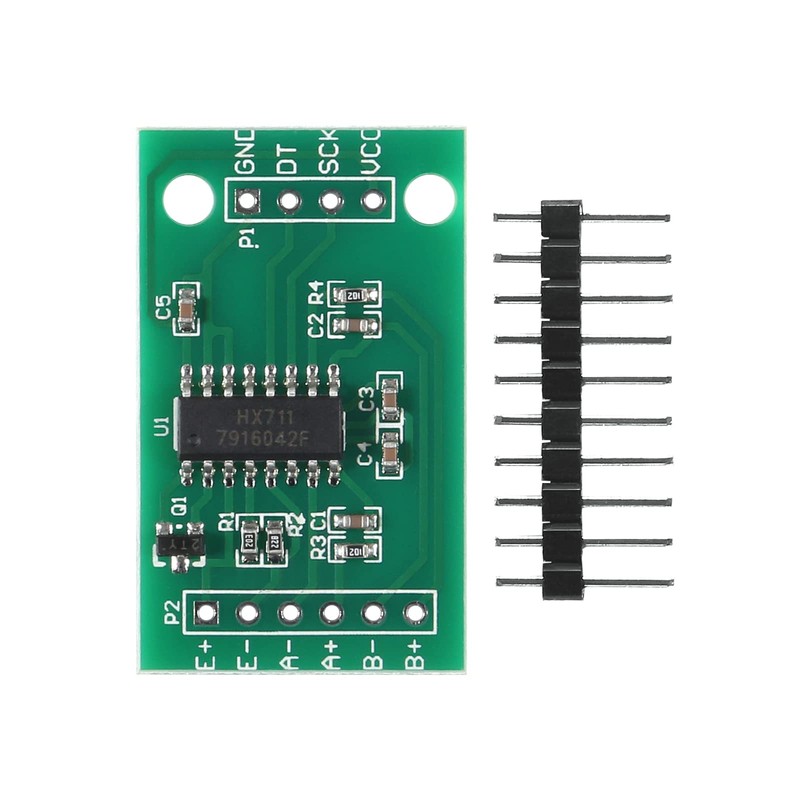

HX711 Load Cell Amplifier Breakout Weigh Sensors Advertising Module Weight Analogue Digital Converter Dual Channel 24-Bit Precision A/D Module Pressure Sensor for Arduino Raspberry Pi Microcontroller
$23.67
- $9.99 shipping from Germany View details
-
Arrives
- The HX711 amplifier module uses 24 high-precision A/D converter chips hx711, a two-channel 24-bit precision A/D module
- The HX711 load cell AD module is a design specially developed for the high-precision electronic scale design with two analogue input channels for internal integration of the 128x amplifier with programmable gain
- The input multiplexer selects either the differential input of channel A or B for the low-noise amplifier with programmable gain (PGA)
- Applications This weighing sensor amplifier module can be used as scale, kitchen scale, industrial process control, etc
- Active low-noise on-chip PGA with selectable gain of 32, 64 and 128, simple digital control and serial interface: pin controlled control, no programming required
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- The HX711 amplifier module uses 24 high-precision A/D converter chips hx711, a two-channel 24-bit precision A/D module
- The HX711 load cell AD module is a design specially developed for the high-precision electronic scale design with two analogue input channels for internal integration of the 128x amplifier with programmable gain
- The input multiplexer selects either the differential input of channel A or B for the low-noise amplifier with programmable gain (PGA)
- Applications This weighing sensor amplifier module can be used as scale, kitchen scale, industrial process control, etc
- Active low-noise on-chip PGA with selectable gain of 32, 64 and 128, simple digital control and serial interface: pin controlled control, no programming required
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analogue power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset.
Simple digital control and serial interface: pin-driven controlsno programming needed
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analogue power supply
Regulator: normal operation < 1.5 mApower down < 1uA.
Operation supply voltage range: 2.6 ~ 5.5 V.
Operating Temperature Range:-20 degree ~ +85 degree
Documents and tutorials
Using a Single Load Cell with Arduino

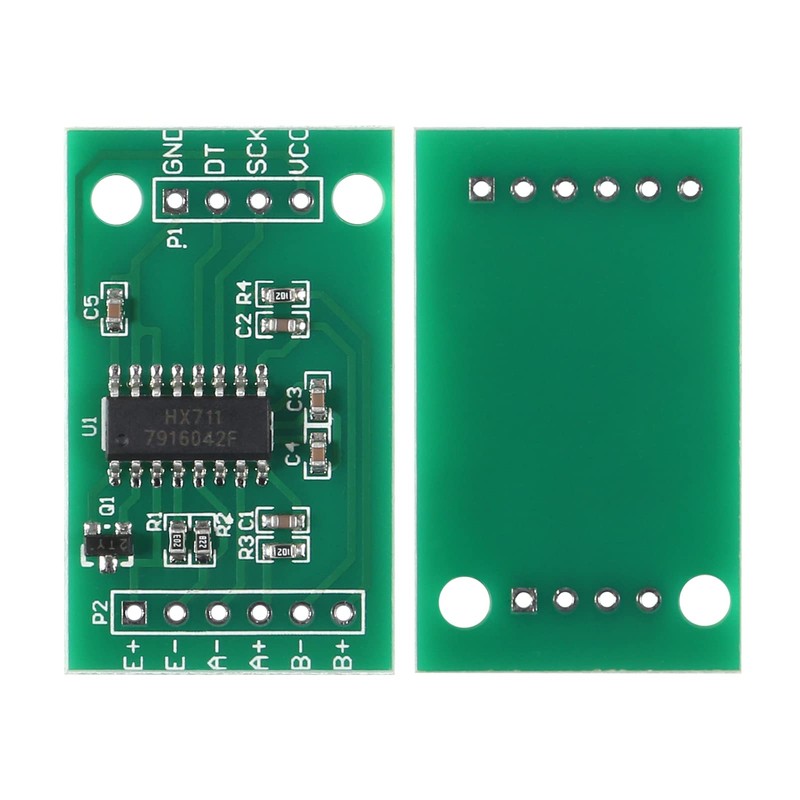

Connect RED wire of load cell to E+ of hx711 module.
Connect BLACK wire of load cell to E- of hx711 module.
Connect WITHE wire of load cell to A- of hx711 module.
Connect GREEN wire of load cell to A+ of hx711 module.
Connect GND of hx711 module to board GND, and VCC to board 5V pin.
Connect DT and SCK of hx711 module to any digital IO pins of board. There are some using tips from our customers:
If your trying to connect a strain gauge directly to it, it won't work, it needs to be in a wheatstone bridge config.
The chip sleeps after 60 micro seconds so if you plan on using something like a raspberry pi you should use a signal.
Signal type of command to disable interrupts. Arduino or ESP32 will be a better / easier choice.
It calculates the change in resistance for the wires connecting the wheatstone bridge too, so if you moving anything around the readings will keep changing.
Package includes:

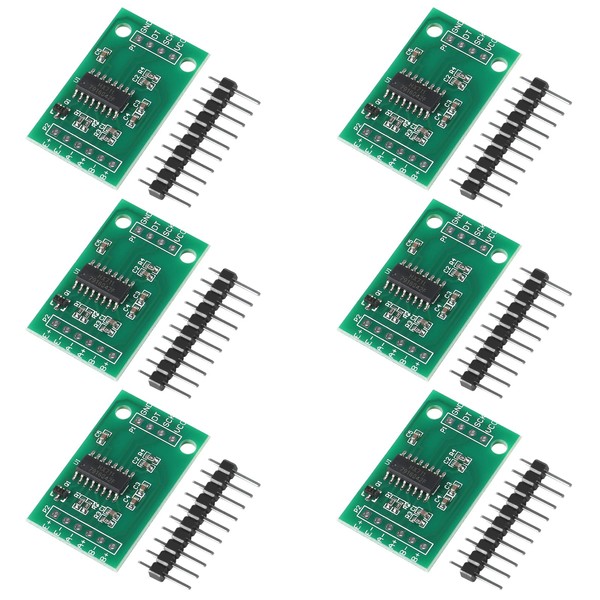

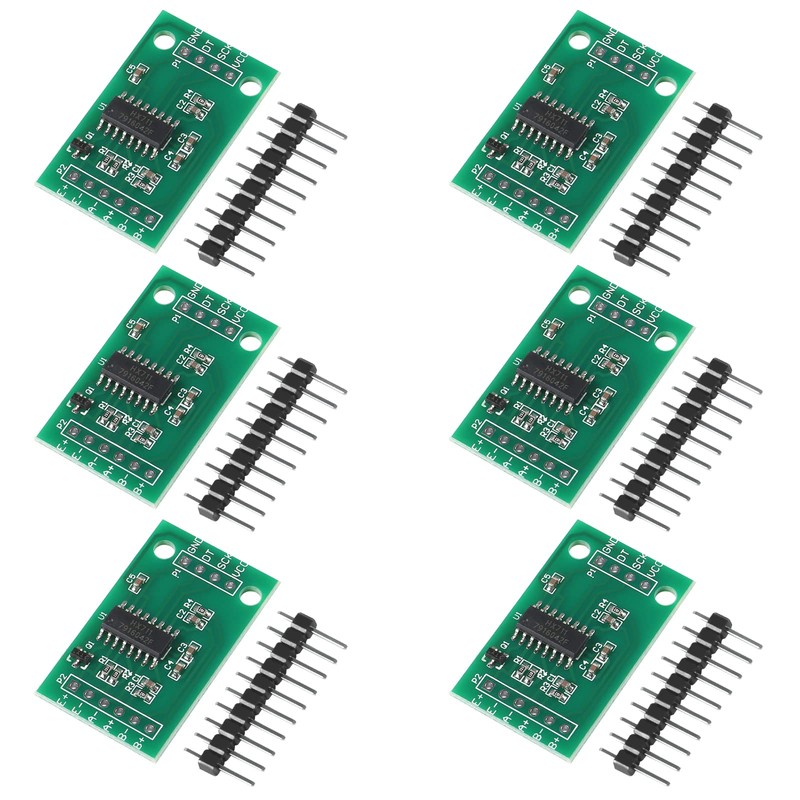

6 x HX711 load cell amplifier board.
