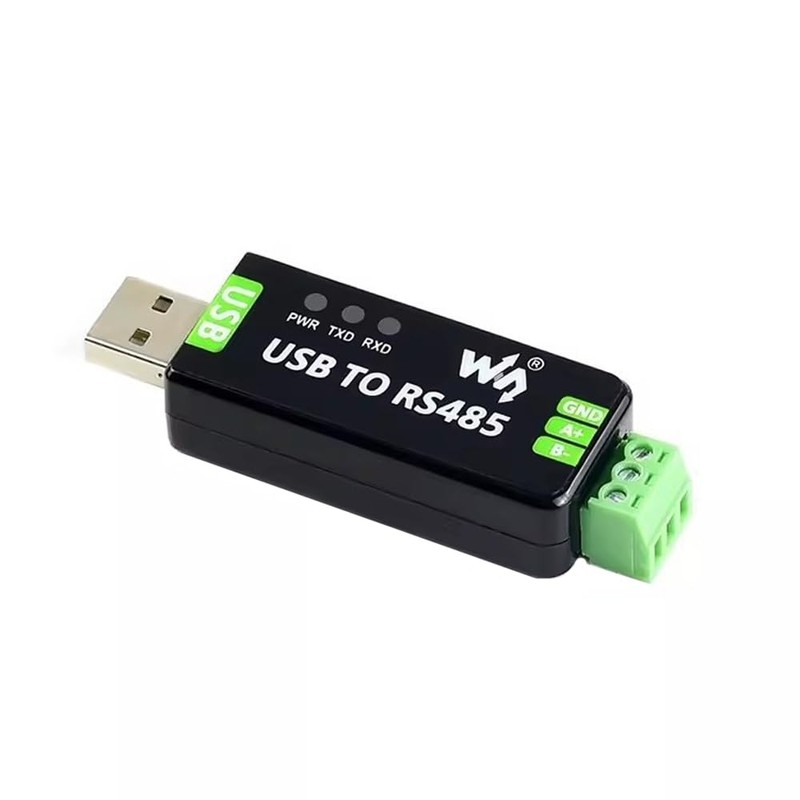

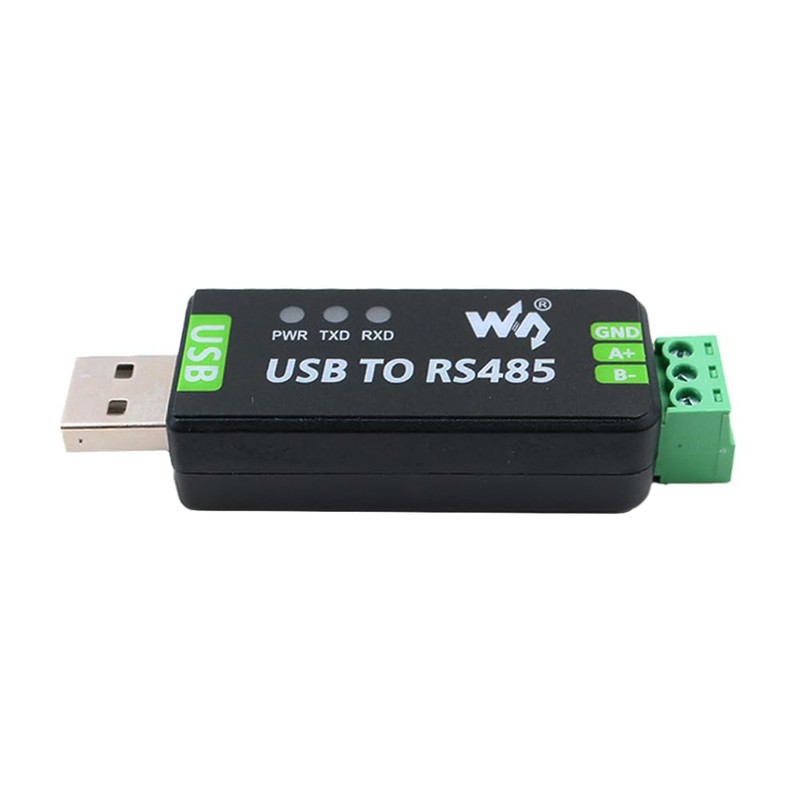

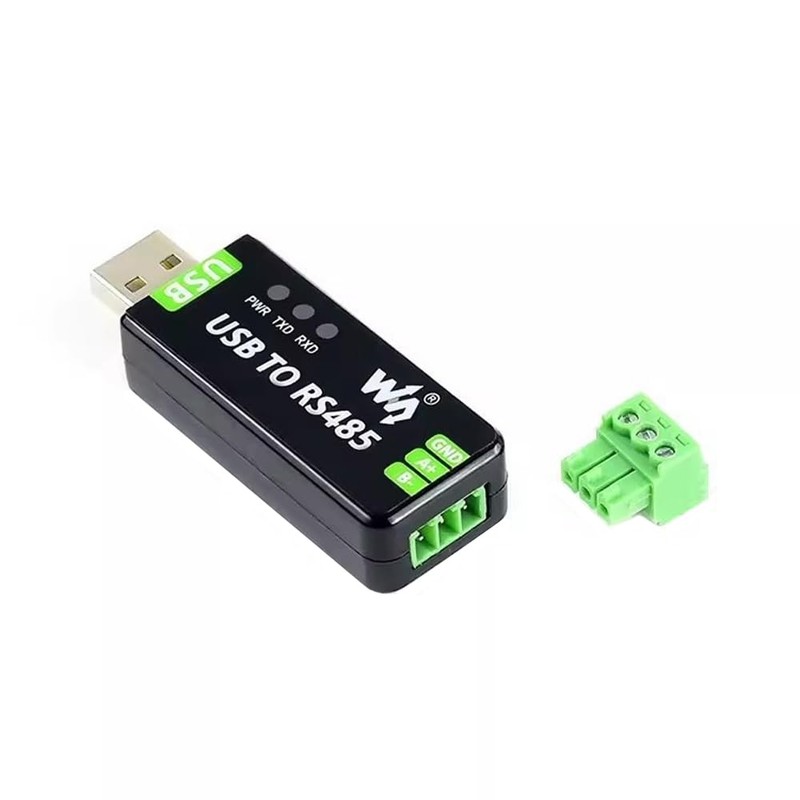

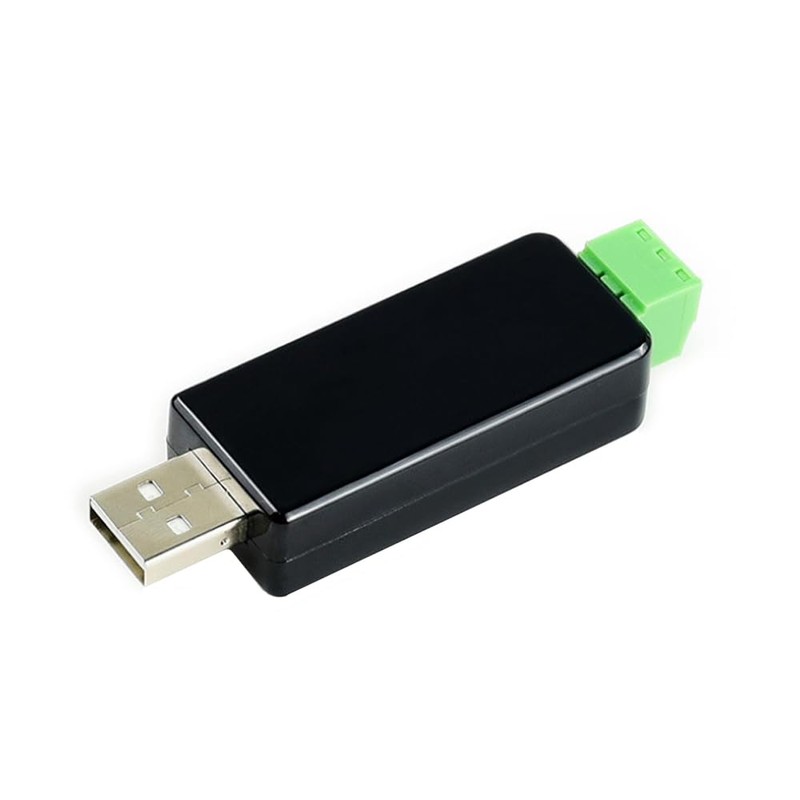

Hsthe Sea Industrial USB to RS485 Converter, TVS Diode Protection Circuit Uses FT232RL Automatic Transceiver, Original ESD Protection, Built-in Resettable Fuse
$56.06
- $9.99 shipping from Germany View details
-
Arrives
- This is an industrial USB to RS485 converter with original FT232RL and SP485EEN inside. It has embedded protection circuits such as light protection, resettable fuse, ESD protection and TVS diode etc. It is quite small.
- USB TO RS485 is very easy to use and allows automatic sending and receiving. Due to its fast communication, stability, reliability and safety, it is the ideal choice for industrial control units and/or applications with high communication requirements.

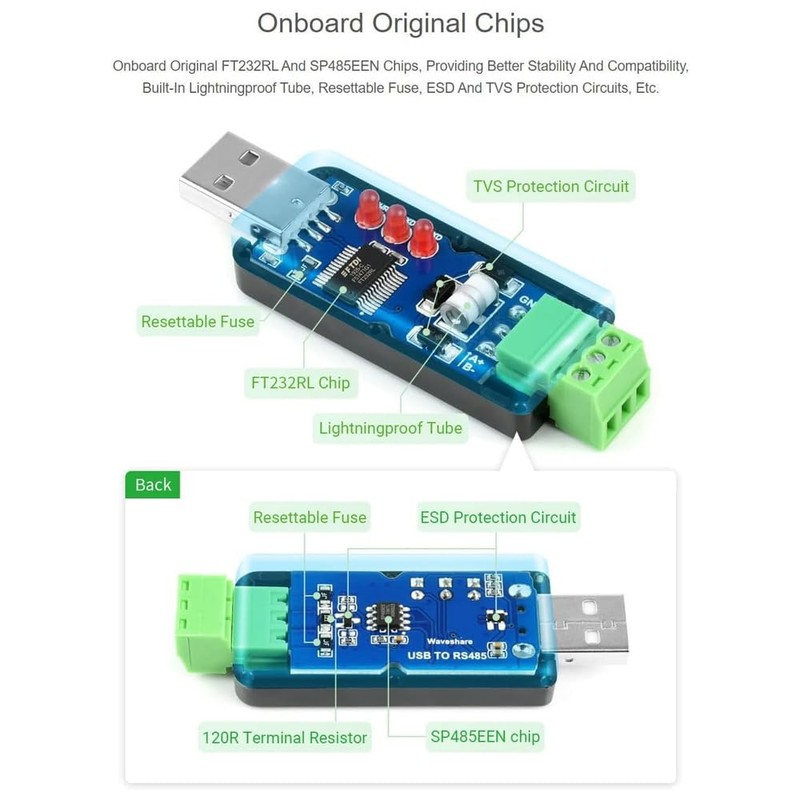

- USB to RS485 communication Adopt original FT232RL and SP485EEN, fast communication, stable and reliable, better compatibility
- Integrated TVS (Transient Voltage Suppressor) effectively suppresses surges and transient voltage spikes in the circuit and provides illumination and electrostatically dissipative protection.
- Built-in self-recovery fuse and protective diodes ensure stable current/voltage outputs, provide over-current/over-voltage protection and improve shock resistance. 3 LEDs to indicate power supply and transceiver status.
- This is an industrial USB to RS485 converter with original FT232RL and SP485EEN inside. It has embedded protection circuits such as light protection, resettable fuse, ESD protection and TVS diode etc. It is quite small.
- USB TO RS485 is very easy to use and allows automatic sending and receiving. Due to its fast communication, stability, reliability and safety, it is the ideal choice for industrial control units and/or applications with high communication requirements.
- USB to RS485 communication Adopt original FT232RL and SP485EEN, fast communication, stable and reliable, better compatibility
- Integrated TVS (Transient Voltage Suppressor) effectively suppresses surges and transient voltage spikes in the circuit and provides illumination and electrostatically dissipative protection.
- Built-in self-recovery fuse and protective diodes ensure stable current/voltage outputs, provide over-current/over-voltage protection and improve shock resistance. 3 LEDs to indicate power supply and transceiver status.
This is an industrial USB to RS485 converter with original FT232RL and SP485EEN in it. It has embedded protection circuits such as light protection, resettable fuse, ESD protection and TVS diode etc. It is quite small.
Supports USB to RS485 bi-directional communication, high speed, stability, reliability and good compatibility
Onboard TVS (Transient Voltage Suppressor), which can effectively suppress surge voltages and transient peak voltages in the circuit and protect against lightning strike and static electricity
Onboard self-recovery fuses and protective diodes ensure stable current and voltage output, prevent over current and over-voltage, and improve shock resistance.
There are 3 LED indicators on the board for easy display of the power supply and status of the signal transceiver.
Specification:
Product Type:Industrial Grade USB to RS485 Converter
Host interface: USB
Device interface: RS485
Working level: 5V
Communication rate: FT232RNL chip 300 bps ~ 921600 bps.
CH343G Chip | 300 bps ~ 3 Mbps
RS485 interface: provides 600W lightning protection, surge protection and 15KV electrostatic protection (board
Interface protection contains 120R compensation resistor)
Transmission distance: approx. 1200 metres (at low speed).

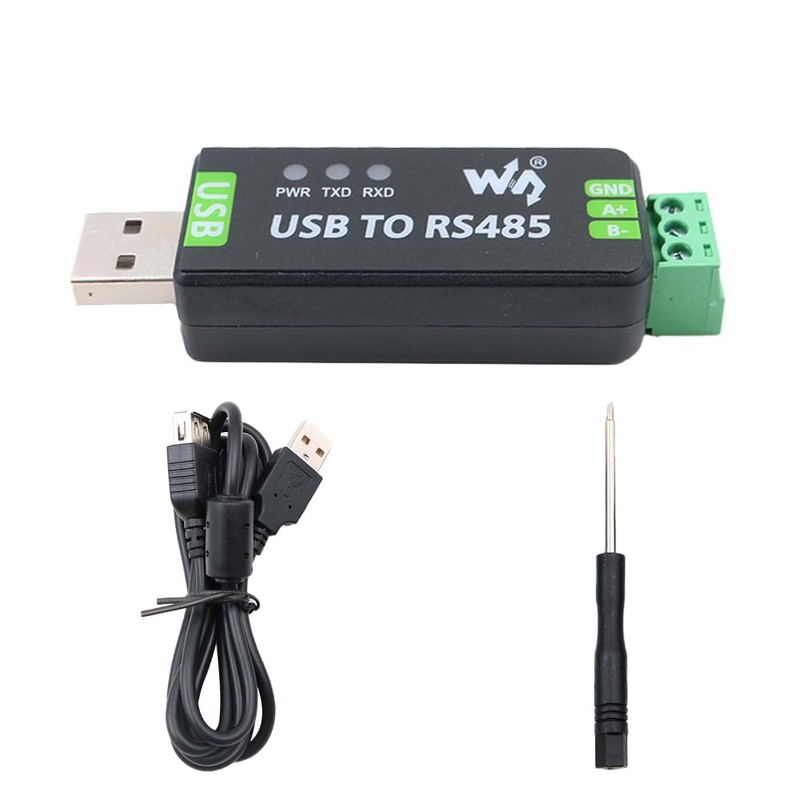

Package includes:
1 x Industrial USB to RS485 Converter,
