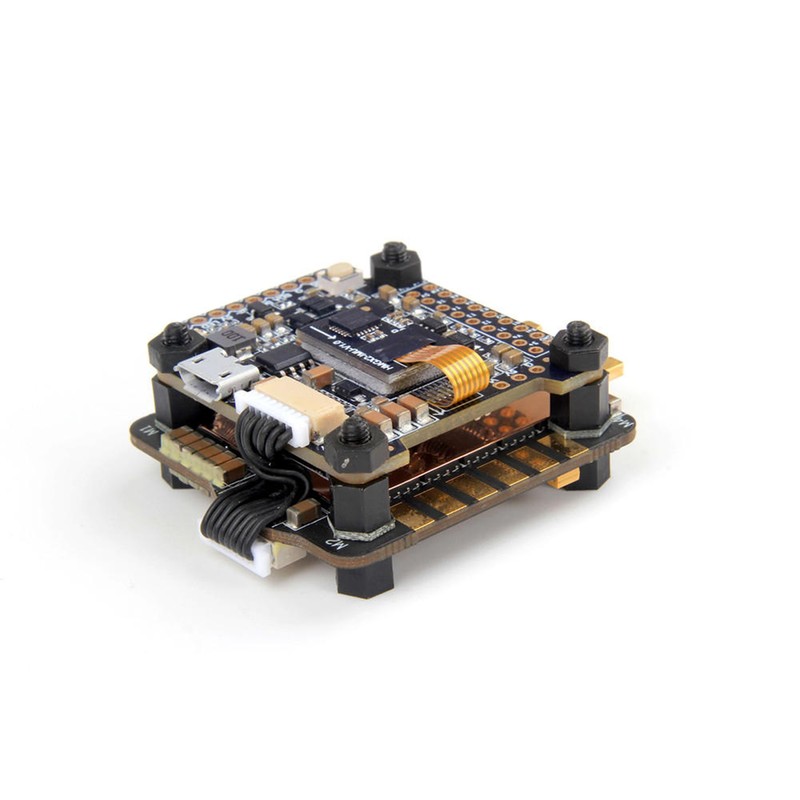

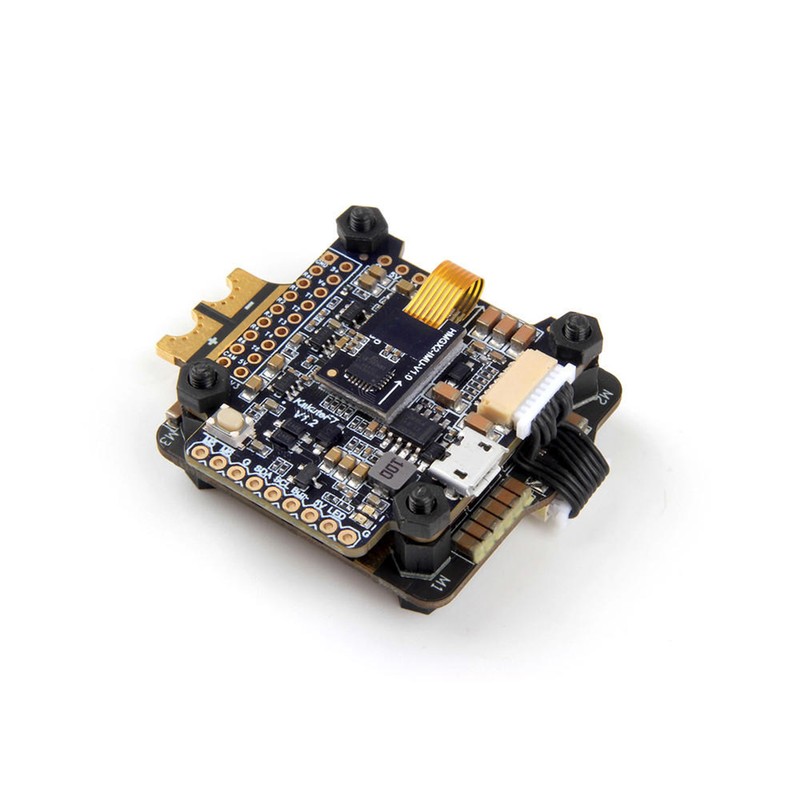

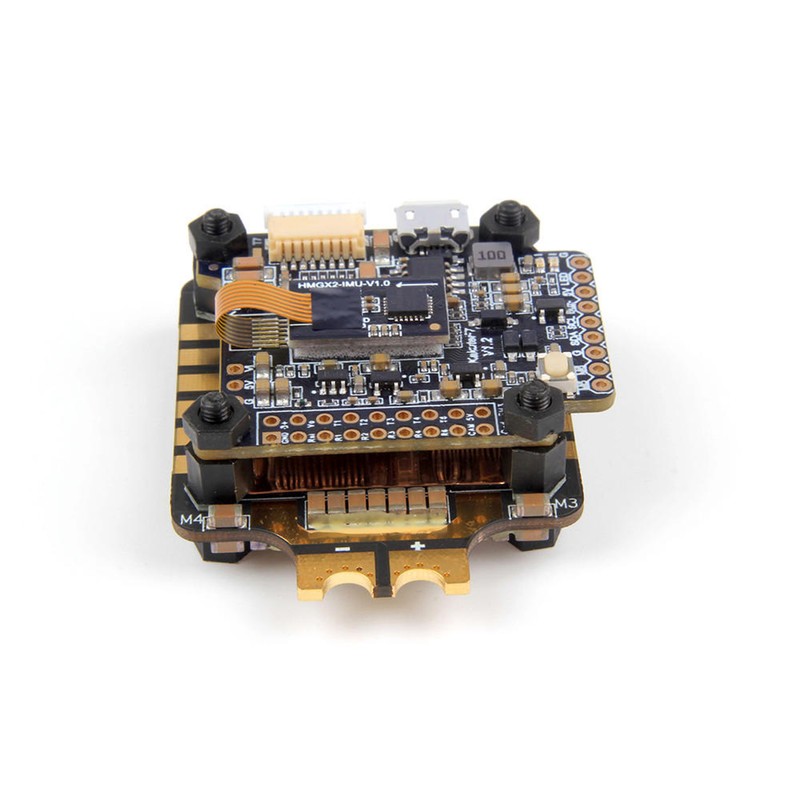

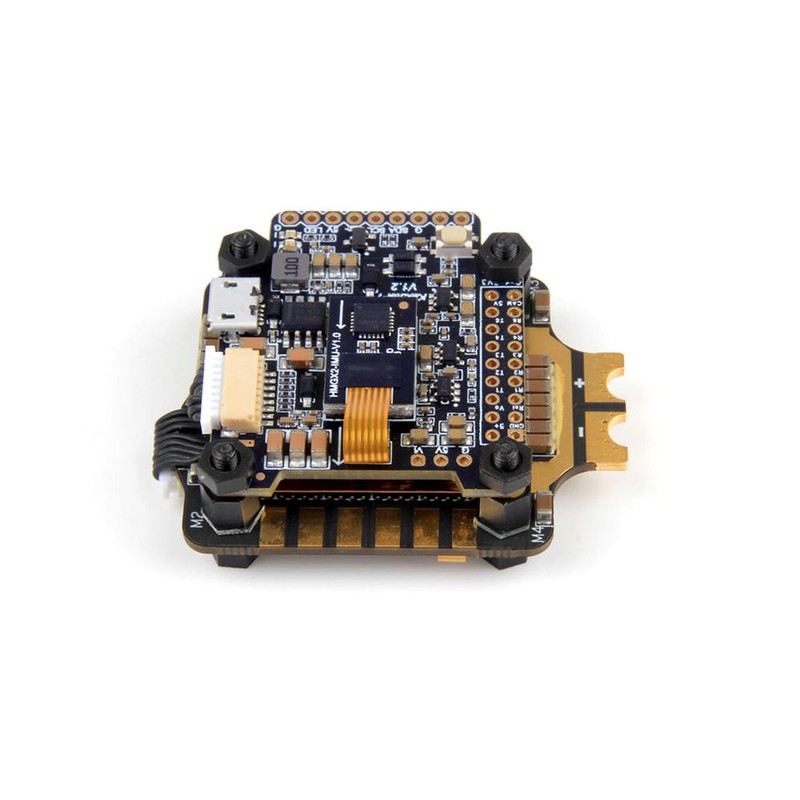

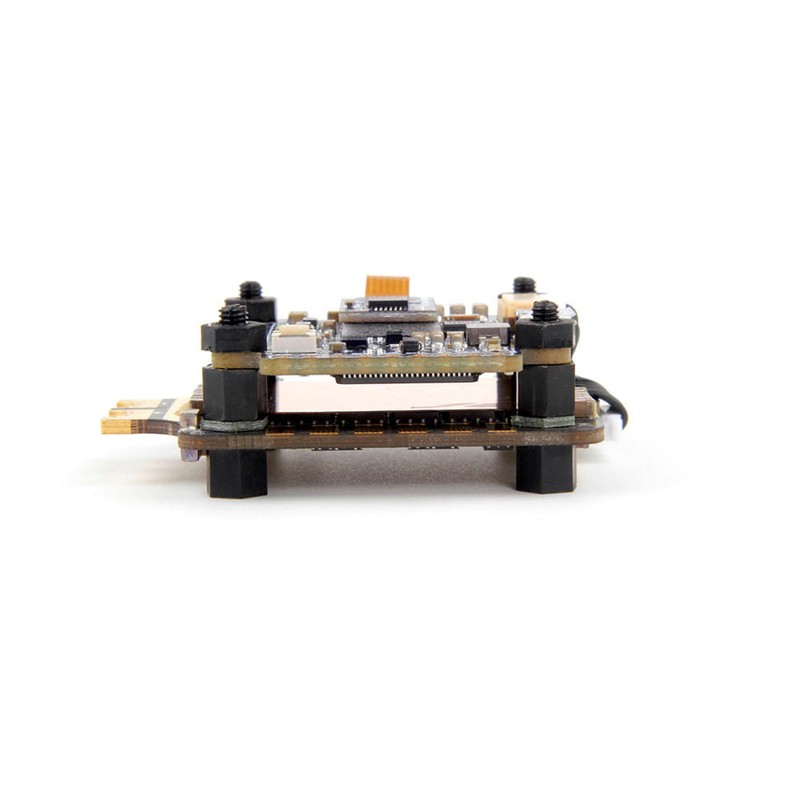

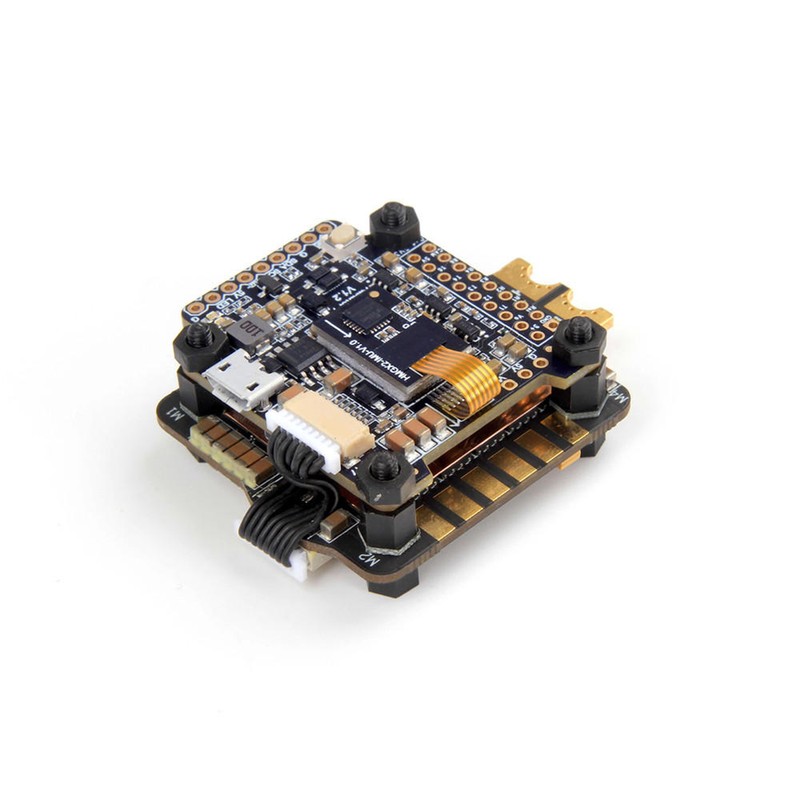

Holybro Kakute F7 Flight Controller Tekko 32 4in1 ESC (BLHeli 32) Combo Set
$183.98
- $14.50 shipping from United States View details
-
Arrives
1、Support for Betaflight, Butterflight, Cleanflight 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, change video transmitter channel and power level, all using your transmitter sticks and goggles 3、Built-in soft-mounting. The IMU ("gyro") chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself 4、High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axle gyro and accelerometer. It can run at up to 32 kHz sampling rate 5、Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units
1、Support for Betaflight, Butterflight, Cleanflight 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, change video transmitter channel and power level, all using your transmitter sticks and goggles 3、Built-in soft-mounting. The IMU ("gyro") chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself 4、High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axle gyro and accelerometer. It can run at up to 32 kHz sampling rate 5、Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units
1、Support for Betaflight, Butterflight, Cleanflight 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, change video transmitter channel and power level, all using your transmitter sticks and goggles 3、Built-in soft-mounting. The IMU ("gyro") chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself 4、High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axle gyro and accelerometer. It can run at up to 32 kHz sampling rate 5、Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units
More Information
1. Support for Betaflight, Butterflight, Cleanflight.
2. Betaflight OSD. Change PIDs, adjust common configuration parameters, change video transmitter channel and power level, all using your transmitter sticks and goggles.
3. Built-in soft-mounting. The IMU ("gyro") chip on this board is mounted on vibration-isolating foam. This means that there is no need to soft-mount the board itself.
4. High-performance / low-noise / high sensitivity IMU. ICM20689 with 6-axle gyro and accelerometer. It can run at up to 32 kHz sampling rate.
5. Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
6. 2oz. copper PCB allows maximum 120A continuous current.
7. Dedicated bootloader button for easy firmware flashing.
8. Thin design is suitable for very compact frames.
12. Supports ESC BLHeli pass-through for easy upgrade and configuration.
Tekko32 4in1 ESC Features:
1. 4in1 ESC with 30.5*30.5mm mounting holes, supports DSHOT 1200, BLHELI32 firmware.
2. In this version more CAPS have been added to reduce power noise.
3. 32bit ESC with BLHELI32 firmware.
4. 4PWM input.
Specification:
Condition: 100% Brand New
Item Type: RC Accessory
Material: Composite Material
Color: As Shown in the Picture
Weight: Approx. 55g
Holybro Kakute F7:
MCU: STM32F745 32-bit Processor
IMU: ICM20689 (SPI)
Barometer: BMP280
Current Sensor: maximum measurable value is approximately 130 amps
6 UARTS hardware (UART1,2,3,4,6,7)
USB Driver VCP (all UARTs are usable simultaneously; USB does not take up a UART)
All UARTS support hardware inversion. SBUS, SmartPort and other protocol can work on any UART without "uninvert hack".
Only supports serial receivers (for SBUS / iBus / Spektrum / Crossfire). PPM and PWM receivers are not supported
TF card for Blackbox logging
Size: Approx. 35 * 41 * 7mm / 1.38 * 1.61 * 0.28inch (including gyro panels mounted on foam)
Mounting Hole: 30.5mm Square to Center of Hole
Net Weight: 9g
Tekko32 35A ESC:
Support 3-6S Lipo Input
Constant Current: 35A
Peak Current: 50A
Size: Approx. 55 * 40 * 6.4mm / 2.17 * 1.57 * 0.25inch
Mounting Hole: Approx. 30.5 * 30.5mm / 1.2 * 1.2inch
Net Weight: 17g
Package List:
1 * Kakute F7 Flight Controller
1 * Tekko32 35A 4in1 ESC
1 * 8pin to 8pin 1mm pitch Cable
1 * 150mm 4 pin JST GH Cable
