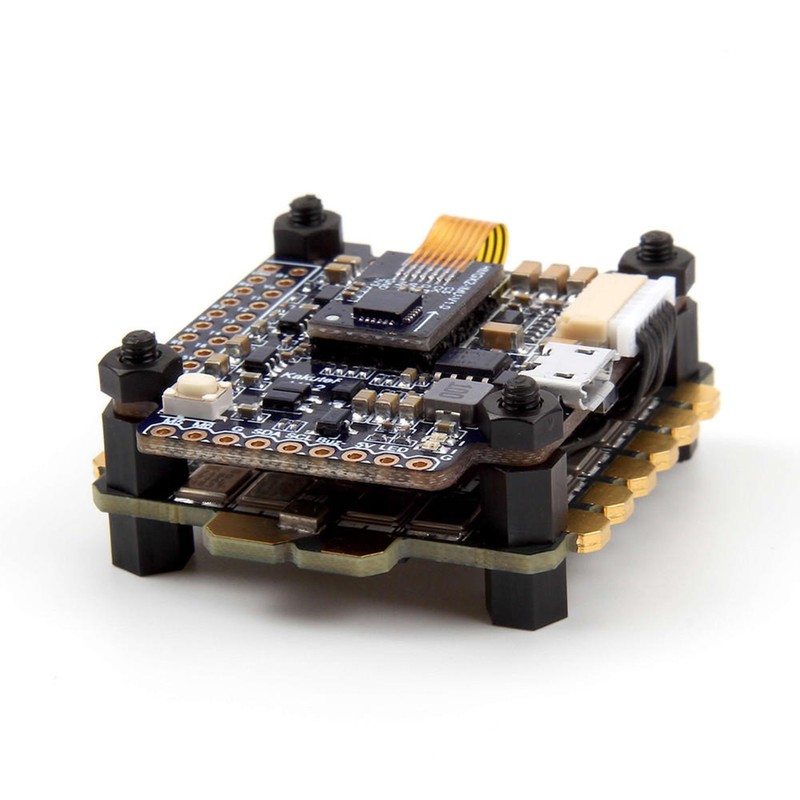

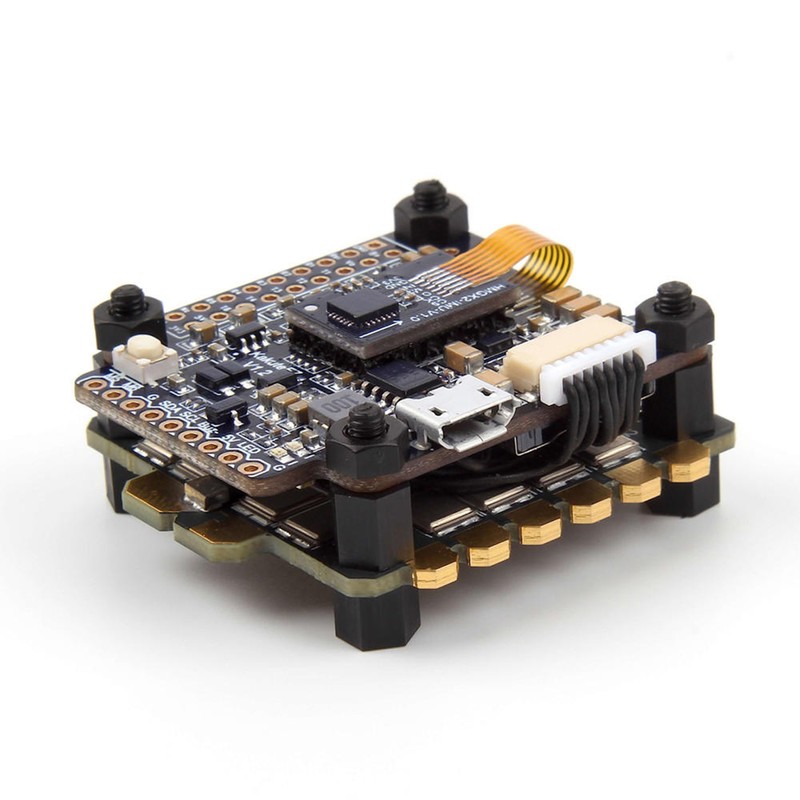

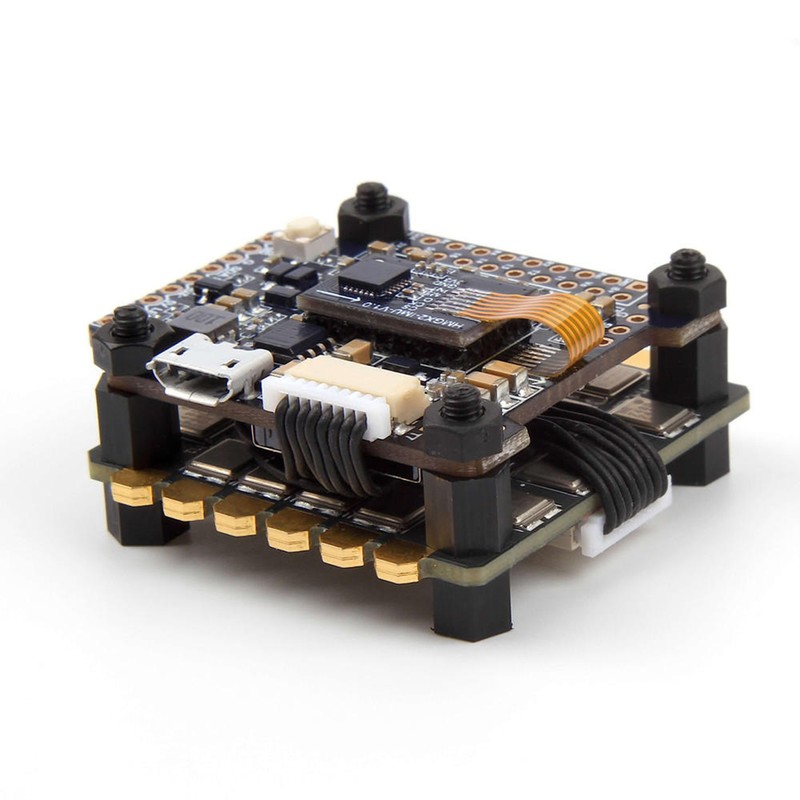

Holybro Kakute F7 Flight Controller 65A BL_32 Tekko32F3 Metal 4in1 ESC Combo RC Accessory
Holybro Kakute F7 Flight Controller 65A BL_32 Tekko32F3 Metal 4in1 ESC Combo RC Accessory
Product Overview
1、Supports betaflight, butterflight, cleanflight, and BLHeli pass-through for easy ESC upgrade and configuration. 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles. 3、Using metal case mosfets for better heat dissipation. 4、The 4-in-1 has on-board analog current sensor and TLM function (then no current reading through TLM). 5、BLheli_32 firmware, support for Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200.
| Isin: | IJM727RDH6E4 |
|---|
Product Overview
1、Supports betaflight, butterflight, cleanflight, and BLHeli pass-through for easy ESC upgrade and configuration. 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles. 3、Using metal case mosfets for better heat dissipation. 4、The 4-in-1 has on-board analog current sensor and TLM function (then no current reading through TLM). 5、BLheli_32 firmware, support for Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200.
| Isin: | IJM727RDH6E4 |
|---|
1、Supports betaflight, butterflight, cleanflight, and BLHeli pass-through for easy ESC upgrade and configuration. 2、Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles. 3、Using metal case mosfets for better heat dissipation. 4、The 4-in-1 has on-board analog current sensor and TLM function (then no current reading through TLM). 5、BLheli_32 firmware, support for Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200.
More Information
Features:
1. Supports betaflight, butterflight, cleanflight, and BLHeli pass-through for easy ESC upgrade and configuration.
2. Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.
3. Using metal case mosfets for better heat dissipation.
4. BLheli_32 firmware, support for Oneshot, Multishot, Dshot150, DShot300, DShot600 and DShot1200.
5. The 4-in-1 has on-board analog current sensor and TLM function (then no current reading through TLM).
Specification:
Condition: 100% Brand New
Brand Name:
Holybro
Item Type: RC Accessory
Material: Composite Material
Total Weight: Approx. 50g / 1.8oz
Color: As Pictures Shown

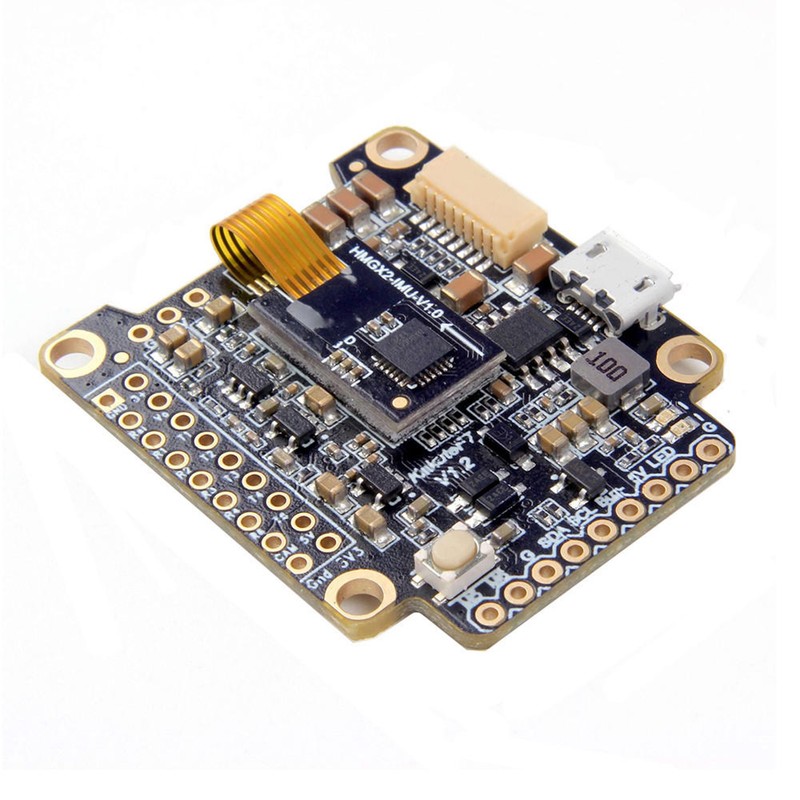

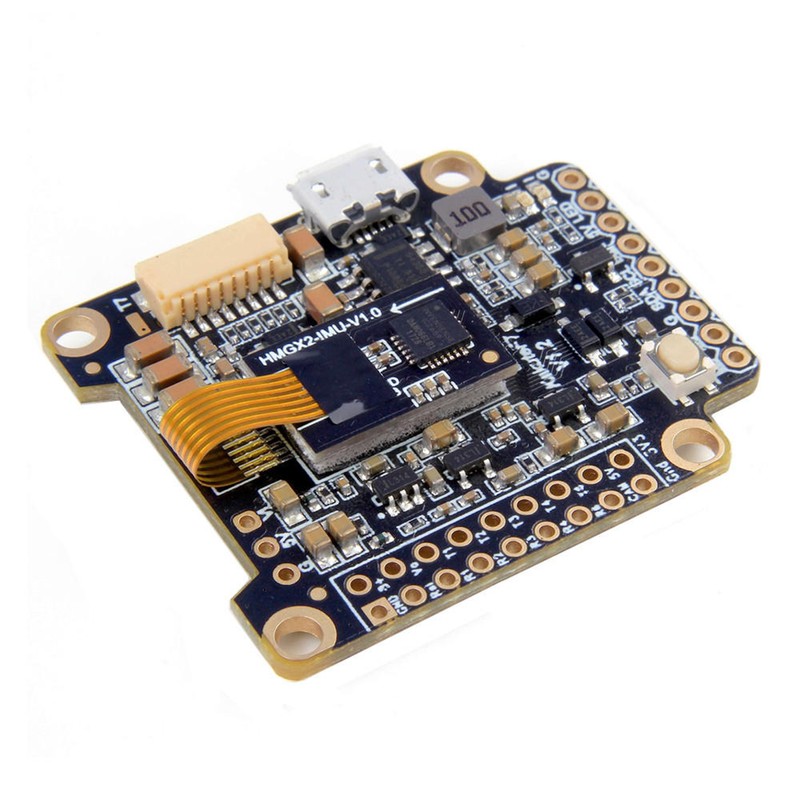

Kakute F7 Flight Controller
Brand Name: Holybro
Product Name: Kakute F7
MCU: STM32F745 32-Bit Processor
IMU: ICM20689
Barometer: BMP280
USB VCP Driver (All UARTs Can Be Used Simultaneously; USB Does Not Occupy UART) 6 Hardware UART (UART1, 2, 3, 4, 6, 7)
All UARTS Support Hardware Inversion. SBUS, SmartPort And Other Reverse Protocols Can Work On Any UART.
Support Serial Receivers
(SBUS, iBus, Spektrum, Crossfire) Only. PPM and PWM Receivers Are Not Supported.
TF Card For Blackbox Logging
Dimensions: Approx.35 * 41 * 7mm / 1.4 * 1.6 * 0.3in (Including Foam-mounted Gyro
Board In Height)
Mounting Holes: Standard 30.5mm Square To The Center Of Holes
Weight: Approx. 9g / 0.3oz

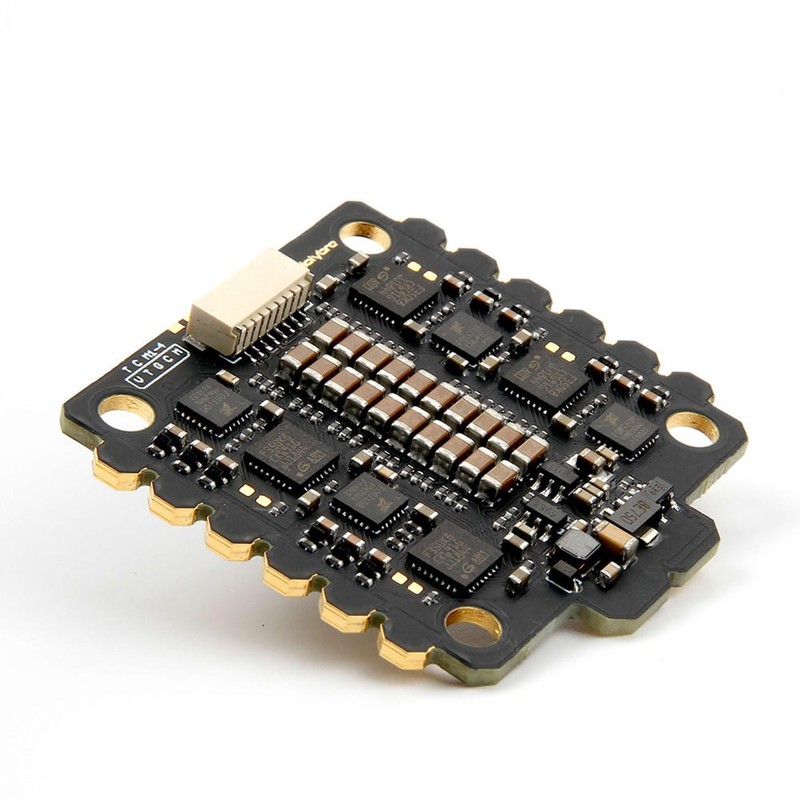

Tekko32F3 metal 4 in 1 ESC
Brand Name: Holybro
Model: Tekko32F3 metal
Item Name: 65A BL_32 32-Bit
DShot1200 4 in 1 ESC
Size: Approx. 42 * 42mm / 1.7
* 1.7in
Mounting Hole: Approx. 30.5 *
30.5mm / 1.2 * 1.2inch
Weight: Approx. 12g / 0.4oz
Applicable Product: for FPV
Racing Drone
Constant Current: 65A
Current: 80A
Input Voltage:
4-6S Lipo Support Extensions. The Cap Needs 6s (470uf 35V, 6s use)
F3 (M4 core) MCU, Running BLHELI32 Firmware, MCU Works At 108MHz
Package List:
1 * Kakute F7 Flight Controller
1 * Tekko32F3
Metal 4in1 ESC
1 * 470uF 35V Electrolytic Capacitor
1 * 8pin to 8pin 1mm pitch 65mm Cable
1 * 8pin to 8pin 1mm pitch 25mm Cable
Notice:
1. The air flow is very
important if you want to run this 4-in-1 at high current.
2. The input cable(from lipo
to 4in1) should be well soldered, and at least 12AWG.
3. Please use the mounting
holes on ESC and use non-metallic isolation bracket, because the mounting holes
and motor pads are connected.
