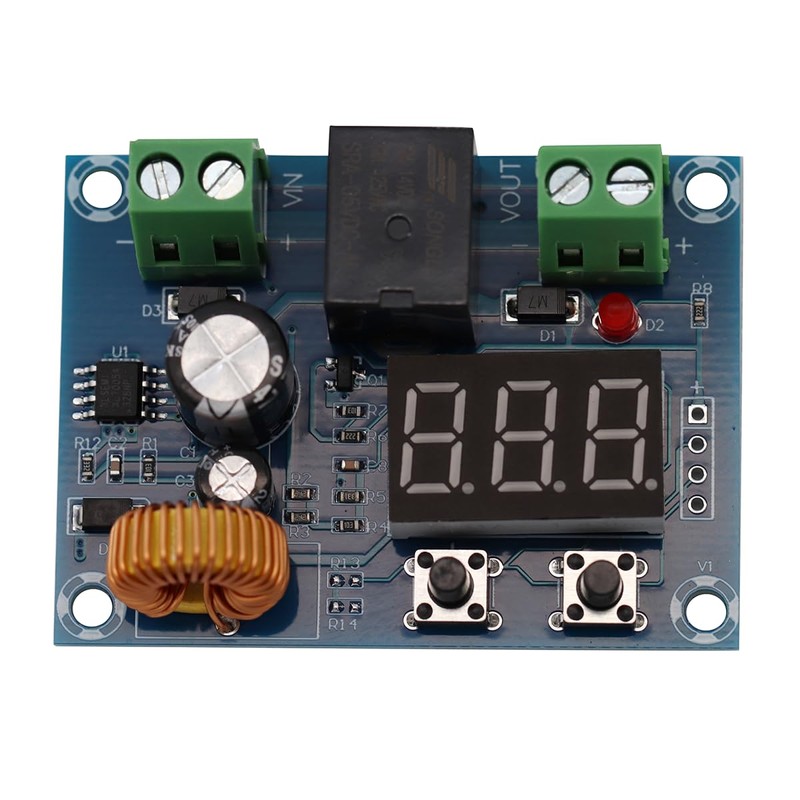

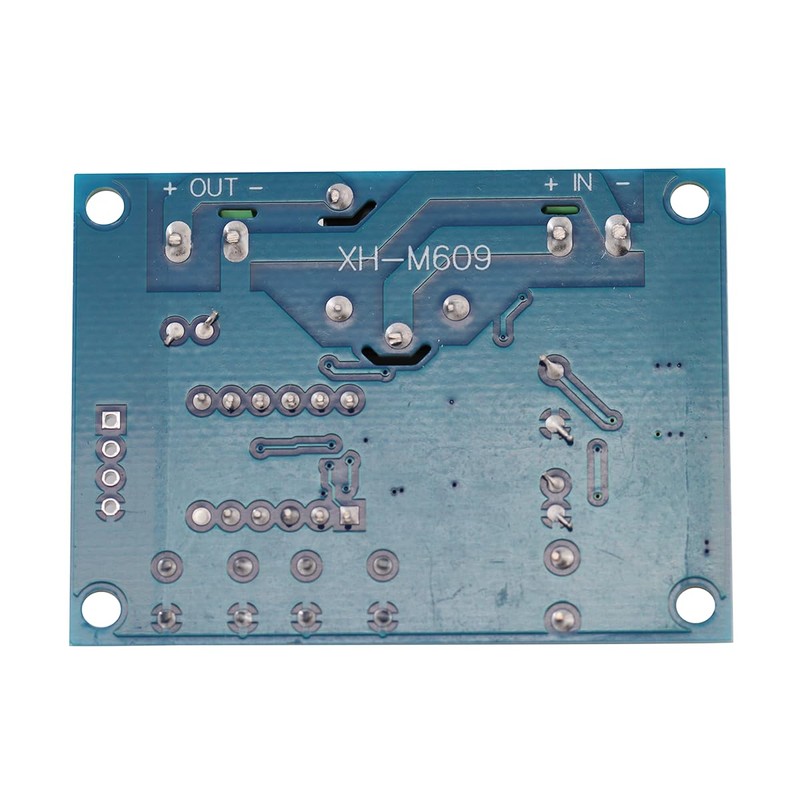

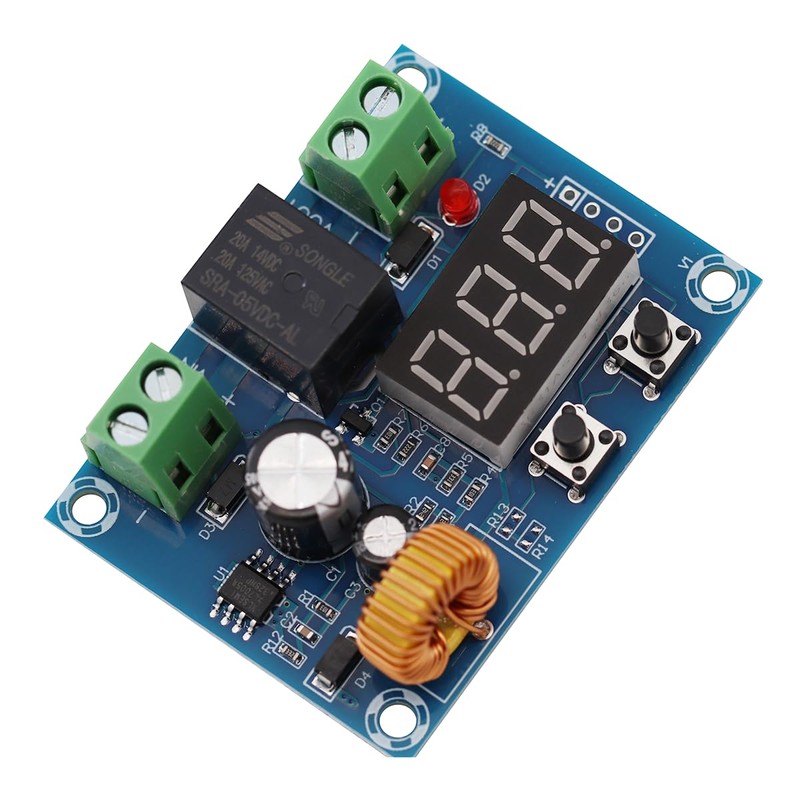

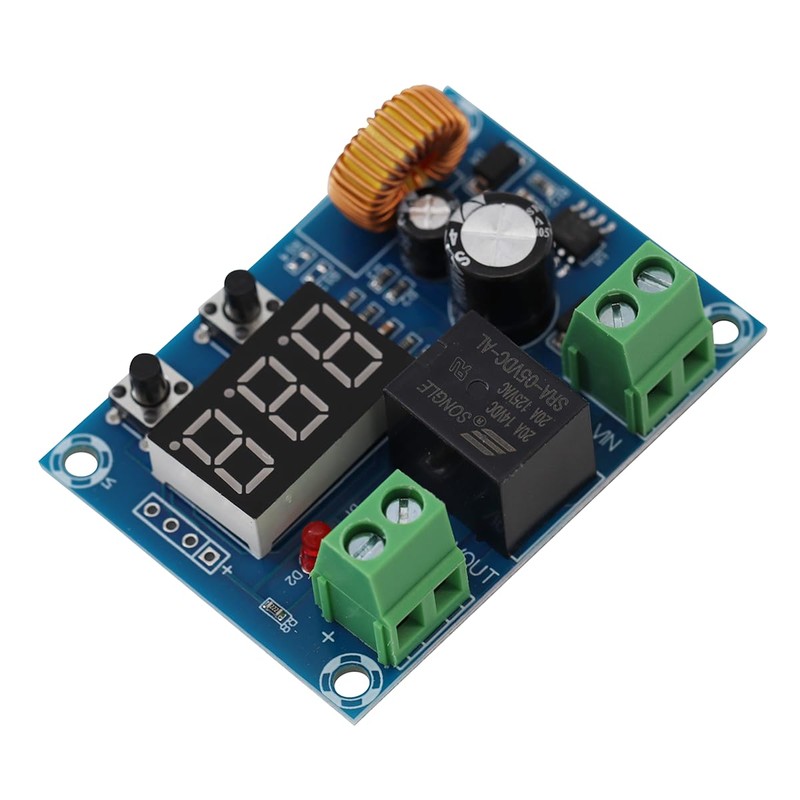

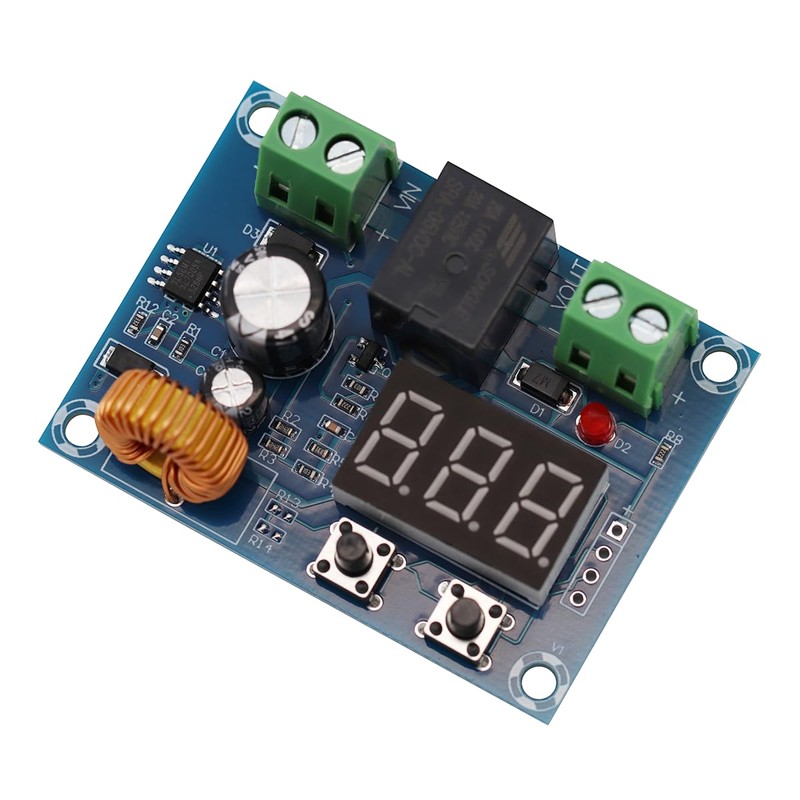

Heevhas XH-M609 DC 12V-36V Voltage Protection Module Low Voltage Disconnect Undervoltage Protection Board Low Voltage Discharge Protection Module Discharge Protection Isolator Switch (Pack of 2)
$23.25
- $9.99 shipping from Germany View details
-
Arrives
- Input voltage range: DC12-36V, control accuracy: 0.1V, power consumption: <1.5W, maximum current before triggering the circuit breaker: 20A.
- The module controls the relay on and off to control the output. The operating voltage of the motherboard cannot be below 7V, so the battery voltage must be ≥7V. When the battery supplies power to the module, the output voltage is always equal to the battery voltage when the relay is closed.
- When a new battery is used for the first time, the rated voltage is close to the actual value. To determine the final discharge voltage, you can use the general calculation method for battery voltages to get a reasonable discharge voltage value; if an old battery is used, the actual voltage value differs greatly from the rated voltage value, so you need to measure the final voltage value yourself when using it.
- LED digital tube display to display battery voltage, shutdown voltage and protection voltage in real time. Two adjustment buttons to adjust the switch-off voltage and the protection voltage. An LED indicator light lights on / off when the voltage protection module connects/disconnects the battery.
- Scope of application: applies to all batteries of electric two- and three-wheelers within the applicable voltage range; discharge protection of car batteries and batteries of electric vehicles with alternative energy; over-discharge protection of various batteries; solar energy, wind energy and other power supply systems.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Input voltage range: DC12-36V, control accuracy: 0.1V, power consumption: <1.5W, maximum current before triggering the circuit breaker: 20A.
- The module controls the relay on and off to control the output. The operating voltage of the motherboard cannot be below 7V, so the battery voltage must be ≥7V. When the battery supplies power to the module, the output voltage is always equal to the battery voltage when the relay is closed.
- When a new battery is used for the first time, the rated voltage is close to the actual value. To determine the final discharge voltage, you can use the general calculation method for battery voltages to get a reasonable discharge voltage value; if an old battery is used, the actual voltage value differs greatly from the rated voltage value, so you need to measure the final voltage value yourself when using it.
- LED digital tube display to display battery voltage, shutdown voltage and protection voltage in real time. Two adjustment buttons to adjust the switch-off voltage and the protection voltage. An LED indicator light lights on / off when the voltage protection module connects/disconnects the battery.
- Scope of application: applies to all batteries of electric two- and three-wheelers within the applicable voltage range; discharge protection of car batteries and batteries of electric vehicles with alternative energy; over-discharge protection of various batteries; solar energy, wind energy and other power supply systems.
Product Name: Battery Over-Discharge Protection Module
Supply voltage: 12-36 V.
Control accuracy: 0.1 V.
Power consumption: less than 1.5 W.
Size: 57 x 42 x 19 mm
Automatic shutdown. Protection against discharge.
Scope of application: accumulators, lithium batteries.
Battery over-discharge protection module. Extended battery life.
Output voltage: equal to the supply voltage.
Setting and use:
Setting to stop at less than 12.5V and start at more than 14V:
Setting the protection value: press once + to display the protection value, double click +, the decimal point flashes, then press + or - to change the value to 12.5. Wait 3 seconds, automatically saves and leaves the setting mode.
Set hysteresis value: once - press to display the hysteresis value, double click - the decimal point flashes, then + or - press to change the value to 1.5. Wait 3 seconds, automatically saves and stops the setting mode.
Set to stop when the value is below 10V and to start when the value is above 15.5V:
Set protection value: press once + to display the protection value, double click +, the decimal point flashes, then press + or - to change the value to 12.5. Wait 3 seconds, automatically saves and stops the setting mode.
Set hysteresis value: once - press to display the hysteresis value. Double on - click, the decimal point flashes. + or - press to change the value to 1.5. Wait 3 seconds, automatically saves and stops the setting mode.
Package includes:

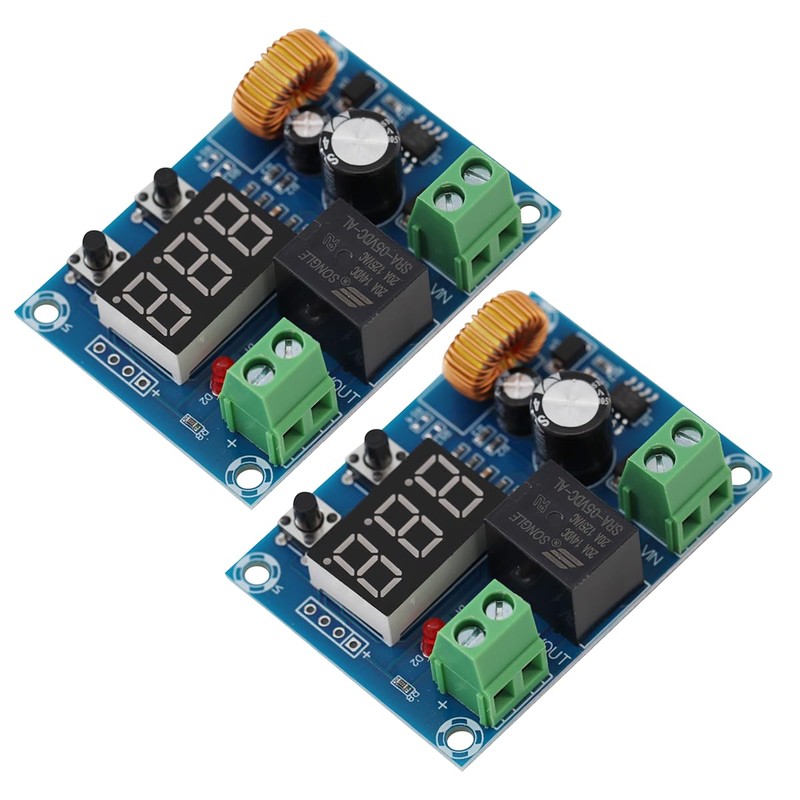

2 x XH-M609 module
