Heevhas WiFi + Bluetooth Module Kit 4M PSRAM Dual-Core 32 Bit CPU Development Board + OV2640 2MP Camera Module + FT232RL Adapter USB to TTL Serial Module + 40 Pin Female Jumper Wire
$46.47
- $14.50 shipping from Germany View details
-
Arrives

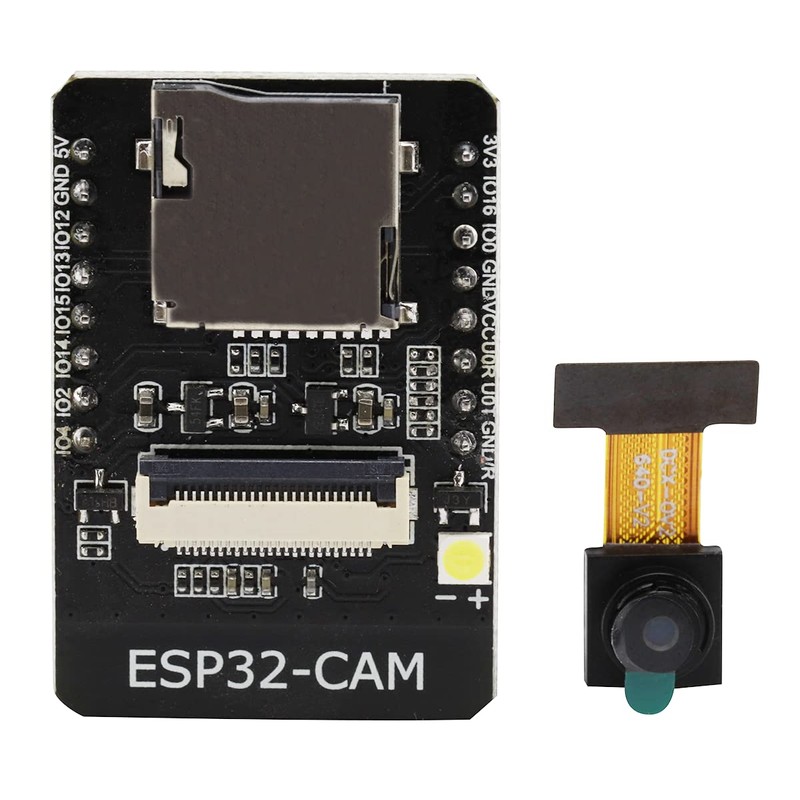

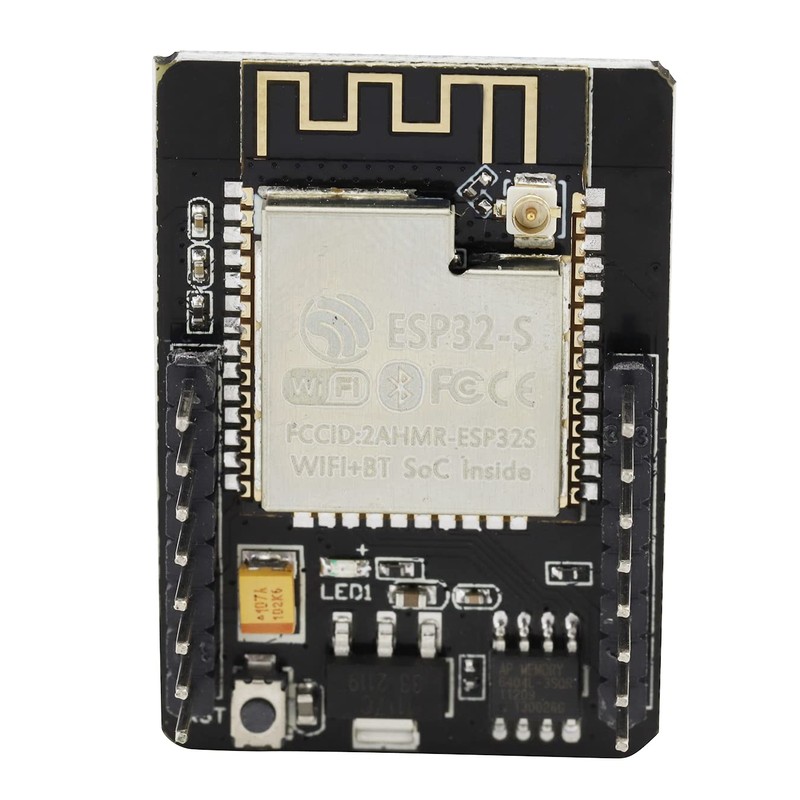

- ESP32-CAM high performance: extremely small 802.11b / g / n Wi-Fi + BT / BLE SoC module; dual core 5V 32-bit processor with low power consumption; frequency up to 240 MHz, computing power up to 600 DMIPS; built-in 520 KB SRAM, external 4M PSRAM.
- Supports UART / SPI / I2C / PWM / ADC / DAC and other interfaces, supports 0V2640 and 0V7670 cameras, built-in flash, supports uploading images via WiFi and supports TF cards. Built-in Lwip and FreeRTOS, supports multiple sleep modes, supports STA/AP/STA+AP working mode, supports Smart Config/AirKiss One. key-key-netnetnetfiguration, supports secondary development.
- ESP32-CAM WiFi module: it can be used in various IoT applications. It is suitable for smart home devices, industrial wireless control, wireless monitoring, wireless QR identification, wireless tracking system signals, etc. It is an ideal solution for IoT applications.
- FT232RL Module: FTDI USB serial port adapter, operating voltage is 3.3V and 5V, USB 2.0 FT232RL chip, USB current adopts over-current protection function, with 500mA self-recovery fuse. The logic level of the adapter can be adjusted by jumpers on the board, which can simplify the connection with the controller. You can use the modules in this kit to burn the program directly without additional purchase.
- With 20 cm female jumper wire: the jumper wire cables are made of high-quality copper wire material to ensure safe and durable use. This kit includes 20cm 40 pin of Female-Female Jumper Wire that will help you complete the project more easily.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- ESP32-CAM high performance: extremely small 802.11b / g / n Wi-Fi + BT / BLE SoC module; dual core 5V 32-bit processor with low power consumption; frequency up to 240 MHz, computing power up to 600 DMIPS; built-in 520 KB SRAM, external 4M PSRAM.
- Supports UART / SPI / I2C / PWM / ADC / DAC and other interfaces, supports 0V2640 and 0V7670 cameras, built-in flash, supports uploading images via WiFi and supports TF cards. Built-in Lwip and FreeRTOS, supports multiple sleep modes, supports STA/AP/STA+AP working mode, supports Smart Config/AirKiss One. key-key-netnetnetfiguration, supports secondary development.
- ESP32-CAM WiFi module: it can be used in various IoT applications. It is suitable for smart home devices, industrial wireless control, wireless monitoring, wireless QR identification, wireless tracking system signals, etc. It is an ideal solution for IoT applications.
- FT232RL Module: FTDI USB serial port adapter, operating voltage is 3.3V and 5V, USB 2.0 FT232RL chip, USB current adopts over-current protection function, with 500mA self-recovery fuse. The logic level of the adapter can be adjusted by jumpers on the board, which can simplify the connection with the controller. You can use the modules in this kit to burn the program directly without additional purchase.
- With 20 cm female jumper wire: the jumper wire cables are made of high-quality copper wire material to ensure safe and durable use. This kit includes 20cm 40 pin of Female-Female Jumper Wire that will help you complete the project more easily.
SPI Flash: Standard 32Mbit.
RAM: Internal 520KB + external 4M PSRAM
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards.
WiFi: 802.11 b / g / n / e / i.
Support interface: UART / SPI / I2C / PWM
Support TF card: maximum support 4G
IO port: 9
Serial Portrait Rate: Standard 115 200bps
Antenna shape: PCB antenna on board, gain 2dBi
Power supply range: 5 V 2 A.
Image output format: JPEG (support OV2640 only), BMP, GRAYSCALE
Spectral Range: 2412-2484MHz
Safety: WPA / WPA2 / WPA2-Enterprise / WPS
Working temperature: -20 85 ~ 85 ℃.
Size: 4 x 2.8 x 1.5 cm / 1.57 x 1.1 x 0.59 inches.
Transmission power:
820.11b: 17±2dBm (@11Mbps);
820.11g: 14±2dBm (@54Mbps);
820.11n: 13 ± 2 dBm (@ MCS7)

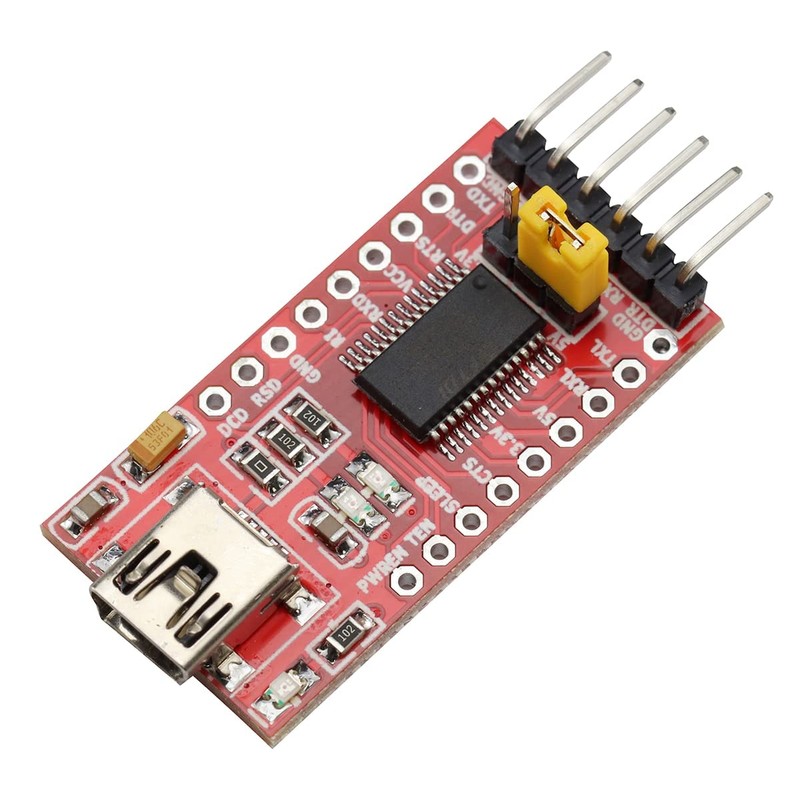

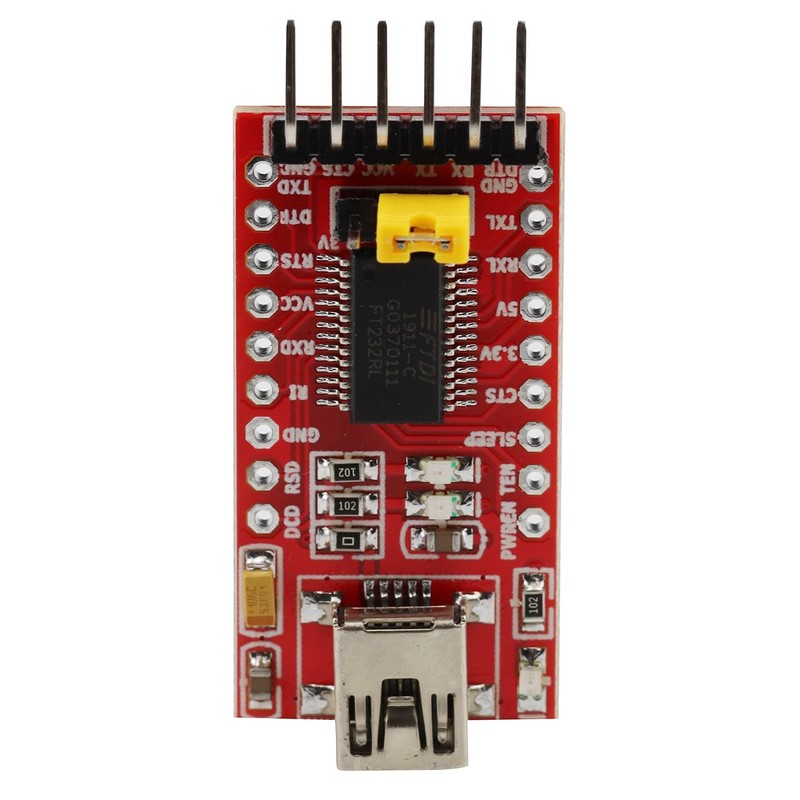

FTDI Mini USB to TTL Serial Converter:
Chip: FT232RL
Operating voltage: 3.3V and 5V
Pin Definition: DTR, RXD, TX, VCC, CTS, GND
Pitch: 2.54mm
PCB Size:36 x 18mm/1.42 x 0.71
XD/TXD transceiver communication indicator.
Support: Win95 / 98 / 98se / ME / 2000 / XP / win7 32bit 64bit / Vsita /, Win8 not supported.
Bypass Wire:
Pitch: 2.54mm
Line length: 20 cm.
Material: high-quality copper wire.
Type: Female-Female

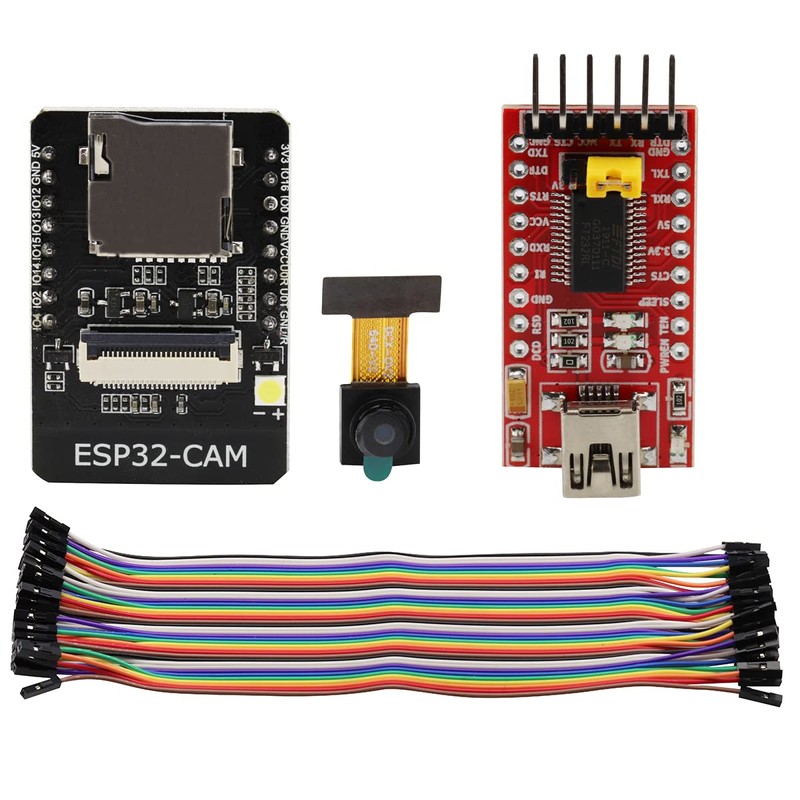

Box contents:
1 x mini WiFi + Bluetooth module.
1 x OV2640 camera mini module.
1 x FTDI Adapter
1 x 20cm 40 Pin Female Jumper Cable
