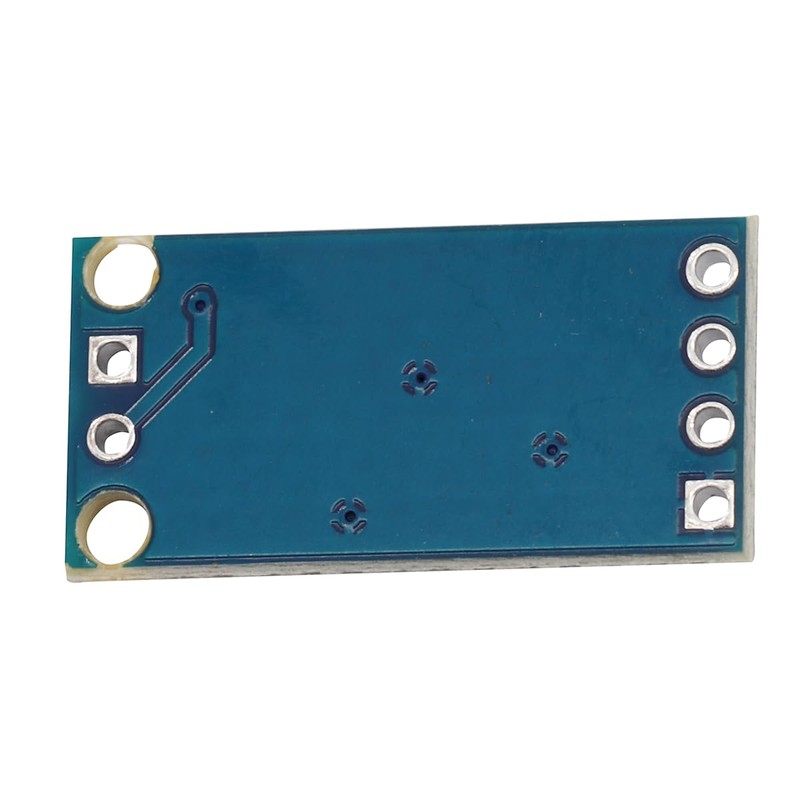

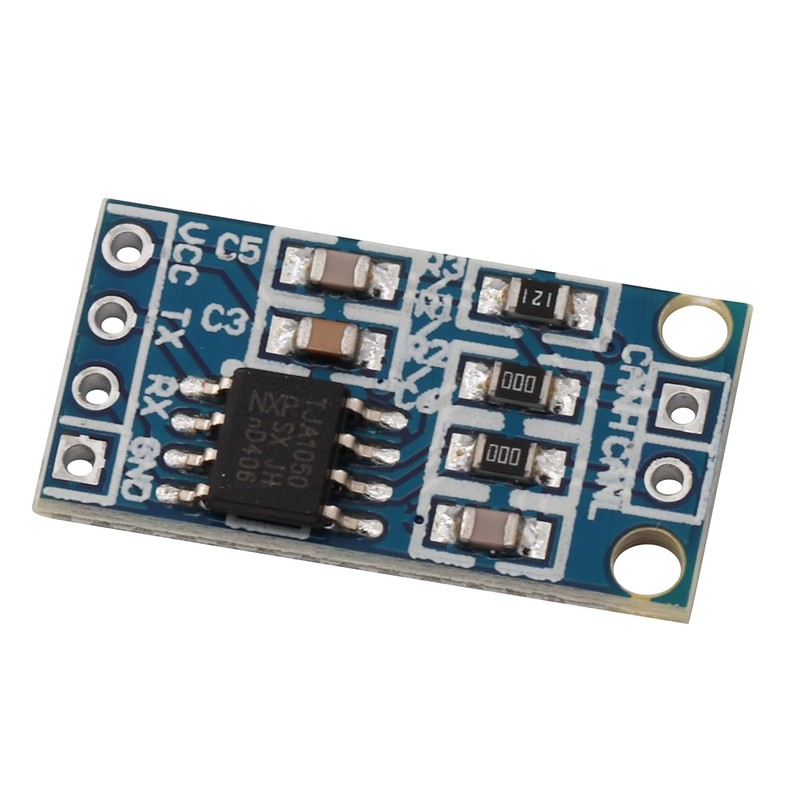

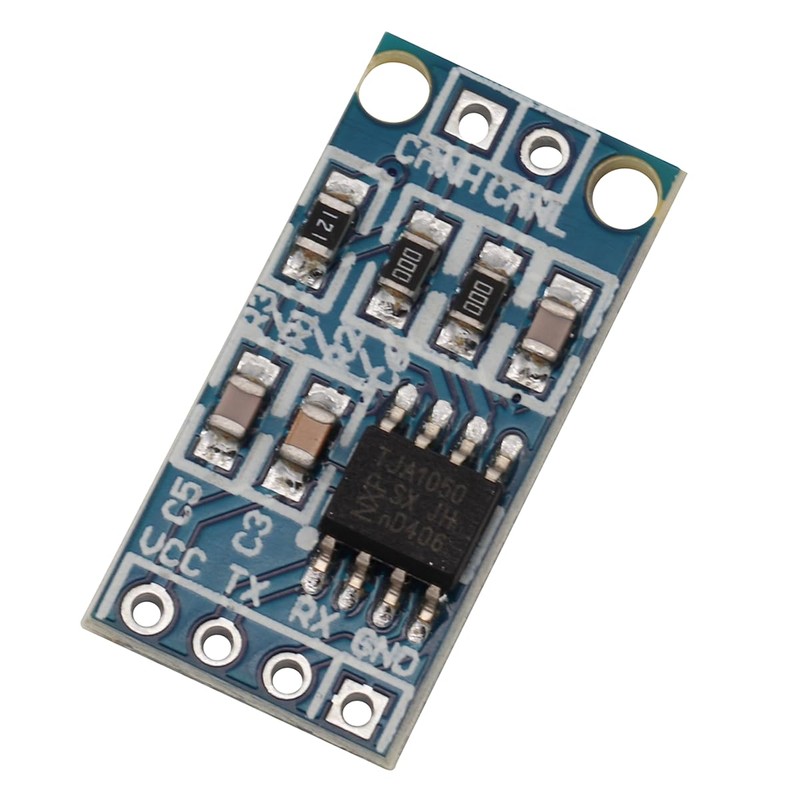

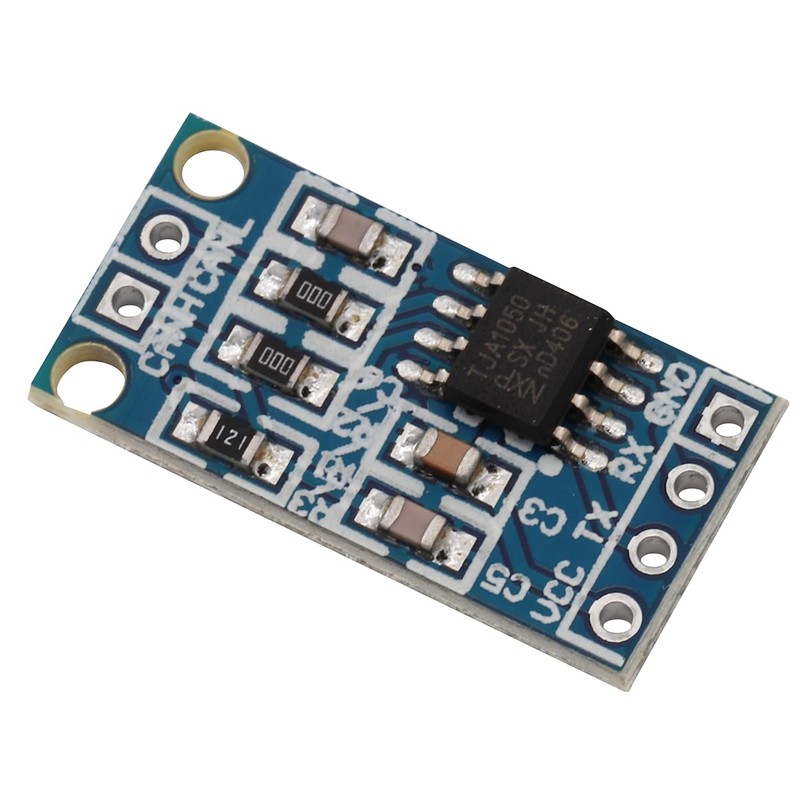

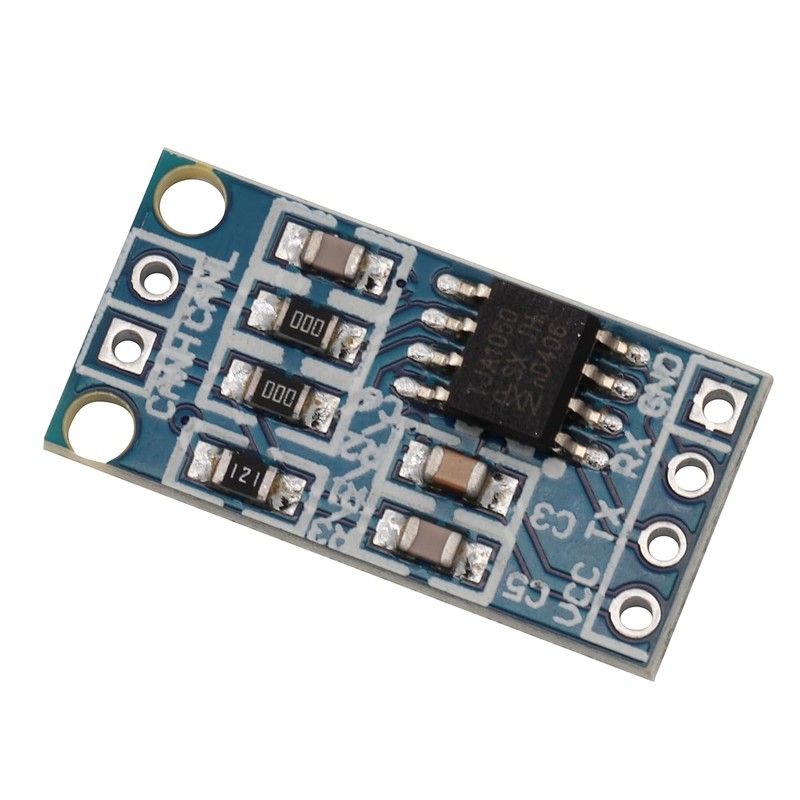

Heevhas CAN Bus Shield TJA1050 CAN Controller Interface Module Bus Driver Interface Module 51 MCU ARM Controller Development Board (Pack of 5)
$28.98
- $9.99 shipping from Germany View details
-
Arrives
- Easy to connect: The TJA1050 is the interface between the controller area network (CAN) protocol controller and the physical bus. The chip pin has been often used to facilitate the connection.
- Multi-node connection: At least 110 nodes can be connected. Nodes that are not switched on do not cause interference in the bus. No current nodes do not cause interference to the bus, TxD pin is clamped to prevent a timeout function in the dominant bus level.
- 【High Transmission Rate】The transmission rate is up to 1Mbps and the lowest can be 60Kbps; Power supply: 5V; Size: 22mm x 11.5mm.
- 【Provides different reception performance】The TJA1050 offers different transmission power for the bus and different reception power for the CAN controller.
- Excellent performance: EME very low electromagnetic radiation, electromagnetic interference EMI is extremely high. CANH and CANL are ideally matched to reduce electromagnetic radiation to a lower level.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Easy to connect: The TJA1050 is the interface between the controller area network (CAN) protocol controller and the physical bus. The chip pin has been often used to facilitate the connection.
- Multi-node connection: At least 110 nodes can be connected. Nodes that are not switched on do not cause interference in the bus. No current nodes do not cause interference to the bus, TxD pin is clamped to prevent a timeout function in the dominant bus level.
- 【High Transmission Rate】The transmission rate is up to 1Mbps and the lowest can be 60Kbps; Power supply: 5V; Size: 22mm x 11.5mm.
- 【Provides different reception performance】The TJA1050 offers different transmission power for the bus and different reception power for the CAN controller.
- Excellent performance: EME very low electromagnetic radiation, electromagnetic interference EMI is extremely high. CANH and CANL are ideally matched to reduce electromagnetic radiation to a lower level.
High speed (up to 1m porter)
Low electromagnetic radiation (EME).
There is a differential receiver with large input range, which can prevent electromagnetic interference (EMI).
Nodes without power requirement cause no interference on the bus
Timeout function to control the transmission data (TXD).
Silent mode when sending prohibited energy.
Automatically protects bus pins during temporary state
Input level and 3.3V device compatibility
Thermal protection.
The short circuit function of power and land.
You can connect at least 110 knots.
Description:
TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus. The TJA1050 can provide different transmission power for the bus and different reception power for the CAN controller.
CANH and CANL work together to reduce electromagnetic radiation.
If there is no electric knot, the performance has improved.
TJA1050 has two operating modes: high-speed mode, silent mode.
The TJA1050 has a current limiting circuit that protects the output stage of the transmitter, so accidental short circuits caused by positive or negative supply voltages do not damage the TJA1050.
The TJA1050 also features a temperature protection circuit that shuts off the transmitter when the temperature at the connection point to the transmitter exceeds about 165°C.

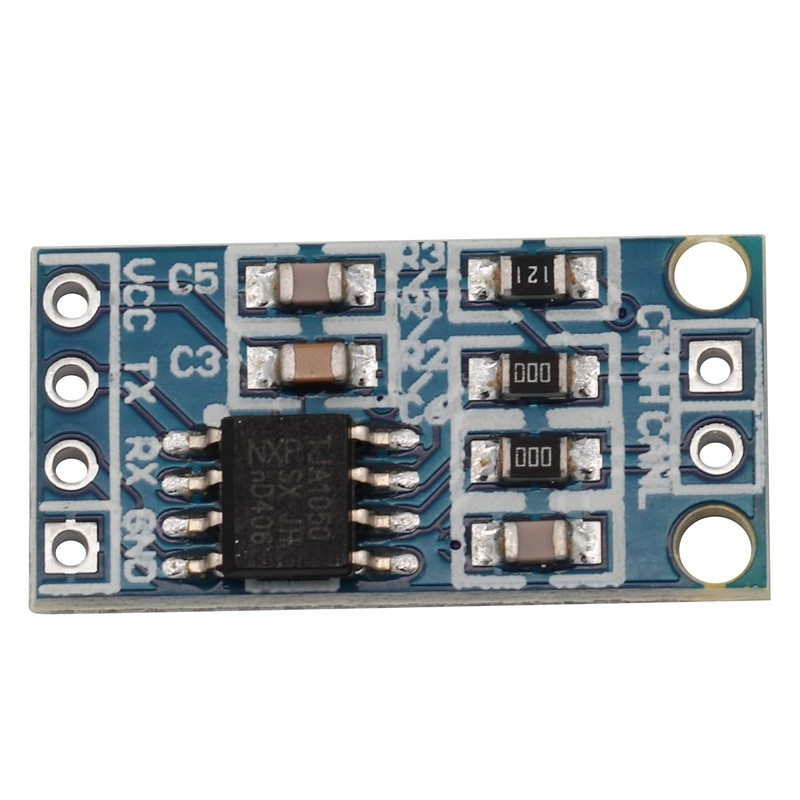

Pin Description:
TXD: Send data input
GND: mass
VCC: power supply.
RXD: Receive data input
VREF: reference voltage output.
CANL: low-level CAN bus.
Canh: high-level CAN bus.
S: Choose whether you want to switch to high speed mode or mute mode
Package includes:

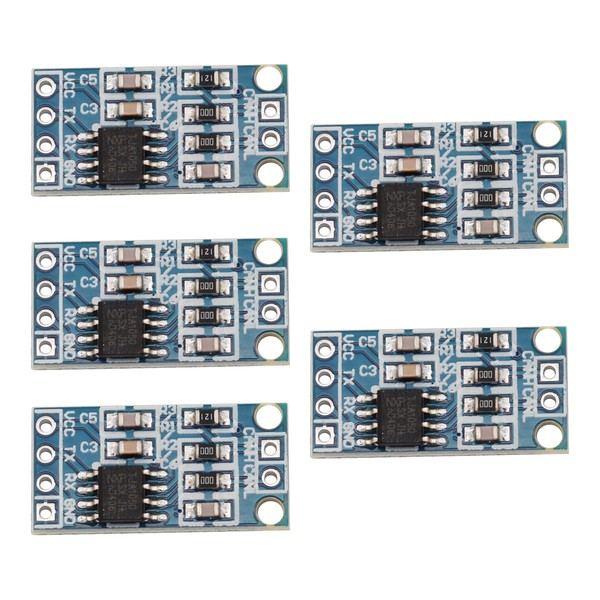

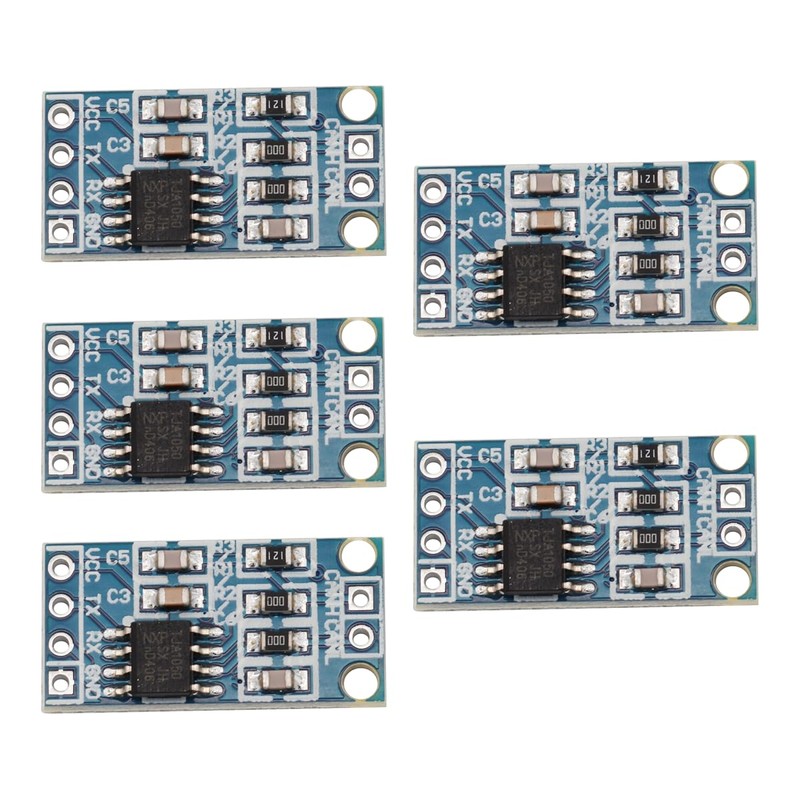

5 x Canbus Shielding TJA1050
