GELRHONR HDMI Adapter Signals Terminal Breakout Connector, Gold Plated HDMI Male to 20 Pin Solderless Terminal Breakout Board with Breakout Plastic Cover -Black
GELRHONR HDMI Adapter Signals Terminal Breakout Connector, Gold Plated HDMI Male to 20 Pin Solderless Terminal Breakout Board with Breakout Plastic Cover -Black
GELRHONR HDMI Adapter Signals Terminal Breakout Connector, Gold Plated HDMI Male to 20 Pin Solderless Terminal Breakout Board with Breakout Plastic Cover -Black
- ✪ HDMI Solderless Signals Terminal:No soldering needed! All signal ports is printed with wire number on both sides of the board for quick wiring,which is really nice because we sometimes forgetting the sequence.
- ✪ HDMI adapter signals terminal is equipped with a crimping ringof tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.Suitable for the cable up to 10mm.
- ✪ The breakout board comes already installed in a plastic hood enclosure with a openable cover.For a wire holder for fixing cable and avoiding twisting.Snap-on construction that opens and closes easily and is sturdy and secure after closing.
- ✪ Compact design and reliable connection, solderless type, Adopt environmentally friendly insulated terminal block.JRequires only a screwdriver and a wire stripper to terminate HDMI cables, slide in your stranded or solid-core wire, and re-tighten.
- ✪ Little tips:Due to the different manufacturers,so the most HDMI have varying wiring plans.The actual wiring could be different depending on your equipment.(You can use the multimeter test to connect this HDMI solderless soldering head)If only one end needs to be changed, please apply the same wiring structure that was in use.
| Brand: | HONGLEI |
|---|---|
| Manufacturer: | HONGLEI |
| Part Number: | PPJGBPT |
| Isin: | IU56PSCN4ZPD |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
HDMI Solderless Signals Terminal,Gelrhonr Gold Plated HDMI Free Welding Connector Breakout Board with Screwdriver
Specification:
Compatible with HDMI 2.0, ( HDMI 2.0 (24AWG) 19 1 core (5P 4C ADB);1.4 and 1.3.
Type: HDMI Male Plug Terminals Connector
Interface Type: HDMI male
Color: black
Size:

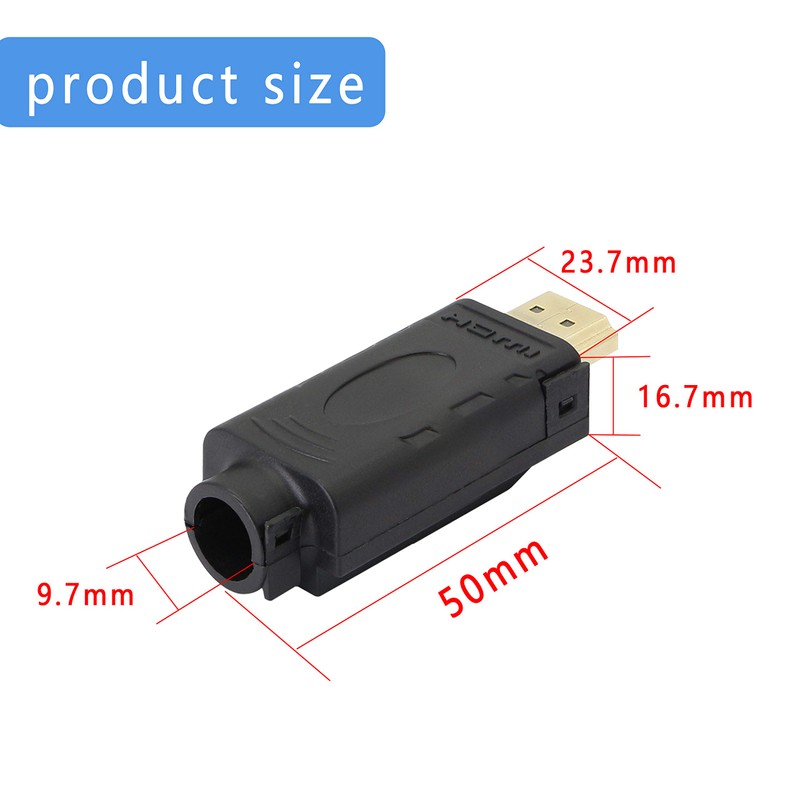

Suitable cable outer diameter: Less than 10mm
Number of core: 19
Number of pin: 19+1
This product uses a cable: HDMI engineering line
Feature:
Fine workmanship and durable.
Weld-free mode, simple wiring.
Supports a group of HDMI signal transmission.
Need to use with the width less 2MM flathead screwdriver.
Package Includes: 1*HDMI Solderless Signals Terminal with case
Wiring schemes
Generally for reference only
Method 1: 19+1 wiring schemes
The GND is connected to pin 20.The two ends of each core are connected to the same serial number pin,and just remember to match both ends with the correct wiring structure.
Method 2: 15+1 wiring schemes
The GND is connected to pin 20,2,5,8,11pin is not connected.The two ends of each of the other 15 wire core are connected to the pins of the same serial number.
Method 3: 14+1 wiring schemes
The GND is connected to pin 20,2,5,8,11,14pin is not connected.The two ends of each of the other 14 wire core are connected to the pins of the same serial number.
Method 4: 13+1 wiring schemes
The GND is connected to pin 20,2,5,8,11,,13,14pin is not connected.The two ends of each of the other 13 wire core are connected to the pins of the same serial number.
