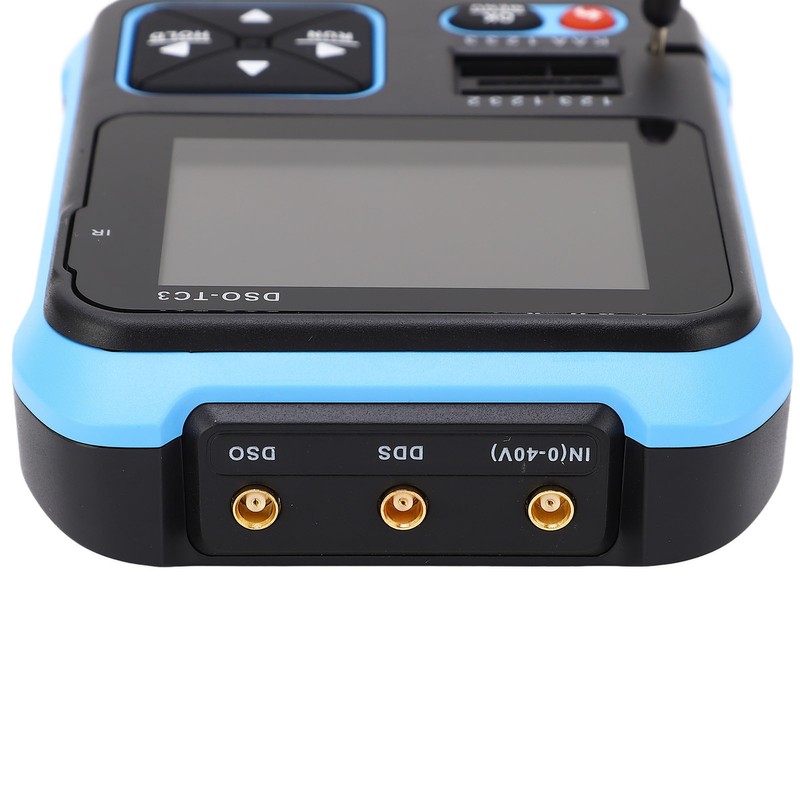

Handheld Portable Digital Oscilloscope Transistor Checker Tester Inductance Capacitance Resistance Meter High Configuration

1、Convenient and 3 in 1: This digital oscilloscope, electronic component tester, and PWM signal generator function, combined into one. The oscilloscope has a realtime sampling rate and a bandwidth of 500 kHz. Voltage signals up to 400V can be measured. 2、Identify Device Type: Oscilloscope mode can test the signal waveform of the circuit, while Mos test mode can test various types of transistors, which can identify device type, pin polarity, hFE, on state voltage, junction capacitance, resistance, inductive components, etc. Signal generator mode, you can use sine, pulse, triangular or ramp waveform. 3、Sine Waveform Frequency Output: The signal generator has 5 built in basic waveforms, sine waveform frequency output 1‑10KHz 0‑3.3V 50%, vertical sensitivity 10mV to 10V , horizontal time base range 1us‑10s, more waveform data can be obtained per unit time, thus making the waveform more accurate. 4、TFT Screen: The oscilloscope is powered by a built in 1500 mA battery, which will be fully charged in 1‑2 hours via a 5V 2A adapter and can operate for 4 hours (green indicator for completion/red indicator for charging). The digital handheld pocket oscilloscope and transistor tester is designed with a high resolution 2.4 inch TFT screen with adjusting backlight. Better reading experience and easy to use. 5、Multi Interface Screen Display: The oscilloscope can test different functions and support multi interface screen display. With keypad design, it is more convenient to operate and select different test function modes. 6、Applicable Items: The oscilloscope supports PC online operation, which is especially suitable for fast pairing of transistors, identification of mixed face mount and wordless components, and initial screening of small batch components. It can automatically identify and measure various transistors, including NPN and PNP transistors, diodes, double diodes, etc.

Isin: IHC4CZSY9NCC

$78.98

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 15-20 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow

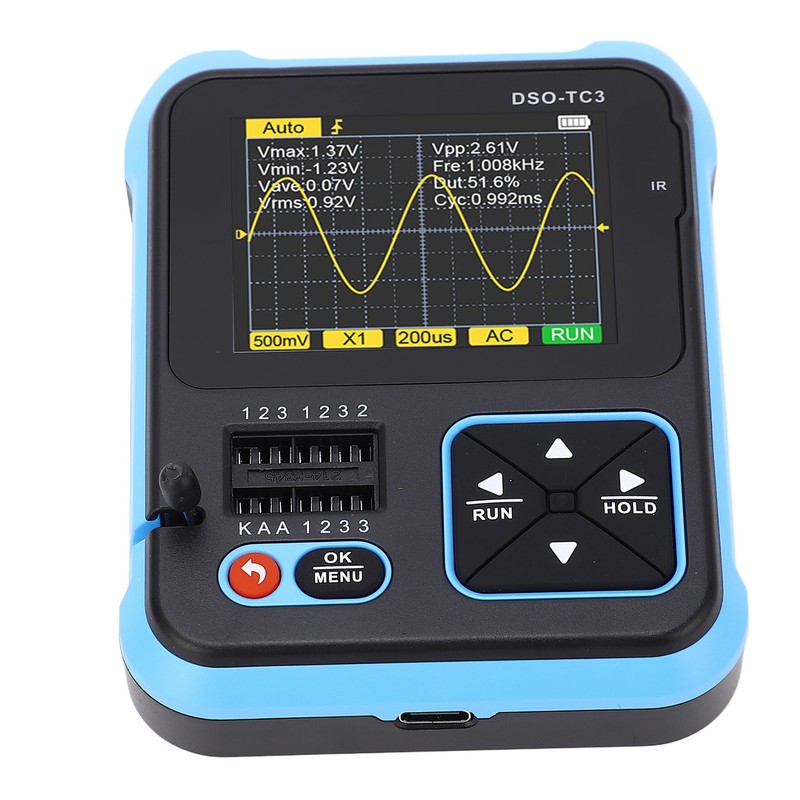

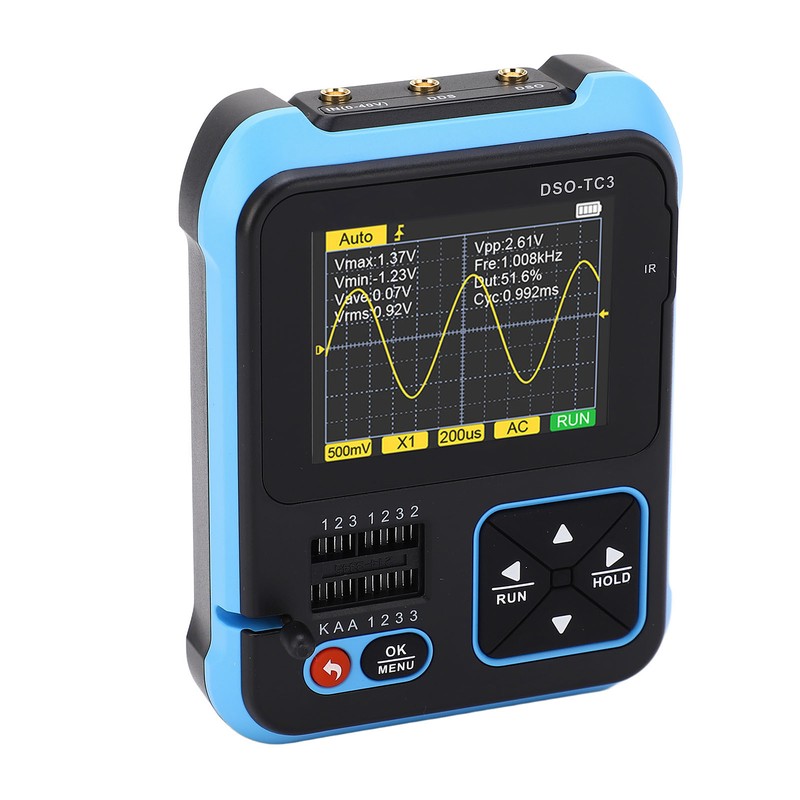

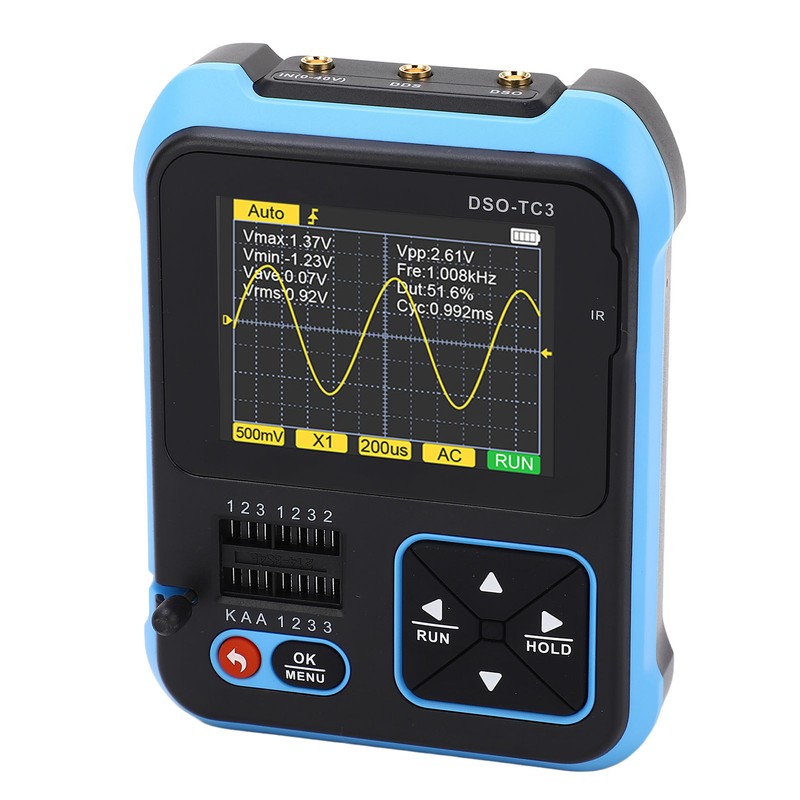

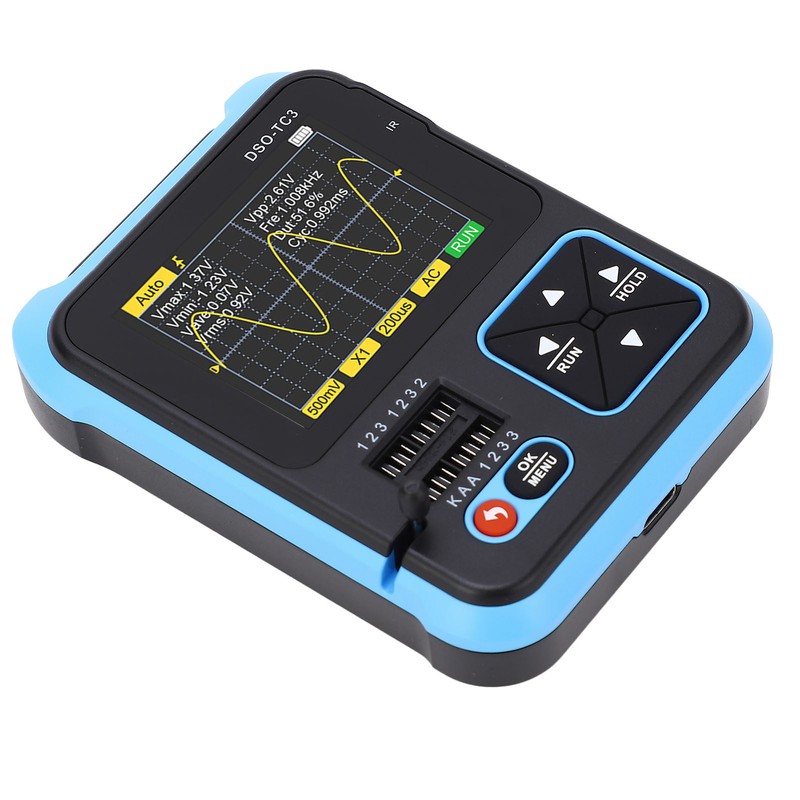

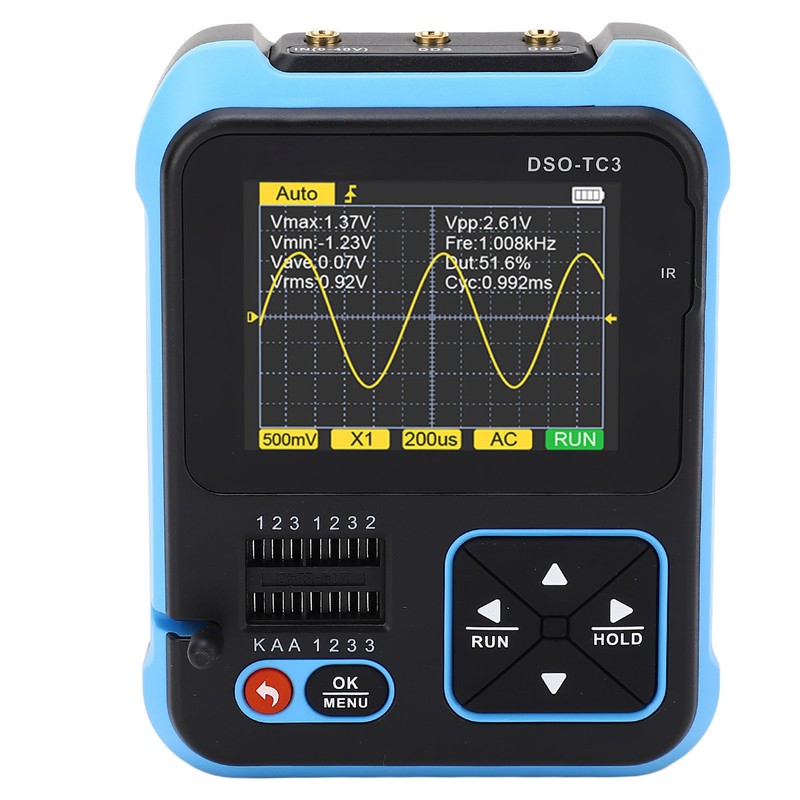

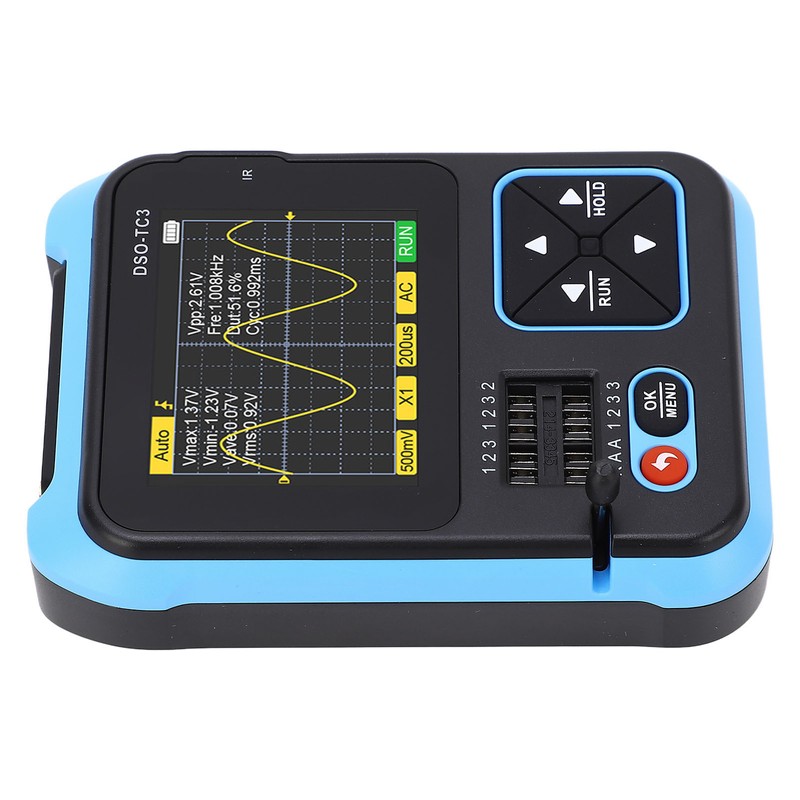

Handheld Portable Digital Oscilloscope Transistor Checker Tester Inductance Capacitance Resistance Meter High Configuration

Handheld Portable Digital Oscilloscope Transistor Checker Tester Inductance C...

$78.98

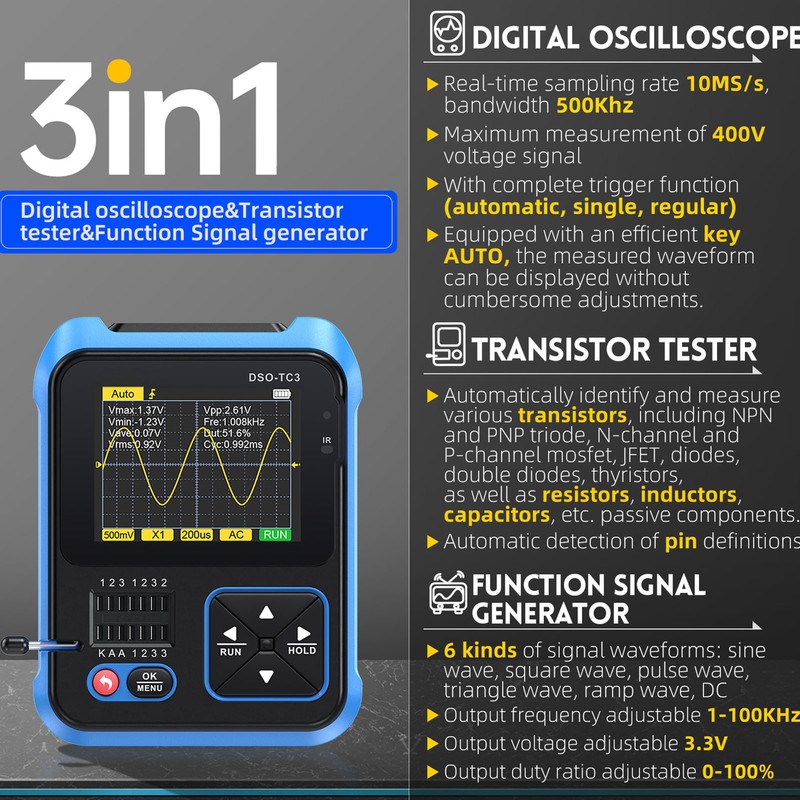

1、Convenient and 3 in 1: This digital oscilloscope, electronic component tester, and PWM signal generator function, combined into one. The oscilloscope has a realtime sampling rate and a bandwidth of 500 kHz. Voltage signals up to 400V can be measured. 2、Identify Device Type: Oscilloscope mode can test the signal waveform of the circuit, while Mos test mode can test various types of transistors, which can identify device type, pin polarity, hFE, on state voltage, junction capacitance, resistance, inductive components, etc. Signal generator mode, you can use sine, pulse, triangular or ramp waveform. 3、Sine Waveform Frequency Output: The signal generator has 5 built in basic waveforms, sine waveform frequency output 1‑10KHz 0‑3.3V 50%, vertical sensitivity 10mV to 10V , horizontal time base range 1us‑10s, more waveform data can be obtained per unit time, thus making the waveform more accurate. 4、TFT Screen: The oscilloscope is powered by a built in 1500 mA battery, which will be fully charged in 1‑2 hours via a 5V 2A adapter and can operate for 4 hours (green indicator for completion/red indicator for charging). The digital handheld pocket oscilloscope and transistor tester is designed with a high resolution 2.4 inch TFT screen with adjusting backlight. Better reading experience and easy to use. 5、Multi Interface Screen Display: The oscilloscope can test different functions and support multi interface screen display. With keypad design, it is more convenient to operate and select different test function modes. 6、Applicable Items: The oscilloscope supports PC online operation, which is especially suitable for fast pairing of transistors, identification of mixed face mount and wordless components, and initial screening of small batch components. It can automatically identify and measure various transistors, including NPN and PNP transistors, diodes, double diodes, etc.

More Information

Item Type: Digital Oscilloscope
Material: ABS

Main Parameters Of The Machine

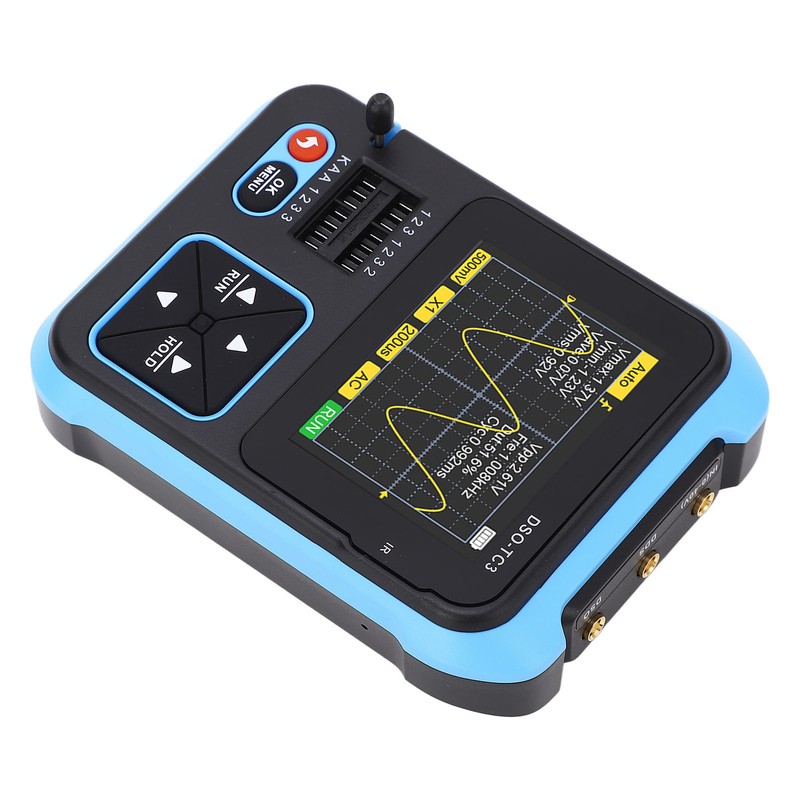

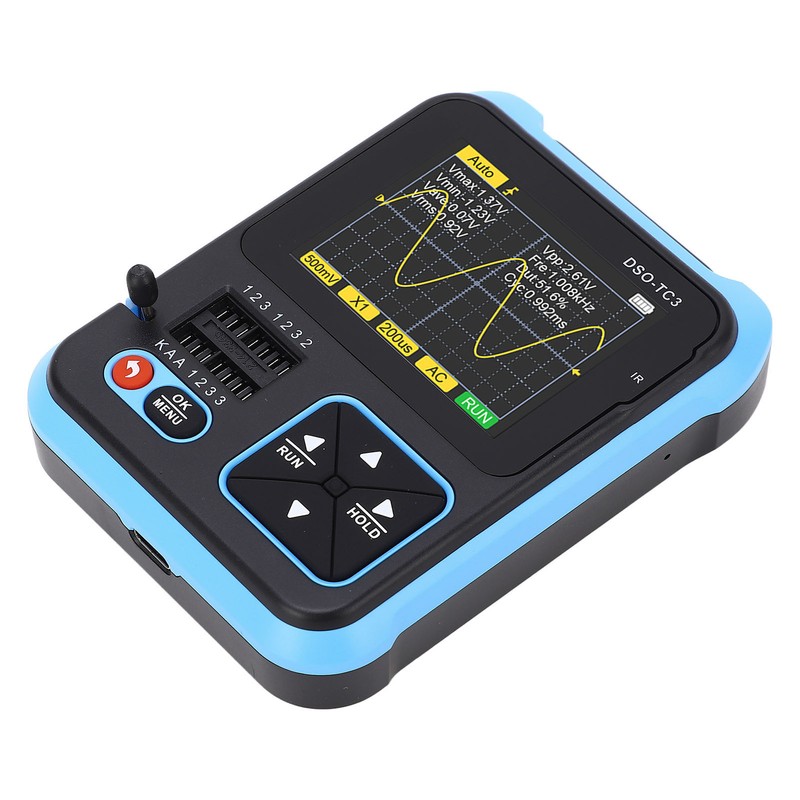

Model

DSO TC3

Display

2.4 Inch TFT Color Screen, LED Backlight

Power Supply Voltage

1 x 803450 1500mah Li Polymers Battery (Shipping With Built In Battery)

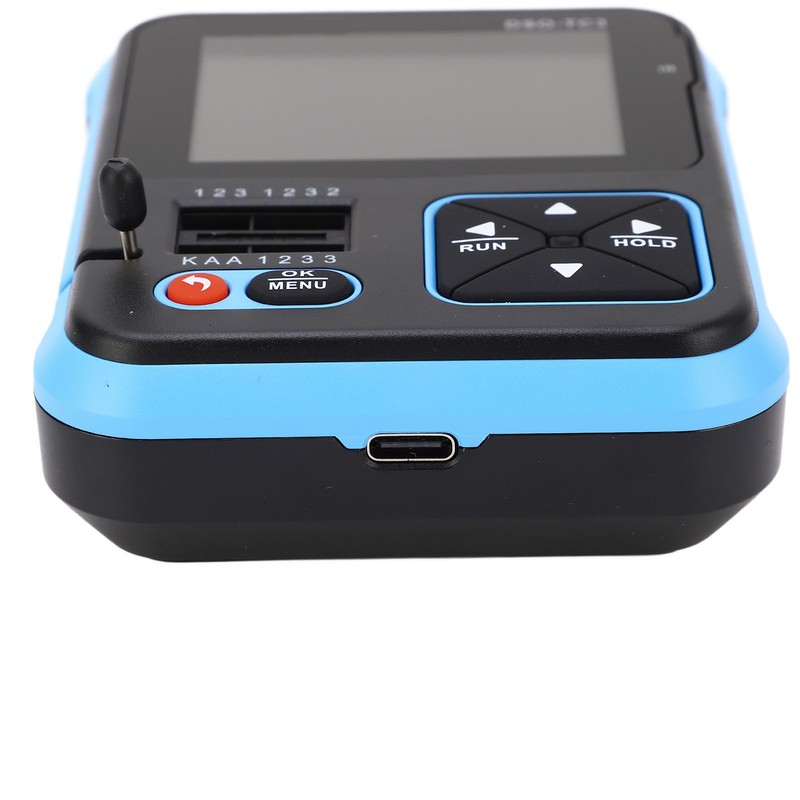

Charging Specification

USB Type C

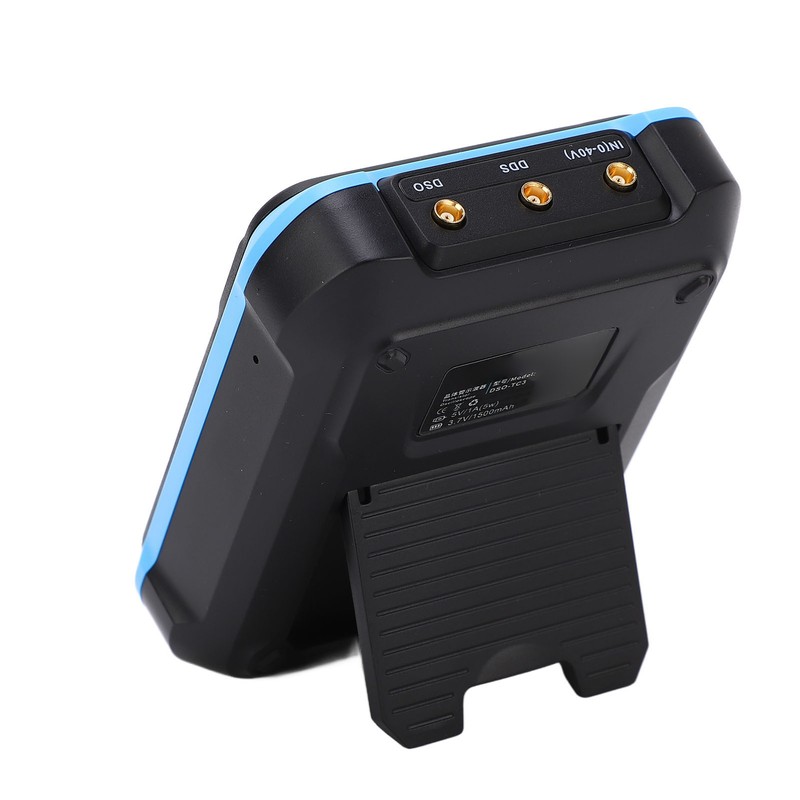

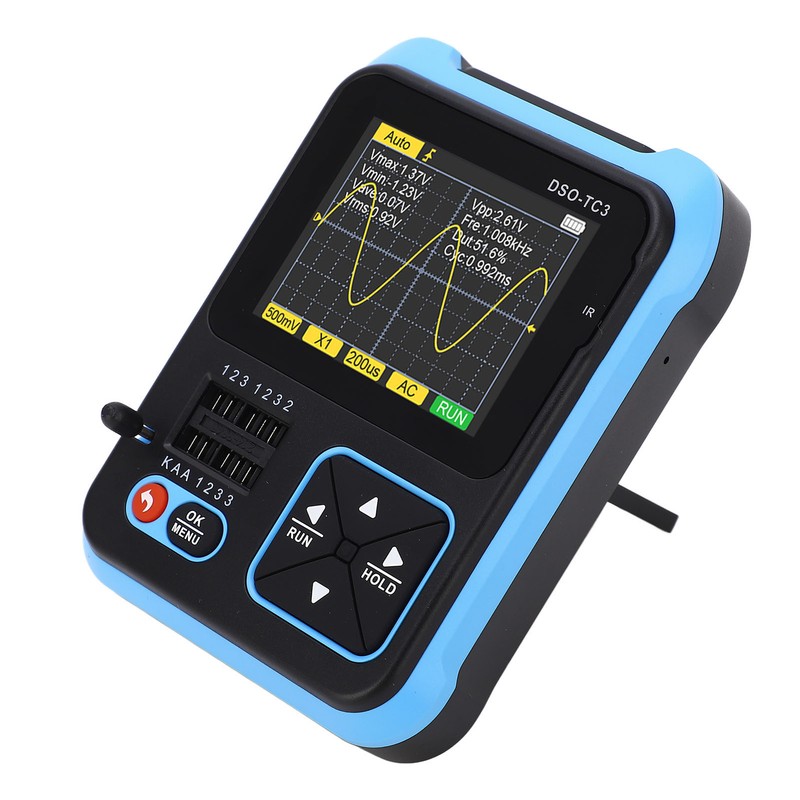

Stand Specifications

One Piece Foldable Stand

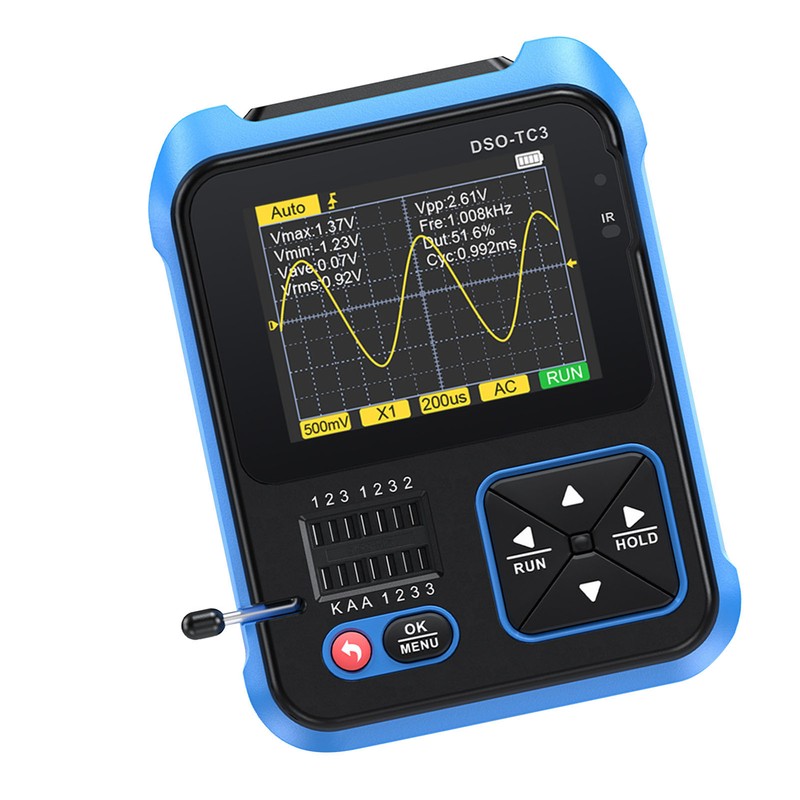

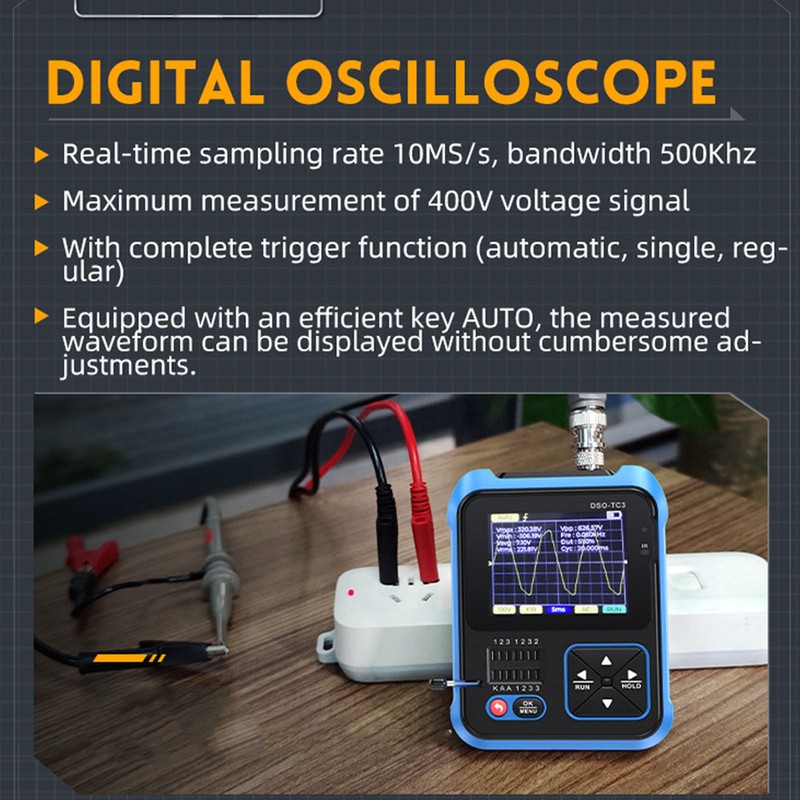

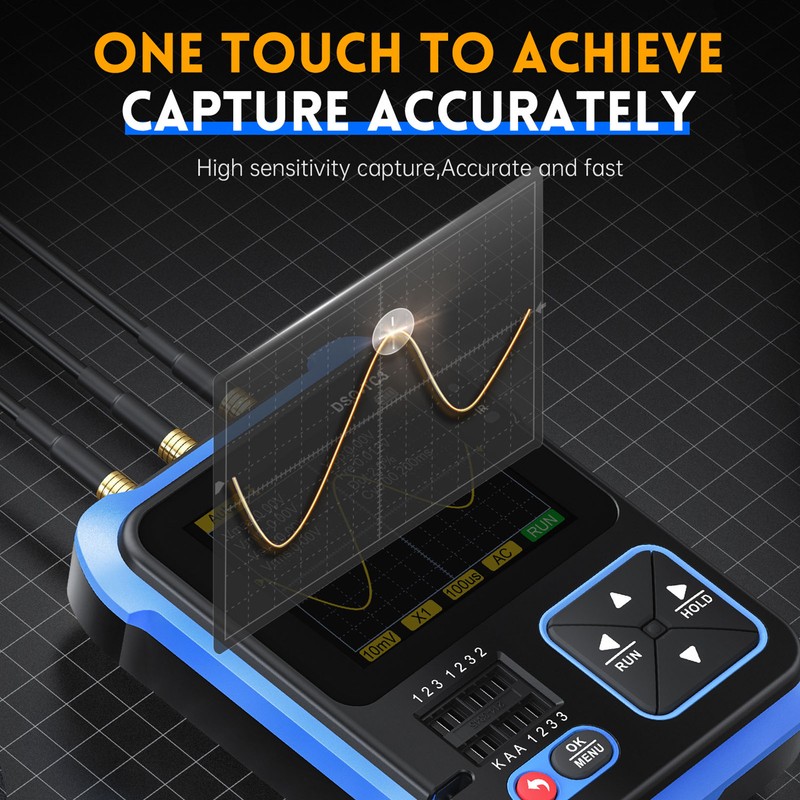

Digital Oscilloscope Mode Parameters
Realtime Sampling Rate 10MSa/s
Analog Bandwidth 500Khz
Input Impedance 1MO
Coupling Method AC or DC
Test Voltage Range ±400V
Vertical Sensitivity 10mV-10V
Horizontal Time Base Range 1us-10s
Trigger Mode Auto, Normal, Single
Trigger Type Rising Edge Or Falling Edge
Waveform Freeze Yes
Automatic Measurement Yes

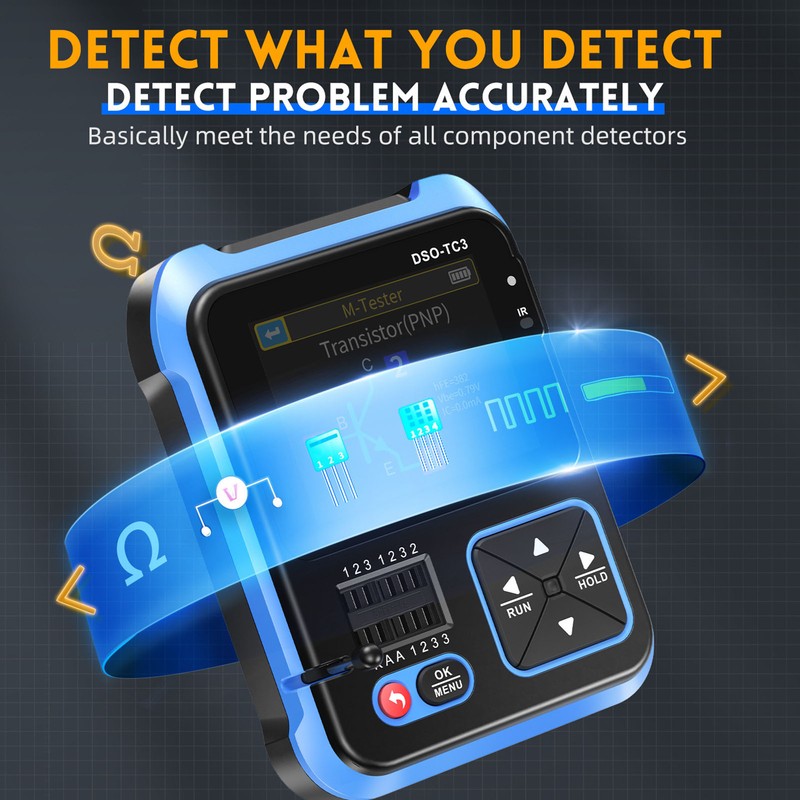

Component Test Mode Parameters
Class Range Description
Triode β greater than 10 less than 600 Magnification hfe, base emitter voltage Ube, lc/le, collector emitter reverse cutoff current lceo, lces, protection diode forward voltage drop Uf
Diode Forward voltage drop <4.5V Forward voltage drop, junction capacitance, reverse leakage current
Voltage regulator diode 0.01-4.5V (1 2 3 test area) Forward voltage drop, reverse breakdown voltage
0.01-32V (K A A test area) reverse breakdown voltage
Field Effect Tube JFET Gate capacitance Cg, drain current ld at Vgs, protection diode forward voltage drop Uf
IGBT Drain current ld at Vgs, protection diode forward voltage drop Uf
MIOSTET Turn on voltage Vt,gate capacitor Cg,drain resistor Rds,protection diode forward voltage drop Uf
One way thyristor Turn on voltage <5V,gate Gate voltage
Bi directional thyristor Trigger current <6mA
Capacitance 25pF-100mF Capacitance value, loss factor Vloss
Resistor 0.010-50MO Resistance Value
Inductance 10uH-1000uH Inductance Value, DC Resistance
Battery 0. 1-4.5V Voltage value, positive and negative polarity
Input Voltage 0-40V Voltage Value
DS 18B20 0-85°C Temperature
DHT1 0-60°C/5-95% Humidity
Infrared remote control decoding protocol infrared coding Display user coding and data coding, well display the corresponding infrared waveform

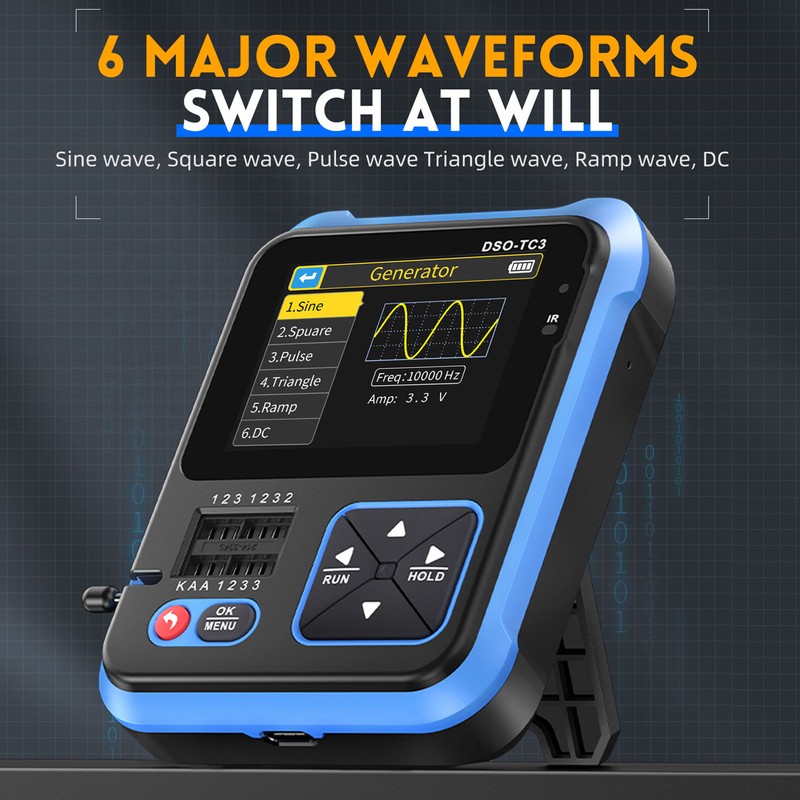

Signal generator parameters
Sine Waving  1-10KHz/0-3.3V/50%
Rectangle Waving 1-100KHz/3.3V/50%
Pulse Waving 1-100KHz/3.3V/0-100percent
Triangular Waving 1-10KHz/0-3.3V/50%
Slope 1-10KHz/0-3.3V/0-100percent
DC 0-3.3V
