HALJIA PN532 NFC Near Field Communication RFID V3 Reader/Writer Module Support Communication with Android Mobile for Arduino Raspberry Pi DIY etc.
$41.96
-
$14.50
shipping from Germany
Duties & customs included — no extra fees on delivery -
Arrives
- Support RFID reading and writing, P2P communication with peers, NFC with Android phone.
- Supports I2C, SPI and HSU (High Speed UART), easy to switch between these modes.
- RFID reader/writer supported: Mifare 1k, 4k, Ultralight and DesFire cards, ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX), Innovision Jewel cards such as IRT5001 card, FeliCa cards such as RCS_860 and RCS_854
- Up to 5cm to 7cm read switch, onboard level switch, standard 5V TTL for I2C and UART, 3.3V TTL SPI.
- Small size and easy to embed into your project. Arduino compatible, plug in and play with our shield
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Support RFID reading and writing, P2P communication with peers, NFC with Android phone.
- Supports I2C, SPI and HSU (High Speed UART), easy to switch between these modes.
- RFID reader/writer supported: Mifare 1k, 4k, Ultralight and DesFire cards, ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX), Innovision Jewel cards such as IRT5001 card, FeliCa cards such as RCS_860 and RCS_854
- Up to 5cm to 7cm read switch, onboard level switch, standard 5V TTL for I2C and UART, 3.3V TTL SPI.
- Small size and easy to embed into your project. Arduino compatible, plug in and play with our shield
Near Field Communication (NFC) is a set of standards for smartphones and similar devices to create radio communication with each other by summarizing them or bringing them close, usually no more than a few centimeters.
For electronics geeks, we also want to use NFC technology to make our own things. So we build this NFC RFID module. This module is built around NXP PN532. NXP PN532 is very popular in NFC field. And the company provides many technology documents for developers. We developed this module based on the official document. And to make things easier, we are also building a library for this module.

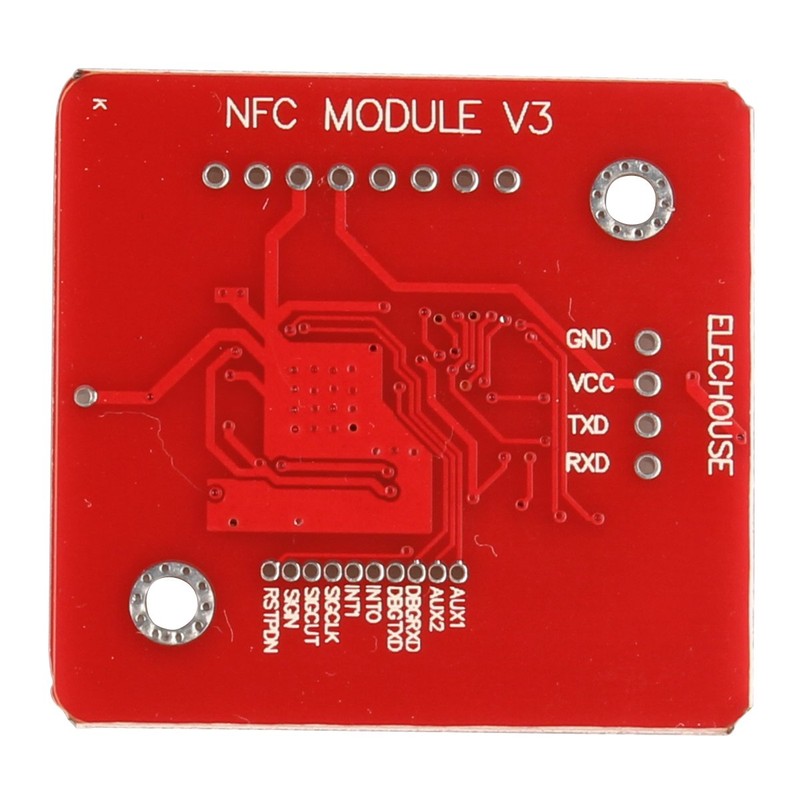

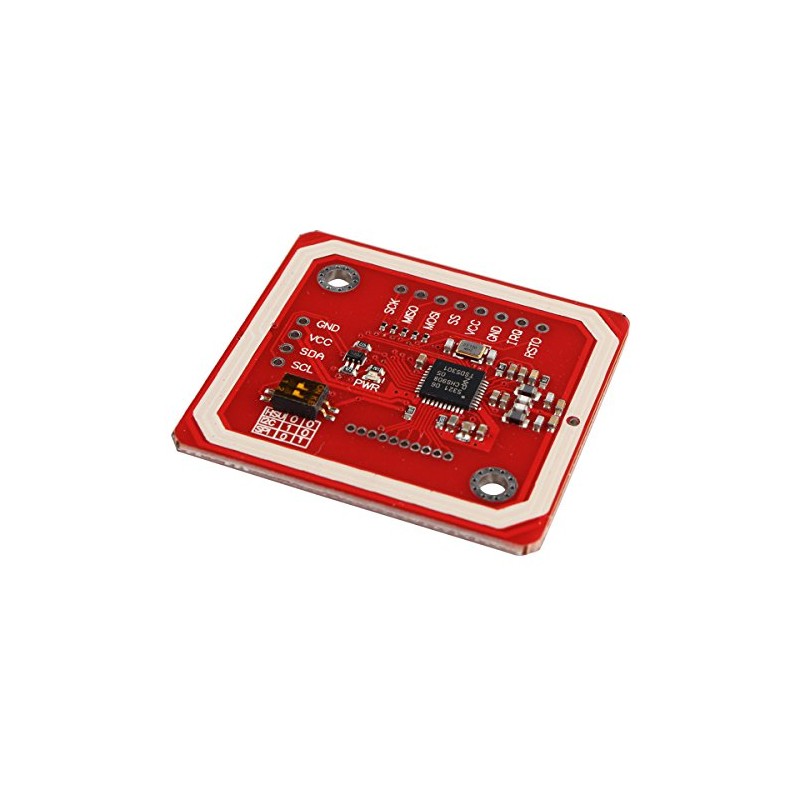

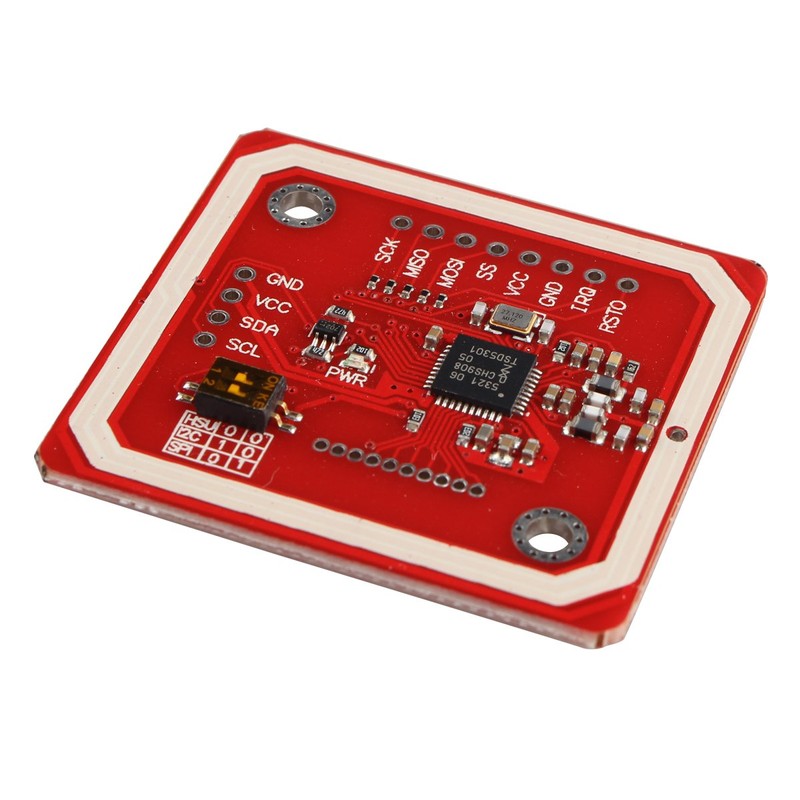

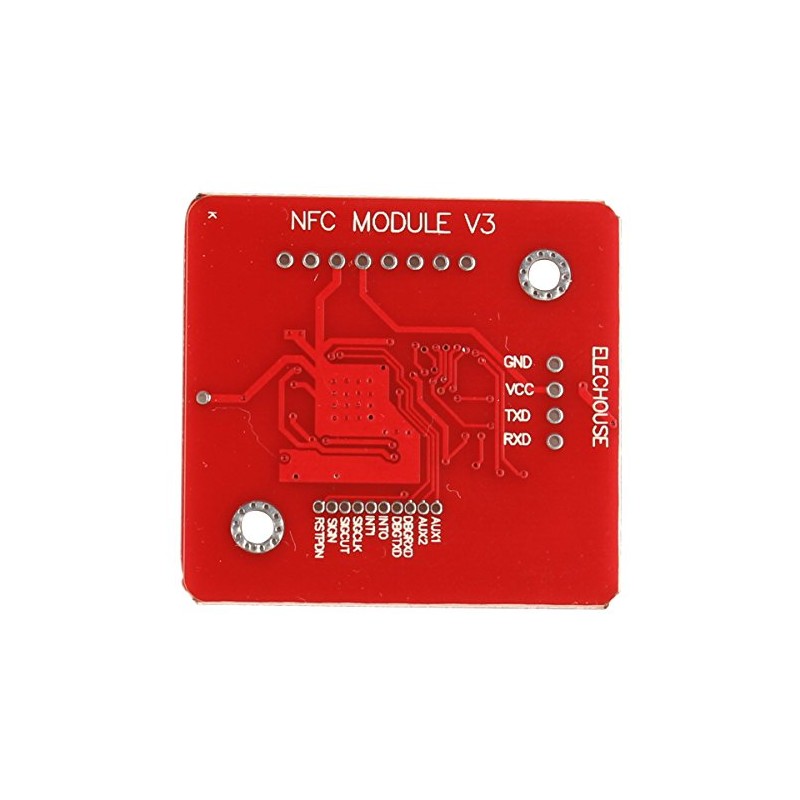

We break out almost all IO pins of NXP532 on this module. Users can easily connect and play. With our Arduino Sensor Shield, it is very easy to plug and play. However, if users want to use a different interface such as UART or SPI, these pins can also be easily connected.
Description:
1. RFID card read/write
As a basic function, this module could read and write RFID card. Different cards can be supported. We also supply libraries for Arduino.
2, P2P communication.
Two peer PN532 modules could communicate with each other wirelessly.
NFC with Android phone.
The basic communication stamp with Android phone (NFC supported) is complete. Currently, we have been able to set a URL on Android smartphone and let it visit a website.
Download link: http://download.haljia.com/download/Sensor/PN532/Z0057-PN532.rar

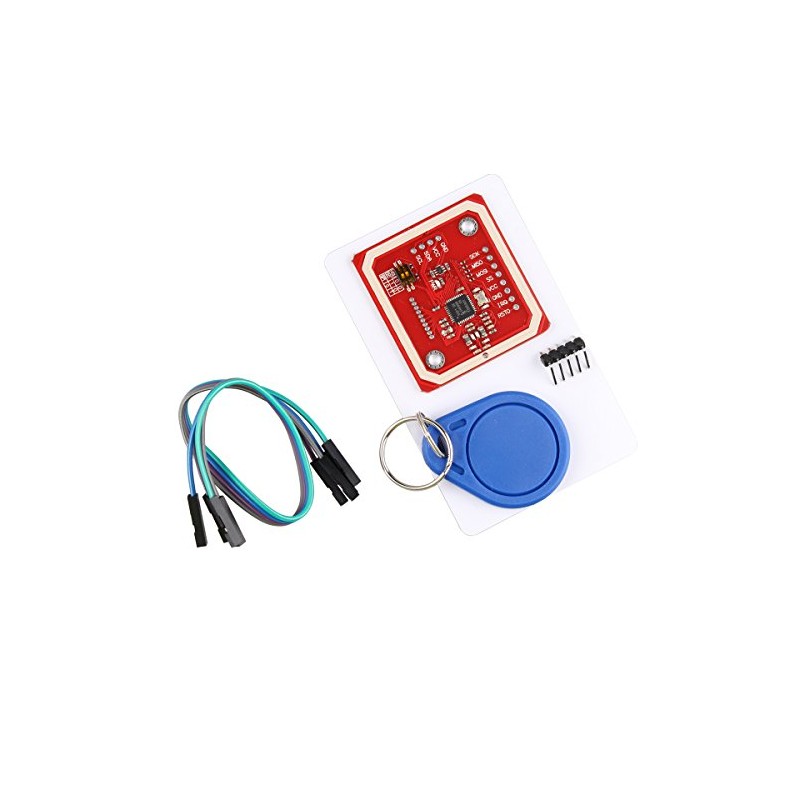

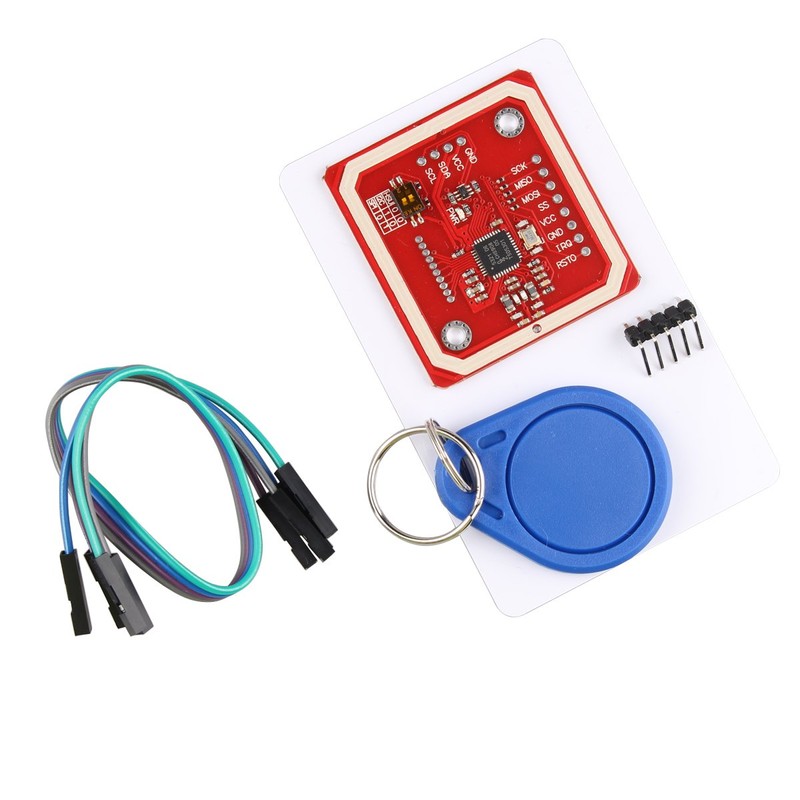

Package includes:
1 x PN532 NFC RFID module.
1 x 2.54mm Spacing 4 Pin Cable (Length: 20cm)
1 x S50 White Card
1 x S50 Key Card
1 x 4 Pin Curved Pin Header
